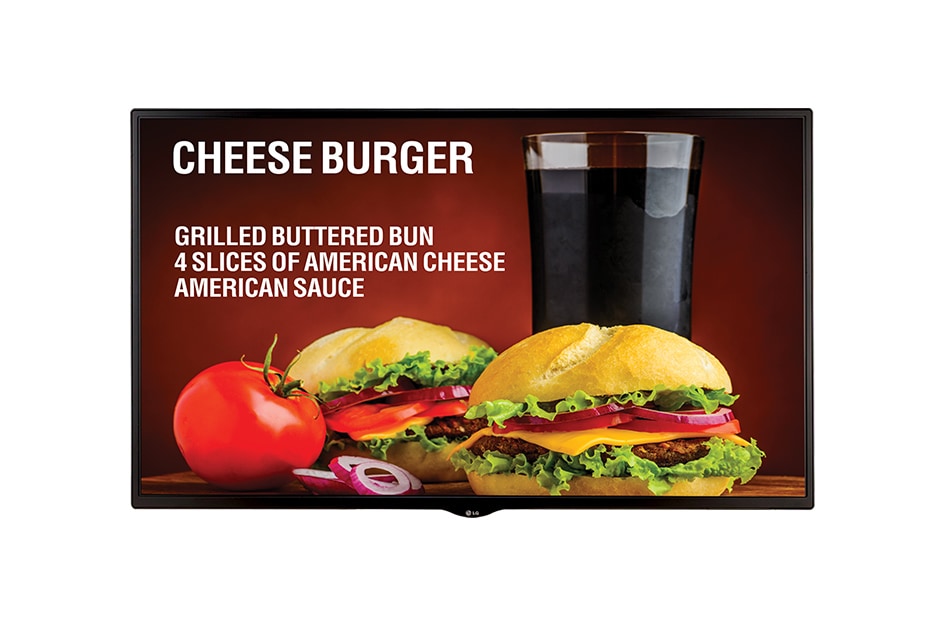

SM5D Series

Key Features

Choose your Size

component-OBScountrySelectDesc

SM5D Series
Panel
  • Screen Size
    32"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    400
Connectivity
  • Input
    HDMI(2), DP, DVI-D, RGB, Audio
    Output
    DP, Audio, External Speaker
  • External Control
    RS232C in/out, RJ in, IR Receiver, Pixel Sensor, USB 3.0
Physical Specification
  • Bezel Width
    13.0 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D)
    729.4mm X 428.9mm X 55.5mm
  • Weight (Head)
    5.2kg
    VESA™ Standard Mount Interface
    200 x 200
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    60W
    Smart Energy Saving
    45W
Standard(Certification)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    NA / Yes(Energy Star 7.0)
Media Player Compatibility
  • OPS type compatible
    Yes
    External Media player Attatchable
    No
Software Compatibility
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
    Optional
    Speaker(SP-5000), Stand(ST-322T), Pixel sensor(KT-SP0), Wall bracket(LSW230B), OPS Kit(KT-OPSA), HD Base T(EB-B100), Touch overlay (KT-T320)
General
  • Region
    Global
  • Dimension
    • 32SM5D.dwg
    • 32SM5D.pdf
  • Datasheet
    • SM5D Leaflet (preview) 170414.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
