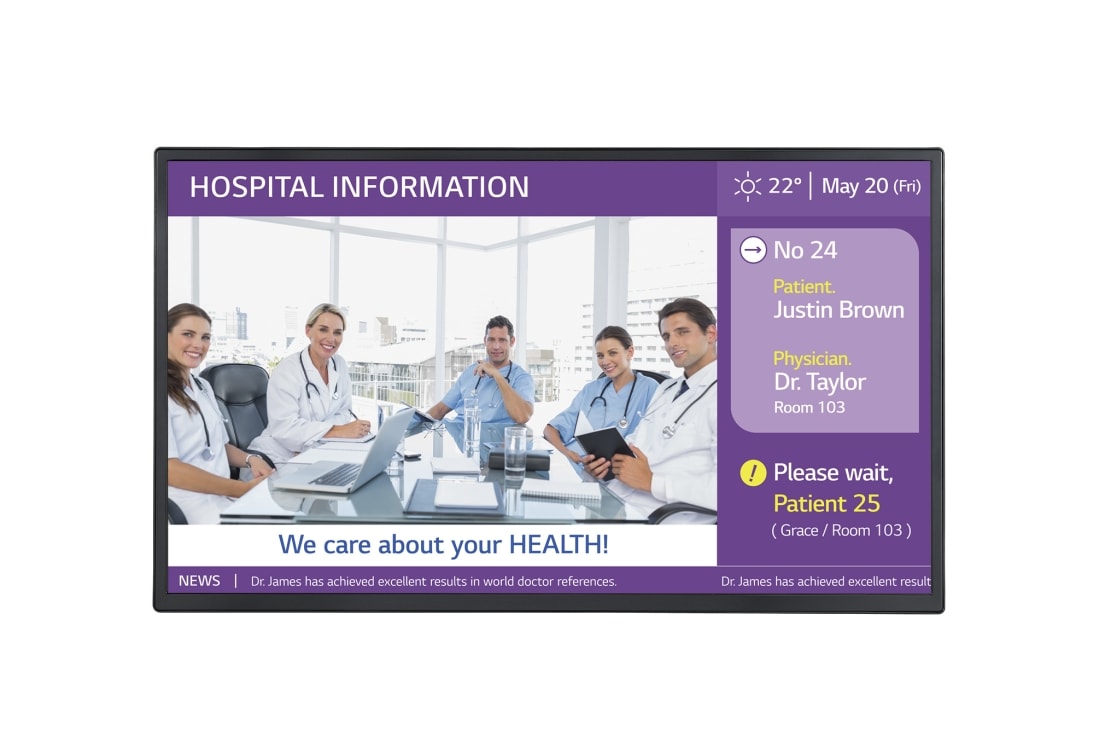

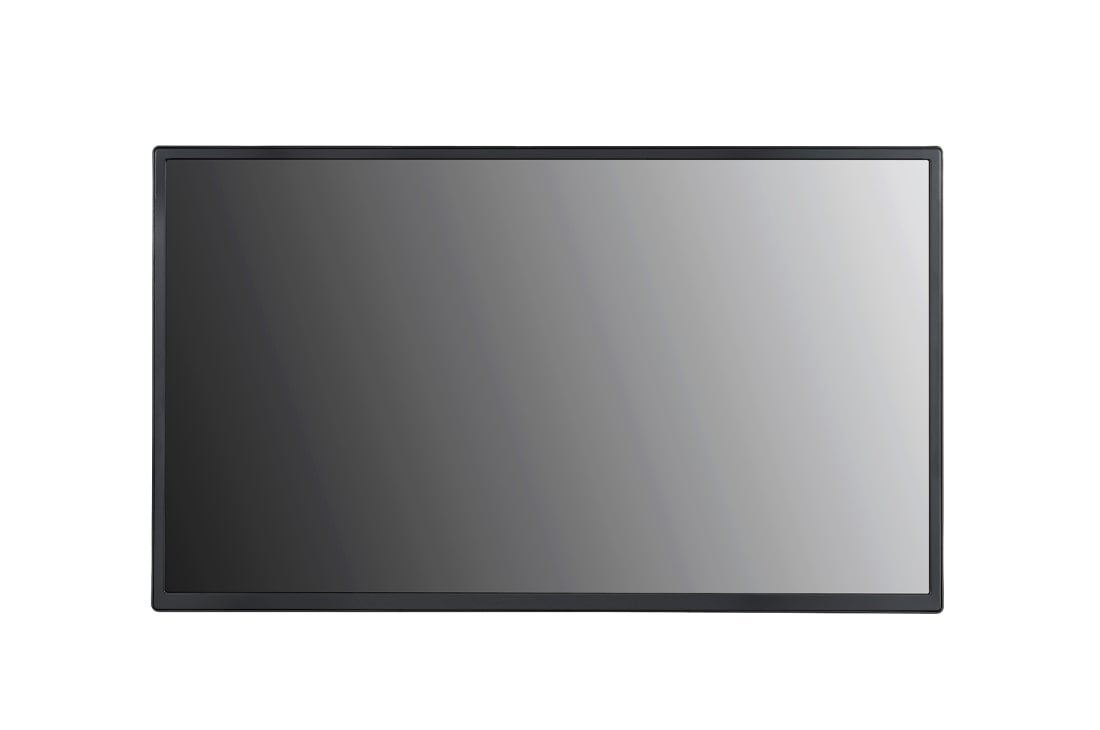

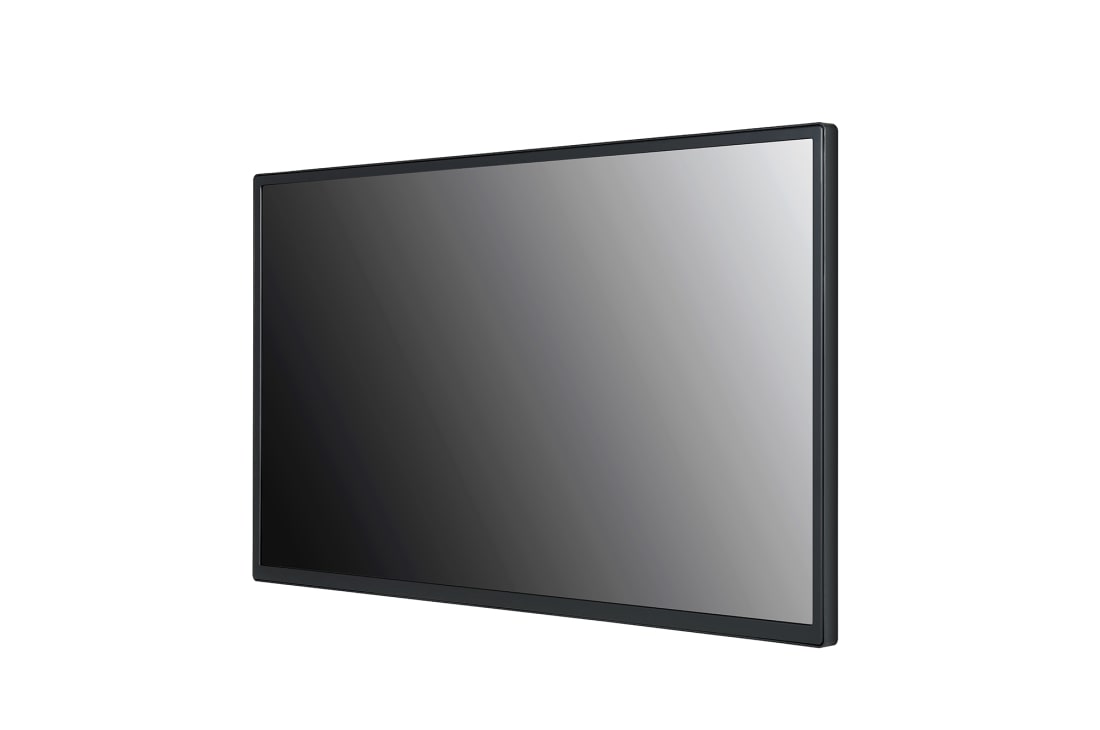

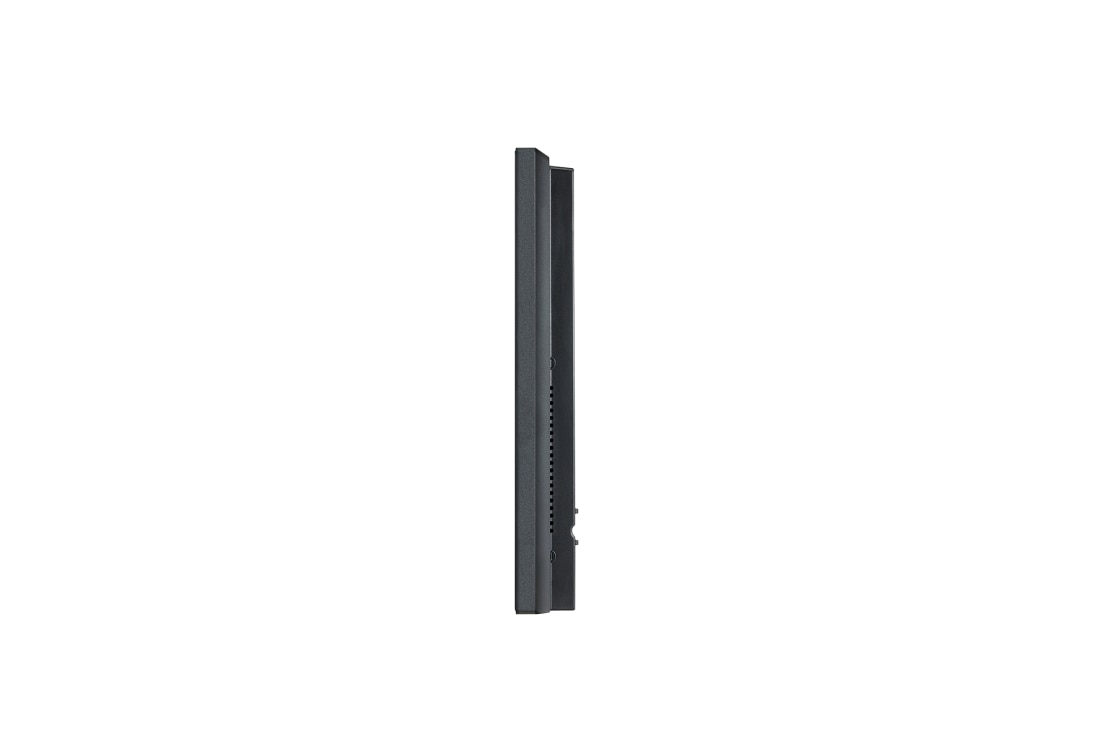

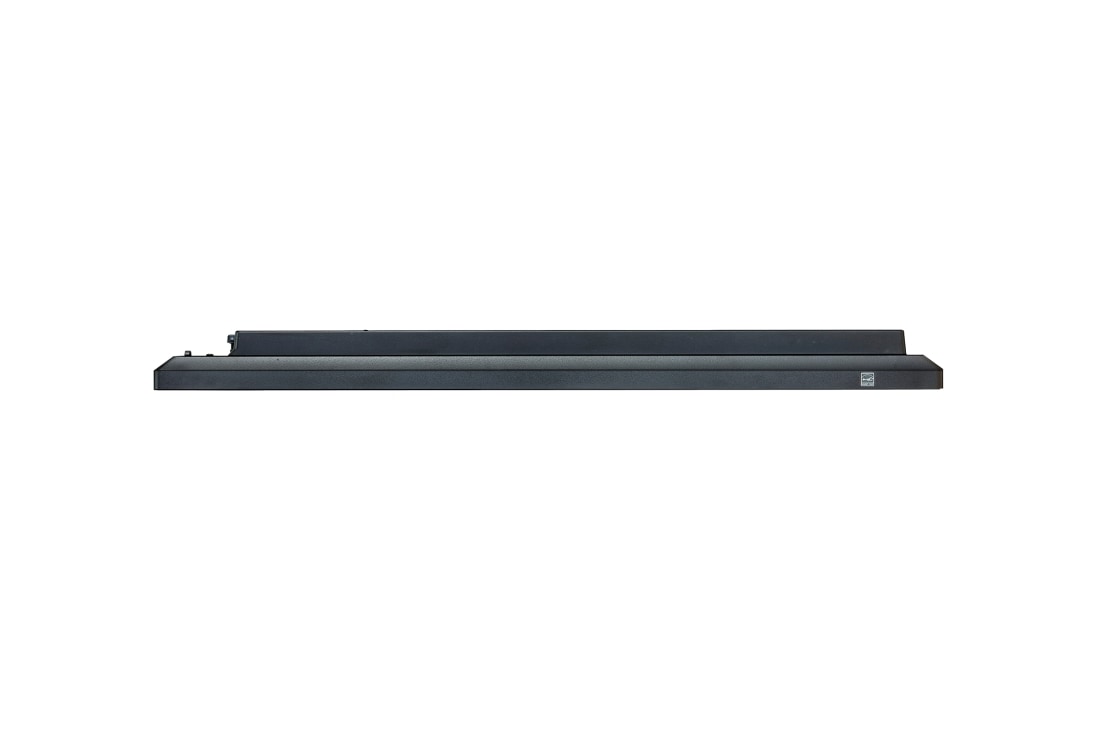

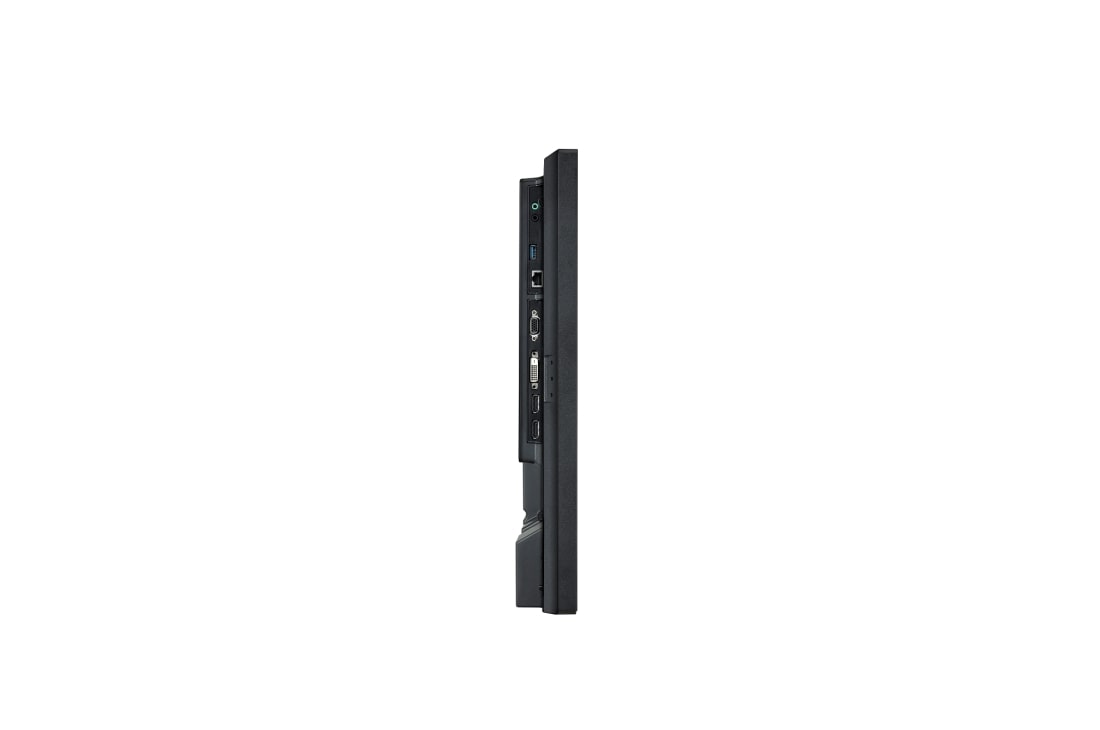

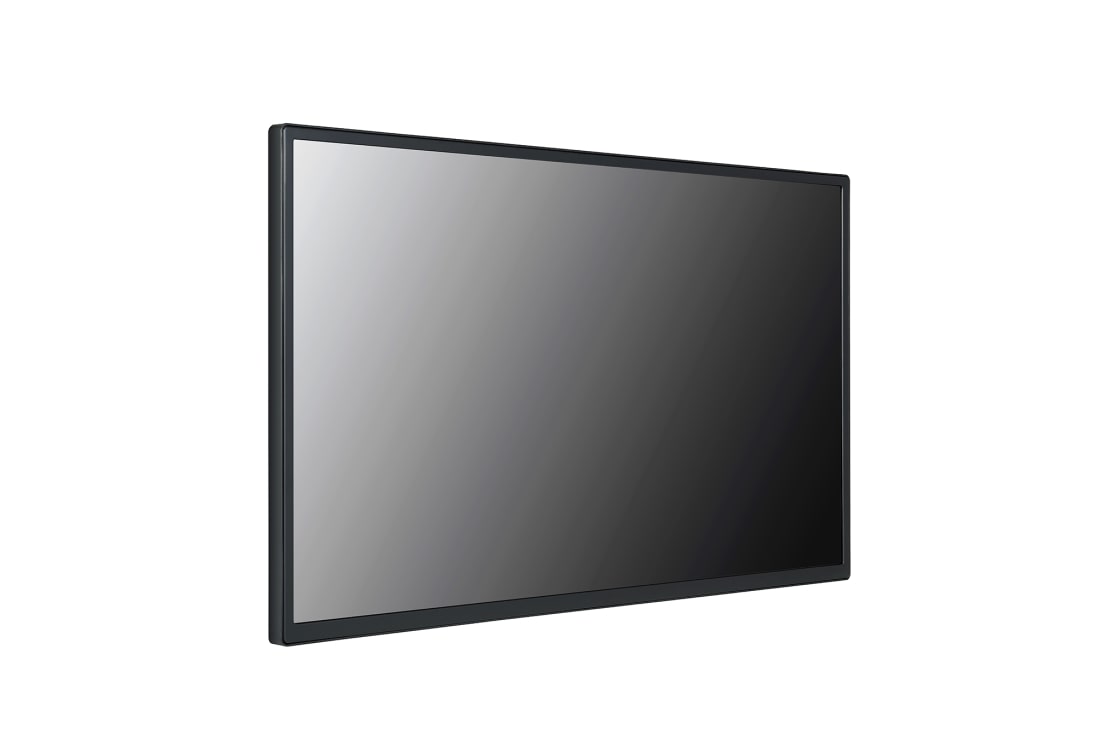

32ML5K component-copyModelName
Standard Signage for Hospitals

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32ML5K)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32ML5K)
    $
    $
    LG Members Price
Total
Standard Signage for Hospitals
Inquiry to Buy

Standard Signage for Hospitals

Two TVs are installed on the hospital information desk’s wall, and each screen is displaying the hospital and doctors’ information. Two TVs are installed on the hospital information desk’s wall, and each screen is displaying the hospital and doctors’ information.
* 43 inch
* All images in this web page are for illustrative purposes only.

Appropriate Display Brightness

With recommended brightness for indoor display, the ML5K series clearly delivers content and attracts public attention, making it the most suitable display for marketing in hospital, meeting rooms, airports, retail, shopping malls, etc.
43ML5K and 32ML5K have brightness of 500 and 400 nits each, so they are cleary visible, even under strong light. 43ML5K and 32ML5K have brightness of 500 and 400 nits each, so they are cleary visible, even under strong light.
* Actual images available may differ from the example images shown.
* 43ML5K has 500 nit and 32ML5K has 400 nit.

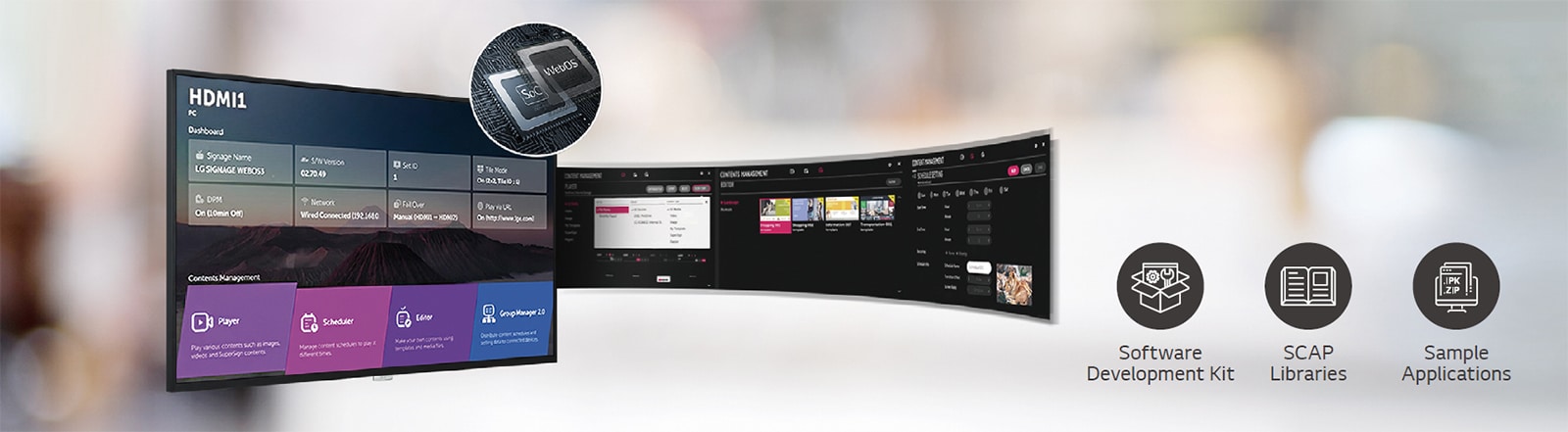

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

Conformal Coating

In various places the ML5K series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting ML5K series from salt, dust, iron powder, humidity, etc.
The ML5K has Conformal Coating on the power board to protect video wall even in a salty or humid environment. The ML5K has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
* Actual images (signage display) available may differ from the example images shown.

Compatible with AV Control System

The ML5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

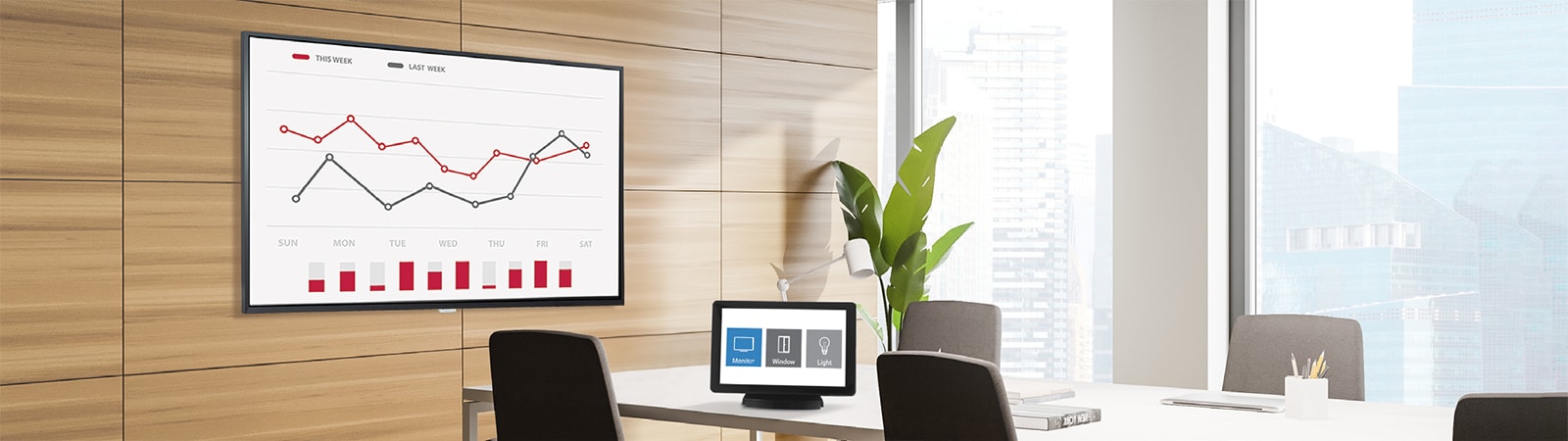

The AV control system helps users control the ML5K. The AV control system helps users control the ML5K.
* Network based control

PoE++ Mode

Install 32ML5K easily without AC power plugs and sockets. PoE++ (Power over Ethernet) mode is available on 32ML5K, which brings an integrated network and power connection via RJ45, without using an electrical outlet.
A patient is lying in the hospital room and watching a TV installed on the wall. The TV can be operated with AC power or PoE power. A patient is lying in the hospital room and watching a TV installed on the wall. The TV can be operated with AC power or PoE power.
* 32ML5K only
* PSE (Power Sourcing Equipment) required when using PoE++ Mode
* PSE Equipment is not included.
* AC Power mode : 400 nit, PoE++ Mode : 200 nit
Close
Panel
  • Screen Size
    32"
    Panel Technology
    IPS
  • Back Light Type
    Direct
    Aspect Ratio
    16 : 9
  • Native Resolution
    1920x1080 (FHD)
    Refresh Rate
    60Hz
  • Brightness
    AC Mode 400nit(Typ.)
    PoE Mode 200nit (Typ.)
    Contrast Ratio
    1,200:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    BT709 95%
  • Viewing Angle(H x V)
    178 X 178
    Color Depth
    8-bit, 16.7Million colors
  • Response Time
    9ms (G to G)
    Surface Treatment(Haze)
    1%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
Connectivity
  • Input
    HDMI (2, HDMI1/HDMI2 : HDCP 2.2/1.4), RS232C IN (1, 4pin Phone-jack), RJ45(LAN) (1, PoE++), IR IN, USB (USB2.0 Type A(1))
    Output
    Audio Out, RS232C OUT (1, 4pin Phone-jack)
Mechanical Specification
  • Bezel Color
    Black
    Bezel Width
    T/R/L : 13.0mm, B : 18.0mm
  • Weight(Head)
    5.7Kg
    Packed Weight
    7.4Kg
  • Monitor Dimension(W x H x D)
    729.4mm x 428.9mm x 55.5mm
    Carton Dimensions(W x H x D) (Box outer size)
    810mm x 510mm x 132mm
  • VESATM Standard Mount Interface
    200 x 200
Key Feature
  • HW
    Internal Memory 16 GB, Wi-Fi Built-in, Temperature Sensor, Auto Brightness sensor, Local Key Operation
    SW
    webOS ver. (webOS6.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
Environment Conditions
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    120V~, 50/60Hz or PoE++ : 41.1-57V
    Power Type
    Built-In Power / PoE++
Power Consumption
  • Typ.
    55W
    Max.
    75W
  • BTU (British Thermal Unit)
    188 BTU/Hr(Typ.), 256BTU/Hr(Max.)
    Smart Enegy Saving(~70%)
    38.5W
  • DPM
    1W
    Power off
    1W
Sound
  • Speaker
    Yes (3W x 2EA)
Certification
  • Safety
    NRTL
    EMC
    FCC Class "A"
  • ErP / Energy Star
    NA / Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    Mobile CMS
    Yes
  • Signage 365 Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Polski, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Special Feature
  • PoE - TYPE
    PoE++ : Type3 802.3bt
    PoE - Power Class
    Class 6
