Stretch Signage
Contact Us

Bring the Remaining Space to Life with Space-fitting 32:9 Widescreen

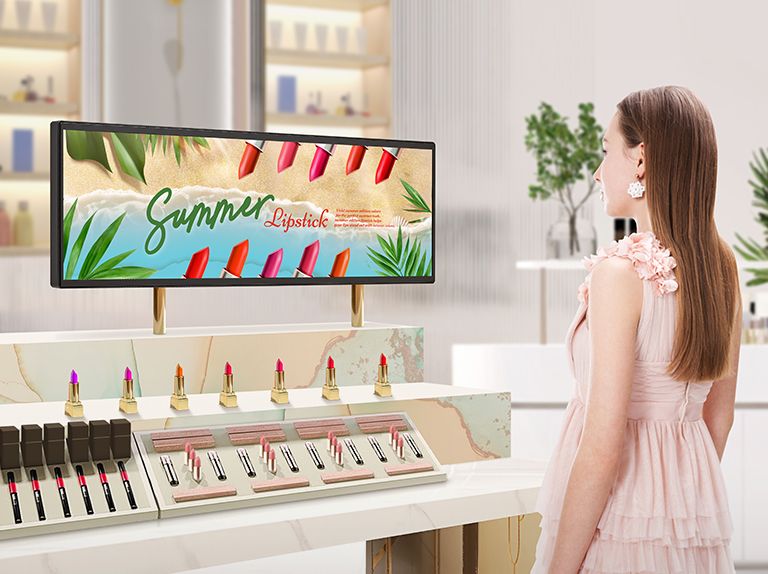

Inside a bright cosmetics store, there is a BH7N installed at the lipstick section. A woman is watching a vivid advertisement displayed on the wide screen of BH7N. Inside a bright cosmetics store, there is a BH7N installed at the lipstick section. A woman is watching a vivid advertisement displayed on the wide screen of BH7N.
* All images in this page are for illustrative purposes only.

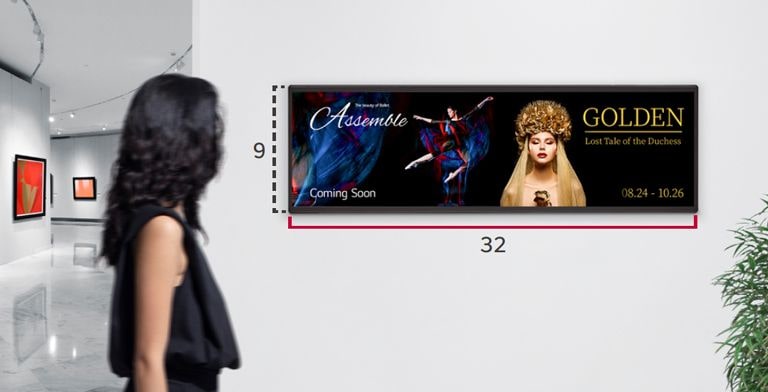

A woman is watching a performance advertisement on a wide screen with a 32:9 aspect ratio. A woman is watching a performance advertisement on a wide screen with a 32:9 aspect ratio.

32:9 Extended Wide Format

It is a unique wide screen with 32:9 bar type which provides much more flexibility in content than the conventional display of 16:9 ratio.

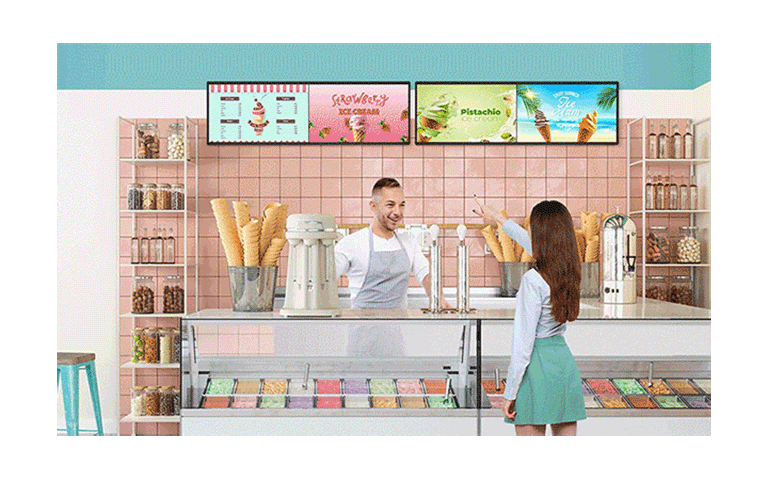

Inside an ice cream shop, there is a BH7N installed, and the screen is simultaneously showing the ice cream menu and advertisements. Inside an ice cream shop, there is a BH7N installed, and the screen is simultaneously showing the ice cream menu and advertisements.

Picture-by-Picture (PBP) Mode

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display. It is very useful and convenient to deliver various advertisements or pieces of information at the same time.

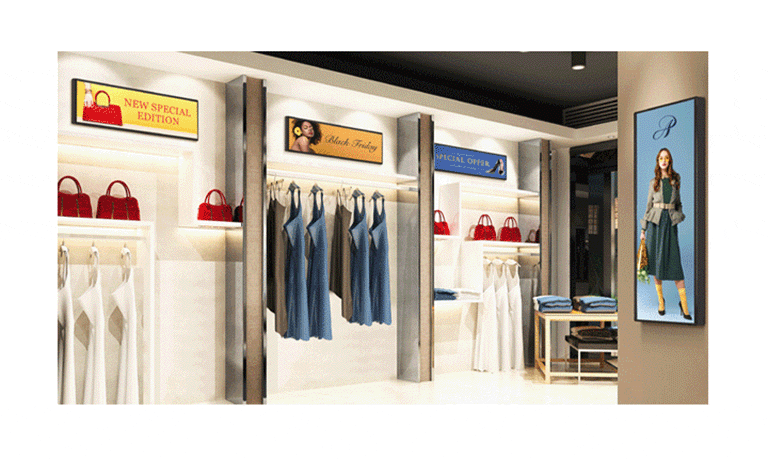

The BH7N is installed in the fashion mall, completely filling the unused space, both horizontally and vertically. The BH7N is installed in the fashion mall, completely filling the unused space, both horizontally and vertically.

Portrait/Landscape Mode

BH7N can be used vertically as well, allowing for flexible utilization in various installation/usage scenes in both horizontal and vertical orientations. It can be utilized for displays according to the characteristics and size of unused and leftover spaces.

Customizable Angle to
Suit Customer's Eye Level

With a tilting capability of 30° when installed at a higher height, BH7N enhances customer perception and satisfaction.

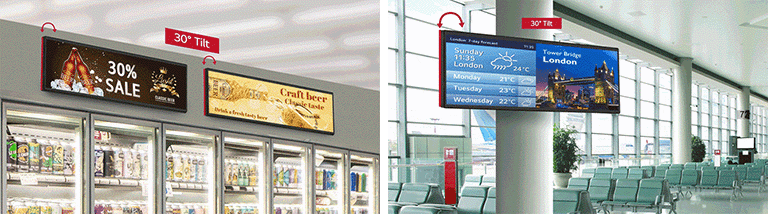

The BH7N is installed higher than eye level but tilted at a 30° angle, ensuring that the screen content is well-visible. The BH7N is installed higher than eye level but tilted at a 30° angle, ensuring that the screen content is well-visible.

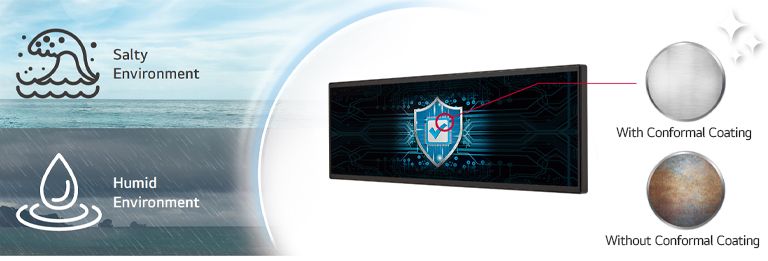

Highly Reliable in High Humidity Environments

Optimized for business environments, the BH7N is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation.
The BH7N has conformal coating on the power board to protect display even in a salty or humid environment. The BH7N has conformal coating on the power board to protect display even in a salty or humid environment.

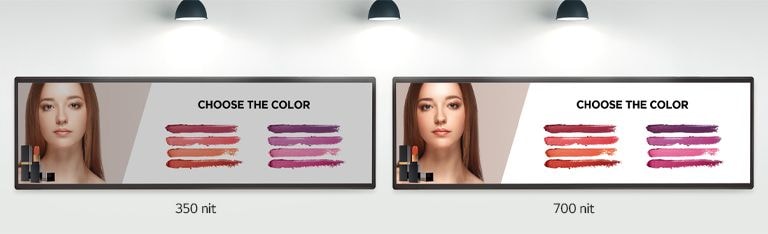

Indoor Display Offering a Vivid and Sharp Visual Experience

With a great brightness of 700 cd/m2, the BH7N series clearly deliver content and attract public attention, making it suitable display for marketing in airports, retail, shopping malls etc.
BH7N has a brightness of 700 nits, so it is clearly visible, even under strong light. BH7N has a brightness of 700 nits, so it is clearly visible, even under strong light.
* The provided image is intended for comparison purposes only.

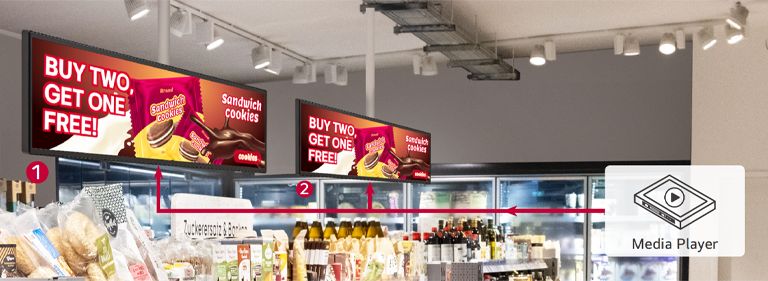

Daisy Chain Management

A daisy chain allows you to conveniently and efficiently play the same content on multiple displays using just one media player. This eliminates the need to install separate media boxes for each display, as the entire operation can be handled by a single media player, ultimately resulting in cost savings during installation.
Multiple displays in the market are being managed at once through Daisy Chain. Multiple displays in the market are being managed at once through Daisy Chain.
* You can play media by connecting an external HDMI.

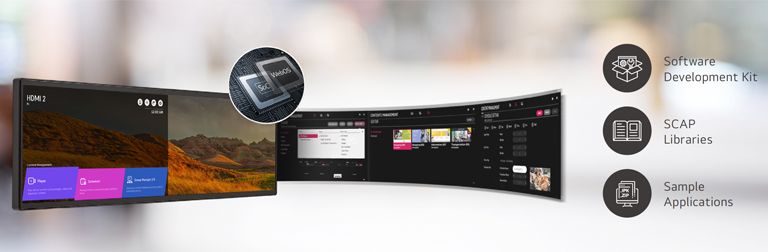

High Performance with
LG webOS 6.0

LG webOS 6.0 is available on BH7N series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.*
Several tasks that can be done through the LG webOS smart platform are arranged in the BH7N screen. Several tasks that can be done through the LG webOS smart platform are arranged in the BH7N screen.
* GUI : Graphical User Interface
* The provided image is solely for reference.

Real-Time Monitoring
with LG ConnectedCare

Easy and Fast maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
The one of LG employee is remotely monitoring the BH7N screen installed in a client workplace by using cloud-based LG monitoring solution, called LG ConnectedCare. The one of LG employee is remotely monitoring the BH7N screen installed in a client workplace by using cloud-based LG monitoring solution, called LG ConnectedCare.
* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

SuperSign

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
The manager of a clothing store is creating advertisements that will be displayed on the BH7N screen installed on the store wall using content management software, SuperSign. The manager of a clothing store is creating advertisements that will be displayed on the BH7N screen installed on the store wall using content management software, SuperSign.
Close
Panel
  • Screen Size
    37"
    Panel Technology
    IPS (ADS)
  • Back Light Type
    Edge
    Aspect Ratio
    32:9
  • Native Resolution
    1920x540 (FHD)
    Refresh Rate
    60Hz
  • Brightness
    700nit(Typ)
    Contrast Ratio
    1,000:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle(H x V)
    178 X 178
    Color Depth
    8 bit, 16.7 Million colors
  • Response Time
    14ms (G to G)
    Surface Treatment(Haze)
    Haze 25%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
Connectivity
  • Input - Digital - HDMI
    Yes (2, HDMI Daisy cahin support)
    HDMI1/HDMI2 : HDCP 2.2/1.4
    HDMI2: ARC
    Input - Digital - DP
    Yes (1)
  • Input - RS232C IN
    Yes (1)
    Input - RJ45(LAN)
    Yes (1)
  • Input - IR IN
    Yes (1)
    Input - USB
    USB2.0 Type A(1, USB Auto Playback)
  • Output - HDMI Out
    Yes (1)
    Output - Audio Out
    Yes (1), Speaker NA(Audio line Out)
  • Output - External Control - RS232C OUT
    Yes (1)
Mechanical Specification
  • Bezel Color
    Black
    Bezel Width
    T/R/L/B : 15.6/9.3/9.3/15.6
  • Weight(Head)
    7kg
    Packed Weight
    9kg
  • Monitor Dimension(W x H x D)
    922.3 x 288.3 x 43.5 mm (without IR)
    VESA™ Standard Mount Interface
    400×200mm
Key Feature
  • HW
    Internal Memory(16GB), Wi-Fi(Built-in), Sensor(Temperature Sensor,Auto Brightness sensor,Acceleration(Gyro) Sensor(portrait/landscape)), Local Key Operation
    SW
    webOS ver.(webOS6.0), Embedded CMS(Local Contents Scheduling,Group Manager), USB Plug & Play, Fail over, Background Image(Booting Logo Image,No Signal Image), Sync Mode(RS-232C Sync,Local Network Sync), Multi-screen(PBP(2)), Video Tag(4), Rotation(Screen Rotation,External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15x15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Power(Smart Energy Saving,PM mode,Wake on LAN,Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100~240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    40W
    Max.
    50W
  • BTU (British Thermal Unit)
    136.4 BTU↓/Hr(Typ.), 170.6BTU↓/Hr(Max.)
    Smart Enegy Saving(~70%)
    30W±10%
  • DPM
    0.5 W
    Power off
    0.5W
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "B" / CE / KC
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Cloud
    Yes
  • Mobile CMS
    Yes
    Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkiye, Arabic, polski
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord(1.55 M*1), QSG, Regulation Book, Phone to RS232C Gender,Power Cord Clip
Special Feature
  • Tilt(Facedown)
    Yes (Max 30 degree)
    Conformal Coating (Power Board)
    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
