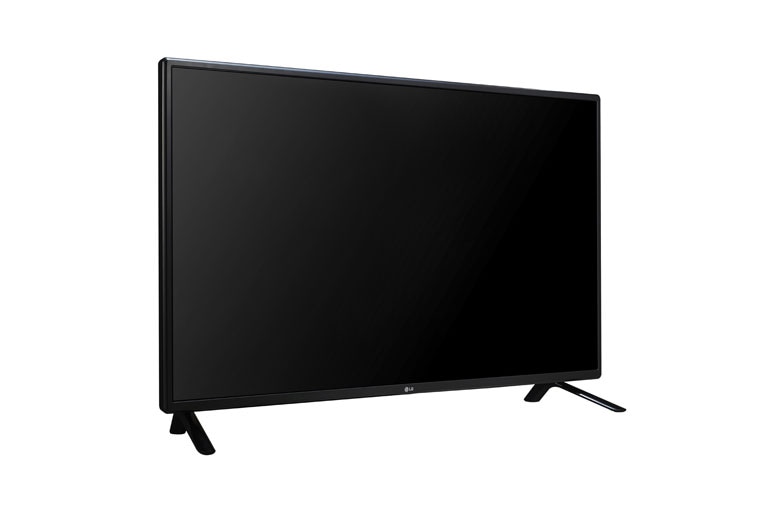

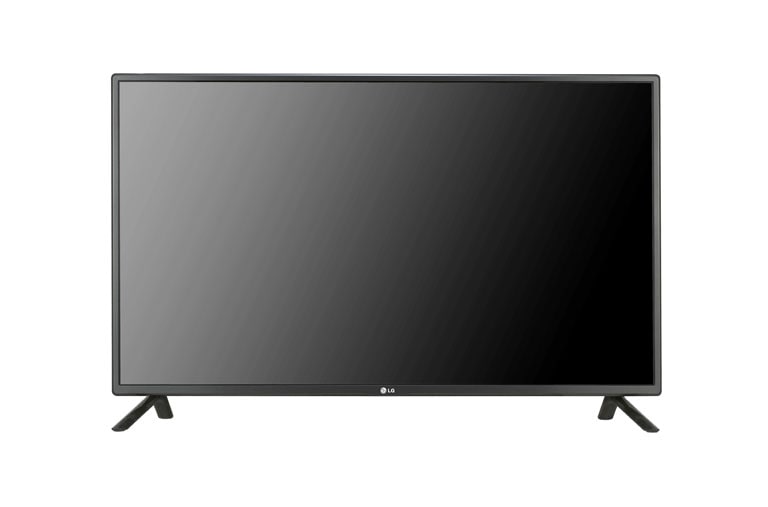

LS35A Series

Key Features

component-OBScountrySelectDesc

LS35A Series
Panel
  • Screen Size
    42" Class
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    450
Connectivity - Intput
  • Digital
    HDMI(1)
    Analog
    RGB(1)
  • Audio
    RGB(3.5Ø 1)
    External Control
    RS232C(1), RJ45(1), IR(1)
  • USB
    Yes (1)
Connectivity - Output
  • Audio
    Speaker L/R
    External Control
    RS232C(1)
Audio
  • Balance
    Yes
    Audio Power
    20W(10W x 2)
  • Speaker On/off
    Yes
    Clear Voice II
    Yes
  • Sound Mode
    Standard, News, Music, Cinema, Sport, Game
Physical Specification
  • Bezel Width
    Flat Bezel : 0.33inch(L/R/U), 0.55inch(B) [8.5mm(L/R/U), 14mm(B)] / After Curvature : 0.52inch(L/R/U), 0.74inch(B) [13.3mm(L/R/U), 18.8mm(B)]
    Monitor Dimension (W x H x D)
    37.77 x 22 x 2.18 inch [959.5mm x 559mm x 55.5mm]
  • Weight (Head)
    9.1kg
    VESA™ Standard Mount Interface
    400mm x 400mm
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    75W (Max. 95W)
    Smart Enegy Saving Off / On
    60W / 34W
  • DPM
    0.7W(DVI-D, HDMI, DP)
    Power off
    0.5 W
Standard(Certification)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes / Yes (Energy Star 6.0)
Media Player Compatibility
  • External Media player Attatchable
    Yes (MP500/MP700)
Software Compatibility
  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, IR Receiver, CD (Owner's Manual, SuperSign Program / Manual), RGB Cable
    Optional
    SP-2100, ST-421T, LSW440S(wall bracket)
  • Dimension
    • [Dimension] 42LS33A_LS35A_LS53A_LS55A.dwg
    • [Dimension] 42LS33A_LS35A_LS53A_LS55A.pdf
  • Datasheet
    • [Leaflet] LS35A.pdf
