Discontinued

43SH7PE-H component-copyModelName

SH7PE-H Series

Key Features

Brightness(Typ.) : 665 cd/m²
Bezel : 11.9 mm (T/L/R), 18.0 mm (B)
Depth : 54 mm
Interface : HDMI(2), DVI-D, RGB, USB, RJ45, RS232C, IR
Built-in Speaker(10W+10W)
Haze 28%, OPS Power Built-in, EMC Class "B"

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 665 cd/m²
Bezel : 11.9 mm (T/L/R), 18.0 mm (B)
Depth : 54 mm
Interface : HDMI(2), DVI-D, RGB, USB, RJ45, RS232C, IR
Built-in Speaker(10W+10W)
Haze 28%, OPS Power Built-in, EMC Class "B"

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

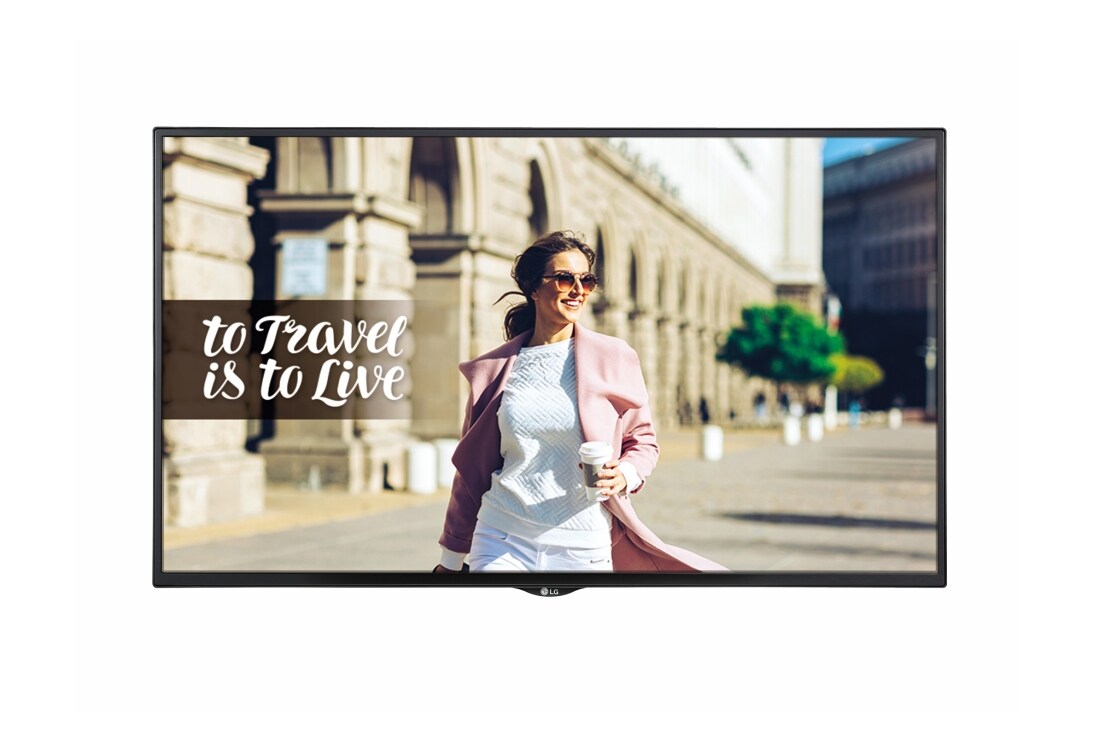

SH7PE-H Series

Outstanding Clarity and Unifomity

The SH7PE-H series creates entertaining and memorable experiences for customers while delivering clear and vivid content under brightly lit locations. Its built-in OPS power enables a single cable connection and a tidy appearance, which is especially important in places with heavy foot traffic, such as airports, train stations, or QSRs.

01_Clear View with Non-glare Coating_1525222938361

Superior Picture Quality

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The SH7PE-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

Superior Picture Quality

High Visibility

The 700 cd/m² brightness is enough to stand out against the surrounding background, so the display can attract passerby and delivers content vividly and effectively under brightly lit condition.

03_A-Single-Cable-for-OPS-Display_1525223108397

Tidy Appearance

A Single Cable for OPS/Display

The SH7PE-H series is a OPS* built-in power model. The power for both OPS player and the display is provided through a single cable, enabling a sleek look with a slimmer structure.

Tidy Appearance

Easy Cable Management

The well-organized cable terminals and holes in the back help make managing cables easy, and give a neat and tidy appearance.

05_Lower-Electromagnetic-Waves_1525223259305

Reliable Operation

Lower Electromagnetic Waves

The SH7PE series complies with ‘EMC Class B', which ensures lower electromagnetic wave emission, fostering a more pleasant environment for customers who spend long hours in places such as airports.

Reliable Operation

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on power board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.

07_User-Friendly Menu for Digital Signage_1540536316386

User Convenience

User-Friendly Menu for Digital Signage

With the signage dedicated home menu, users can check key information related to displays at a glance. On the bottom, the content management menu is provided, letting you explore and play available content and set playlists with desired schedules using a remote controller.

User Convenience

Detachable Logo & Built-in Speaker

The detachable logo makes it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, offering viewers various multi-media experiences.

Panel

Screen Size

43"

Native Resolution

1,920 x 1,080 (FHD)
Brightness (Max., cd/m²)

700

Brightness (Typ., cd/m²)

665
Surface Treatment (Typ.)

Haze 28%

Connectivity

Input

HDMI (2), DVI-D, RGB, Audio, USB

Output

Audio (Off/Fixed/Variable)
External Control

RS232C in/out, RJ45 in, IR in

Mechanical Specification

Bezel Width

11.9 mm (T/R/L), 18 mm (B)

Monitor Dimensions (W × H × D)

969.6 x 563.9 x 54 mm
Weight (Head)

10.0 kg

Monitor Dimension with Optional Stand Dimensions (W x H x D)

969.6 x 622.2 x 193 mm
Weight (Head+Stand)

12.5 kg

Carton Dimensions (W × H × D)

1,052 x 650 x 123 mm
Packed Weight

12.6 kg

VESA™ Standard Mount Interface

200 x 200 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

75 W / 115 W

Smart Energy Saving

52.5 W

Standard(Certification)

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "B" / CE / KC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0)

Media Player Compatibility

OPS type compatible

Yes

External Media player Attatchable

Yes (MP500/MP700)

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+ / SuperSign Control

Accessory

Basic

Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver

Optional

Stand (ST-432T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T43E), OPS Kit (KT-OPSD)

General

Region

Global

Dimension
- [Dimension]_43SH7PE.dwg
- [Dimension]_43SH7PE.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
