43SM5KE-B component-copyModelName

43'' 450 nits FHD Standard Signage

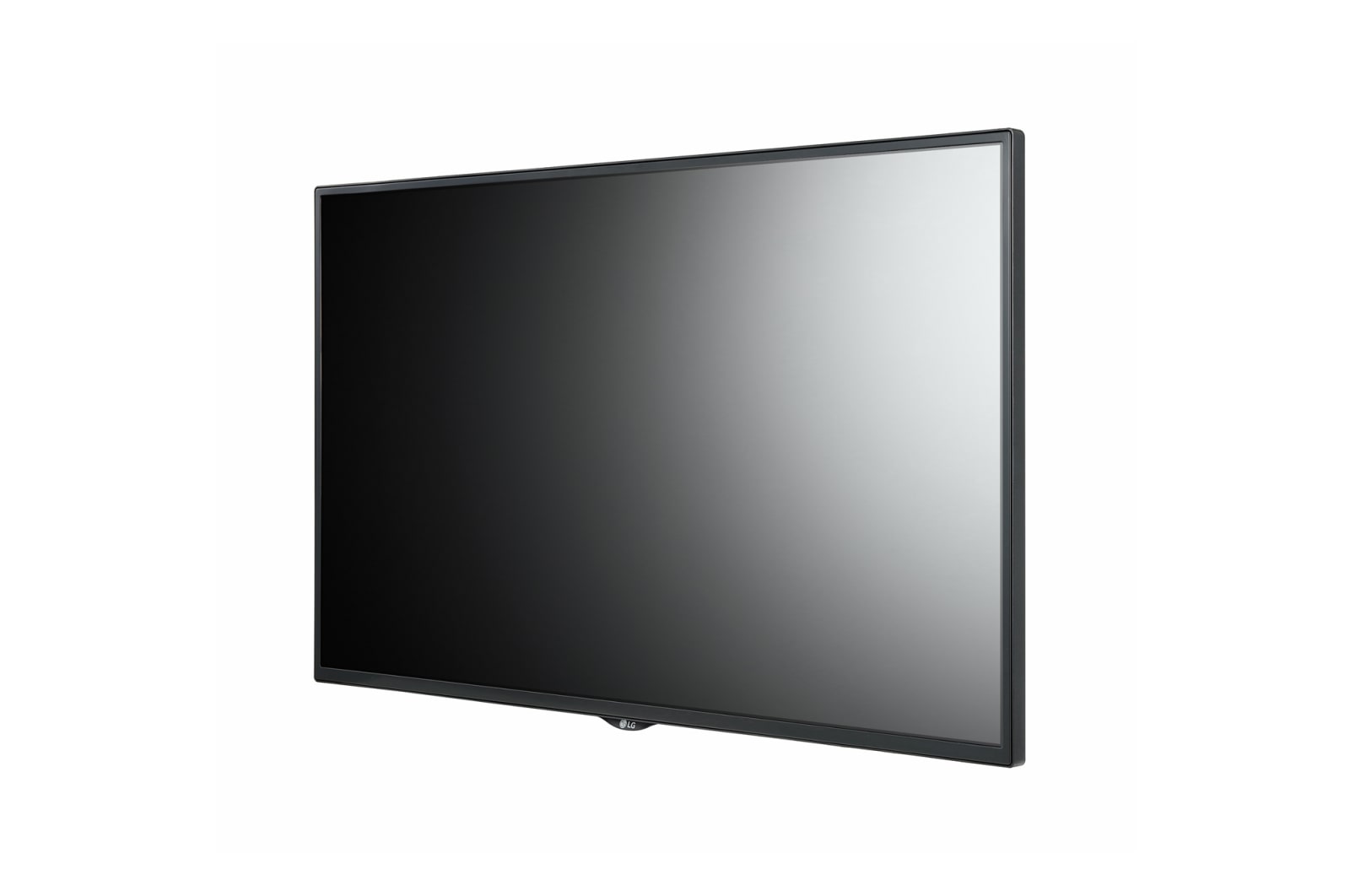

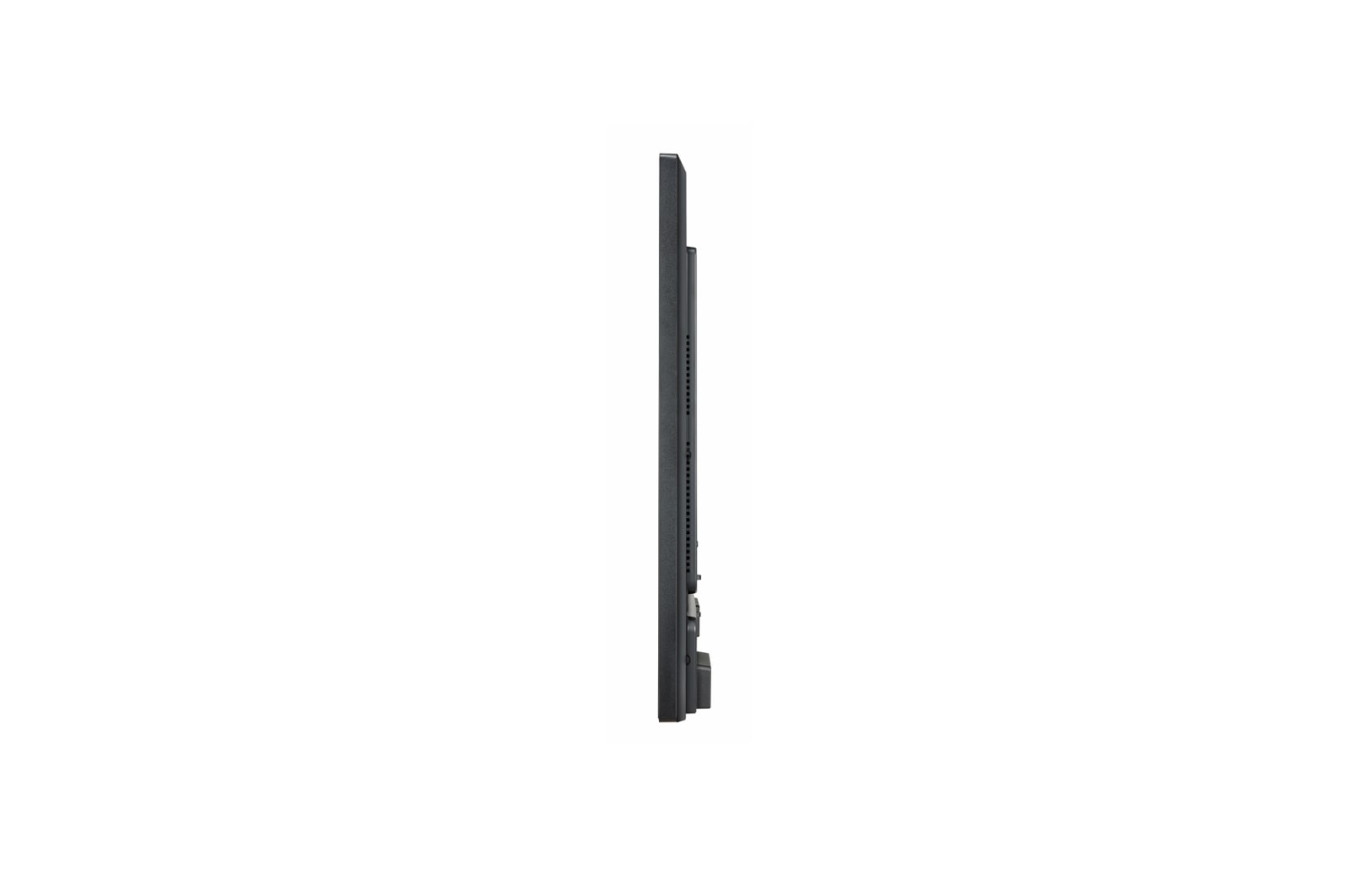

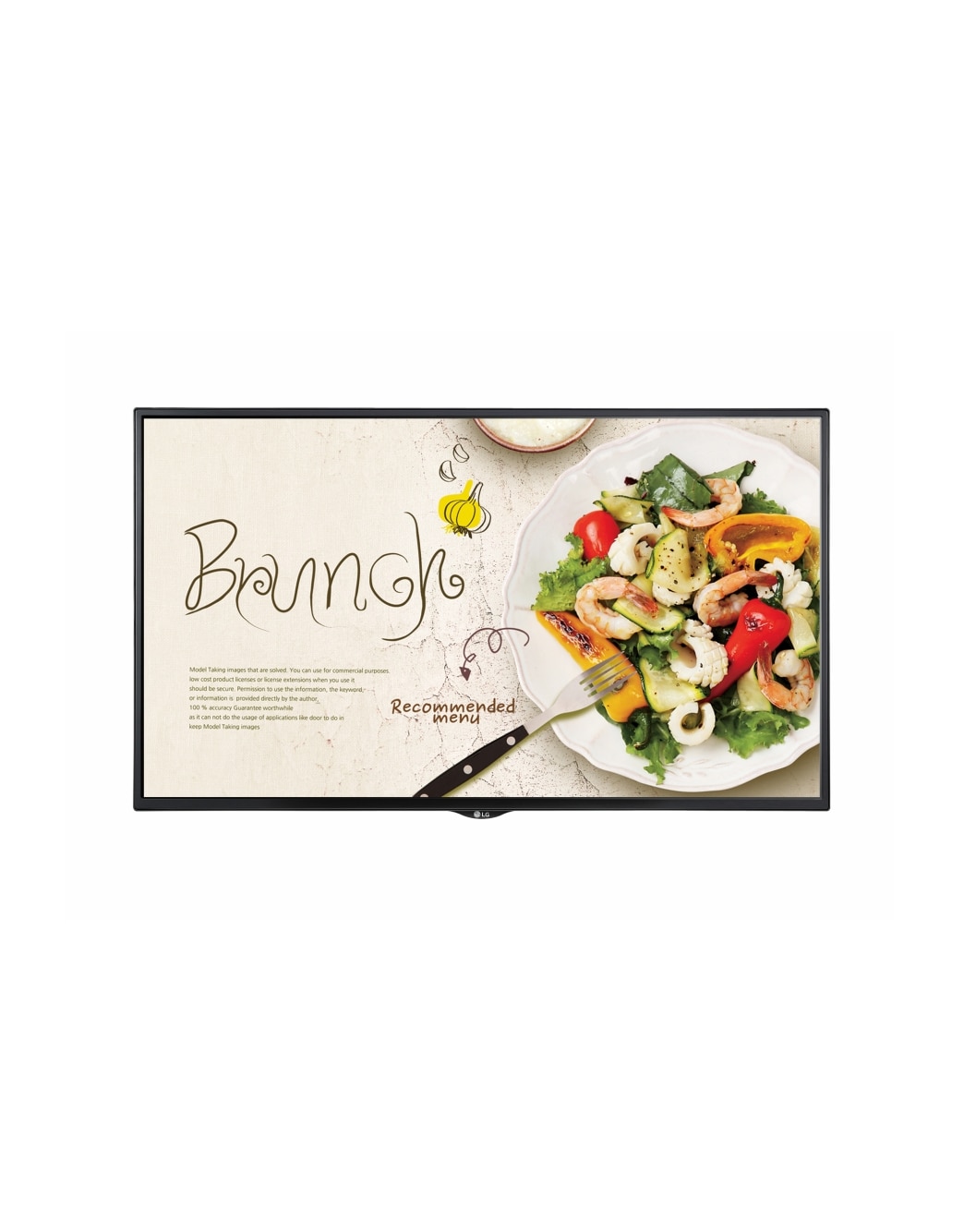

LG 43'' 450 nits FHD Standard Signage, 43SM5KE-B, thumbnail 1

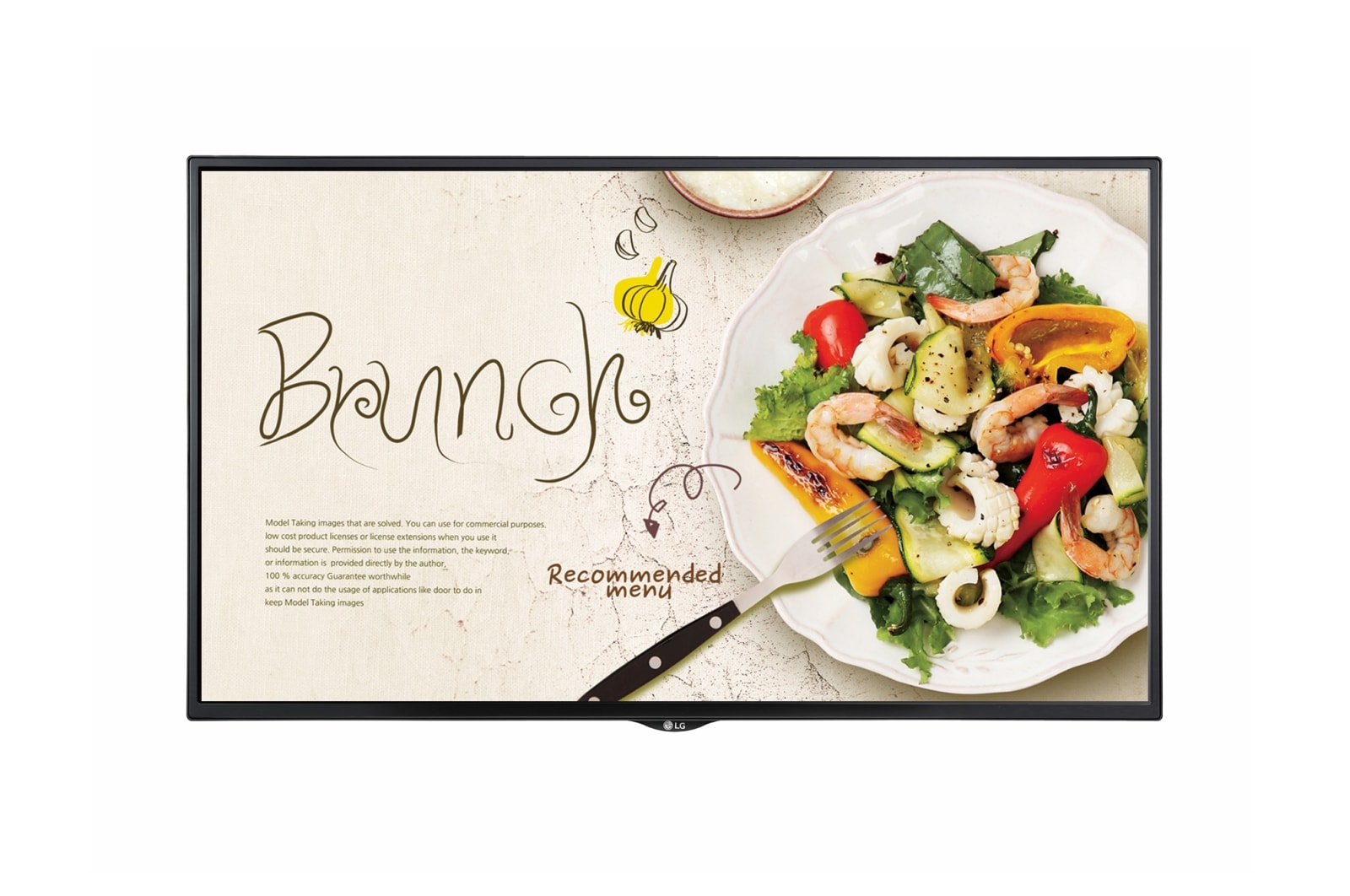

LG 43'' 450 nits FHD Standard Signage, 43SM5KE-B, thumbnail 2

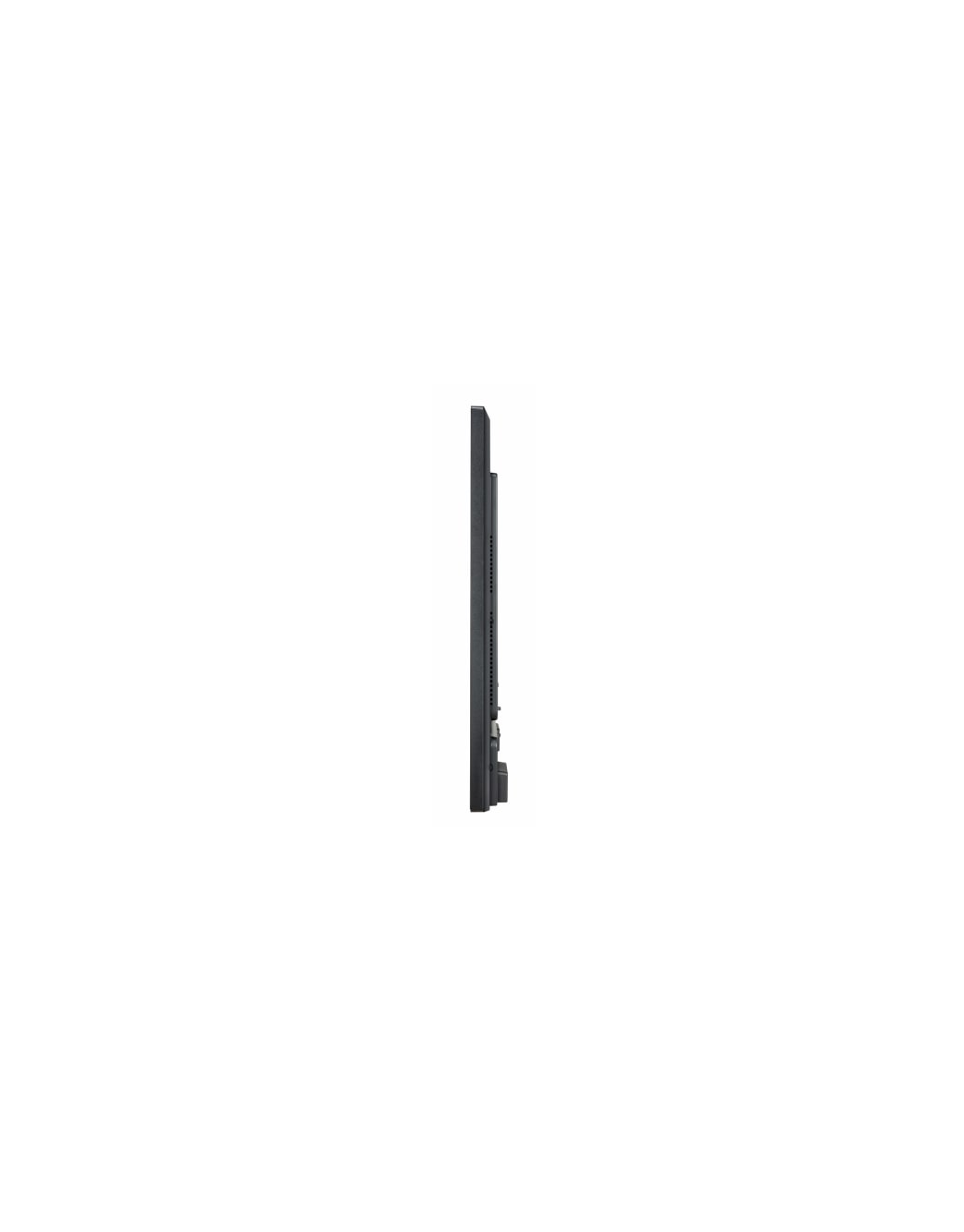

LG 43'' 450 nits FHD Standard Signage, 43SM5KE-B, thumbnail 3

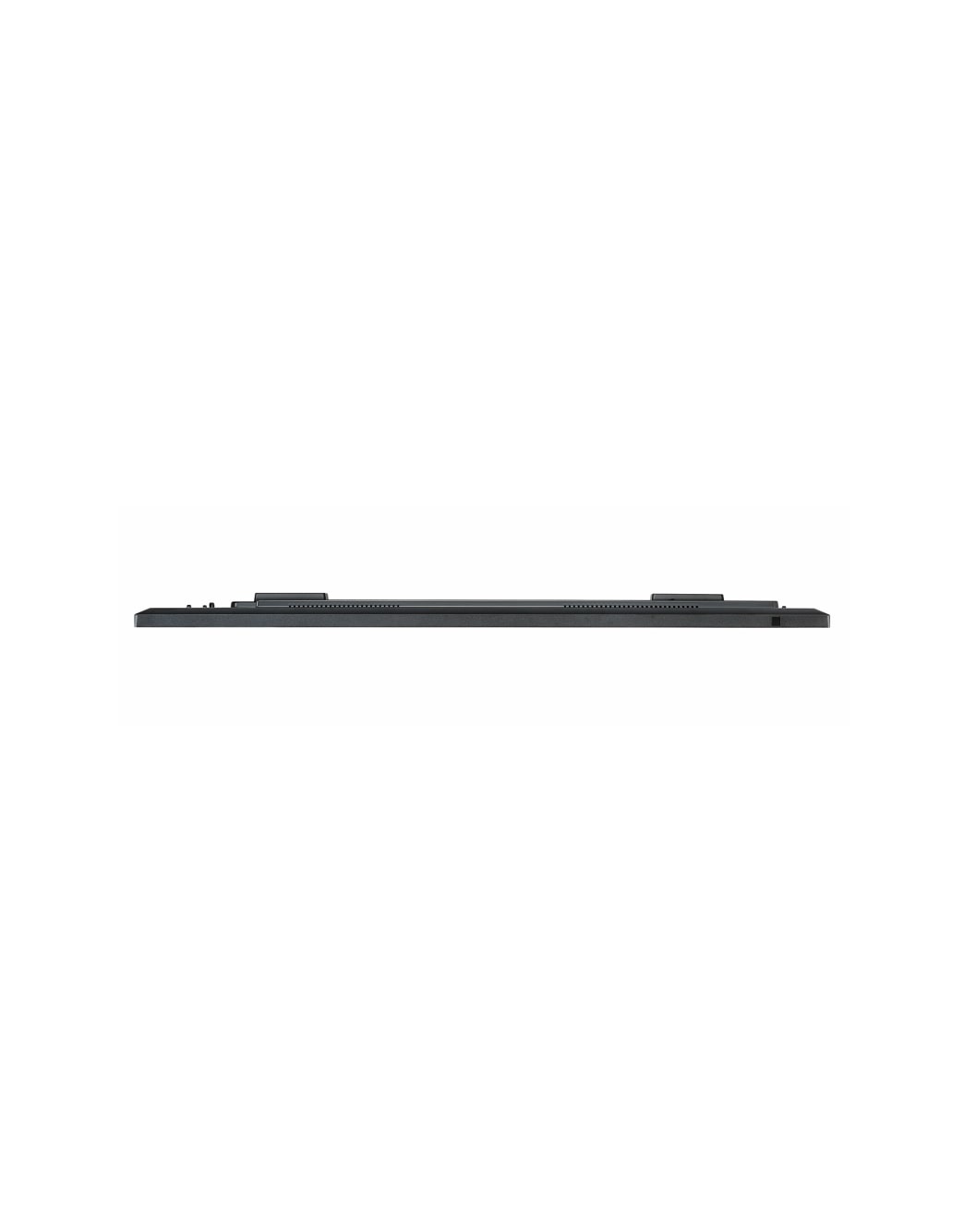

LG 43'' 450 nits FHD Standard Signage, 43SM5KE-B, thumbnail 4

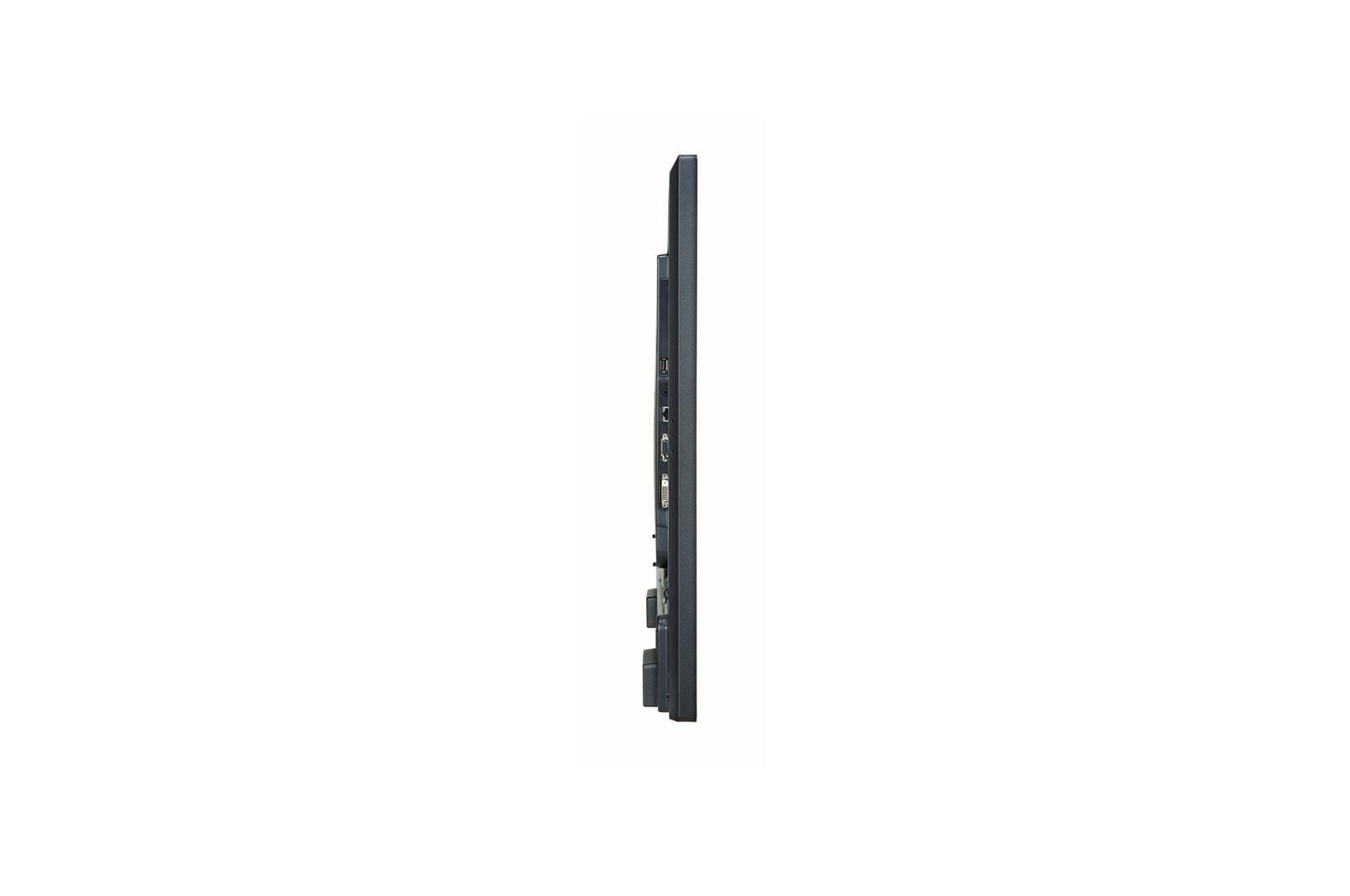

LG 43'' 450 nits FHD Standard Signage, 43SM5KE-B, thumbnail 5

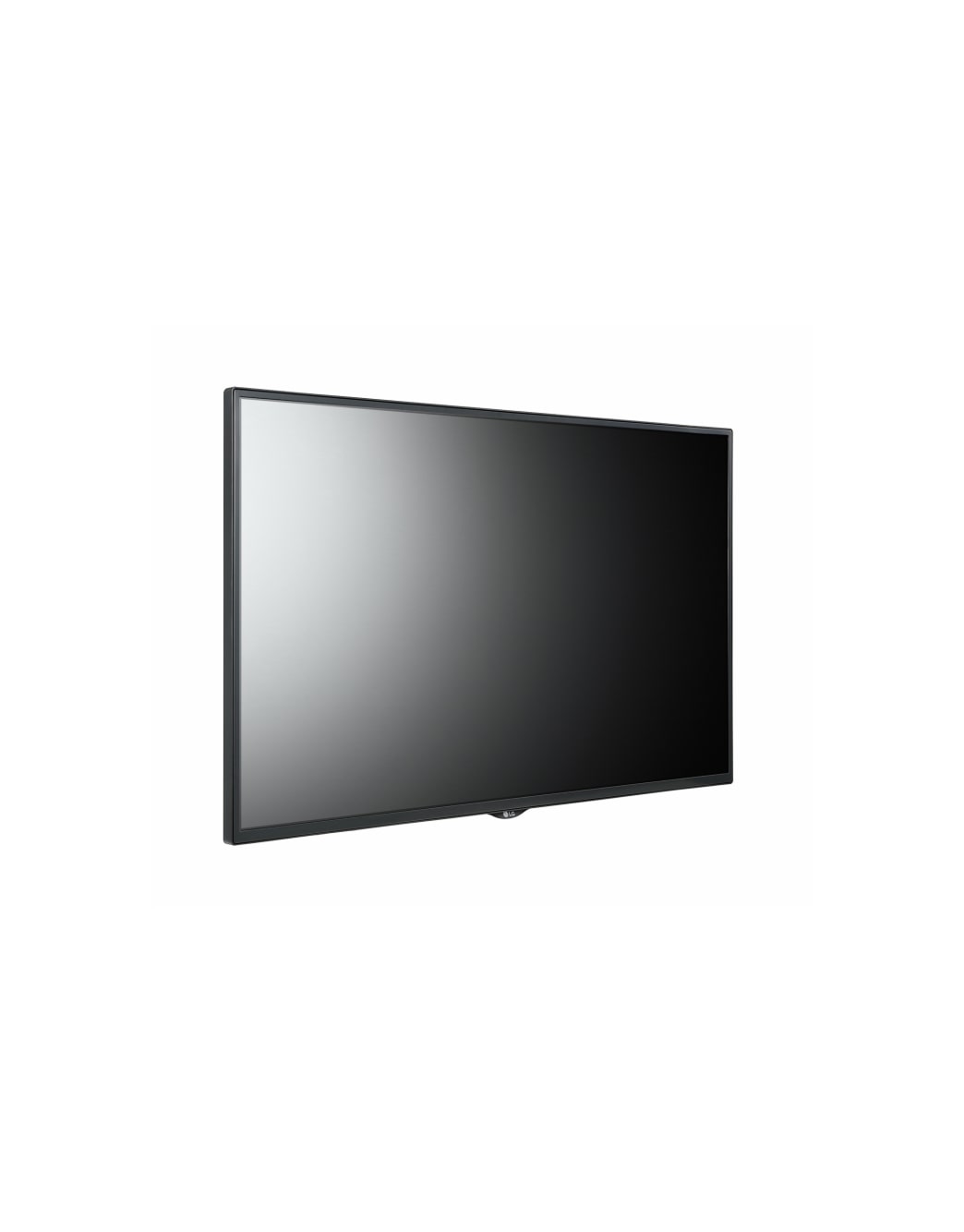

LG 43'' 450 nits FHD Standard Signage, 43SM5KE-B, thumbnail 6

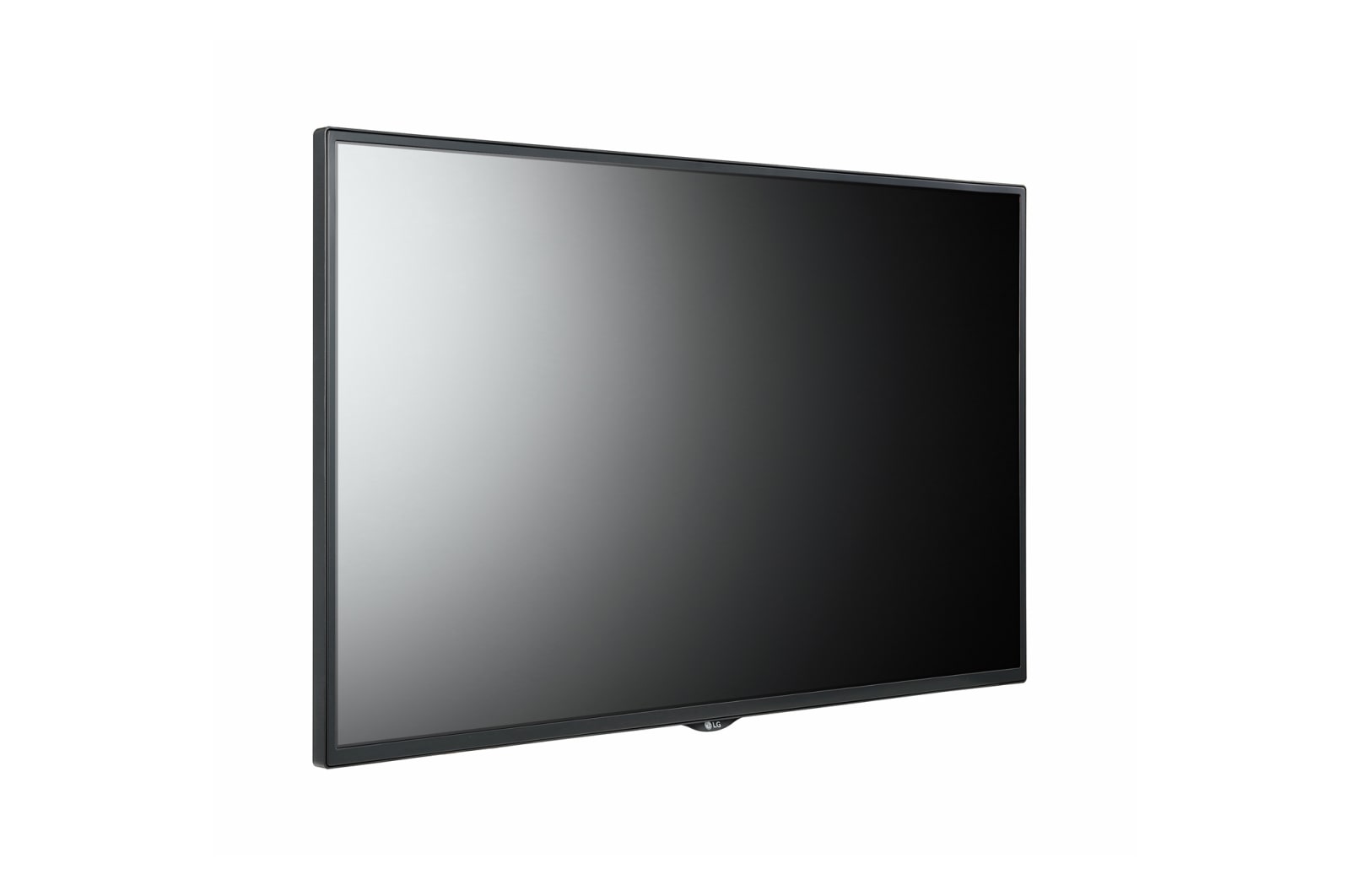

LG 43'' 450 nits FHD Standard Signage, 43SM5KE-B, thumbnail 7

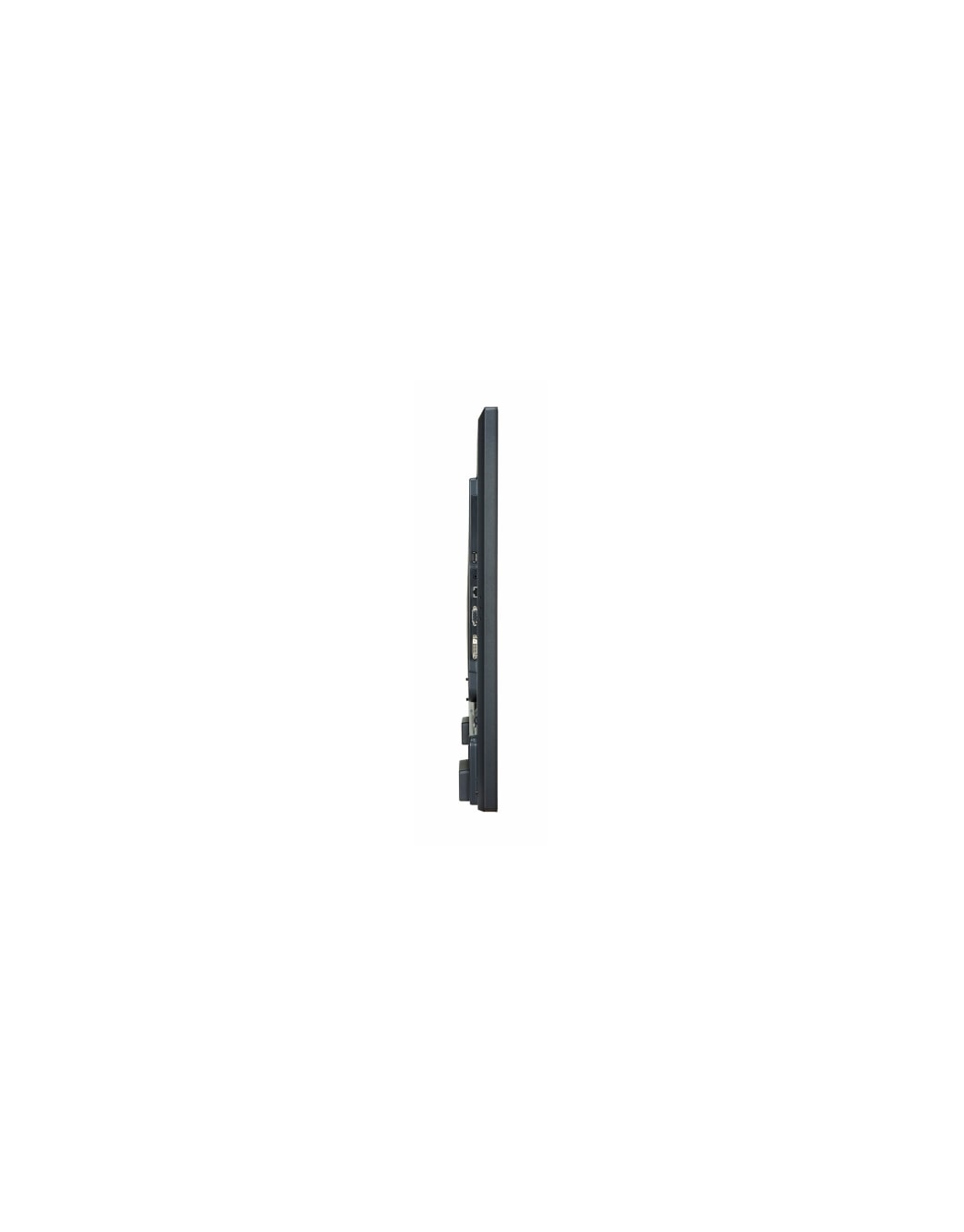

LG 43'' 450 nits FHD Standard Signage, 43SM5KE-B, thumbnail 8

Discontinued

43SM5KE-B component-copyModelName

43'' 450 nits FHD Standard Signage

Key Features

Brightness(Typ.) : 450 cd/m²
Bezel : 11.9 mm (T/R/L), 18 mm (B)
Depth : 54 mm
Interface : HDMI(3)/ DP/ DVI-D/ USB 3.0/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker : 10W + 10W

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 450 cd/m²
Bezel : 11.9 mm (T/R/L), 18 mm (B)
Depth : 54 mm
Interface : HDMI(3)/ DP/ DVI-D/ USB 3.0/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker : 10W + 10W

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

43" 450 nits FHD Standard Signage

SM5KD_01_M01_High-Performance-Smart-Platform_1525045914935

Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

SM5KD_02_M01_Easy-Contents-Management_1525046008201

Integrated CMS

Easy Contents Management

Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.

SM5KD_03_M03_Enhanced-Usability_1527137904794

GUI for B2B & EZ Setting

Enhanced Usability

A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.

SM5KD_04_M01_Real-time-Streaming_1525046173640

Video Streaming

Real-time Streaming

Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.
* Image is for illustration-purposes only.

SM5KD_05_M02_Seamless-Content-Playback_1527137184742

Gapless Playback

Seamless Content Playback

During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS.

SM5KD_06_M03_Multiple-Screen-Composition_1525046293682

PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

SM5KD_07_M02_Suited-for-Industrial-Design_1525046350731

Detachable Logo & Built-in Speaker

Suited for Industrial Design

The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

Wireless Solutions

Content Sharing

Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

Support for Network Protocol

HTTPS

With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.
Proxy Server

Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

10_Thermal-Printer-Supported_1525909668805

Value-added Offerings

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

Value-added Offerings

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on the power board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

Optimized Work-Flow with LG Presenter

LG Presenter, an embedded application, enables wireless screen sharing* between computers and LG digital signages. It provides users with a smart and convenient meeting experience, reducing time spent unnecessarily managing devices and cables for connection.

ENERGY STAR® Certified

Panel

Screen Size

43"

Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

450

Connectivity

Input

HDMI (3), DP, DVI-D, Audio, USB 3.0

Output

DP(SST), Audio(Off/Fixed/Variable)
External Control

RS232C In/Out, RJ45 In, IR Receiver In

Physical Specification

Bezel Width

11.9 mm (T/R/L), 18 mm (B)

Monitor Dimension (W x H x D)

969.6 x 563.9 x 54 mm
Weight (Head)

10.0 kg

Monitor with Optional Stand Dimensions (W x H x D)

969.6 x 622.2 x 193 mm
Weight (Head+Stand)

12.5 kg

Carton Dimensions (W x H x D)

1,052 x 650 x 123 mm
Packed Weight

12.6 kg

VESA™ Standard Mount Interface

200 x 200 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240 V~, 50/60 Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

75 W / 95 W

Smart Energy Saving

55 W

Standard(Certification)

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only)

Media Player Compatibility

OPS type compatible

Yes

External Media player Attatchable

Yes

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+/Control

Minimum Requirements for LG Presenter

OS (Windows)

Windows 7 (64bit), Windows 10 (64bit)

OS (macOS)

macOS 10.12 Sierra, MacOS 10.13 High Sierra
CPU (Windows)

2.7GHz+ Dual Core Broadwell or higher

CPU (macOS)

Any CPU which supports Sierra or High Sierra
Memory

4GB RAM

Hard Drive

1GB of free space
Graphics Hardware (Windows)

Intel Iris or higher, Nvidia, ATI

Graphics Hardware (macOS)

Any GPU which supports Sierra or High Sierra

Accessory

Basic

Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover

Optional

Stand (ST-432T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSF), Touch Overlay (KT-T43E)

General

Region

Global

Dimension
- (Dimension) 43SM5KE.dwg
- (Dimension) 43SM5KE.pdf
Datasheet
- SM5KE_Datasheet(low)_LG Standard Signage_200514.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
