43UM5N-E component-copyModelName
UHD Signage Display

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (43UM5N-E)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (43UM5N-E)
    $
    $
    LG Members Price
Total
UHD Signage Display
Contact Us

UHD Signage Display with
LG webOS Platform and Advanced Security

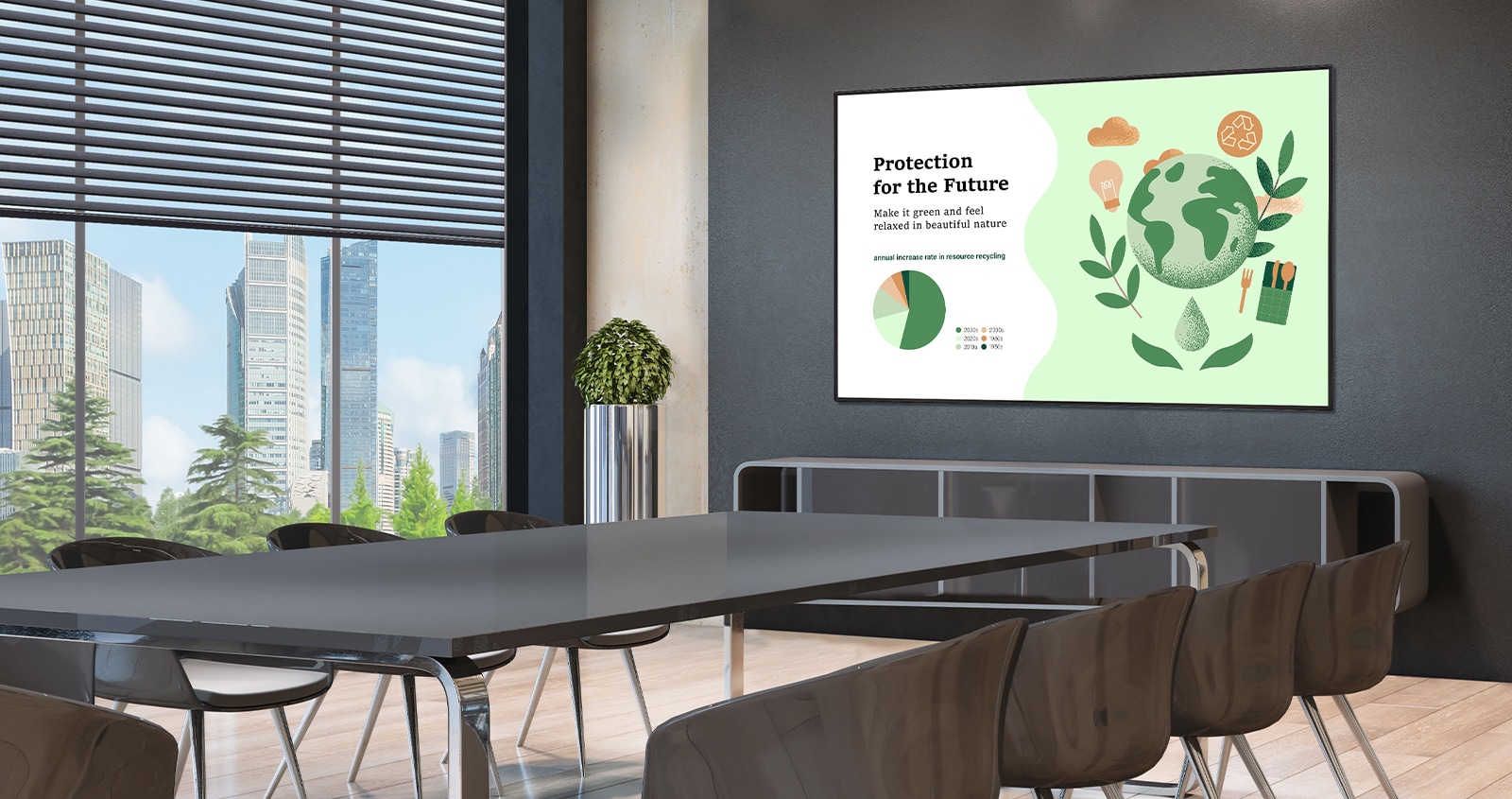

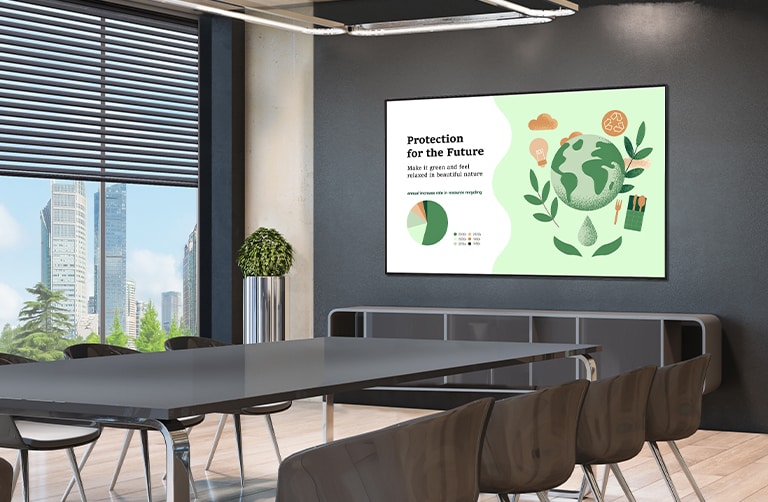

A screen showing the meeting’s contents is installed on the meeting room’s wall. A screen showing the meeting’s contents is installed on the meeting room’s wall.
* 65 inch
* All images in this page are for illustrative purposes only.

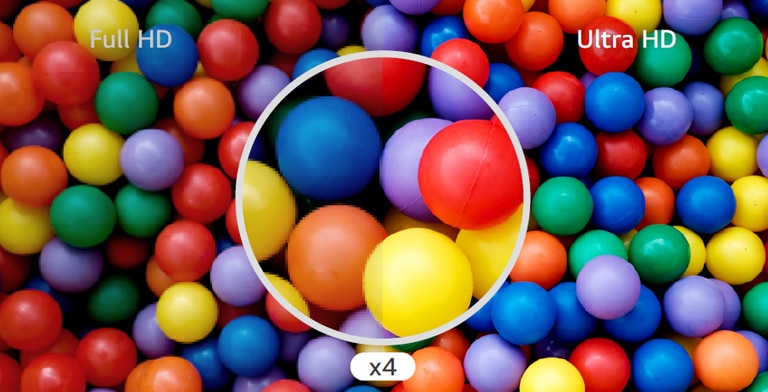

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD. The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

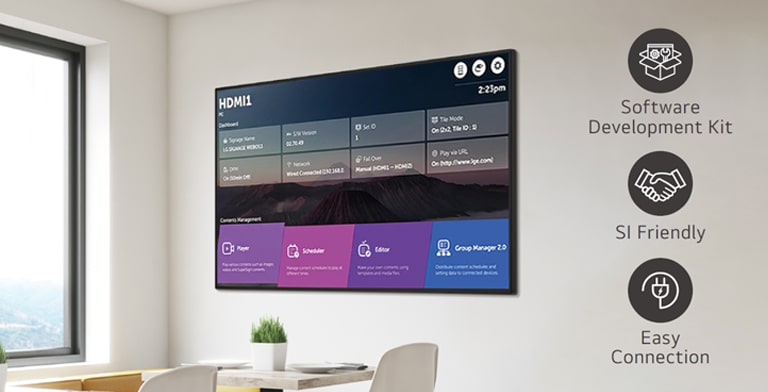

A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

Convenient webOS Platform

The UM5N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

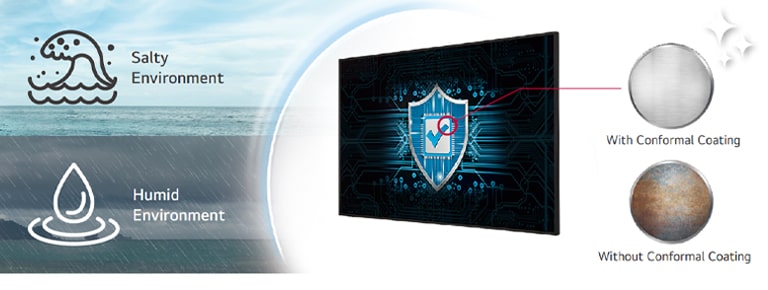

Durability that Provides Reliability

Optimized for business environments, the UM5N-E is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

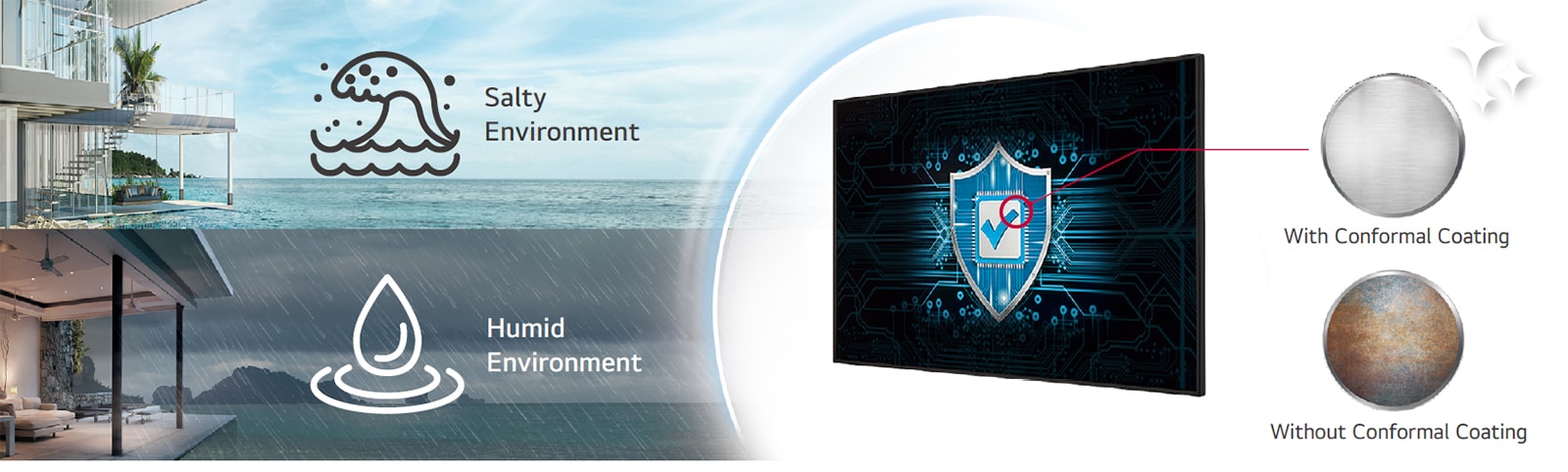

The UM5N-E has Conformal Coating on the power board to protect display even in a salty or humid environment. The UM5N-E has Conformal Coating on the power board to protect display even in a salty or humid environment.

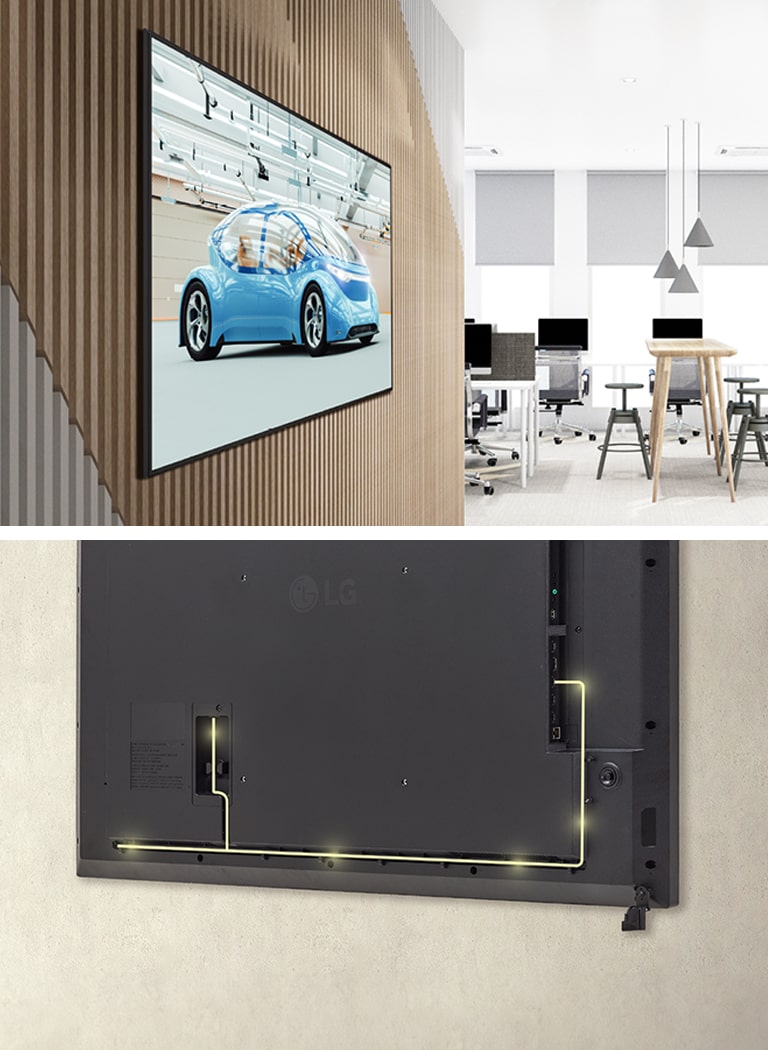

Design for Space Utilization

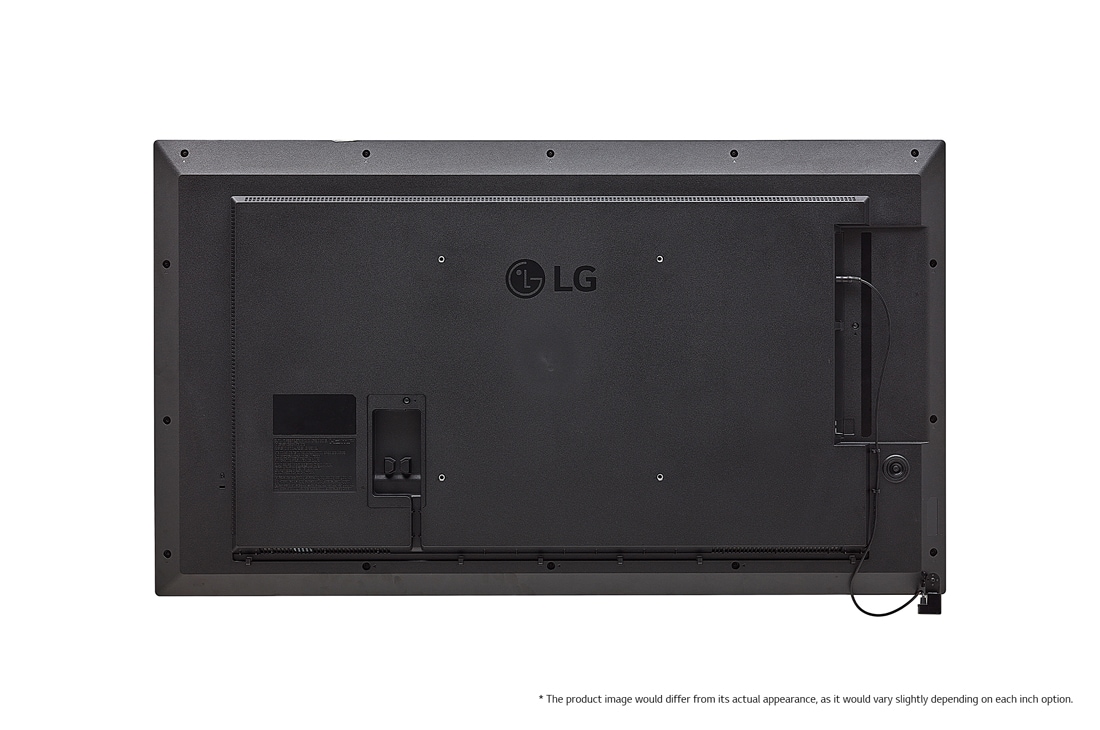

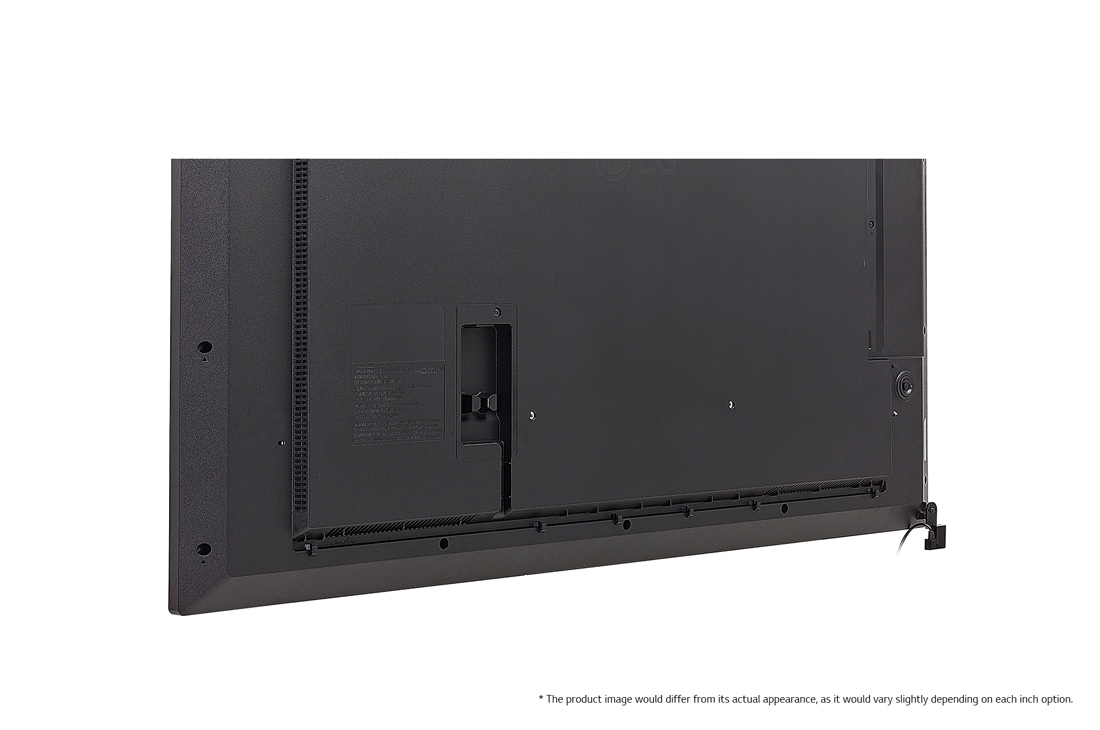

Designed with thin bezels and simple cable management, the UM5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

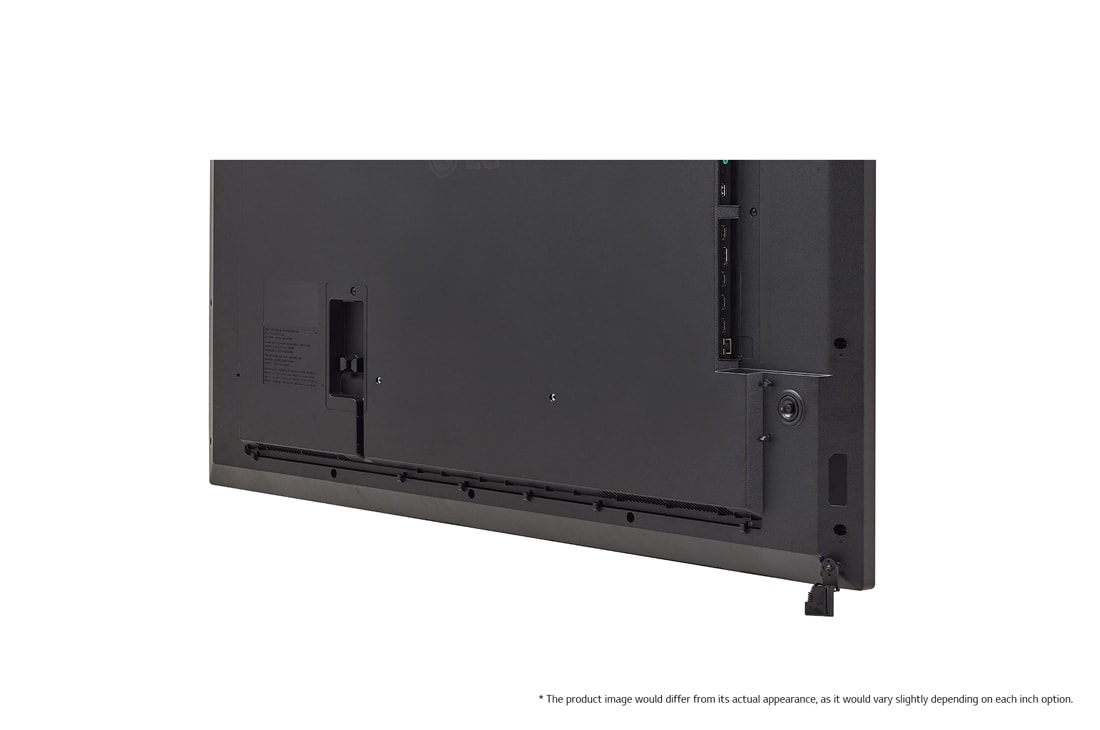

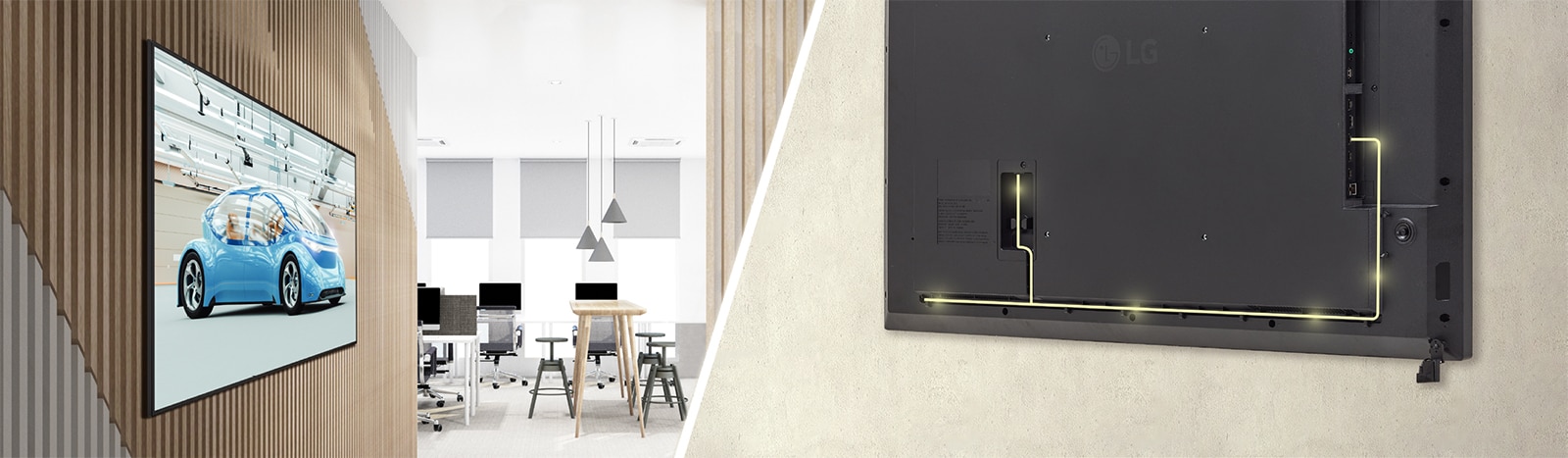

The UM5N-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system. The UM5N-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.
* All images are for illustrative purposes only.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
The UM5N-E provides security features to protect important data from external access or attacks. The UM5N-E provides security features to protect important data from external access or attacks.

Enhanced Security Features

The UM5N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
LG strives for a sustainable future by obtaining various certifications such as FCC EMC Class B or EPEAT*. * the United States Only LG strives for a sustainable future by obtaining various certifications such as FCC EMC Class B or EPEAT*. * the United States Only

Sustainability

With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B or EPEAT*.

* The United States Only

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

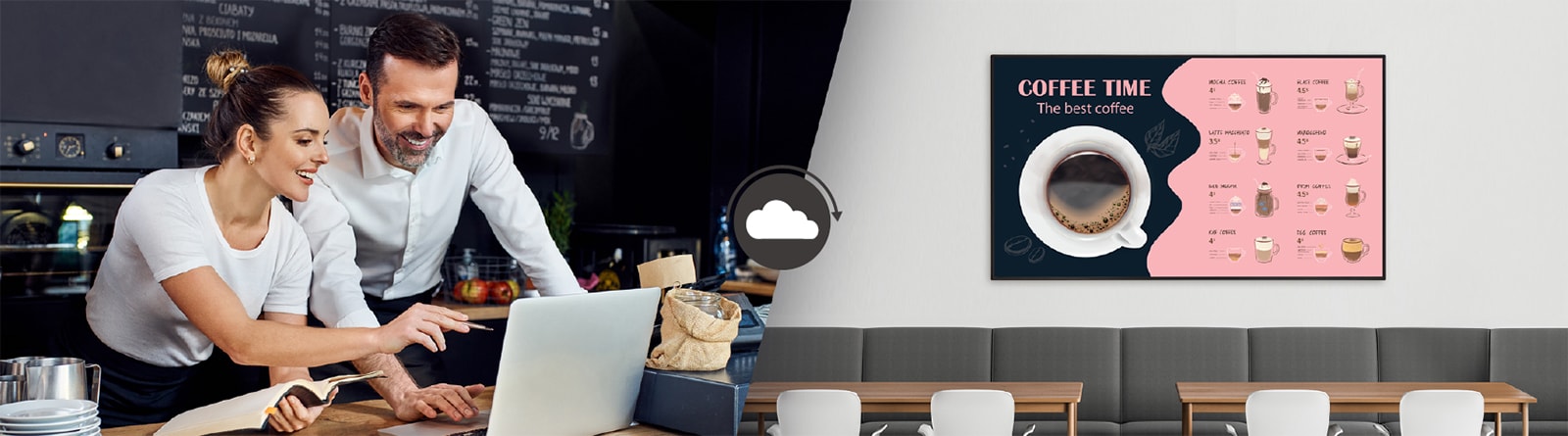

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software. Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

Carbon Footprint Certification

The cradle-to-grave carbon footprint of UM5N-E has been reduced.
Carbon Footprint Certification1 Carbon Footprint Certification2
* UM5N-E achieved Reducing CO2 certification.
* The Carbon Trust Assurance for UM5N-E is valid until 07 Sep 2025.
* The Carbon Trust Assurance for UM5N-E is certified against PAS2050:2011.
Close
Info
  • Product
    Standard (UHD)
    Year
    Y23
  • Month
    M12
Panel
  • Screen Size (Inch)
    43"
    Panel Technology
    IPS
  • Back Light Type
    Direct
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness (Typ.)
    500nit (Typ.)
    Contrast Ratio
    1,000:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    BT709 95%
  • Viewing Angle(H x V)
    178 X 178
    Color Depth
    8bits + FRC, 1.07Billion colors
  • Response Time
    Tr : 8ms / Tf :10ms
    Surface Treatment (Haze)
    0.25
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portait / Landscape
    Yes / Yes
Connectivity
(Jack Interface)
  • HDMI IN
    Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
    DP IN
    Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
  • RS232C IN
    Yes(1), 4pin PhYesne-jack
    RJ45(LAN) IN
    Yes (1)
  • IR IN
    Yes (1)
    USB IN
    USB2.0 Type A(1)
  • HDMI Out
    Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
    Audio Out
    Yes (1)
  • RS232C Out
    Yes (1), 4pin Phone-jack
    Daisy Chain
    Yes(Input HDMI, DP / Output HDMI)
Mechanical
  • Bezel Color
    Black
    Bezel Width
    T/B: 12.1mm R/L: 11.1mm
  • Weight (Head)
    9.0Kg
    Packed Weight
    11.3kg
  • Monitor Dimensions (W x H x D)
    968 x 559 x 57.7mm (Without IR)
    Carton Dimensions (W x H x D)
    1055 x 660 x 142mm
  • VESATM Standard Mount Interface
    200 x 200
HW Feature
  • Internal Memory
    16GB
    Wi-Fi (Built-in)
    Yes
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    Yes(IR)
  • Acceleration(Gyro) Sensor
    Yes
    Local Key Operation
    Yes
  • Speaker (Built-in)
    Yes
SW Feature
  • OS Ver. (webOS)
    webOS6.0
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    PIP
    Yes
  • PBP
    Yes (4)
    Screen Share
    Yes
  • Video Tag
    Yes (4)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes (Max. 15x15)
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Cisco Certification
    TBD
    Cisco Certi.
    Yes
  • Crestron Inside
    Yes
    Smart Energy Saving
    Yes
  • PM mode
    Yes
    Wake on LAN
    Yes
  • Beacon
    Yes
    Network Ready
    Yes
  • HDMI-CEC
    Yes
    SI Server Setting
    Yes
  • webRTC
    Yes
    Pro:Idiom
    Yes
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    100W
    Max.
    140W
  • BTU (British Thermal Unit)
    341 BTU/Hr(Typ.), 478 BTU/Hr(Max)
    Smart Enegy Saving (70%)
    70W
  • DPM
    0.5W
    Power off
    0.5W
Sound
  • Speaker (Built-in)
    Yes (10W X 2)
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "B" / CE / KC
  • ErP / Energy Star
    Yes(NewErP)/Yes
    ePEAT(US only)
    Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Cloud
    Yes
  • Promota
    Yes (Not available for EU/CIS)
    Mobile CMS
    Yes
  • Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
    Optional
    Slim Wall Mount (WB21LMA/B),
    Wall Mount (LSW240A/B)
    Wall Mount Adapter (AM-B220S)
Special Feature
  • Tilt (Face Down)
    Yes(Max 30º degree, 40ºC temperature)
    IP Rating
    IP5X
  • Conformal Coating (Power Board)
    Yes
