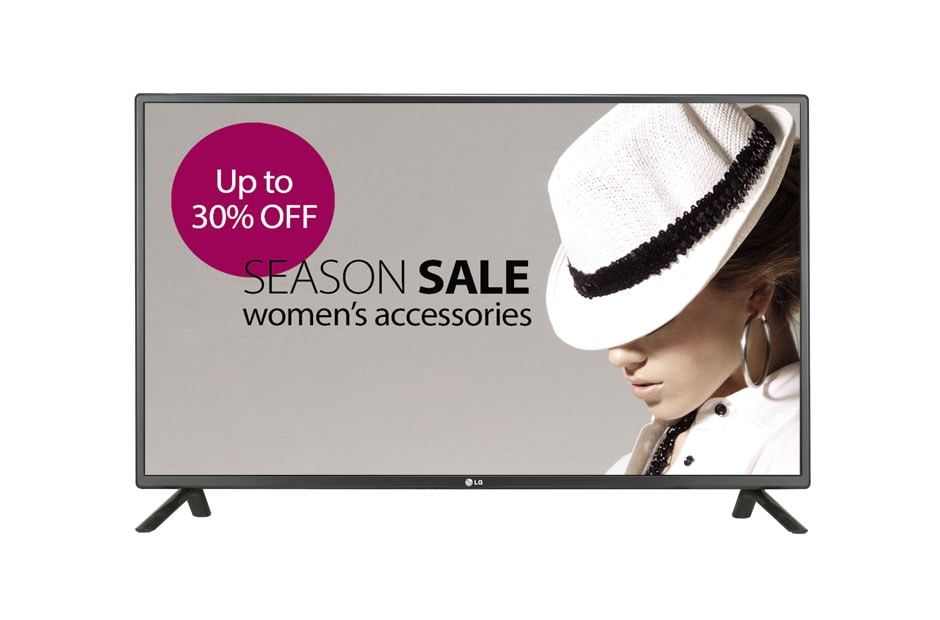

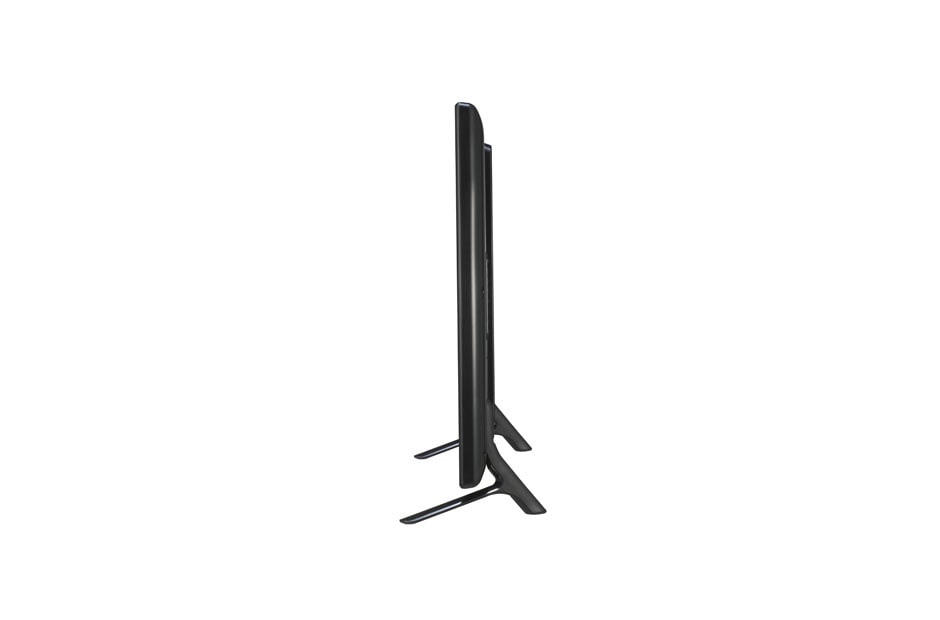

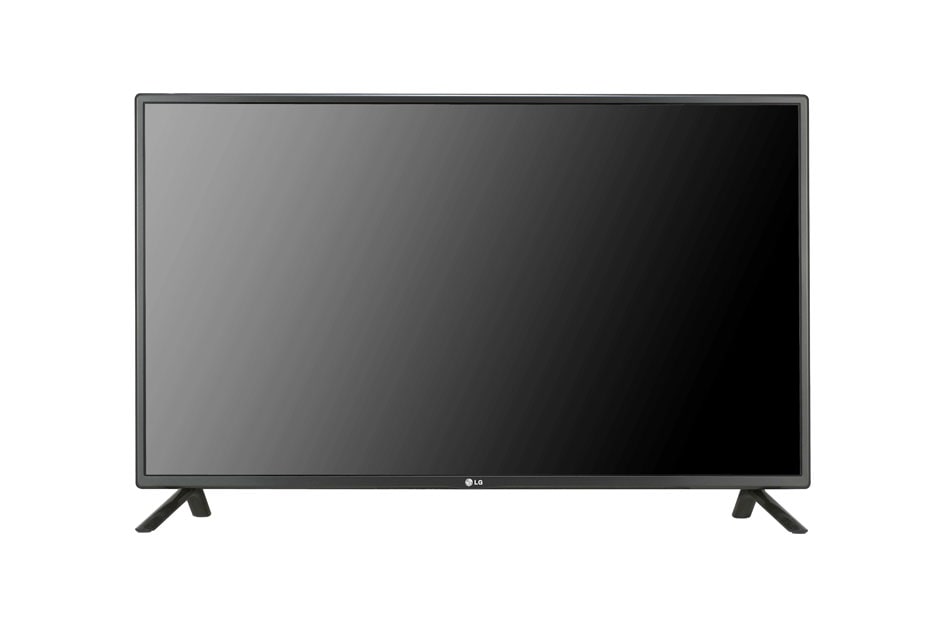

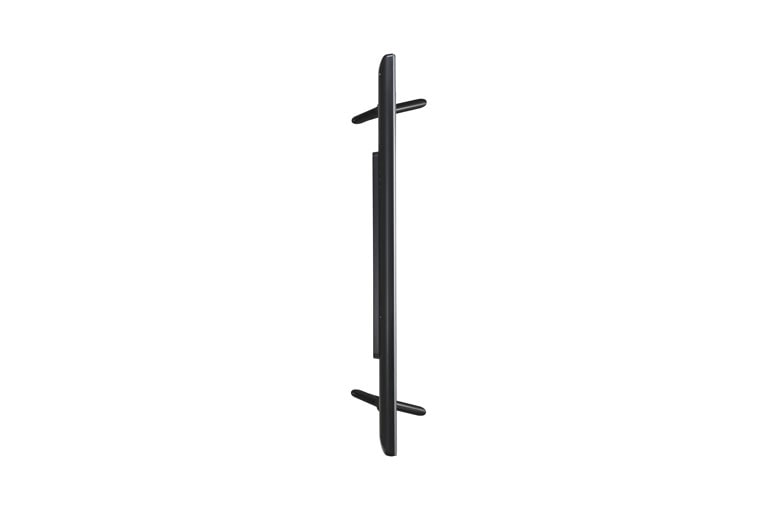

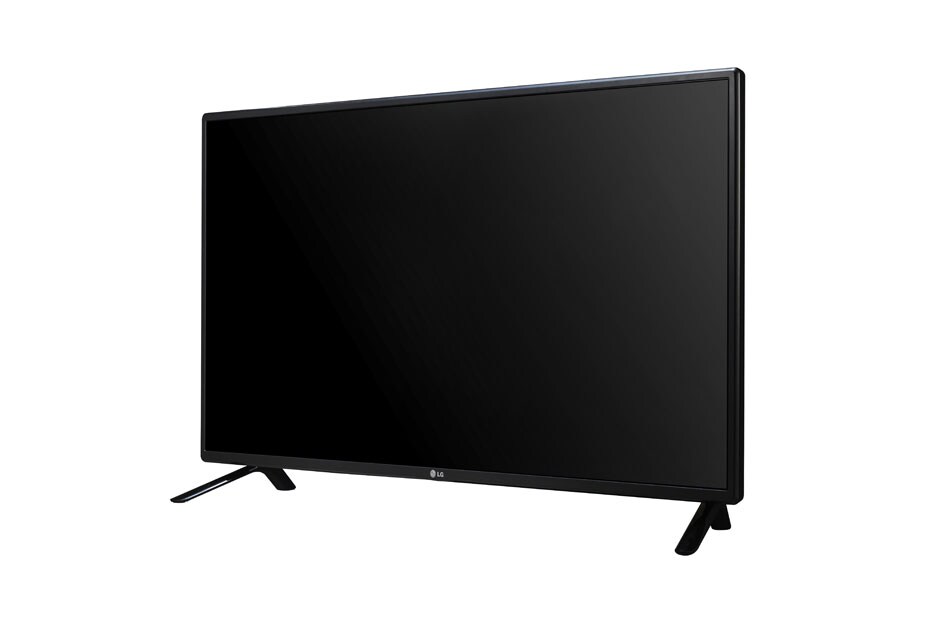

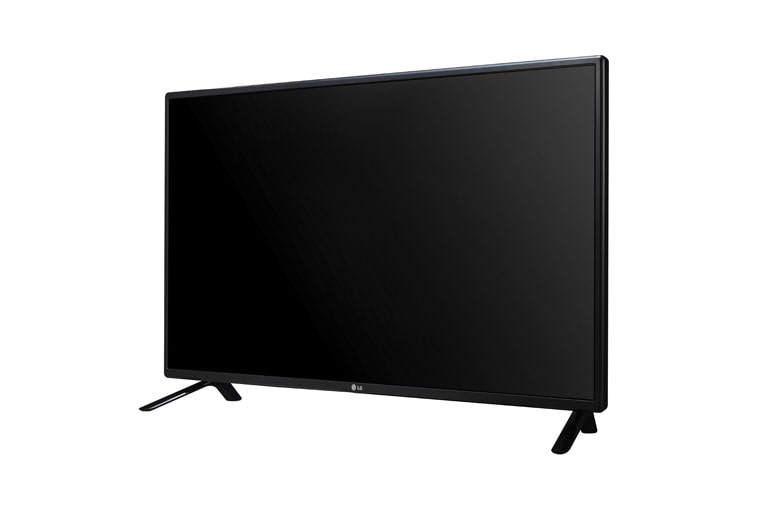

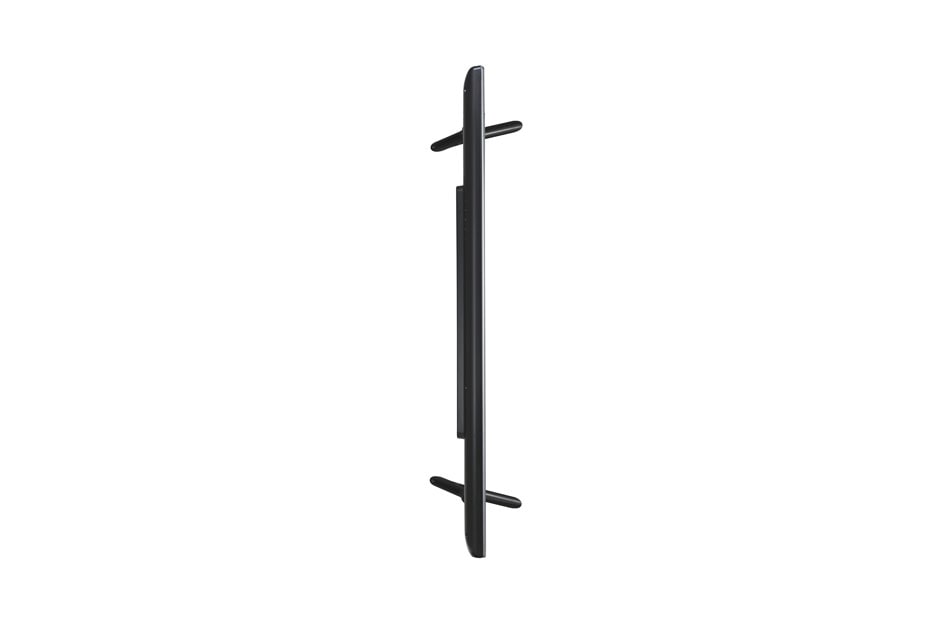

47LS55A component-copyModelName

LS55A Series

Discontinued

47LS55A component-copyModelName

LS55A Series

Key Features

webOS Signage Display
Direct-Lit LED
FHD, 450 cd/m2
Landscape & Portrait Mode
Check Screen through Pixel sensor
SNMP support

Add to Compare

component-OBScountrySelectDesc

Key Features

webOS Signage Display
Direct-Lit LED
FHD, 450 cd/m2
Landscape & Portrait Mode
Check Screen through Pixel sensor
SNMP support

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

LS55A Series

High Performance & Cost-Effective SoC

Without additional media player, our SoC type embedded media player can play contents like image, movie clip, etc.

Enhanced Fail Over

The enhanced fail over function enables to display contents in internal memory without a dead spot even when the conditions of all external inputs are not working.

Slim, Sleek and Stylish Design

The stylishly slim monitors designed to fit perfectly into your shop are easily placed in tight spaces. They can provide clean and friendly environment for end-users from the time they are installed.

Advanced Self-diagnosis

Our advanced self-diagnosis function allows to check the screen status with a pixel sensor provided optionally and supports the SNMP standards for compatibility with 3rd party solutions.

Support HTML5

Web centric platform supports HTML5 so that you can easily build apps work on any platform or device.

Simple Customization

Simple customization function will be provided. Our solution can be customized through an SDK to showcase your logo or improve compatibility.

Smart Launcher

Intuitive UX based on intuitive launcher provides convenience and a userfriendly environments.

Simple management

Simple management function provided with web server in smart platform allows remote monitoring and diagnosis from any device connected to the internet.

Panel

Screen Size

46.96" (1192.78mm) diagonal

Resolution

1,920 x 1,080 (FHD)
Brightness

450

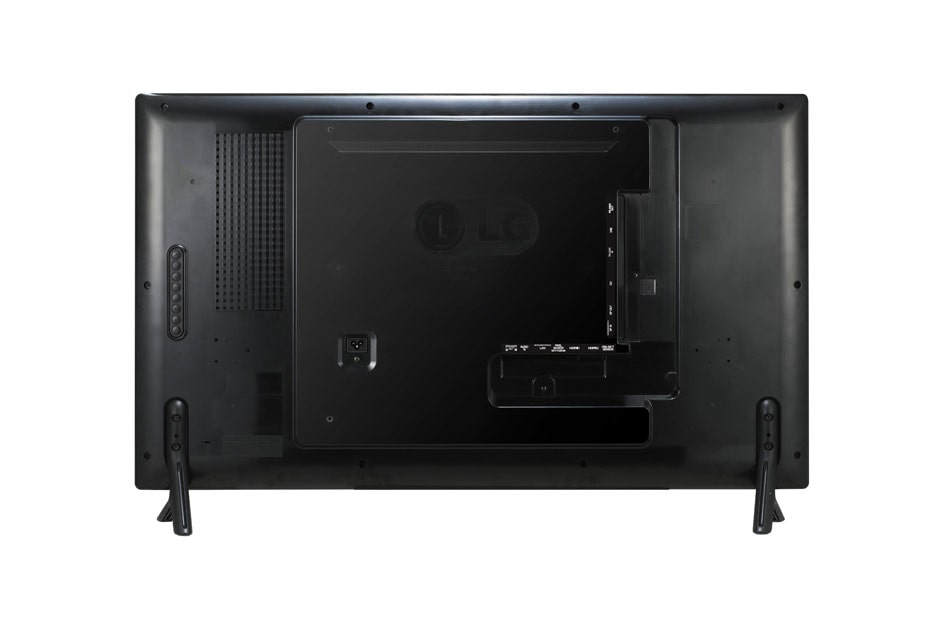

Connectivity

Input

HDMI (2), DP (1), DVI (1), DVI (3.5Ø 1), USB (1)

Output

DP (1), External Speaker (1)
External Control

RS232C (1), RJ45 (1), IR/Light Sensor (1), Pixel Sensor (1), RS232C (1)

Physical Specification

Bezel Width

Flat Bezel : 8.5mm (L/R/U), 14.0mm (B) / After Curvature : 13.2mm (L/R/T), 18.7mm (B)

Monitor Dimension (W x H x D)

1,071 x 621.6 x 55.8 mm
Weight (Head)

12.2kg

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

95W

Smart Energy Saving

70 W
DPM

0.7W (DP), 1W (HDMI, DVI)

Power off

0.5 W

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

NA / Yes (Energy Star 6.0)

Media Player Compatibility

External Media player Attatchable

Yes (MP500/MP700)

Software Compatibility

SuperSign-w lite

Yes

SuperSign-c

Yes

Accessory

Basic

Remote Controller (include battery 2ea), Power Cord, IR/Light Sensor Receiver, CD (Owner's Manual), HDMI Cable

Optional

SP-2100, ST-471T, LSW440S, KT-SP0

Dimension
- [Dimension] 47LS33A_LS35A_LS53A_LS55A.dwg
- [Dimension] 47LS33A_LS35A_LS53A_LS55A.pdf
Datasheet
- Re_Leaflet_LS55A_151012.pdf
