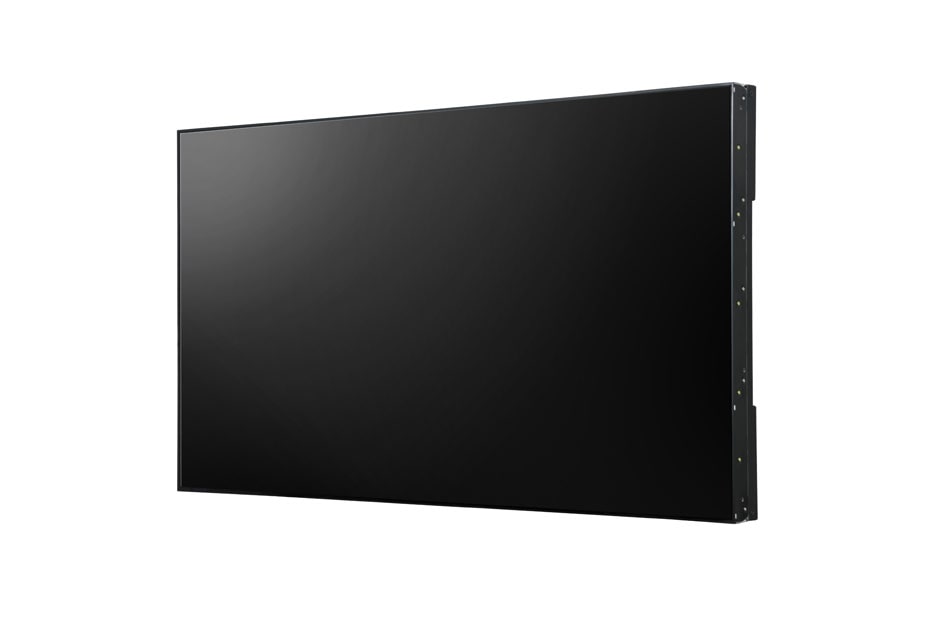

WV30 Series

Key Features

component-OBScountrySelectDesc

WV30 Series
Panel
  • Screen Size
    47"
    Resolution
    1,366 x 768 (HD) , 1,920x 1,080 at Video Wall
  • Brightness
    800

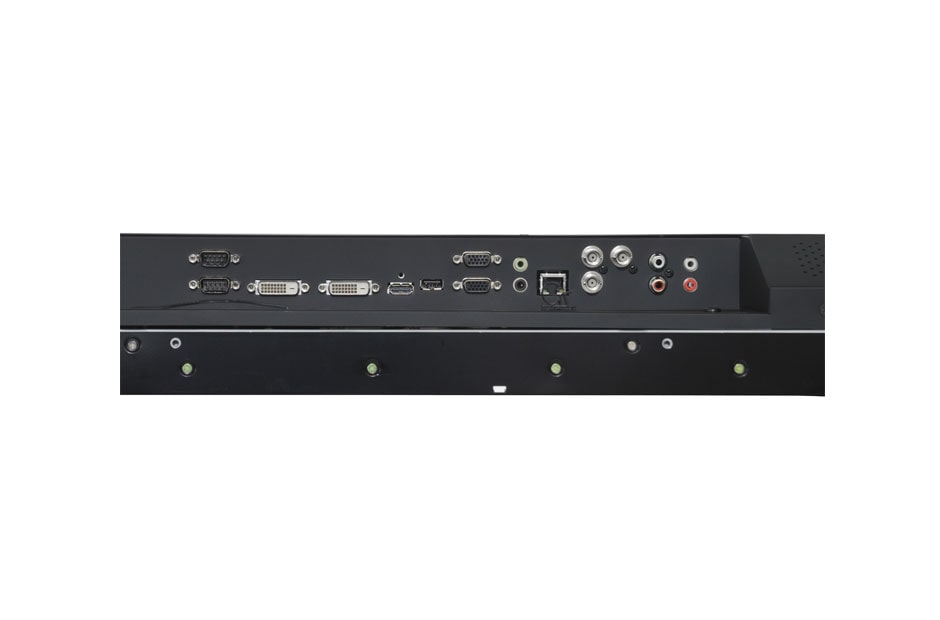

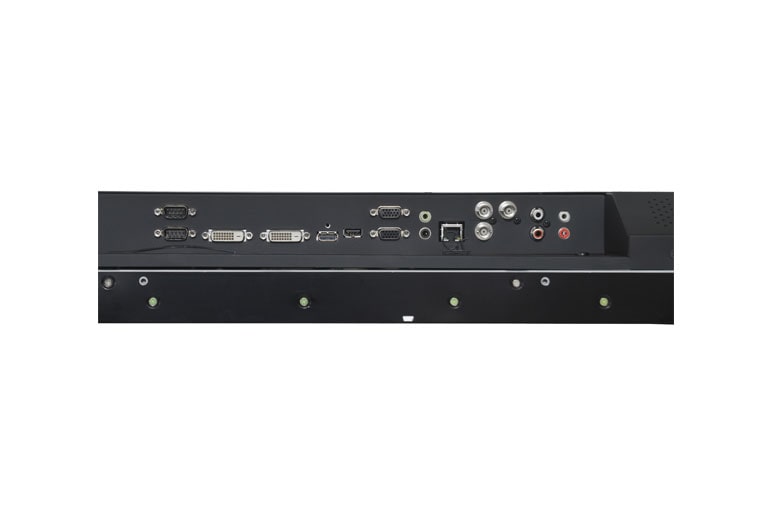

Connectivity - Intput
  • Digital
    DVI, HDMI/DVI with HDCP
    Analog
    RGB(1), Component(BNC, 1), AV(BNC, 1)
  • Audio
    PC Audio In (1), AV/Component Audio(RCA,1)
    External Control
    RS232C (1), RJ45 (1), IR Receiver (1)
  • USB
    USB (1)
Connectivity - Output
  • Digital
    DVI-D(1)
    Analog
    RGB
  • Audio
    External Speaker
    External Control
    RS232C
Physical Specification

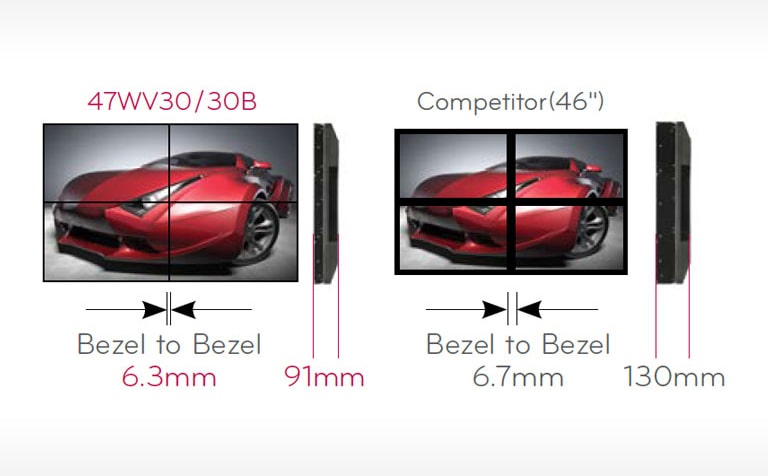

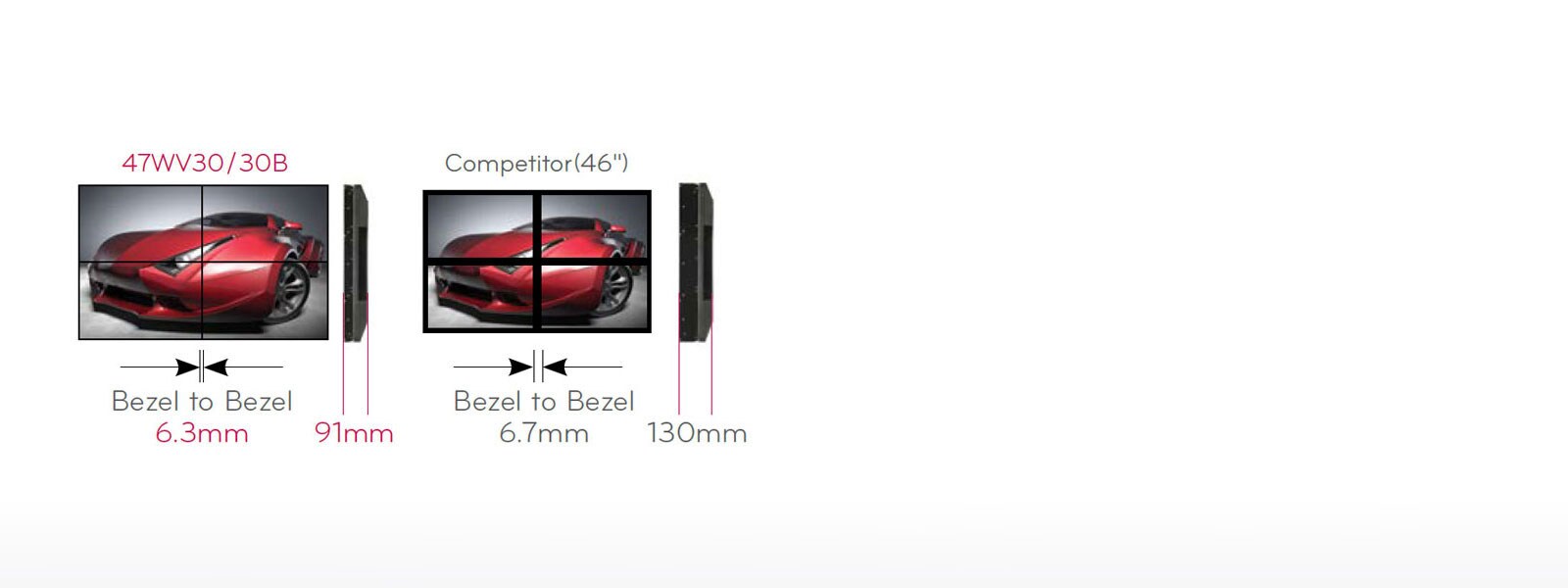

  • Bezel Width
    3.9 (left/top) / 2.4 (right/bottom) mm
    Monitor Dimension (W x H x D)
    104.68cm X 59.16cm X 9.11cm
  • Weight (Head)
    29kg
    VESA™ Standard Mount Interface
    800mm x 400mm
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240V~, 50/60Hz

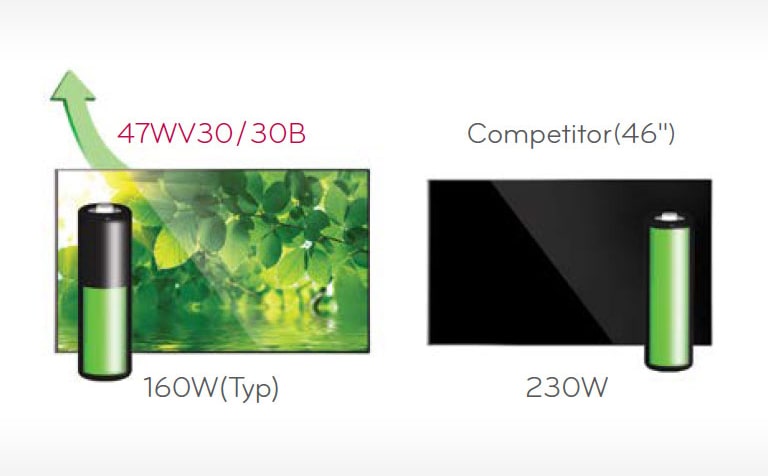

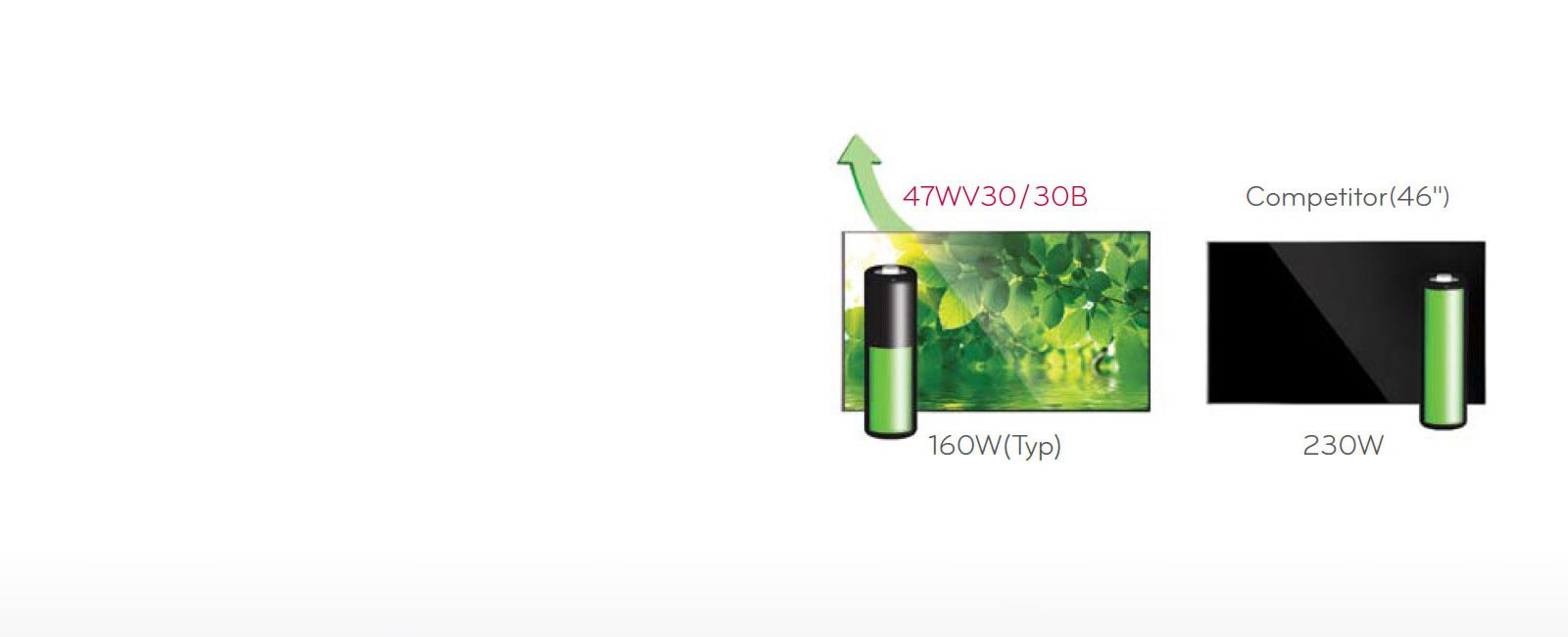

Power Consumption
  • Typical / Smart Energy Saving
    160W (Typ), 110W (SES)
    DPMS
    1.0W (RGB), 1.0W (HDMI)
  • Power off
    0.5 W
Standard(Certification)
  • Safety
    UL / c-UL / CB / TUV / KC
    EMC
    FCC / CE / KCC / VCCI / JQA
  • ErP / Energy Star
    Yes / Yes (Energy Star 5.1)
Media Player Compatibility
  • Slot PC compatible (optional)
    No
    External Media player Attatchable
    Yes
Software Compatibility
  • Supersign Compatibility
    Elite-w / Elite-w lite (Only control)
Accessory
  • Basic
    Remote Controller, Power cable, RGB Cable, DVI Cable, Manual, IR Receiver, RS-232C Cable, Tiling Guide, Screw, Ring Core
    Optional
    Wall Mount
  • Dimension
    • 47WV30.dwg
  • Datasheet
    • Leaflet_WV30.pdf
  • Software
    • WV30_FLASH_V03.10.20(7121)_USB.epk
    • WV30_MICOM_V2.05.2_USB.epk
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
