49KE5E-B component-copyModelName

KE5E Series

Discontinued

49KE5E-B component-copyModelName

KE5E Series

Key Features

Brightness(Typ.) : 450 cd/m² (w/o Protection Glass)
Bezel : 55.3 mm (T/R/L), 623.9 mm(B) *Portrait Kiosk Scene
Glass : 4T, Tempered Glass
Interface : HDMI/ DVI-D/ USB 2.0(2)/ RJ45(LAN)/ Audio/ IR/ RS232C(SVC Only)

Choose your Size

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 450 cd/m² (w/o Protection Glass)
Bezel : 55.3 mm (T/R/L), 623.9 mm(B) *Portrait Kiosk Scene
Glass : 4T, Tempered Glass
Interface : HDMI/ DVI-D/ USB 2.0(2)/ RJ45(LAN)/ Audio/ IR/ RS232C(SVC Only)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

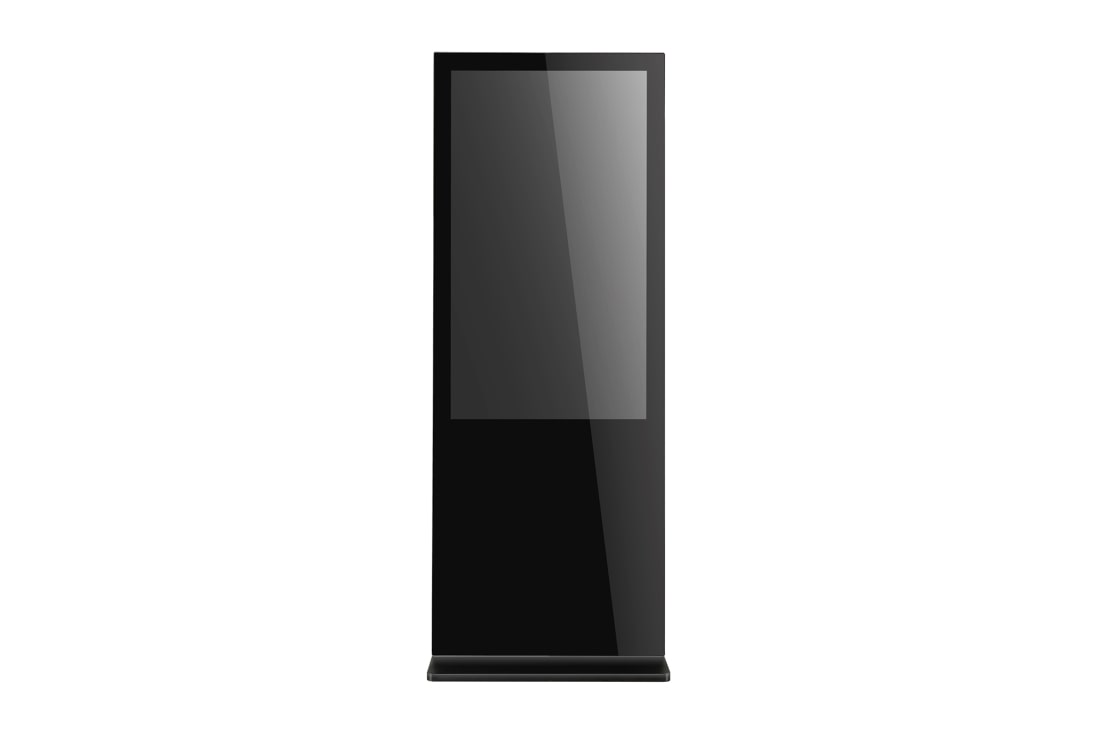

KE5E Series

Digital Kiosk for Effective AD and Interior Decor

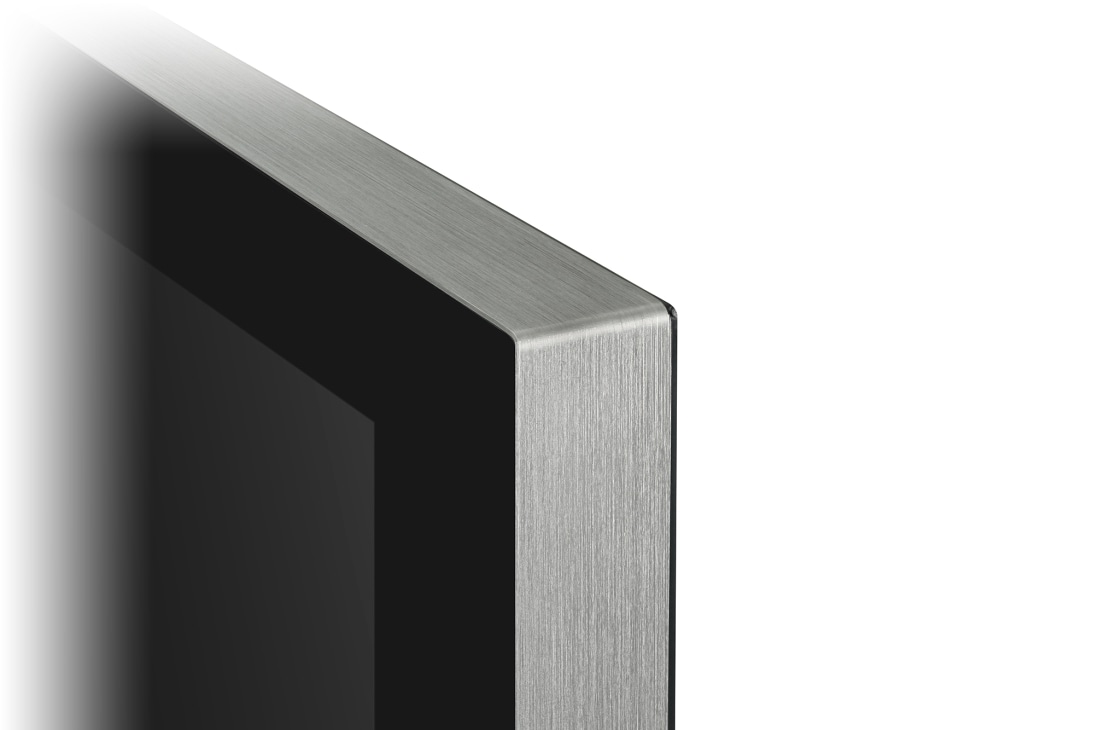

LG's new floor-standing display, 49KE5E, delivers advertising and information in any type of indoor facility, featuring a sophisticated design and 24/7 flexible operation. Boasting an aluminum hairline finish and robust glass surface, it can
reliably withstand external shocks while also blending in with its surroundings.

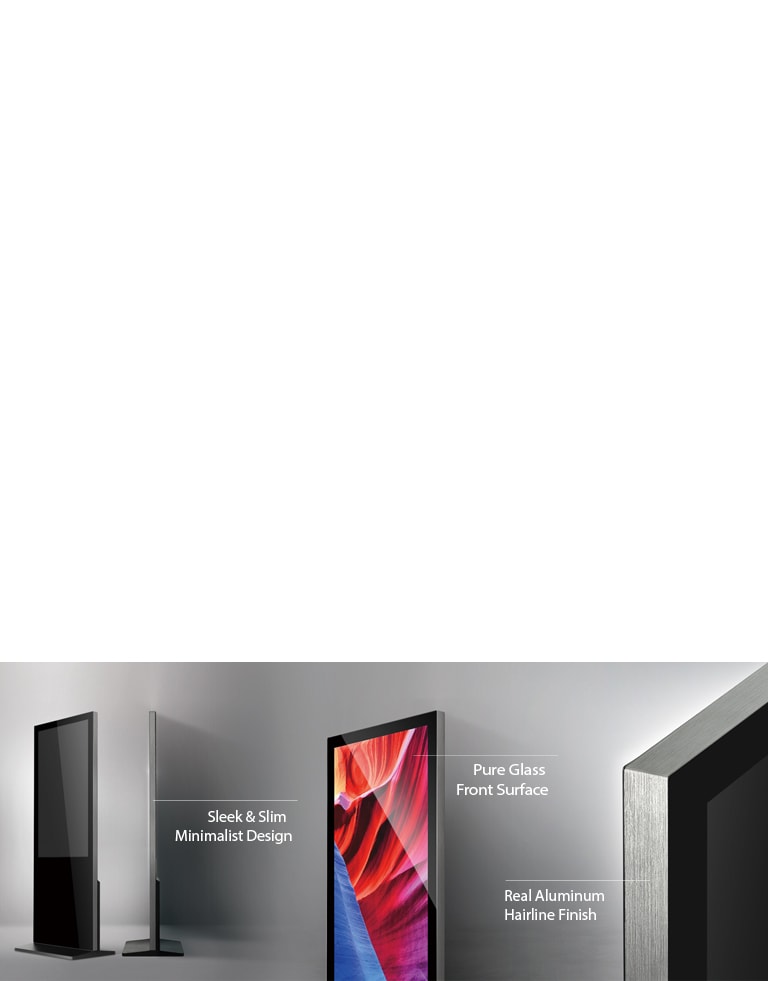

01_Elegant and Sophisticated Design_1541377630692

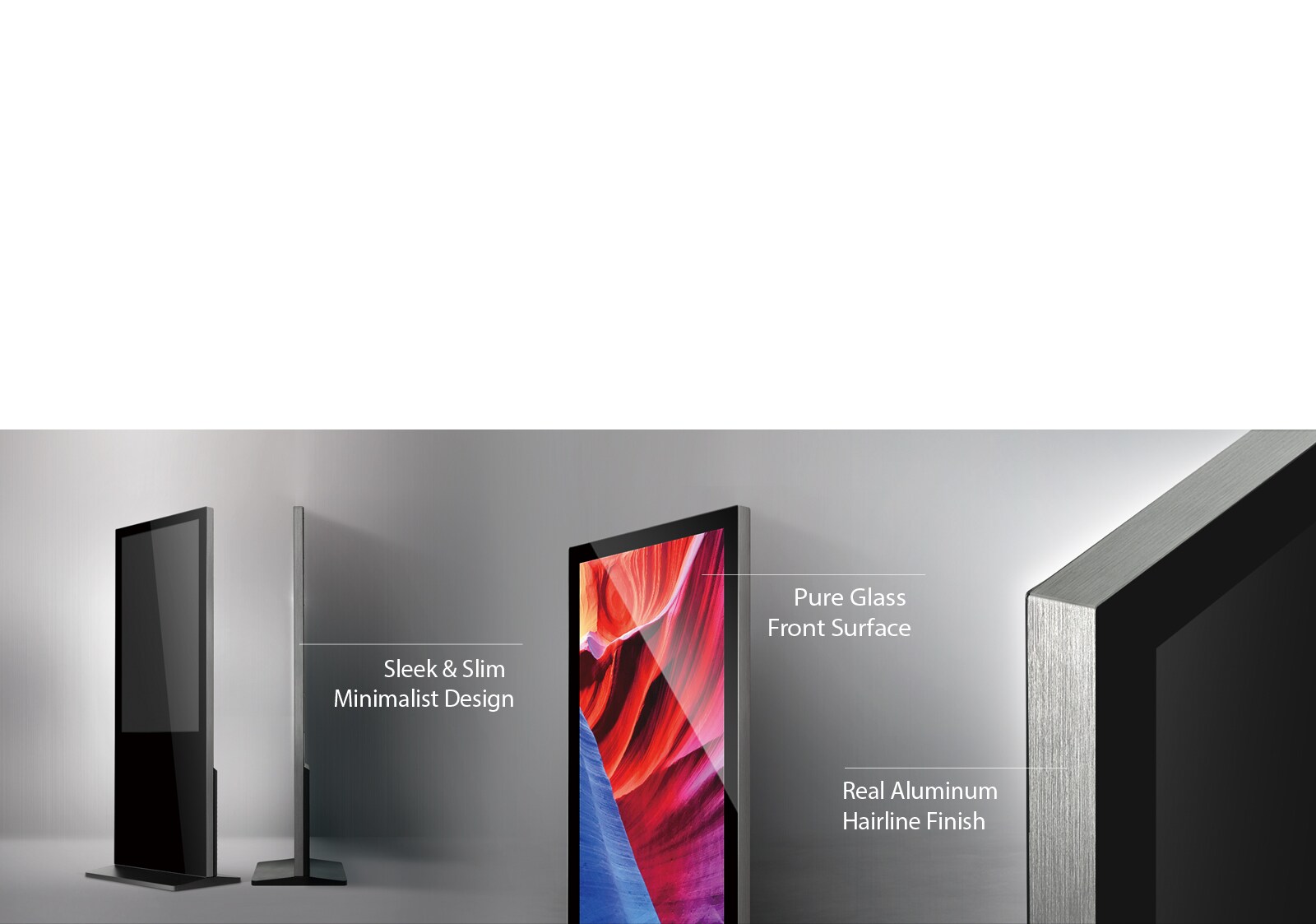

Sleek Design

Elegant and Sophisticated Design

Beyond delivering advertising and information, the 49KE5E has value as interior decoration. The minimalist design, including its slim depth, makes it fit any space both physically and aesthetically, and the pure glass surface of its screen adds to the sense of sleek orderliness.

02_Protective Glass for Safety_1541378965152

Reliable Operation with High Durability

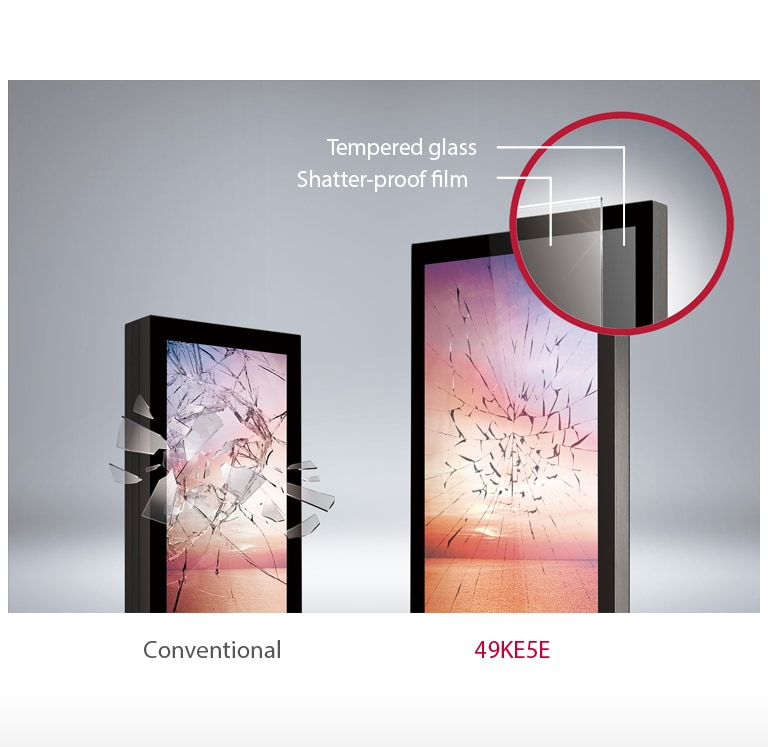

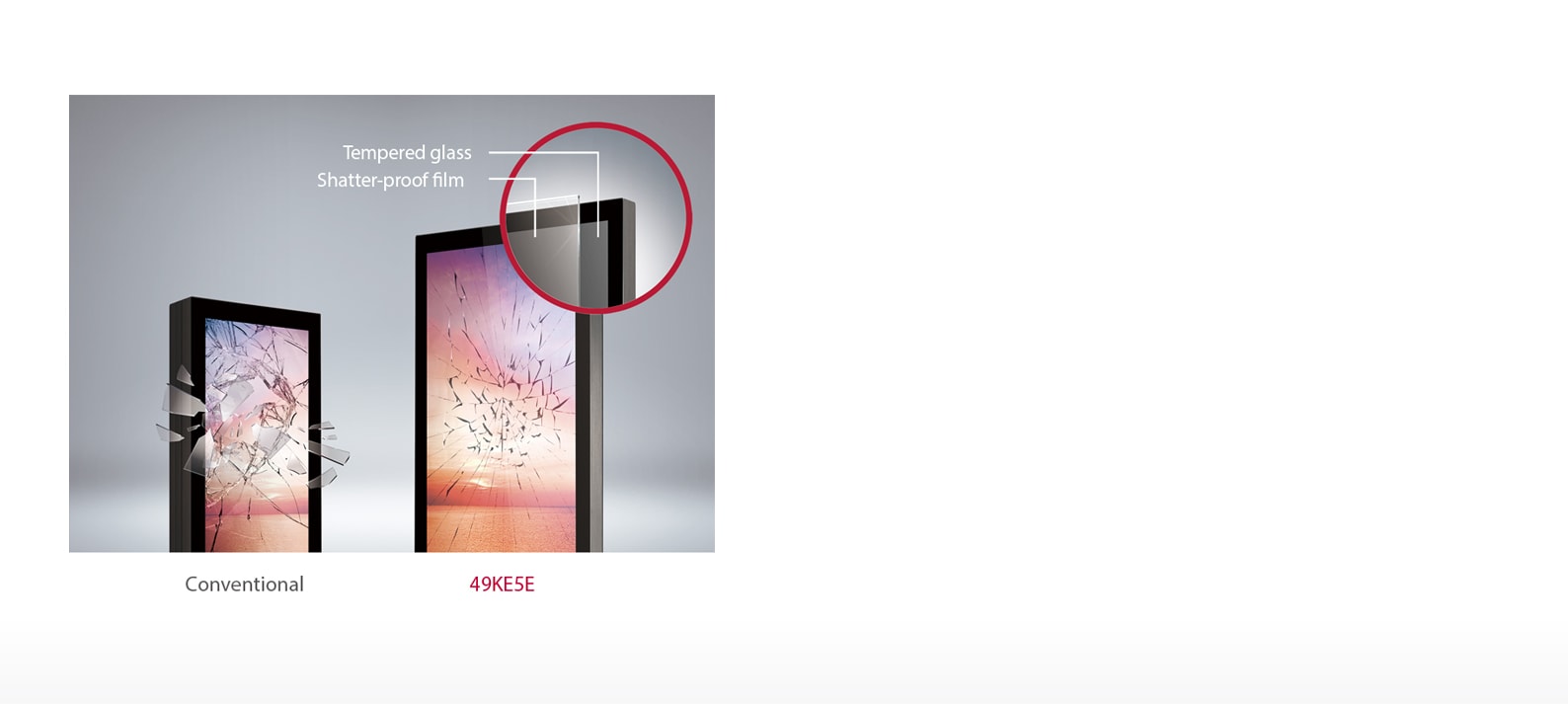

Protective Glass for Safety

The tempered front glass with shatter-proof film prevents pieces of broken glass from scattering and keeps them attached to the screen. It is the optimum protection for minimizing harm to the user, even in the event of an external impact.

Reliable Operation with High Durability

Conformal Coating

The product can be often unavoidably exposed to dust and iron powder during maintenance. Conformal coating on major circuit board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.

Reliable Operation with High Durability

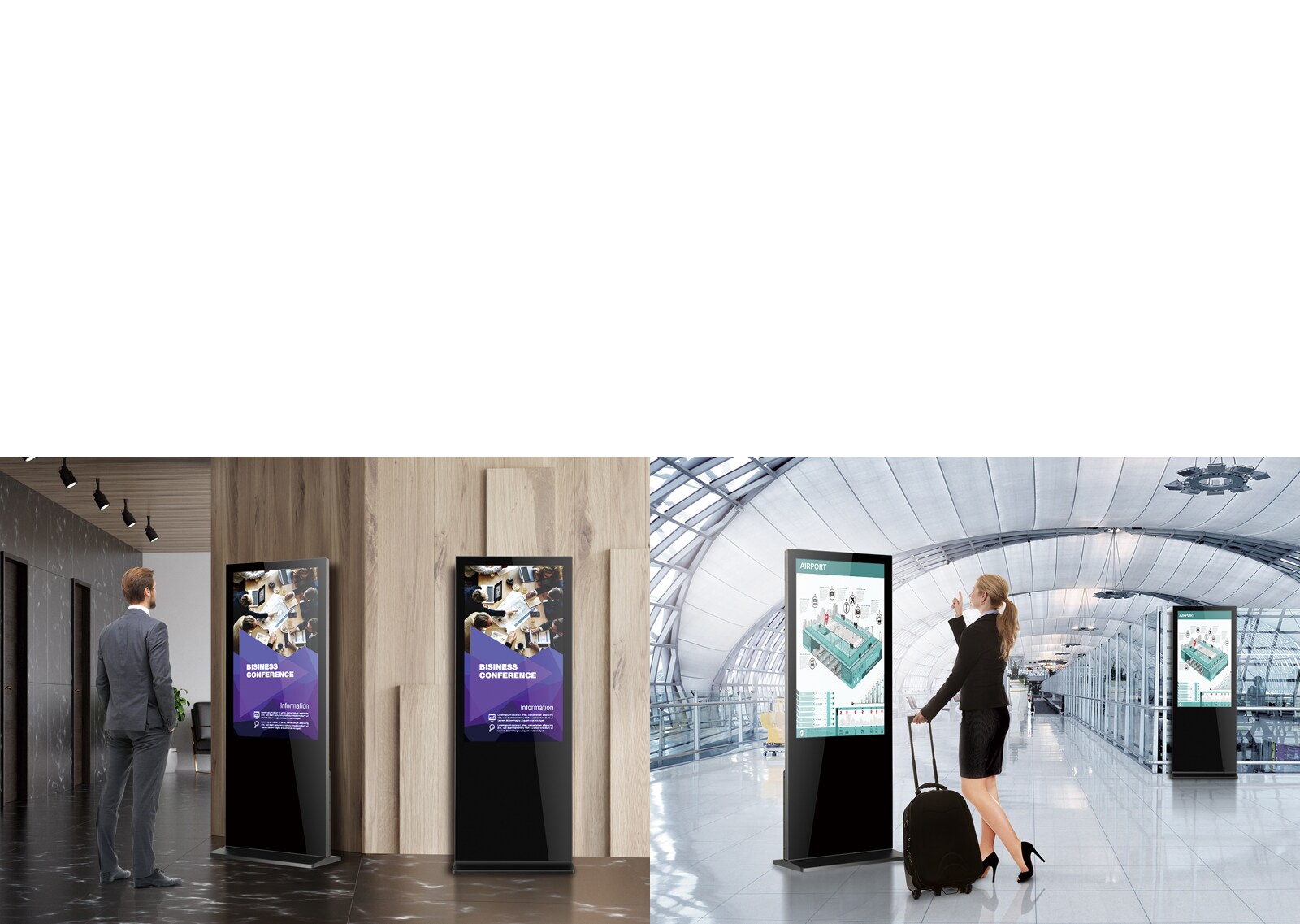

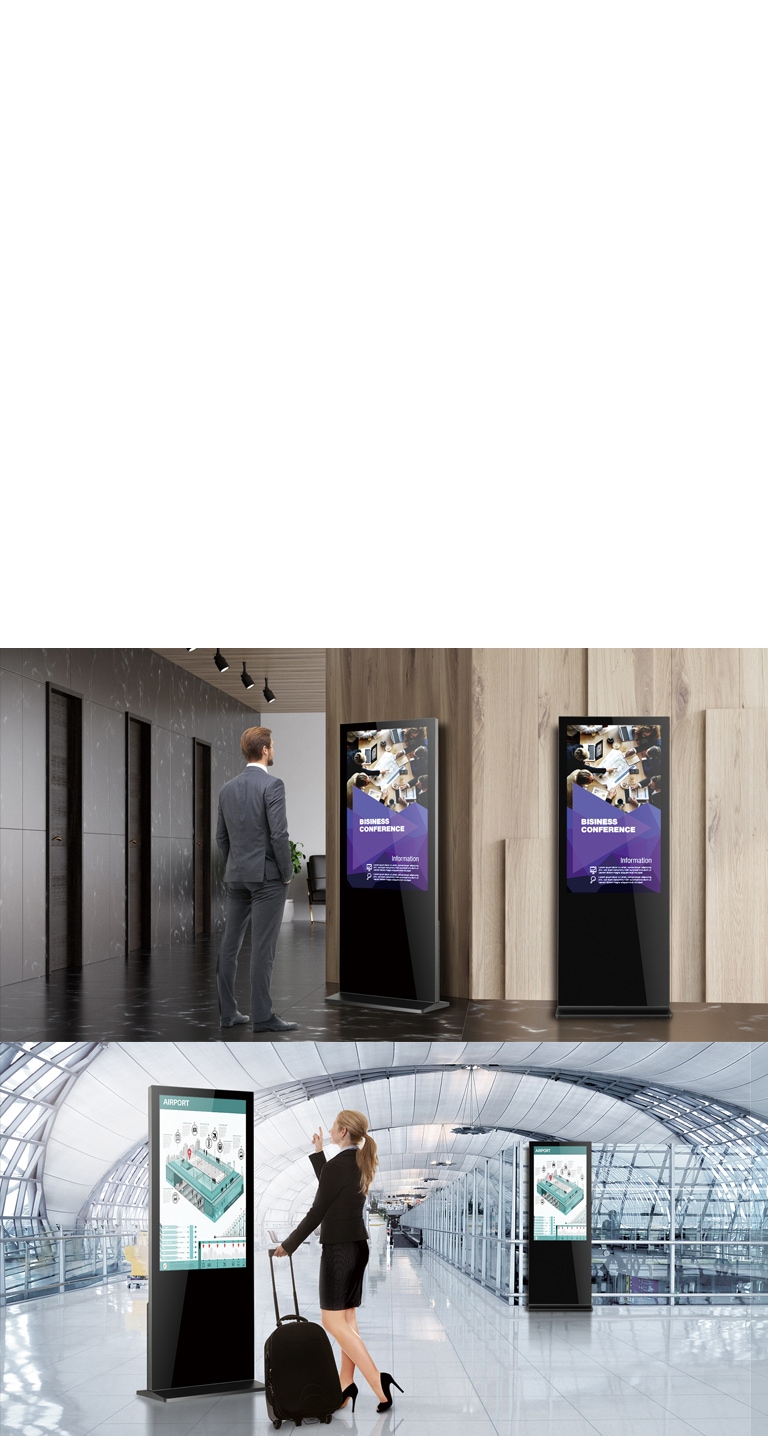

24/7 Secure Operation

The 49KE5E supports 24/7 operation, which means that owners or managers who run their workplaces can flexibly deploy and operate it free from operational
time constraints. LG's continuous verification processes and strict quality standards guarantee stable operation and product quality.

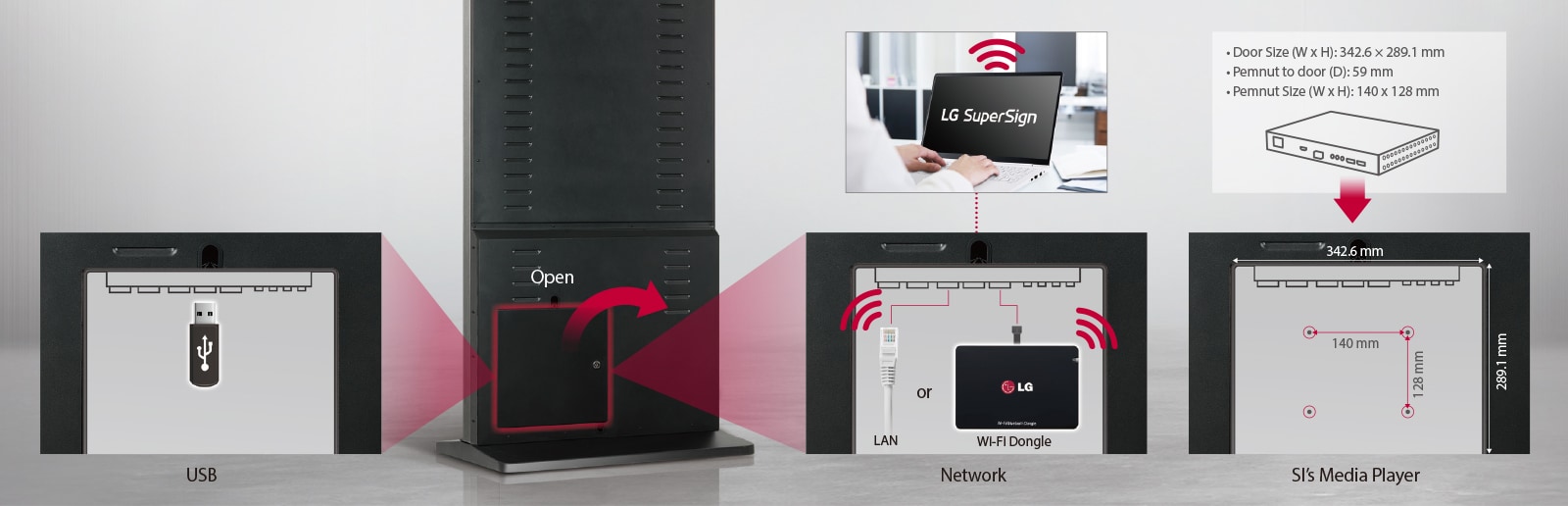

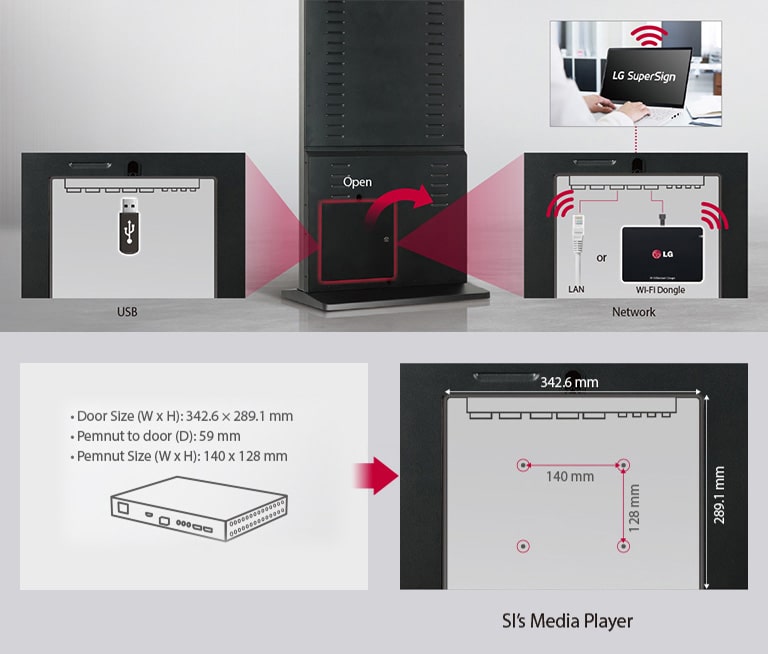

Easy Content Management

USB Content Playback

USB auto playback and scheduling is supported and a USB can be mounted inside the back cover, preventing it from being lost.
Wi-Fi Connection Ready

Content can be distributed and managed via wired or wireless network connections, enabling remote content management.
Space for Media Player

A hidden space for media player is provided, so specialized SIs can flexibly customize and allocate their solutions for optimal use.

Panel

Screen Size

49"

Resolution

1,920 x 1,080 (FHD)
Brightness (Typ., cd/m², w/o Protection Glass)

450

Connectivity

Input

HDMI, DVI-D, Audio, USB 2.0 (2)

Output

Audio
External Control

RS232C In/out (SVC Only), RJ45 (LAN), IR In

Physical Specification

Bezel Width

55.3 mm (T/R/L), 623.9 mm (B) *Portrait Kiosk Scene

Monitor Dimension (W x H x D)

716.6 × 1,855 × 50 mm (The Thickest Part 77 mm) *Without Stand
716.6 × 1,900 × 480 mm *With Stand
Weight (Head)

45.8 kg

Weight (Head+Stand)

58.3 kg
Carton Dimensions (W x H x D)

1,995 x 855 x 265 mm

Packed Weight

75.5 kg
VESA™ Standard Mount Interface

N/A

Glass

4T, Tempered Glass

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

85 W

Max.

100 W
Smart Energy Saving

65 W

Standard(Certification)

Safety

CB/BIS

EMC

CE (Class A)
ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS type compatible

No

Media Player Attachable

Yes

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control / Control+

Accessory

Basic

Remote Controller, Power Cord, QSG, Regulation Book, IR Cable

Optional

LG Wi-Fi Dongle (AN-WF500)

Dimension
