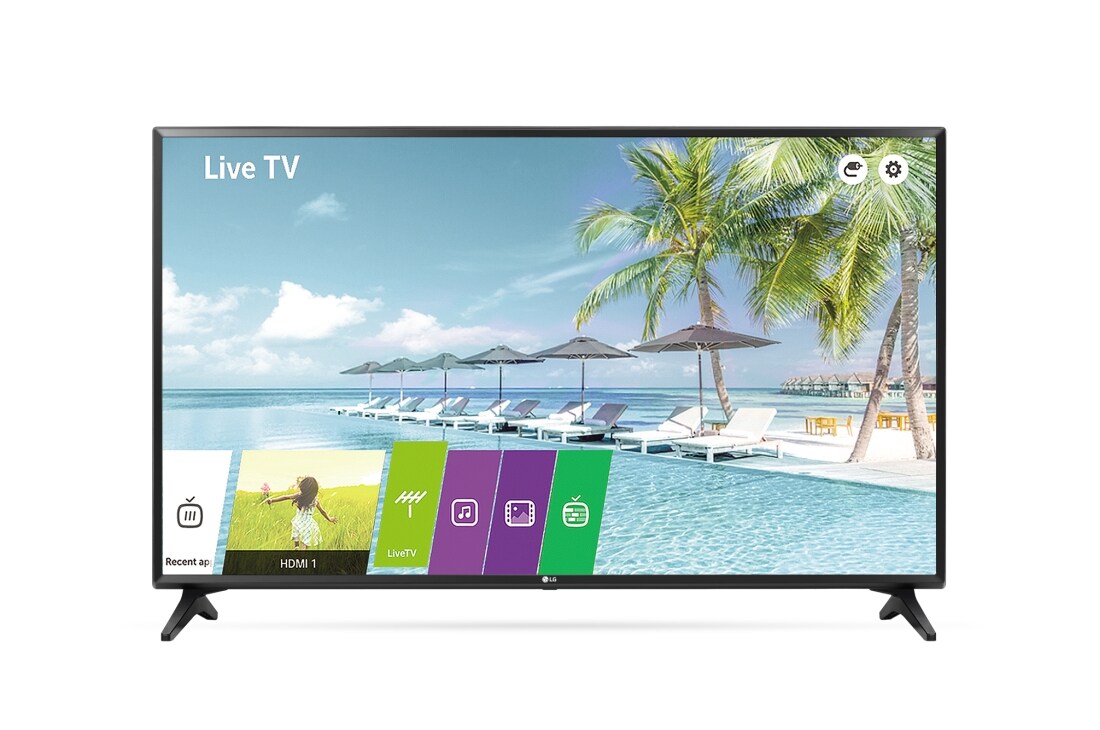

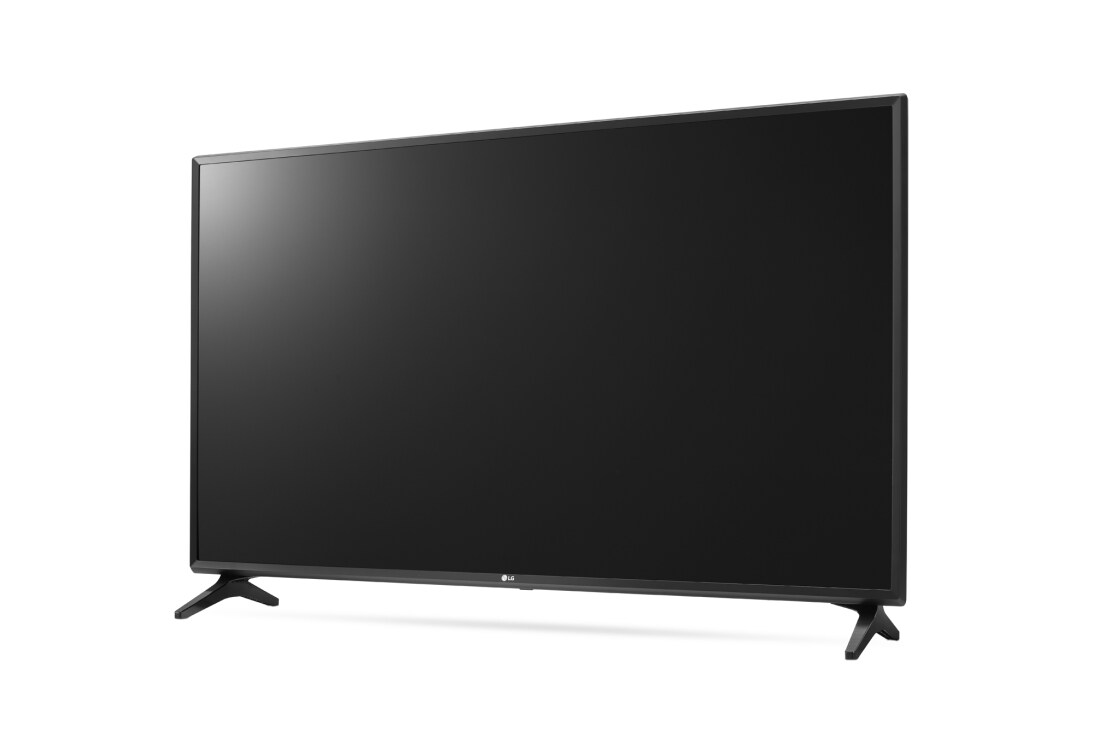

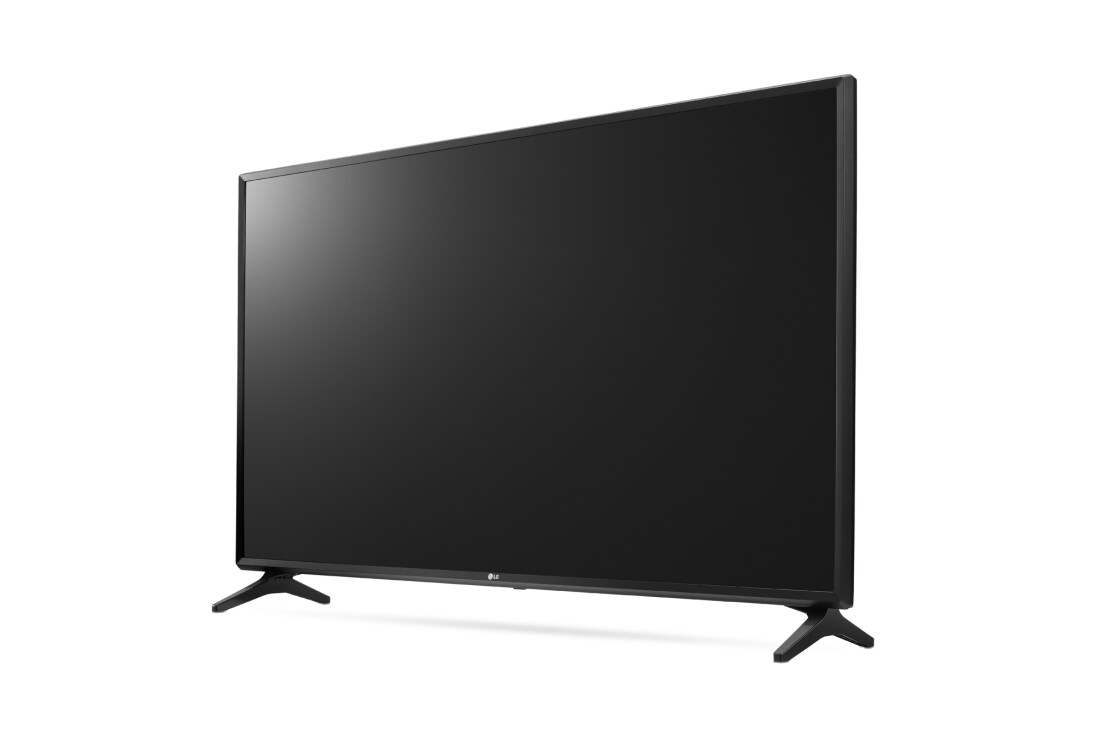

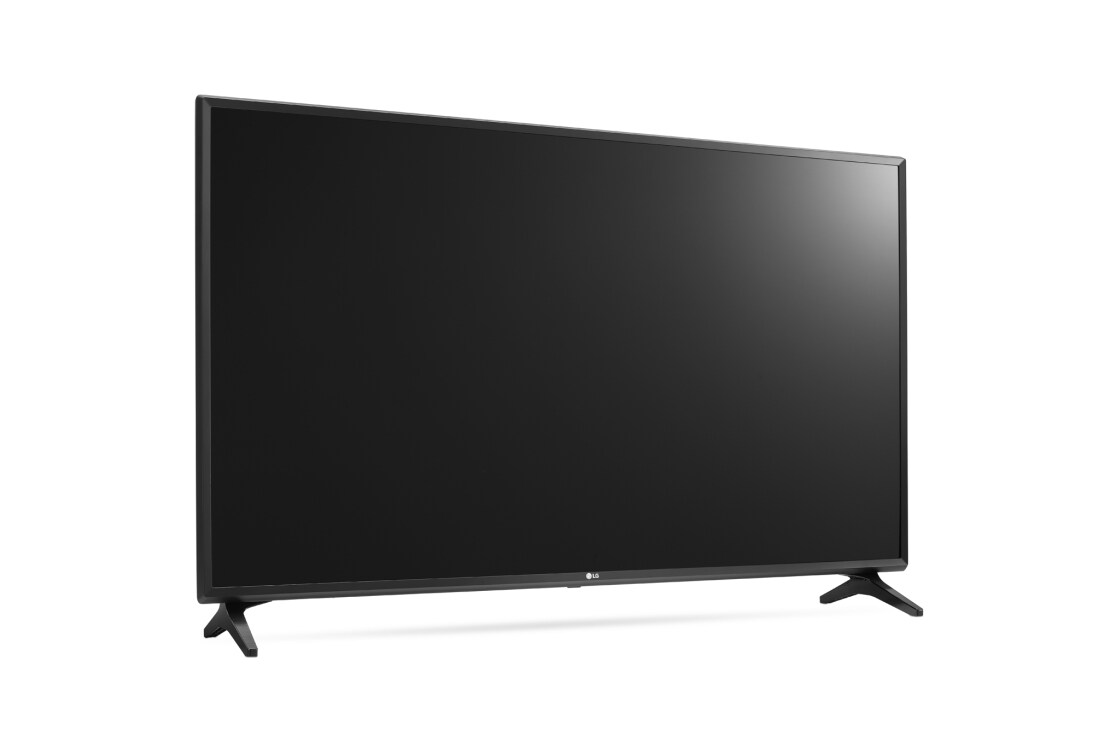

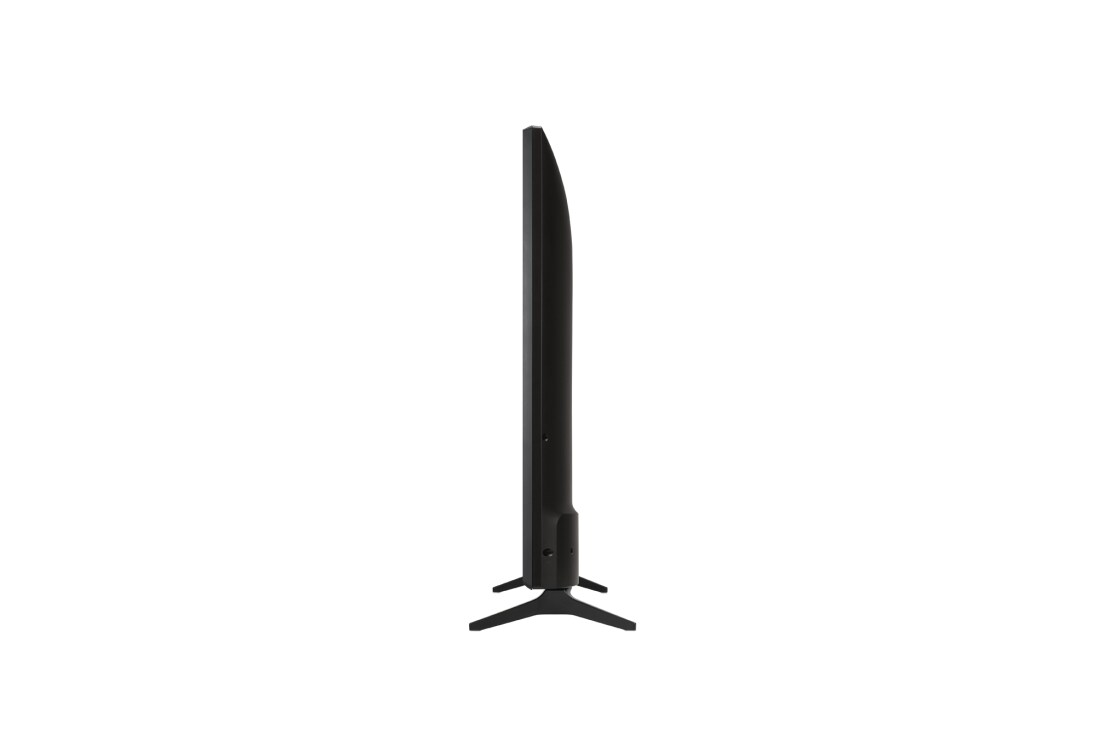

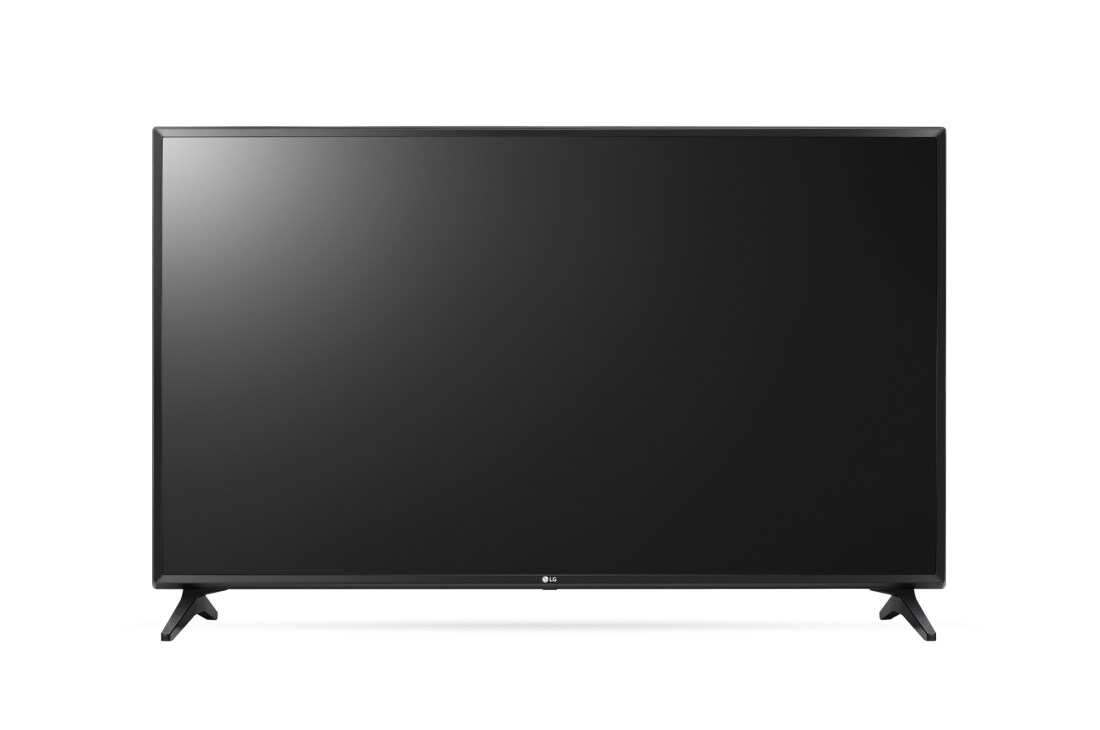

49LU340C (SCA) component-copyModelName
LU340C Series

Key Features

Choose your Size

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

LU340C Series
Inquiry to Buy
Close
Display
  • Backlight Type
    LED (Direct)
    Resolution
    1,920 x 1,080 (FHD)
Broadcasting System
  • Analog
    • (PAL-M/N / NTSC-M)
    Digital
    • (ISDB-T)
Video
  • XD Engine
    •
    Aspect Ratio
    • 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, News, Music, Cinema, Sport, Game)
    Clear Voice
    • (Clear VoiceⅢ)
Feature
  • Hospitality

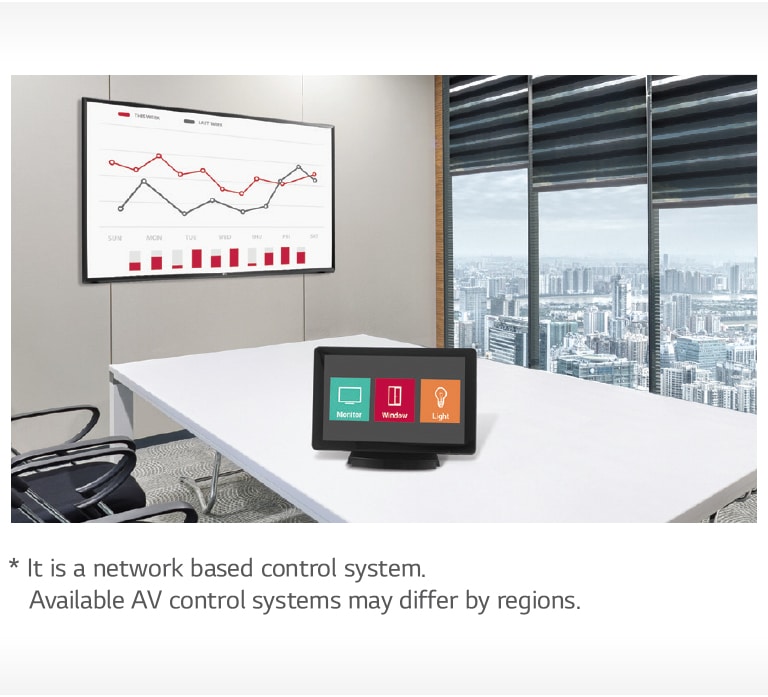

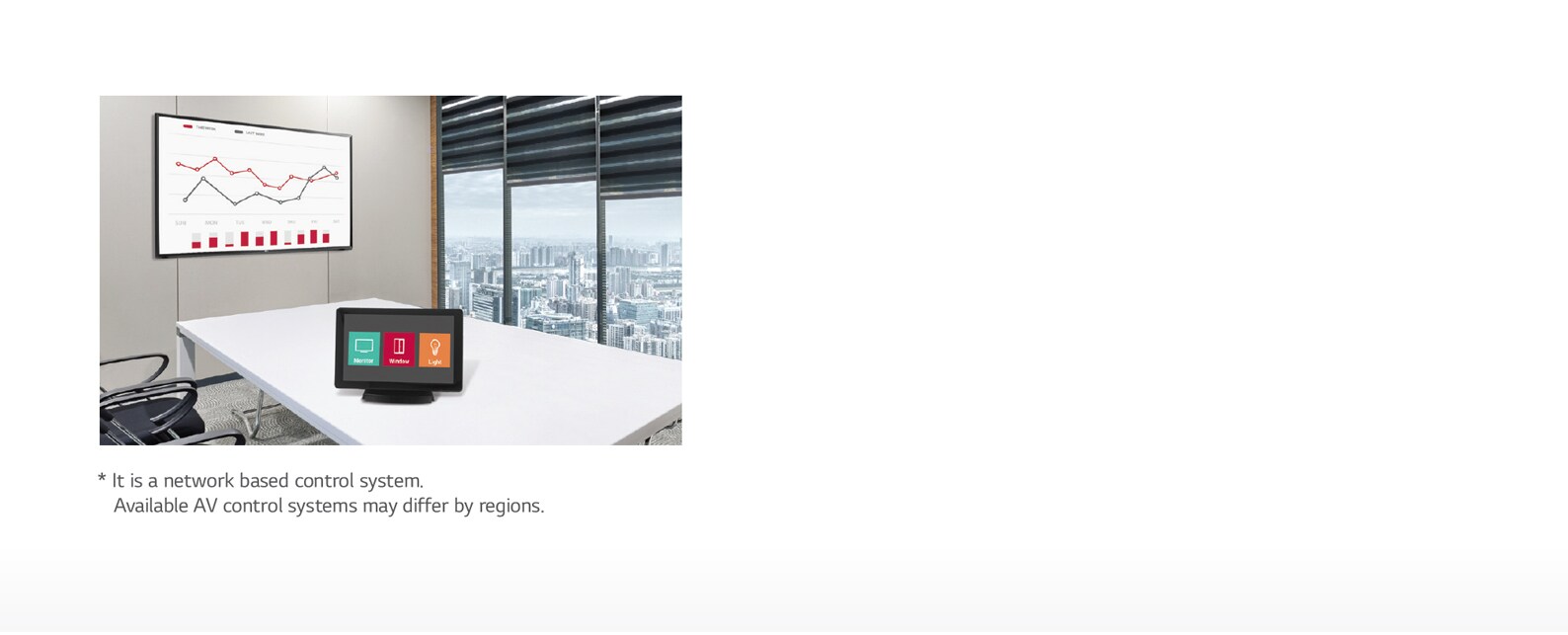

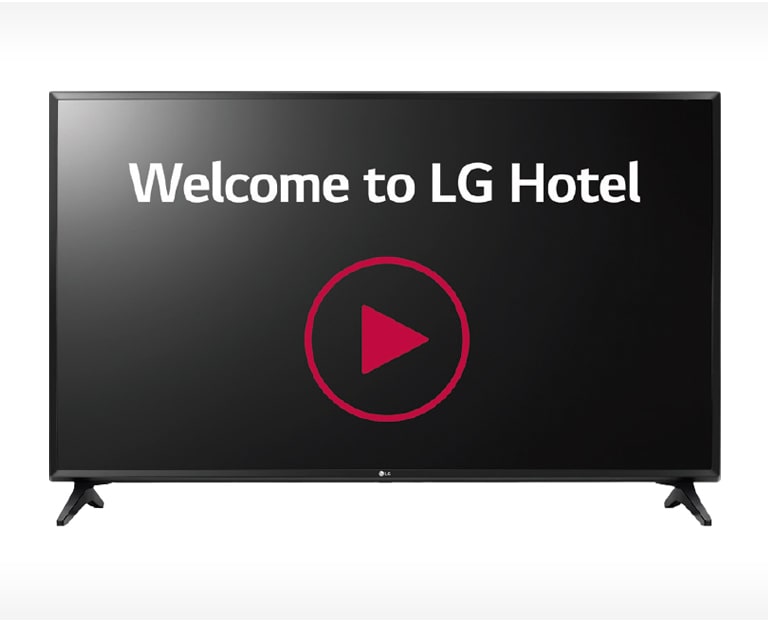

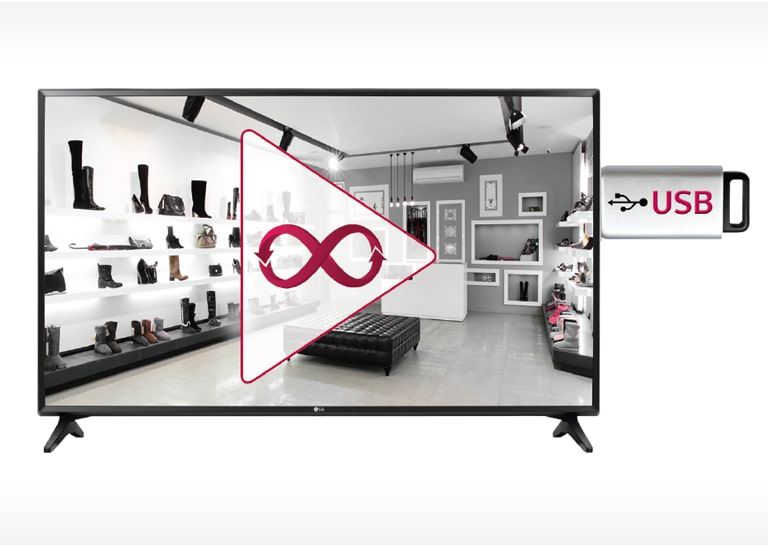

    Hotel Mode, Lock Mode, Welcome Video / Screen, Insert Image, External Speaker Out, RJP Interface, RJP Compatibility, USB Auto Playback / USB Auto playback+, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, Crestron Connected (Network Based Control)
Jack Interface
  • Set Side
    HDMI In, USB 2.0

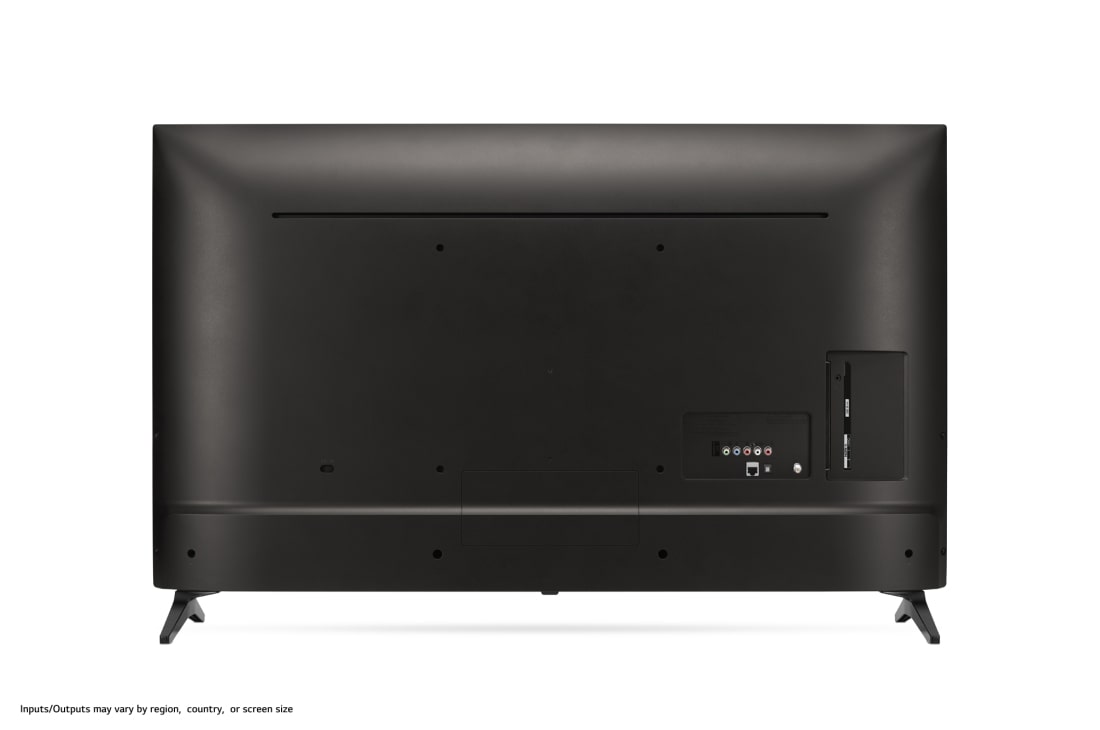

    Set Rear
    RF In, AV In, Component In (RCA5 Type), Digital Audio Out, HDMI / HDCP Input, RGB In, PC Audio Input, RS-232C (Control & Service), RJ45, External Speaker Out
Dimension
  • Vesa
    300 x 300
    WxHxD / weight (with stand)
    1,110 x 705 x 303 / 14.5 kg
  • WxHxD / weight (without stand)
    1,110 x 650 x 72 / 11.3 kg
    WxHxD / weight (Packing)
    1,296 x 770 x 171 / 17.2 kg
Power
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    110
  • Typical
    68
    Energy saving (Min/Med/Max)
    50.6 / 35.1 / 18.0
  • Stand-by
    0.5W↓
General
  • Region
    SCA
  • Dimension
    • [Dimension] 49LU340C (SCA).dwg
    • [Dimension] 49LU340C (SCA).pdf
  • Datasheet
    • LU340C_SCA_low.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
