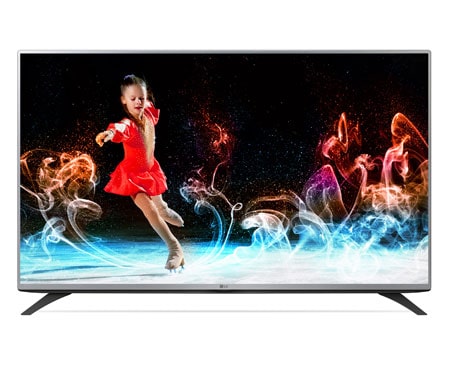

49LX310C (SCA-ISDB-T) component-copyModelName
LX310C Series

Key Features

component-OBScountrySelectDesc

LX310C Series
LCD Panel Specification
  • Backlight Type
    LED-L
    Cinema 3D
    -
  • Resolution
    1,920 X 1,080 (FHD)
    Brightness (cd/m²l, Typ)
    200
Broadcasting System
  • Analog
    PAL-M/N / NTSC-M
    Terrestrial
    ISDB-T
  • Cable
    -
    Satellite
    -
Video
  • Aspect Ratio
    6 modes (16:9, Just scan, Original, 4:3, Cinema Zoom, Zoom)
Audio
  • Audio Output
    5W + 5W
    Wireless Sound Sync
    -
Feature - Pro:Centric
  • Pro:Centric
    -
    Hybrid Streaming (IP & RF)
    -
  • Pro:Centric Application
    -
    RF (1/2 Tuner)
    -
  • HCAP (GEM/FLASH/HTML)
    -
Feature - Pro:Idiom
  • Pro:Idiom
    -
Interface - Set Side
  • Headphone Out
    -
    AV In
    -
  • S-Video In
    -
    RGB In (D-sub 15pin)
    -
  • Component in (Y,Pb,Pr)
    -
    PC Audio Input
    -
  • HDMI In
    1
    USB (2.0)
    2
  • CI Slot
    -
Interface - Set Rear
  • RF In
    1
    AV In
    1 (Share with Component)
  • AV Out
    -
    S-Video In
    -
  • Full Scart
    -
    Component in (Y,Pb,Pr) + Audio
    1
  • Digital Audio Out (Coaxial / Optical)
    1 (Optical)
    HDMI/HDCP Input
    1
  • USB 2.0
    -
    RGB In (D-sub 15pin) - PC
    1
  • PC Audio Input
    1 (Share with Component Audio)
    RS-232C (D-sub 9pin)
    1 (Control & Service)
  • Headphone Out
    -
    Clock Interface
    -
  • LAN Port
    -
    RJ45 (RJP interface)
    -
  • External Speaker Out(3.5mm phone jack)
    -
    TV link Configuration (phone jack type)
    -
Power
  • Voltage, Hz
    110 ~ 240V, 50/60Hz
    Typical (Watts)
    68.7W
Tool Description
  • Swivel (angle)
    -
    VESA Compatibility
    300 X 300
Required Listing(Certification)
  • Safety
    CB
    EMC
    -
  • ETC.
    RoHS
Dimension
  • WxHxD (w/o stand, mm)
    1,103 X 650 X 58.7
    WxHxD (with stand, mm)
    1,103 X 698 X 198
General
  • Region
    South America
  • Dimension
    • [Drawing] 43LX310C(NA,SCA)_43LF54.dwg
    • [Drawing] 49LX310C(NA,SCA)_49LF54.dwg
    • [Drawing] 43LX310C(NA,SCA)_43LF54.pdf
    • [Drawing] 49LX310C(NA,SCA)_49LF54.pdf
  • Datasheet
    • [Leaflet] LX310C_SCA_151216.pdf
