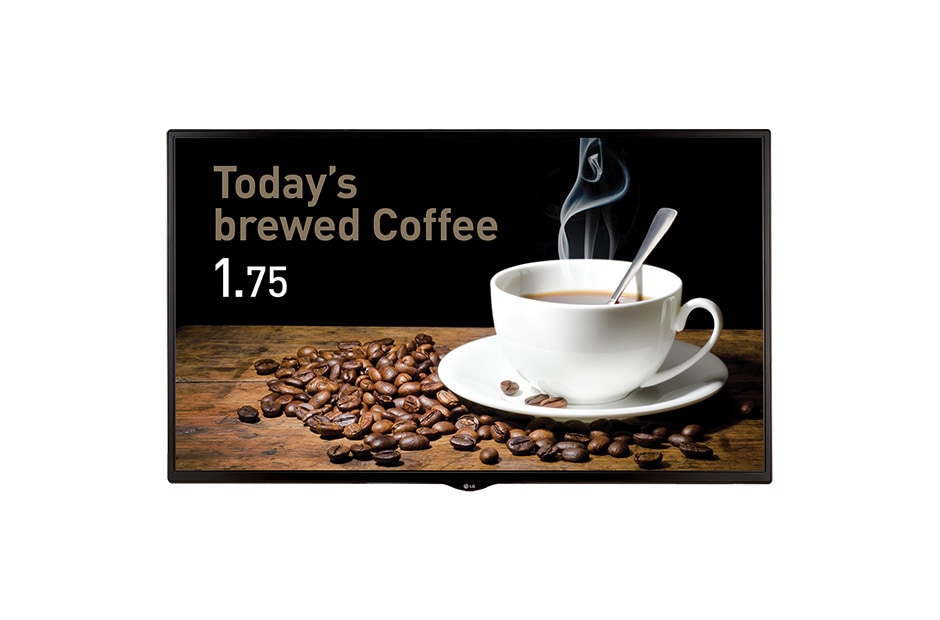

49SE3KD component-copyModelName

SE3KD Series

Discontinued

49SE3KD component-copyModelName

SE3KD Series

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : Top/Left/Right 11.9 mm (Bottom 18.0 mm)
Depth : 54mm(38.6mm:Thinnest Part)

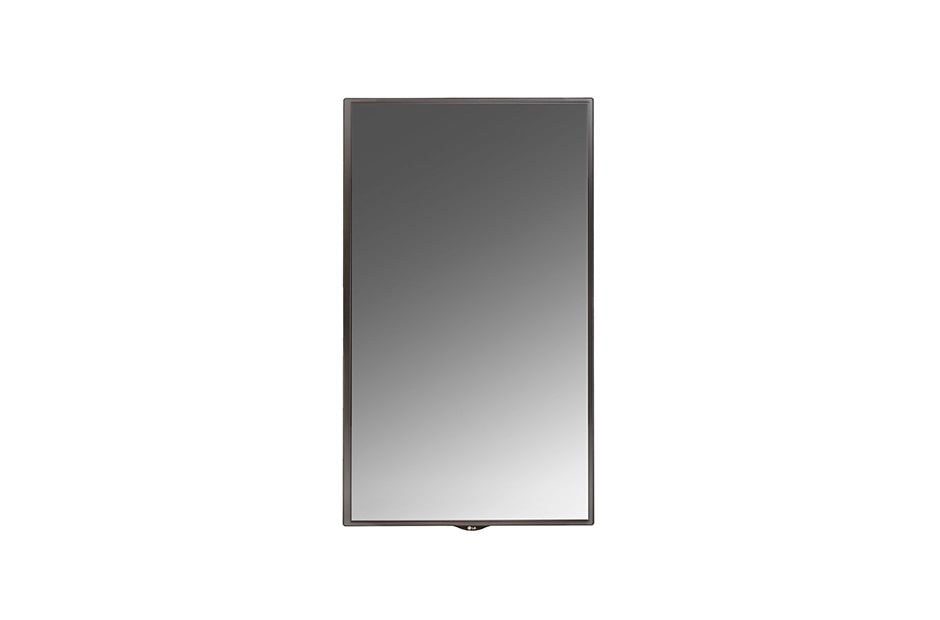

Orientation : Landscape & Portrait mode
Interface : HDMI, DVI, RGB, RJ45, IR, RS232C, USB
Speaker : Built-in

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : Top/Left/Right 11.9 mm (Bottom 18.0 mm)
Depth : 54mm(38.6mm:Thinnest Part)
Orientation : Landscape & Portrait mode
Interface : HDMI, DVI, RGB, RJ45, IR, RS232C, USB
Speaker : Built-in

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

SE3KD Series

Sleek Design

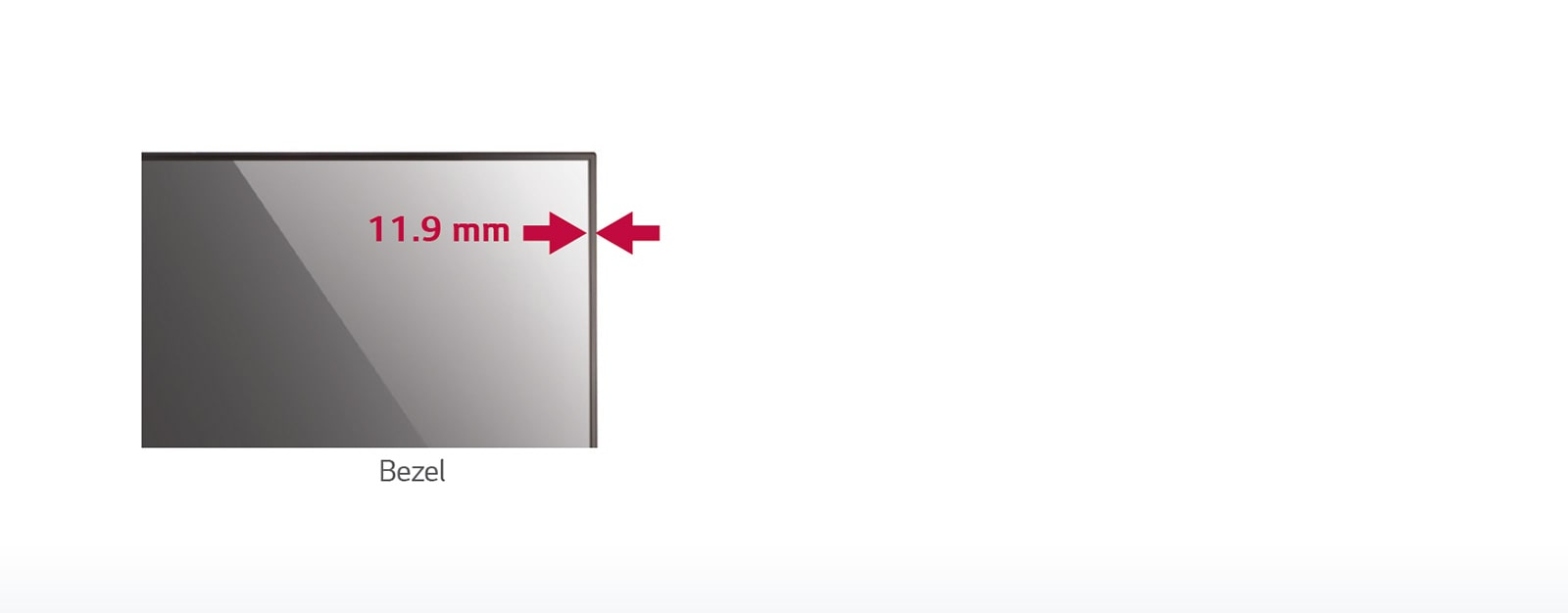

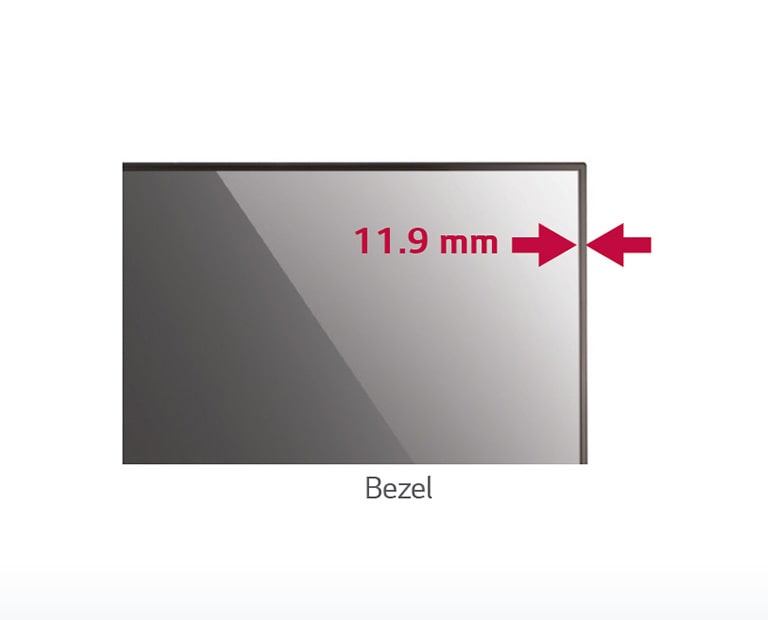

Slimmer Bezel

The thinner bezel allows a perfect fit for a sleek look.

Sleek Design

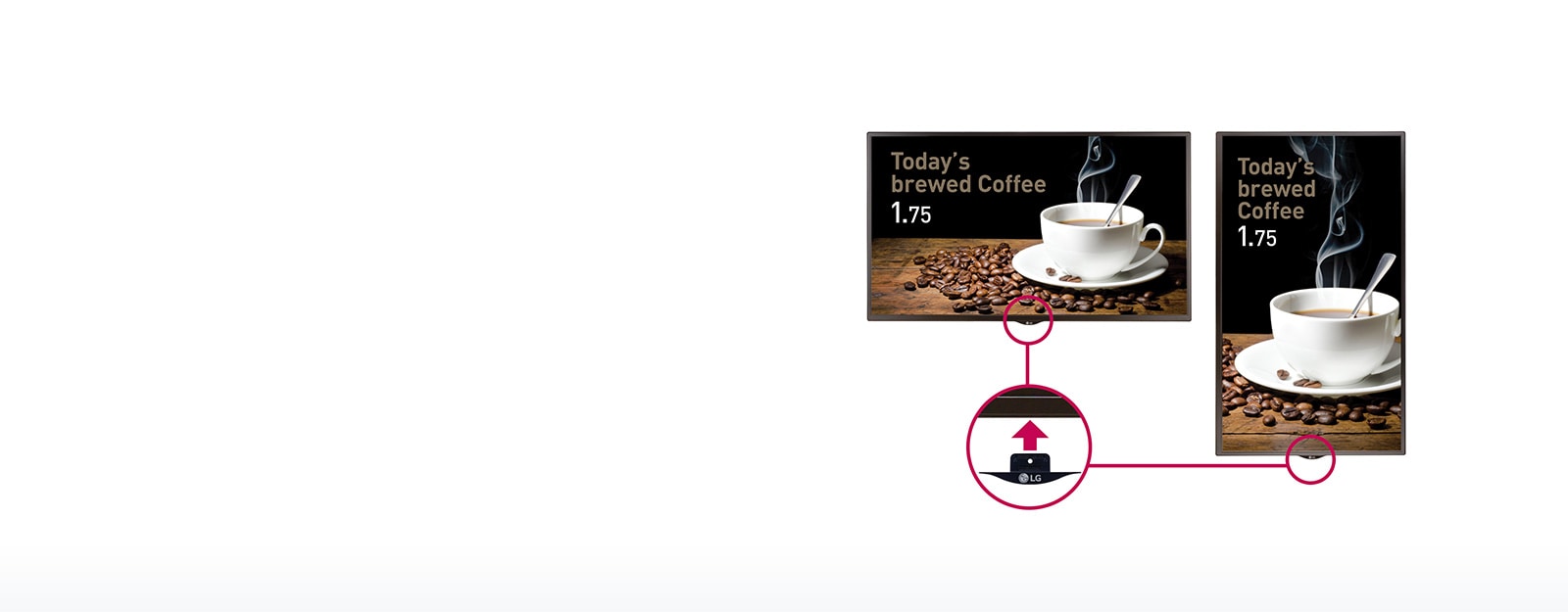

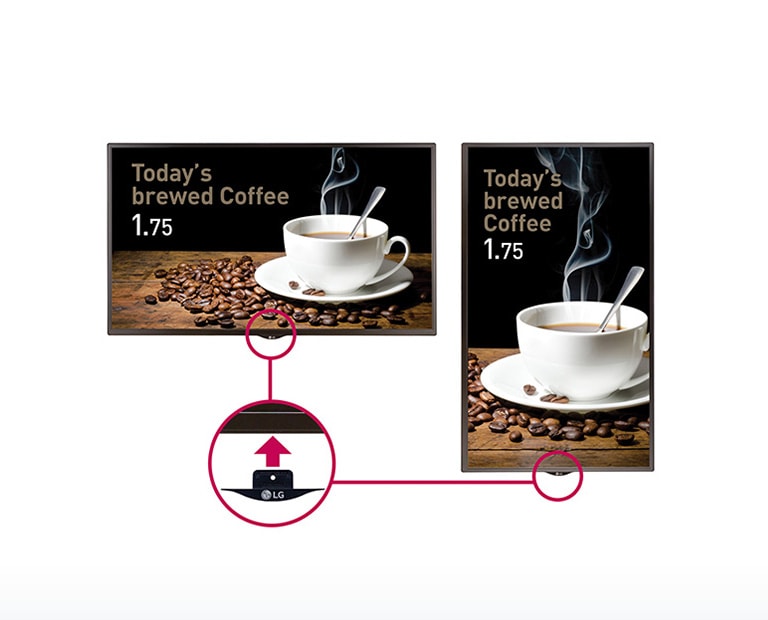

Detachable Logo

Portrait mode allows the logo to be positioned in the desired setting.

Sleek Design

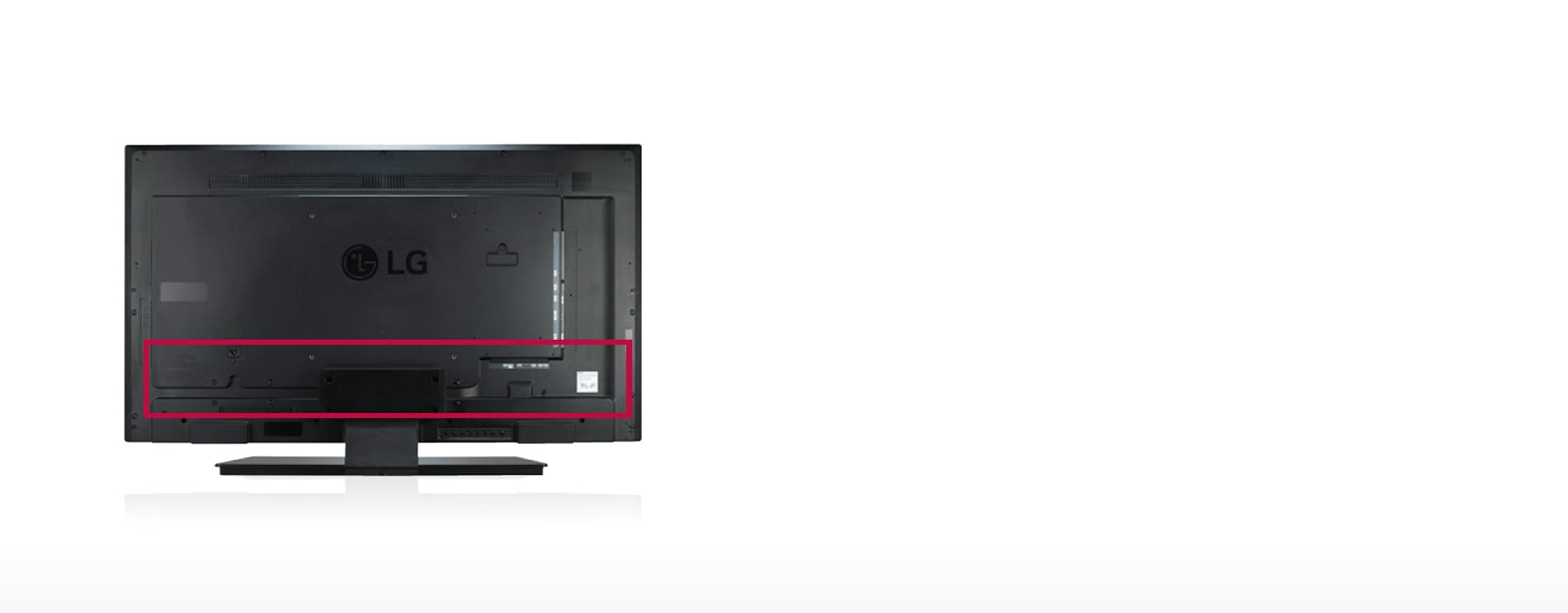

Cable Management

The well-organized cable terminals in the back optimize available space.

USB Content Management

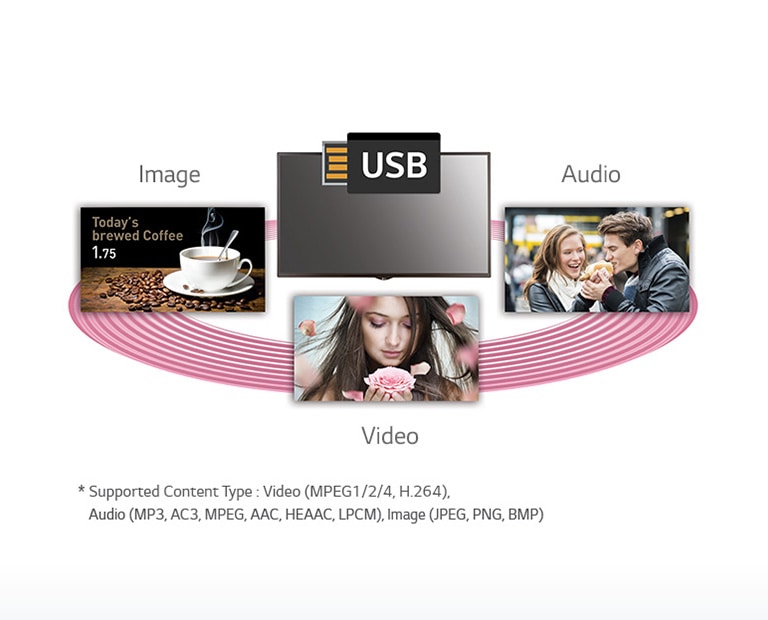

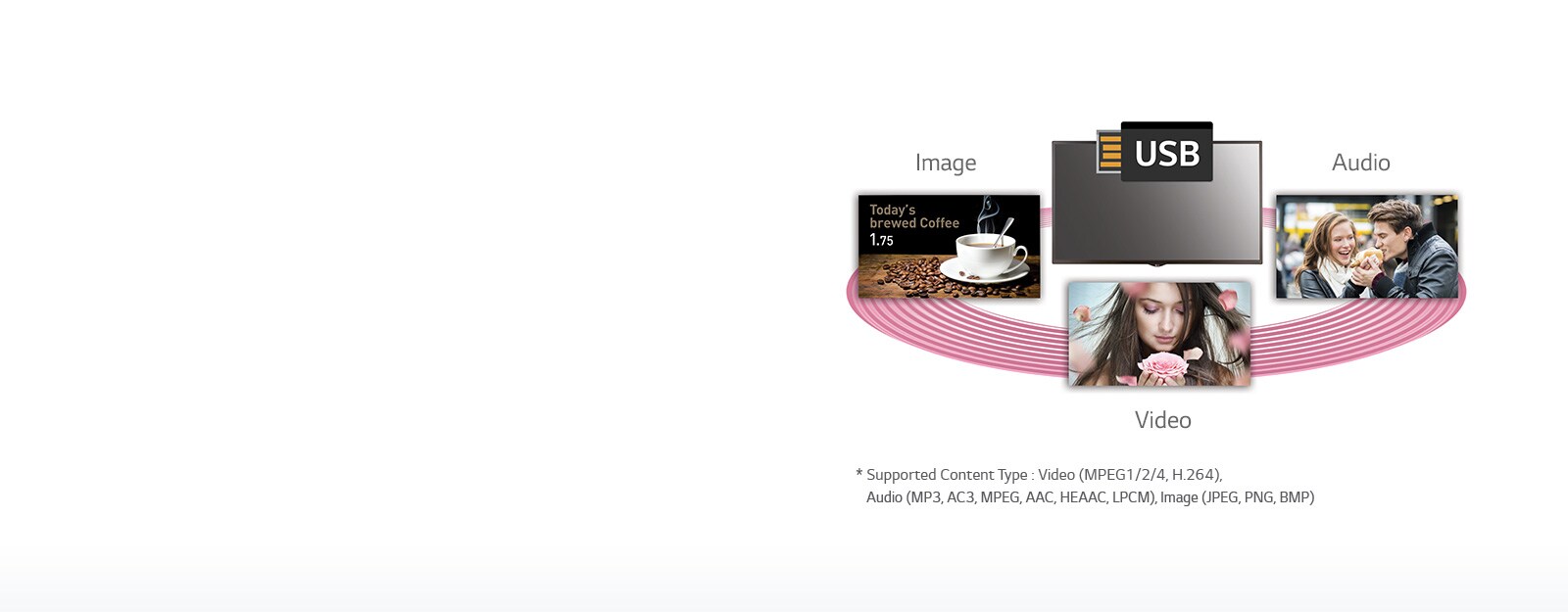

USB Content Scheduling

Play and schedule contents with a USB connection-no server connection required.

Dust & Humidity Protection

Conformal Coating

Power board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.

Convenient Management

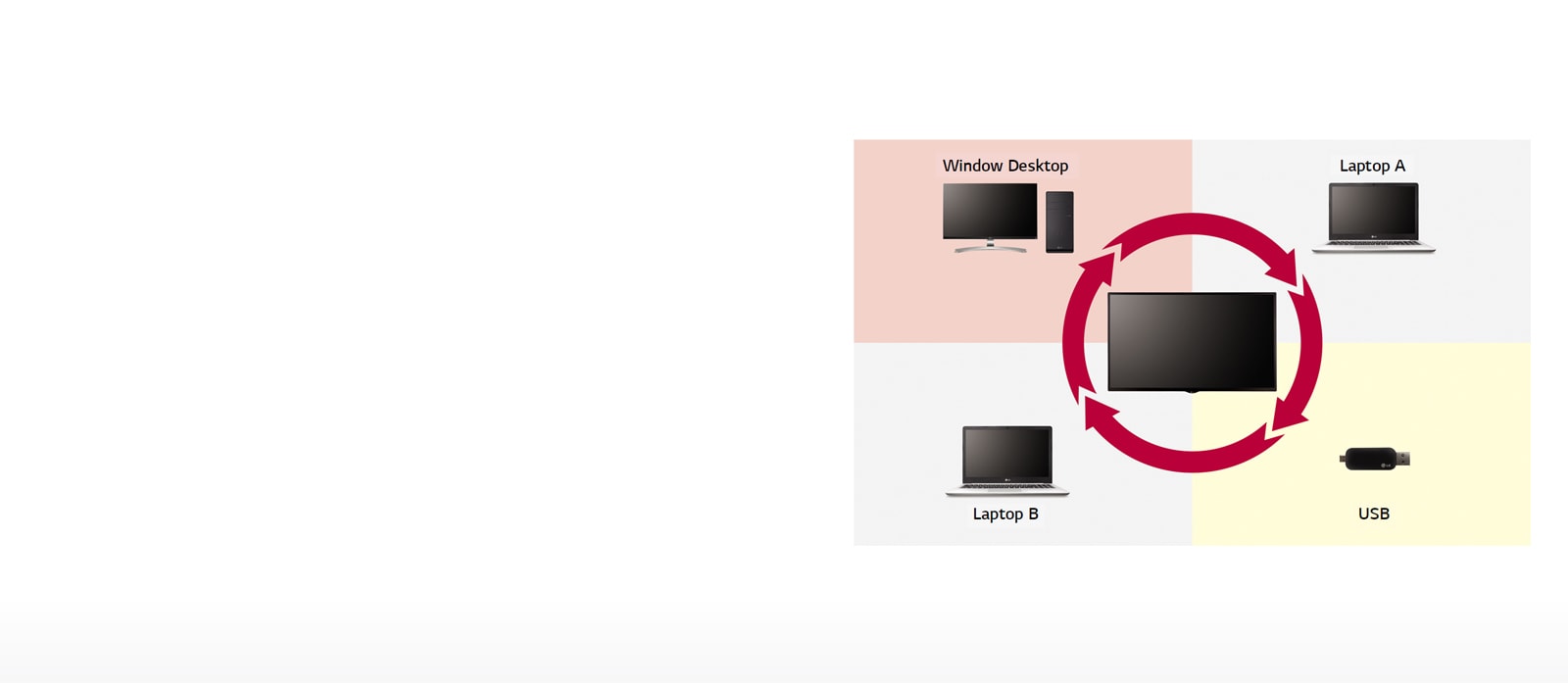

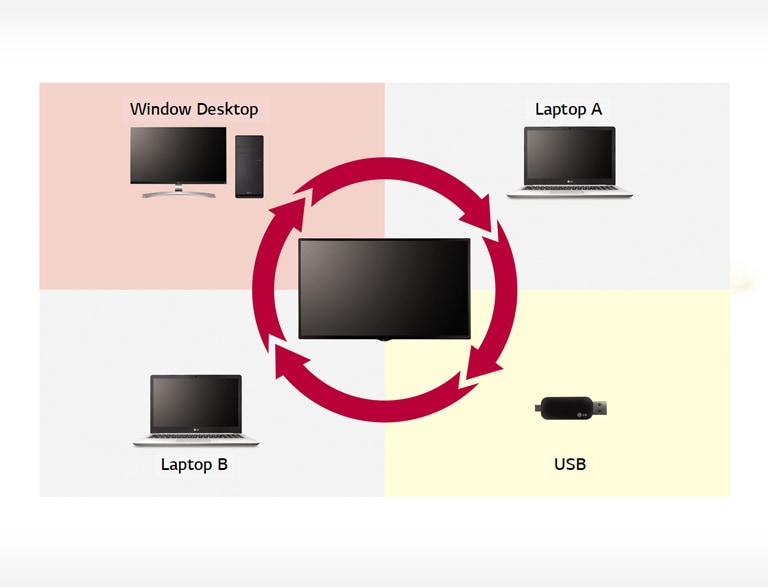

Enhanced Connectivity

Through its diverse interface, the signage lets you connect more than one device for optimal use.

Convenient Management

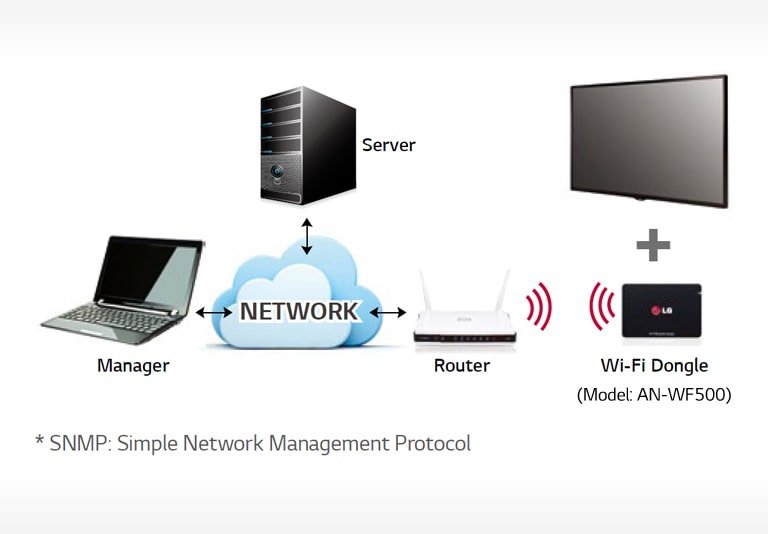

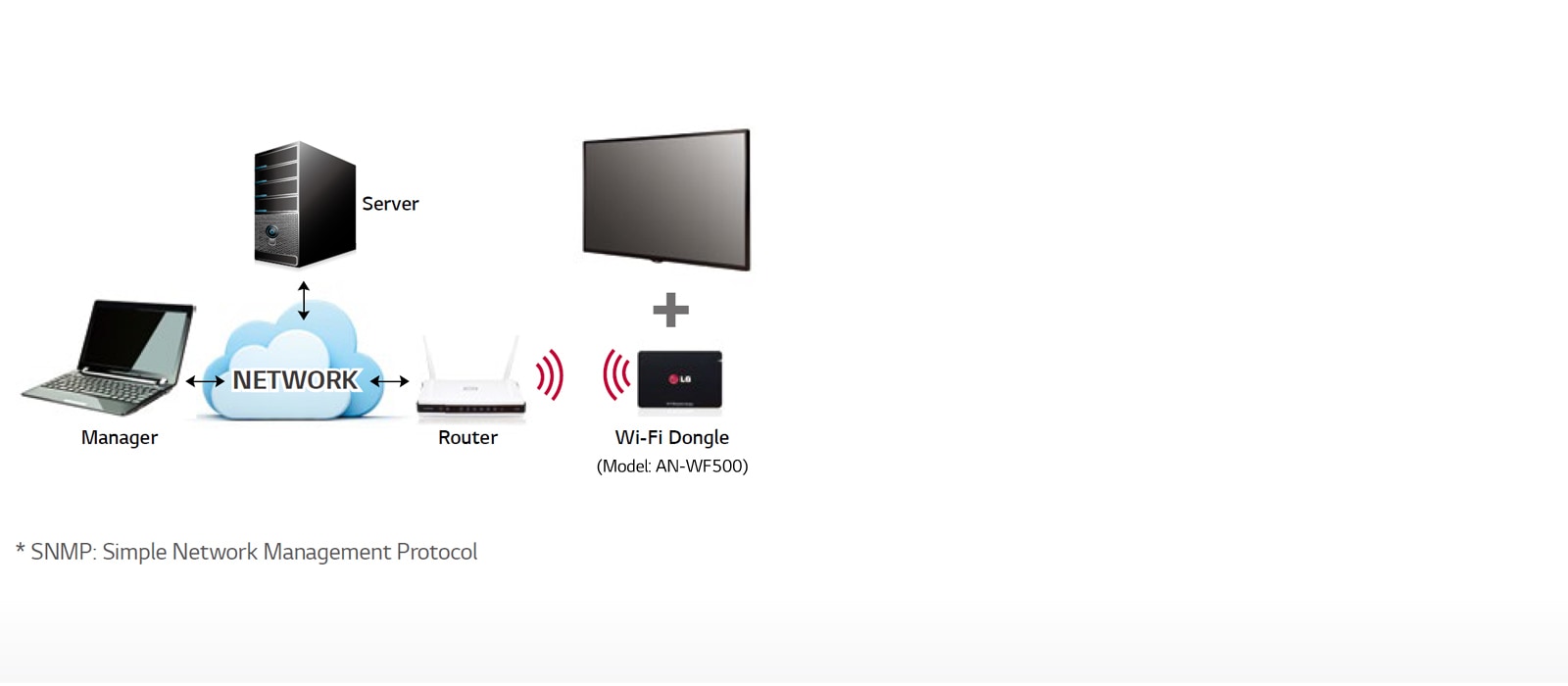

Wi-Fi Support

SE3KD Series supports Wi-Fi USB dongle connection for convenient content distribution. And SNMP support ensures convenient network management.

Convenient Screen Mode

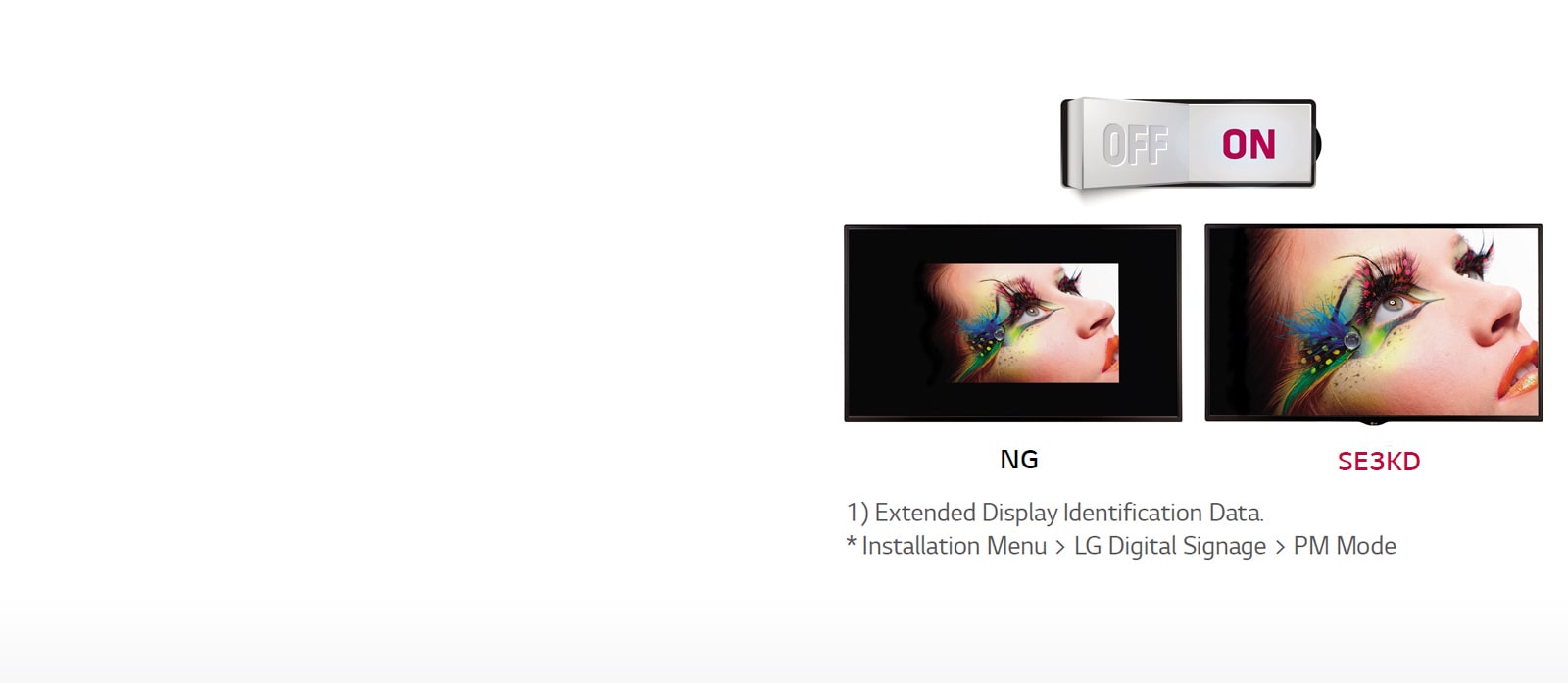

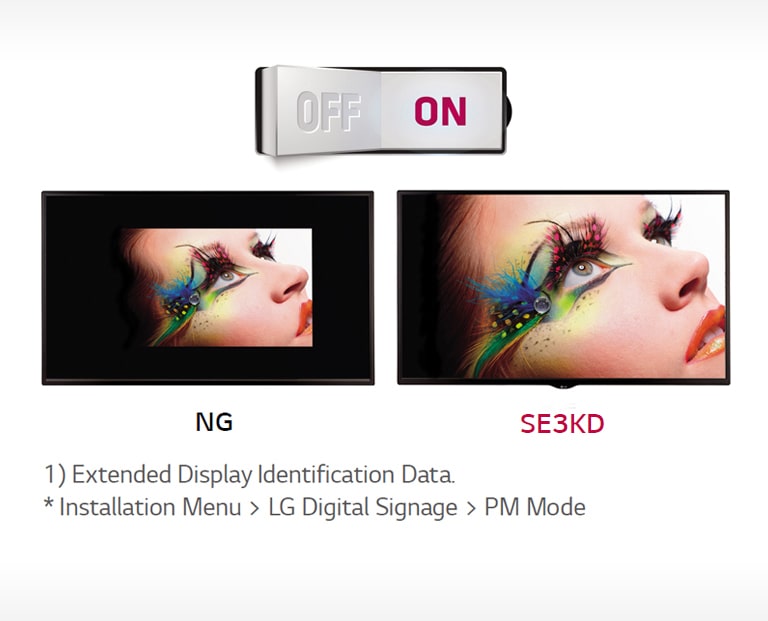

Aspect Ratio Sustainability*

Sustain the same resolution and picture quality while powering on/off by receiving EDID 1) through switch IC.

Convenient Screen Mode

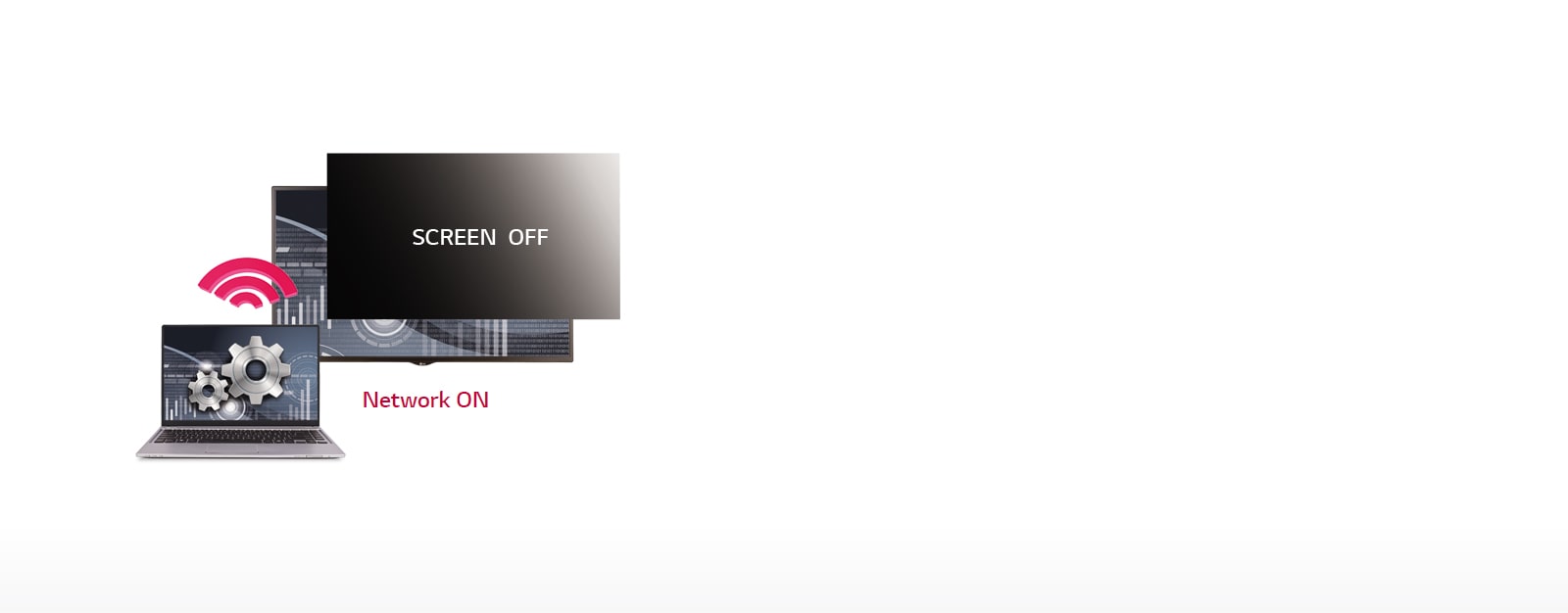

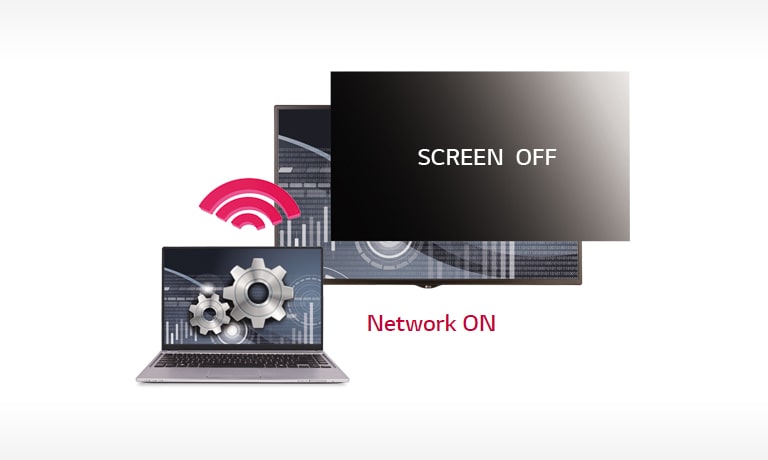

Stand-by Screen*

Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.

Convenient Screen Mode

Scheduled Screen Wash**

Prevent residual images with the screen transition feature.

Panel

Screen Size

49"

Resolution

1,920 x 1,080 (FHD)
Brightness (Module, Typ., cd/m²)

350

Connectivity

Input

HDMI(2), DVI-D, RGB, Audio

Output

Audio
External Control

RS232C in/out, RJ in, IR Receiver, USB

Physical Specification

Bezel Width

11.9mm (T/R/L), 18mm (B)

Monitor Dimension (W x H x D)

1102.2mm x 638.5mm x 54mm(38.6mm:Thinnest Part)
Weight (Head)

14.3kg

VESA™ Standard Mount Interface

300 x 300

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

65W

Smart Energy Saving

50W

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 7.0)

Media Player Compatibility

OPS type compatible

No

External Media player Attatchable

Yes (MP500/MP700)

Software Compatibility

Content Management Software

SuperSign W

Control and Monitoring Software

SuperSign C

Accessory

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver

Optional

Stand(ST-492T), Media player, Wall bracket(LSW350B), VESA Adapter(AM-B330S)

Dimension
- 49SE3KD.dwg
- 49SE3KD.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
