SM5B Series

Key Features

component-OBScountrySelectDesc

SM5B Series
Panel
  • Screen Size
    49"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    450
Connectivity - Intput
  • HDMI
    Yes (1), HDMI /HDCP2.2
    DP
    Yes (1), DP /HDCP1.3
  • DVI-D
    Yes (1), HDCP2.2
    Analog (RGB)
    Yes (1)
  • Audio In
    Yes (1), RGB/DVI
    External Control (RS232C IN)
    Yes (1)
  • External Control (RJ45)
    Yes (1)
    External Control (IR receiver)
    Yes (1)

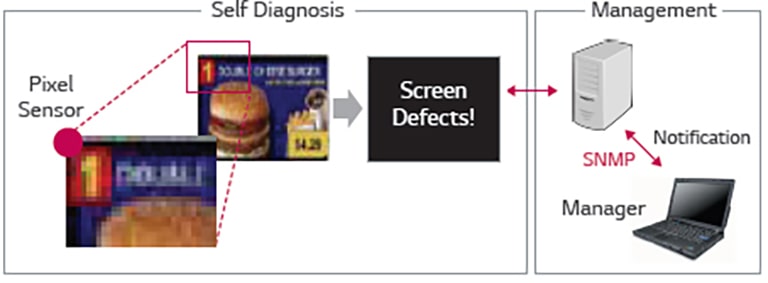

  • External Control (Pixel Sensor)
    Yes (1)
    USB (USB3.0)
    Yes (1)
  • SD Card (SDHC/Full Size)
    Yes (1)
Connectivity - Output
  • DP Out
    Yes (1), SST/DP1.2a
    Audio Out
    Yes (1)
  • Externel Speaker Out
    Yes (L/R), 6 ohm
    External Control (RS232C OUT)
    Yes (1)
Physical Specification
  • Bezel Width
    11.9mm (T/R/L), 18mm (B)
    Monitor Dimension (W x H x D)
    1,102.2mm X 638.5mm X 38.6mm
  • Weight (Head)
    14.1kg
    VESA™ Standard Mount Interface
    300mm x 300mm
Media Player Compatibility
  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)
Software Compatibility
  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes
Accessory
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
    Optional
    Speaker (SP-5000), Stand (ST-492T), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S)
General
  • Region
    Global
  • Dimension
    • [Dimension] 32SM5B.dwg
    • [Dimension] 43SM5B.dwg
    • [Dimension] 49SM5B.dwg
    • [Dimension] 55SM5B.dwg
    • [Drawing] 65SM5B.dwg
    • [Dimension] 32SM5B.pdf
    • [Dimension] 43SM5B.pdf
    • [Dimension] 49SM5B.pdf
    • [Dimension] 55SM5B.pdf
    • [Drawing] 65SM5B.pdf
  • Datasheet
    • [Leaflet] SM5B_Leaflet_151202.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
