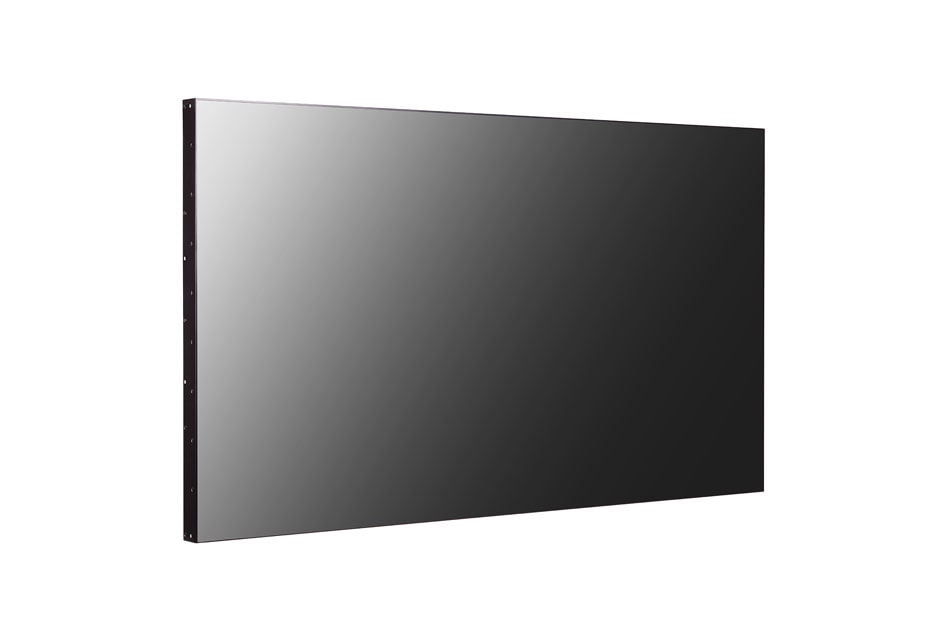

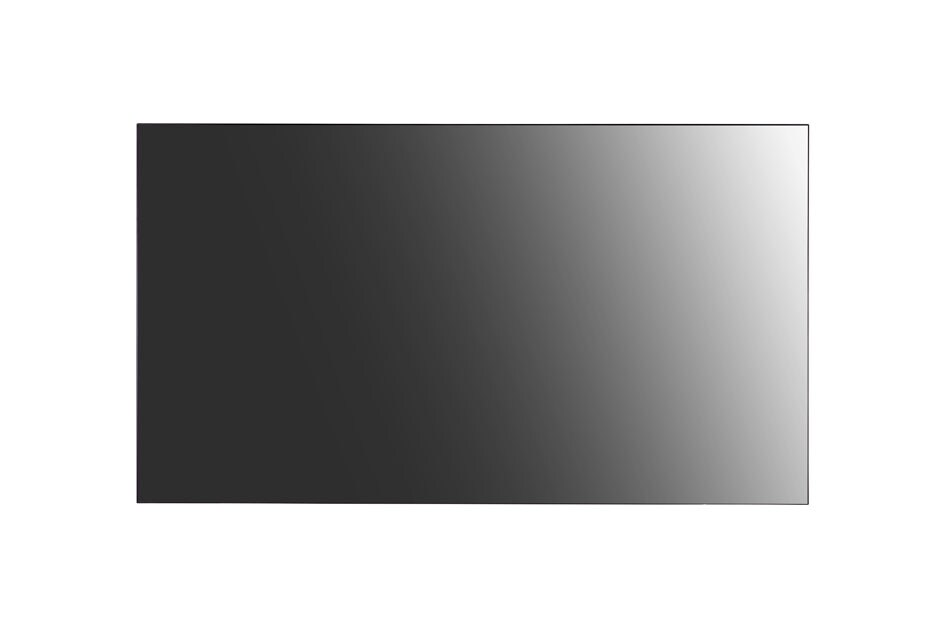

49VL7D component-copyModelName

VL7D Series

Discontinued

49VL7D component-copyModelName

VL7D Series

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel: 2.3mm(Left/Top) / 1.2mm(Right/Bottom)
Depth : 89.7mm
Interface : HDMI/ DVI-D/ RGB/ RJ45/ RS232C/ USB

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel: 2.3mm(Left/Top) / 1.2mm(Right/Bottom)
Depth : 89.7mm
Interface : HDMI/ DVI-D/ RGB/ RJ45/ RS232C/ USB

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

VL7D Series

Clear Visibility

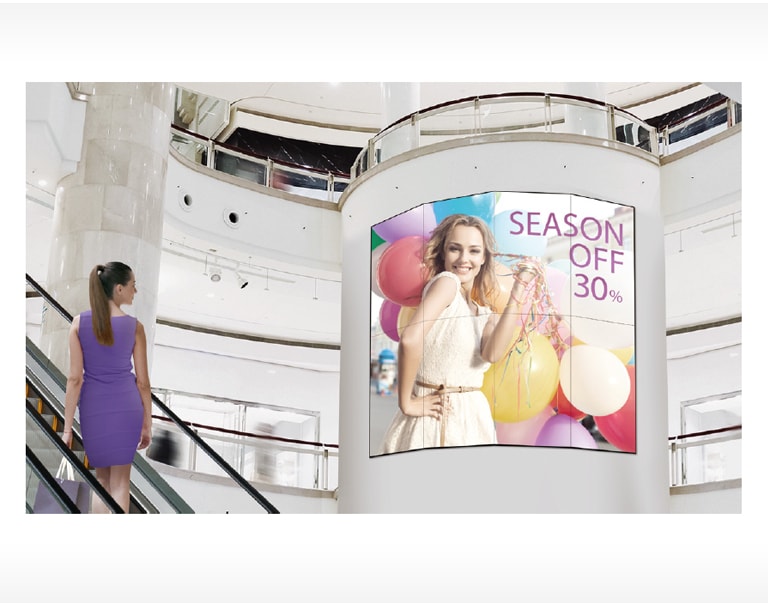

High Visibility

The 700 cd/㎡ brightness is enough to stand out against the surrounding background, so signage can attract passerby and delivers content vividly and effectively.

Clear Visibility

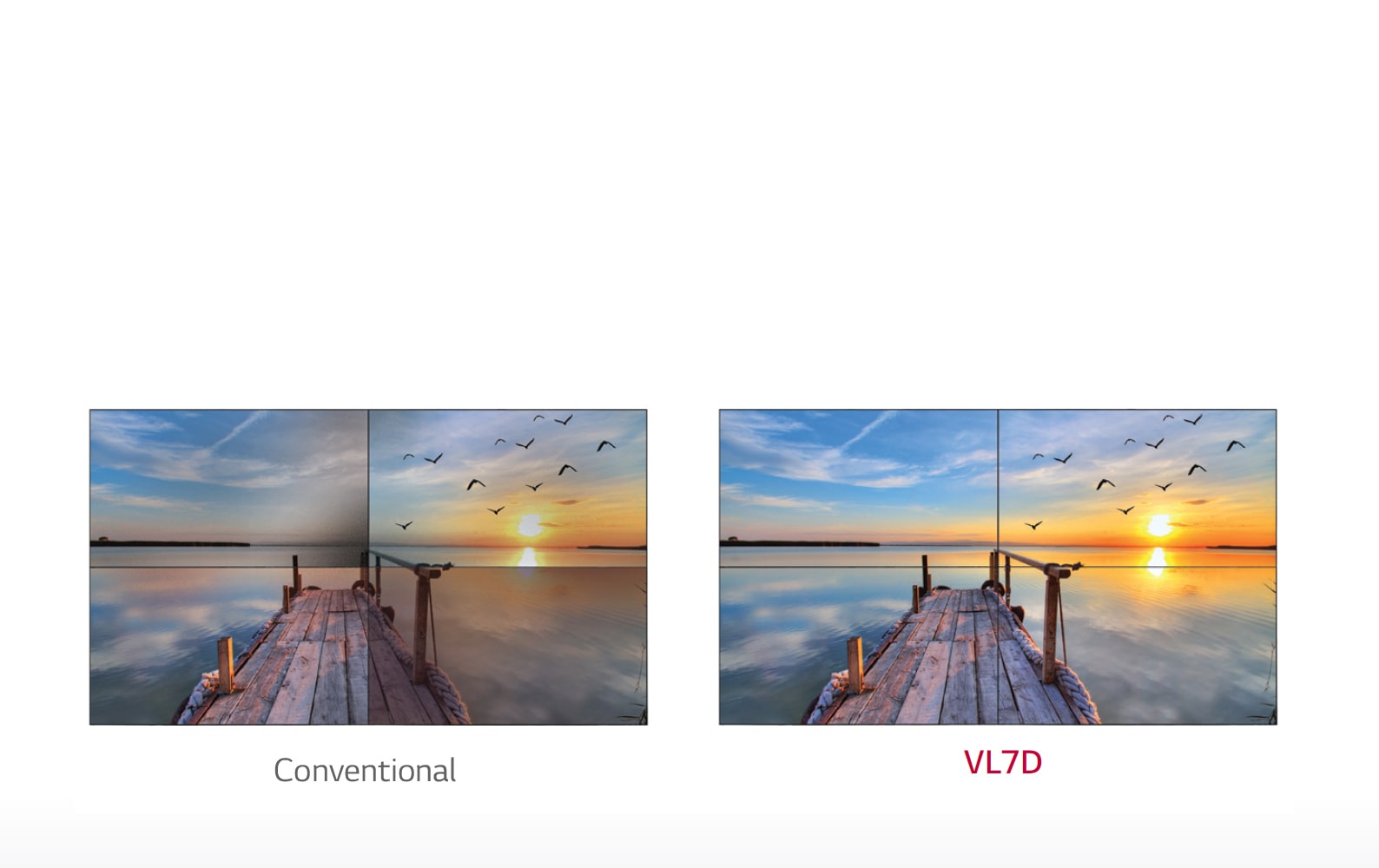

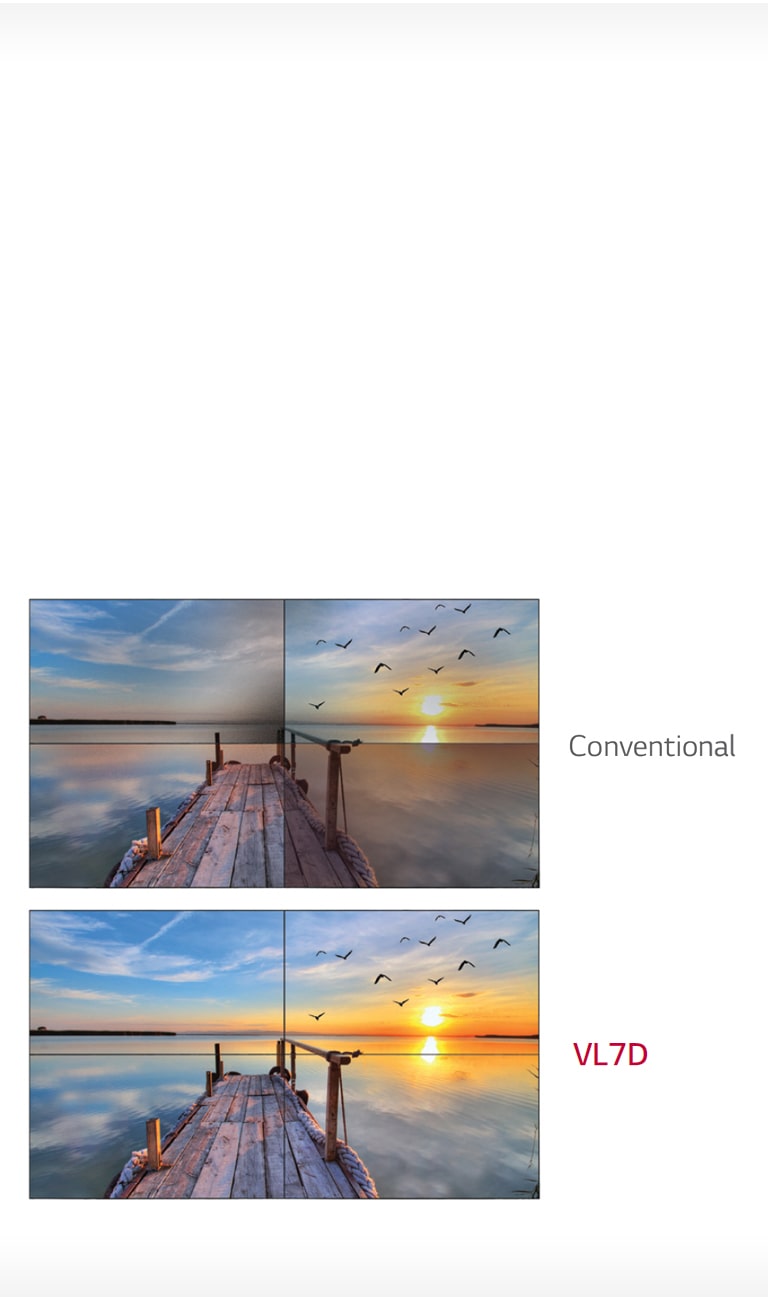

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

Immersive Viewing Experience

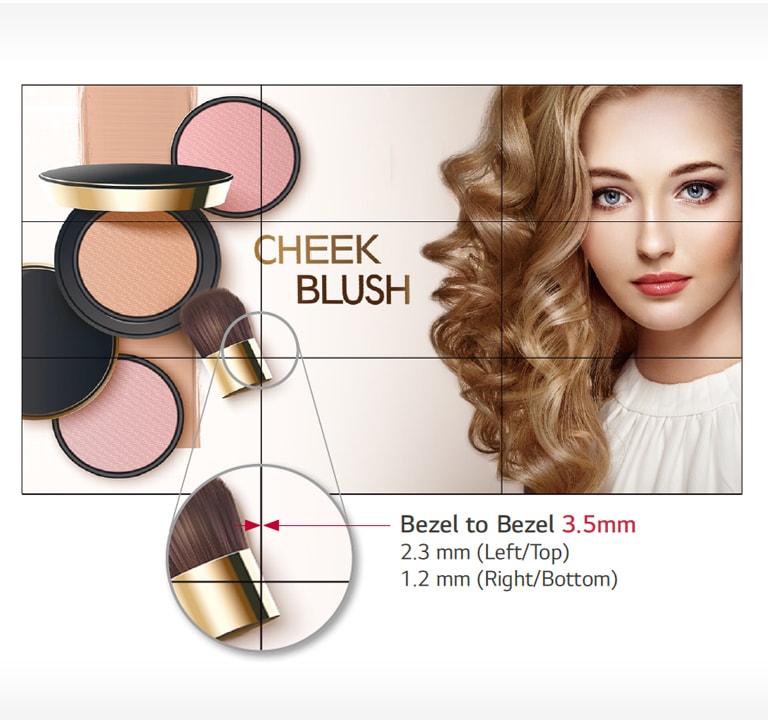

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

Immersive Viewing Experience

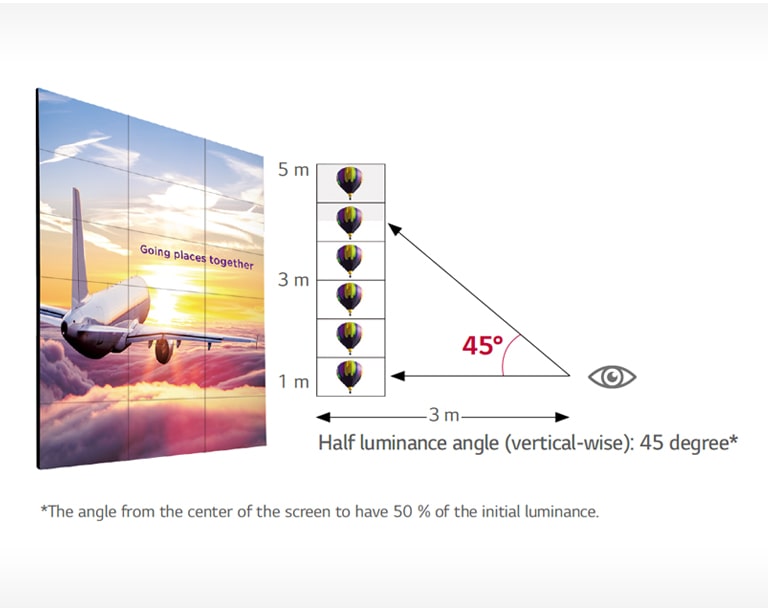

Wide Viewing Angle

Stable image reproduction is critical in video walls, as it is usually installed in places above eye level and is seen from various angles. Thanks to the IPS panel and the high half luminance angle, VL7D delivers the best picture quality from any viewer position.

Convenient Management

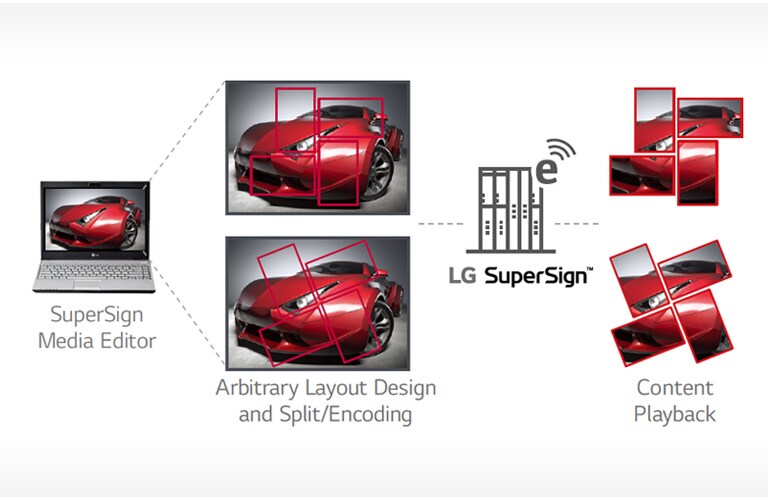

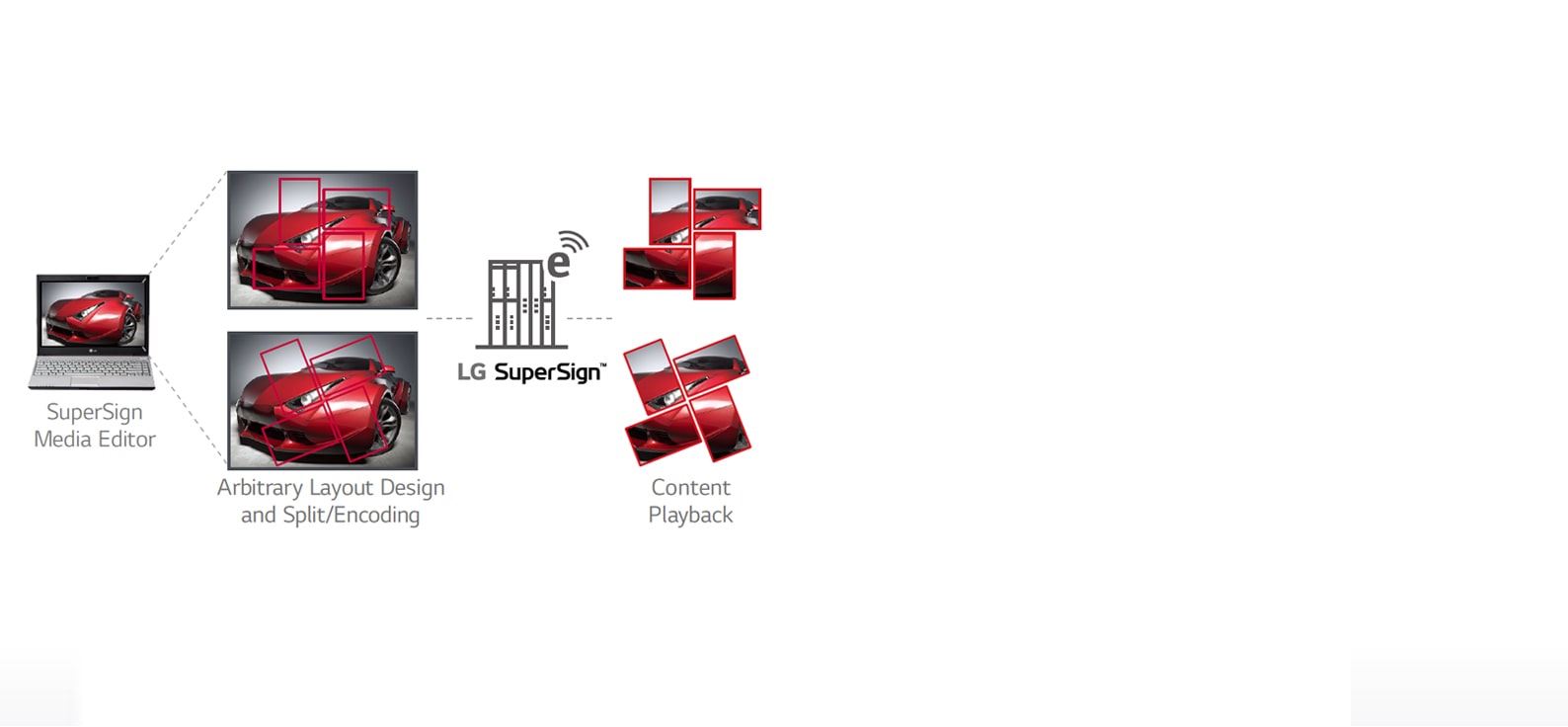

Dynamic Configuration

Flexible content editing is possible in various layouts, including a regular matrix grid or an irregular video-wall, in a timely and cost-effective manner without the need for an expensive video wall console.

Convenient Management

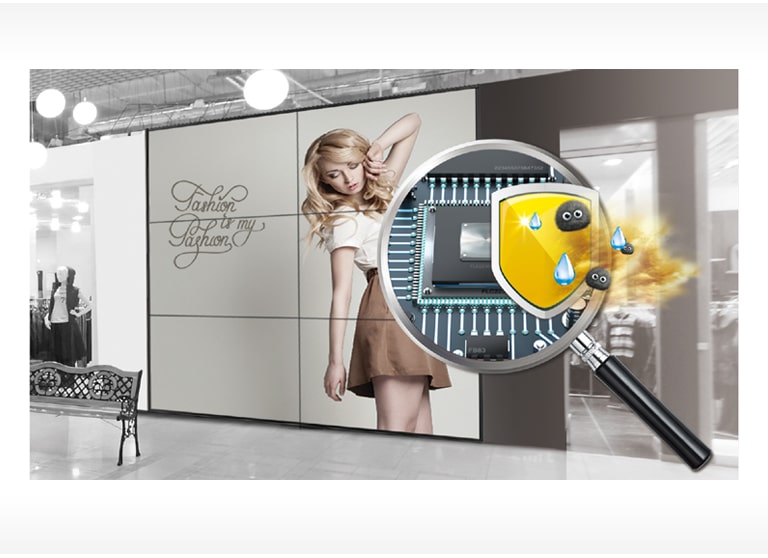

Conformal Coating

Conformal Coating power board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.

Panel

Screen Size

49"

Resolution

1,920 x 1,080 (FHD)
Brightness (Module, Typ., cd/m²)

700

Physical Specification

Bezel Width

2.3 mm (L/T) / 1.2 mm (R/B)

Monitor Dimension (W x H x D)

1,077.6 x 607.8 x 89.7 mm
Weight (Head)

17.8kg

VESA™ Standard Mount Interface

600 x 400mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

130 W

Smart Energy Saving

50 W

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0, US Only)

Media Player Compatibility

Slot PC compatible (optional)

No

External Media player Attatchable

Yes

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign C

Accessory

Basic

Remote Controller, Power Cable, DVI Cable, Manual, IR Receiver, RS232C Cable, Guide Bracket, Screw

Optional

Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)

Dimension
- [2D Drawing]49VL7D.dwg
- [2D Drawing]49VL7D.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
