Outdoor Display
Contact Us
XE4F-B-01-Slim & Robust Design with Outstanding Visibility-High Brightness-Monitor Signage-ID_1559693627458 XE4F-B-01-Slim & Robust Design with Outstanding Visibility-High Brightness-Monitor Signage-ID_1559693627458

Slim & Robust Design with Outstanding Visibility

With a slim & robust design, XE4F series can be easily installed to meet the customer's needs in external environments that require complex installation conditions. And upgraded brightness captures the attention of customers even under strong and direct sunlight.
XE4F-B-02-Slim & Light Design-High Brightness-Monitor Signage-ID_1559693708809 XE4F-B-02-Slim & Light Design-High Brightness-Monitor Signage-ID_1559693708809
SLIM & ROBUST DESIGN

Slim & Light Design

XE4F series is composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.
XE4F-B-03-Easy integration for partners customized design-High Brightness-Monitor Signage-ID_1559693774338 XE4F-B-03-Easy integration for partners customized design-High Brightness-Monitor Signage-ID_1559693774338
SLIM & ROBUST DESIGN

Easy integration for partner's customized design

The XE4F series is lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series is also mountable and optimized for customers, based on the industry purpose and use.
XE4F-B-04-Bright & Brilliant-High Brightness-Monitor Signage-ID_1559693827636 XE4F-B-04-Bright & Brilliant-High Brightness-Monitor Signage-ID_1559693827636
OUTSTANDING VISIBILITY

Bright & Brilliant

The XE4F series possesses powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
XE4F-B-05-Wide Viewing Angle-High Brightness-Monitor Signage-ID_1559693891117 XE4F-B-05-Wide Viewing Angle-High Brightness-Monitor Signage-ID_1559693891117
OUTSTANDING VISIBILITY

Wide Viewing Angle

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
XE4F-B-06-Long Lasting Brightness-High Brightness-Monitor Signage-ID_1559693945371 XE4F-B-06-Long Lasting Brightness-High Brightness-Monitor Signage-ID_1559693945371
OUTSTANDING VISIBILITY

Long Lasting Brightness

By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.
XE4F-B-07-Visible with Polarized Sunglasses-High Brightness-Monitor Signage_1559693988714 XE4F-B-07-Visible with Polarized Sunglasses-High Brightness-Monitor Signage_1559693988714
OUTSTANDING VISIBILITY

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.
XE4F-B-08-Secured Protection with IP56 Design-High Brightness-Monitor Signage-ID_1559694041708 XE4F-B-08-Secured Protection with IP56 Design-High Brightness-Monitor Signage-ID_1559694041708
RELIABILITY FOR OUTDOOR USAGE

Secured Protection with IP56 Design

The display is sealed with IP56 design for reliable operation. It's designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.
XE4F-B-09-Protective Glass IK10 Certified-High Brightness-Monitor Signage-ID_1559694118217 XE4F-B-09-Protective Glass IK10 Certified-High Brightness-Monitor Signage-ID_1559694118217
RELIABILITY FOR OUTDOOR USAGE

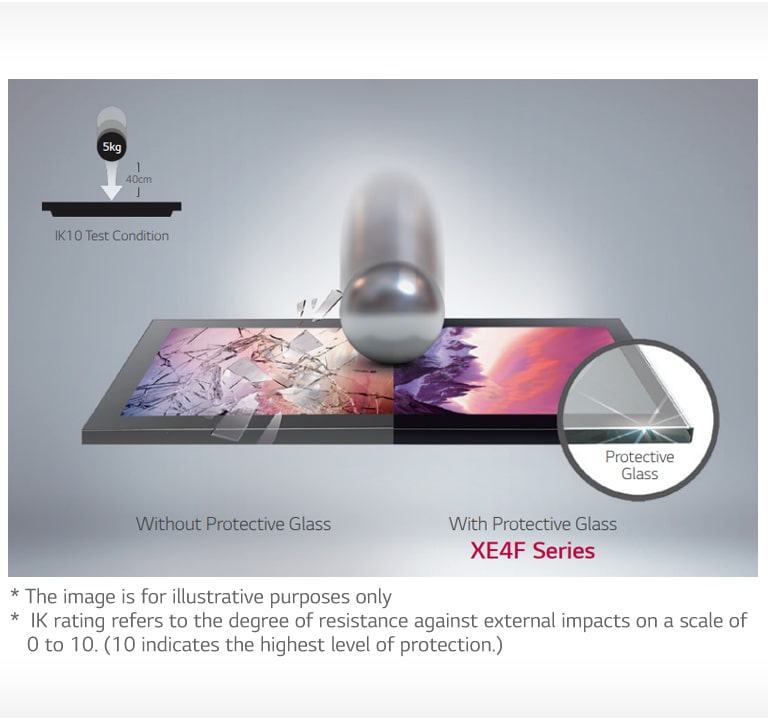

Protective Glass (IK10 Certified)

The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.
XE4F-B-10-Support HDBaseT-High Brightness-Monitor Signage-ID_1559694189133 XE4F-B-10-Support HDBaseT-High Brightness-Monitor Signage-ID_1559694189133
EASY MAINTENANCE

Support HDBaseT ™

The XE4F Series supports HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installation and maintenance costs.
XE4F-B-11-Web Monitoring-High Brightness-Monitor Signage-ID_1559694248737 XE4F-B-11-Web Monitoring-High Brightness-Monitor Signage-ID_1559694248737
EASY MAINTENANCE

Web Monitoring

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
XE4F-B-12-USER SCENE-High Brightness-Monitor Signage-ID_1559694344662 XE4F-B-12-USER SCENE-High Brightness-Monitor Signage-ID_1559694344662

USER SCENE

Explore more showroom at Digital Connect

Close
Panel
  • Screen Size
    49
    Panel Technology
    IPS, M+(WRGB)
  • Backlight Type
    Direct
    Aspect Ratio
    16 : 9
  • Native Resolution
    1,920 x 1,080 (FHD, WRGB)
    Brightness (Typ., cd/m²)
    4000
  • Brightness (Min., cd/m²)
    3200
    Contrast Ratio
    1,300:1
  • Dynamic CR
    500,000:1
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    Typ. 8ms (G to G BW)
    Surface Treatment (Haze, Quarter Wave Plate)
    Haze 3%, QWP
  • Local dimming
    48 Blocks
    Life Time (Typ.)
    50,000 Hrs
  • Operation Hours
    24 Hrs
    Orientation
    Portrait & Landscape
Connectivity
  • Input
    HDMI(2), DP, HDBaseT, USB(2)
    Output
    External Speaker Out(L/R)
  • External Control
    RS232C In/Out, RJ45(LAN) In/Out
Physical Specification
  • Protection Glass
    5mm(IK 10, Degree of Protection, Chemical Strengthening, Anti-Reflective)
    Bezel Color
    Black
  • Bezel Width
    38.4mm(T/B), 26.0mm(L/R)
    Monitor Dimension (W x H x D)
    1,153 x 656.2 x 88.0mm
  • Weight (Head)
    32Kg
    Packing Dimensions (W x H x D)
    1,286 x 797 x 207mm
  • Packed Weight
    37Kg
    Handle
    X
Environment Conditions
  • Operation Temperature
    -30°C to 50 °C
    Operation Humidity
    5 % to 100 %
Power
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    300W (Full White)
    144W (IEC 62087)
    Max
    350W
  • BTU (British Thermal Unit)
    0 BTU/Hr(Typ.), 0 BTU/Hr(Max)
    DPM
    3.5W(WOL Off), 8W(WOL on) ↓
  • Power off
    0.5W↓
Standard(Certification)
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes (EU Only) / No
Software Compatibility
  • SuperSign
    Yes(CMS, Control)
    Signage365Care
    Yes
Accessory
  • Basic
    Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE
  • Dimension
    • 49xe4f_2d.dwg
    • 49xe4f_2d.pdf
  • Datasheet
    • XE4F Series_Datasheet(low)_LG Digital Signage_230901.pdf
