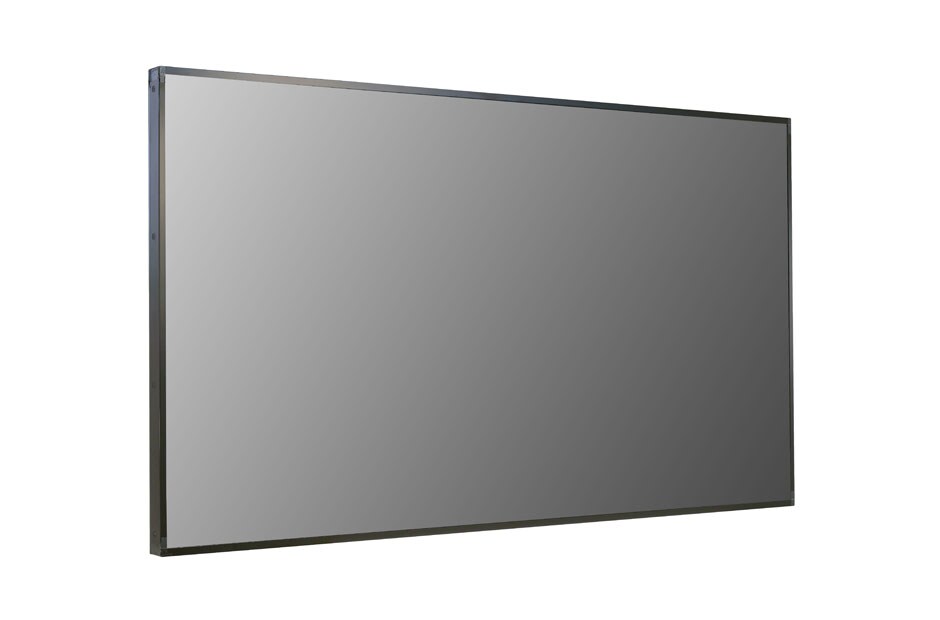

49XF3C component-copyModelName

XF3C Series

Discontinued

49XF3C component-copyModelName

XF3C Series

Key Features

Brightness : 3,000 cd/m2 (Typ.)
Life Time : 50,000 hours
Bezel : 6.5 mm (L/R), 9 mm (T/B)
Depth : 105 mm
Interface : HDMI (2) / DP / DVI / RJ45 / IR / RS232C / USB / External speaker out (L/R)

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 3,000 cd/m2 (Typ.)
Life Time : 50,000 hours
Bezel : 6.5 mm (L/R), 9 mm (T/B)
Depth : 105 mm
Interface : HDMI (2) / DP / DVI / RJ45 / IR / RS232C / USB / External speaker out (L/R)

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

XF3C Series

Product Reliability

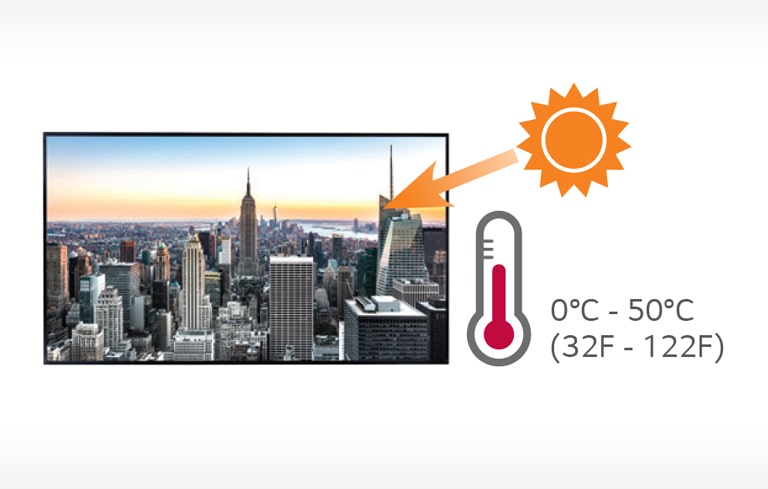

High Operationing Temperature

Its high reliability under high operating temperatures reduces the material costs of the enclosure.

Product Reliability

Dust & Humidity Protection

The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions.

Outstanding Visibility

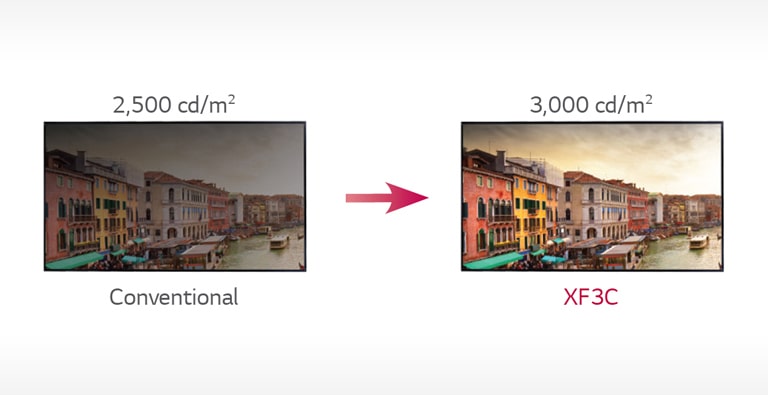

Increased Brightness

The brightness has been increased to 3,000 cd/m2 compared to previous models

Outstanding Visibility

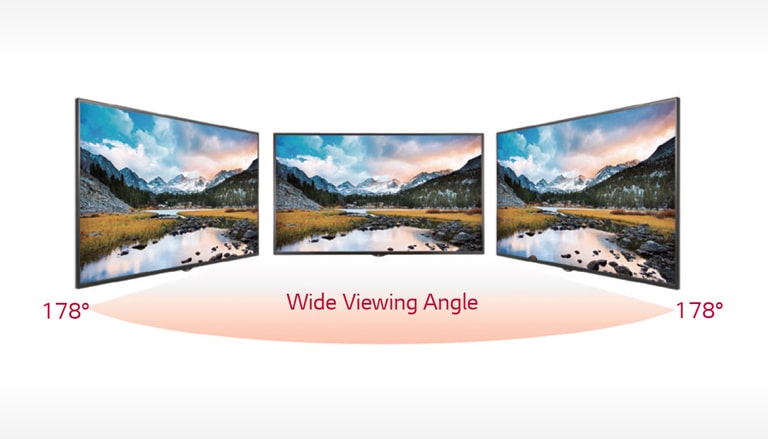

Wide Viewing Angle

IPS technology provides better control of the liquid crystals which allows the screen to be vie ed from virtually any angle.

Outstanding Visibility

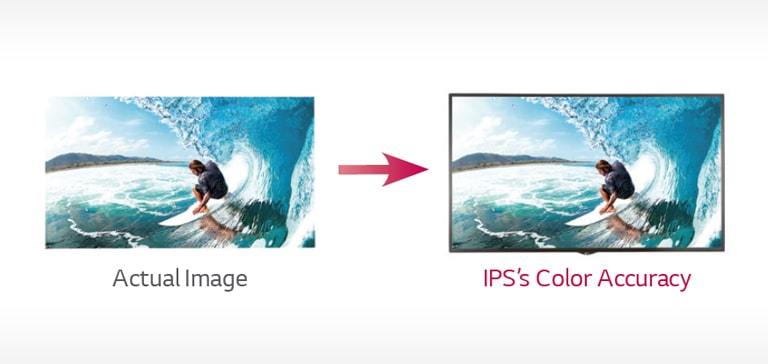

Color Accuracy

IPS technology displays accurate color for each pixel closest to the original image and reproduces the original color without distortion.

Outstanding Visibility

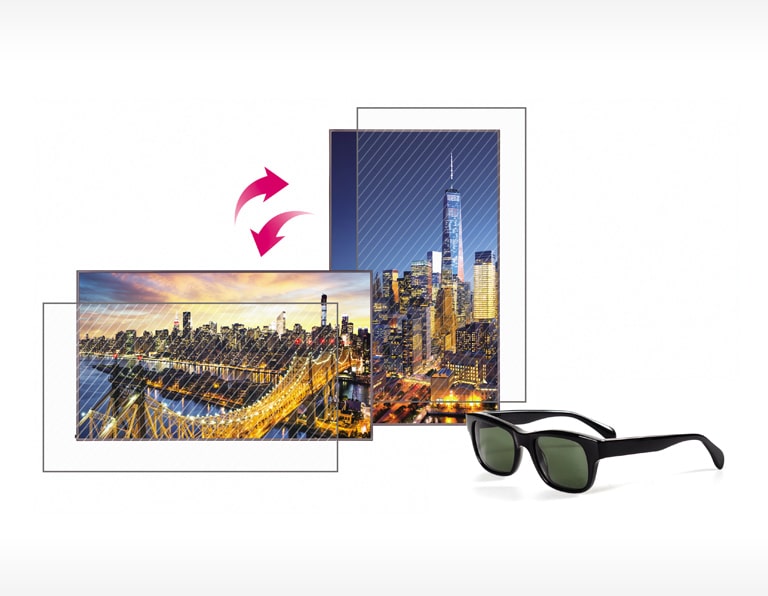

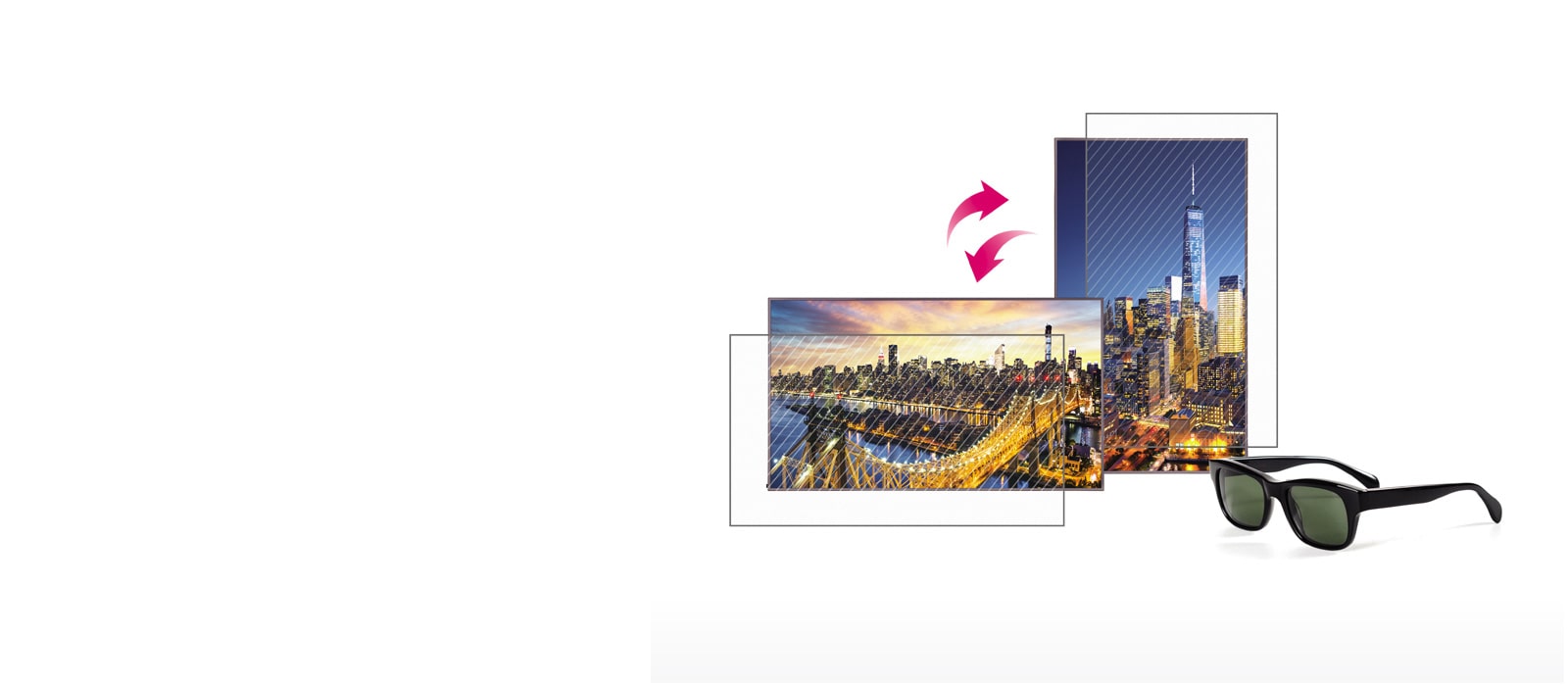

QWP (Quarter Wave Plate)

FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.

Outstanding Visibility

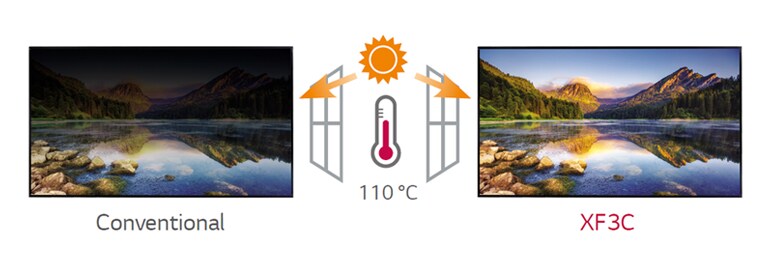

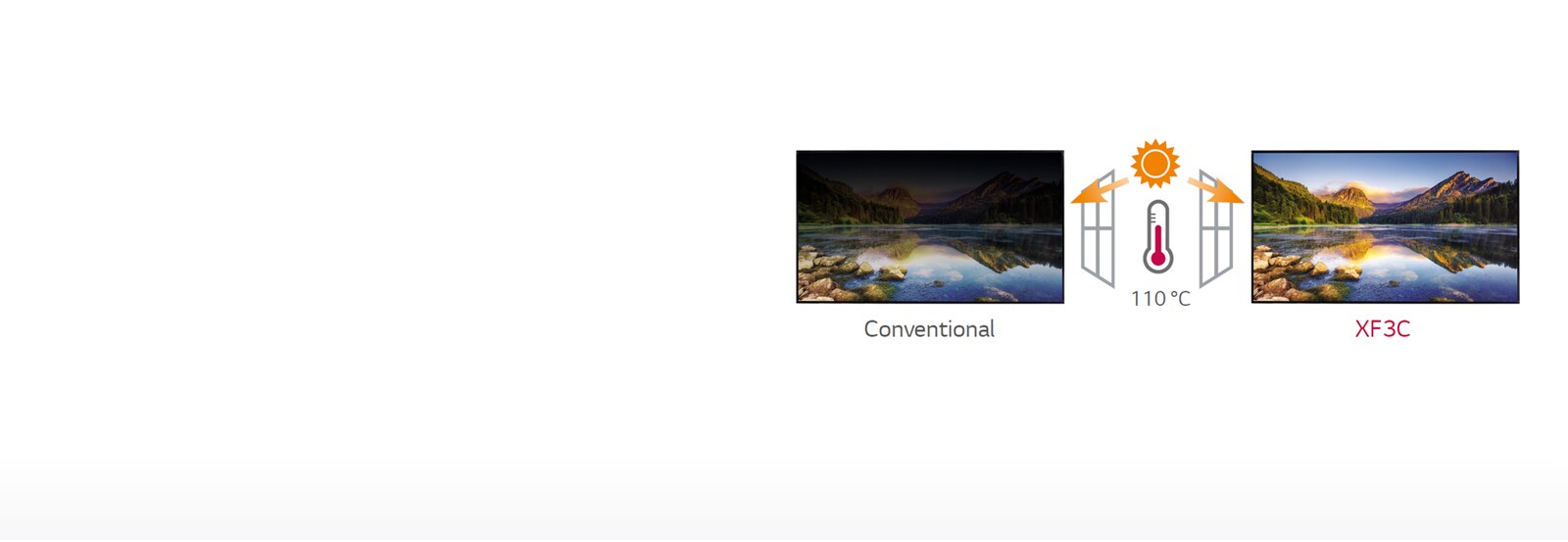

No Blackening Effect

Even under direct sunlight exposure, LG commercial monitors remain free of blackening defects under 110°C and provide superior quality for outdoor usage.

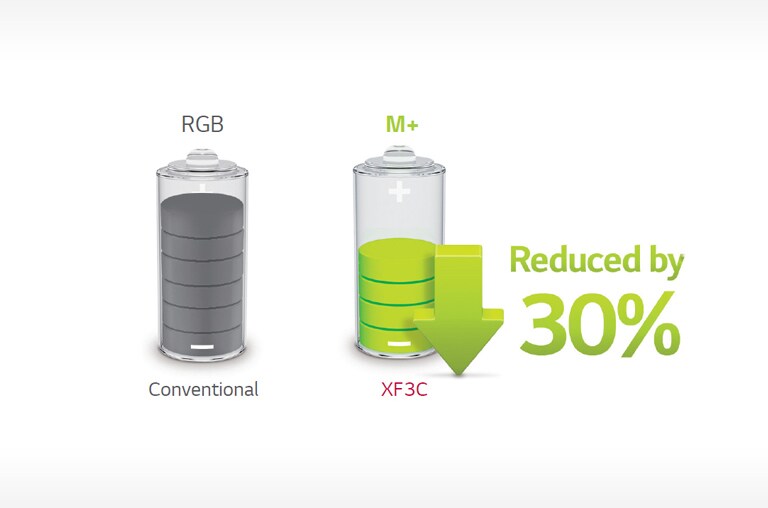

Low Power Consumption Using The M+ Panel1

Cost Effective

Low Power Consumption Using The M+ Panel

The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by 30 compared to conventional RGB panels.

Cost Effective

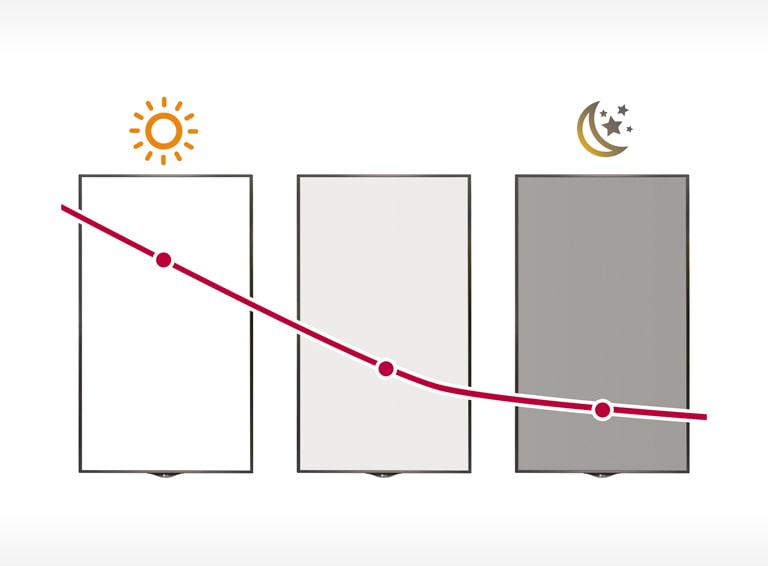

Smart Brightness Control

The auto-brightness sensor and preset time scheduler save power whenever possible.

Space Management Efficiency

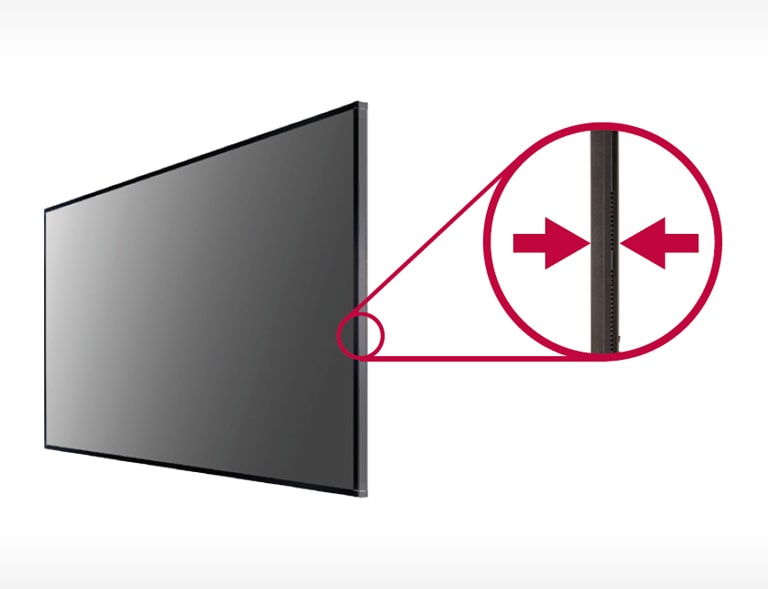

Slimmer Depth
The slimmer depth saves space for installation and makes the enclosure design slimmer.

Easy Maintenance

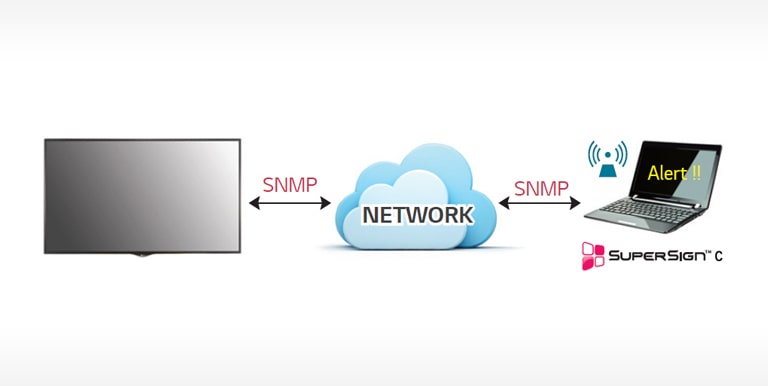

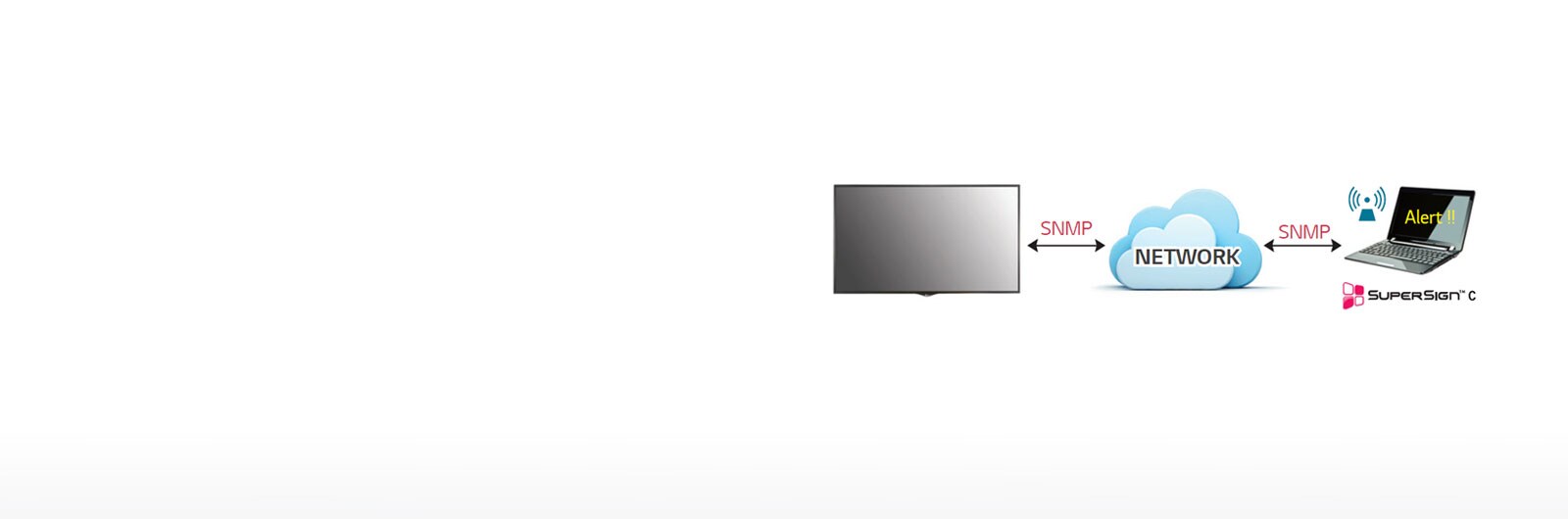

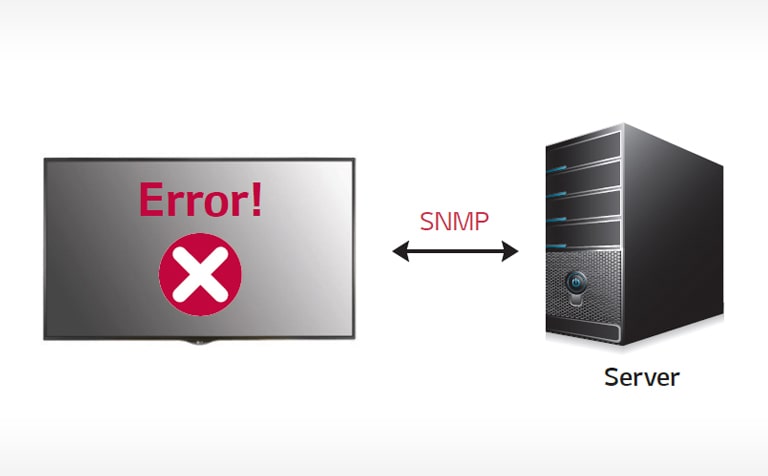

Real-Time Remote Monitoring

When an alarm occurs, an email notification is sent through the SNMP using the SuperSign C or SI software. In case a malfunction or error occurs, real-time remote care is available.

Easy Maintenance

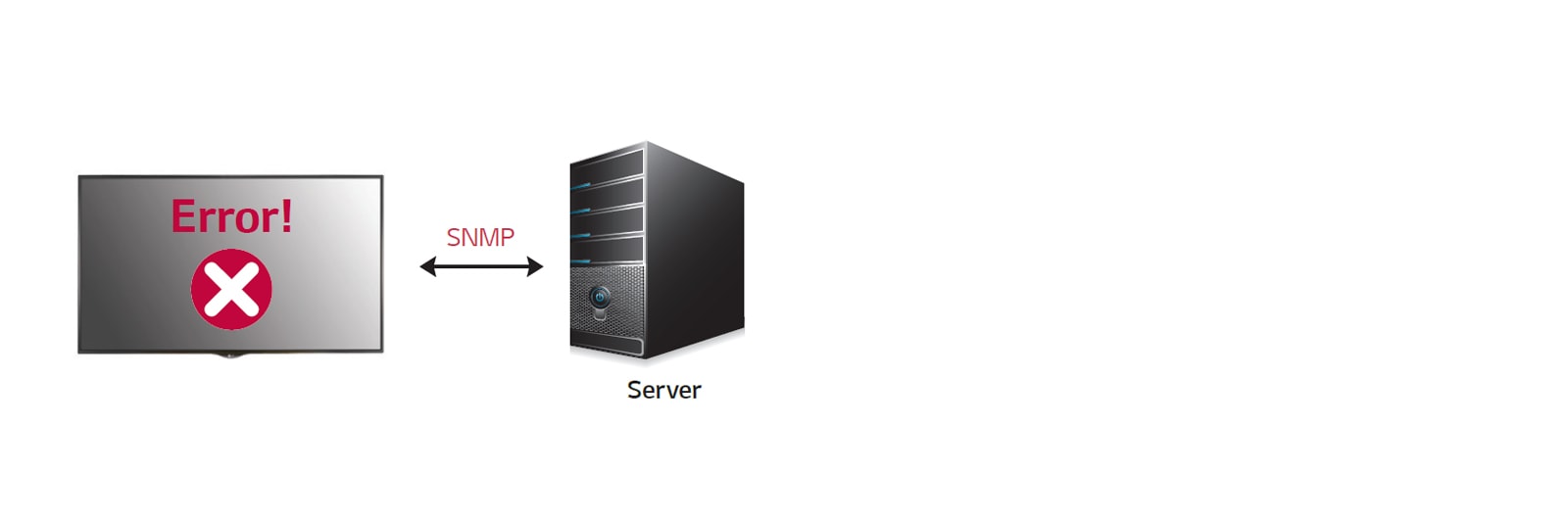

Saving System Log Files

The XF3C supports log file back-up for fault clarification when the display fails. This allows you to conveniently check when an error has occurred.

Panel

Screen Size

49" Class (48.50" measured diagonally)

Resolution

1,920 x 1,080 (FHD)
Brightness (Typ., cd/m²)

3000

Connectivity

Input

HDMI(2), DP, DVI-D, Audio, USB

Output

DP, External Speaker Out (L/R)
External Control

RS232C (In/Out), RJ45, IR Receiver, Pixel Sensor

Physical Specification

Bezel Width

6.5 mm (L/R), 9 mm (T/B)

Monitor Dimension (W x H x D)

1,092.7 x 626.4 x 105 mm
Weight (Head)

22.0kg

Environment Conditions

Operation Temperature

0°C to 50°C (w/o Direct Sunlight) / 0°C to 40°C (Direct Sunlight)

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ./Max

230 W / 250 W

Smart Energy Saving

85 W

Standard(Certification)

Safety

UL recognized / CB

EMC

FCC Class "A" / CE / KC / VCCI

Software Compatibility

webOS

webOS 1.0

Content Management Software

SuperSign W
Control and Monitoring Software

SuperSign C

Accessory

Basic

Remote Controller (2 batteries included), Power Cord, IR extension cable/PCB, HDMI Cable, Manual(ESG&EIG)

Optional

KT-SP0, AN-WF500 *Stand is not available

Dimension
- 49XF2B_XF3C.dwg
- 49XF2B_XF3C.pdf
Datasheet
- XF3C Leaflet(preview)_11710.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
