Window Facing Display
Contact Us

Outstanding Visibility
Beyond Window

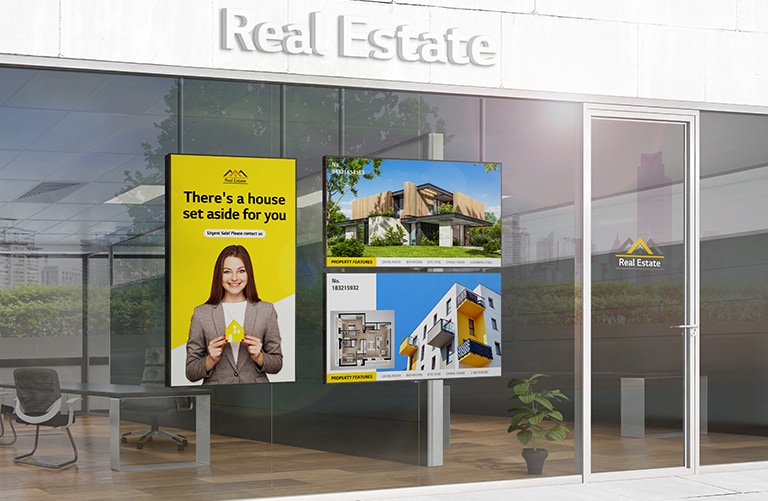

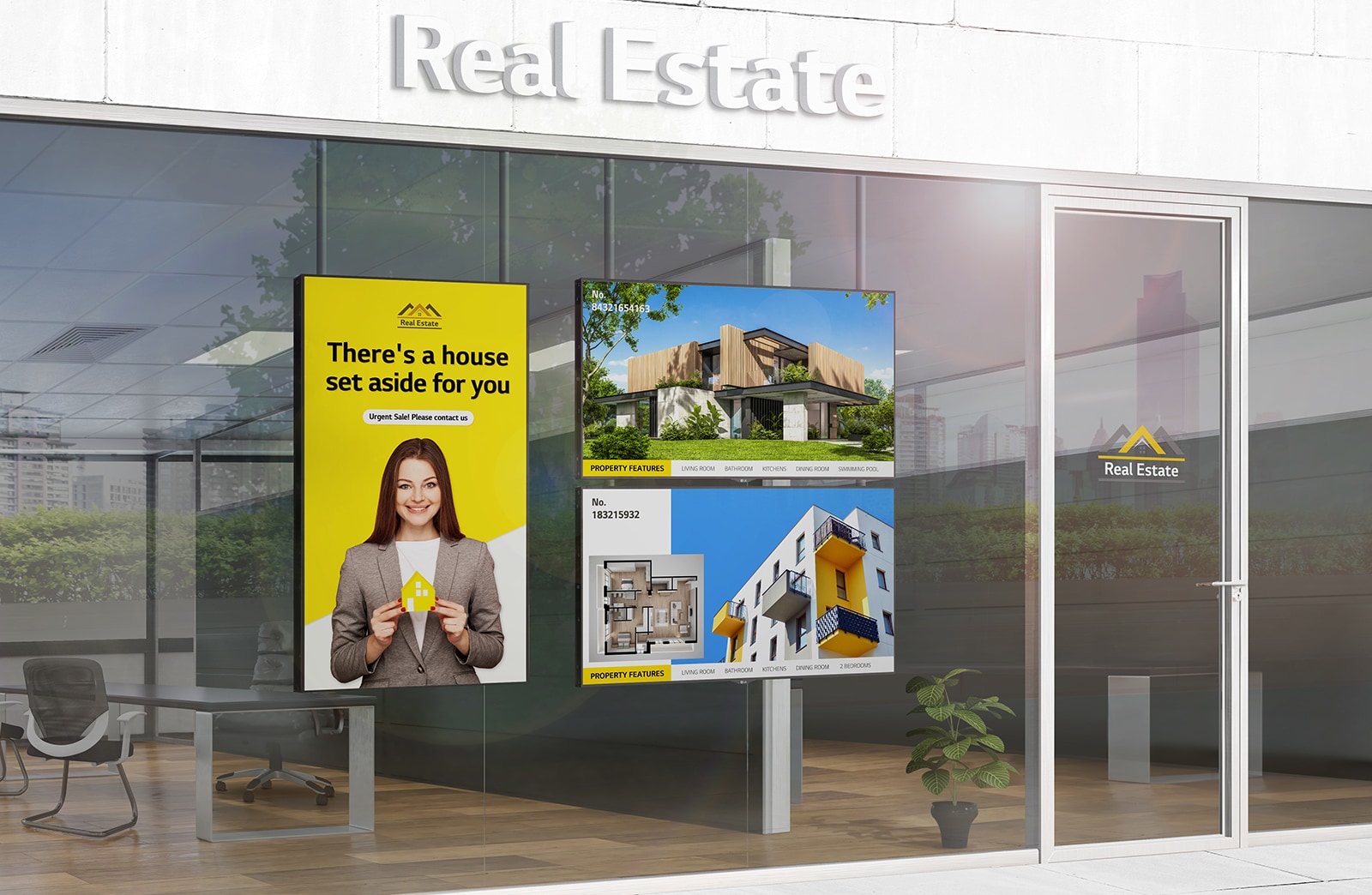

Inside the full glass of a real estate agency’s office, “High Brightness Window Facing Displays” are installed vertically and horizontally facing outward, and thanks to the high brightness of the displays, the ads on the internal display are very visible even from outside with strong sunlight. Inside the full glass of a real estate agency’s office, “High Brightness Window Facing Displays” are installed vertically and horizontally facing outward, and thanks to the high brightness of the displays, the ads on the internal display are very visible even from outside with strong sunlight.
* All images in this datasheet are for illustrative purposes only.
* Please follow the installation guide to get warranty.
* UV-Film is recommended depending on installation site.

High Visibility
Under The Sunlight

With a great brightness of 4,000 nits*, XS4J clearly deliver contents to help attract public attention, which is the optimal display for outdoor visibility. QWP** enables clear visibility even when the viewer is wearing polarized sunglasses.

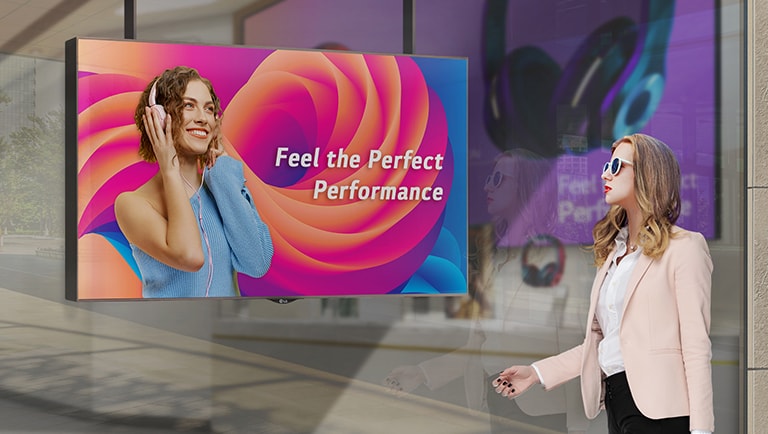

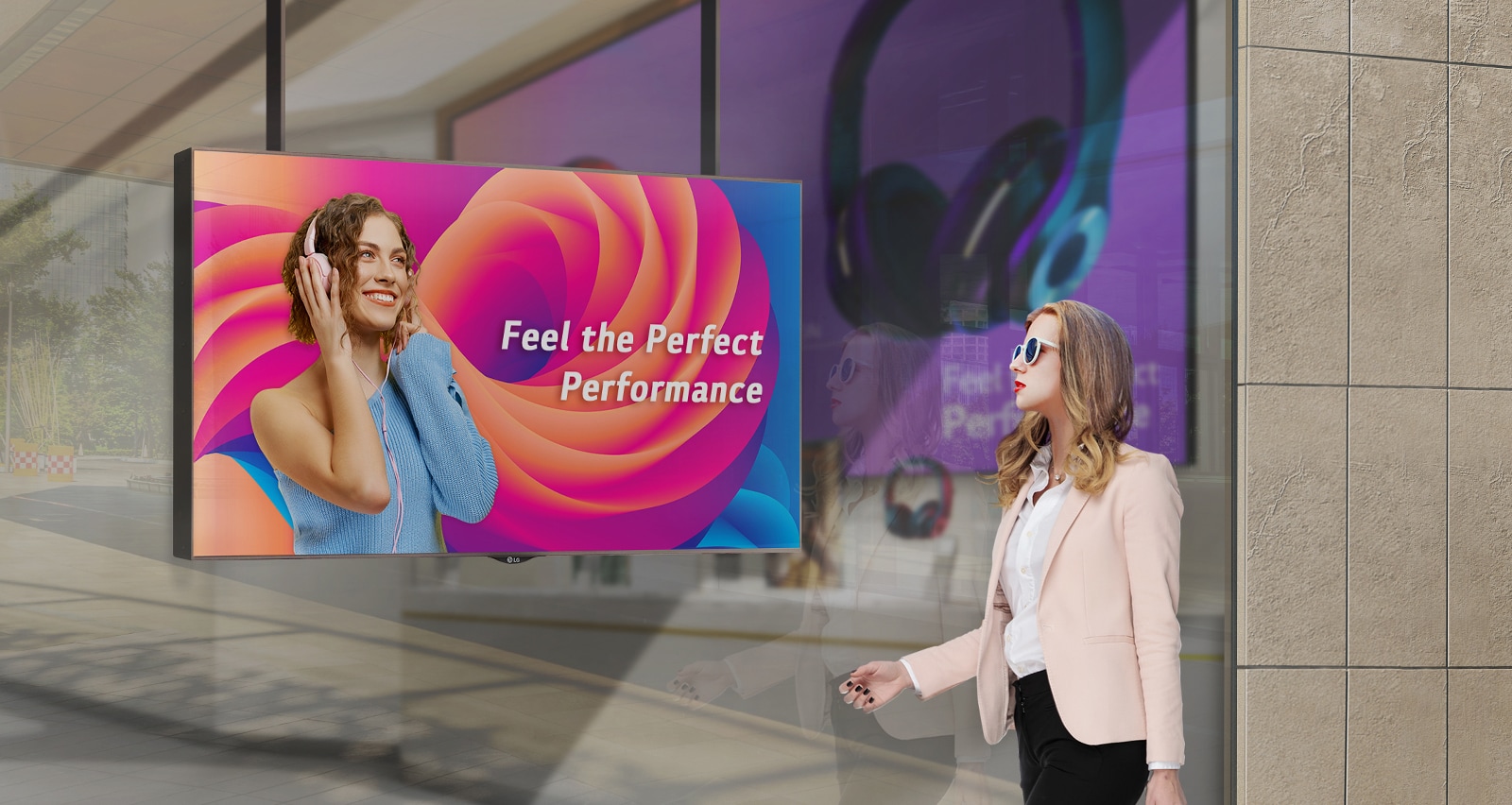

A woman wearing sunglasses is watching ads on the display installed in a shop window, and the ads on the display are very visible even under the strong sunlight. A woman wearing sunglasses is watching ads on the display installed in a shop window, and the ads on the display are very visible even under the strong sunlight.
* Typ. 4,000 nits, Min. 3,200 nits (Based on LG internal test conducted in February, 2021)
** Quarter Wave Plate

High Performance with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

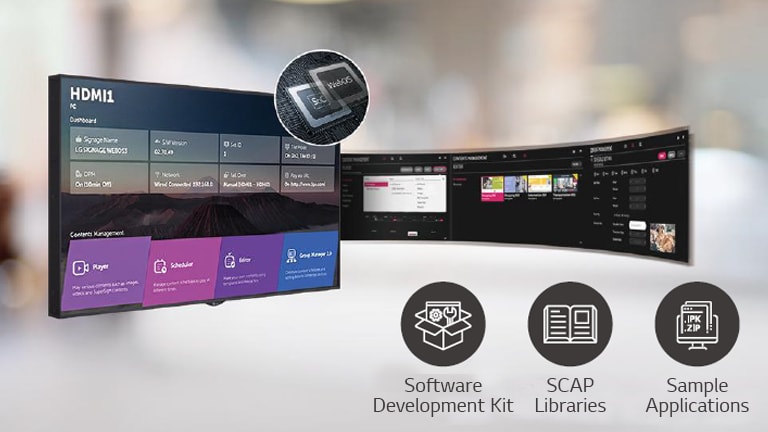

A number of tasks that can be done simultaneously are easily arranged through the web OS platform. A number of tasks that can be done simultaneously are easily arranged through the web OS platform.
* System-on-Chip

Slim Bezel Design

XS4J attracts attention with elegant design, featuring a slim bezel. These displays enhance the visual impact of the played content and the store’s overall atmosphere.

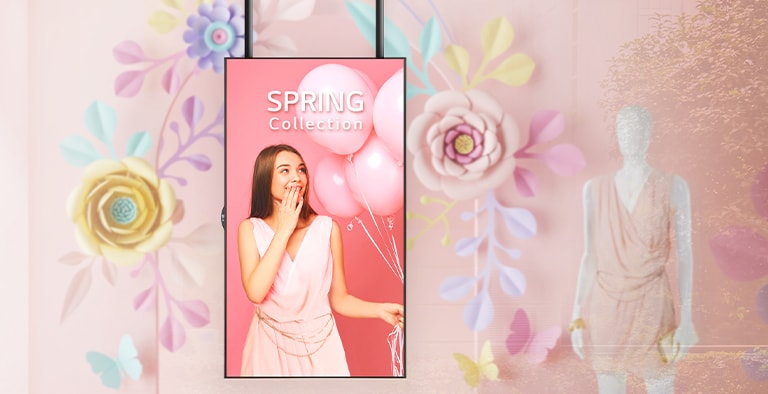

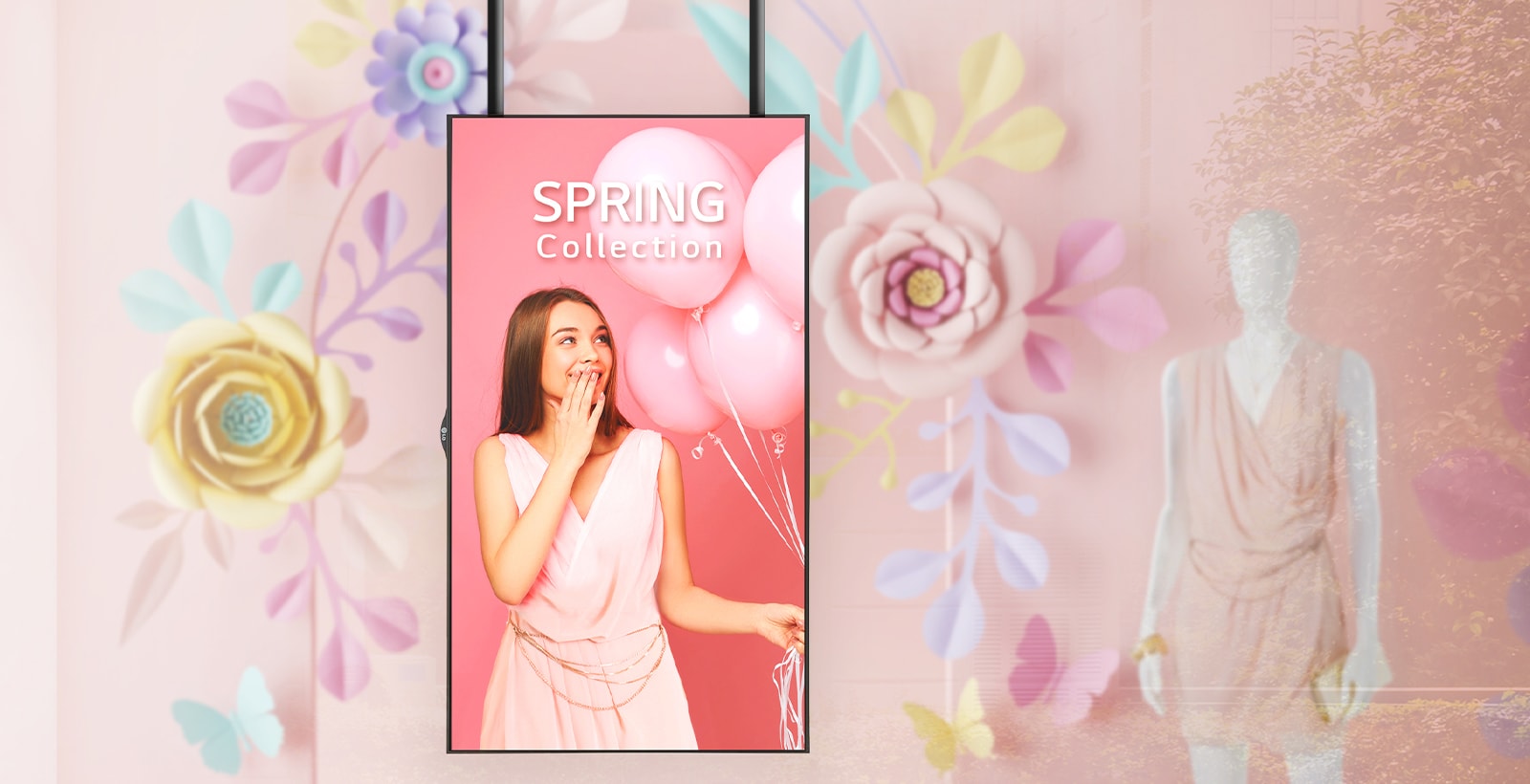

The slim bezel display installed next to a mannequin in a shop window clearly shows the promotional ads to customers. The slim bezel display installed next to a mannequin in a shop window clearly shows the promotional ads to customers.
* Bezel Width (T,B / R,L) : 12.0 / 9.9 mm (55XS4J), 9.0 / 6.5 mm (49XS4J)

Wide Operating
Temperature Range

XS4J can operate at various temperatures of 0-40°C*.
The display works well in an environment of 0℃-40℃. The display works well in an environment of 0℃-40℃.
* Based on LG internal test conducted in February, 2021

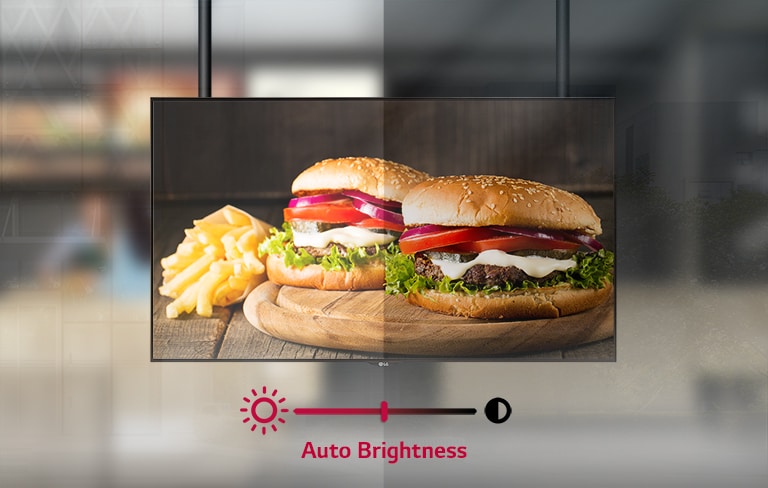

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
Smart Brightness Control Smart Brightness Control
*This feature is based on LG internal test conducted in February, 2021.

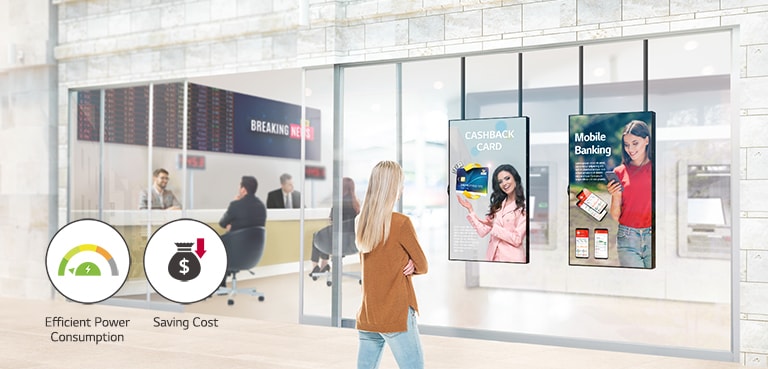

High Energy Efficiency

XS4J is energy efficient*, allowing for an efficient total cost management while showing content with 4,000 nits of high brightness.
High Energy Efficiency High Energy Efficiency
* Typical power consumption of XS4J is 345W(49XS4J), 375W(55XS4J) at ‘On Mode’ based on LG internal test conducted in February, 2021. The figure may differ depending on the actual environment.

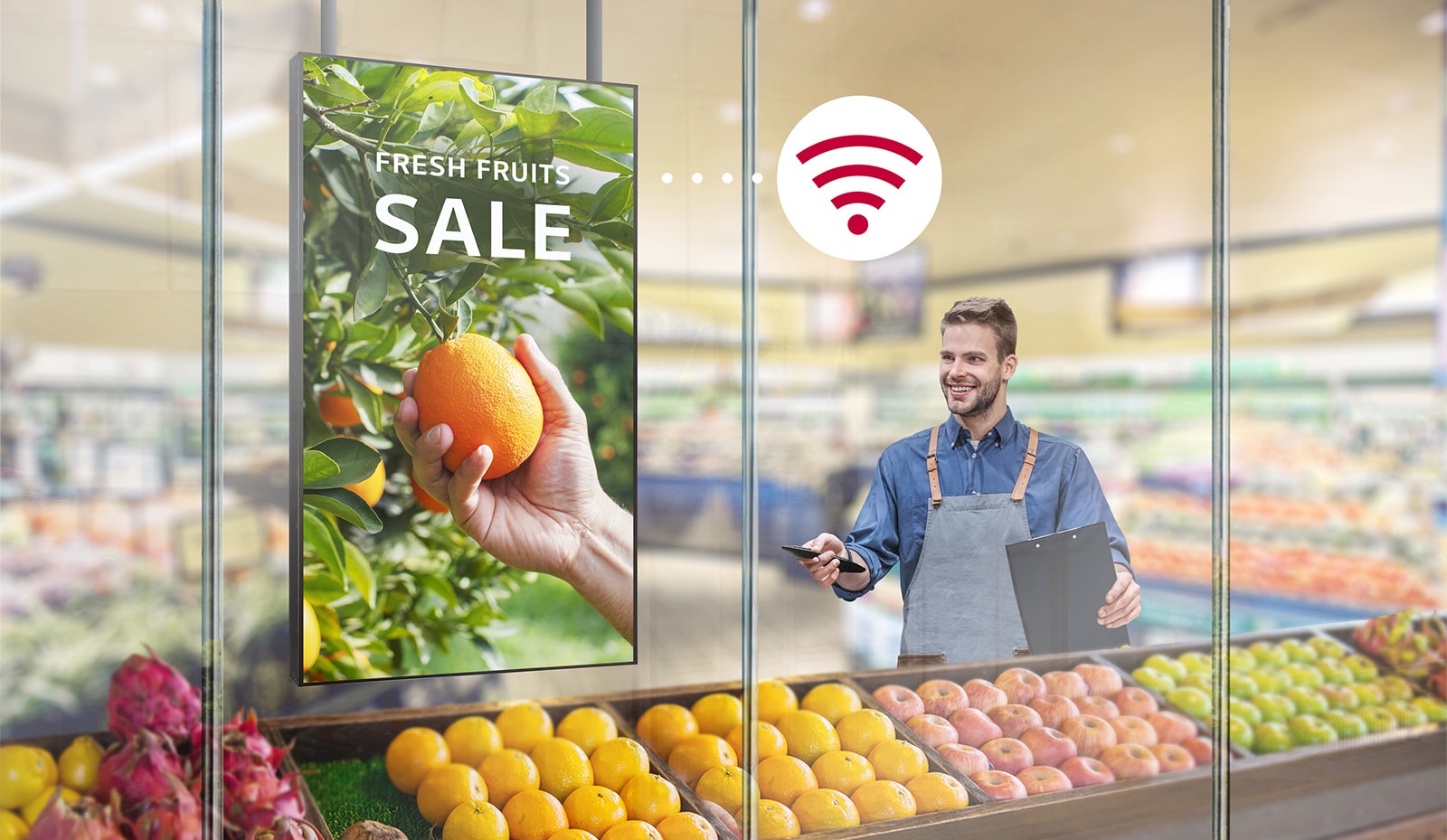

Easy Content Distribution
& SW Update

XS4J features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware.
Easy Content Distribution & SW Update Easy Content Distribution & SW Update

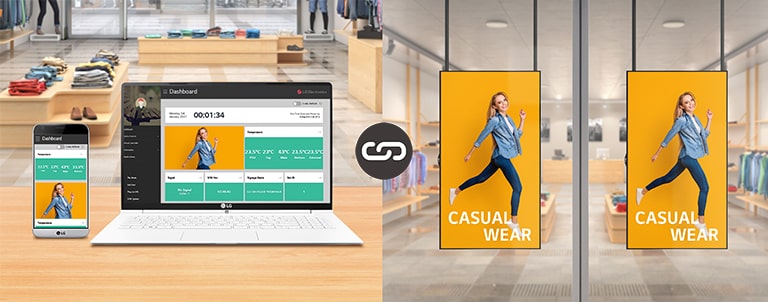

Web Monitoring
(Control Manager)

This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.
Web Monitoring (Control Manager) Web Monitoring (Control Manager)

Carbon Footprint Certification

The cradle-to-grave carbon footprint of XS4J has been measured and certified by the Carbon Trust.
Carbon Footprint Certification1 Carbon Footprint Certification2
* XS4J achieved CO2 Measured certification.
* The Carbon Trust Assurance for XS4J is valid until 28 March 2025.
* The Carbon Trust Assurance for XS4J is certified against PAS2050:2011.
Close
Panel
  • Screen Size
    49"
    Panel Technology
    IPS, M+ (WRGB)
  • Native Resolution
    1920x1080 (FHD)
    Brightness
    4,000nit (Typ), 3,200nit(Min)
  • Contrast Ratio
    1,300:1
    Dynamic CR
    500,000:1
  • Color gamut
    NTSC 67%
    Viewing Angle(H x V)
    178x178
  • Color Depth
    10bit, 1.07Billion colors
    Response Time
    8ms (G to G)
  • Surface Treatment(Haze)
    3%
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
    QWP(Quarter Wave Plate)
    Yes
Connectivity(Jack Interface)
  • Input
    HDMI (2, HDCP1.4), DP (1,HDCP1.3), RS232C IN (4pin phone jack), RJ45(LAN), IR IN, USB2.0 Type A (1)
    Output
    DP Out (Input DP/HDMI), Externel Speaker Out (L/R, 10W+10W), RS232C OUT
Mechanical Specification
  • Bezel Width
    9/6.5/6.5/9 mm
    Weight(Head)
    20.8Kg
  • Packed Weight
    25.3Kg
    Monitor Dimension(W x H x D)
    1092.7 x 626.4 x 83.5mm
  • VESA™ Standard Mount Interface
    600 x 400
Key Feature
  • HW
    Internal Memory 16GB, Wi-Fi Built-in, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, FAN
    SW
    webOS (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image(Booting Logo Image, No Signal Image), Sync Mode(RS-232C Sync, Local Network Sync, Backlight Sync), Multi-screen(PIP, PBP(2)), Video Tag(4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting(Max. 15x15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI(CEC), SI Server Setting, webRTC, Pro:Idiom
Environment Conditions
  • Operation Temperature
    0°C to 40°C (w/o Direct Sunlight),
    0°C to 30°C (Direct Sunlight)
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    345W (Full White)
    141W (IEC 62087)
    Max.
    370W
  • BTU (British Thermal Unit)
    1177 BTU/Hr(Typ.), 1262 BTU/Hr(Max)
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC / VCCI
  • ErP
    Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • Signage 365 Care
    Yes (LG Connectedcare)
Accessory
  • Basic
    Remote Controller(including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver(w/ Ambient Light Sensor), RS-232C Gender
    Optional
    WM-L640V(Landscape wall mount),
    WM-P640V(Portrait wall mount)
    ** Stand is not available
