webOS Ultra HD Series

Key Features

component-OBScountrySelectDesc

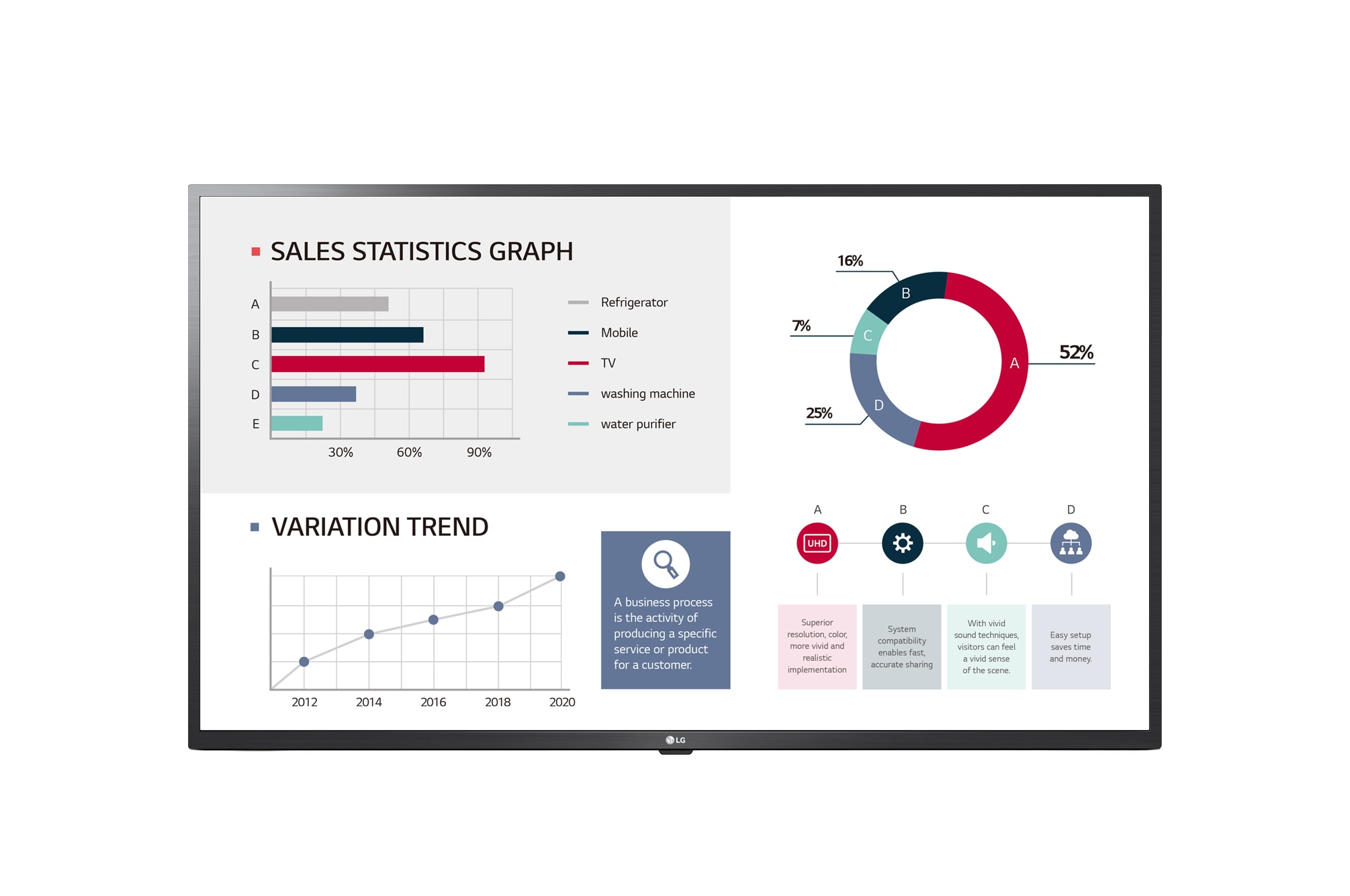

webOS Ultra HD Series
Panel
  • Screen Size
    50"
    Native Resolution
    3,840 x 2,160 (UHD)
  • Brightness (Typ., nit)
    400
    Contrast Ratio
    5,000:1
  • Dynamic CR
    1,000,000 : 1 ※ The luminosity ratio of Full Black / Full White color on video input condition.
    Color gamut
    DCI 80 %
  • Viewing Angle (H x V)
    178 x 178
    Color Depth
    1.07G Billon colors (8bit + FRC)
  • Response Time
    9.5ms (G to G)
    Surface Treatment
    Haze 1 %
  • Operation Hours (Hours / Day)
    16 / 7
    Portrait / Landscape
    Yes / Yes
Connectivity
  • Input
    HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2)
    Output
    Audio
  • External Control
    RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In
Mechanical Specification
  • Bezel Color
    Ceramic Black
    Bezel Width
    15.5 mm (R/L/T) / 22.3 mm (B)
  • Weight (Head)
    11.3Kg
    Monitor Dimensions (W × H × D)
    1,130 × 663 × 86.3 mm
  • Carton Dimensions (W × H × D)
    1,130 × 722 × 231 mm
    Handle
    No
  • VESA™ Standard Mount Interface
    200 x 200 mm
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ. / Max.
    105 W / 150 W
    Power off
    0.5W
  • Smart Energy Saving
    73.5W
    DPM
    0.5W
  • BTU (British Thermal Unit)
    359 BTU/Hr(Typ.), 512 BTU/Hr(Max.)
Sound
  • Speaker
    Yes
Certification
  • Safety
    CB
    EMC
    FCC Class "A" / CE
  • ErP
    Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Signage365Care
    Yes (The availability can differ by region.)
Accessory
  • Basic
    Remote Controller, Power Cord, Regulation Book, Phone to D-Sub9 Gender, Stand (EU, UK: not provided), Cable Holder
General
  • Region
    Global
  • Dimension
    • 50UL3G_UM73 Tool_2D drawing.dwg
    • 50UL3G_UM73 Tool_2D drawing.pdf
  • Datasheet
    • UL3G Series_Datasheet(web)_LG UHD Signage_2008.pdf
