LV75A Series

Key Features

component-OBScountrySelectDesc

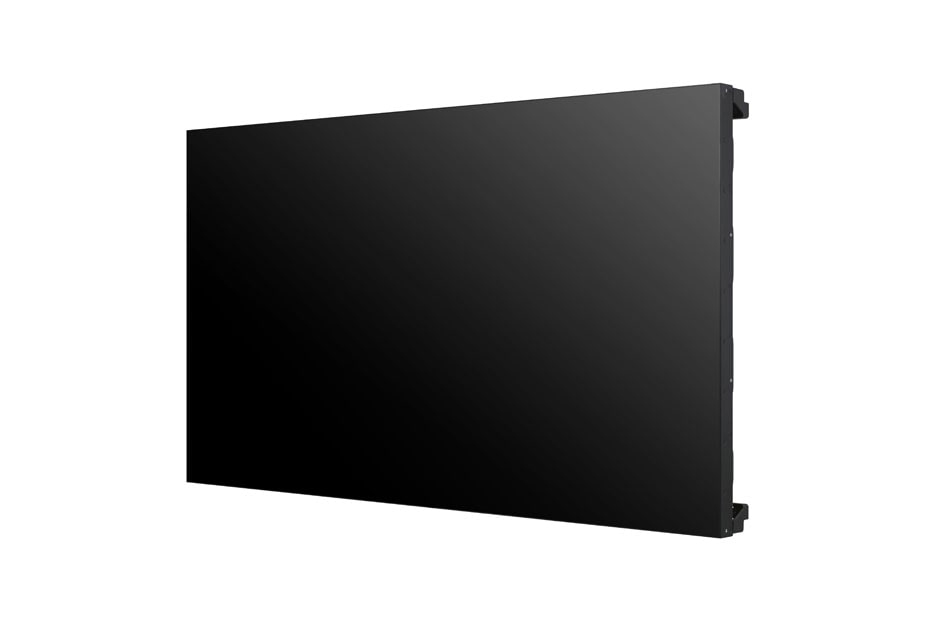

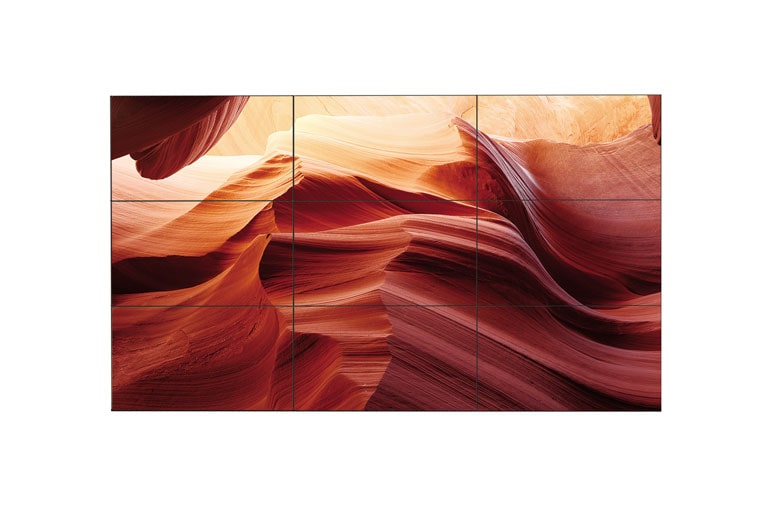

LV75A Series
Panel
  • Screen Size
    55" (54.64" measured diagonal)
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Module, Typ., cd/m²)
    500
Connectivity - Intput
  • Digital
    DVI-D (1), HDMI (2), Display Port (1) with HDCP for input
    Analog
    RGB (1), Shared Component, AV (1)
  • Audio
    PC Audio In (1)
    External Control
    RS232C (1), RJ45 (1), IR Receiver (1)
  • USB
    USB (1)
Connectivity - Output
  • Digital
    Display Port(1)
    Audio
    Audio Out(1)
  • External Control
    RS232C(1)
Physical Specification
  • Bezel Width
    2.25mm (left/top), 1.25mm (right/bottom)
    Monitor Dimension (W x H x D)
    1213.4 x 684.2 x 88.5 mm
  • Weight (Head)
    23.0kg
    VESA™ Standard Mount Interface
    600 x 400mm
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    160W
    Smart Energy Saving
    130 W
  • DPM
    0.7 W
    Power off
    0.5 W
Standard(Certification)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "B" / CE / KCC
  • ErP / Energy Star
    NA / Yes (Energy Star 6.0)
Media Player Compatibility
  • External Media player Attatchable
    Yes
Software Compatibility

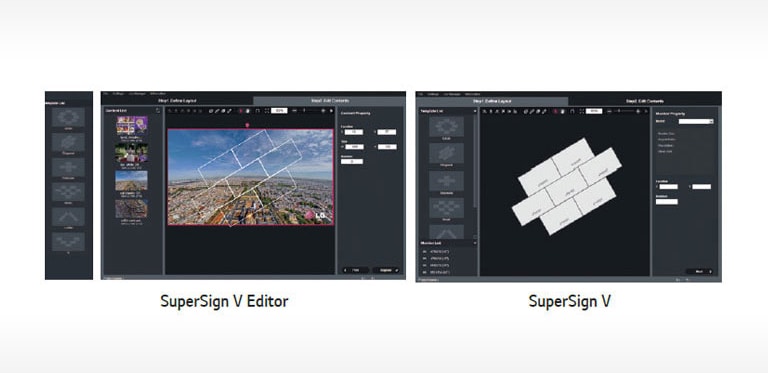

  • SuperSign-w lite
    Yes

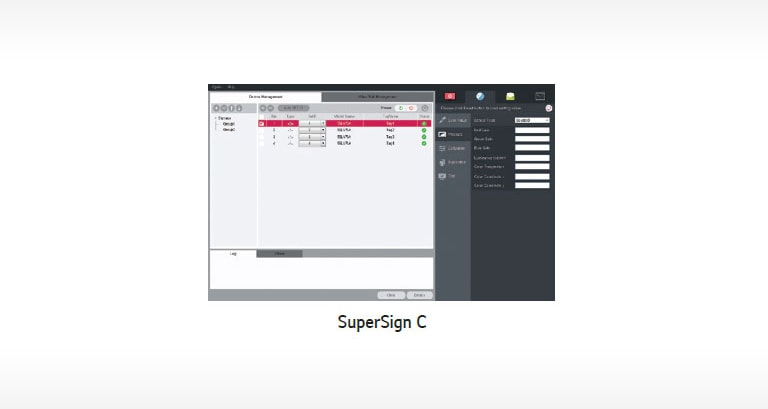

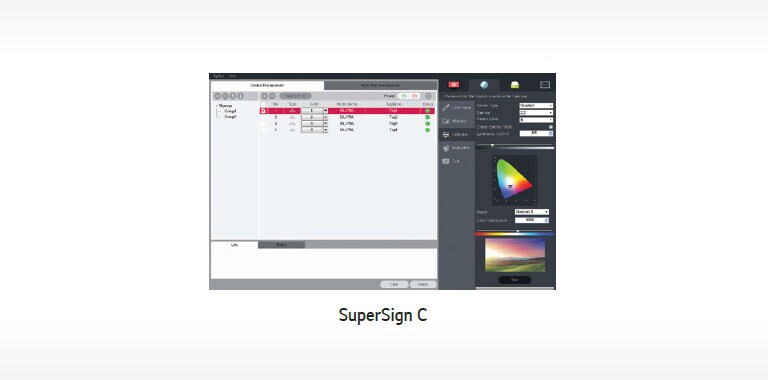

    SuperSign-c
    Yes
Accessory
  • Basic
    Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, Tiling Guide, Screw
    Optional
    WM-L640V(Landscape), WM-P640V(Portrait)
  • Dimension
    • [Dimension] 55LV75A_77A.dwg
    • [Dimension] 55LV75A_77A.pdf
  • Datasheet
    • LV75A_77A Leaflet 161005.pdf
    • [Leaflet] LV75A+77A_Leaflet(preview)_151203.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
