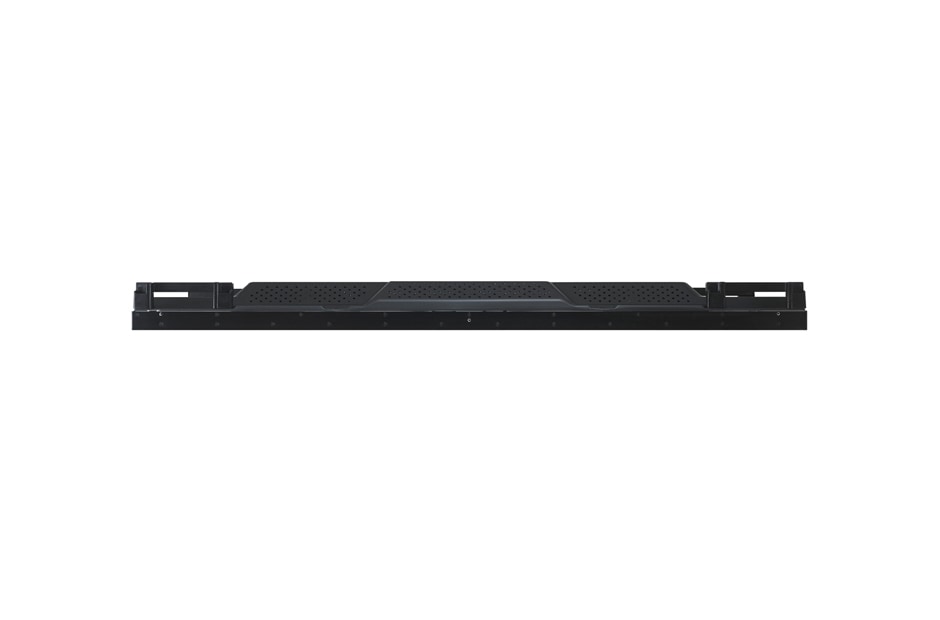

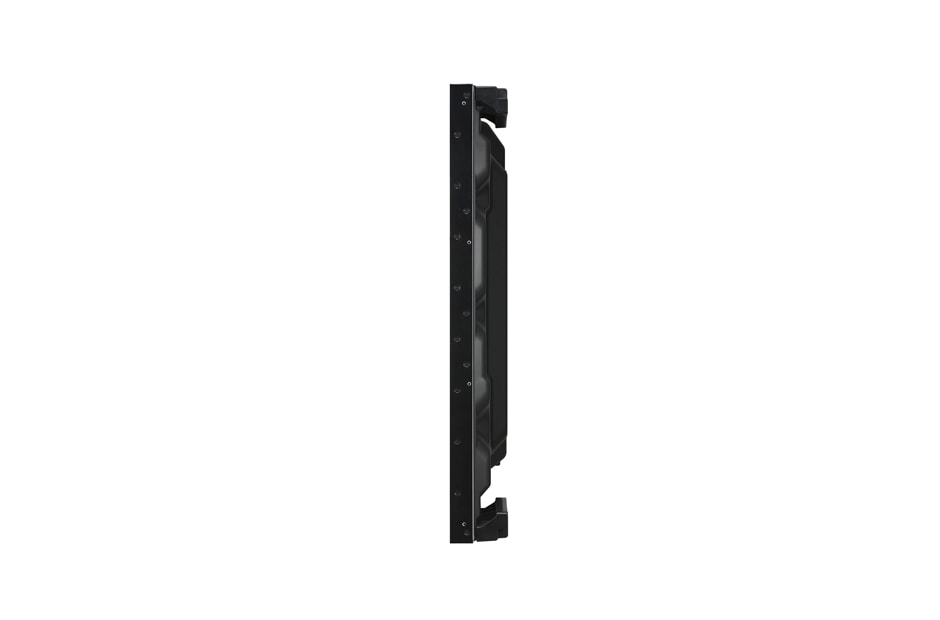

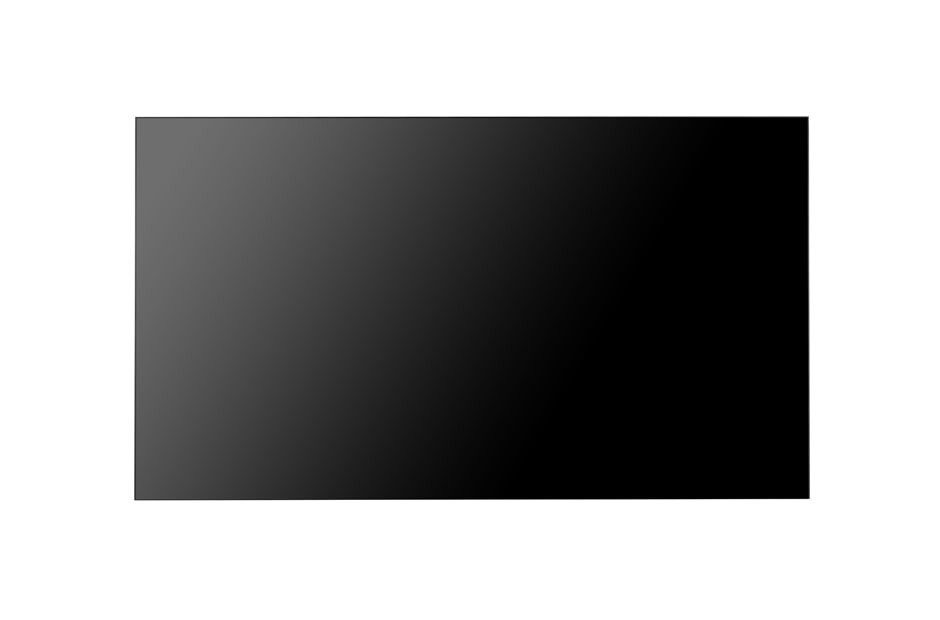

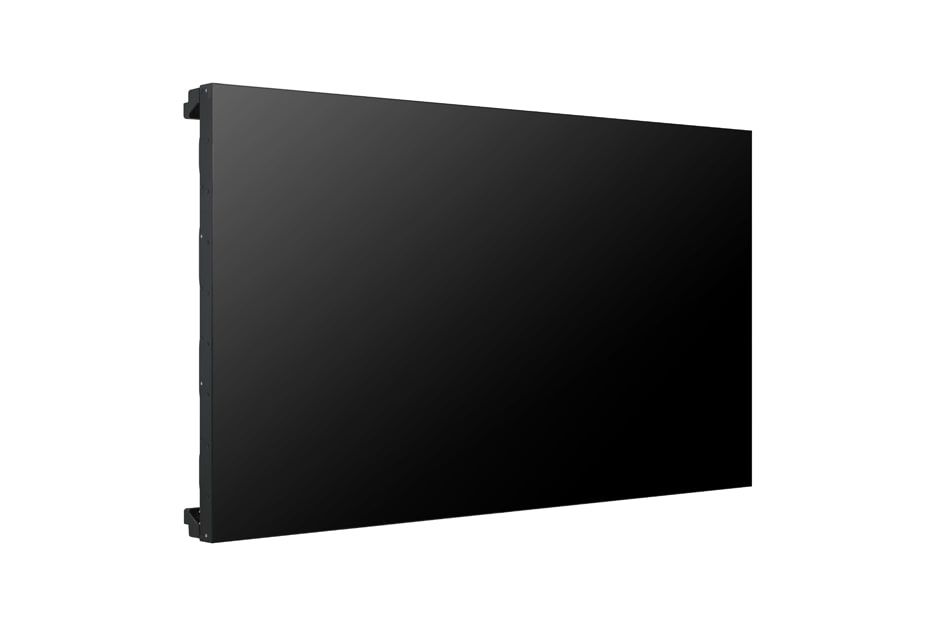

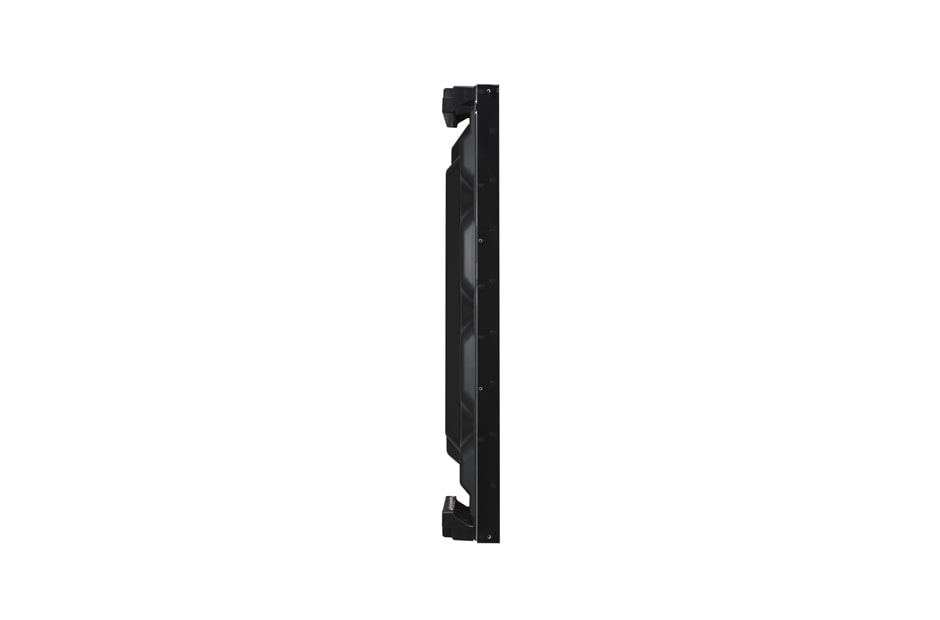

55'' 700nits FHD Ultra Narrow Bezel Video Wall

Key Features

Choose your Size

component-OBScountrySelectDesc

55" 700nits FHD Ultra Narrow Bezel Video Wall
Panel
  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Module, Typ., cd/m²)
    700
    Orientation
    Landscape & Portrait
Connectivity
  • Input
    HDMI, DP, DVI, RGB, Audio, USB
    Output
    DP, Audio
  • External Control
    RS232C In/Out, RJ45 In, IR Reciever
Physical Specification
  • Bezel Width
    2.25 mm (L/T) / 1.25 mm (R/B)
    Monitor Dimension (W x H x D)
    1,213.4 x 684.2 x 88.5 mm
  • Weight (Head)
    23 kg
    Carton Dimensions (W x H x D)
    1,337 x 828 x 239 mm
  • Packed Weight
    30.5 kg
    Handle
    Yes
  • VESA™ Standard Mount Interface
    600 x 400 mm
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power Consumption
  • Typ.
    230 W
    Max.
    290 W
  • Smart Energy Saving
    130 W
Standard(Certification)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes (EU Only) / No
Media Player Compatibility
  • OPS type compatible
    No
    External Media player Attatchable
    Yes
Software Compatibility
  • Content Management Software
    SuperSign W
    Control and Monitoring Software
    SuperSign C
Accessory
  • Basic
    Remote controller, Power cable, DP cable, IR receiver, RS-232C cable, Tiling guide, Screw
    Optional
    WM-L640V (Landscape), WM-P640V (Portrait), Frame kit (Horizontal: FK-55V10 / Vertical: FK-55V20)
  • Dimension
    • 55LV75D_77D_Dimension.dwg
    • 55LV75D_77D_Dimension.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
