55VM5B component-copyModelName

VM5B Series

Discontinued

55VM5B component-copyModelName

VM5B Series

Key Features

Brightness(Typ.): 500 cd/m²
Bezel : 0.9mm (T/B/L/R even bezel)
Depth : 87mm
Interface : HDMI / DVI / RGB / IR, Daisy-chain (DP, RS232C, RJ45)

Choose your Size

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 500 cd/m²
Bezel : 0.9mm (T/B/L/R even bezel)
Depth : 87mm
Interface : HDMI / DVI / RGB / IR, Daisy-chain (DP, RS232C, RJ45)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

VM5B Series

Borderless Design

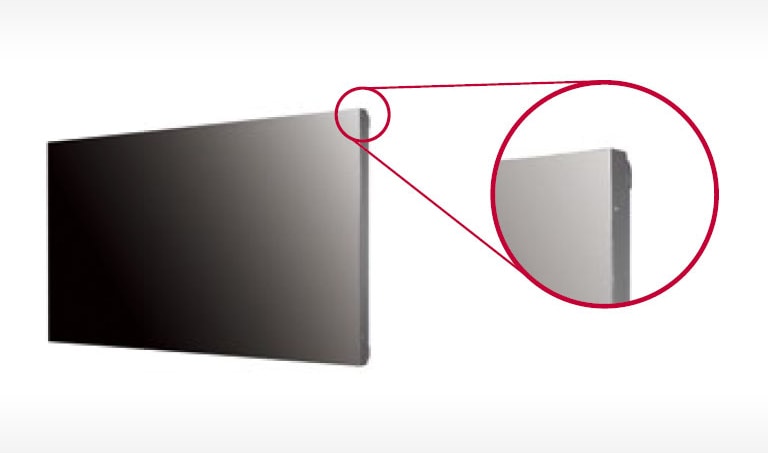

Narrow Bezel

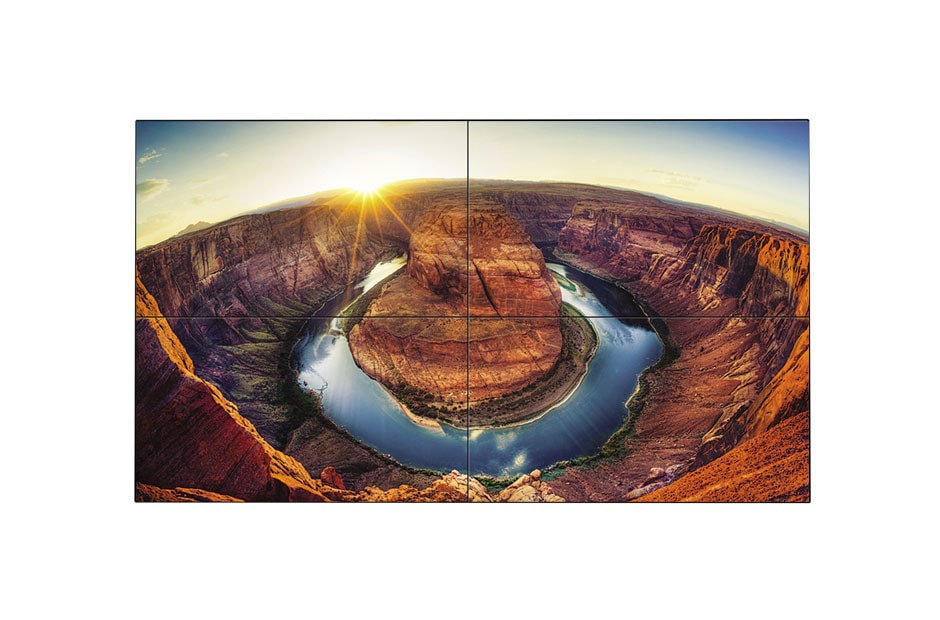

Borderless design with its 0.9mm even panel bezel* and 1.8mm BtB(Bezel to Bezel)** size, verifi ed by Nemko***, enables immersive and seamless viewing experiences on assembled video wall screens.

02_Built-in-SoC_and-Synced-Playback_1478565393060

Smart Platform

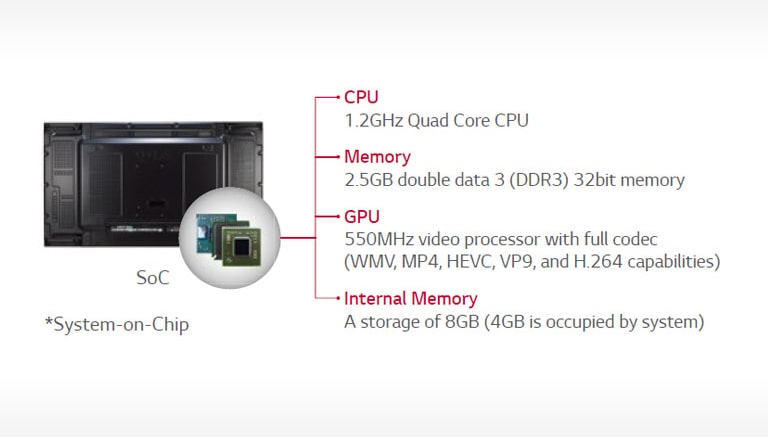

Built-in SoC* and Synced Playback

The optimized built-in quad-core SoC in the 55VH7B/VM5B can play various content formats and eliminates the need for an external media player. Using its built-in SoC, each display plays its video tile without lag for synchronized content playback.

Smart Platform

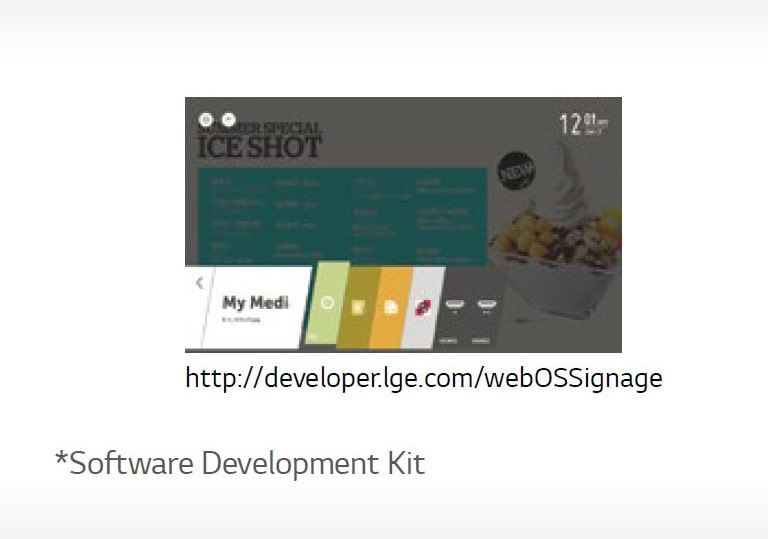

webOS 2.0

The webOS 2.0 platform provides easy and convenient tools to create contents. LG's SDK* and technical supports make content development and management easier.

Superior Picture Quality

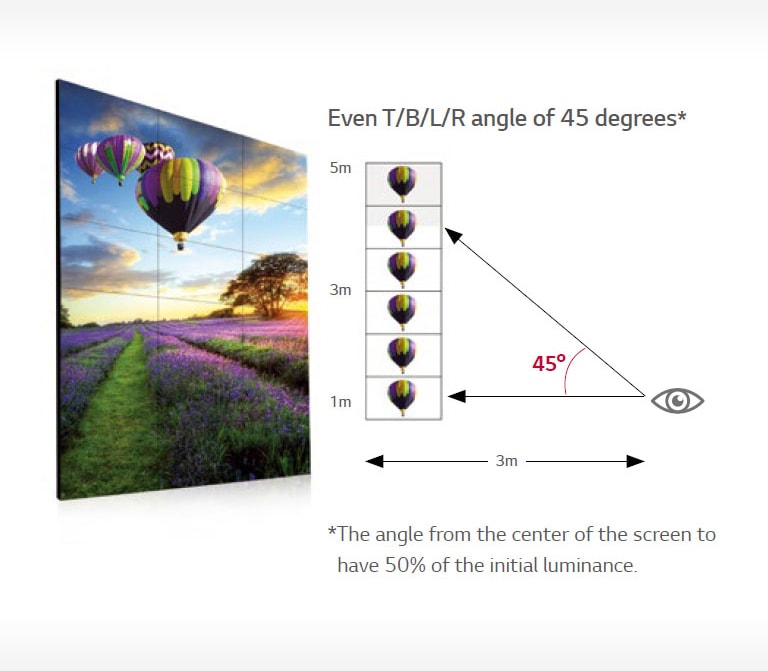

Clear Viewing Angle

The 55VH7B/VM5B ensures clear picture quality even when installed in stacks of more than four. This is very favorable for the quantity of video walls installed in large spaces.

Superior Picture Quality

Uniform Brightness

LG's LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new 55VH7B/VM5B generates high visibility and a consistent brightness across the whole screen.

Superior Picture Quality

Video Wall Image Creation

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

Superior Picture Quality

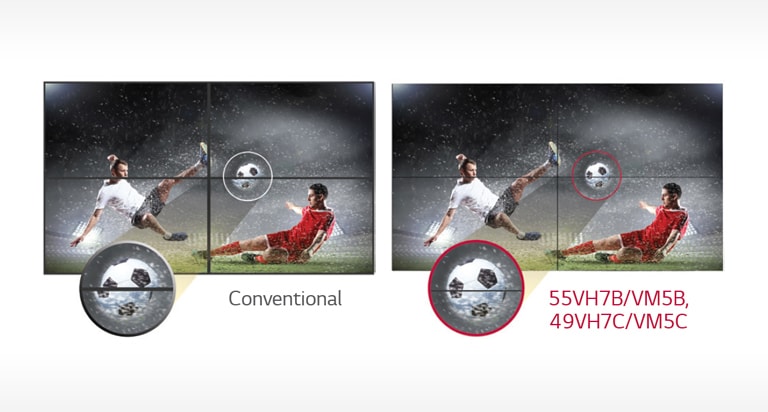

Image Gap Reduction

The 55VH7B/VM5B, 49VH7C/VM5C includes an image improvement algorithm that can adjust to objects located in the boundary of bezel for a seamless viewing experience.

08_Evolved-Daisy-Chain-Performance_1478565970701

Enhanced Content Management

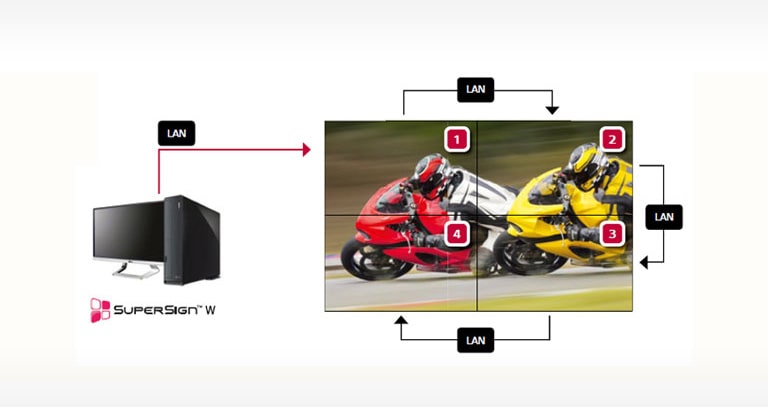

LAN Daisy Chain Performance
A LAN daisy chain allows you to execute commands to control and monitor the screens and even update their firmware.

09_Guide-Bracket_Classifi-ed-Port_1478566087709

Convenient Options

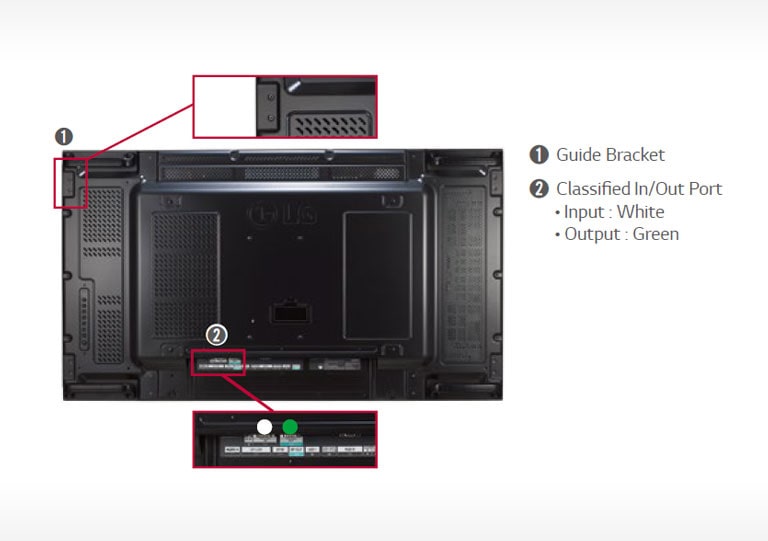

Guide Bracket / Classified Port

A guide bracket is an attachment that ensures the video wall remains flat. The classified in/out port prevents errors when connecting a daisy chain.

Convenient Options

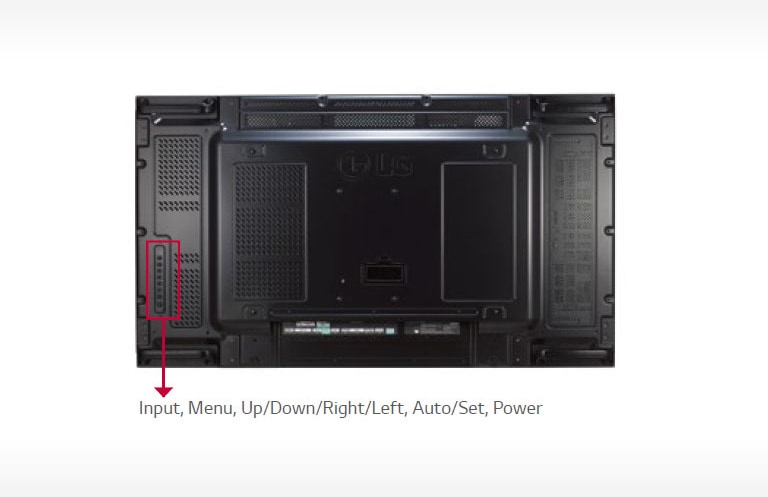

Control Buttons

With 8 control buttons, it's easy to operate various functions of the 55VH7B/VM5B, such controlling the OSD (On Screen Display) and changing the input source.

Panel

Screen Size

55"

Resolution

1,920 x 1,080 (FHD)
Brightness (Module, Typ., cd/m²)

500

Connectivity

Input

HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB3.0, RGB

Output

DP, Audio
External Control

RS232C, RJ45, IR Receiver

Physical Specification

Bezel Width

0.9mm (Top/Bottom/Left/Right even bezel) / 1.8mm *B to B : Panel Bezel + Panel Bezel

Monitor Dimension (W x H x D)

1,211.4 x 682.2 x 86.5mm
Weight (Head)

18.6kg

VESA™ Standard Mount Interface

600 x 400mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

150 W

Smart Energy Saving

80 W

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 7.0)

Media Player Compatibility

OPS type compatible

Yes

External Media player Attatchable

Yes (MP500/MP700)

Software Compatibility

SuperSign-w lite

Yes

SuperSign-c

Yes

Accessory

Basic

Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screw

Optional

Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSA), HDBaseT (EB-B100)

Dimension
- [Drawing] 55VM5B.dwg
- [Drawing] 55VM5B.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
