55VX1D component-copyModelName

55'' 1,500nits FHD High Brightness Video Wall

LG 55'' 1,500nits FHD High Brightness Video Wall, 55VX1D, thumbnail 1

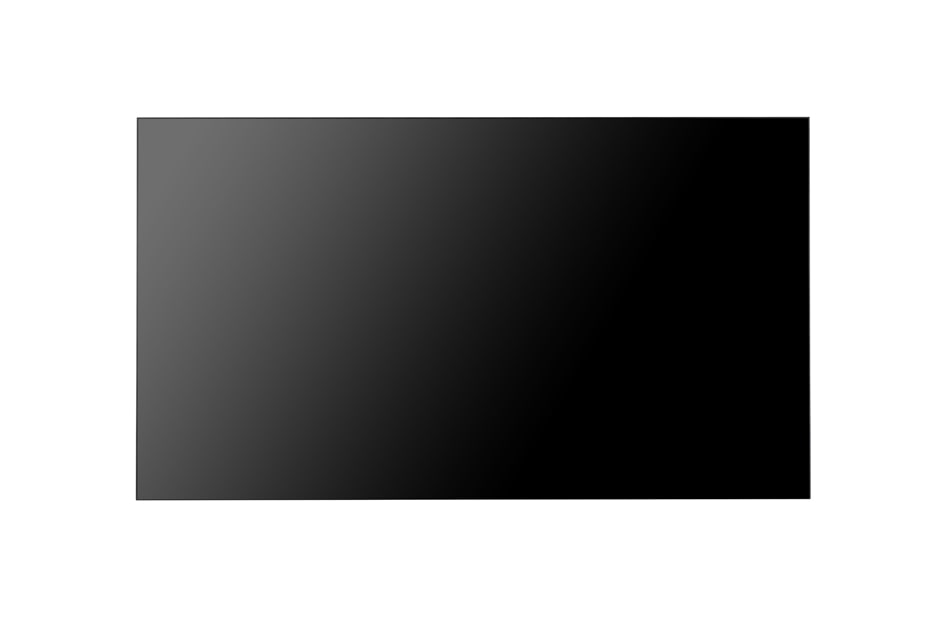

LG 55'' 1,500nits FHD High Brightness Video Wall, 55VX1D, thumbnail 2

LG 55'' 1,500nits FHD High Brightness Video Wall, 55VX1D, thumbnail 3

LG 55'' 1,500nits FHD High Brightness Video Wall, 55VX1D, thumbnail 4

LG 55'' 1,500nits FHD High Brightness Video Wall, 55VX1D, thumbnail 5

LG 55'' 1,500nits FHD High Brightness Video Wall, 55VX1D, thumbnail 6

LG 55'' 1,500nits FHD High Brightness Video Wall, 55VX1D, thumbnail 7

Discontinued

55VX1D component-copyModelName

55'' 1,500nits FHD High Brightness Video Wall

Key Features

Brightness(Typ.): 1,500 cd/m²
Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
Depth: 92.8mm
Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB 3.0/IR Receiver/Audio
webOS 3.0+

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 1,500 cd/m²
Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
Depth: 92.8mm
Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB 3.0/IR Receiver/Audio
webOS 3.0+

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

55" 1,500nits FHD High Brightness Video Wall

Superior Picture Quality

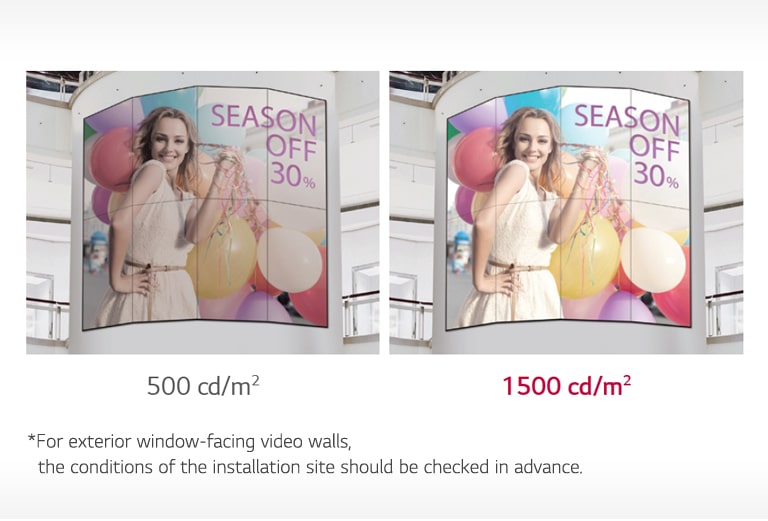

Clear and Vivid Screen

Other video walls are unable to sufficiently display content due to low visibility under bright lighting. LG's new high brightness video wall stands out against such backgrounds, with a high luminance of 1,500 cd/㎡. It delivers advertisements clearly under the brightest lights.

Superior Picture Quality

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

Superior Picture Quality

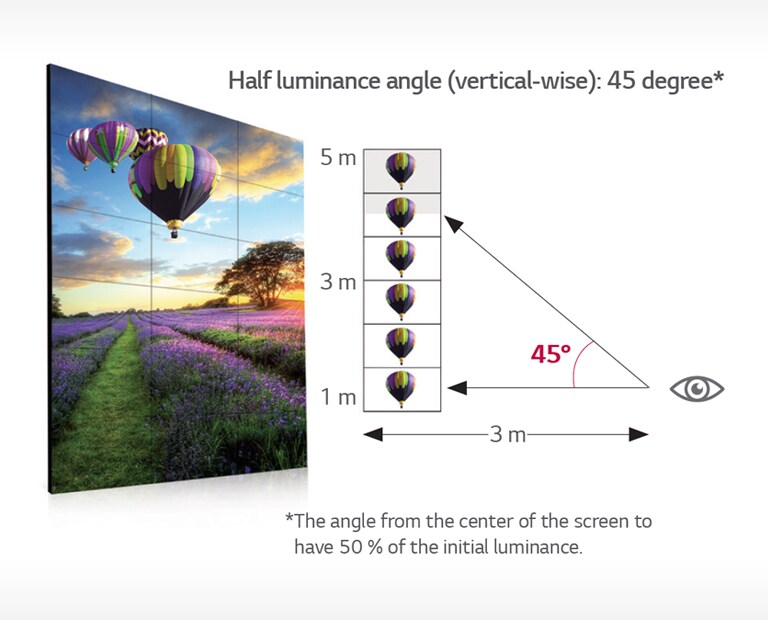

Wide Viewing Angle

Stable image reproduction is critical in video walls, as it is usually installed in places above eye level and is seen from various angles. Thanks to the IPS panel and the high half luminance angle, VX1D delivers the best picture quality from any viewer position.

Superior Picture Quality

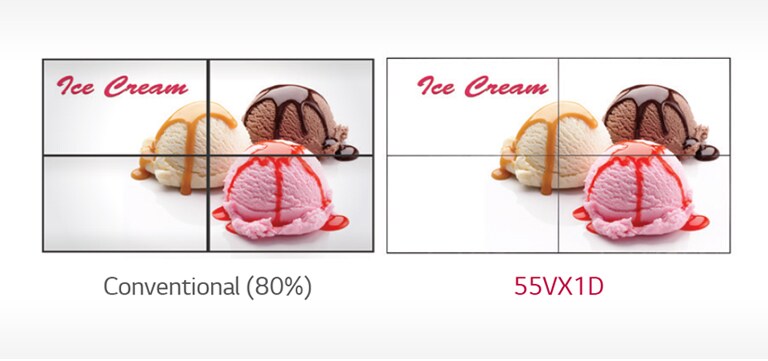

Uniform Brightness

LG's LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new VX1D generates high visibility and a consistent brightness across the whole screen.

05_Consistent-White-Balance_1511334380716

Superior Picture Quality

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

06_Fan-Less-Noise-Reduction_1511334548103

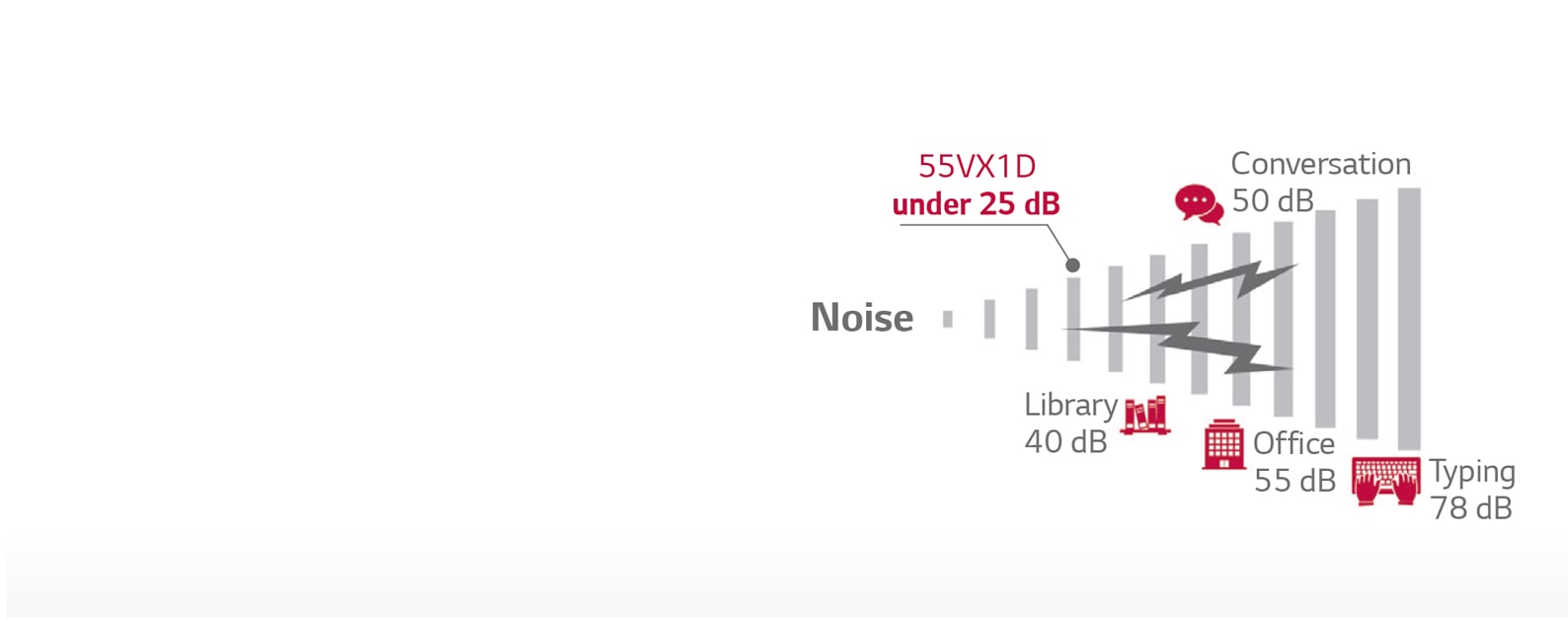

Quiet Operation

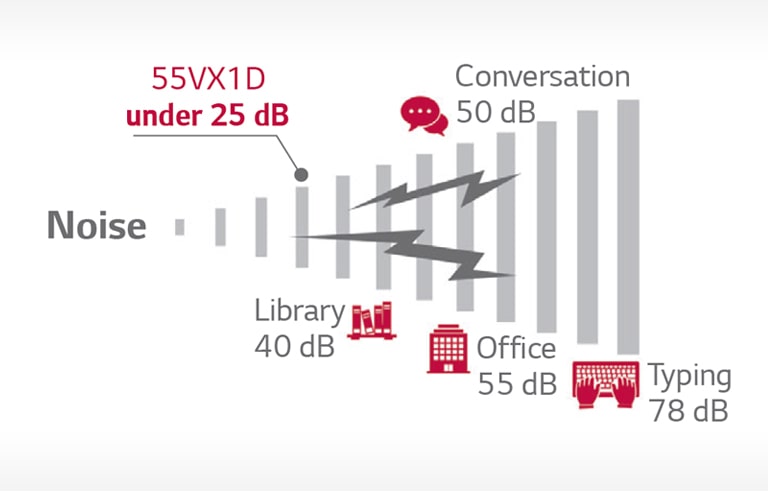

Fan-Less Noise Reduction

55VX1D is the perfect choice for an in-window environment due to the removal of the cooling fan. Its operating noise level is under 25 dB, which is quieter than a recording studio (30 dB).

07_Built-in-SoC-and-Synced-Playback_1511425773704

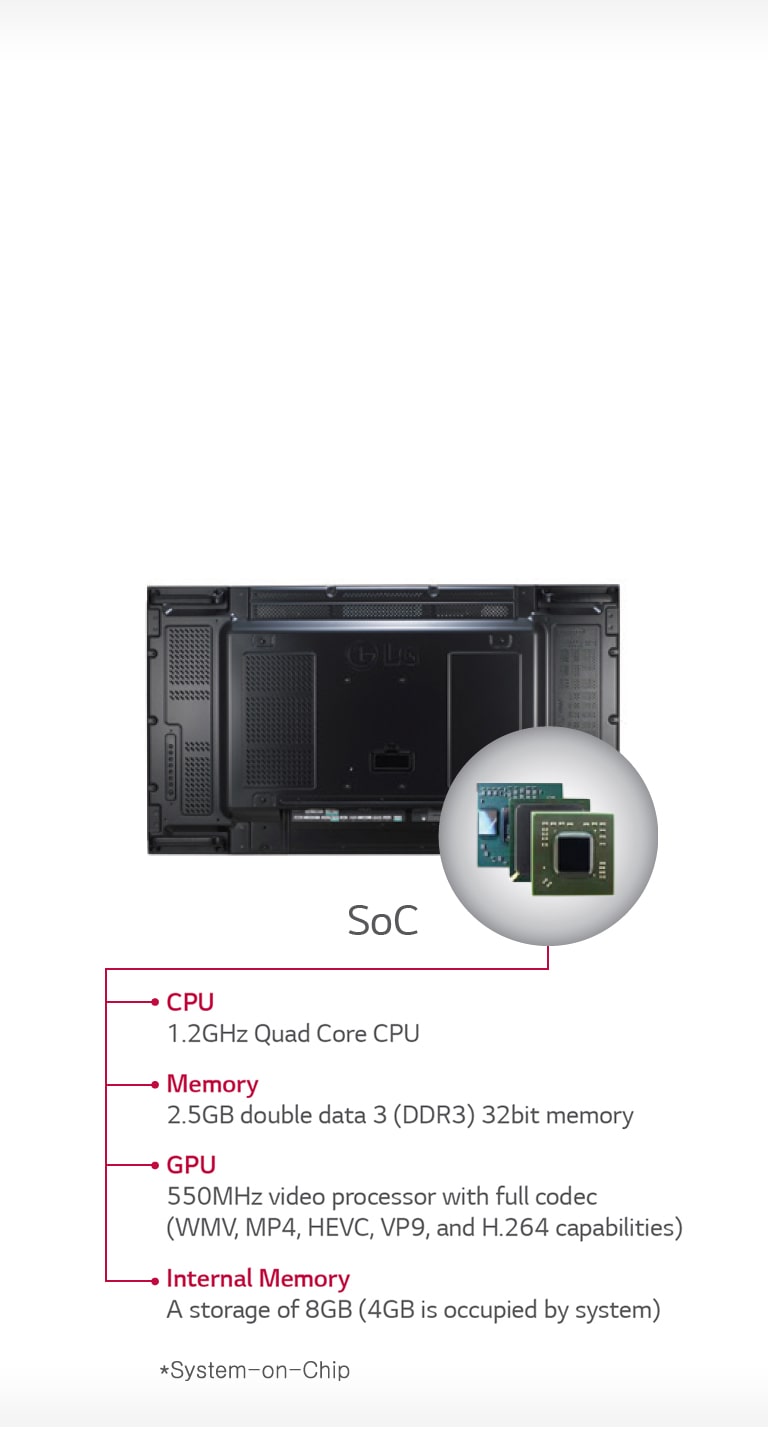

Smart Platform

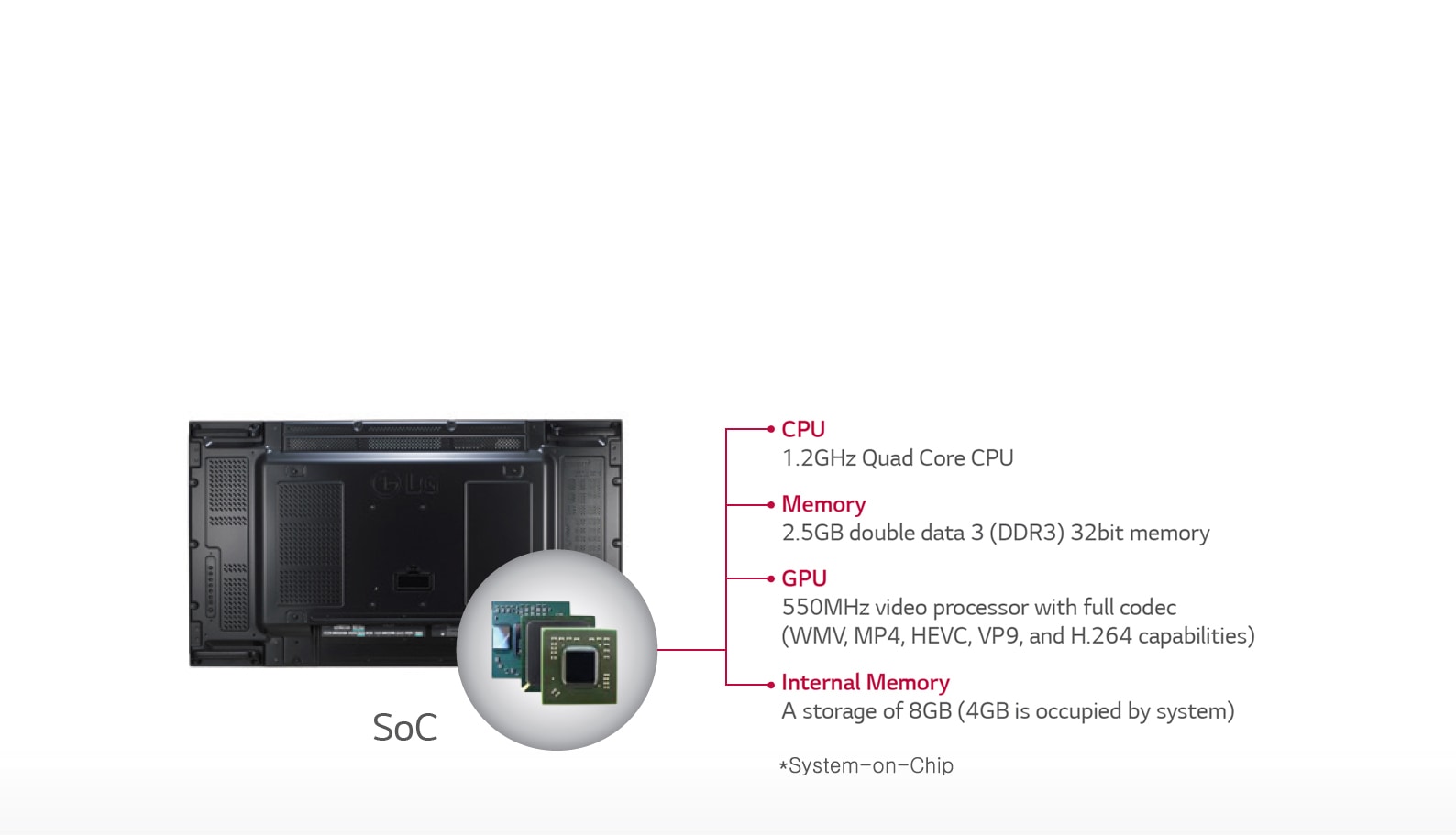

Built-in SoC and Synced Playback

The optimized built-in quad-core SoC* in the 55VX1D can play various content formats and eliminates the need for an external media player. Using its built-in SoC, each display plays its video tile without lag for synchronized content playback.

05_Dedicated-Menu-for-Video-Wall_1513907477337

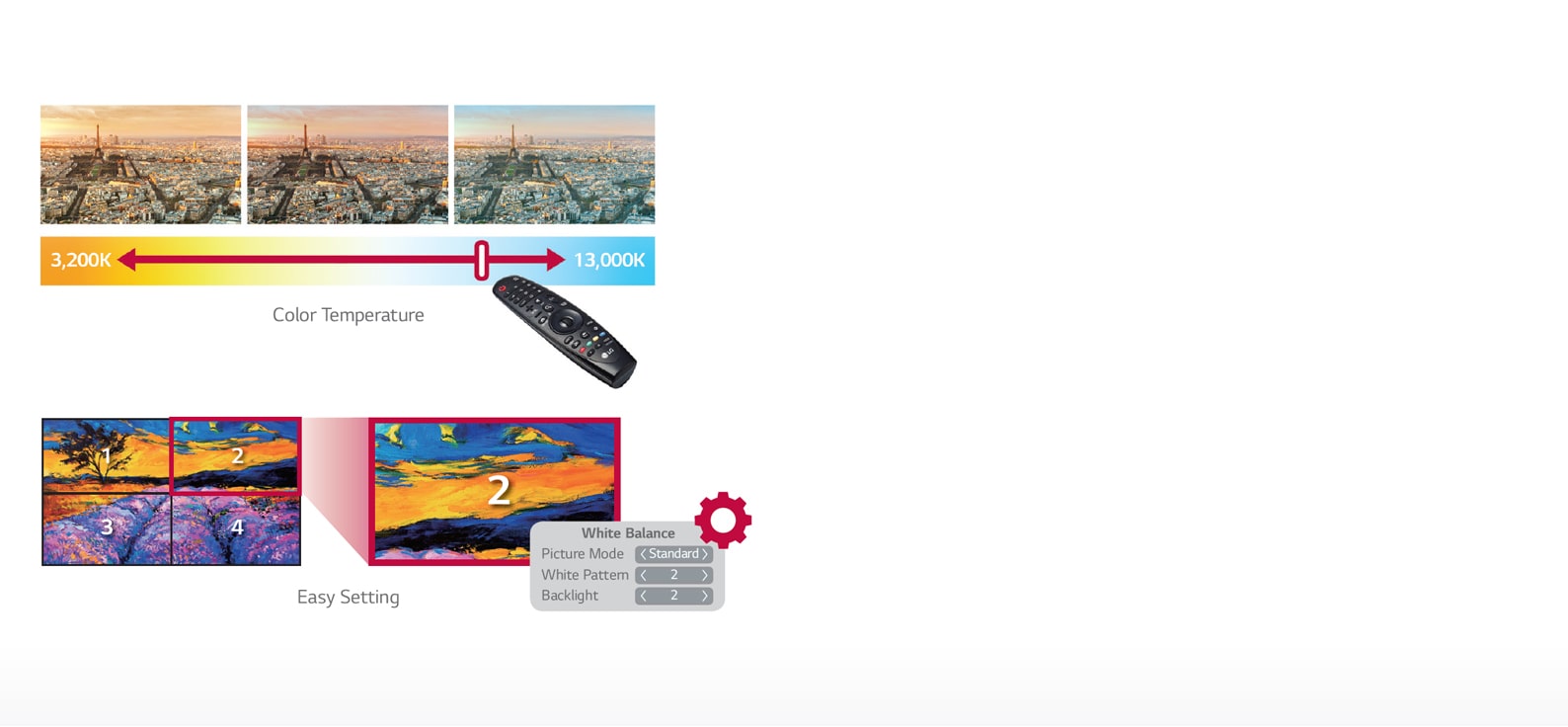

Enhanced Usability

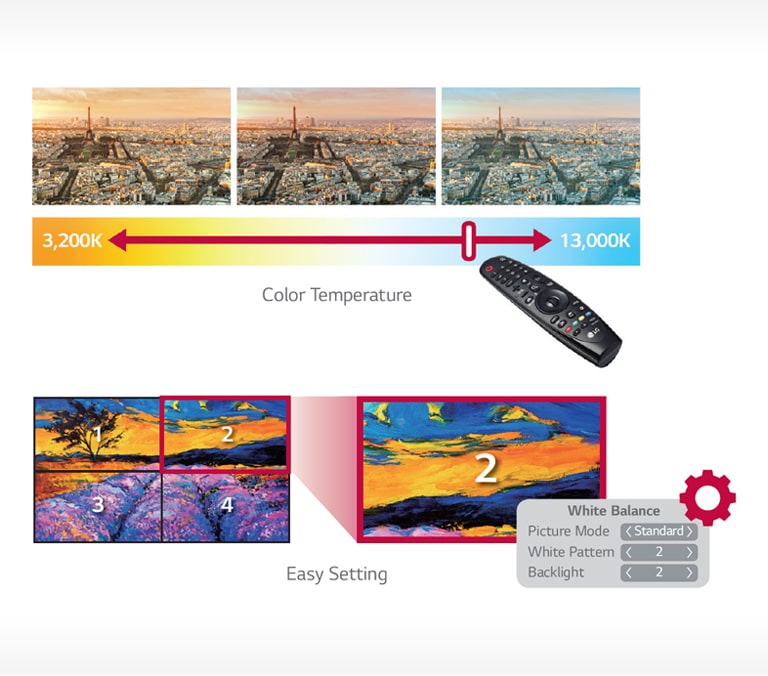

Convenient UX for Video Wall

Depending on the content, the color temperature of the screen can be easily adjusted by users with a remote control. Also, the settings for tile mode and content playback become more convenient because the dedicated menu is specialized based on the visual guide.

09_Easy-Management-with-LAN-Daisy-Chain_1511334874227

Enhanced Usability

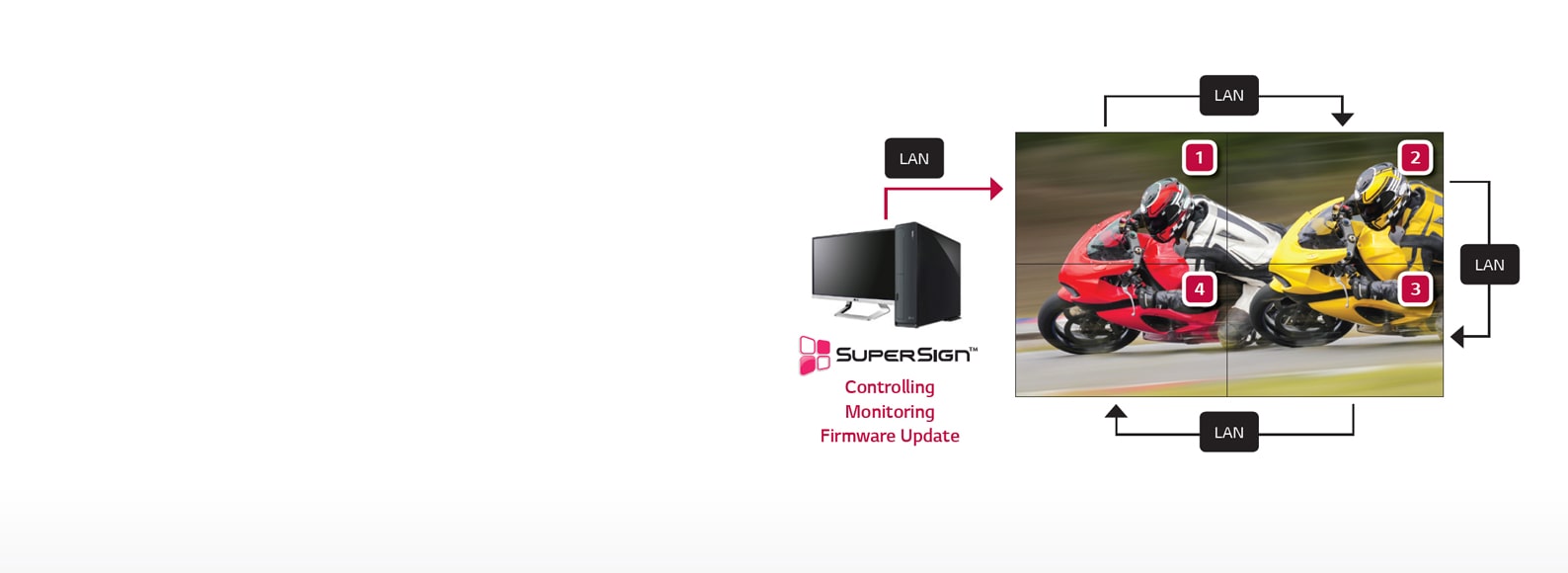

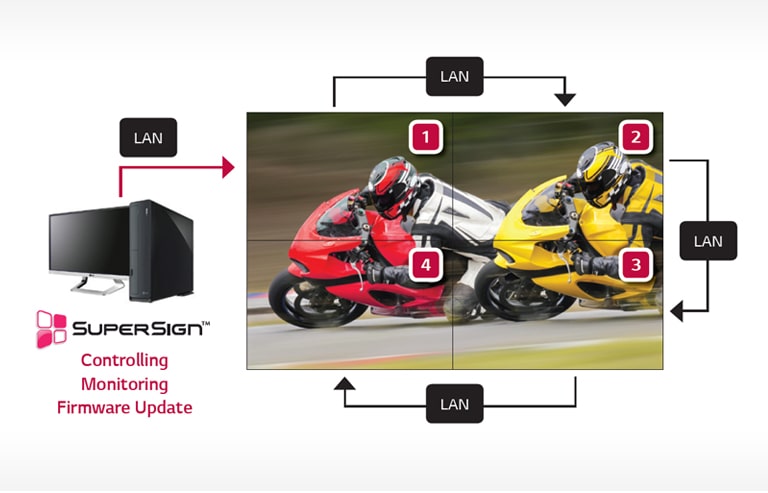

Easy Management with LAN Daisy Chain

The LAN daisy chain allows users to control and monitor signage, distribute content, and even update firmware all at once.

Panel

Screen Size

55"

Native Resolution

1,920 x 1,080 (FHD)
Brightness (Module, Typ., cd/m²)

1500

Orientation

Landscape & Portrait

Connectivity

Input

HDMI, DP, DVI-D, RGB, Audio In, USB 3.0

Output

DP, Audio Out
External Control

RS232C In/Out, RJ45 In/Out, IR Receiver In

Physical Specification

Bezel Width

2.25 mm (L/T) / 1.25 mm (R/B)

Monitor Dimension (W x H x D)

1,213.4 x 684.2 x 92.8 mm
Weight (Head)

23.5 kg

Carton Dimensions (W x H x D)

1,353 x 855 x 263 mm
Packed Weight

36.6 kg

VESA™ Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power Consumption

Typ./Max

250 W / 280 W

Smart Energy Saving

213 W

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 7.0)

Media Player Compatibility

OPS type compatible

-

External Media player Attatchable

Yes (MP500/MP700)

Software Compatibility

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign Link

Accessory

Basic

Remote controller, Power cable, DP cable, Manual, IR receiver, RS-232C cable, LAN cable, Guide bracket, Screws

Optional

Wall mount (Landscape: WM-L640V, Portrait: WM-P640V)

Dimension
- 55VX1D_Dimension.dwg
- 55VX1D_LAYOUT_171116.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
