55XF3E-B component-copyModelName

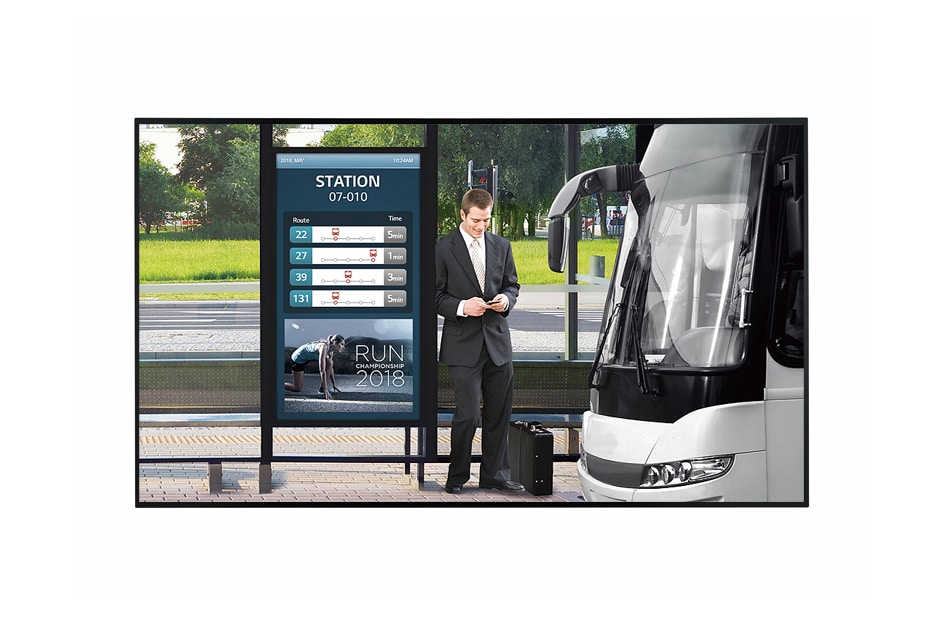

55'' 3,000nits FHD Open-frame Display

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55XF3E-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55XF3E-B)
    $
    $
    LG Members Price
Total
55" 3,000nits FHD Open-frame Display
Contact Us
01_High-Brightness_1522974371653 01_High-Brightness_1522974371653
Outstanding Visibility

High Brightness

With a great brightness of 3,000 cd/㎡, XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.
02_Visible-with-Polarized-Sunglasses_1522974504635 02_Visible-with-Polarized-Sunglasses_1522974504635
Outstanding Visibility

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.
04_Smart-Brightness-Control_1522974617615 04_Smart-Brightness-Control_1522974617615
Outstanding Visibility

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
05_High-Operating-Temperature_1522974682876 05_High-Operating-Temperature_1522974682876
Product Reliability

High Operating Temperature

Its high reliability under high operating temperatures reduces additional costs for air conditioning system.
06_Conformal-Coating_1522974737913 06_Conformal-Coating_1522974737913
Product Reliability

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
07_High-Performance-with-webOS-Smart-Platform_1522974801278 07_High-Performance-with-webOS-Smart-Platform_1522974801278
Easy Maintenance

High-Performance with webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.
07_Space-Efficiency_1516694180166 07_Space-Efficiency_1516694180166
Easy Maintanance

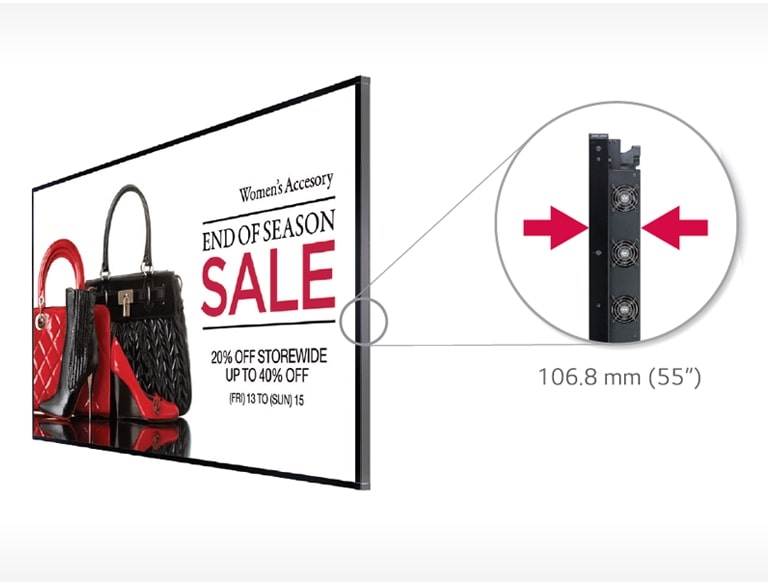

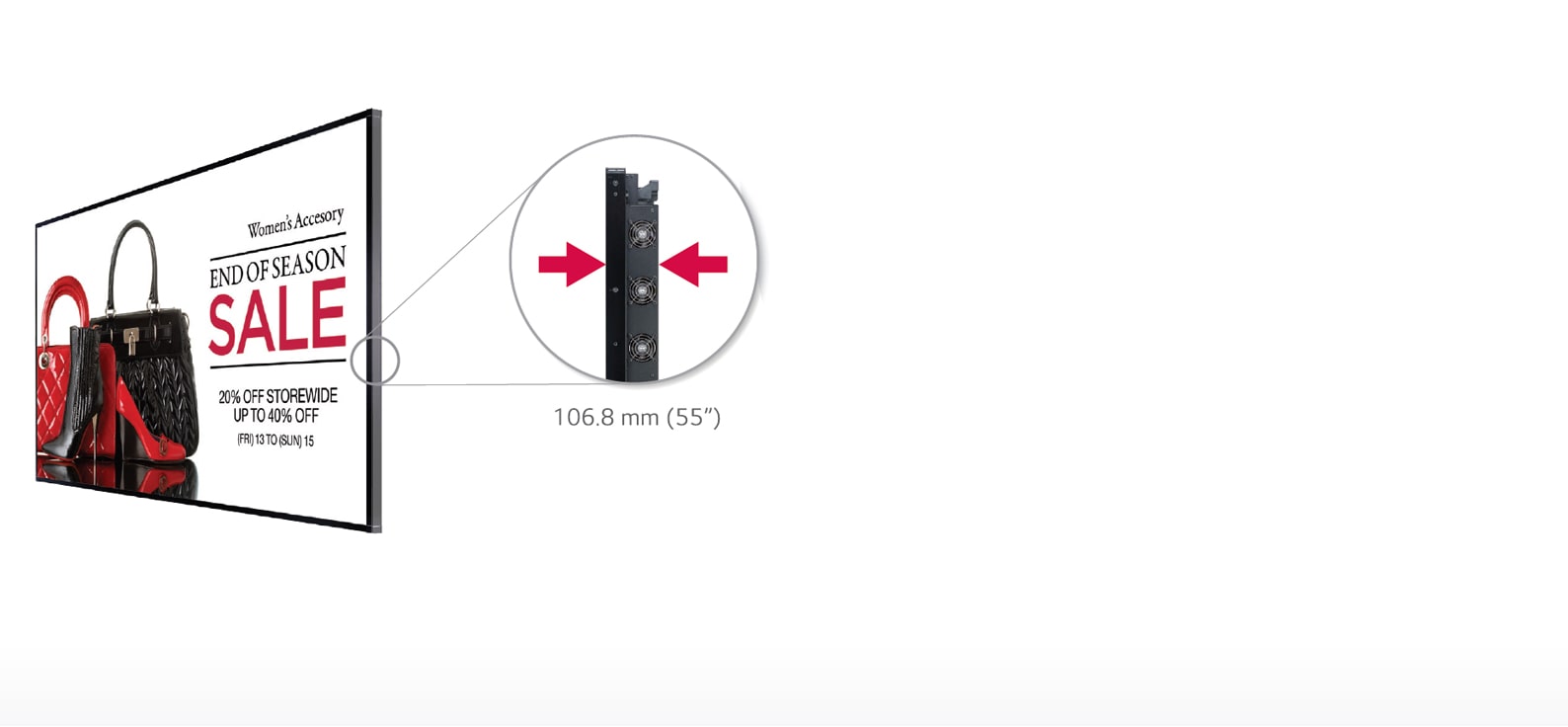

Space Efficiency

The slim depth saves space for installation and makes the enclosure design slimmer.
Close
Panel
  • Screen Size
    55" (54.64" Measured Diagonal)
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Typ., cd/m²)
    3000
Connectivity
  • Input
    HDMI (2), DP, DVI-D, Audio, USB
    Output
    DP, External Speaker
  • External Control
    RS232C In/Out, RJ45 In, IR Receiver In
Physical Specification
  • Bezel Width
    9.9mm (L/R),12mm (T/B)
    Monitor Dimension (W x H x D)
    1,235.5 x 709.4 x 106.8 mm
  • Weight (Head)
    26.5kg
Environment Conditions
  • Operation Temperature
    0℃ to 50℃ (w/o Direct Sunlight, Direct Sunlight in Cooling System),
    0℃ to 40℃ (Direct Sunlight)
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    250W (Full White)
    230W (IEC 62087)
    Max
    300W
Standard(Certification)
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / No
Software Compatibility
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+ / Control
Accessory
  • Basic
    Remote Controller, Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)
    Optional
    Wi-Fi Dongle (AN-WF500)
  • Dimension
    • 55xf3e_2d.dwg
    • 55xf3e_2d.pdf
  • Datasheet
    • XF Series(75XF3ES,75XF3C,55_49XF3E)_Datasheet(low)_LG Digital Signage_230901.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
