Discontinued

55XS4F-B component-copyModelName

Window Facing Display

LG Window Facing Display, 55XS4F-B

LG Window Facing Display, 55XS4F-B, thumbnail 0

LG Window Facing Display, 55XS4F-B, thumbnail 1

LG Window Facing Display, 55XS4F-B, thumbnail 2

LG Window Facing Display, 55XS4F-B, thumbnail 3

LG Window Facing Display, 55XS4F-B, thumbnail 4

LG Window Facing Display, 55XS4F-B, thumbnail 5

LG Window Facing Display, 55XS4F-B, thumbnail 6

LG Window Facing Display, 55XS4F-B, thumbnail 7

LG Window Facing Display, 55XS4F-B, thumbnail 8

/

Discontinued

55XS4F-B component-copyModelName

Window Facing Display

Key Features

Brightness: 4,000cd/m² (Typ)
Life Time: 50,000 Hours
Bezel Width: 12.0 mm (T/B), 9.9 mm (L/R)
Depth: 85.4 mm
Interface: HDMI(2) / DP / DVI-D / RJ45 / IR / RS232C / USB / External Speaker Out(L/R)

Choose your Size

55"
49"

Contact Us

component-OBScountrySelectDesc

Key Features

Brightness: 4,000cd/m² (Typ)
Life Time: 50,000 Hours
Bezel Width: 12.0 mm (T/B), 9.9 mm (L/R)
Depth: 85.4 mm
Interface: HDMI(2) / DP / DVI-D / RJ45 / IR / RS232C / USB / External Speaker Out(L/R)

Choose your Size

55"
49"

component-OBScountrySelectDesc

component-copyModel-toastMsg

Window Facing Display

XS4F-B-01-Outstanding Visibility with Extreme Brightness-High Brightness-Monitor Signage-ID_1559690561823

XS4F-B-01-Outstanding Visibility with Extreme Brightness-High Brightness-Monitor Signage-ID_1559690561823

Outstanding Visibility with Extreme Brightness

LG's XS series of window-facing digital signage captivates customers with their bright and vivid image quality. The XS series helps businesses enhance their brand image while making customers' shopping experience more enjoyable.

XS4F-B-02-High Brightness-High Brightness-Monitor Signage-ID_1559690655010

XS4F-B-02-High Brightness-High Brightness-Monitor Signage-ID_1559690655010

OUTSTANDING VISIBILITY

High Brightness

With a great brightness of 4,000 cd/m², XS series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.

XS4F-B-03-Visible with Polarized Sunglasses-High Brightness-Monitor Signage-ID_1559690701256

XS4F-B-03-Visible with Polarized Sunglasses-High Brightness-Monitor Signage-ID_1559690701256

OUTSTANDING VISIBILITY

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

XS4F-B-04-Slim Bezel-High Brightness-Monitor Signage-ID_1562895643187

XS4F-B-04-Slim Bezel-High Brightness-Monitor Signage-ID_1562895643187

HIGH PERFORMANCE & RELIABILITY

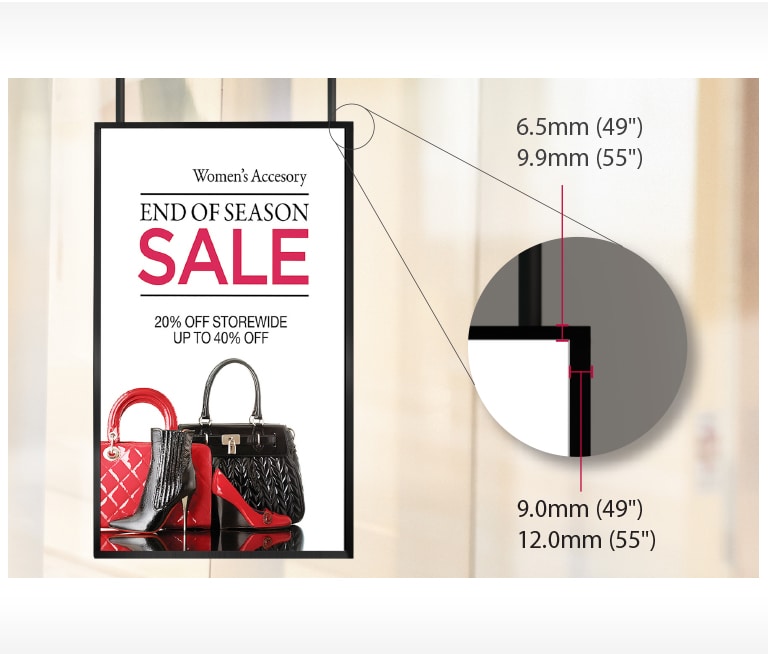

Slim Bezel

The XS series attracts attention with elegant design, featuring a slim bezel. These displays enhance the visual impact of the played content and the retail store's overall atmosphere.

XS4F-B-05-Smart Brightness Control-High Brightness-Monitor Signage-ID_1559690801848

XS4F-B-05-Smart Brightness Control-High Brightness-Monitor Signage-ID_1559690801848

HIGH PERFORMANCE & RELIABILITY

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for effi cient power management.

XS4F-B-06-Wide Operating Temperature Range-High Brightness-Monitor Signage-ID_1559690856783

XS4F-B-06-Wide Operating Temperature Range-High Brightness-Monitor Signage-ID_1559690856783

HIGH PERFORMANCE & RELIABILITY

Wide Operating Temperature Range

The panel offers superb reliability in a wide range of operating temperatures.

XS4F-B-07-Conformal Coating-High Brightness-Monitor Signage-ID_1559690900459

XS4F-B-07-Conformal Coating-High Brightness-Monitor Signage-ID_1559690900459

HIGH PERFORMANCE & RELIABILITY

Conformal Coating

Conformal Coating improves the long-term reliability of the main board and power board, protecting them from dust, iron powder, humidity, etc.

XS4F-B-08-Energy Saving-High Brightness-Monitor Signage-ID_1559690936648

XS4F-B-08-Energy Saving-High Brightness-Monitor Signage-ID_1559690936648

HIGH PERFORMANCE & RELIABILITY

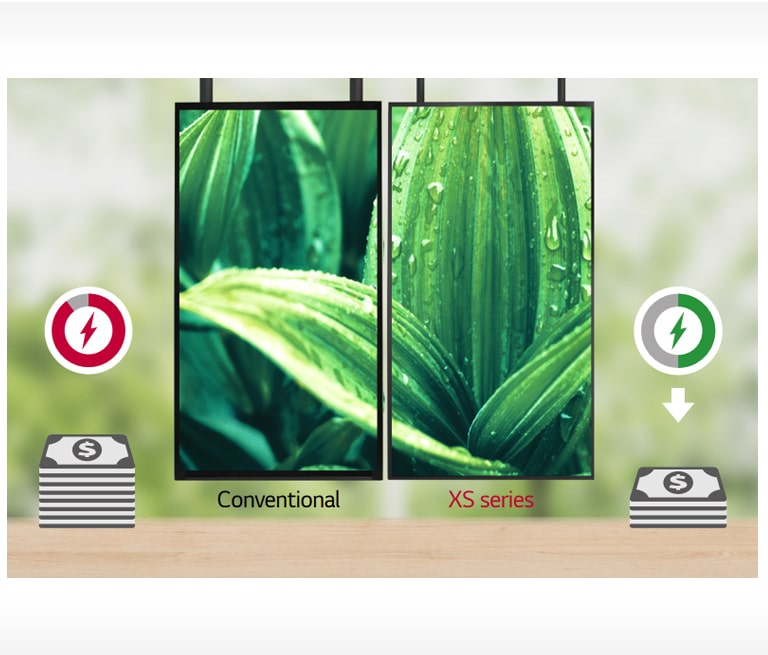

Energy Saving

XS Series offers high energy effi ciency, thanks to the M+ panels.

XS4F-B-09-webOS Smart Platform-High Brightness-Monitor Signage-ID_1559690997146

XS4F-B-09-webOS Smart Platform-High Brightness-Monitor Signage-ID_1559690997146

HIGH PERFORMANCE & RELIABILITY

webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

Explore more showroom at Digital Connect

Fast Food Restaurant Drive-Thru

See More
Supermarket

See More

Print

Close

Panel

Screen Size

55"

Panel Technology

IPS, M+ (WRGB)
Aspect Ratio

16 : 9

Native Resolution

1,920 x 1,080 (FHD)
Brightness (Typ., cd/m²)

4000

Brightness (Min., cd/m²)

3200
Contrast Ratio (Typ.)

1,000:1

Viewing Angle (H x V)

178 x 178
Surface Treatment

Haze 3%, QWP

Lifetime

50,000 Hrs
Operation Hours

24 Hrs

Orientation

Landscape & Portrait

Connectivity

Input

HDMI(2), DP, DVI-D, Audio, USB

Output

DP, External Speaker (L/R)
External Control

RS232C In/Out, RJ45 In, IR Receiver In

Physical Specification

Bezel Color

Black

Bezel Width

12.0 mm (T/B), 9.9 mm (L/R)
Monitor Dimension (W x H x D)

1,235.5 x 709.4 x 85.4 mm

Weight (Head)

25.0 kg
Packed Weight

30.2 kg

Handle

Yes (2ea)
VESA™ Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Type

Built-In Power

Power Supply

100-240 V~, 50/60 Hz

Power Consumption

Typ./Max

375 W / 400 W

Standard(Certification)

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC / VCCI
ErP / Energy Star

Yes (EU Only) / No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+

Accessory

Basic

Remote Controller, Power Cord, HDMI Cable, Manual (EIG / IG), IR Receiver (w/ Ambient Light Sensor)

Optional

Landscape Wall Mount (WM-L640V), Portrait Wall Mount (WM-P640V), Wi-Fi Dongle (AN-WF500)

Dimension
- 55xs4f_2d.dwg
- 55xs4f_2d.pdf
Datasheet
- XS Series_Datasheet(low)_LG Digital Signage_200311.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
