55SL5B-B component-copyModelName

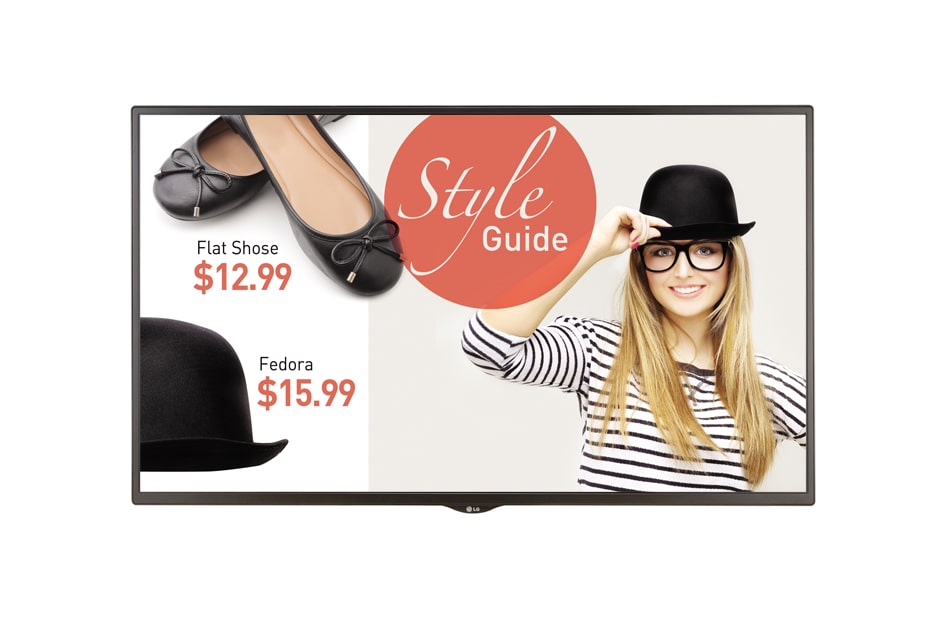

55'' 450 nits FHD Standard Signage

LG 55'' 450 nits FHD Standard Signage, 55SL5B-B, thumbnail 1

LG 55'' 450 nits FHD Standard Signage, 55SL5B-B, thumbnail 2

LG 55'' 450 nits FHD Standard Signage, 55SL5B-B, thumbnail 3

LG 55'' 450 nits FHD Standard Signage, 55SL5B-B, thumbnail 4

LG 55'' 450 nits FHD Standard Signage, 55SL5B-B, thumbnail 5

LG 55'' 450 nits FHD Standard Signage, 55SL5B-B, thumbnail 6

LG 55'' 450 nits FHD Standard Signage, 55SL5B-B, thumbnail 7

LG 55'' 450 nits FHD Standard Signage, 55SL5B-B, thumbnail 8

Discontinued

55SL5B-B component-copyModelName

55'' 450 nits FHD Standard Signage

Key Features

Brightness(Typ.) : 450 cd/m²
Bezel : Top/Left/Right 11.9mm, Bottom 18mm
Depth : 38.6mm
Interface : HDMI/DVI/RGB/RJ45/USB/RS232C
18/7 Operation

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 450 cd/m²
Bezel : Top/Left/Right 11.9mm, Bottom 18mm
Depth : 38.6mm
Interface : HDMI/DVI/RGB/RJ45/USB/RS232C
18/7 Operation

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

55" 450 nits FHD Standard Signage

Enhanced Design Configuration

Slimmer Bezel & Depth

The thinner bezel & depth allows a perfect fit
for a sleek look.

Enhanced Design Configuration

Detachable Logo

Portrait mode allows the logo to be positioned in the desired setting.

Enhanced Design Configuration

Cable Management

The well-organized cable terminals in the back optimize available space.

USB Content Management

USB Content Scheduling

Play and schedule contents with a USB connection-no server connection required.

Dust & Humidity Protection

Conformal Coating

Power board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.

06_Simple-Network-Management-Protocol_1520316893245

Remote Management

Simple Network Management Protocol

SNMP support ensures convenient network management.

Remote Management

Wi-Fi Support

SL5B Series support Wi-Fi USB dongle connection for convenient content distribution.

08_Aspect-Ratio-Sustainability_1520317036116

Convenient Screen Mode

Aspect Ratio Sustainability*

Sustain the same resolution and picture quality while powering on/off by receiving EDID¹⁾ through switch IC.

Convenient Screen Mode

Stand-by Screen*

Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables effi cient management.

Convenient Screen Mode

Scheduled Screen Wash**

Prevent residual images with the screen transition feature.

ENERGY STAR® Certified

Panel

Screen Size

55"

Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

450

Connectivity

Input

HDMI, DVI, RGB, Audio, USB (2)

Output

Audio, External Speaker Out
External Control

RS232C In/Out, RJ45 In, IR Receiver In

Physical Specification

Bezel Width

11.9mm (T/R/L), 18mm (B)

Monitor Dimension (W x H x D)

1,238 x 714.9 x 38.6mm
Weight (Head)

17.3kg

Carton Dimensions (W x H x D)

1,330 x 807 x 170mm
Packed Weight

21.5kg

VESA™ Standard Mount Interface

300 x 300 mm

Standard(Certification)

ErP / Energy Star

N/A / Yes (Energy Star 8.0)

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control

Accessory

Basic

Basic Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver

Optional

Speaker (SP-5000), Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), Touch Overlay (KT-T55E), Wi-Fi Dongle (AN-WF500)

General

Region

Global

Dimension
- (Dimension) 55SL5B.dwg
- (Dimension) 55SL5B.pdf
Datasheet
- SL5B Series_Datasheet(web)_LG Standard Signage_2005.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
