55UM340E (NA) component-copyModelName
LG UHD TV Signage

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55UM340E (NA))
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55UM340E (NA))
    $
    $
    LG Members Price
Total
LG UHD TV Signage
Inquiry to Buy

LG UHD TV Signage

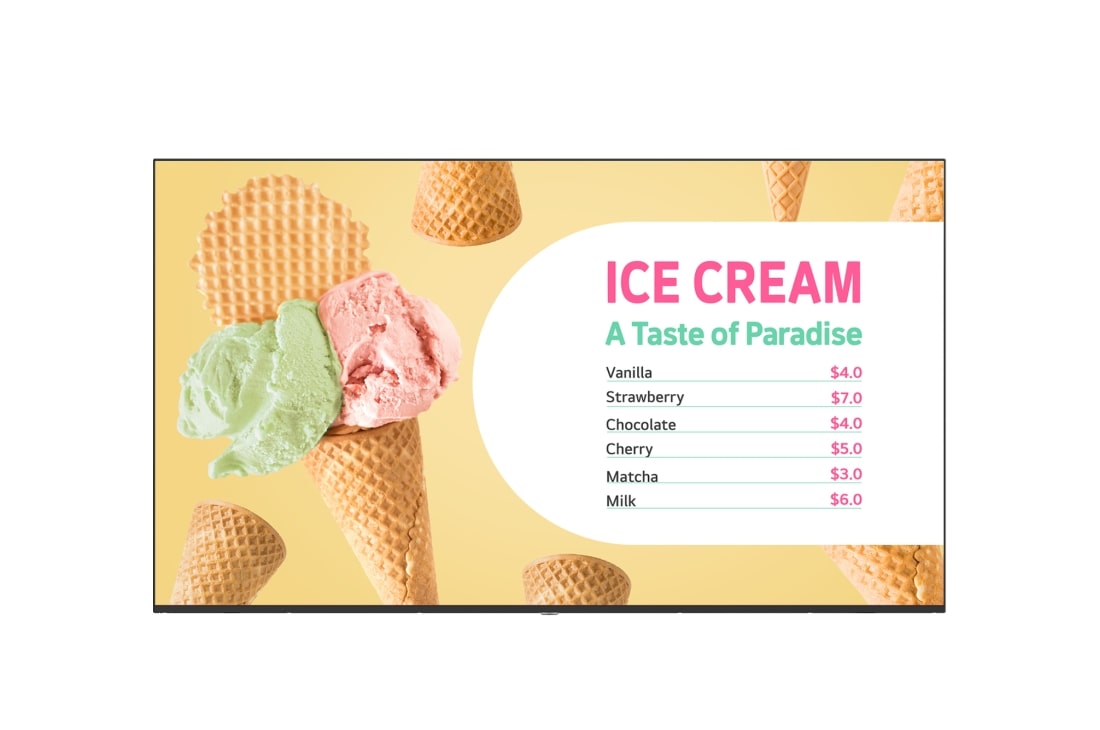

In an ice cream shop, a UM340E is installed on the wall. The screen of the UM340E displays the menu prominently, and the customer is choosing her ice cream. In an ice cream shop, a UM340E is installed on the wall. The screen of the UM340E displays the menu prominently, and the customer is choosing her ice cream.
* All images in this page are for illustrative purposes only.
The difference is noticeable at a glance in Ultra HD quality, which is four times higher than Full HD. The difference is noticeable at a glance in Ultra HD quality, which is four times higher than Full HD.

Superb Picture Quality with Ultra HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.
The TV signage on the wall has a built-in speaker that renders rich audio, creating an effective information delivery environment. The TV signage on the wall has a built-in speaker that renders rich audio, creating an effective information delivery environment.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard and TV signage devices. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.
An image listing five screens that can be viewed in the LG ConnectedCare DMS, a device management system. An image listing five screens that can be viewed in the LG ConnectedCare DMS, a device management system.
* LG ConnectedCare DMS needs to be purchased separately.
* The availability of the LG ConnectedCare DMS service differs by region, so please contact the LG sales representative in your region for more details.
* LG ConnectedCare DMS supports TV Signage (UM340E, UR640S), LG CreateBoard (TR3DK, TR3DJ, TR3PJ) and Stretch Signage (105BM5N) as of now (plus more to come) under a cloud environment.

Dashboard

The LG ConnectedCare DMS dashboard allows you to view and monitor multiple devices at the same time, thereby saving time and boosting efficiency.

The following features are included:
Summary of connection status and device issues, List of frequently used apps, No response status, filtered by date, Checks of recent issue type, Display of scheduling history for the previous 7 days Summary of connection status and device issues, List of frequently used apps, No response status, filtered by date, Checks of recent issue type, Display of scheduling history for the previous 7 days
* Up to 100 devices can be controlled via LG ConnectedCare DMS.
The user can set a threshold for receiving an warning/error signal for several categories: CPU temperature, CPU usage, etc. The current status of the issue is easily indicated in categories, enabling for quick real-time responses. Issues can be managed remotely with an LG ConnectedCare DMS solution. The user can set a threshold for receiving an warning/error signal for several categories: CPU temperature, CPU usage, etc. The current status of the issue is easily indicated in categories, enabling for quick real-time responses. Issues can be managed remotely with an LG ConnectedCare DMS solution.

  • Threshold Settings

    Users can set thresholds including CPU Temperature, memory usage, or available storage, and can receive warning or error notifications based on their threshold settings.

  • Monitoring & Fault Diagnosis

    An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.

  • Issue Management

    Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the devices.

Broadcasting / Alert Messaging

Content such as images, videos, audio messages, and live streaming can be shared from the primary system to specific devices. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help people promptly take safety action.
Company notices are uniformly displayed on screens in the office, lobby, and break areas. Company notices are uniformly displayed on screens in the office, lobby, and break areas.

Remote-control

Frequently used controls such as the screen on/off, scheduling, brightness, and screen lock functions can be applied using a remote control. Additionally, IT manager can remotely install and update the apps on selected devices, which helps lessen the need for on-site response.
The IT manager can remotely control device functions such as screen on/off, scheduling, brightness adjustment, and screen lock, creating a stable usage environment. The IT manager can remotely control device functions such as screen on/off, scheduling, brightness adjustment, and screen lock, creating a stable usage environment.
Close
LCD Panel
  • Screen Size (Diag.)
    55inch
    Resolution
    3840*2160
  • Aspect Ratio
    16:9
    Brightness
    250cd/m2(Center,Typ);200cd/m2(Center Min)
  • Static Contrast Ratio
    1200:1（typ）
    Color Gamut
    68%（NTSC)
  • Brightness Uniformity
    65%（1/9 point）
    Viewing Angle(CR>10)
    178°
  • Display area
    1209.6(H) × 680.4(V)
    Backlight Life（25℃）
    30000H / 16hr / 7days
  • refresh rate
    60Hz
    Display mode
    ADS
  • Surface Treatment
    Haze1%,3H
Configuration
  • SOC type
    MT9632
    RAM/ROM(DDR/eMMC)
    2G+16G
  • Language
    English, French, Spanish
    System
    Android 11.0（AOSP）
  • HDMI ARC、CEC
    Y
    Web Browser
    Y
  • Miracast via Kindlink
    Y
    DMS
    Yes (/w LGE support)
I/O interface
  • HDMI
    HDMI*3
    USB
    1
  • RJ45 in
    1
    North America (D-TV : ATSC)
    1
  • WIFI
    MT7663，2T2R+BT
    Built-in Speakers
    2*10W
Power
  • Input power
    100-240V
    Power Consumption (Typ.)
    115.3W
  • Power Consumption (Max)
    140W
    Power Consumption (Standby)
    <0.5W
Environmental Conditions
  • Operating Temp.
    0℃~40℃
    Operating Humid.
    10%-80%
MECH Spec
  • Bezel(off)
    T/B/L/R 1.3/15.9/1.3/1.3mm
    Back cover
    Plastic/PC+ABS V0
  • Wall hanging size(mm)
    200 mm(H) x 200 mm(V)
    Wall hanging screws(mm)
    M6*10mm
  • Dimension (WxHxD)
    1229.7*714.2*77.1mm (with out Stand)
Installation and packing type
  • Stand
    small
    Packing
    Carton
  • Soft AP
    Yes
    Bluetooth Audio playback
    Yes
  • USB Auto playback
    (only play, playlist )
    Yes
    Fail Over (only off)
    Yes (only off)
  • Time scheduler@DMS
    On / Off timer
    NTP sync timer (Auto obtain network time)
    Yes
  • Datasheet
    • UM340E(NA)_Overall_Datasheet(low)_LG UHD Signage_240520.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
