Window Facing Display
Contact Us

Attract Passing Customers with a Bright Display Presented Through a Window

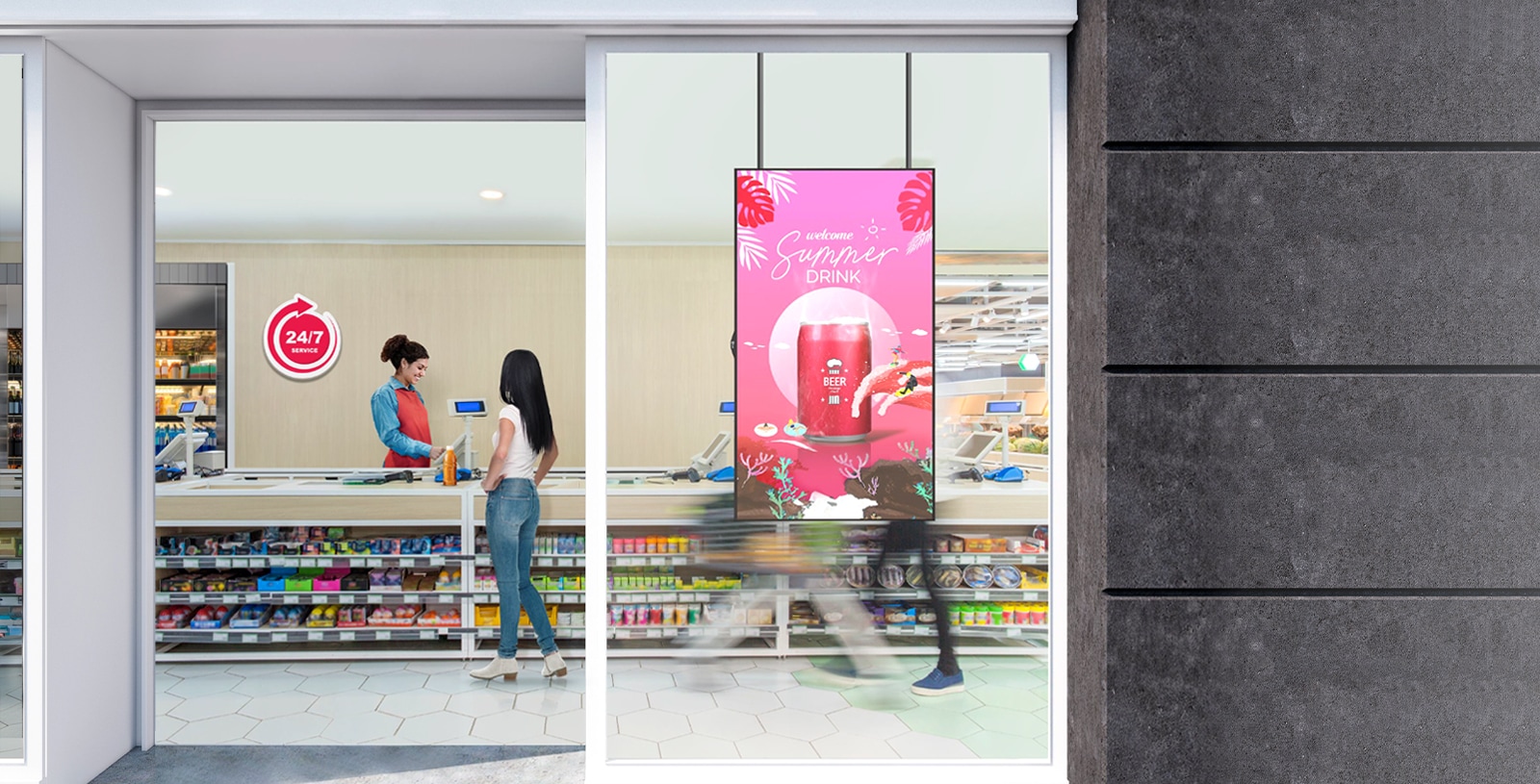

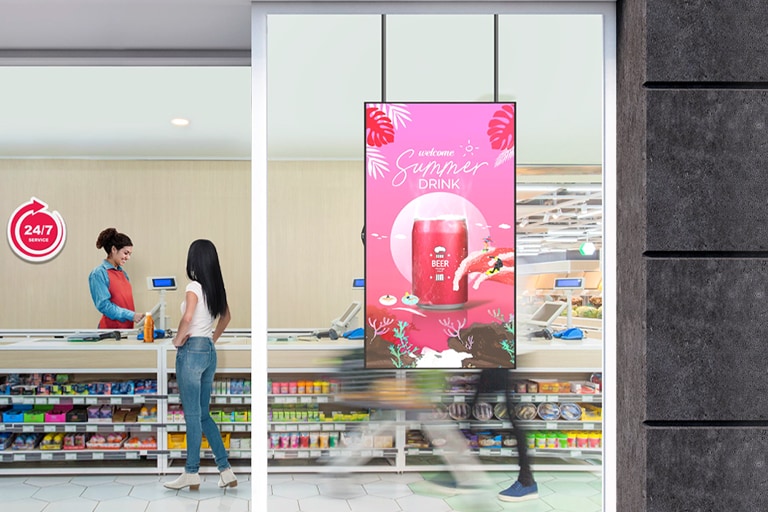

A large LED display is installed on the window inside the convenience store, vividly and brightly showcasing advertisements through the glass. A large LED display is installed on the window inside the convenience store, vividly and brightly showcasing advertisements through the glass.
* All images are for illustrative purposes only.
* Please follow the installation guide to get warranty.
* UV-Film is recommended depending on installation site.

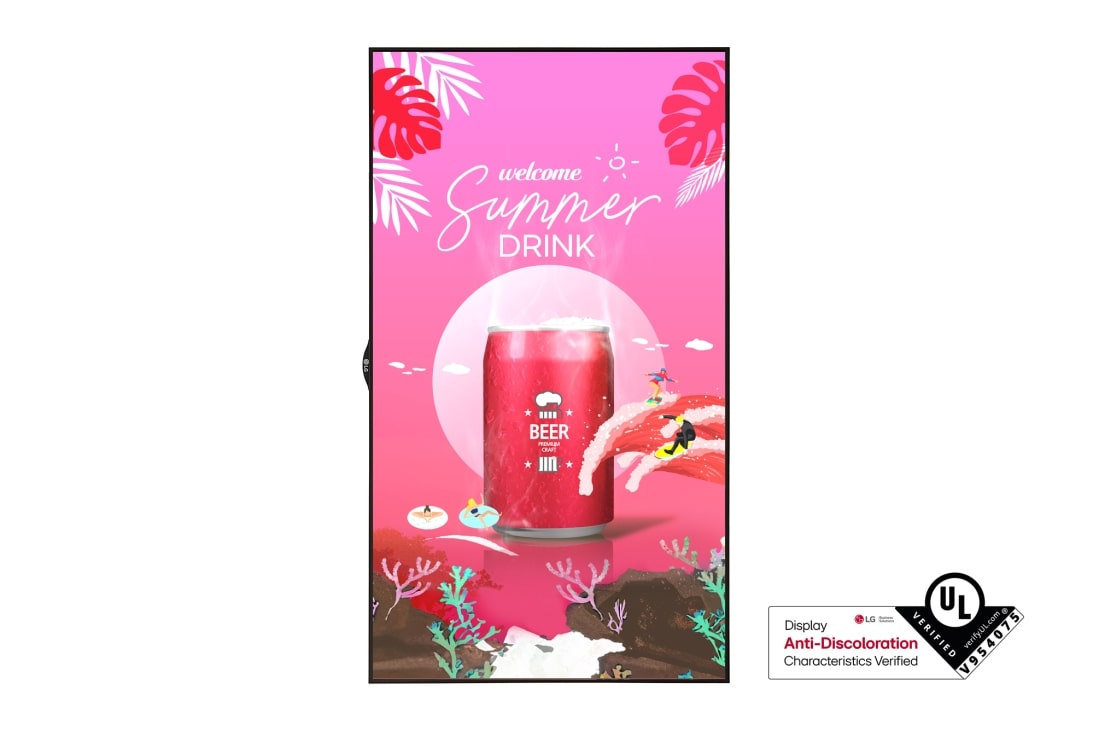

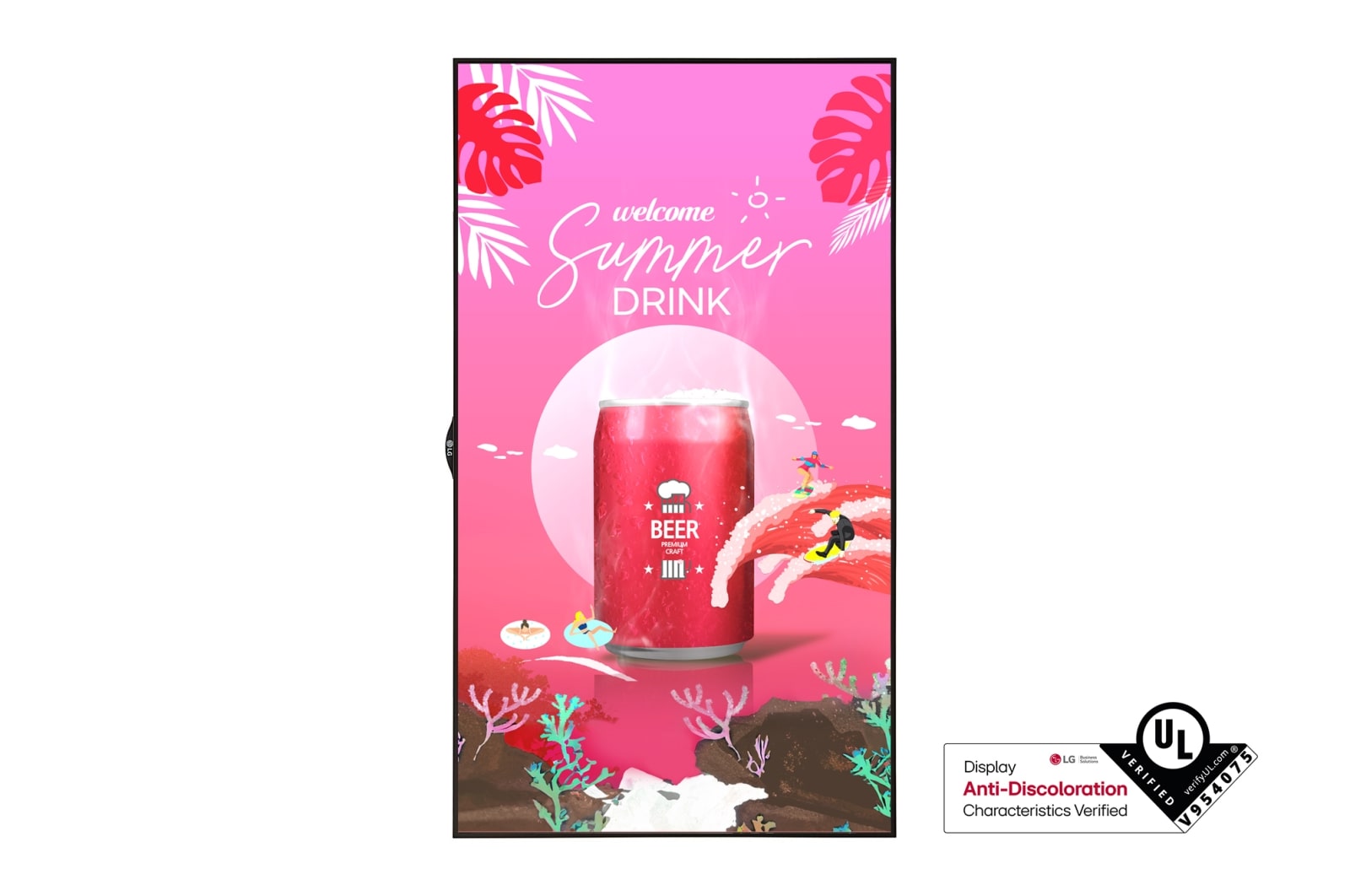

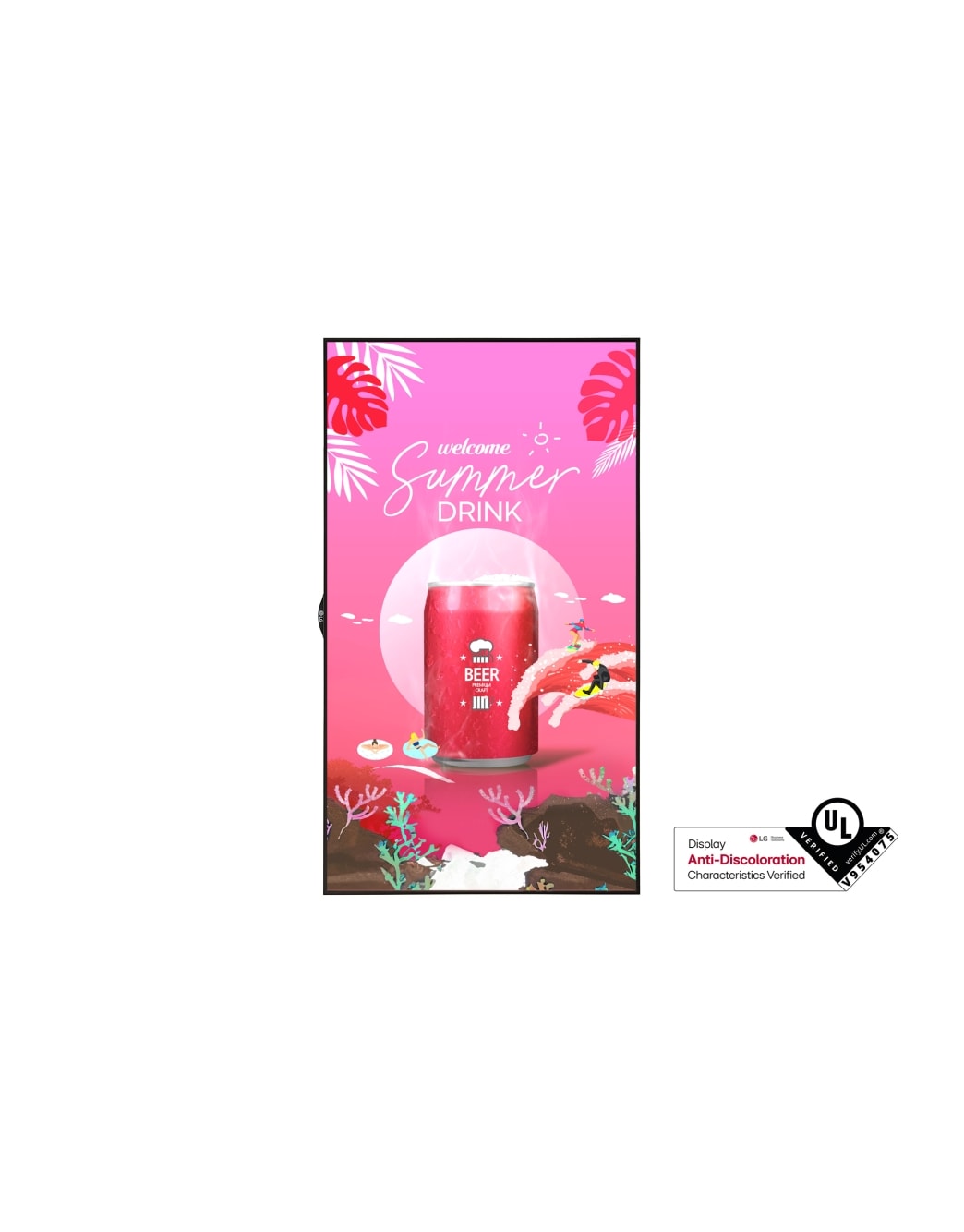

World’s First UL Verification for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.
The left side of the screen has yellowing, degrading its quality, but with XS4P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen is clear, safeguarding display quality. The left side of the screen has yellowing, degrading its quality, but with XS4P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen is clear, safeguarding display quality.
* For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.
* World's first UL Verification in the manufacturing industry.

Window-facing Display

LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

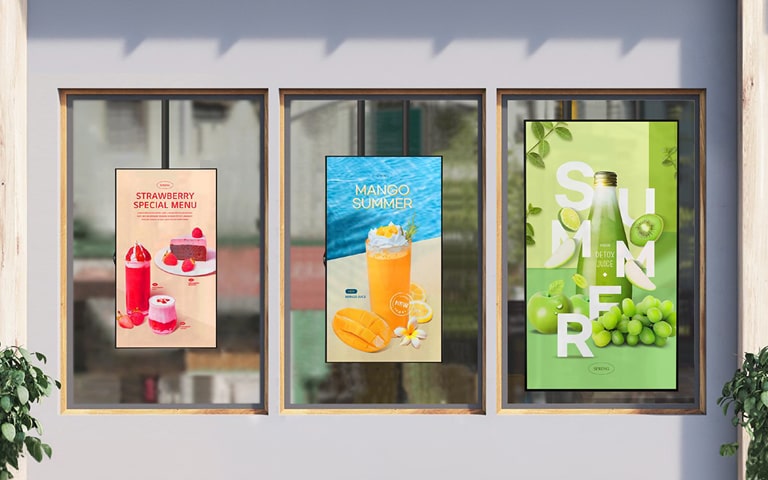

Three different sizes of XS4P are installed on the window inside the cafe. The content plays clearly and vividly through the glass, even in the bright atmosphere. Three different sizes of XS4P are installed on the window inside the cafe. The content plays clearly and vividly through the glass, even in the bright atmosphere.

Brightness Beyond the Window

A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

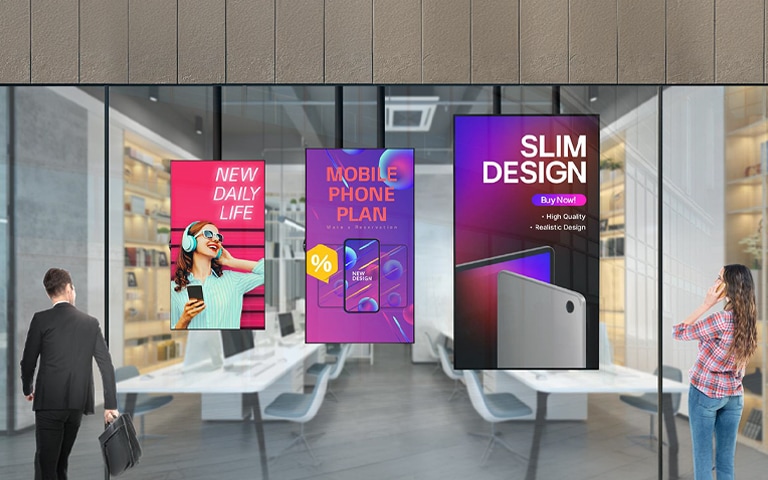

Three different sizes of XS4P are installed on the window inside the phone store. The content plays vividly through the glass, allowing passersby to see it clearly, even in the bright atmosphere. Three different sizes of XS4P are installed on the window inside the phone store. The content plays vividly through the glass, allowing passersby to see it clearly, even in the bright atmosphere.

High-performance with
webOS 6.0

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.
It has improved user convenience by utilizing the SoC and webOS. It has improved user convenience by utilizing the SoC and webOS.

Remotely Managed, Real-time Mastery (Content Manager)

A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

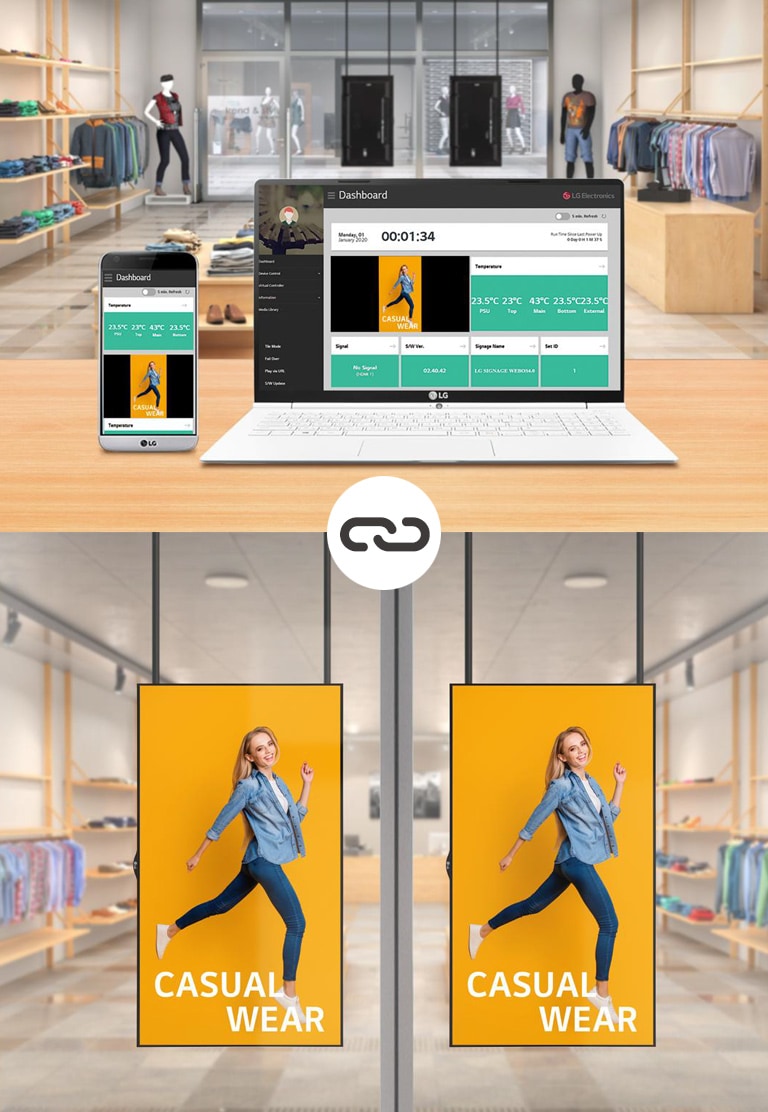

Users can monitor and control their displays through a mobile phone and a laptop. Users can monitor and control their displays through a mobile phone and a laptop.
* Feature accessible through wired LAN connectivity

Wide Range of Operating Temperature

The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.
A display is working well in an environment of 0~40°C. A display is working well in an environment of 0~40°C.
* Confirmed by LG internal testing, Operating temperature: 0℃~40℃ (without direct sunlight; with direct sunlight in cooling system), 0℃~30℃ (with direct sunlight)

Conformal Coating

The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.
The XS4P has a conformal coating making it resistant to dust and salinity in moisture. The XS4P has a conformal coating making it resistant to dust and salinity in moisture.
* Confirmed by LG internal testing

Upgraded Quite Mode

The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.

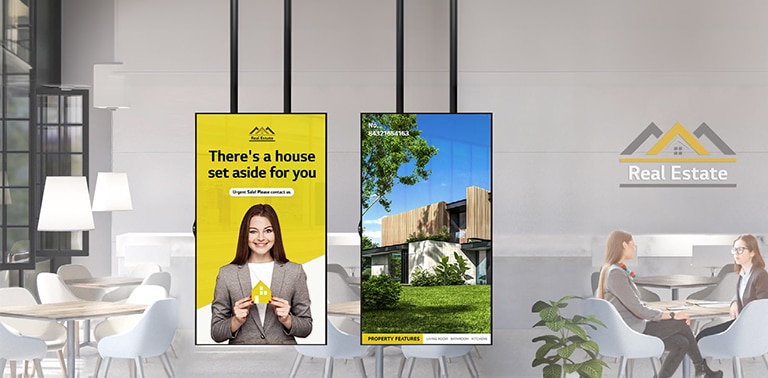

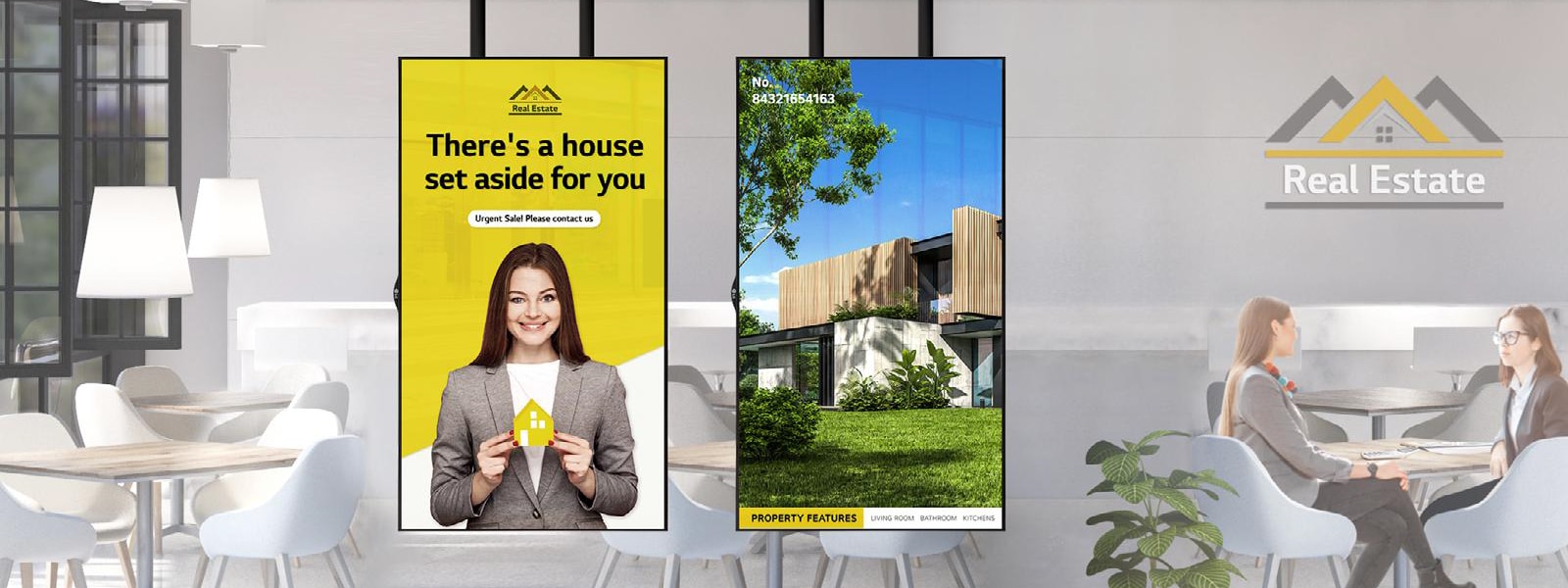

The real estate office has two displays installed inside the window. The XS4P model's low fan noise enables smooth communication and conversation even when sitting close to the display. The real estate office has two displays installed inside the window. The XS4P model's low fan noise enables smooth communication and conversation even when sitting close to the display.

Professional Content Partners

Pairing the XS4P Series with LG SW solutions would enhance its utilization.
Partner content is being utilized to compose the content intended for playback on the signage. Partner content is being utilized to compose the content intended for playback on the signage.
* Sold separately

Convenient Installation with Calculated Precision

The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.

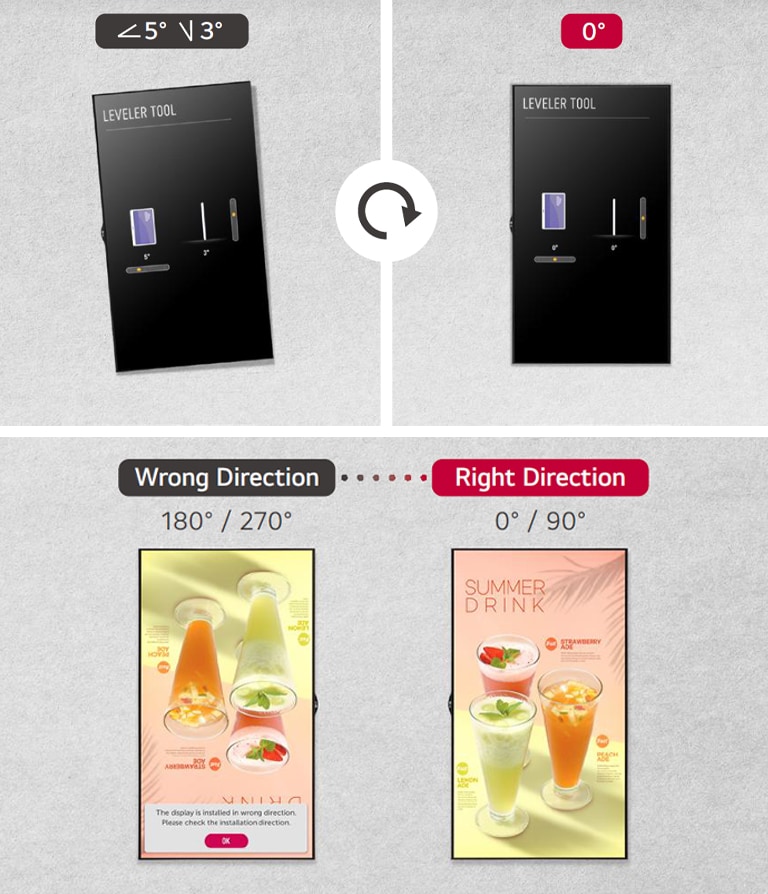

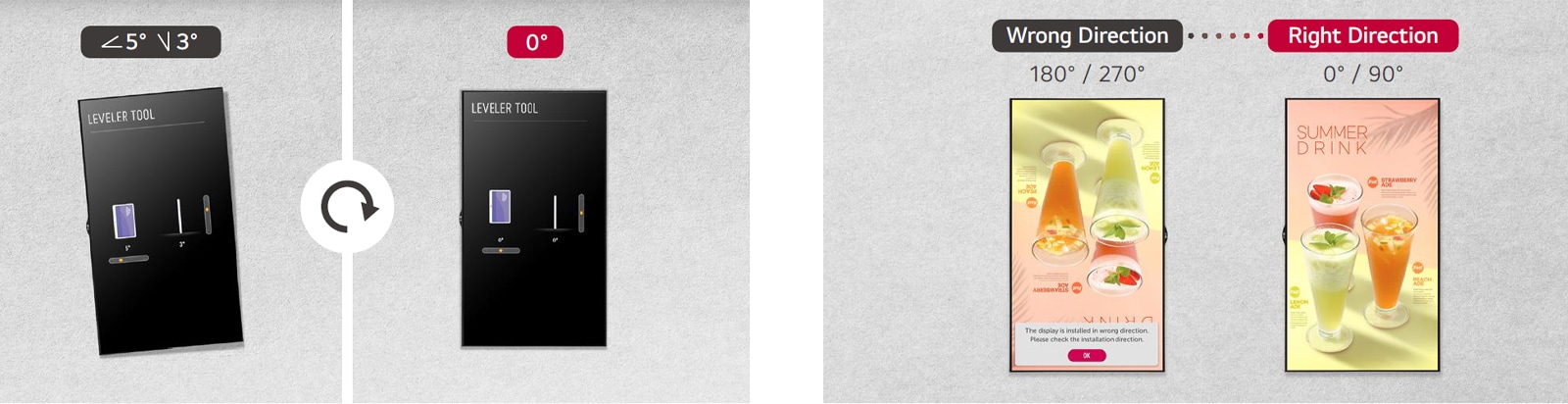

"A display is installed without tilting using the Leveler Tool. With the equipped Horizontal Sensor Tool, the display can be reinstalled in the correct direction if it is incorrectly installed." "A display is installed without tilting using the Leveler Tool. With the equipped Horizontal Sensor Tool, the display can be reinstalled in the correct direction if it is incorrectly installed."
* The rotation direction differs for 49/55 and 75.
Close
Info
  • Product
    Outdoor
    Year
    Y24
  • Month
    M06
Panel
  • Screen Size (Inch)
    55"
    Panel Technology
    IPS, M+
  • Back Light Type
    Direct
    Aspect Ratio
    16:9
  • Native Resolution
    1,920 x 1,080 (FHD)
    Refresh Rate
    60Hz
  • Brightness
    4,000nit (Typ), 3,200nit(Min)
    Contrast Ratio
    1,000:1
  • Dynamic CR
    500,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle (H x V)
    178 x 178
    Color Depth (Number of Colors)
    8bit, 16.7Million colors
  • Response Time
    9ms (G to G)
    Surface Treatment (Haze)
    3%
  • Life time
    50,000 Hrs (Typ)
    Operation Hours (Hours/Day)
    24/7
  • Portait / Landscape
    Yes / Yes
    QWP (Quarter Wave Plate)
    Yes

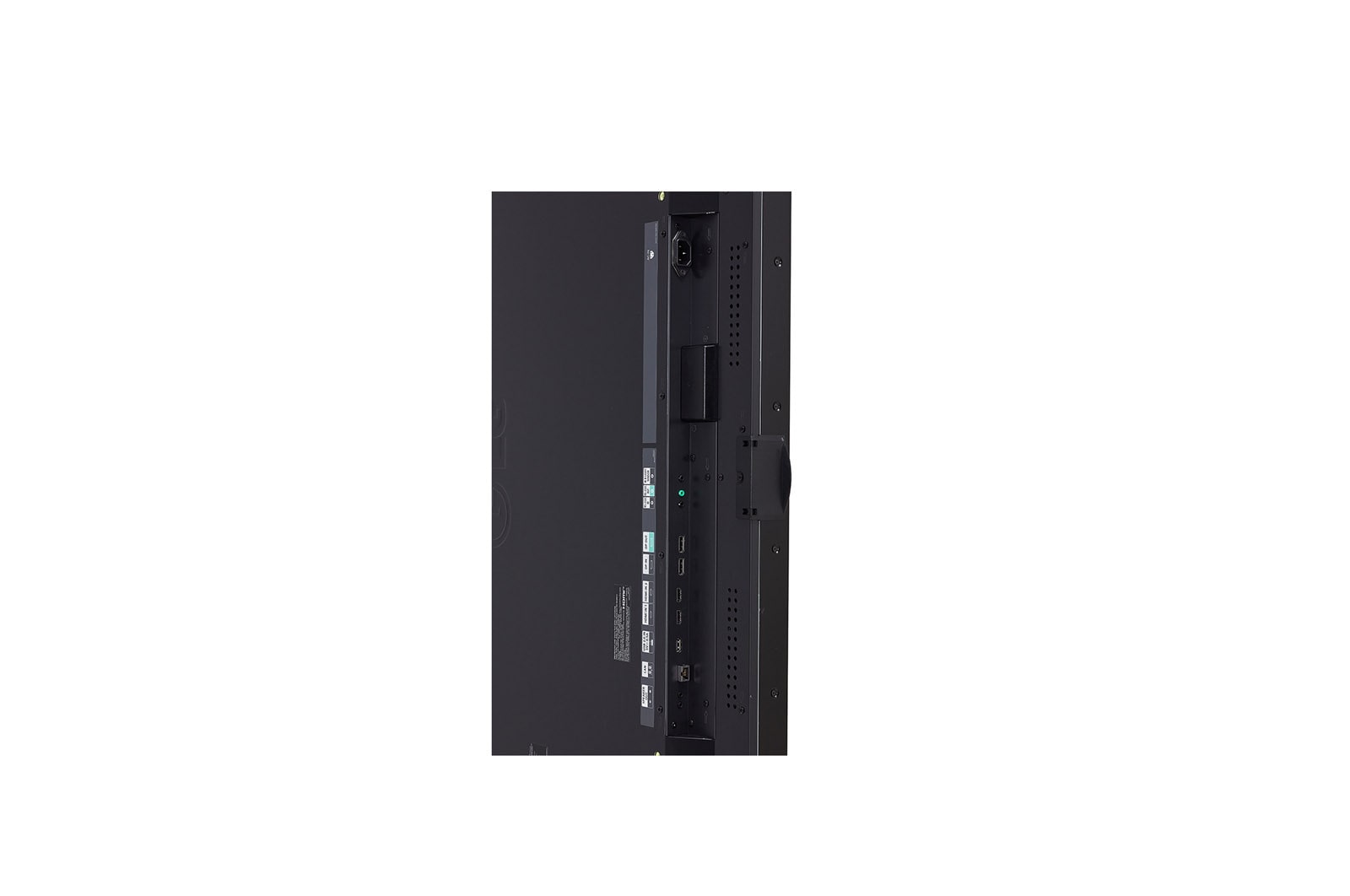

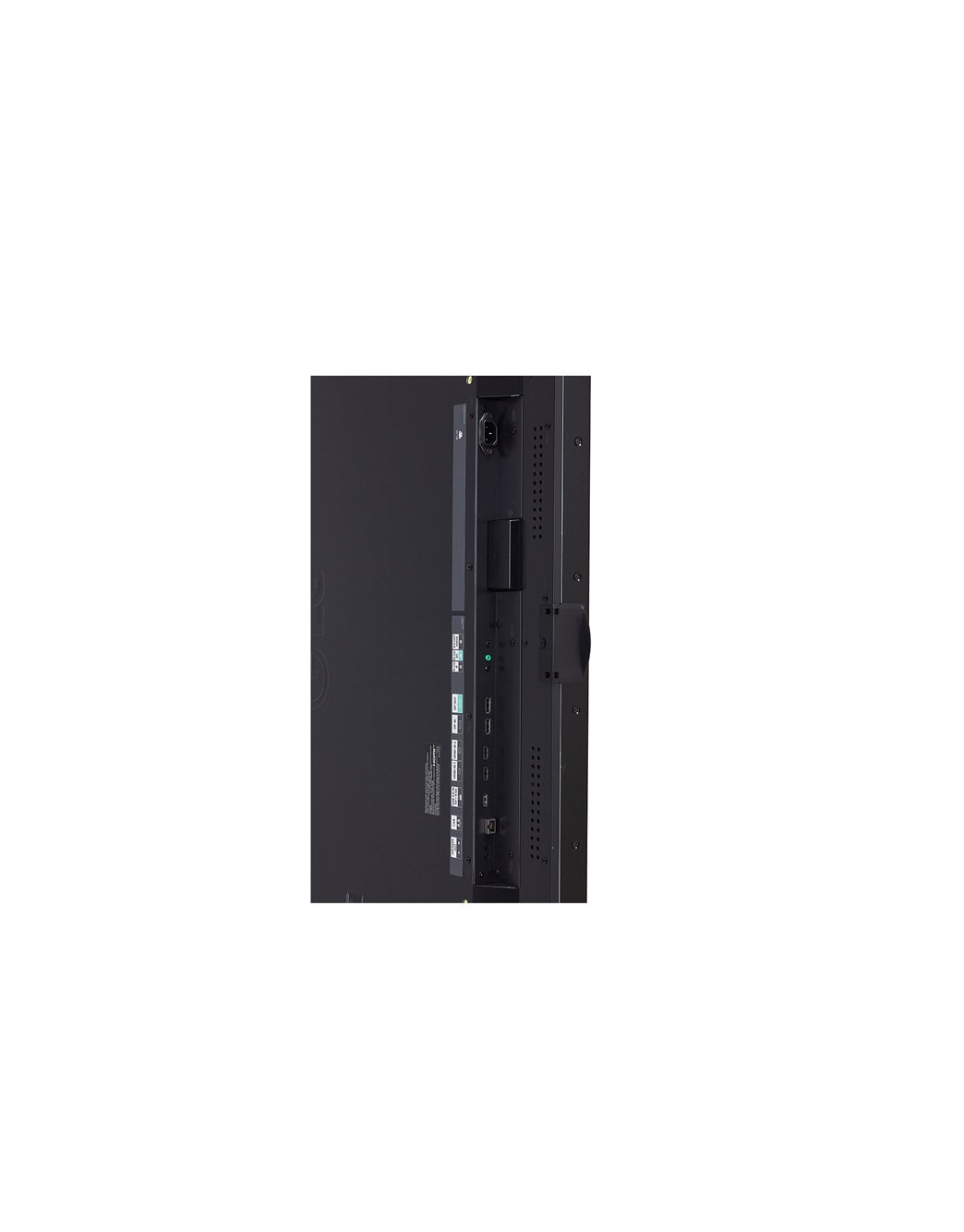

Connectivity(Jack Interface)
  • HDMI IN
    Yes(2), HDCP1.4
    DP IN
    Yes(1), HDCP1.3
  • RS232C IN
    Yes(1) (4pin phone jack)
    RJ45(LAN) IN
    Yes(1)
  • IR IN
    Yes(1)
    USB IN
    USB2.0 Type A (1)
  • DP Out
    Yes(1), Input DP/HDMI
    External Speaker Out
    Yes(1, L/R, 10W+10W)
  • RS232C Out
    Yes(1)
    IR Out
    Sharing RS232C Out
Mechanical
  • Bezel Color
    Black
    Bezel Width
    12.0/9.9/9.9/12.0 mm
  • Weight (Head)
    26.0Kg
    Packed Weight
    31.2Kg
  • Monitor Dimensions (W x H x D)
    1235.5 x 709.4 x 85.4mm
    Carton Dimensions (W x H x D)
    1360 x 231 x 844mm
  • Handle
    Yes

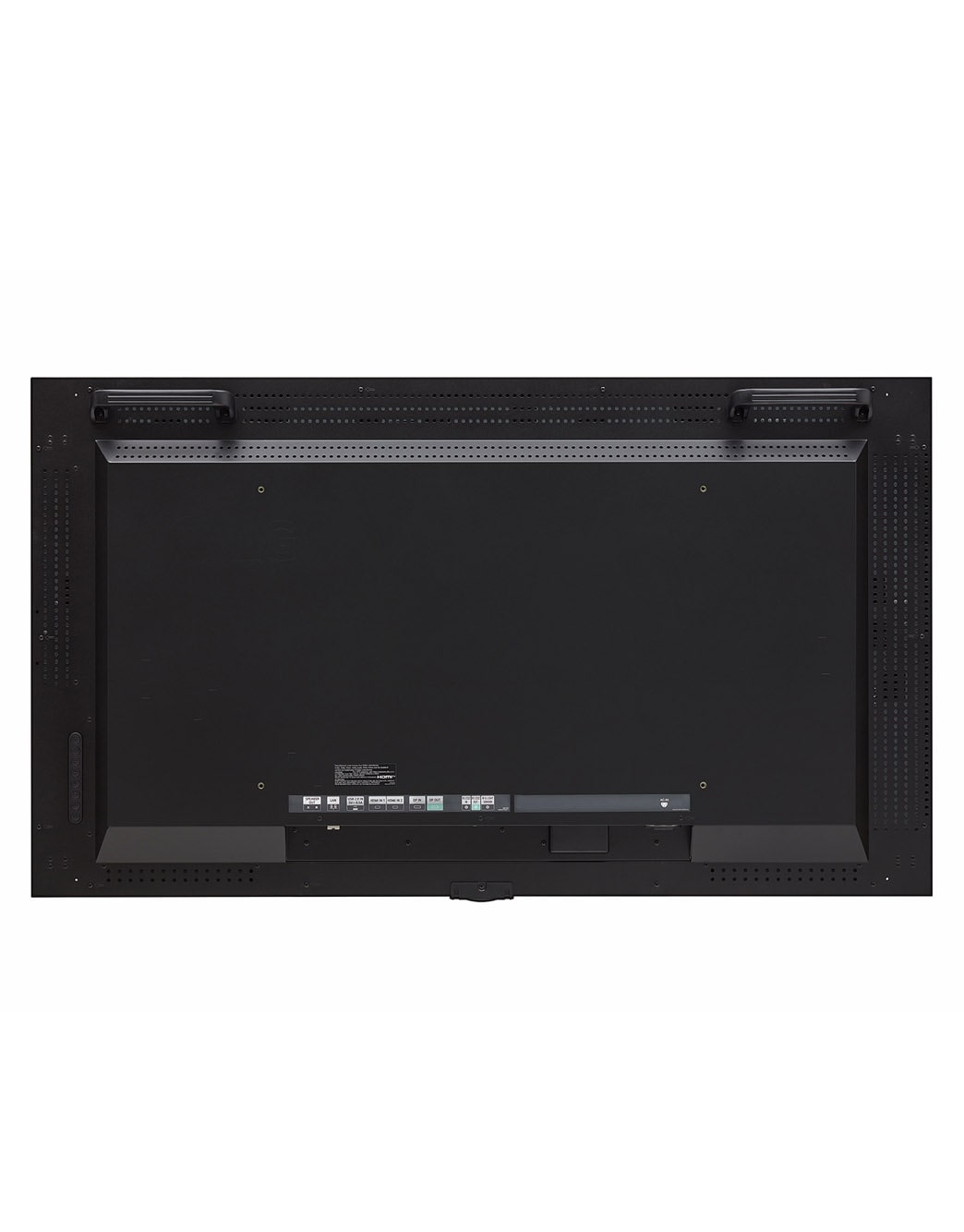

    VESATM Standard Mount Interface
    600 x 400
HW Feature
  • Internal Memory (eMMC)
    16GB
    Wi-Fi/BT (Built-in)
    Yes
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    Yes
  • Acceleration(Gyro) Sensor
    Yes
    Local Key Operation
    Yes
  • FAN (Built-in)
    Yes
SW Feature
  • OS Ver. (webOS)
    webOS6.0
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    Backlight Sync
    Yes
  • PIP
    Yes
    PBP
    Yes(2)
  • Video Tag
    Yes(4 | Ext. Source (x2), Video (x4))
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes (Max. 15x15)
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Smart Energy Saving
    Yes
    PM mode
    Yes
  • Wake on LAN
    Yes
    Network Ready
    Yes
  • Beacon
    Yes
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
Environment Conditions
  • Operation Temperature
    0 °C to 40°C (w/o Direct Sunlight)
    0 °C to 30°C (Direct Sunlight)
    Operation Humidity
    10% to 80%
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    375W (Full White)
    147W (IEC 62087)
    Max.
    400W
  • BTU (British Thermal Unit)
    1280 BTU/Hr(Typ.), 1365 BTU/Hr(Max)
    Smart Enegy Saving (70%)
    145W
  • DPM
    0.5W↓
    Power off
    0.5W↓
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC / VCCI
  • ErP / Energy Star
    Yes / No
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, polski (Polska)
Accessory
  • Basic
    Remote Controller(including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver(w/ Ambient Light Sensor), RS-232C Gender
    Optional
    WM-L640V(Landscape wall mount),
    WM-P640V(Portrait wall mount)
    ** Stand is not available
Special Feature
  • Conformal Coating (Power Board)
    Yes
Product Dedicated Feature
  • High Brightness - Noise level
    TBD
  • Datasheet
    • 55-49XS4P_Datasheet(low)_LG High Brightness Window Facing_240806.pdf
