65LS53A component-copyModelName

LS53A Series

Discontinued

65LS53A component-copyModelName

LS53A Series

Key Features

webOS Signage Display
Direct-Lit LED
Brightness : 350nit
Portrait & Landscape Mode
Check Screen through Pixel sensor
SNMP support

Add to Compare

component-OBScountrySelectDesc

Key Features

webOS Signage Display
Direct-Lit LED
Brightness : 350nit
Portrait & Landscape Mode
Check Screen through Pixel sensor
SNMP support

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

LS53A Series

Enhanced Fail Over

To display content without a dead spot, the monitor performs the signal switching automatically.
• Switches signals from first player to second player
• Switches signals from an external player to internal memory in case of a player's failure

* Auto signal switching from external player to internal memory on player failure
* It can be assigned to maximum 5 input interfaces (HDMIx2, DP, DVI, Internal Memory)

High Performance and Cost Effective SoC

High performance SoC
Delivering optimized SoC that has powerful performance to play various contents and additional 8GB internal storage.

No additional media player
Eliminates the need for an external media Player to reduce the cost of total ownership.

Remote Control <br> via RS232C & Network1

Remote Control <br> via RS232C & Network2

Remote Control
via RS232C & Network

Our advanced self-diagnosis function allows to check the screen status with a pixel sensor provided optionally and supports the SNMP standards for compatibility with 3rd party solutions.
Screen fault detection (option)

1) SNMP: Simple Network Management Protocol

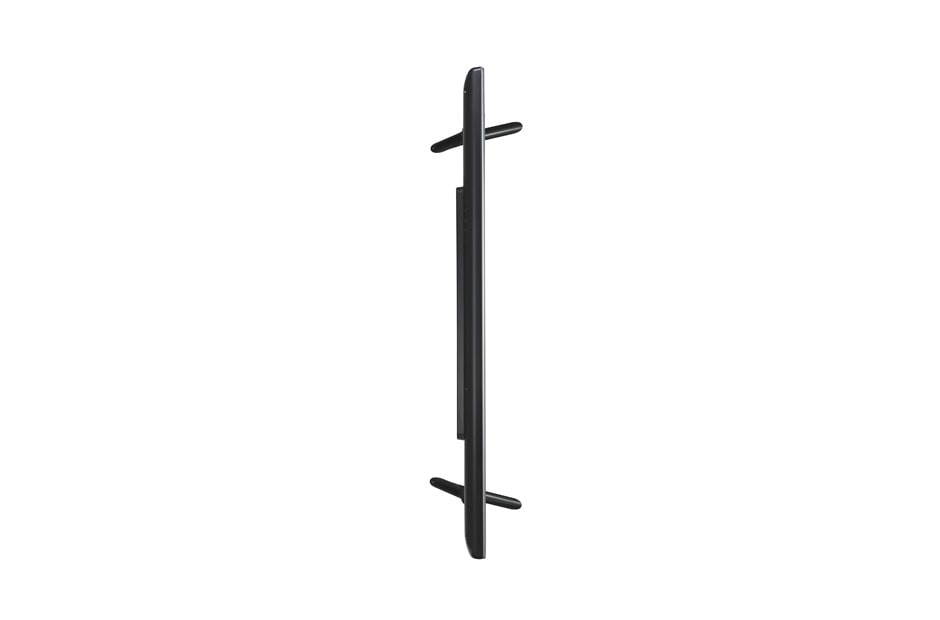

Slim, Sleek and Stylish Design

The stylishly slim monitors designed to fit perfectly into your shop are easily placed in tight spaces. They can provide clean and friendly environment for end-users from the time they are installed.

Wirelessly Access a Growing World Of Entertainment

Simply plug-in the USB Wi-Fi adapter(Model name: AN-WF500) into your LG Signage to access the internet wirelessly.*

*Selected Wi-Fi Ready Signage models only.
If you`d like to use Wi-Fi function after buying Wi-Fi Module (Model name: AN-WF500), Please update the firmware of LS53/LS55 on the website http://partner.lge.com

Panel

Screen Size

64.53 inches (1,639.06mm) diagonal

Resolution

1,920 x 1,080 (FHD)
Brightness

350

Connectivity - Intput

HDMI

Yes (2)

DP

Yes (1)
DVI

Yes (1)

Audio

Yes (1)
External Control (RS232C IN)

Yes (1)

External Control (RJ45)

Yes (1)
External Control (IR/Light sensor)

Yes (1)

External Control (Pixel Sensor)

Yes (1)
USB

Yes (1)

Connectivity - Output

DP Out

Yes (1)

Externel Speaker Out

Yes (1, L/R)
External Control (RS232C OUT)

Yes (1)

Physical Specification

Bezel Width

9.0mm (L / R / U), 14.6mm (B) / 14.1mm (L / R / U) 20.0mm (B)

Monitor Dimension (W x H x D)

1,462 x 843 x 58 mm
Weight (Head)

30.9kg

VESA™ Standard Mount Interface

400 x 400

Media Player Compatibility

Slot PC compatible (optional)

No

External Media player Attatchable

Yes (MP500/MP700)

Software Compatibility

SuperSign-w lite

No

SuperSign-c

Yes

Accessory

Basic

Remote Controller (include battery 2ea), Power Cord, IR / Light Sensor Receiver, CD (Owner's Manual), HDMI Cable

Optional

SP-2100 (External Speaker), ST-651T, LSW430B, KT-SP0

Dimension
- [Dimension] 65LS33A_65LS53A.dwg
- [Dimension] 65LS33A_65LS53A.pdf
Datasheet
- [Leaflet] LS53A_Leaflet_151202.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
