Discontinued

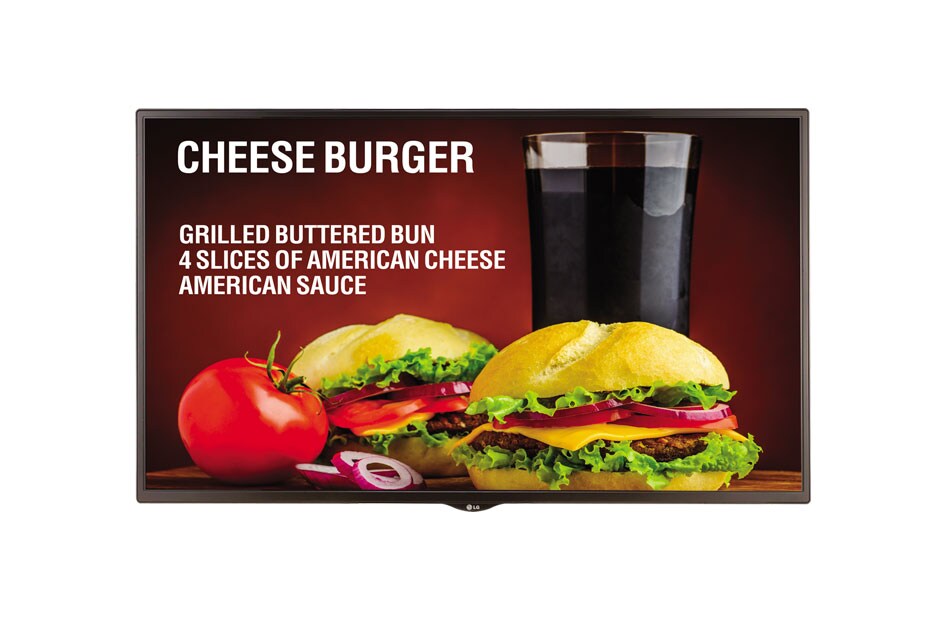

65SM5C component-copyModelName
SM5C Series

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

SM5C Series
Contact Us
Close
Panel
  • Screen Size
    65"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    450
Connectivity
  • Input
    HDMI, DP, DVI-D, RGB, Audio, SD card
    Output
    DP, Audio, External Speaker
  • External Control
    RS232C in/out, RJ in, IR Receiver, Pixel Sensor, USB 3.0, SD Card
Physical Specification
  • Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D)
    1,456.9 x 838 x 41.1 mm
  • Weight (Head)
    27.7kg
    VESA™ Standard Mount Interface
    300mm x 300mm
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    120 W
    Smart Energy Saving
    85 W
Standard(Certification)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    N/A / Yes (Energy Star 7.0)
Media Player Compatibility
  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)
Software Compatibility
  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes
Accessory
  • Basic
    Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
    Optional
    Speaker (SP-5000), Stand (ST-652T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AMB330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
  • Dimension
    • 65SM5C.dwg
    • 65SM5C.pdf
  • Datasheet
    • SM5C Leaflet (high) 160519.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
