UHD Standard Signage

LG webOS UHD Signage

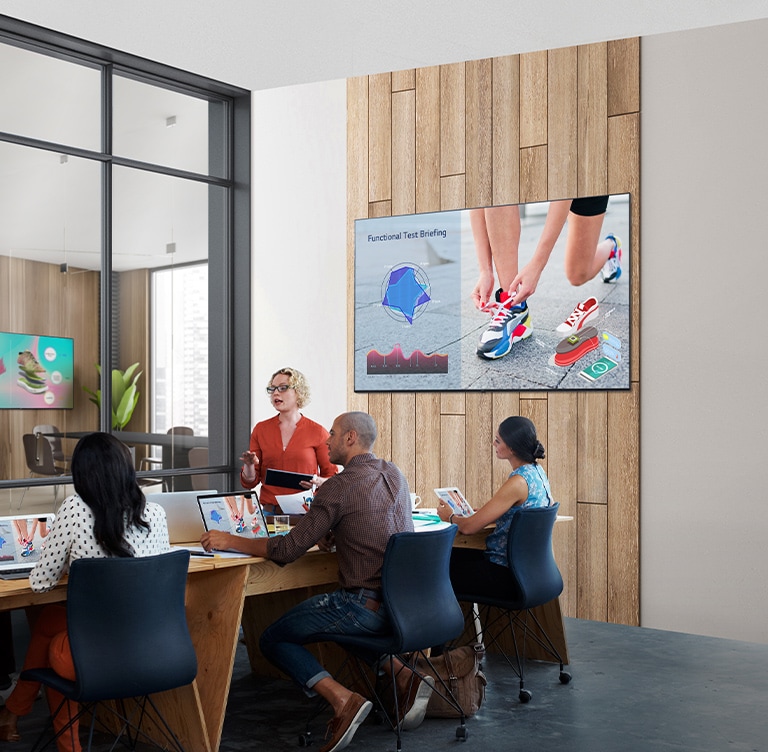

There are five people conducting a meeting in a room with UL3J series installed on the wall. There is another UL3J series installed across the meeting room on the wall past the window on the left. There are five people conducting a meeting in a room with UL3J series installed on the wall. There is another UL3J series installed across the meeting room on the wall past the window on the left.
* All images in this web page are for illustrative purposes only.
* Compared to LG's UL3G series

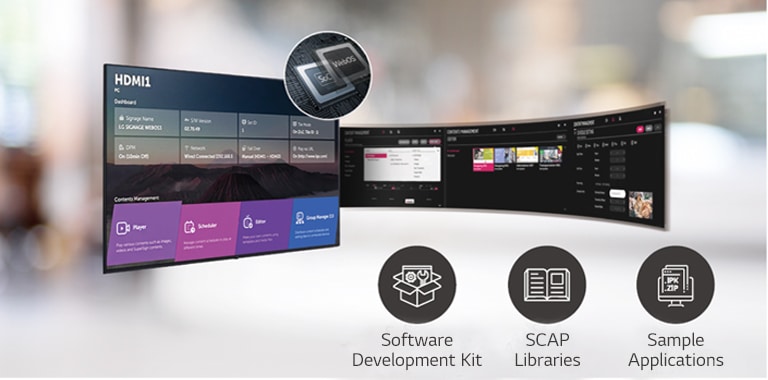

* SoC : System On Chip
** GUI : Graphical User Interface
* e.g. showing specific promotional information according to weather change to store visitors

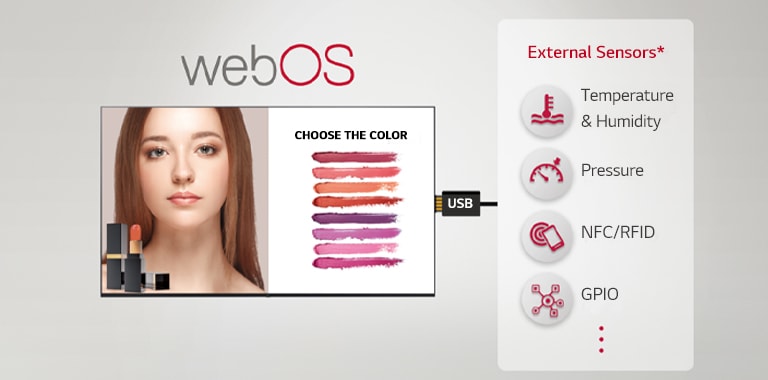

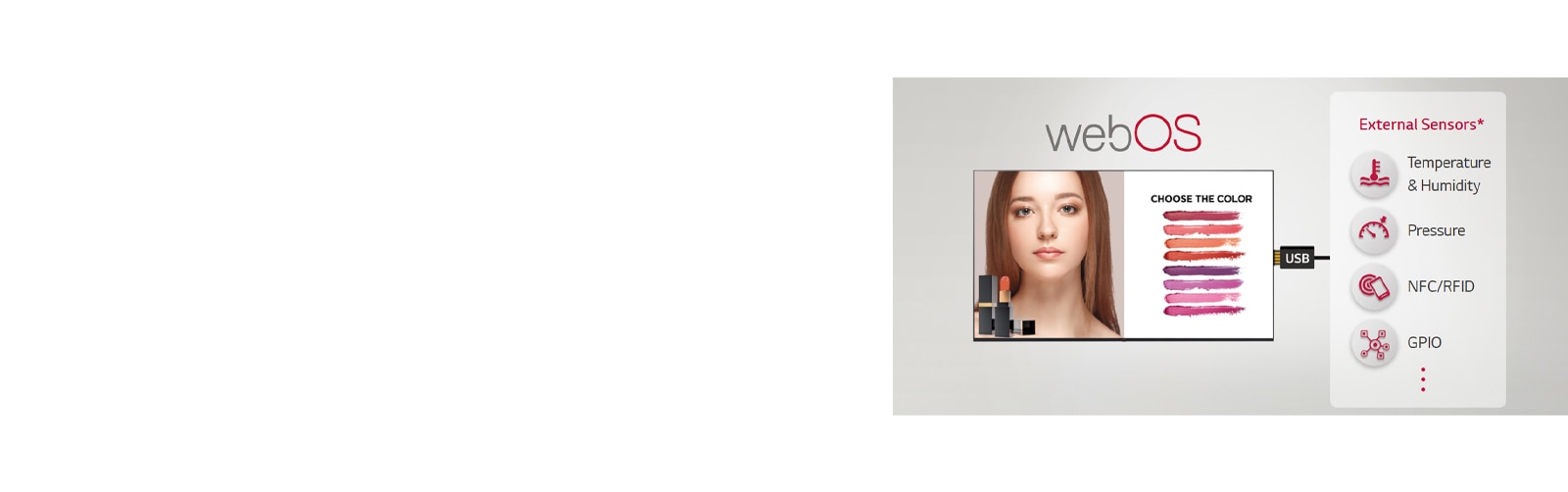

** External sensors need to be purchased separately and tested for compatibility with webOS platform.

LG’s Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

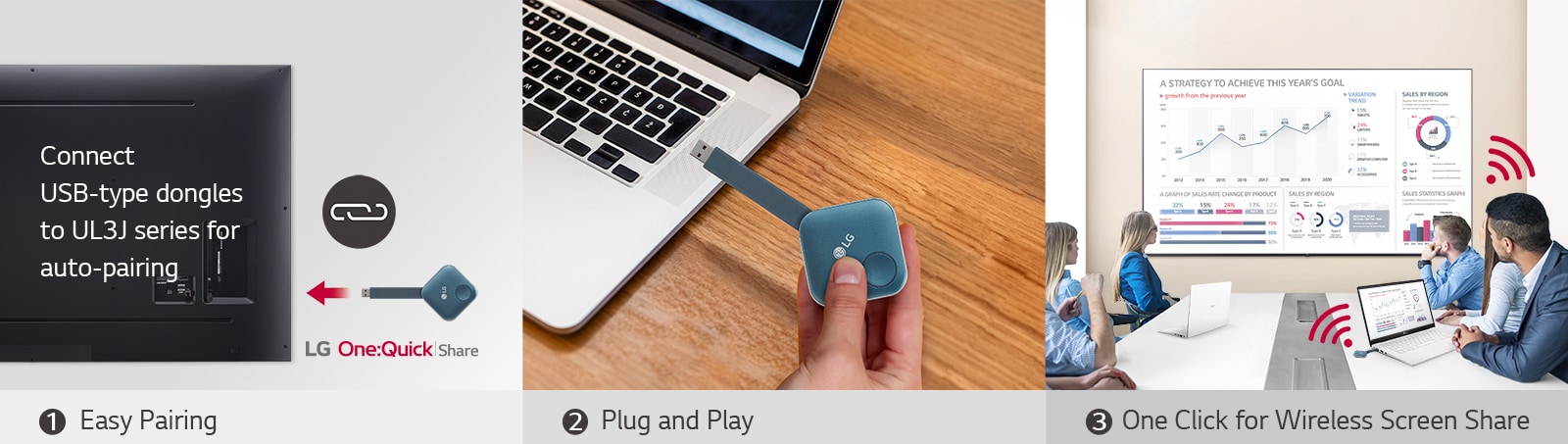

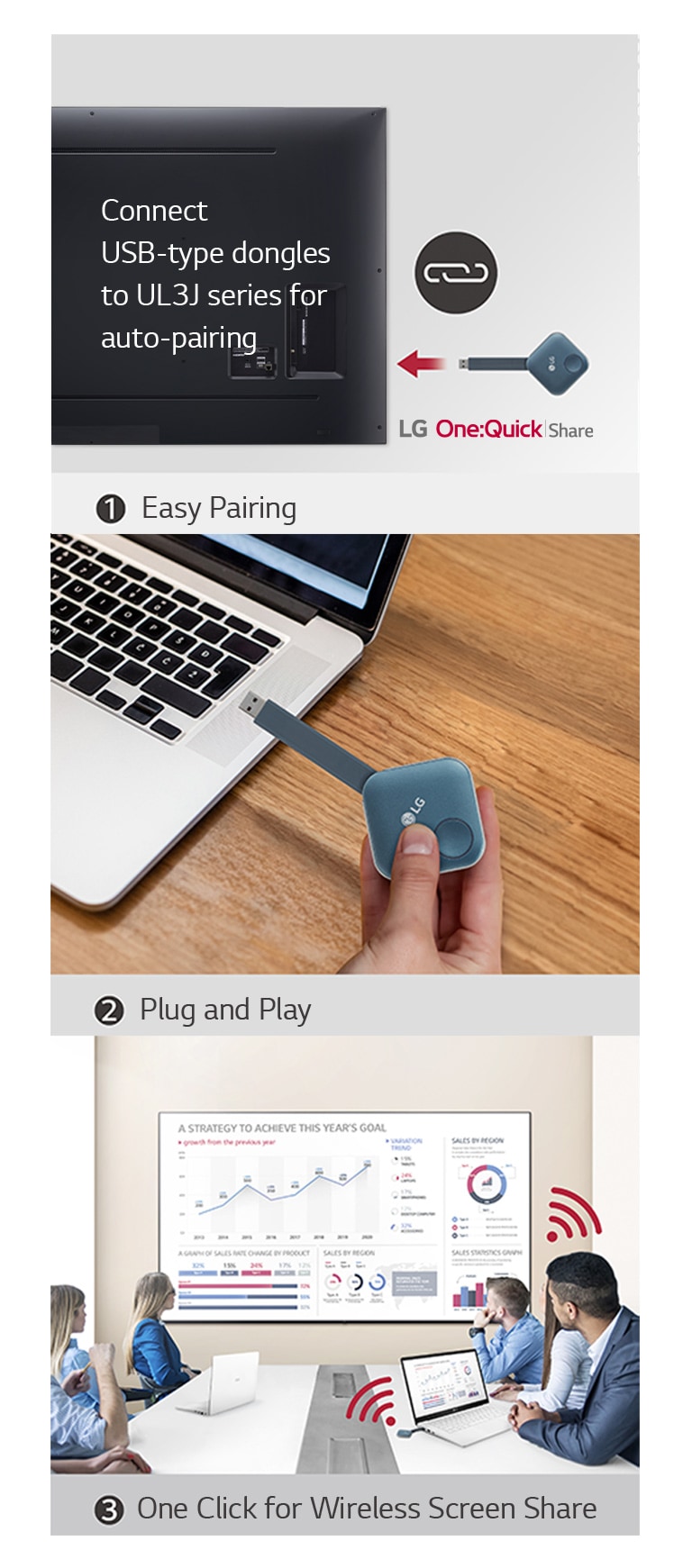

"This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall." "This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall."
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.

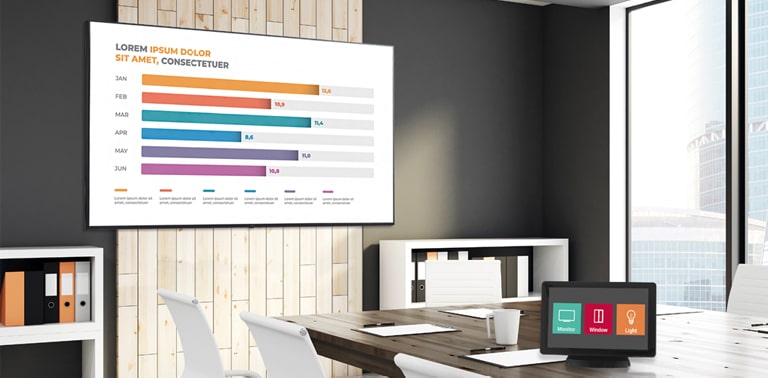

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
* Using an HDMI cable connection (HDMI cable is optional)
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.
So please contact the LG sales representative in your region for more details.
* Registered on April, 2021
Panel
  • Screen Size
    65"
    Panel Technology
    IPS
  • Back Light Type
    Direct
    Aspect Ratio
    16:9
  • Native Resolution
    3840x2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness
    400nit (Typ.)
    Contrast Ratio
    1,200:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    DCI 80%
  • Viewing Angle(H x V)
    178x178
    Color Depth
    10bit, 1.07Billon colors
  • Response Time
    8ms (G to G)
    Surface Treatment(Haze)
    3%
  • Life time
    30,000Hrs (Min)
    Operation Hours (Hours/Day)
    16/7
  • Portrait / Landscape
    Yes / Yes
Connectivity
  • Input
    HDMI (3, HDCP2.2/1.4), RS232C IN (1, 4pin Phone-jack), RJ45 (LAN), USB2.0 Type A (2)
    Output
    Audio Out, RS232C OUT (1, 4pin Phone-jack)
Mechanical Specification
  • Bezel Color
    Ashed Blue

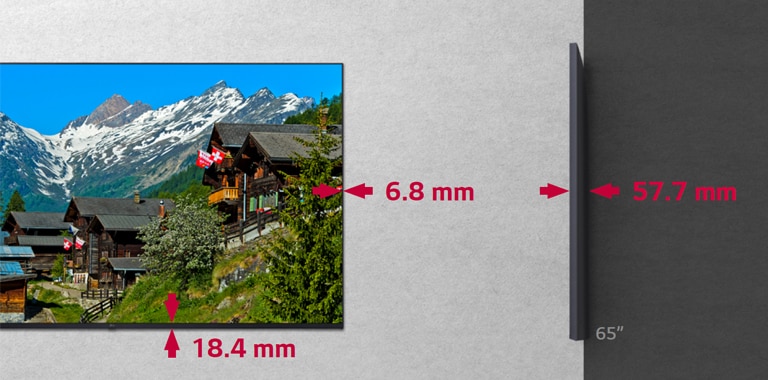

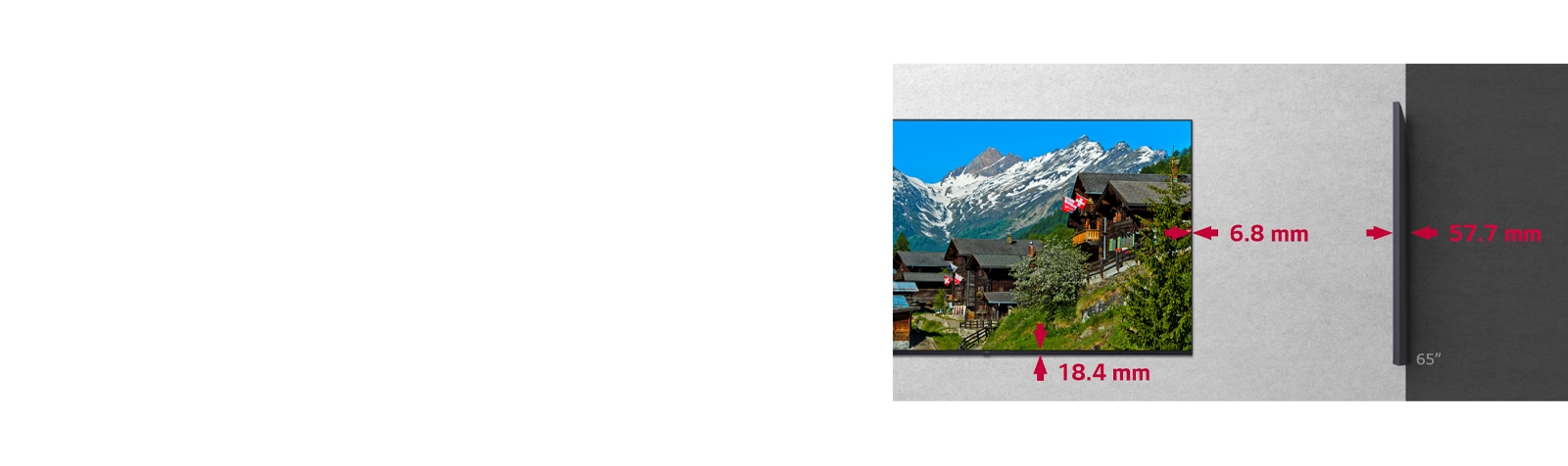

    Bezel Width
    Off : 6.8/6.8/6.8/18.4 mm
    On : 12.8/12.8/12.8/19.9 mm
  • Weight(Head)
    21.5 kg
    Packed Weight
    27.5 kg
  • Monitor Dimension(W x H x D)
    1454 x 838 x 57.7 mm
    Carton Dimensions(W x H x D) (Box outer size)
    1600 x 970 x 172 mm
  • VESA™ Standard Mount Interface
    300 x 300 mm
Key Feature
  • HW
    Internal Memory 8GB, Wi-Fi Built-in, Temperature Sensor, Auto Brightness sensor, Local Key Operation (Power On/Off only)
    SW
    webOS ver. (webOS6.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Screen Share, Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
Environment Conditions
  • Operation Temperature
    0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    130 W
    Max.
    187 W
  • BTU (British Thermal Unit)
    443.578BTU/Hr(Typ.), 638.071BTU/Hr(Max.)
    Smart Enegy Saving(70%)
    91 W
  • DPM
    0.5W
    Power off
    0.5W
Sound
  • Speaker
    Yes
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE
  • ErP / Energy Star
    Yes / Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • LG ConnectedCare
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic, polski
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder
  • Dimension
    • 65UL3J_2D.dwg
    • 65UL3J_2D.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
