UHD Signage
Contact Us

Energy-Efficient UHD Signage Display with Enhanced Security

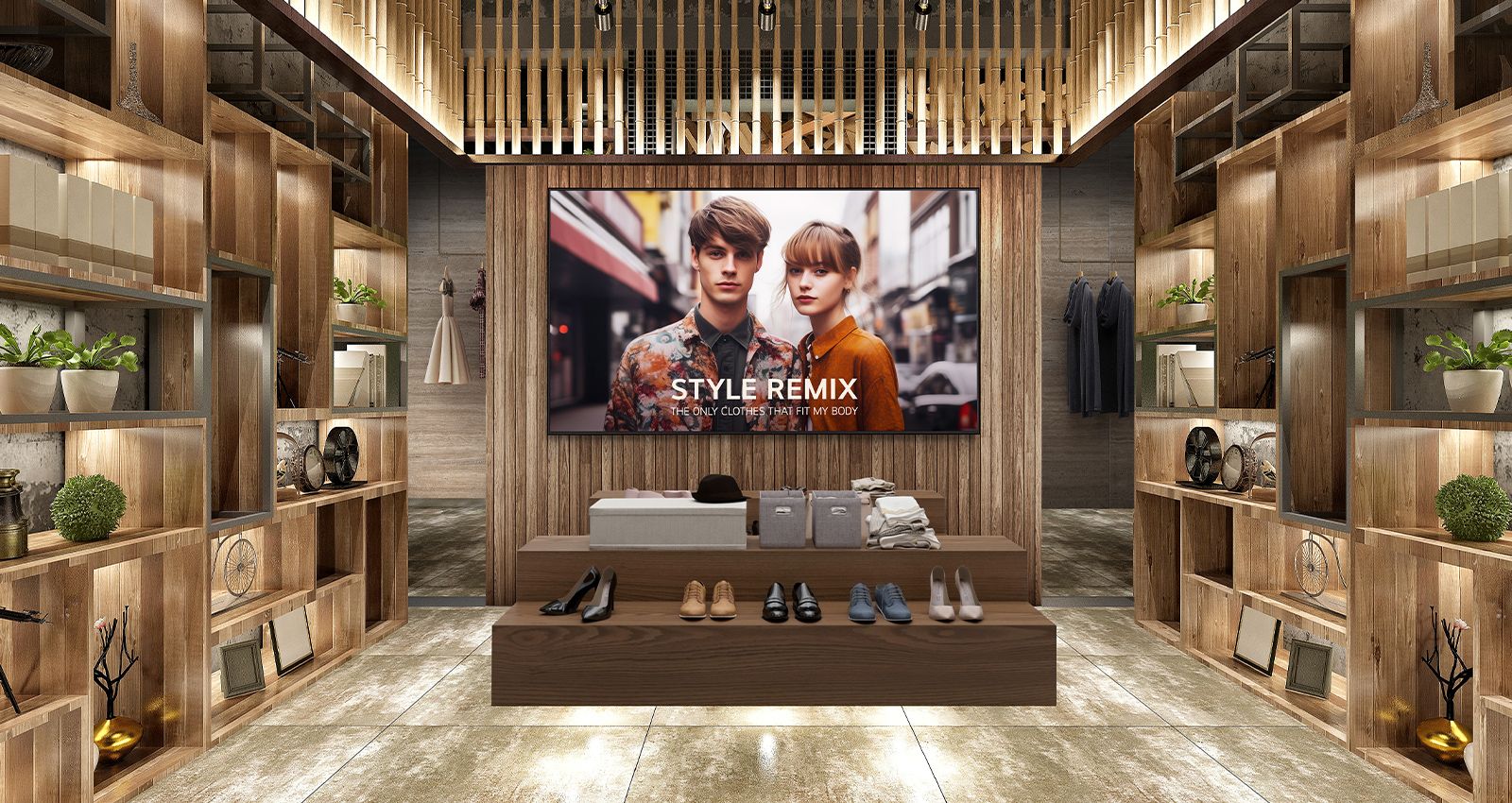

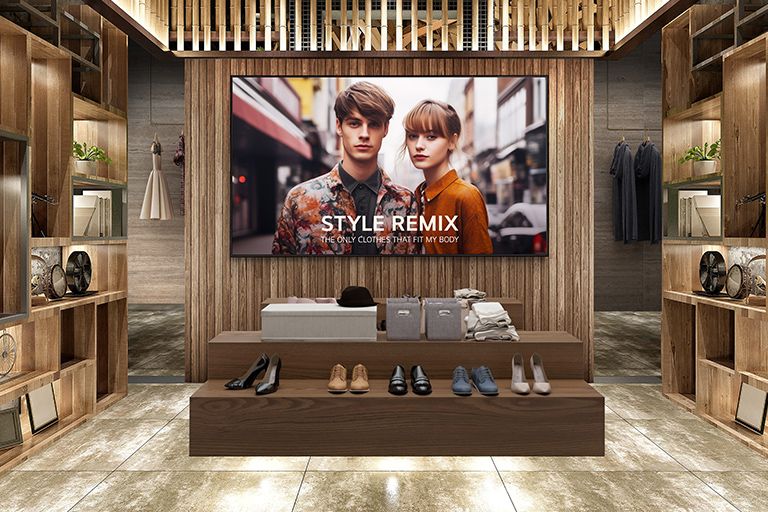

Signage is installed on the central wall of the store, and it shows advertisements clearly and vividly. Signage is installed on the central wall of the store, and it shows advertisements clearly and vividly.
* All images in this page are for illustrative purposes only.
The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD. The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

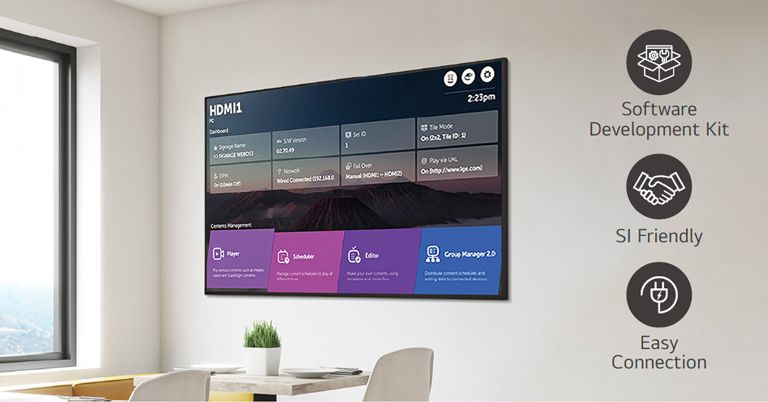

The webOS platform offers convenient access to a variety of functions. The webOS platform offers convenient access to a variety of functions.

Convenient webOS Platform

The 65US5P-E features a high-performance SoC that eliminates the need for a separate media player, enabling seamless multitasking. With the user-friendly webOS platform, developers can easily create apps and connect with external sensors and webOS partner apps, creating a convenient environment for SI.

Energy Efficiency with
ErP D Class

With leading technology and dedication to energy efficiency, the 65US5P-E has achieved an ErP D class, three classes higher than the previous G class models. This means it has cost-saving effect compared to conventional RGB panels, as it can reduce power consumption by more than 30% while maintaining the same brightness. Its premium energy-saving performance is certified by the renowned testing company SGS.

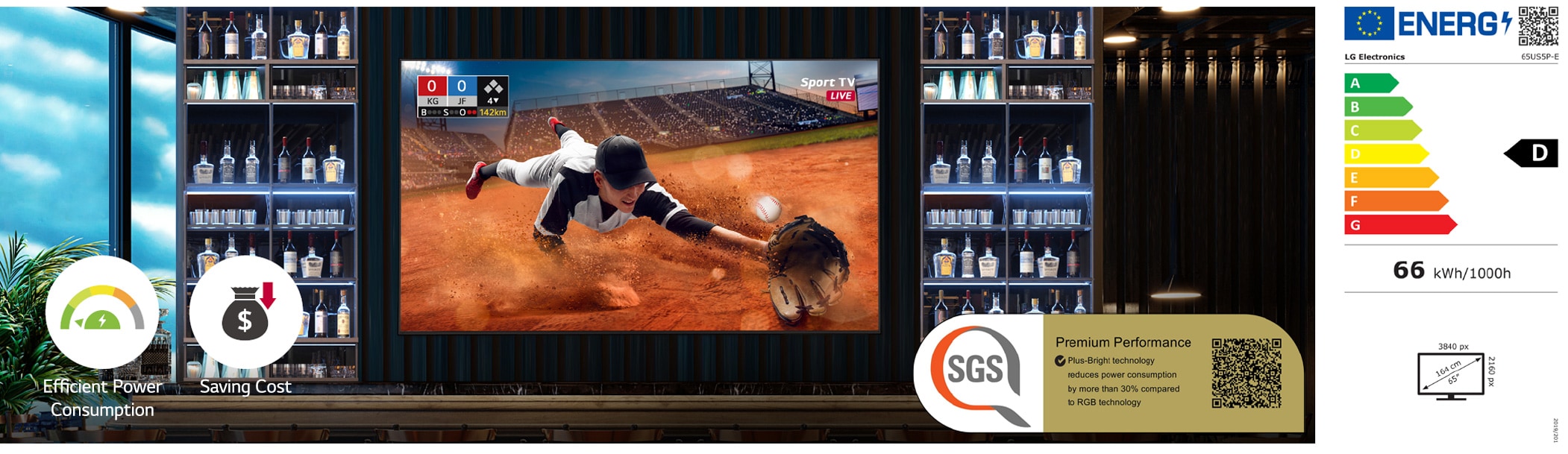

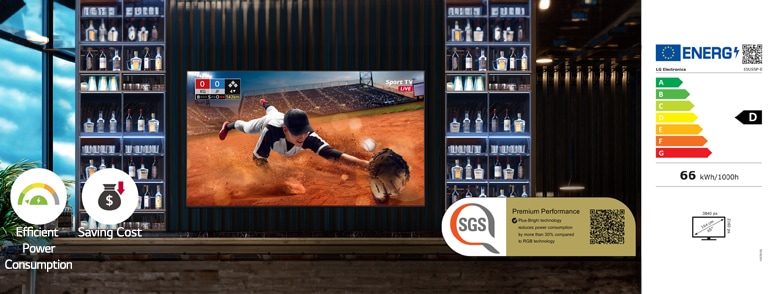

The 65US5P-E screen installed at the sports bar vividly showcases baseball games. The 65US5P-E screen installed at the sports bar vividly showcases baseball games.
* ErP stands for Energy-related Products Directive.

Design for Space Utilization

Designed with thin bezels and simple cable management, the 65US5P-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

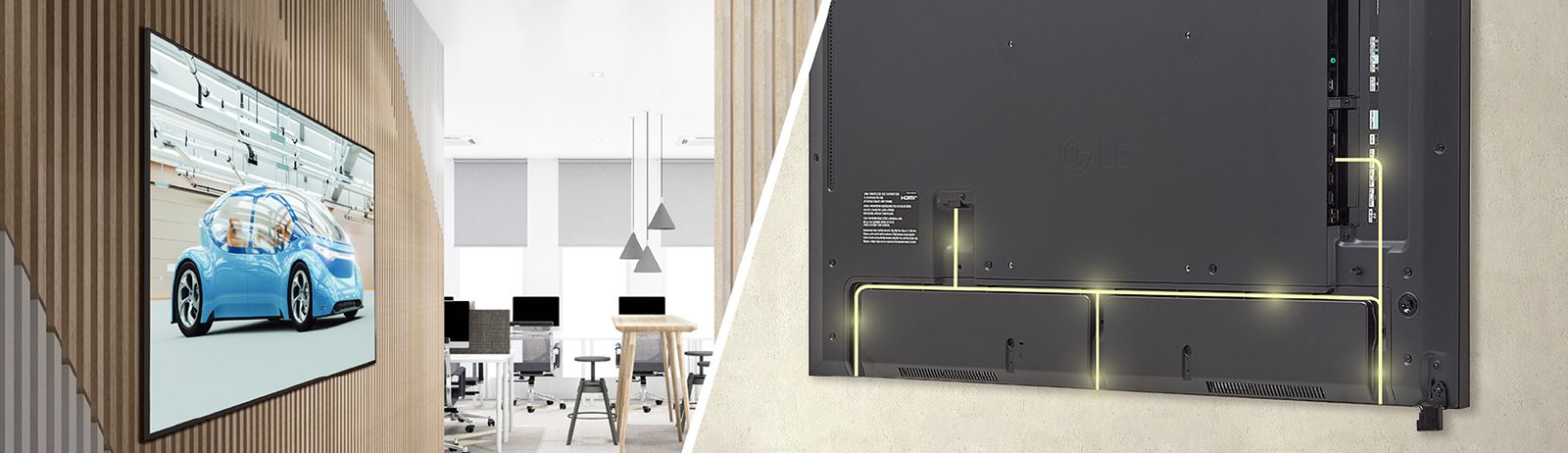

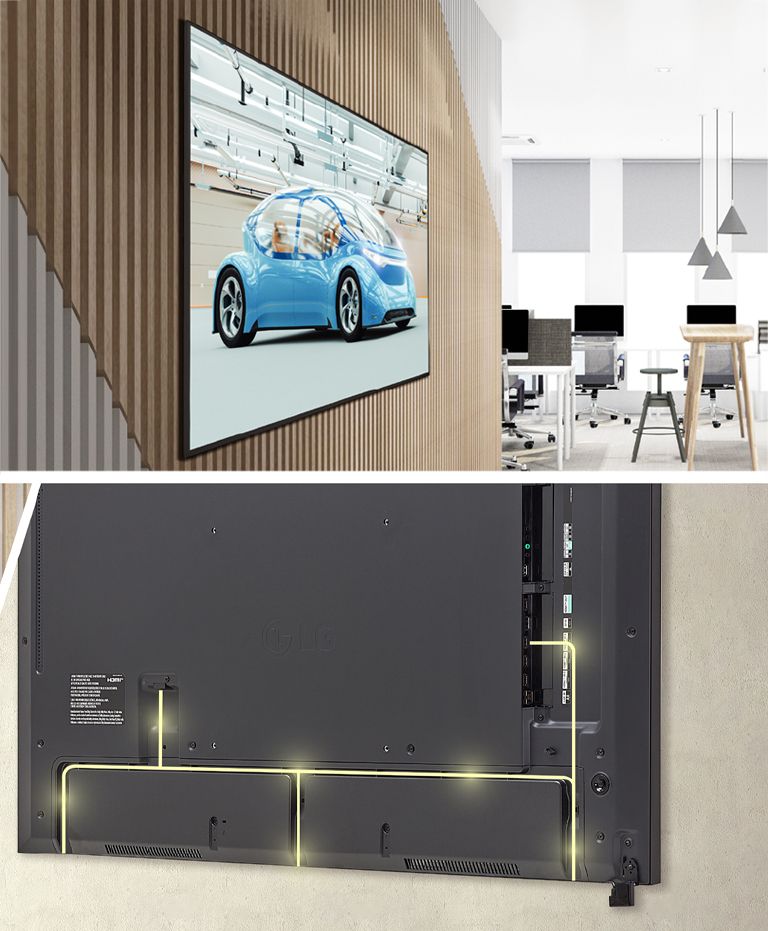

The 65US5P-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system. The 65US5P-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.
* All images are for illustrative purposes only.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

Durability that Provides Reliability

Optimized for business environments, the 65US5P-E offers strong resistance to challenging conditions. Its Conformal Coating on the power board helps protect against salt, dust, iron powder, and humidity, assisting stable operation. Additionally, customer-centric features like IP5x certification, a 30-degree tilting capability, and Shock Monitoring enhance both reliability and customer satisfaction.
The 65US5P-E has Conformal Coating on the power board to protect display even in a salty or humid environment. The 65US5P-E has Conformal Coating on the power board to protect display even in a salty or humid environment.
The 65US5P-E provides security features to protect important data from external access or attacks. The 65US5P-E provides security features to protect important data from external access or attacks.

Enhanced Security

In various business fields, both hardware and software security are crucial. LG`s Enhanced Kernel Protection (EKP) is specifically crafted to safeguard vital data from external threats. Additionally, certified with the high standards of ISO/IEC 15408 Common Criteria EAL2, the 65US5P-E instills confidence in its security measures.

LG Shield

While security threats are prevalent in various industries, LG has developed a dedicated security platform called LG Security Platform “LG Shield“. Integrated into webOS 6.0, LG Shield offers a safe environment for users. A 5-tiered defense system provides protection against a wide range of threats. Also, real-time monitoring capabilities enable the platform to detect and respond to security threats in real time, assisting the utmost security for users.

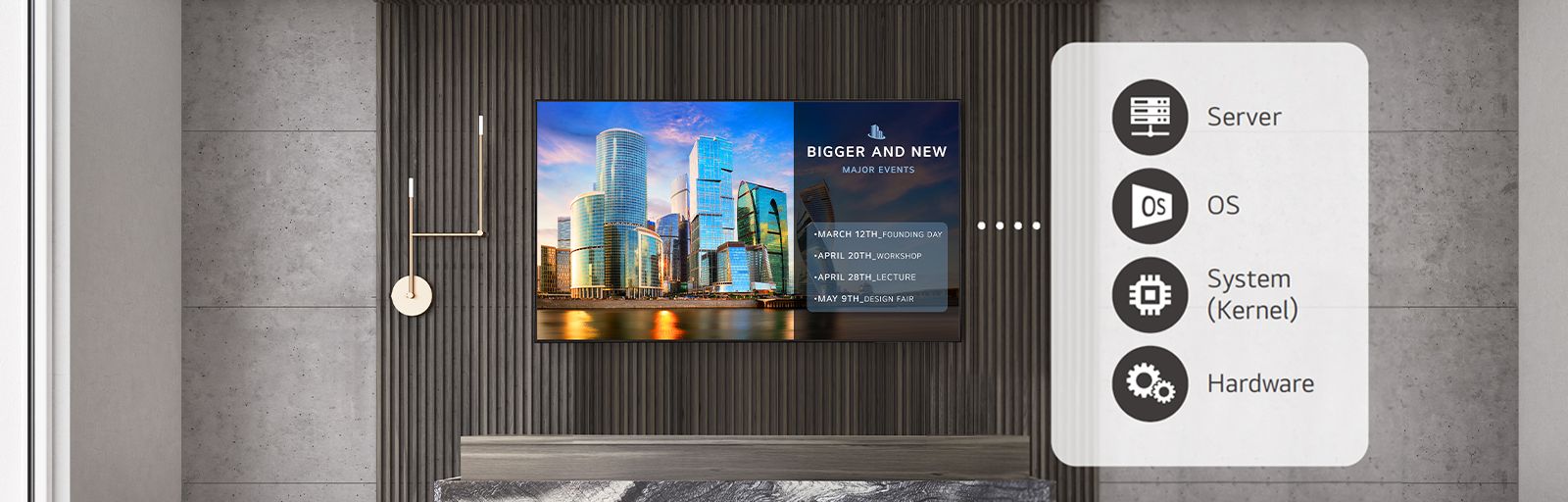

Securely operated through LG Shield's defense system, the 65US5P-E on the company lobby wall provides reliable service. Securely operated through LG Shield's defense system, the 65US5P-E on the company lobby wall provides reliable service.
The 65US5P-E is EMC Class B certified, ensuring safety from electromagnetic waves. The 65US5P-E is EMC Class B certified, ensuring safety from electromagnetic waves.

EMC Class B Certified

65US5P-E is safe from electromagnetic waves, which are harmful to the environment and human body, with EMC Class B certification.
Cafe managers are creating menus that will be displayed on the cafe wall display using content management software. Cafe managers are creating menus that will be displayed on the cafe wall display using content management software.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

* Sold separately.

Carbon Footprint Certification

The cradle-to-grave carbon footprint of 65US5P-E has been measured and certified by Carbon Trust, and has achieved a reduction.
Carbon Footprint Certification Carbon Footprint Certification
* 65US5P-E achieved CO2 Reduced certification.
* Carbon Trust Assurance for 65US5P-E is valid until 2026.07.15.
* Carbon Trust Assurance for 65US5P-E is certified against PAS 2050:2011.
Close
Info
  • Product
    Standard (UHD)
    Year
    Y24
  • Month
    M03
Panel
  • Screen Size (Inch)
    65"
    Panel Technology
    IPS(M+)
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness (Typ.)
    500nit (Typ.)
    Contrast Ratio
    1,100:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    BT709 95%
  • Viewing Angle(H x V)
    178 X 178
    Color Depth
    10bit(D), 1.07Billion colors
  • Response Time
    9ms (G to G)
    Surface Treatment(Haze)
    28%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
Connectivity
(Jack Interface)
  • HDMI IN
    Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
    DP IN
    Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
  • RS232C IN
    Yes(1), 4pin PhYesne-jack
    RJ45(LAN) IN
    Yes (1)
  • IR IN
    Yes (1)
    USB IN
    USB2.0 Type A(1)
  • HDMI Out
    Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
    Audio Out
    Yes (1)
  • RS232C Out
    Yes (1), 4pin Phone-jack
    IR Out
    No (Support IR daisy chain via RS232C IN/OUT)
  • Daisy Chain
    Yes(Input HDMI, DP / Output HDMI)
Mechanical
  • Bezel Color
    Black
    Bezel Width
    T/R/L: 8.9mm, B: 12.9mm
  • Weight (Head)
    24.2 kg
    Packed Weight
    30.4 kg
  • Monitor Dimensions (W x H x D)
    1450.3 x 830.3 x 29.7mm (Without IR)
    Carton Dimensions (W x H x D)
    1600.0 x 970.0 x 172.0mm
  • VESATM Standard Mount Interface
    300 x 300
HW Feature
  • Internal Memory
    16GB
    Wi-Fi (Built-in)
    Yes
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    Yes(IR)
  • Acceleration(Gyro) Sensor
    Yes
    Local Key Operation
    Yes
  • Speaker (Built-in)
    Yes
SW Feature
  • OS ver.
    webOS6.0
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    PIP
    Yes
  • PBP
    Yes (4)
    Screen Share
    Yes
  • Video Tag
    Yes (4)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes (Max. 15x15)
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Cisco Certi.
    TBD
    Crestron Inside
    Yes
  • Smart Energy Saving
    Yes
    PM mode
    Yes
  • Wake on LAN
    Yes
    Network Ready
    Yes
  • Beacon
    Yes
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ.)
    95W
    Power Consumption (Max.)
    130W
  • Power Consumption (British Thermal Unit)
    324 BTU/Hr(Typ.), 444 BTU/Hr(Max)
    Power Consumption (Smart Energy Saving, ~70%)
    66.5
  • Power Consumption (DPM)
    0.5W
    Power Consumption (Power Off)
    0.5W
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "B" / CE / KC
  • ErP / Energy Star
    Yes (NewErP "D")/ No
    Carbon Trust
    Yes(TBD, Reducing CO2)
  • SGS Premium Bright
    Yes (TBD)
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Cloud
    Yes
  • Promota
    Yes (Not available for EU/CIS)
    Mobile CMS
    Yes
  • Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)
    Optional
    Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)
Special Feature
  • Tilt (Face Down)
    Yes(TBD, Max 30º degree, 40ºC temperature)
    IP Rating
    IP5X
  • Conformal Coating (Power Board)
    Yes
  • Datasheet
    • 65US5P-E_Datasheet(low)_LG UHD Signage_240910.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
