70UL3E-T (NA) component-copyModelName

70'' 400 nits UHD Signage

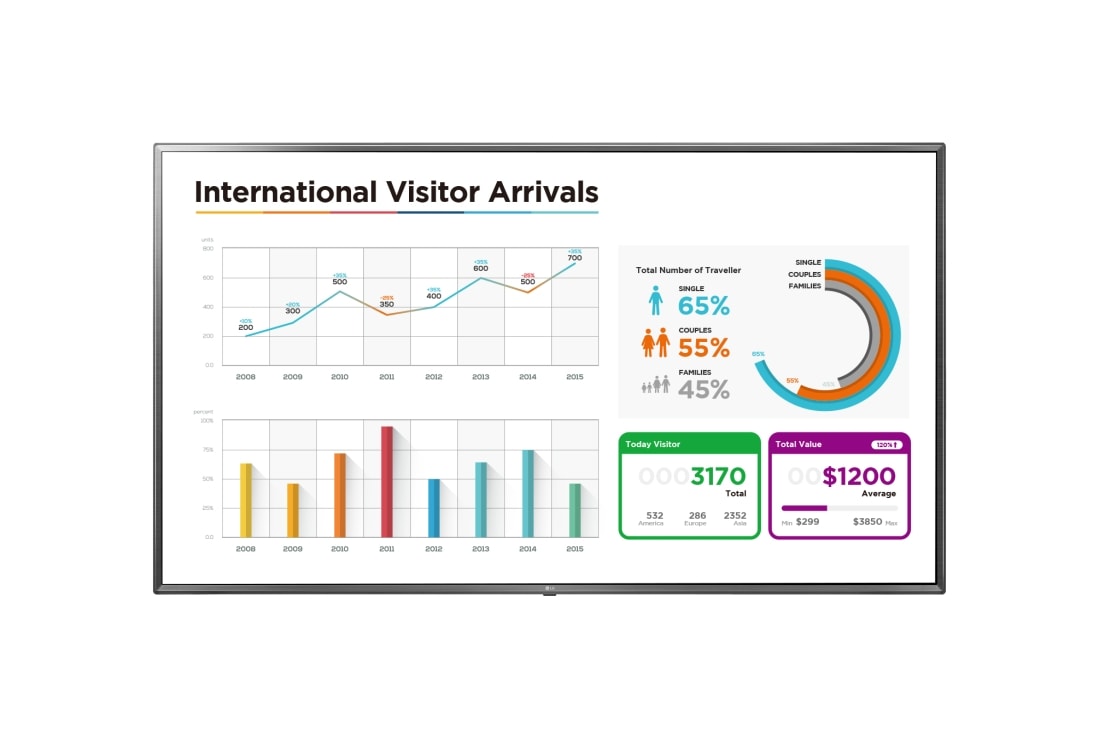

LG 70'' 400 nits UHD Signage, 70UL3E-T (NA), thumbnail 1

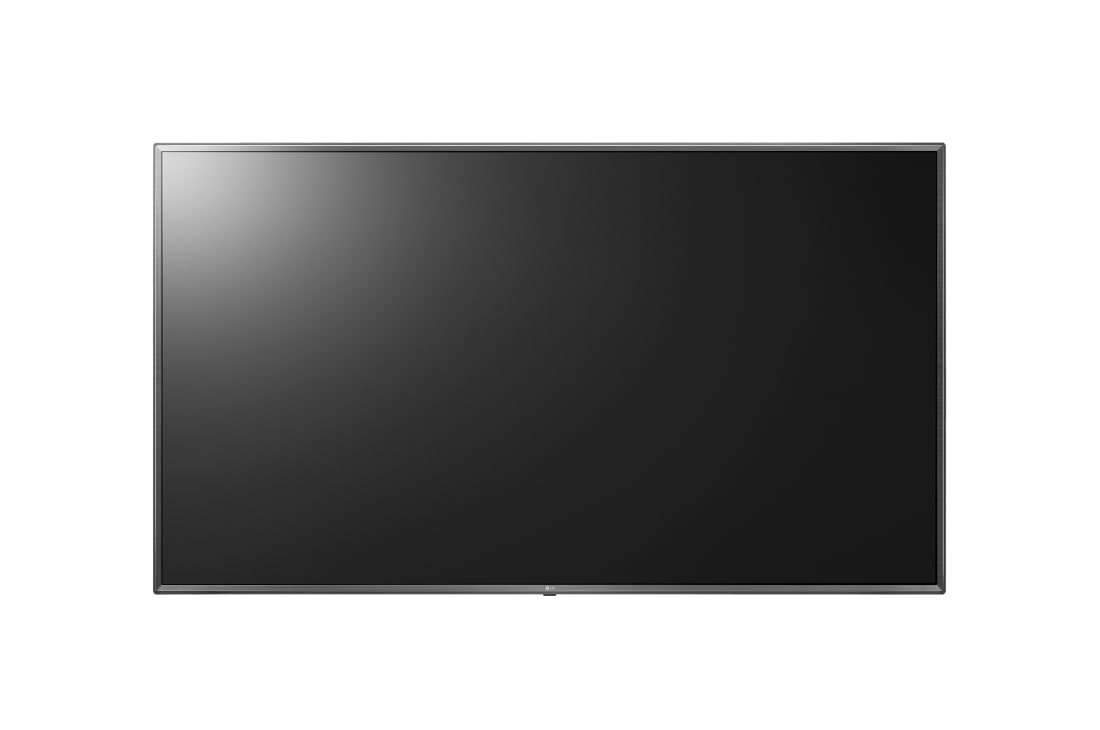

LG 70'' 400 nits UHD Signage, 70UL3E-T (NA), thumbnail 2

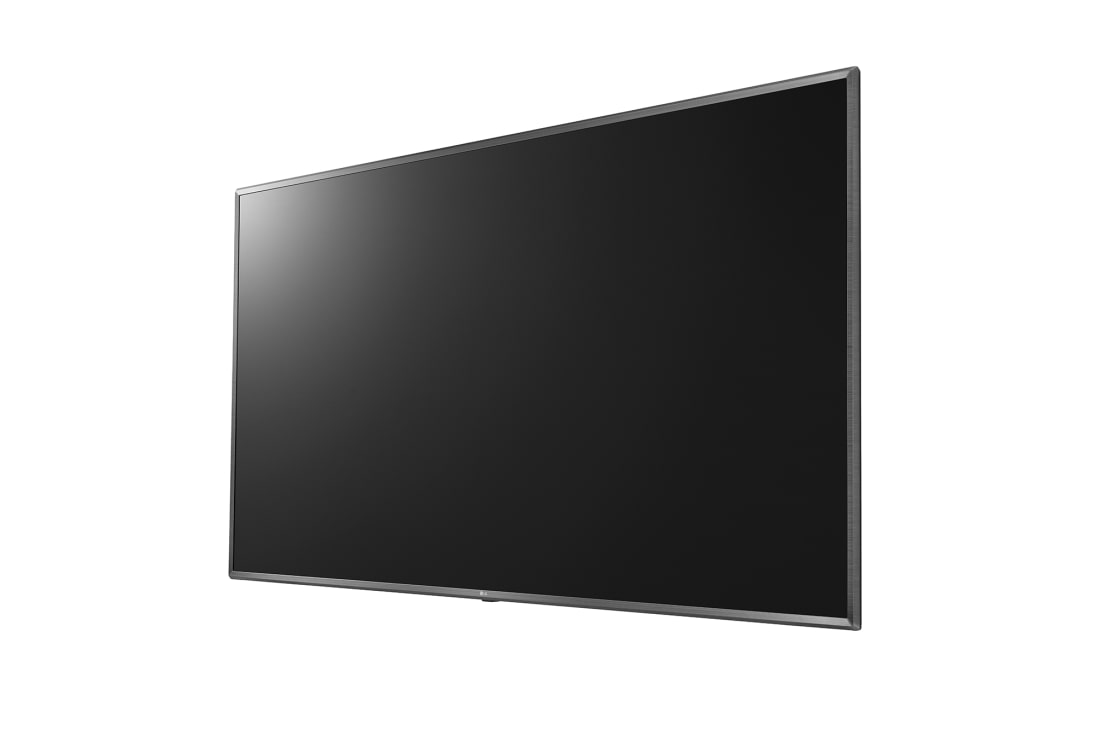

LG 70'' 400 nits UHD Signage, 70UL3E-T (NA), thumbnail 3

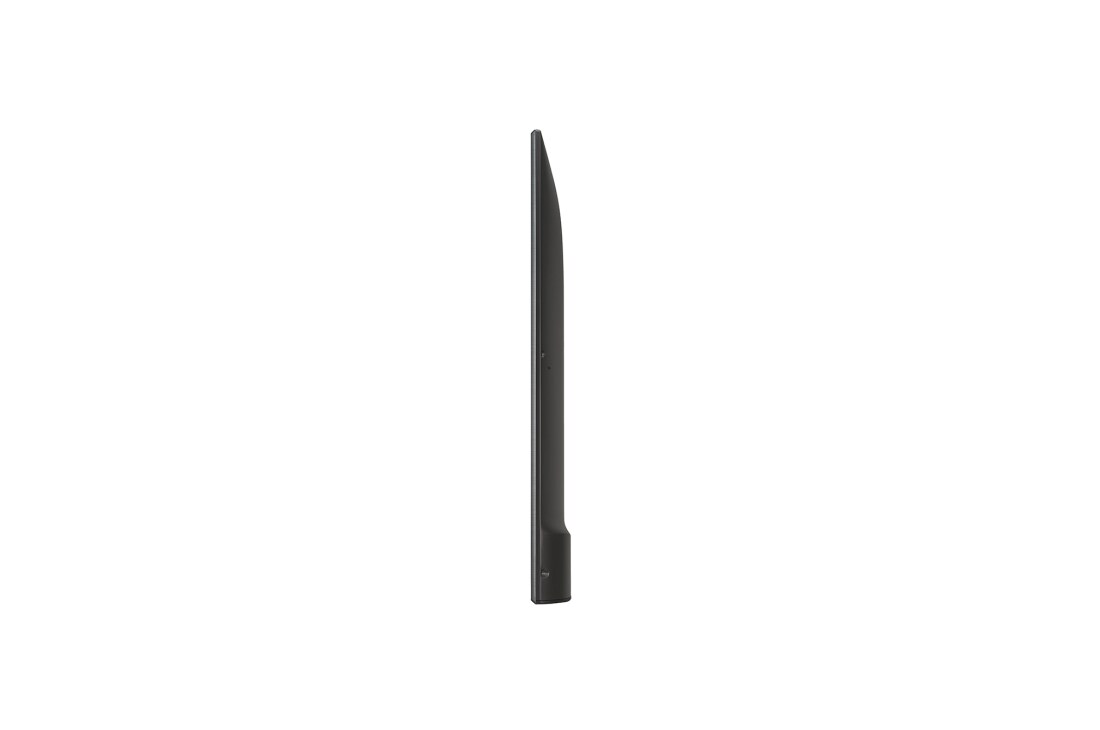

LG 70'' 400 nits UHD Signage, 70UL3E-T (NA), thumbnail 4

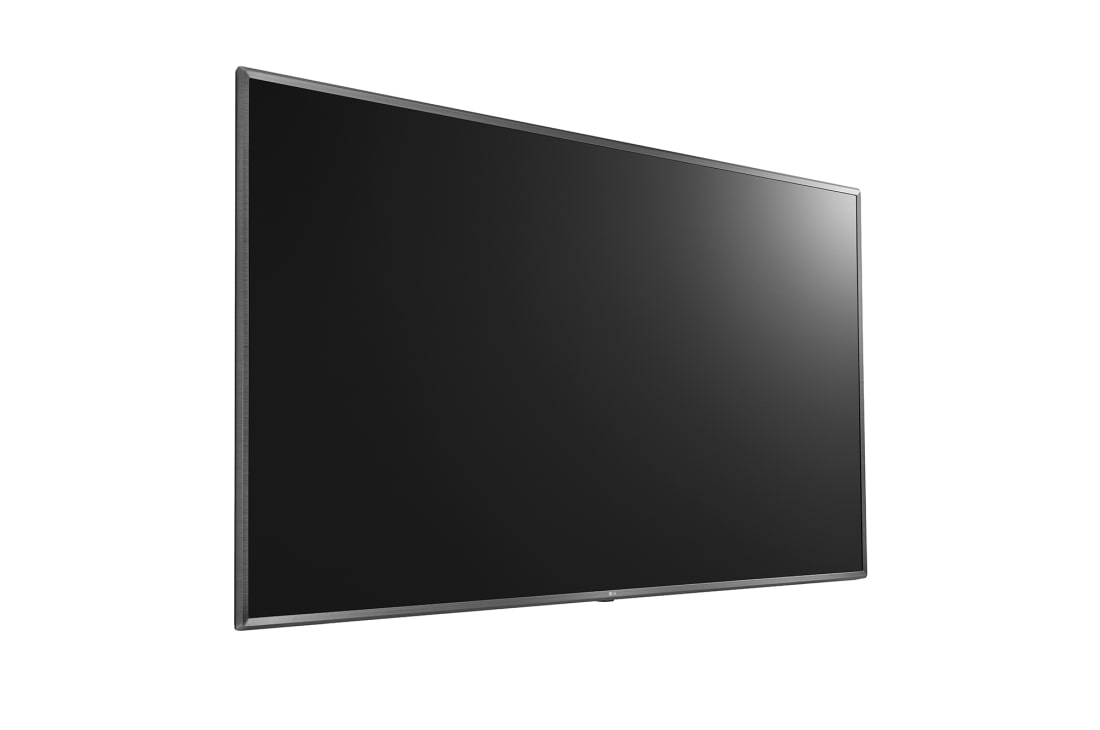

LG 70'' 400 nits UHD Signage, 70UL3E-T (NA), thumbnail 5

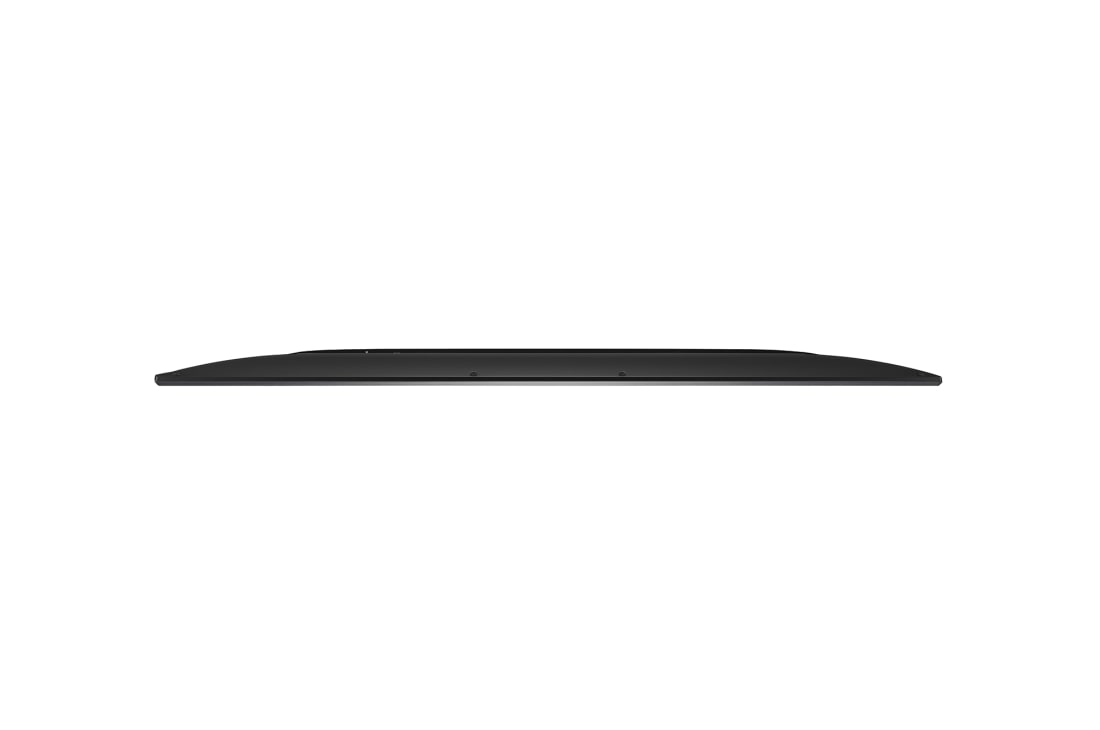

LG 70'' 400 nits UHD Signage, 70UL3E-T (NA), thumbnail 6

Discontinued

70UL3E-T (NA) component-copyModelName

70'' 400 nits UHD Signage

Key Features

Brightness(Typ.) : 400 cd/m²
Bezel : 15.3 mm (T/L/R), 20.4 mm (B)
Depth : 69.0 mm
Interface : HDMI(2)/USB 2.0(2)/ RS232C/ RJ45/ Audio
Built-in Speaker(10W+10W)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 400 cd/m²
Bezel : 15.3 mm (T/L/R), 20.4 mm (B)
Depth : 69.0 mm
Interface : HDMI(2)/USB 2.0(2)/ RS232C/ RJ45/ Audio
Built-in Speaker(10W+10W)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

70" 400 nits UHD Signage

Clear Color Expression of UHD Content

A large Ultra HD display, the UL3E series delivers content in vivid colors and with fine details, giving audiences a clearer viewing experience.

Superior Picture Quality

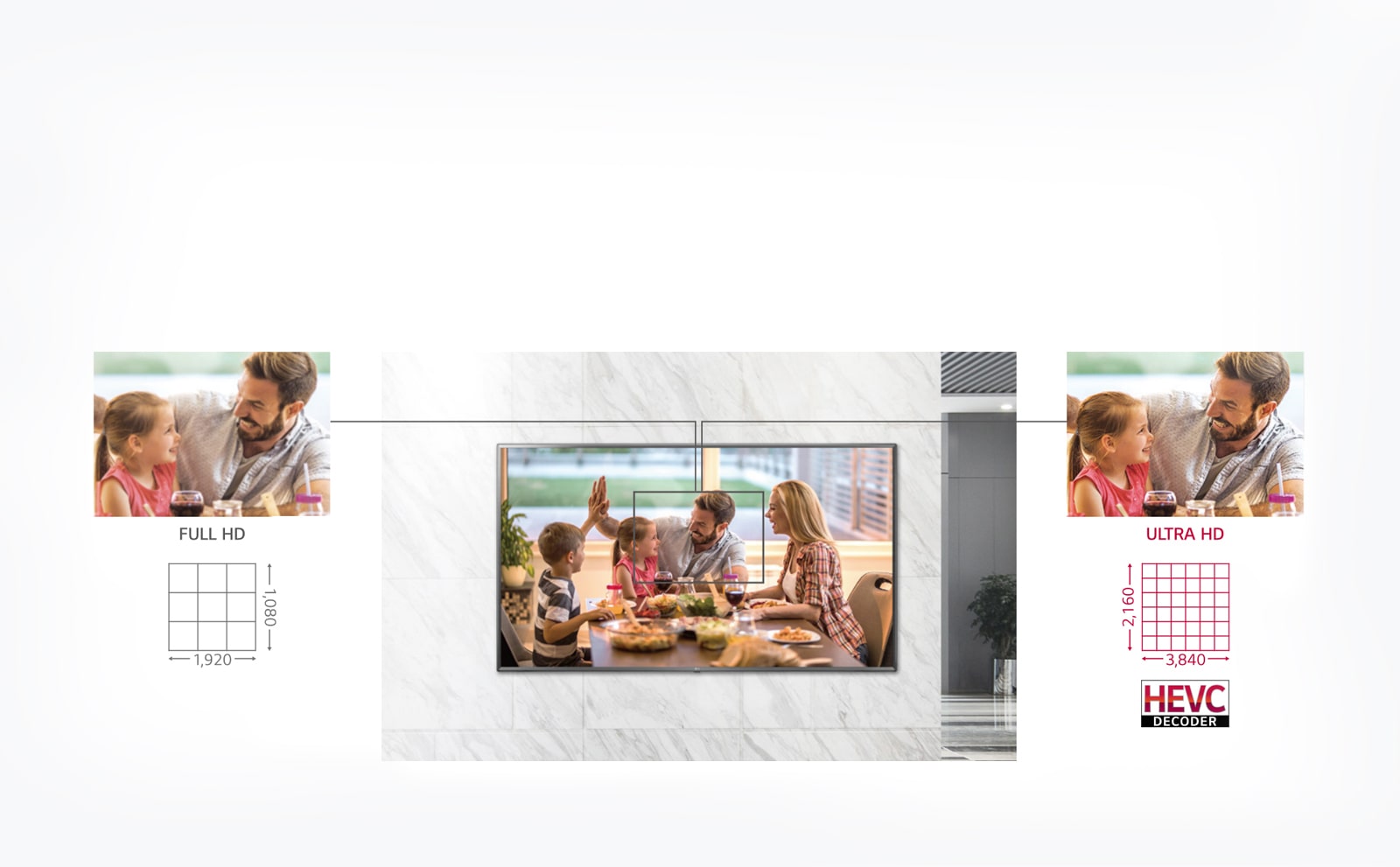

Vivid Color Details with Ultra HD

UHD resolution is the next step up from FHD, delivering more detailed and vivid content without distortion. Its outstanding picture quality strongly appeals to viewers and captures their attention. Moreover, the UL3E series ensures stable UHD video playback by supporting HEVC^{(High Efficiency Video Coding)}.

PC-less Content Management

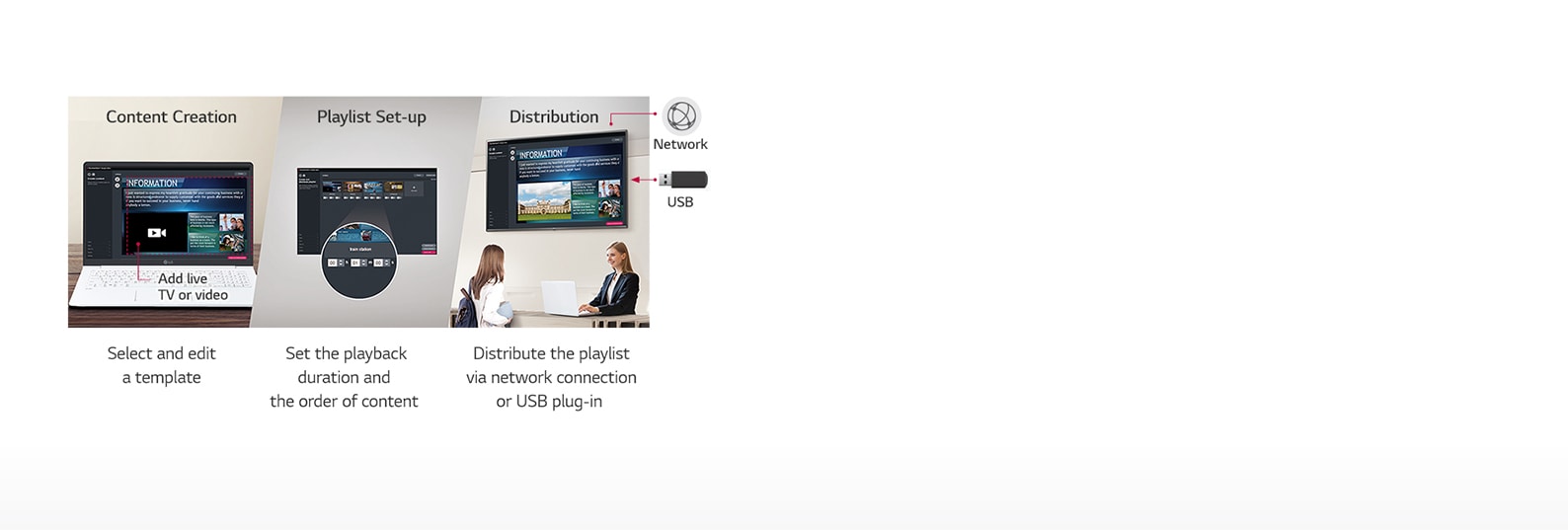

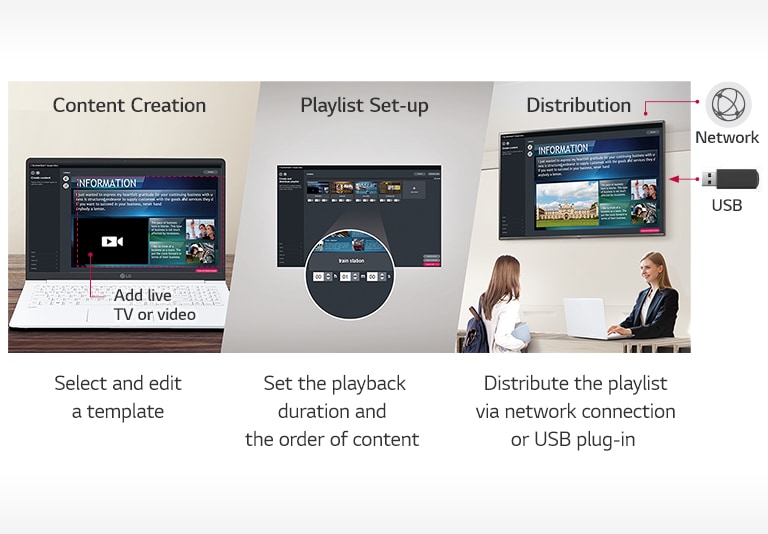

LG Simple Editor

Users can create content easily using embedded templates that provide customizable elements. Once a playlist is set, LG Simple Editor supports it to be distributed to several displays via network connection or USB plug-in.

PC-less Content Management

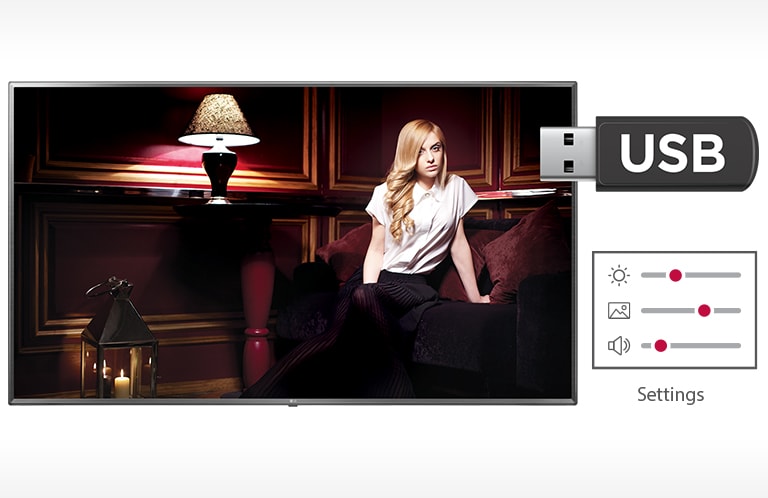

USB Data Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation, since users don't have to set up each display one by one. Once users copy data to a USB in one display, it will be easily distributed to others through a USB plug-in.

High Compatibility

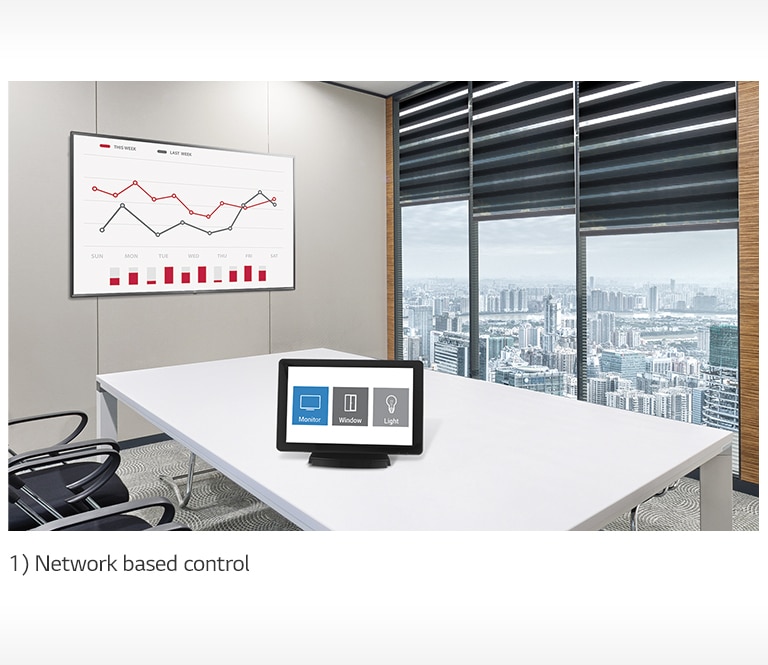

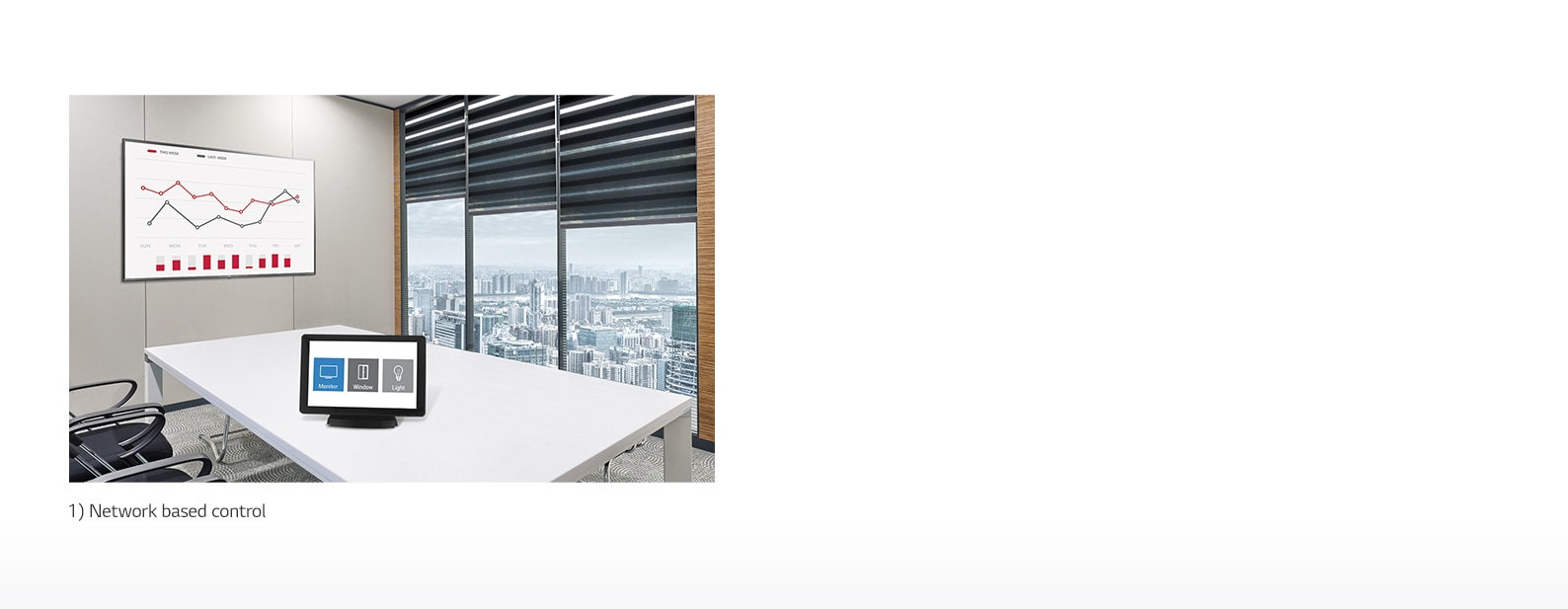

Compatibility with AV Control System

The UL3E series has been certified Crestron Connected^Ⓡ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control¹⁾, boosting business management efficiency.

Easy Management

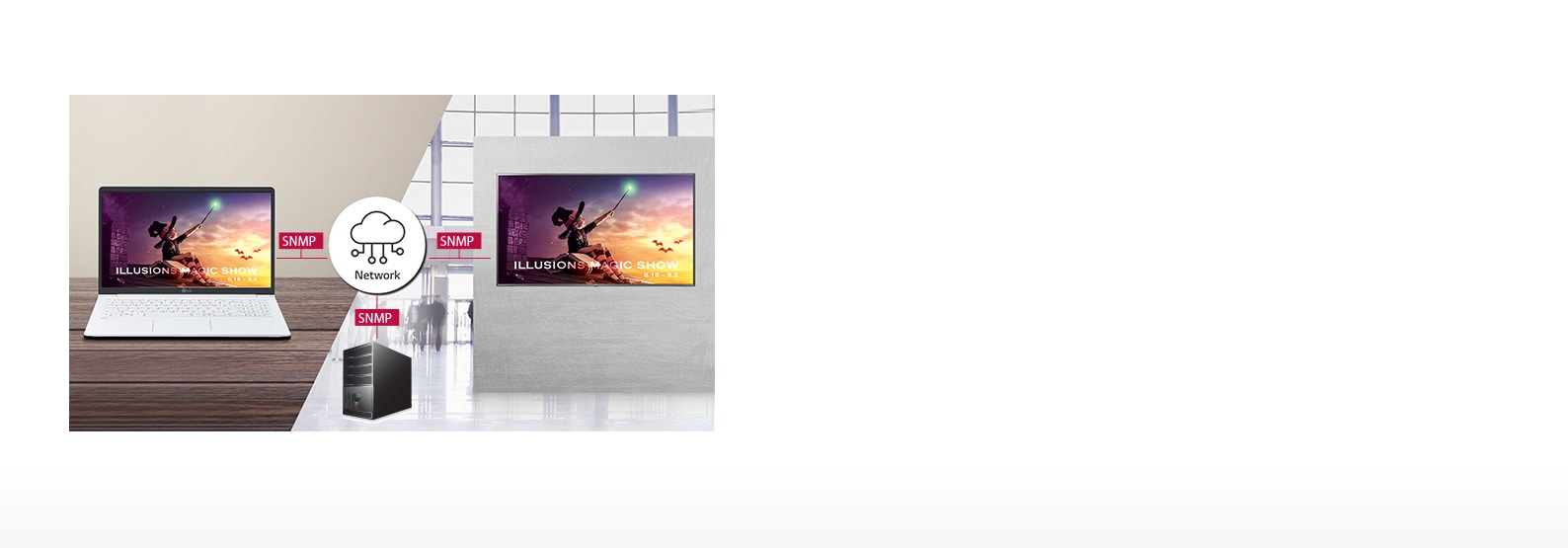

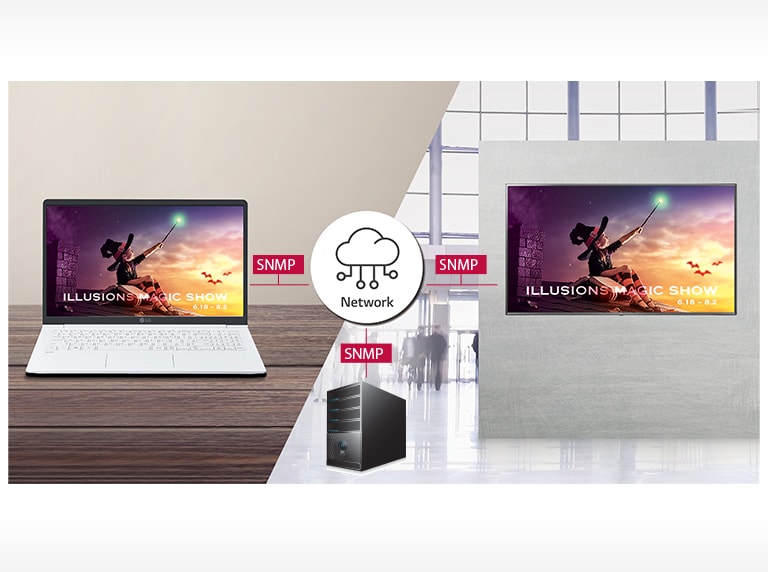

Real-Time Remote Monitoring

In case of malfunctions or errors, real-time remote care is available. When an error occurs, a notification can be sent through the SNMP^{(Simple Network Management Protocol)} protocol.

Easy Management

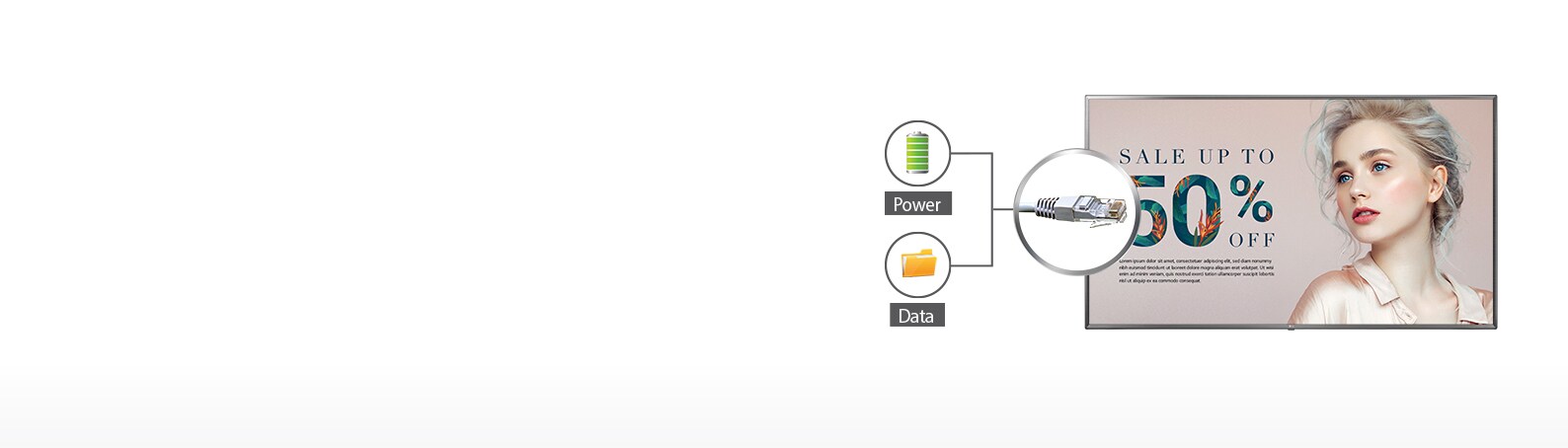

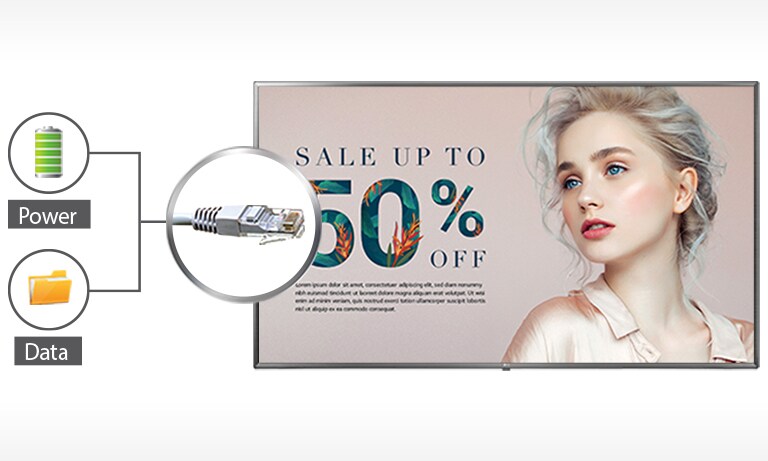

Power & Network in One Line

WOL^{(Wake-on-LAN)} enables users to send a message through network to turn on displays. This greatly simplifies the installation and maintenance processes as only a single wire is required for power and network connection.

Panel

Screen Size

70"

Native Resolution

3,840 x 2,160 (UHD)
Brightness(Typ.,cd/m²)

400

Connectivity

Input

HDMI (2), USB 2.0 (2)

Output

Audio (Optical)
External Control

RS232C In, RJ45 In

Physical Specification

Bezel Width (Off-Bezel)

15.3 mm (T/L/R), 20.4 mm (B)

Monitor Dimension (W x H x D)

1,573 x 910 x 69.0 mm (w/Speaker)
Weight (Head)

32.5 kg

Carton Dimensions (W x H x D)

1,682 x 1,075 x 175 mm
Packed Weight

41.3 kg

VESA™ Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

140 W

Max

270 W

Certification

Safety

UL

EMC

FCC Class A
ErP

N/A / Yes (Energy Star 7.0)

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+

Accessory

Basic

Remote Controller, QSG, Safety Manual

General

Region

North America

Dimension
- [Dimension]70UL3E.dwg
- [Dimension]70UL3E.pdf
Datasheet
- UL3E_NA_Datasheet(web)_11906.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
