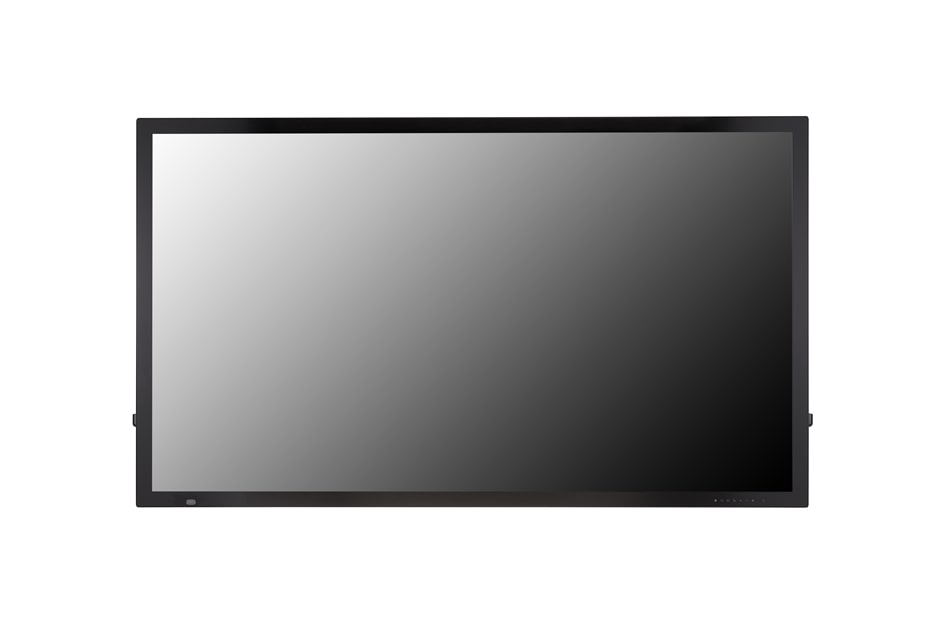

LG Interactive Digital Board, 75TC3D, thumbnail 2

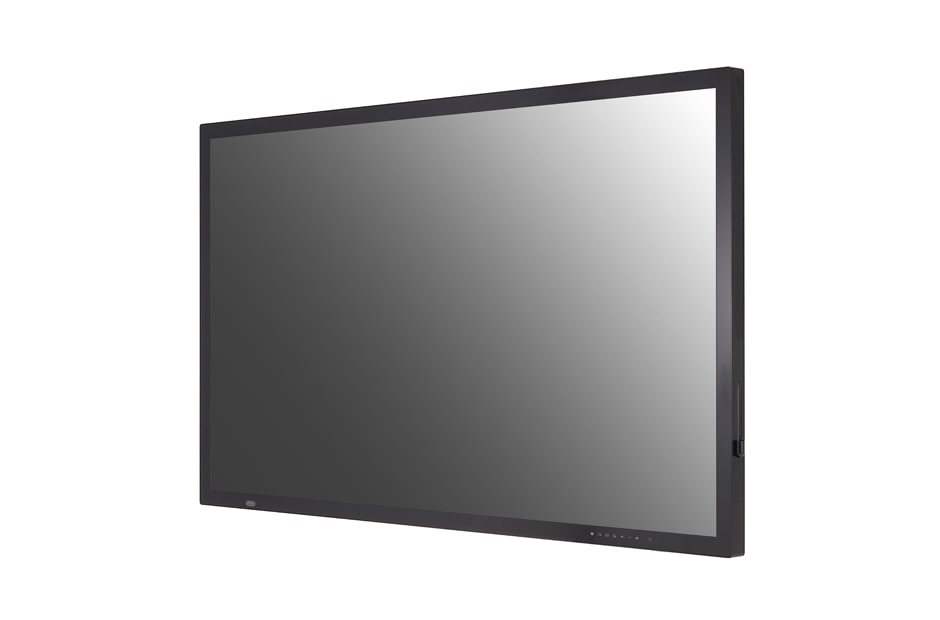

LG Interactive Digital Board, 75TC3D, thumbnail 3

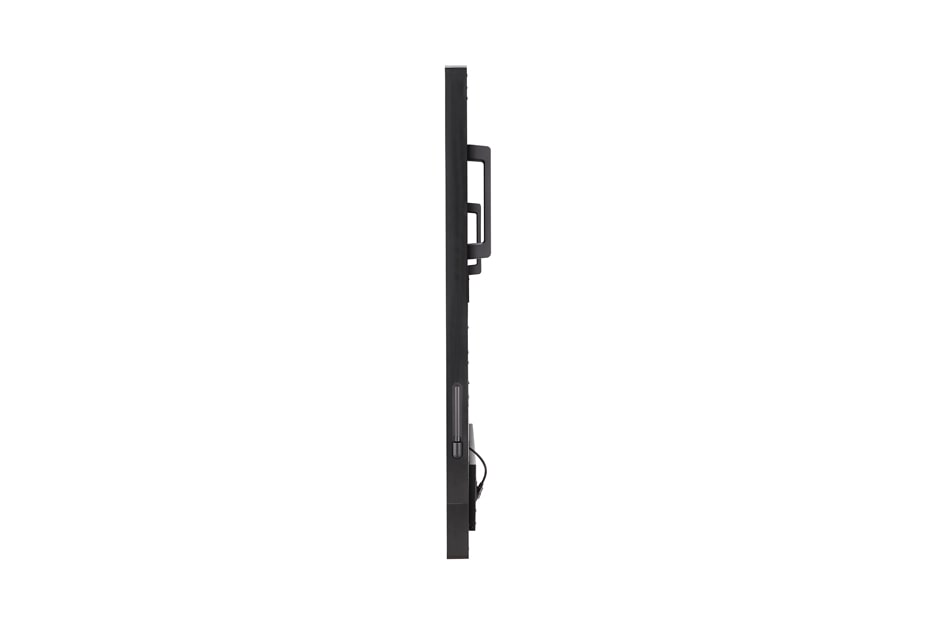

LG Interactive Digital Board, 75TC3D, thumbnail 4

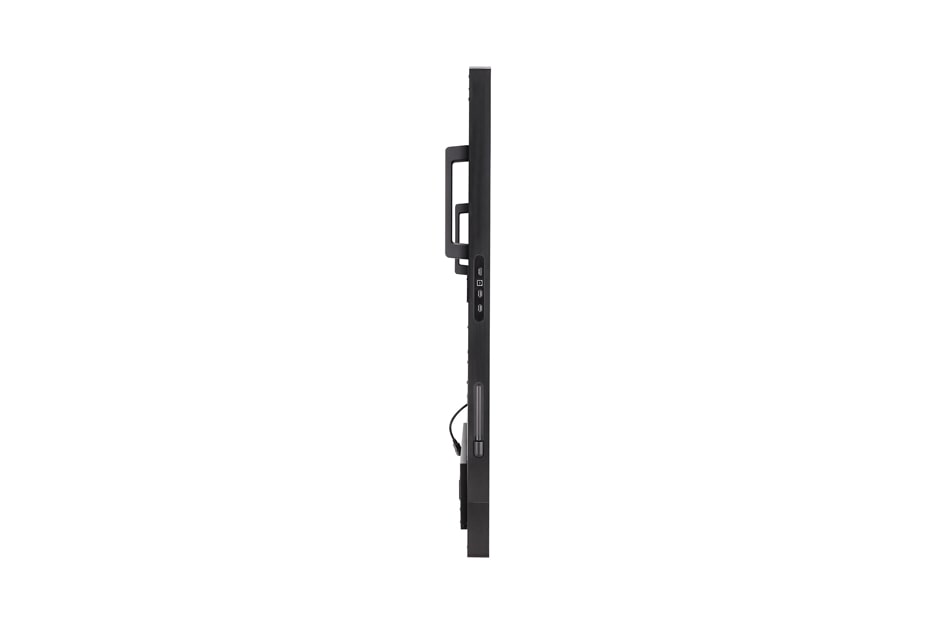

LG Interactive Digital Board, 75TC3D, thumbnail 5

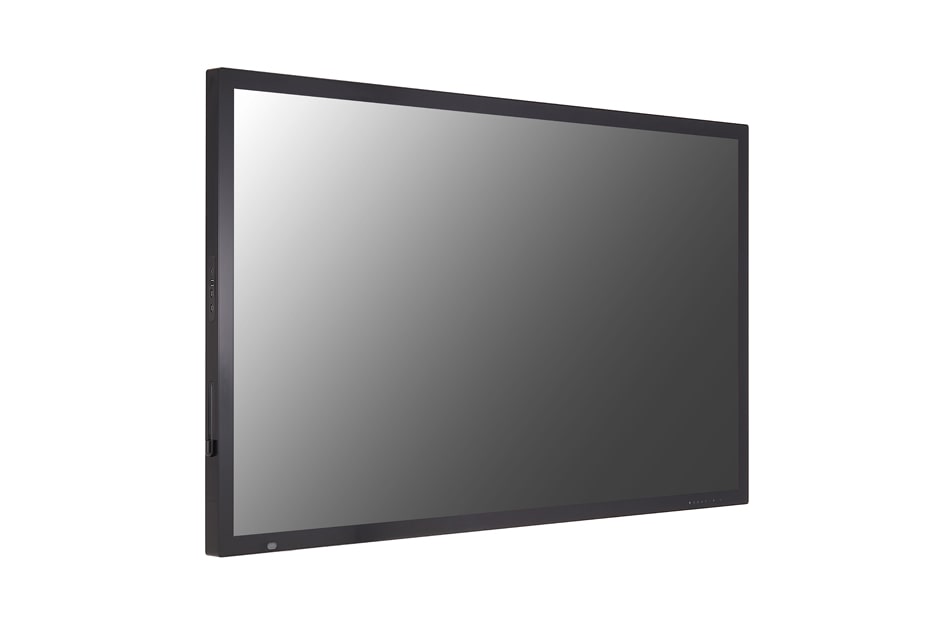

LG Interactive Digital Board, 75TC3D, thumbnail 6

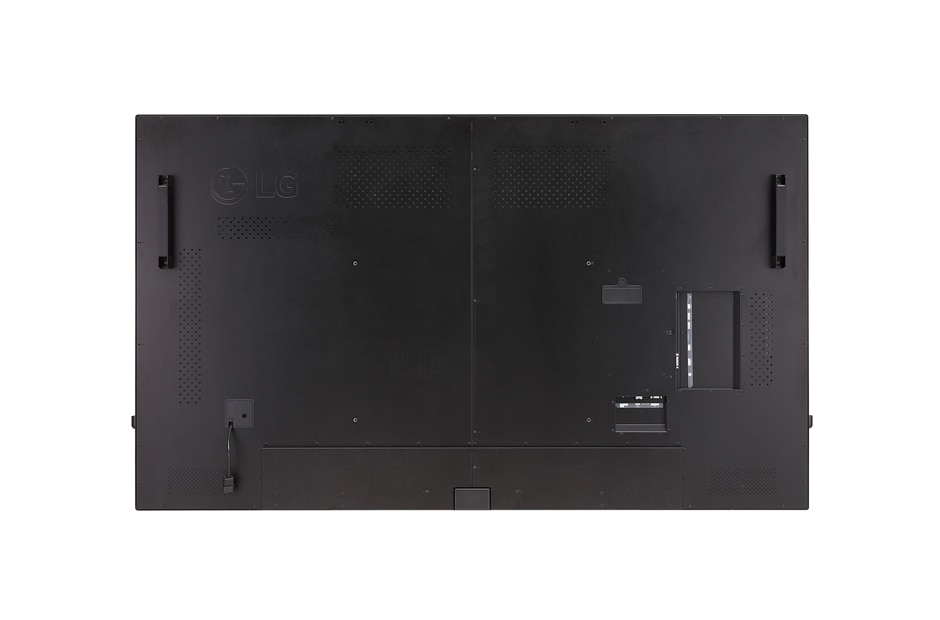

LG Interactive Digital Board, 75TC3D, thumbnail 7

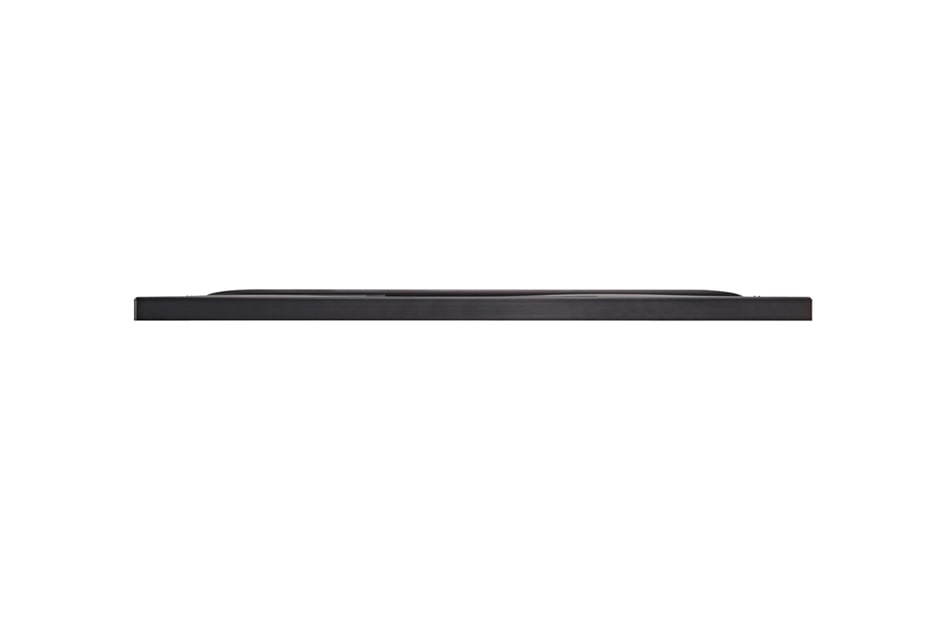

LG Interactive Digital Board, 75TC3D, thumbnail 8

Discontinued

75TC3D component-copyModelName

Interactive Digital Board

Key Features

Brightness(Typ.): 500 cd/m²
Touch Type: P-Cap(Ag Metal Mesh)
Touch Point: Max. 40 points
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 500 cd/m²
Touch Type: P-Cap(Ag Metal Mesh)
Touch Point: Max. 40 points
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Interactive Digital Board

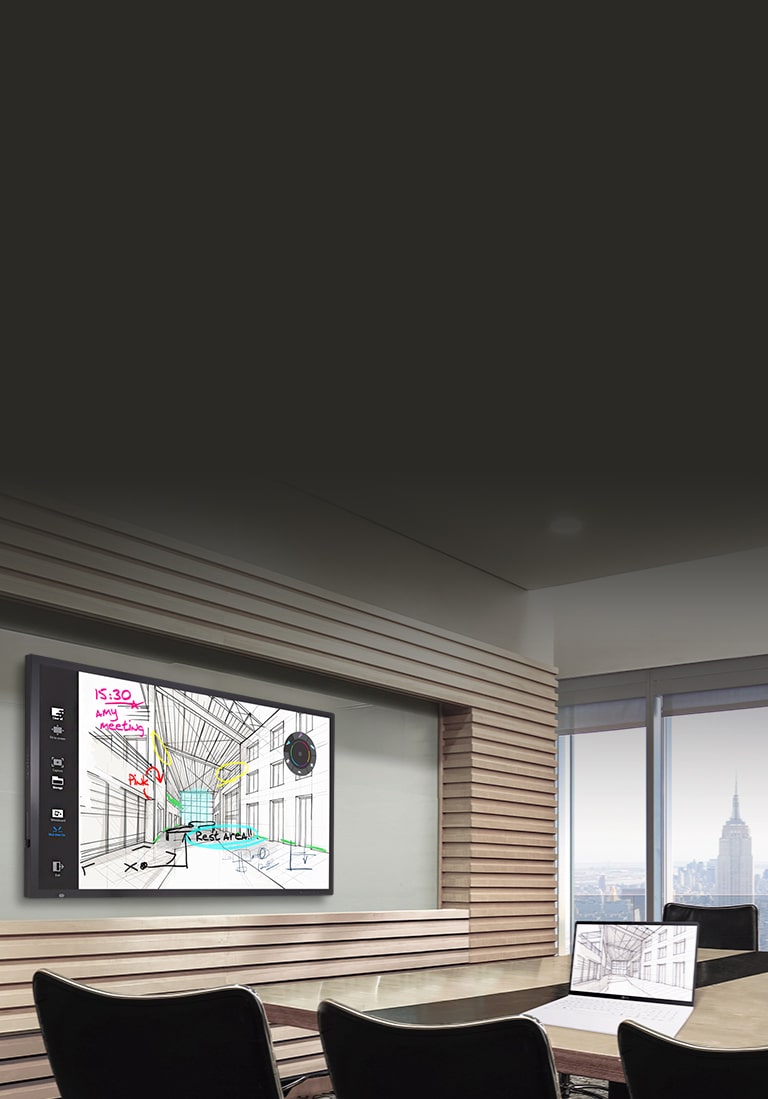

TC3D_01_M01_Be-Smarter-and-Simpler-with-LG-IDB_1521787651407

Embedded LG IDB App & webOS

LG IDB: Do More Smartly, Simply

With the IDB app, based on the webOS smart platform, get rid of the need for a PC or additional software licenses when writing/collaborating on Interactive Digital Board.

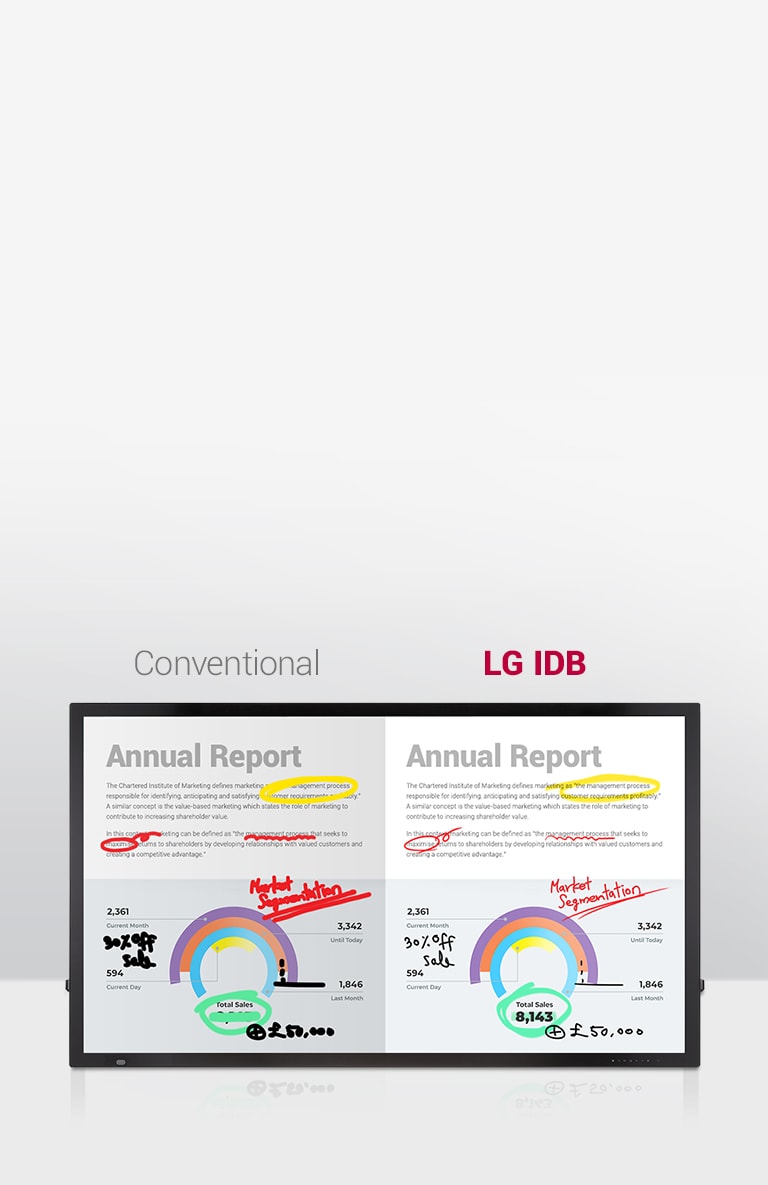

TC3D_02_M01_Intuitive-Touch-and-Writing_1522729379945

Innovative Touch Performance

Intuitive Touch and Writing

Advanced P-Cap touch-technology enables precise touch responses and realistic handwriting. Pen thickness adapts to the writing speed, with support for max. 40 point muli-touch.

TC3D_03_M01_All-in-One-Meeting-Experience_1543296887241_1554854776697

Efficient Collaboration

All-in-One Meeting Experience

For effective collaboration, LG IDB combines once separate processes including participant laptop screen sharing via wired/wireless* connection, writing on a shared screen, and saving annotations.

TC3D_04_M01_The-Superior-Picture-Quality_1521787820161

UHD Resolution

Peerless Picture Quality

With LG IDB's UHD resolution, users can view content in the finest detail, even with full zoom-in. UHD provides the highest-quality media experience at four times higher definition than FHD.

TC3D_05_M01_True-Colors-and-Wider-View_1521787860720

IPS Panel

True Color, Wide View

LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

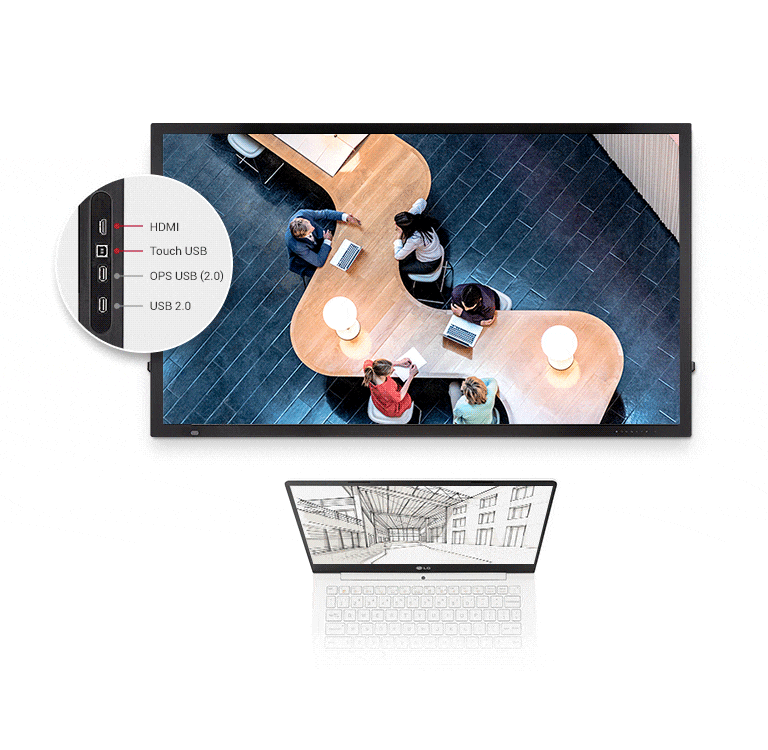

TC3D_06_M02_Quick-and-Easy-to-Share-a-Screen_1521787921827

Auto Signal/Touch Switching

Quick and Easy Screen Sharing

Delivering time-saving functionality, the display can detect input/touch signals and automatically change the source if the new input has higher priority than the previous source.

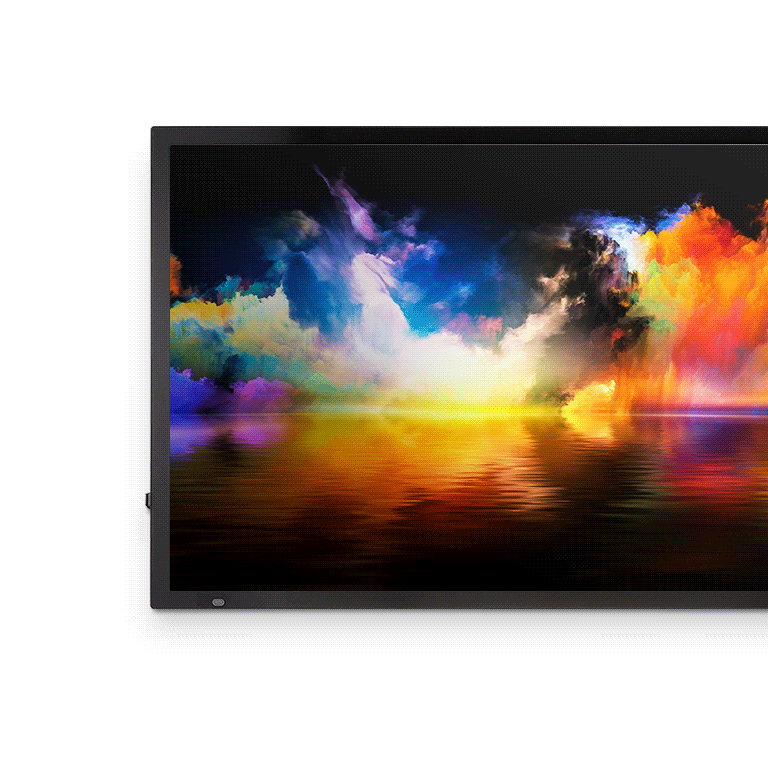

TC3D_07_M03_Easy-to-Call-and-Control-the-Menu_1521788011884

Assistive Touch Menu

Easy Menu Calling, and Control

Providing optimal ease of use, LG IDB users can run desired functions or change settings by softly pressing the screen to call up the Touch Menu.
* The menu design(GUI) is subject to change without notice

TC3D_08_M02_Enjoy-Multi-Screens_1521788079670

PBP/PIP

Enjoy a Multi Screen Experience

Providing enhanced flexibility for users, PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub-screen modes.

Panel

Screen Size

75”

Native Resolution

3,840 x 2,160 (UHD)
Brightness (Module, Typ., cd/m²)

500

Connectivity

Input

HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0

Output

Touch USB 2.0 (2)
External Control

RS232C in/out, RJ45 in

Physical Specification

Bezel Width

41.6 mm(T/L/R/B)

Monitor Dimension (W x H x D)

1,732.8 x 1011.1 x 69.7 mm (w/o Handle)
Weight (Head)

74.5 kg

Carton Dimensions (W x H x D)

1,870 x 1,264 x 285 mm(with pallet)
Packed Weight

94 kg

VESA™ Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power Consumption

Typ.

≤ 240 W

Smart Energy Saving

≤ 170 W

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class “A” / CE / KCC
ErP / Energy Star

Yes (EU Only) / No

Software Compatibility

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign Link

Minimum Requirements for LG IDB Duo

OS (Windows 32bit or 64bit)

Windows 7, Windows 10

OS (macOS)

macOS 10.12 Sierra, MacOS 10.13 High Sierra
CPU (Windows)

2.7GHz+ Dual Core Broadwell or higher

CPU (macOS)

Any CPU which supports Sierra or High Sierra
Memory

4GB RAM

Hard Drive

1GB of free space
Graphics Hardware (Windows)

Intel Iris or higher, Nvidia, ATI

Graphics Hardware (macOS)

Any GPU which supports Sierra or High Sierra

Accessory

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea)

Optional

OPS Kit (KT-OPSA), Wall Mount(LSW640A/B)

Touch

Touch type

P-Cap(Ag Metal Mesh)

Available object size for touch

more than Ø 6 mm
Accuracy

2 mm

Interface

USB 2.0
Protection Glass Thickness

4T (Anti-Glare)

Multi touch point

Max. 40 Points

Dimension
- 75TC3D_dimension.dwg
- 75TC3D_dimension.pdf
Datasheet
- 2018_LG_IDB_brochure_preview_11804.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
