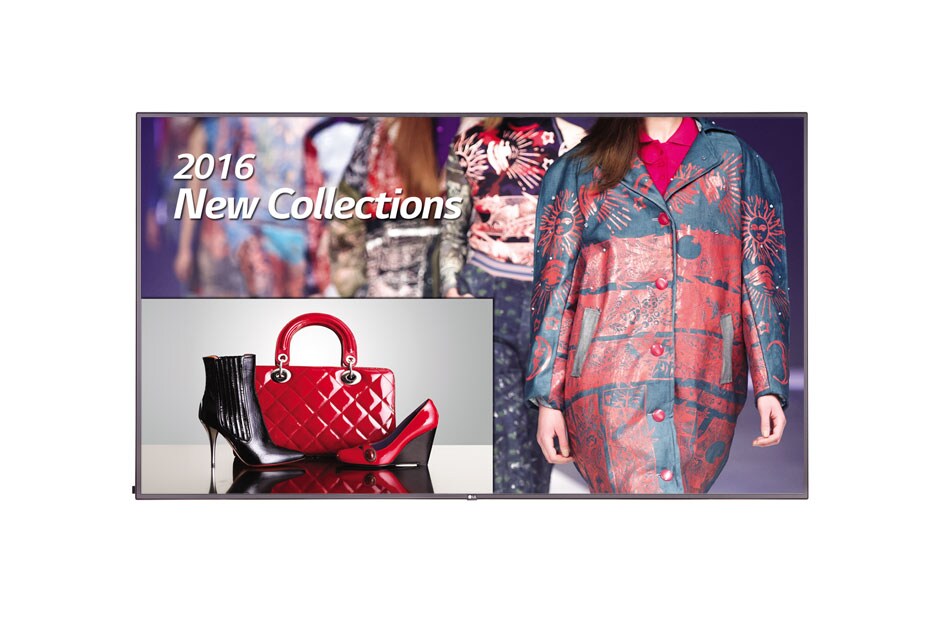

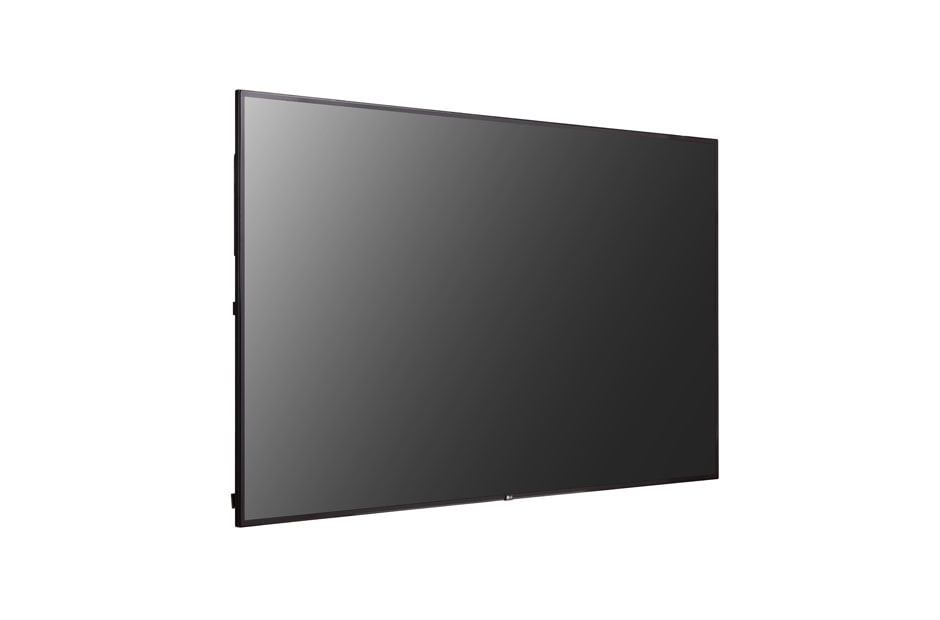

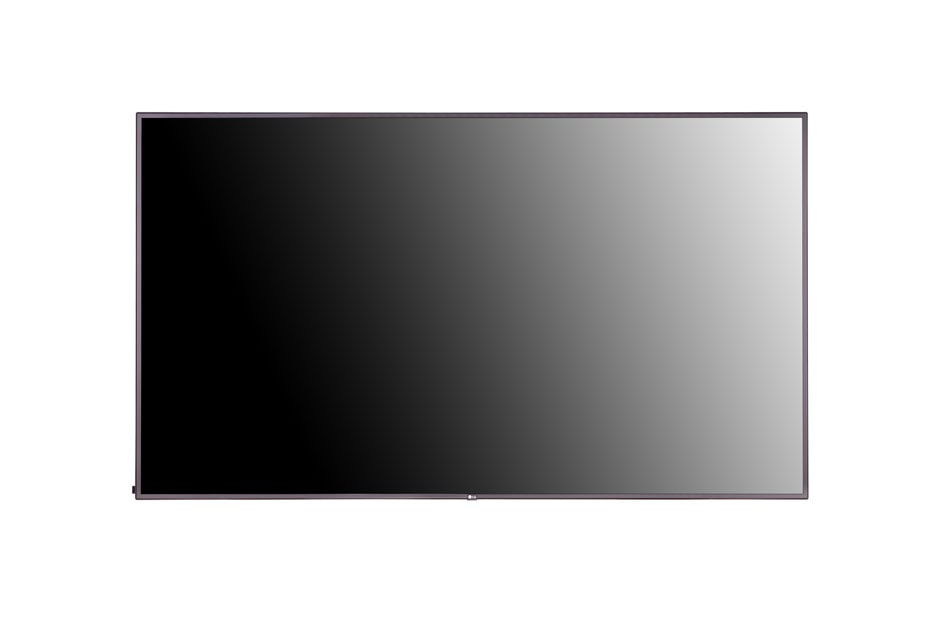

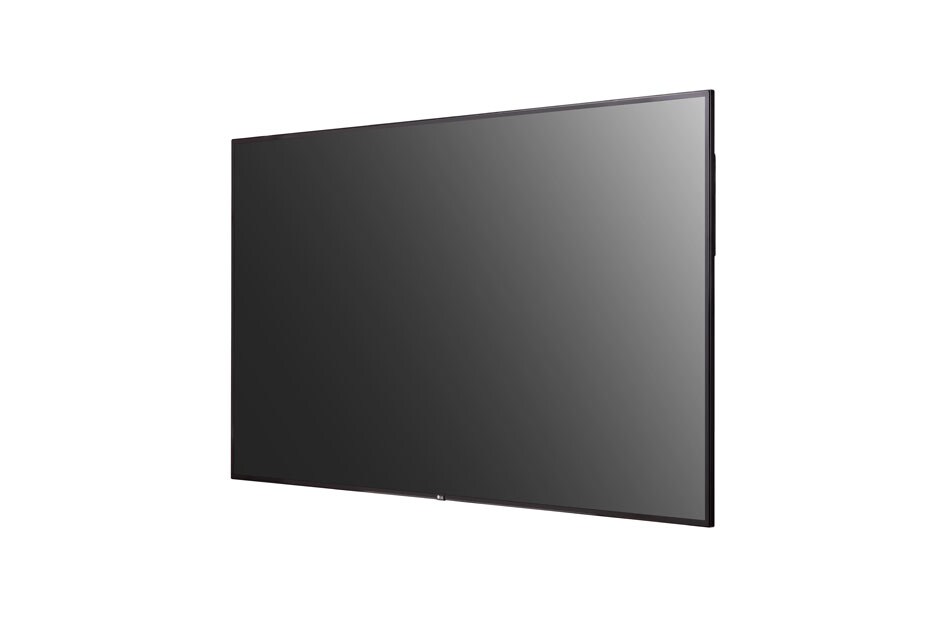

Ultra HD Large Display

Key Features

component-OBScountrySelectDesc

Ultra HD Large Display
Panel
  • Screen Size
    75"

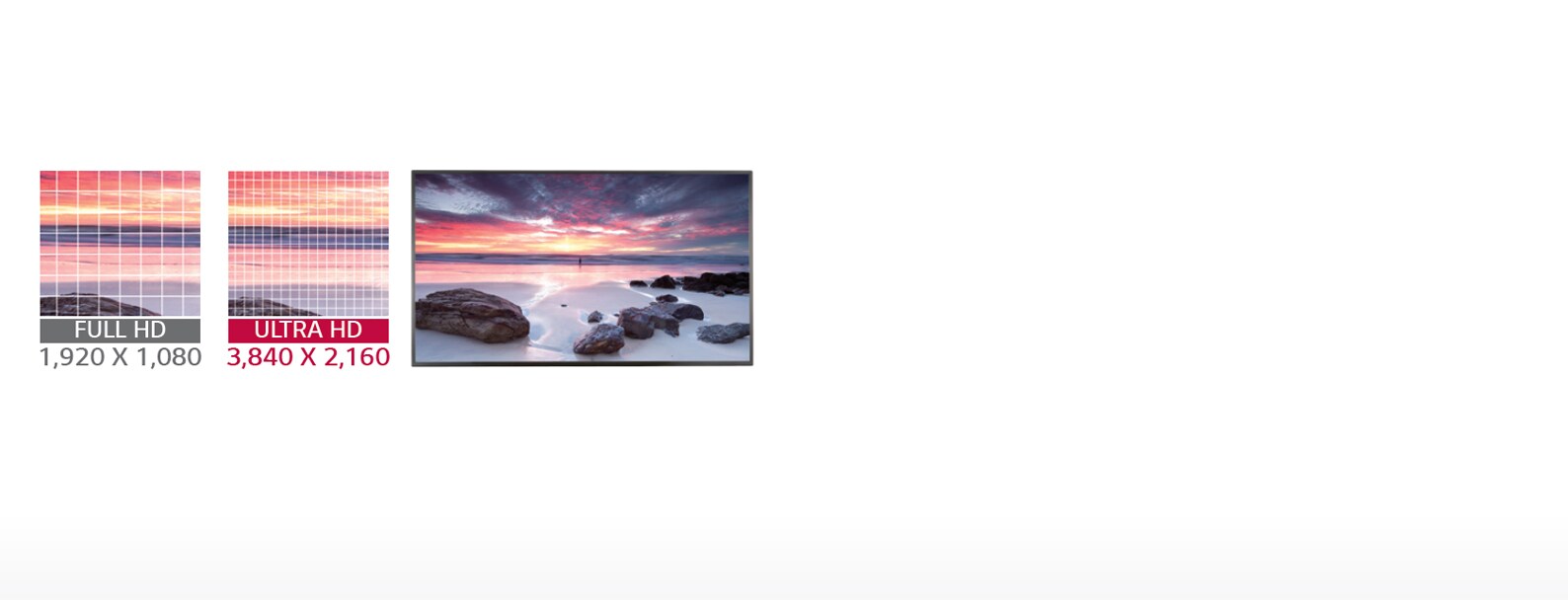

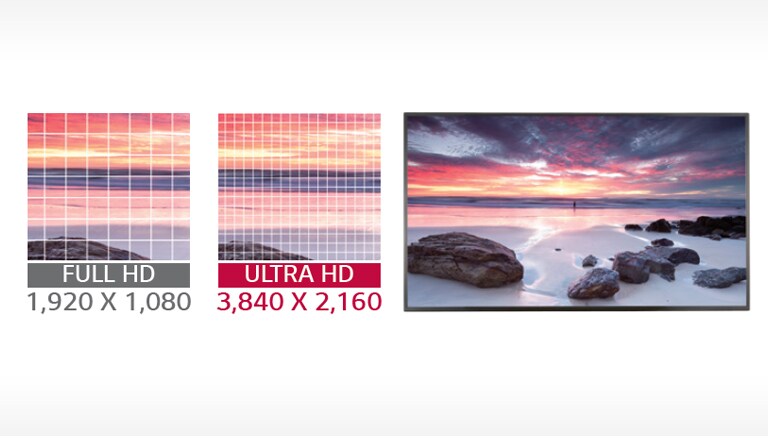

    Resolution
    3,840 x 2,160 (UHD)
  • Brightness (Typ., cd/m²)
    500
Connectivity
  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0, SD Card
    Output
    DP, Audio
  • External Control
    RS232C, RJ45, IR Receiver, Pixel Sensor
Physical Specification

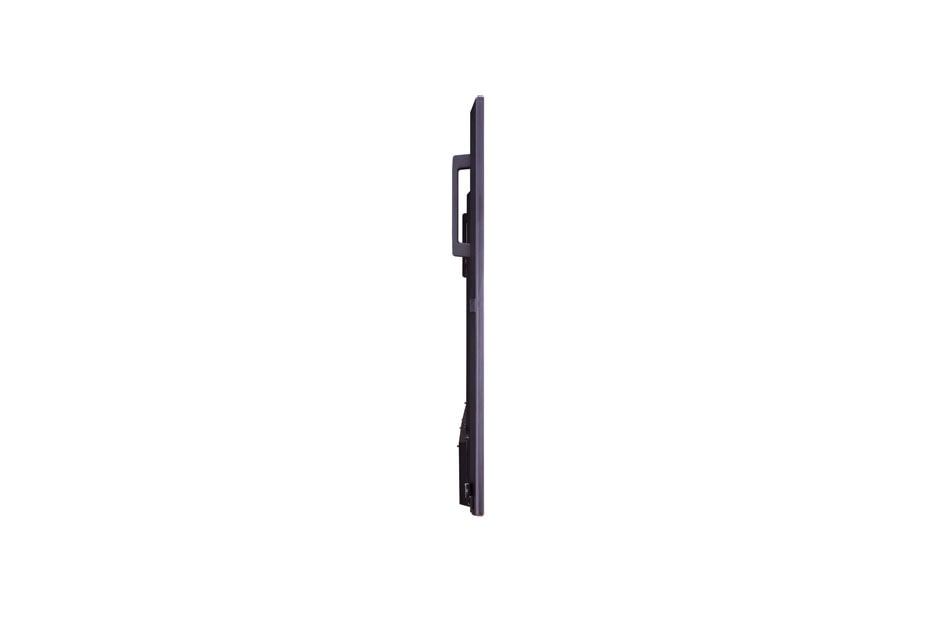

  • Bezel Width
    14.9 mm (Off-bezel)
    Monitor Dimension (W x H x D)
    1,682.4 x 963.3 x 59.5 mm (Without Handle, with LG logo)
  • Weight (Head)
    41.5kg
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power Consumption
  • Typ.
    160 W
    Smart Energy Saving
    120 W
Standard(Certification)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    No / Energy Star 7.0
Media Player Compatibility

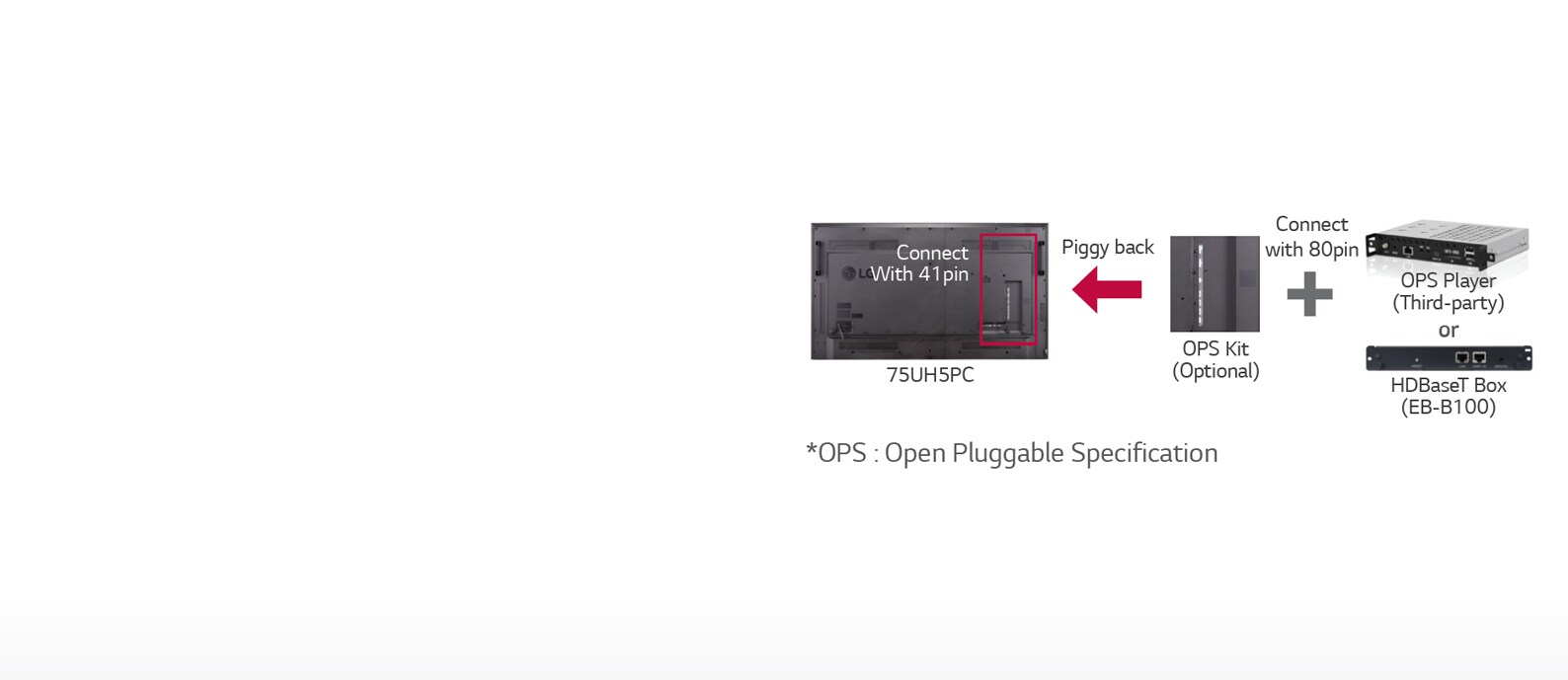

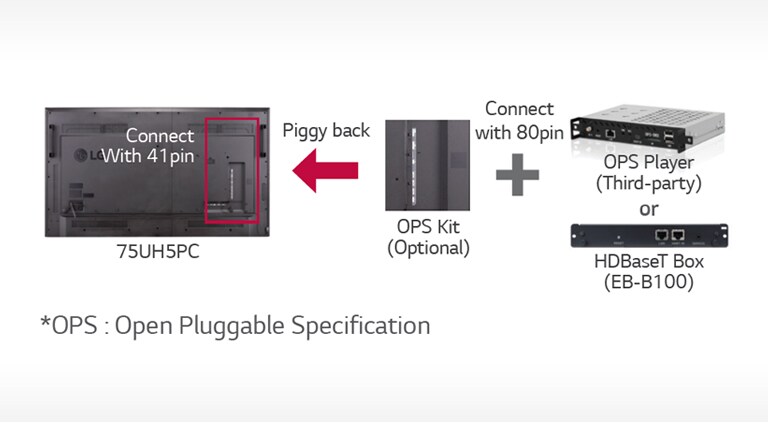

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)
Software Compatibility

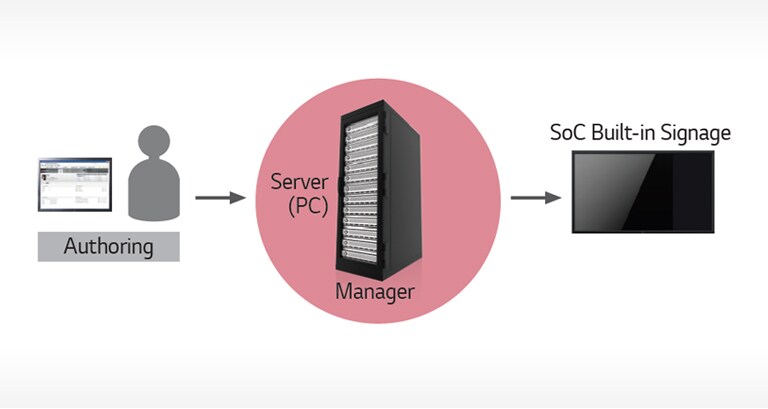

  • Content Management Software

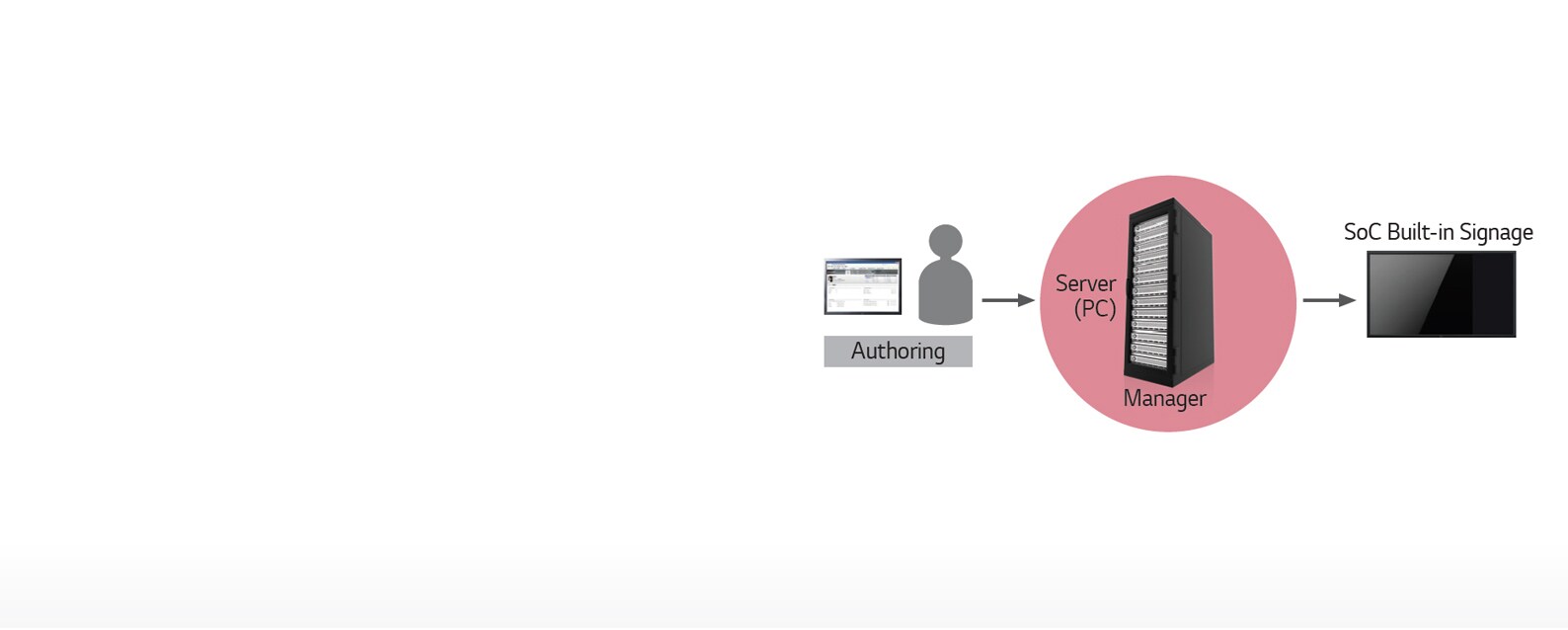

    SuperSign W

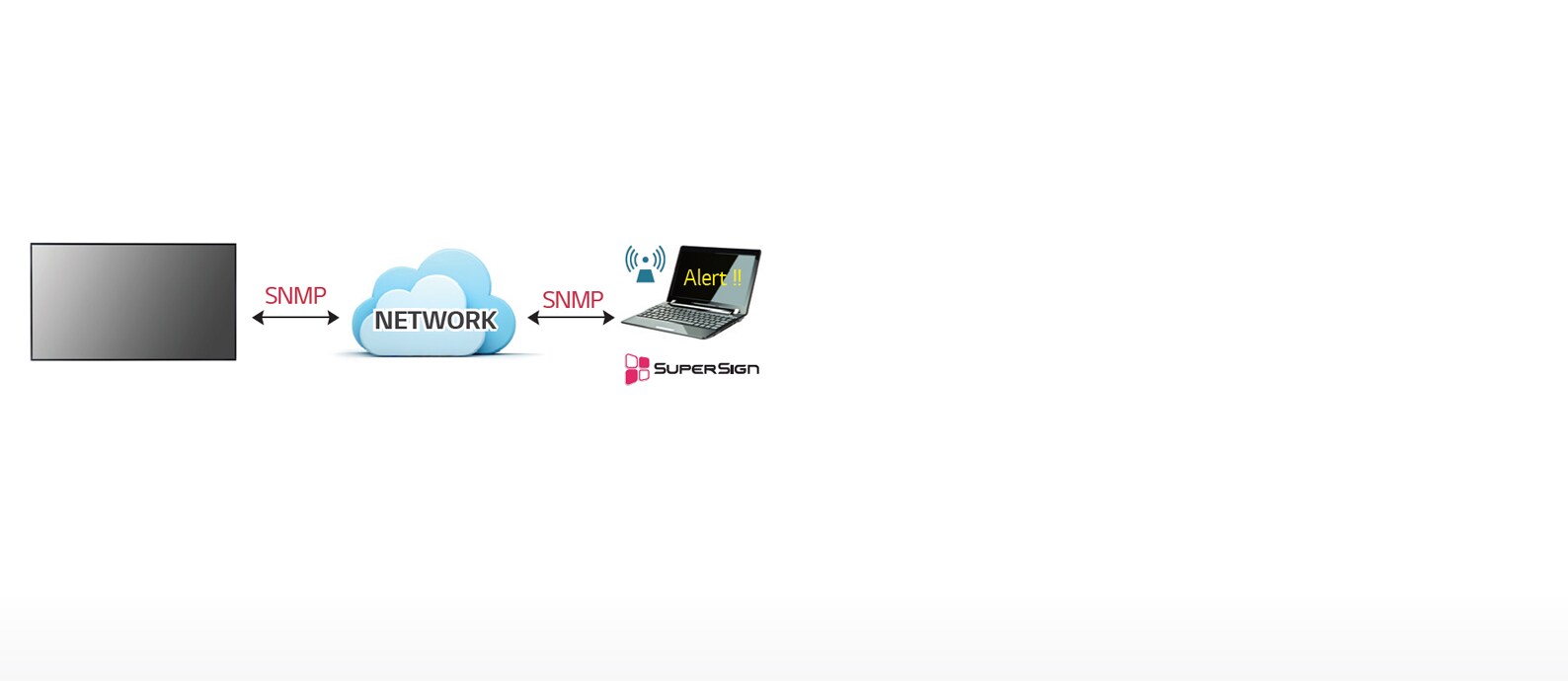

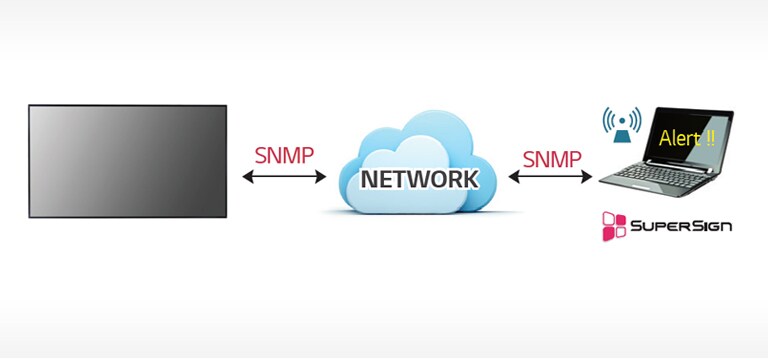

    Control and Monitoring Software
    SuperSign C
Accessory
  • Basic
    Remote Controller (include 2ea batteries), Power Cord, QSG, DP 1.8M, Regulation Book, Phone to RS232C Gender, Memory Cover
    Optional
    Pixel Sensor (KT-SP0), Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100), LSW640A/B (Wall Mount)
  • Datasheet
    • 75UH5PC Leaflet(preview) 11704.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
