75UM3C component-copyModelName

UM3C Series

Discontinued

75UM3C component-copyModelName

UM3C Series

Key Features

Brightness(Typ.) : 350cd/m²
Bezel : 14.9 mm Even Bezel
Depth : 57.9mm (without logo/handle)
Interface : DP / HDMI / DVI / RS232C / RJ45 / Pixel Sensor / SD Card / USB

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350cd/m²
Bezel : 14.9 mm Even Bezel
Depth : 57.9mm (without logo/handle)
Interface : DP / HDMI / DVI / RS232C / RJ45 / Pixel Sensor / SD Card / USB

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

UM3C Series

Outstanding Picture Quality

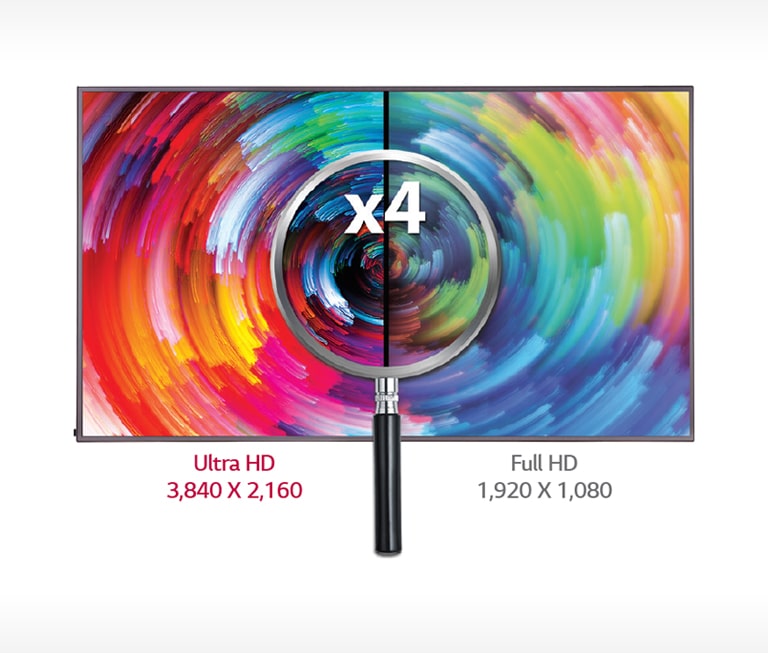

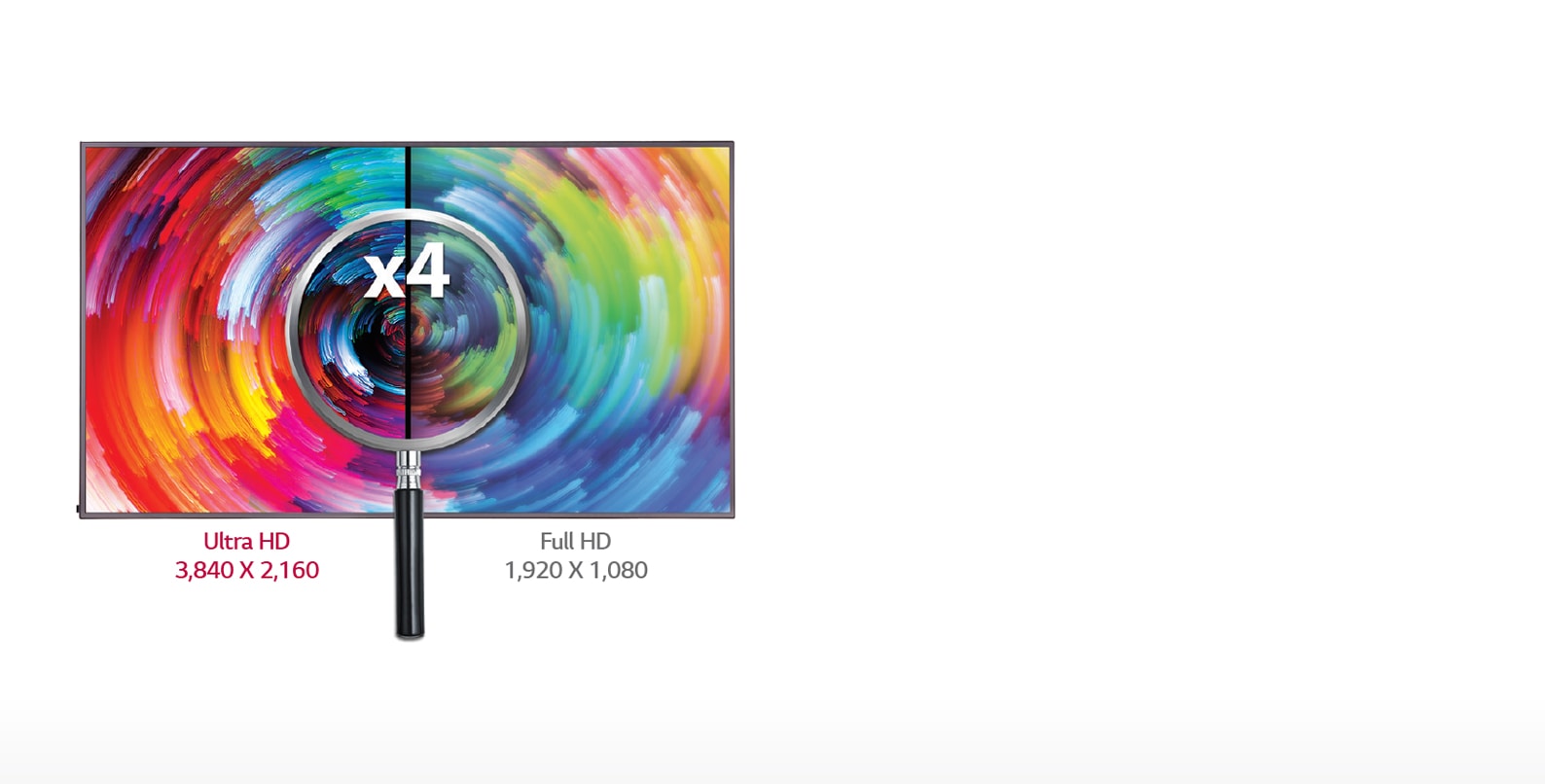

Ultra HD Resolution

Ultra HD large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD, which enables to describe fine details without distortion. Especially UM3C series ensures stable UHD video playback by supporting HEVC* that offers double data compression ratio at the same level of video quality compared to the conventional H.264.
*HEVC: High Efficiency Video Coding Highly Reliable

Supportive Convenience

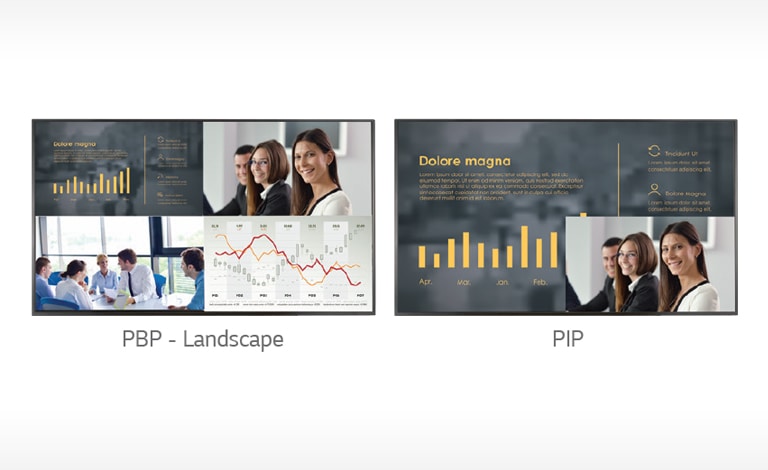

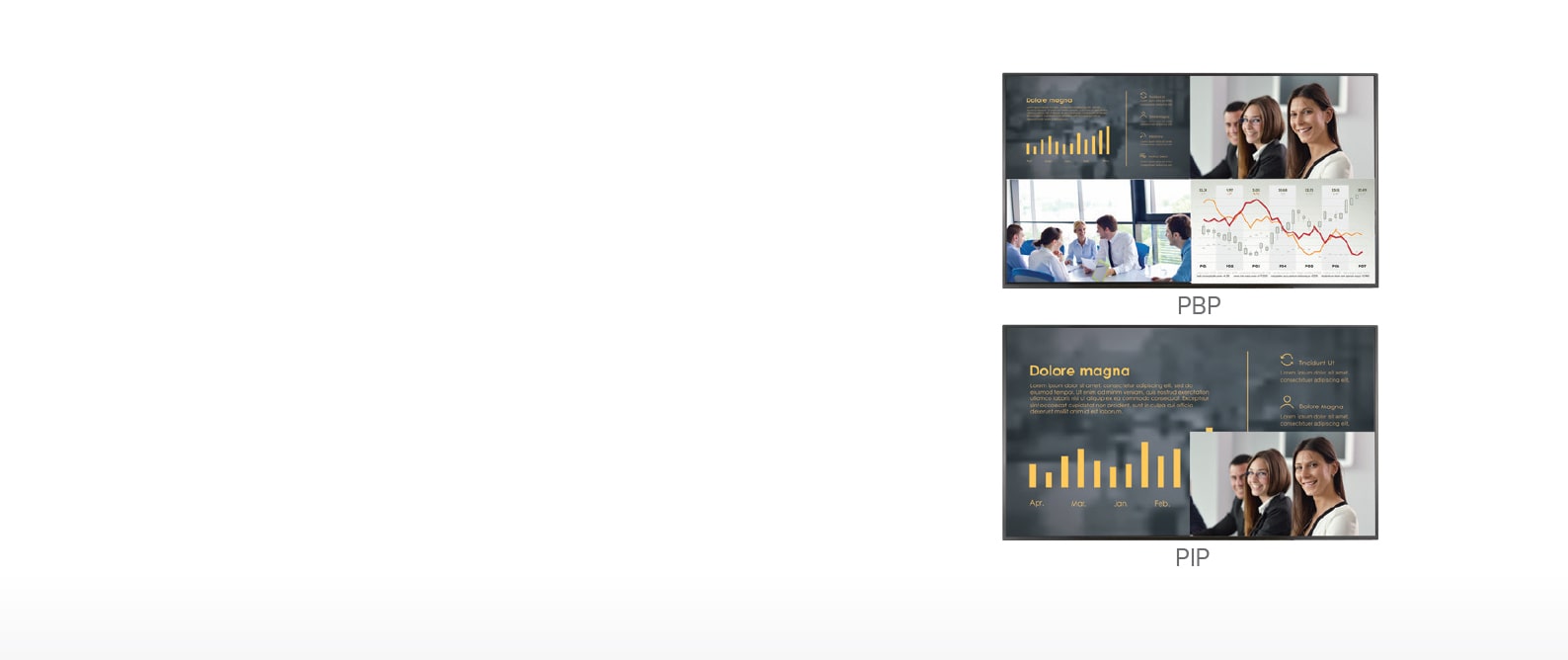

Multiple screen by PBP/PIP

PBP (Picture-By-Picture) features multi screen in a single display with upto 4 input sources, thus maximizing the usability of large UHD display. In addition, PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts, so that users can arrange many different usage scenarios efficiently.

Supportive Convenience

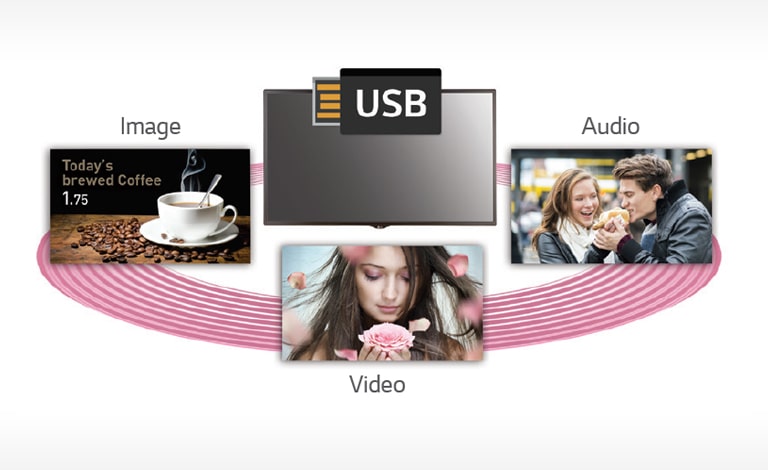

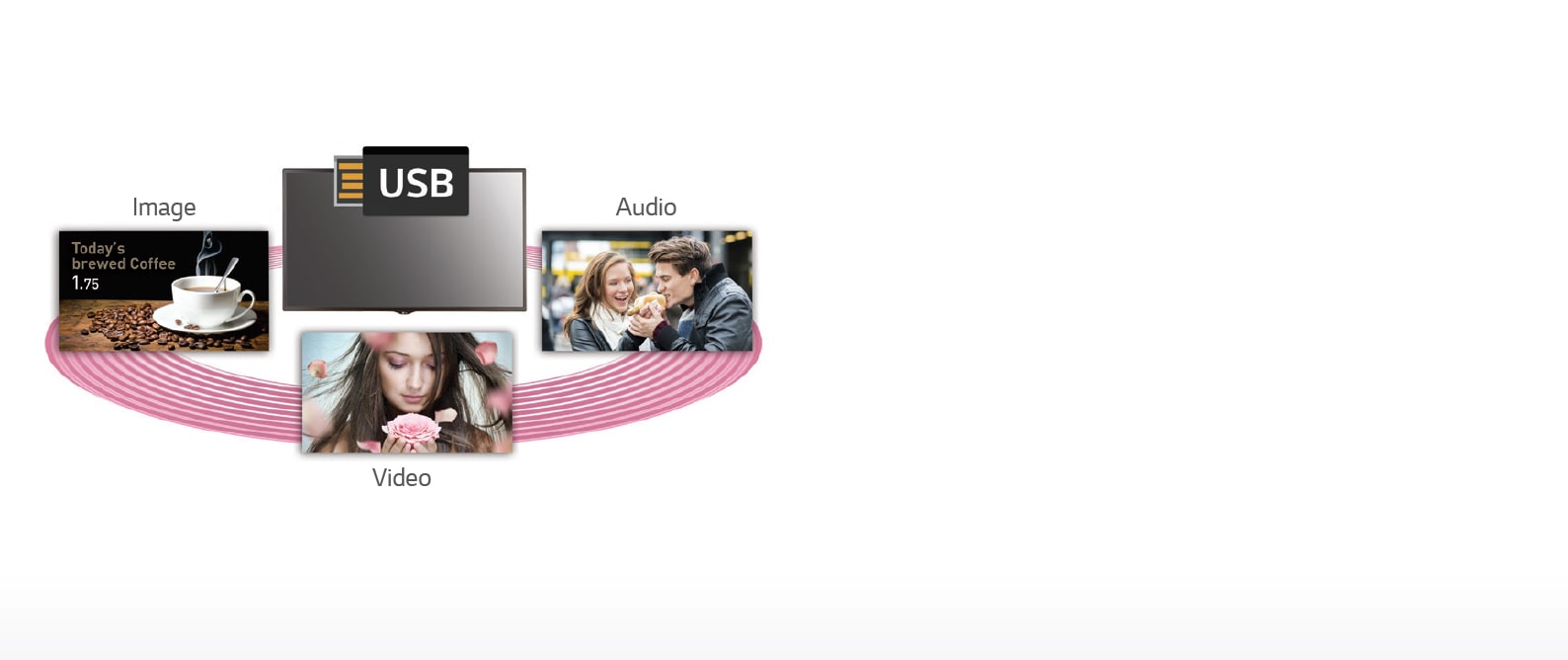

USB Contents Playback and Scheduling

Contents can be simply played and scheduled via USB, so additional server connection is not required, enabling easy content management.

Supportive Convenience

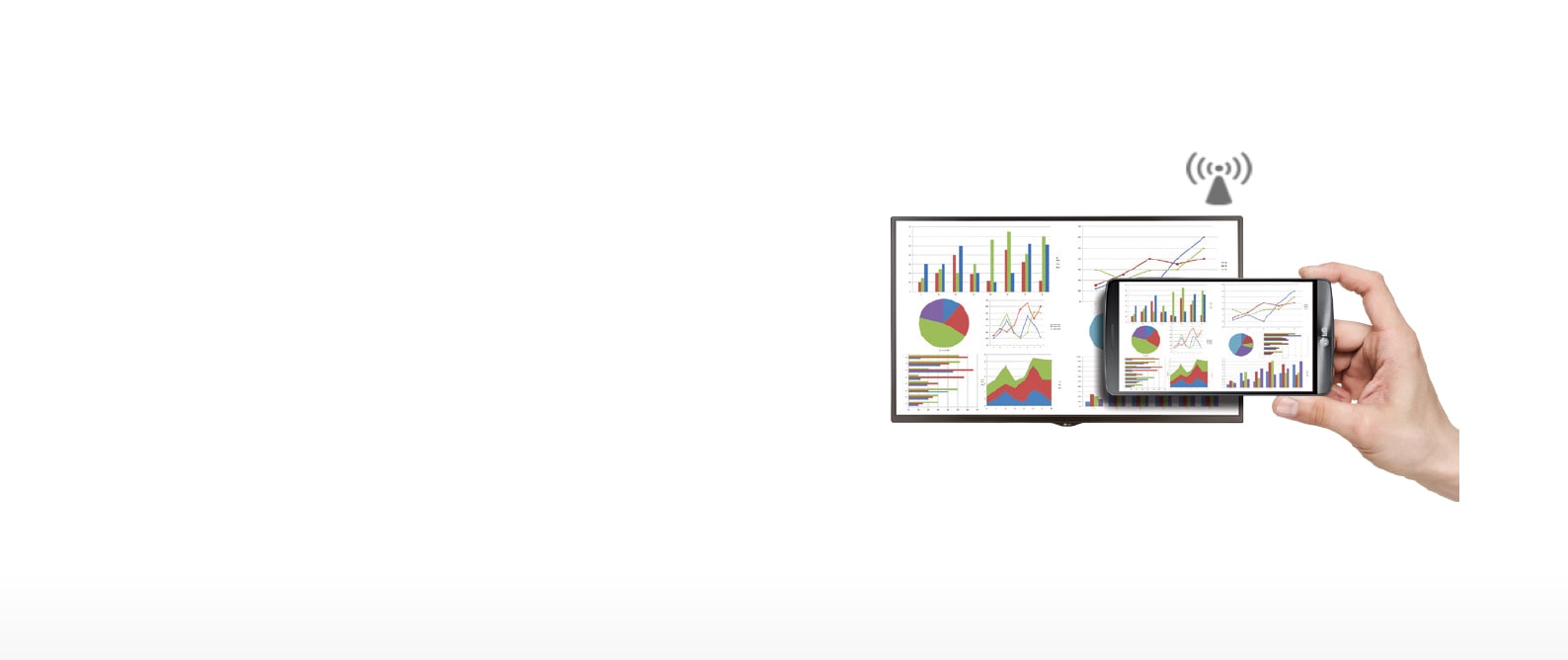

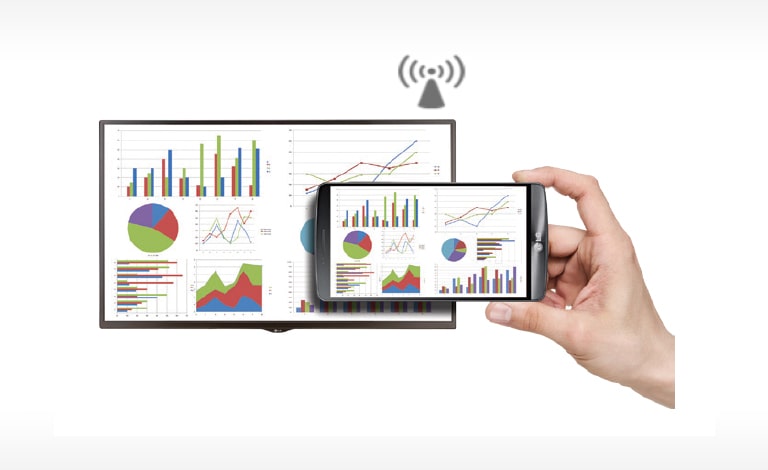

Wireless Solution

UM3C series supports wireless services for more optimized user experience with built-in Wi-Fi(802.11n). Mirroring supports sharing contents among devices on a Wi-Fi network and Soft AP makes the display operate as a wireless access point for other digital devices.

Highly Reliable Compatibility

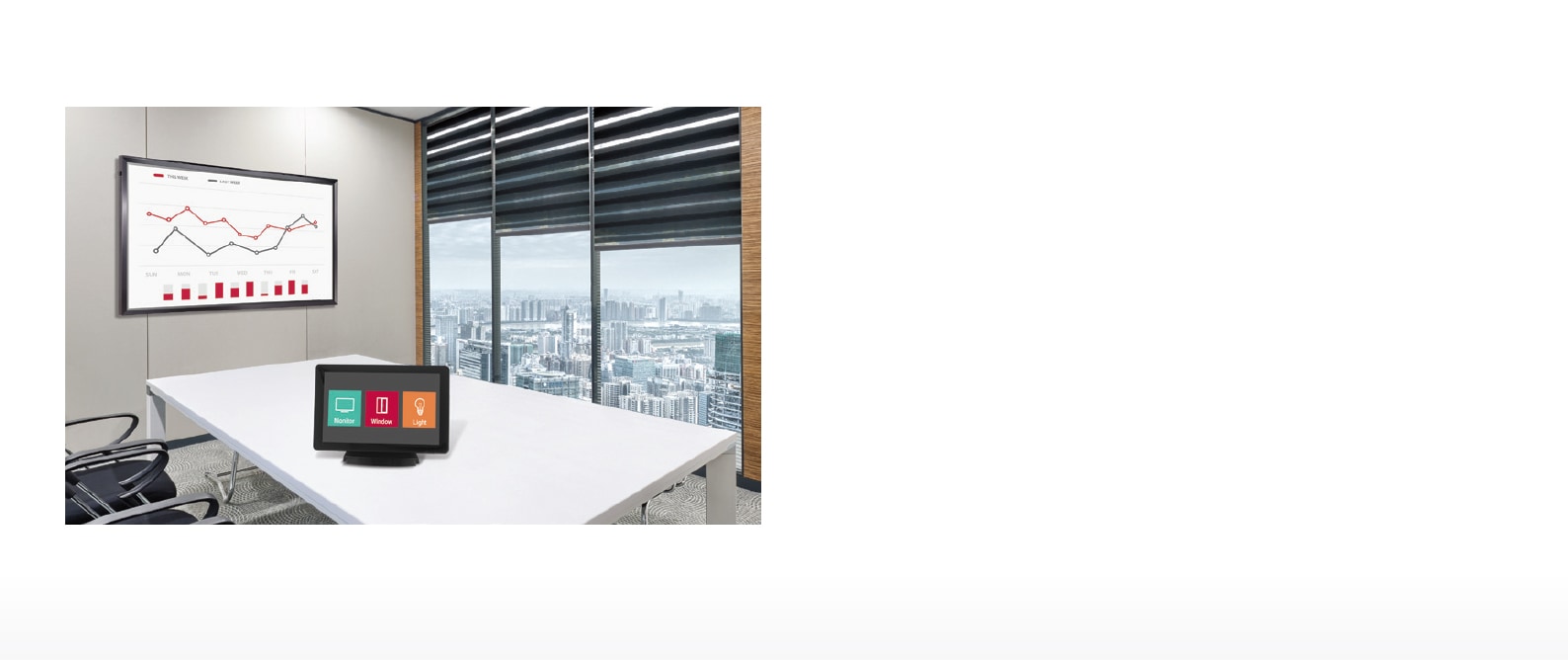

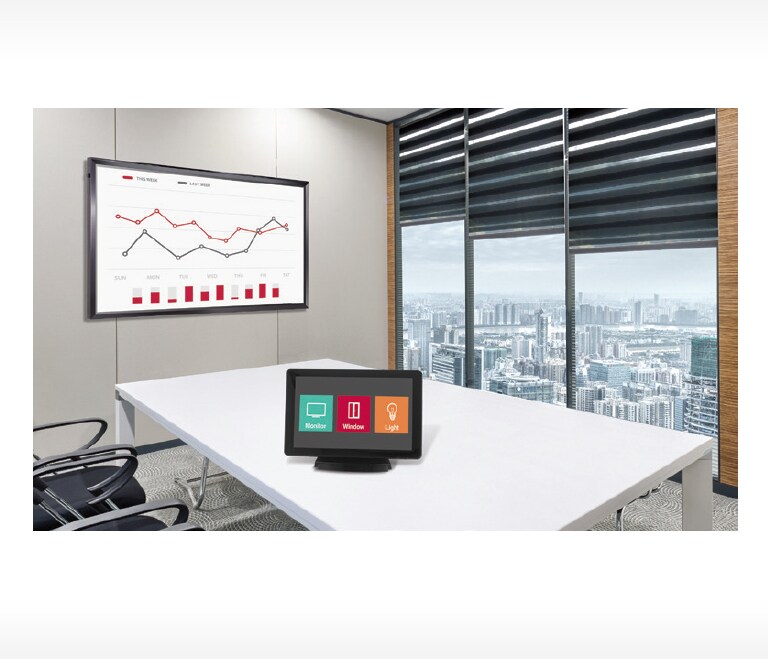

Compatibility for Meeting Room

UM3C series ensures secured compatiblity with AV control Systems for seamless integration and automated control in meeting rooms, boosting business management efficiency.

Highly Reliable Compatibility

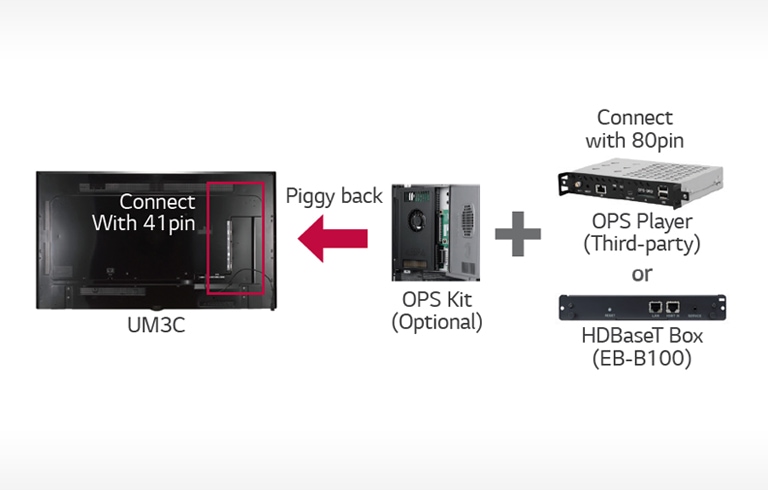

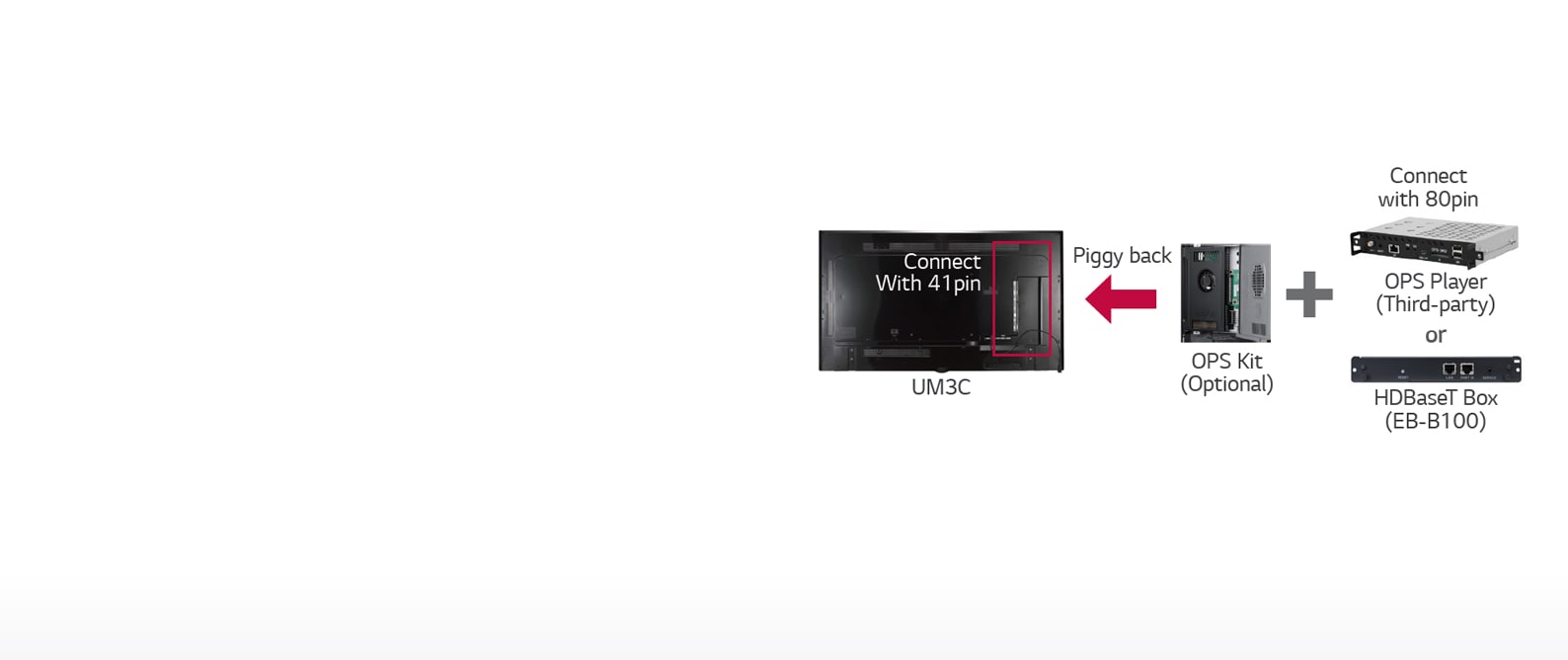

OPS / HDBaseT Connectivity

The UM3C provides an OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.

Smart Platform

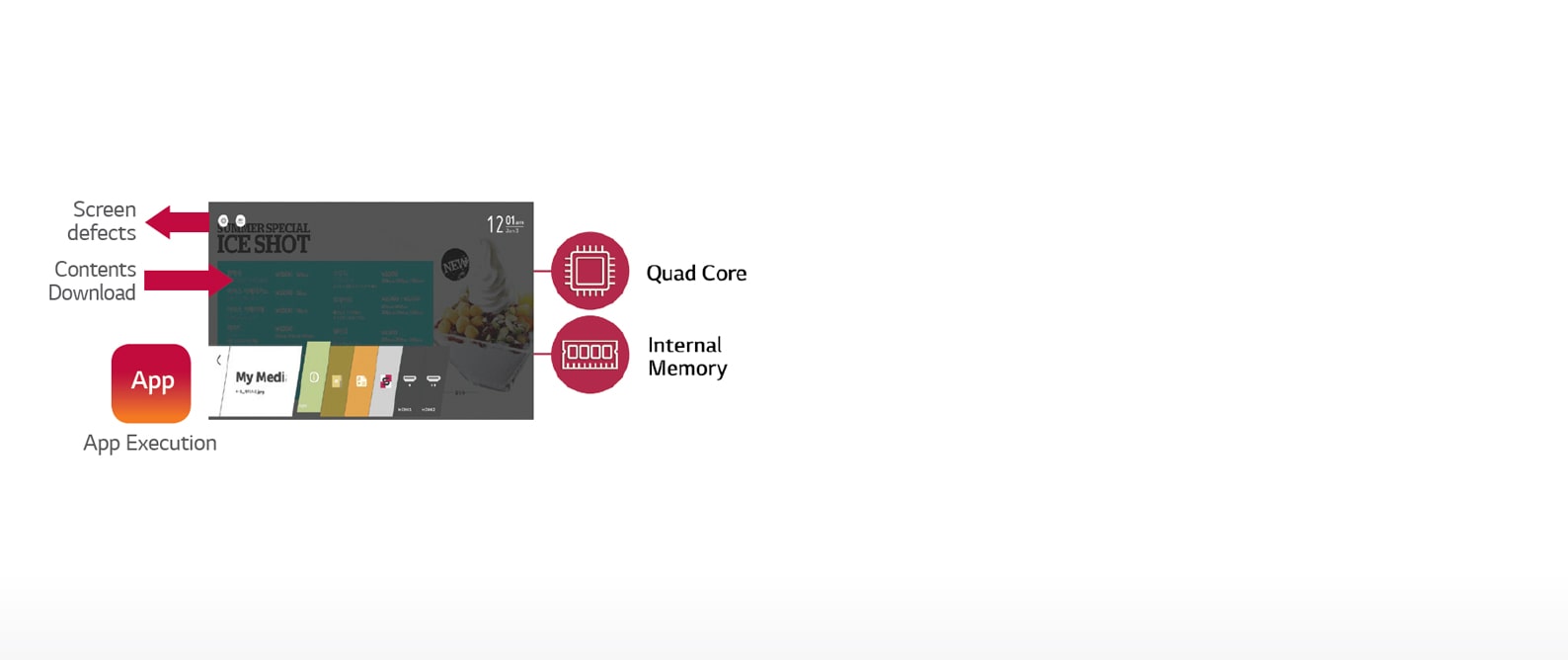

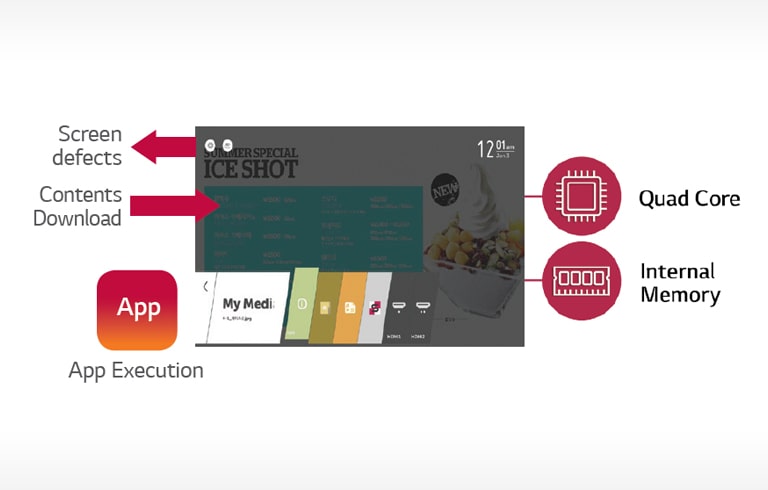

High-Performance SoC with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player, saving TCO. Due to its internal memory (8GB), pre-loaded contents are displayed without external inputs. In addition, webOS platform enhances user convenience with intuitive UI and simple app development tools.
*System on Chip

Sleek Design

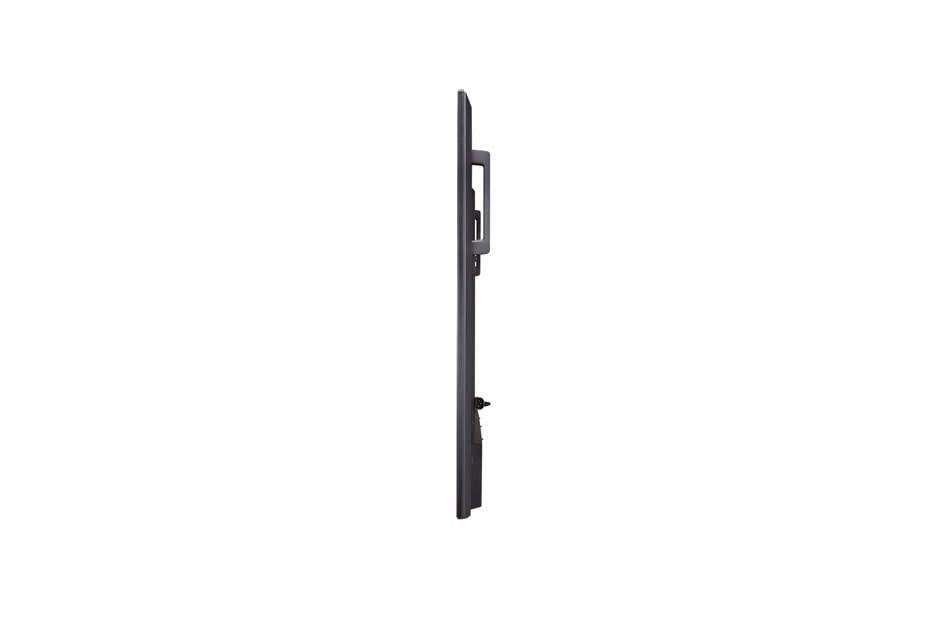

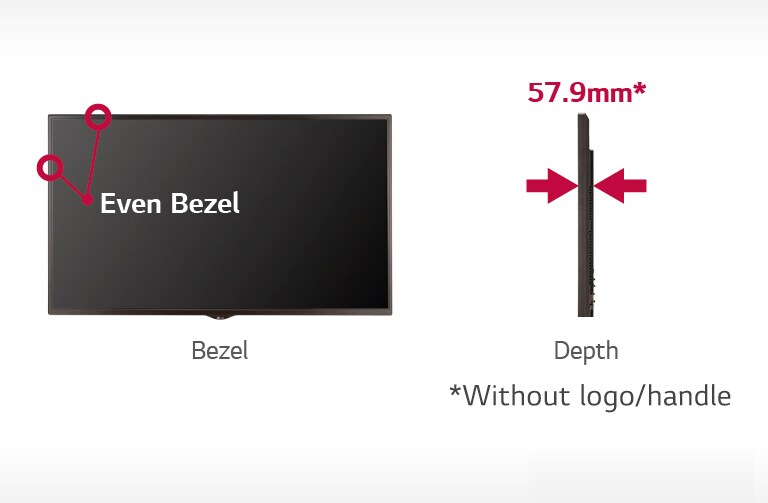

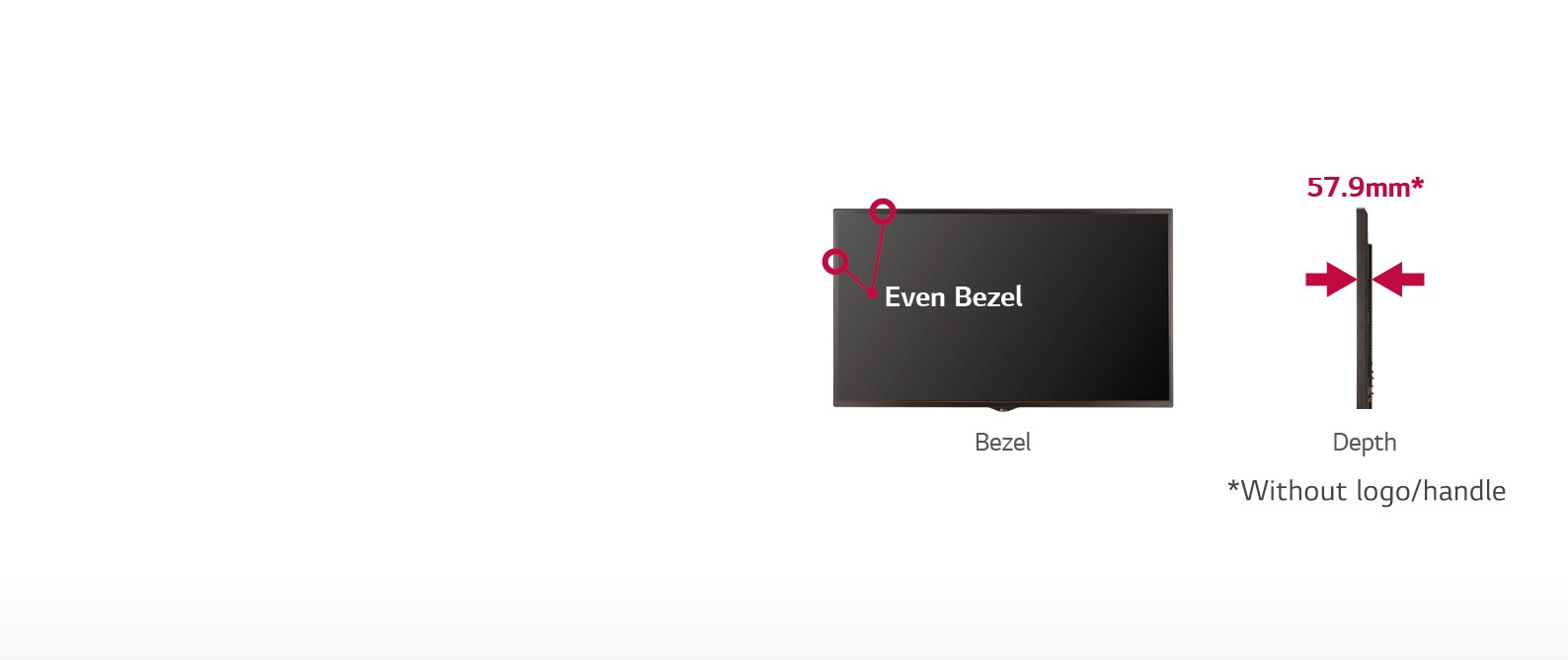

Slim Depth & Even Bezel

The slim depth and even bezel allows an easy installation and a perfect fit for a sleek look.

Sleek Design

Detachable Logo

The detachable logo allows for installation in the desired orientation in landscape or portrait mode.

Panel

Screen Size

75"

Resolution

3,840 x 2,160 (UHD)
Brightness(Typ.,cd/m²)

350

Connectivity

Input

HDMI, DP, DVI-D, Audio, USB 3.0, SD Card

Output

DP, Audio
External Control

RS232C, RJ45, IR Receiver, Pixel Sensor

Physical Specification

Bezel Width

On: 15.8mm, Off: 14.9mm

Monitor Dimension (W x H x D)

1,682.37 x 960.3 x 57.9mm (without logo / handle)
Weight (Head)

41.5kg

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

160W

Smart Energy Saving

115W

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS type compatible

Yes

External Media player Attatchable

Yes (MP500/MP700)

Software Compatibility

SuperSign-w lite

Yes

SuperSign-c

Yes

Accessory

Basic

Remote Controller (include 2ea batteries), Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, Memory Cover

Optional

Pixel sensor (KT-SP0), Media player, OPS Kit (KT-OPSA), HDBaseT (EB-B100)

Dimension
- [Drawing] 75UM3C_75UH5C.dwg
- [Drawing] 75UM3C_75UH5C.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
