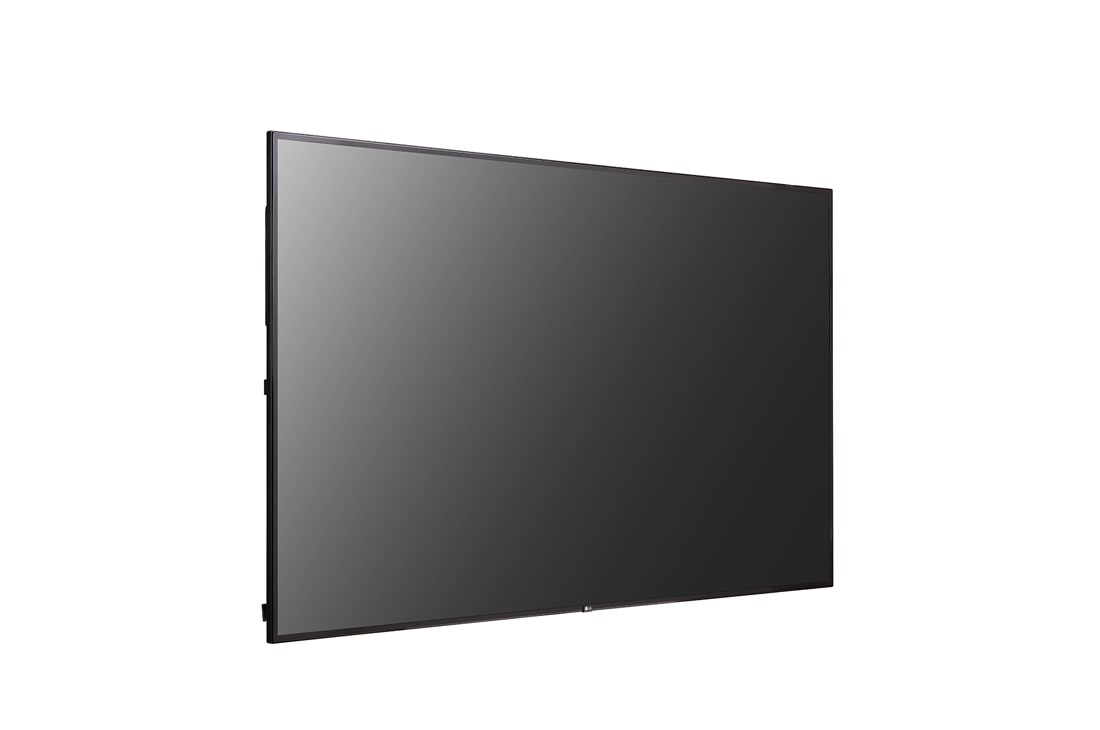

75UH5J-M component-copyModelName
UHD Standard Signage

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75UH5J-M)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75UH5J-M)
    $
    $
    LG Members Price
Total
UHD Standard Signage
Contact Us

New High Haze UHD
Standard Signage

A screen showing the meeting’s contents is installed on the meeting room’s wall. A screen showing the meeting’s contents is installed on the meeting room’s wall.
* All images in this page are for illustrative purposes only.
75UH5J-M has a brightness of 500 nits, so it is clearly visible, even under strong light. 75UH5J-M has a brightness of 500 nits, so it is clearly visible, even under strong light.

Adequate Brightness Level

The 75UH5J-M series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

* Actual images available may differ from the example images shown.
A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Conformal Coating

In various places the 75UH5J-M series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting 75UH5J-M series from salt, dust, iron powder, humidity, etc.
The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment. The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
* Actual images (signage display) available may differ from the example images shown.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
IP5x Certified Design1 IP5x Certified Design2

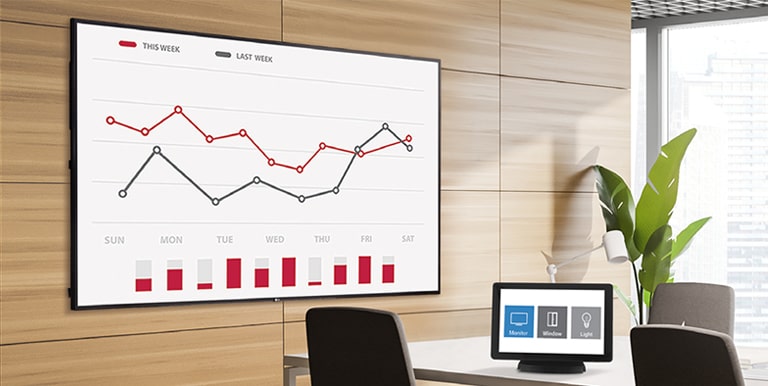

Compatible with AV Control System

The 75UH5J-M series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
The AV control system helps users control the 75UH5J-M. The AV control system helps users control the 75UH5J-M.
* Network based control
Close
Info
  • Product
    Standard (UHD)
    Year
    Y22
  • Month
    M06
Panel
  • Screen Size (Inch)
    75
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16 : 9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    120Hz
  • Brightness (Typ.)
    500nit(typ.)
    Contrast Ratio
    1,000:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle(H x V)
    178 X 178
    Color Depth
    10 bit(D), 1.07Billion colors
  • Response Time
    6ms (G to G)
    Surface Treatment(Haze)
    Haze 28%
  • Life time
    50,000Hrs (Typ.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
Connectivity(Jack Interface)
  • HDMI IN
    Yes(3)
    HDMI1/HDMI2 : HDCP 2.2/1.4
    HDMI3 : HDCP 1.4
    DP IN
    Yes(1), HDCP2.2/1.3
  • DVI-D IN
    Yes(1), HDCP1.4
    Audio IN
    Yes(1)
  • RS232C IN
    Yes(1), 4pin Phone-jack
    RJ45(LAN) IN
    Yes(1)
  • IR IN
    Yes(1)
    USB IN
    USB2.0 Type A(1)
  • HDMI Out
    Yes(1)
    Audio Out
    Yes(1)
  • RS232C Out
    Yes(1), 4pin Phone-jack
    Daisy Chain
    Yes(Input HDMI, DP / Output HDMI)
Mechanical
  • Bezel Color
    Black
    Bezel Width
    Even bezel : 14.9mm
  • Weight (Head)
    41.5Kg
    Packed Weight
    51.2Kg
  • Monitor Dimensions (W x H x D)
    1682.4 x 960.3 x 57.9mm (without Handle and LG Logo)
    Carton Dimensions (W x H x D)
    1816 x 1123 x 228mm
  • Handle
    Yes
    VESATM Standard Mount Interface
    600 x 400
HW Feature
  • Internal Memory (eMMC)
    16GB
    Wi-Fi (Built-in)
    Yes
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    Yes
  • Acceleration(Gyro) Sensor
    Yes
    Local Key Operation
    Yes
  • Speaker (Built-in)
    Yes
SW Feature
  • OS ver.
    webOS6.0
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    PIP
    Yes
  • PBP
    Yes (4)
    Screen Share
    Yes
  • Video Tag
    Yes (4)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes (Max. 15x15)
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Crestron Inside
    Yes
    Smart Energy Saving
    Yes
  • PM mode
    Yes
    Wake on LAN
    Yes
  • Network Ready
    Yes
    Beacon
    Yes
  • HDMI-CEC
    Yes
    SI Server Setting
    Yes
  • webRTC
    Yes
    Pro:Idiom
    Yes
Environment Conditions
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ.)
    170W
    Power Consumption (Max.)
    230W
  • Power Consumption (British Thermal Unit)
    581 BTU/Hr(Typ.), 785 BTU/Hr(Max)
    Power Consumption (Smart Energy Saving, ~70%)
    120W
  • Power Consumption (DPM)
    0.5W
    Power Consumption (Power Off)
    0.5W
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (NewErP) / Yes
OPS Compatibility
  • OPS Type Compatible
    Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Cloud
    Yes
  • Mobile CMS
    Yes
    Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
    Optional
    OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)
Special Feature
  • Conformal Coating (Power Board)
    Yes
