75XF3P-BP component-copyModelName
Open-frame Display

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75XF3P-BP)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75XF3P-BP)
    $
    $
    LG Members Price
Total
Open-frame Display
Contact Us

Customizable Open-frame Display for Smart Effciency

There are two 75XF3Ps installed in the drive-thru zone at the burger place, and they vividly display the burger menu and ads even in bright sunlight. There are two 75XF3Ps installed in the drive-thru zone at the burger place, and they vividly display the burger menu and ads even in bright sunlight.
* All images in this page are for illustrative purposes only.

Open-frame Outdoor Display

LG Open Frame display empowers you to personalize not only the casing design but also the function, granting you the freedom to tailor the display to your exact preferences.
Various frame-shaped displays are installed outdoors. Various frame-shaped displays are installed outdoors.
* Please reach out to your local sales representatives for detailed casing guide

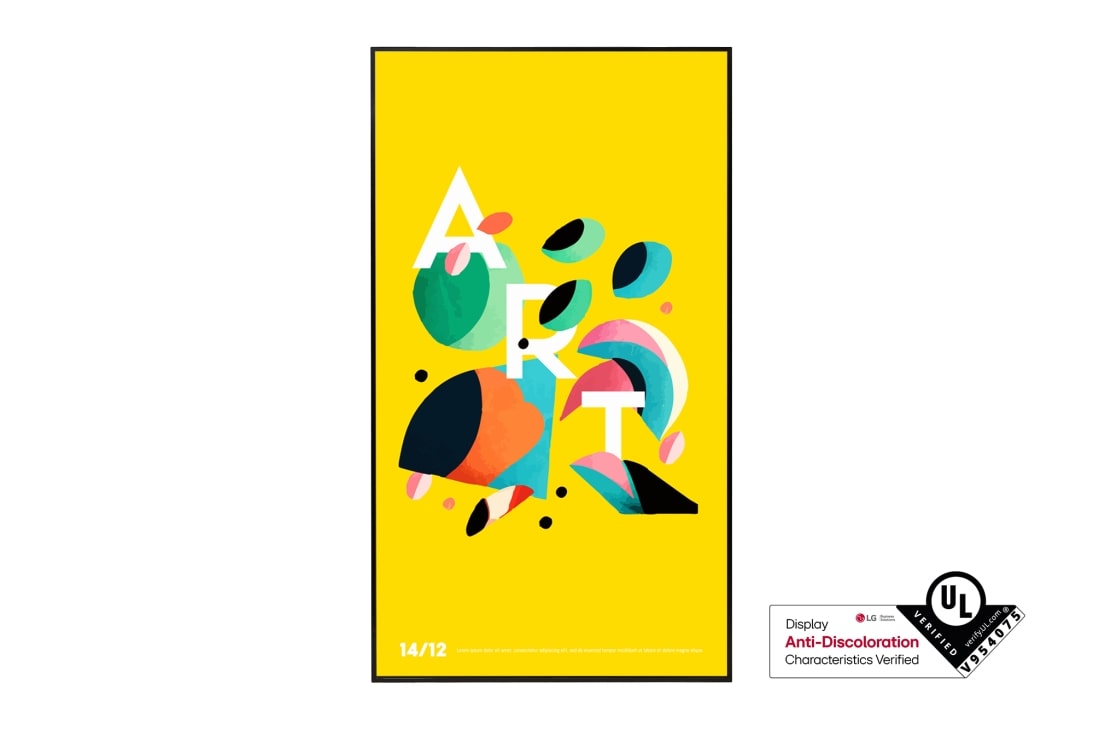

World’s First UL Verification for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.
The left side of the screen has yellowing, degrading its quality, but with XF3P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen is clear, safeguarding display quality. The left side of the screen has yellowing, degrading its quality, but with XF3P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen is clear, safeguarding display quality.
* For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.
* World's first UL Verification in the manufacturing industry.

High Visibility Under
Strong Sunlight

With outstanding high brightness of 3,000 nits (Typ.), the XF3P outdoor display delivers content clearly while captivating passerby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.
A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen. A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.

Optimized Design for
Double-sided Display

The XF3P, featuring a sleeker design than the conventional model, excels in maximizing space efficiency with its convenient double-sided display.
A double-sided display is set up on the street. The effective placement of the circuit board allows for a slim design of the double-sided display. A double-sided display is set up on the street. The effective placement of the circuit board allows for a slim design of the double-sided display.
* The conventional model refers to the XF3C.

Efficient Energy Management

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, XF3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
The 75XF3P screen can adjust its brightness automatically according to the ambient light. The 75XF3P screen can adjust its brightness automatically according to the ambient light.
* M+ IPS reduced approximately 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nits).
** Specific features can differ from circumstances.

High-performance with
webOS 6.0

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.
It has improved user convenience by utilizing the SoC and webOS. It has improved user convenience by utilizing the SoC and webOS.
A display is working well in an environment of 0~50°C. A display is working well in an environment of 0~50°C.

Wide Range of Operating Temperature

The XF3P can be used under a wide range of operating temperature from 0℃ to 50℃.

* Conducted by LG internal test, Operating temperature: 0℃~50℃ (without direct sunlight; with direct sunlight in cooling system), 0℃~40℃ (with direct sunlight)
The 75XF3P has a conformal coating making it resistant to dust and salinity in moisture. The 75XF3P has a conformal coating making it resistant to dust and salinity in moisture.

Conformal Coating

Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.

* Thin protective films/breathing membranes that filter water vapor and solid debris

Installation Guide for
a Customized Casing

LG offers an installation guide for designing a customized casing to ensure stable performance for outdoor displays. It includes information about the size of ventilation and the location of partitions within the casing.
Each of the four 75XF3Ps has a customized casing. Each of the four 75XF3Ps has a customized casing.
Users can monitor and control their displays through a mobile phone and laptop. Users can monitor and control their displays through a mobile phone and laptop.

Web Monitoring

The LG Control Manager, the embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

* Enabled by wired LAN connection
Partner content is being utilized to compose the content intended for playback on the signage. Partner content is being utilized to compose the content intended for playback on the signage.

Professional Content Partners

Pairing the XF3P with LG SW solutions would enhance its utilization.

* Sold separately
Close
Info
  • Product
    Outdoor
    Year
    Y24
  • Month
    M02
Panel
  • Screen Size (Inch)
    75"
    Panel Technology
    IPS, M+
  • Back Light Type
    Direct
    Aspect Ratio
    16:9
  • Native Resolution
    3840x2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness
    Min: 2800cd/m2, Typ: 3000cd/m2
    Contrast Ratio
    1200:1 (Typ)
  • Dynamic CR
    500,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle (H x V)
    178 x 178
    Color Depth (Number of Colors)
    10bit ( Dethering), 1.07 billion colors
  • Response Time
    8ms (G to G BW) typ.
    Surface Treatment (Haze)
    AGLR(Haze 3%), QWP
  • Life time
    50,000 Hrs
    Operation Hours (Hours/Day)
    24Hrs
  • Portait / Landscape
    Yes / Yes
    QWP (Quarter Wave Plate)
    Yes
Connectivity(Jack Interface)
  • HDMI IN
    Yes(2), HDMI1/2 : HDCP 2.2
    DP IN
    Yes(1), HDCP1.3
  • DVI-D IN
    Yes(1)
    Audio IN
    Yes(1)
  • RS232C IN
    Yes(1) (4pin phone jack)
    RJ45(LAN) IN
    Yes(1)
  • IR IN
    Yes(1)
    USB IN
    USB2.0 Type A (1)
  • DP Out
    Yes(1)
    External Speaker Out
    Yes(1) (4pin phone jack)
  • RS232C Out
    Yes(1)
Mechanical
  • Bezel Color
    Black
    Bezel Width
    11.8 mm Even
  • Weight (Head)
    32.7kg
    Packed Weight
    43kg
  • Monitor Dimensions (W x H x D)
    1675.2 x 953.6 x 114.6
    Carton Dimensions (W x H x D)
    1816 x 1106 x 285
  • Handle
    Yes(2)
HW Feature
  • Internal Memory (eMMC)
    8GB
    Temperature Sensor
    Yes(2)
  • Auto Brightness sensor
    Yes
    Pixel sensor
    TBD
  • Humidity Sensor
    Yes
SW Feature
  • OS Ver. (webOS)
    webOS6.0
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    Backlight Sync
    Yes
  • PIP
    Yes
    PBP
    Yes
  • Video Tag
    Yes(4)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Smart Energy Saving
    Yes
    PM mode
    Yes
  • Wake on LAN
    Yes
    Network Ready
    Yes
  • HDMI-CEC
    Yes
    SI Server Setting
    Yes
  • webRTC
    Yes
    Pro:Idiom
    Yes
Environment Conditions
  • Operation Temperature
    0 °C to 40 °C (with Solar)
    0 °C to 50 °C (without Solar)
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    745W
    Max.
    775W
  • BTU (British Thermal Unit)
    2644
    Smart Enegy Saving (70%)
    280W
  • DPM
    0.5W(DP, HDMI)
    Power off
    0.5W
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC / VCCI
  • ErP / Energy Star
    Yes / No
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, Polski
Accessory
  • Basic
    Remote Controller(including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG) RS-232C Gender
    Optional
    Double sided Bracket
    (Landscape&Portrait : WM-B640S)
Special Feature
  • Conformal Coating (Power Board)
    Yes
    Direct Sunlight
    Yes
  • Datasheet
    • 75XF3P_Datasheet(low)_LG High-brightness Open-frame Display_240806.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

Find a dealer to help with service for sales, installation, and after sales.
