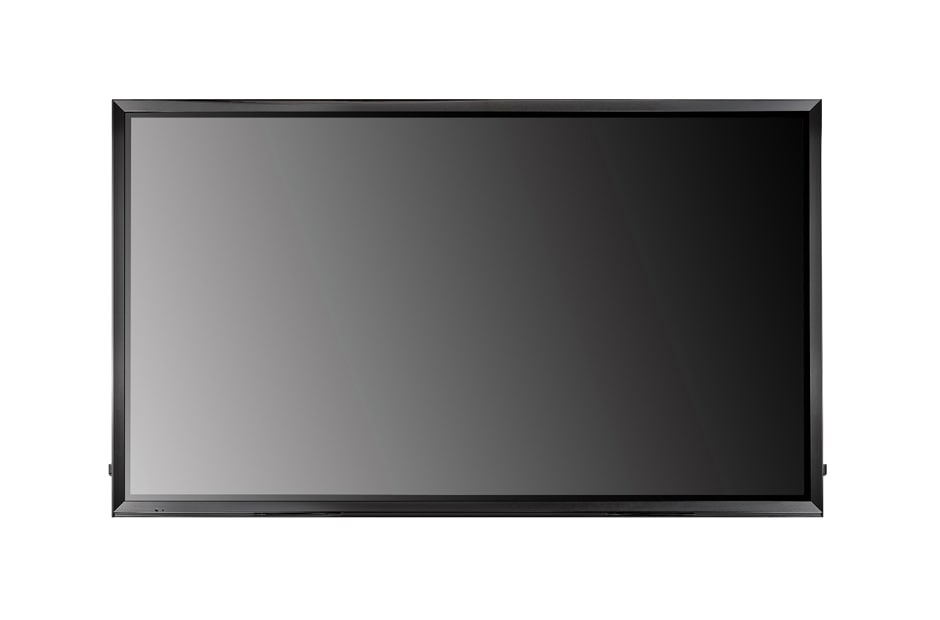

LG Interactive Digital Board, 86TR3D, thumbnail 2

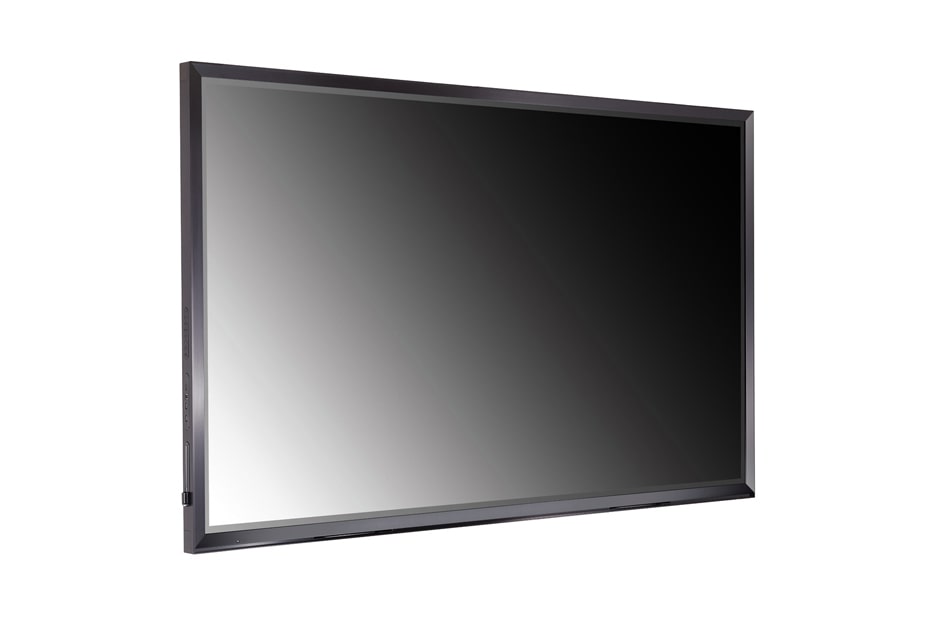

LG Interactive Digital Board, 86TR3D, thumbnail 3

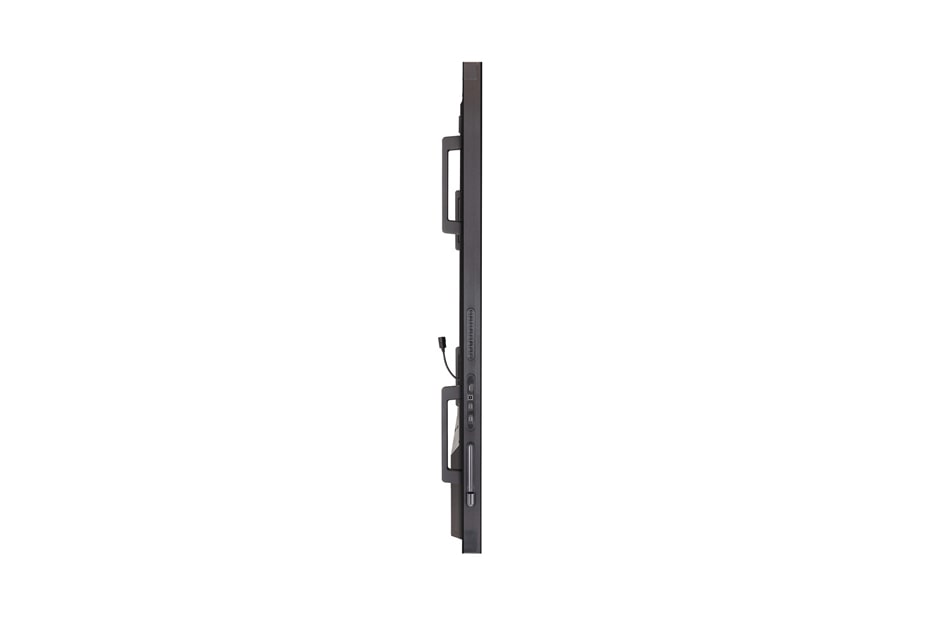

LG Interactive Digital Board, 86TR3D, thumbnail 4

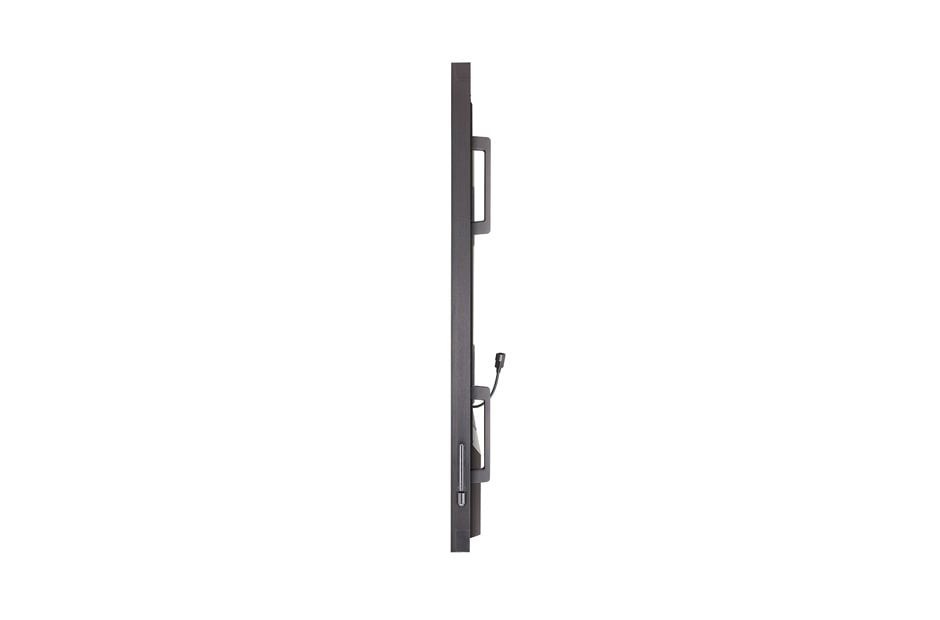

LG Interactive Digital Board, 86TR3D, thumbnail 5

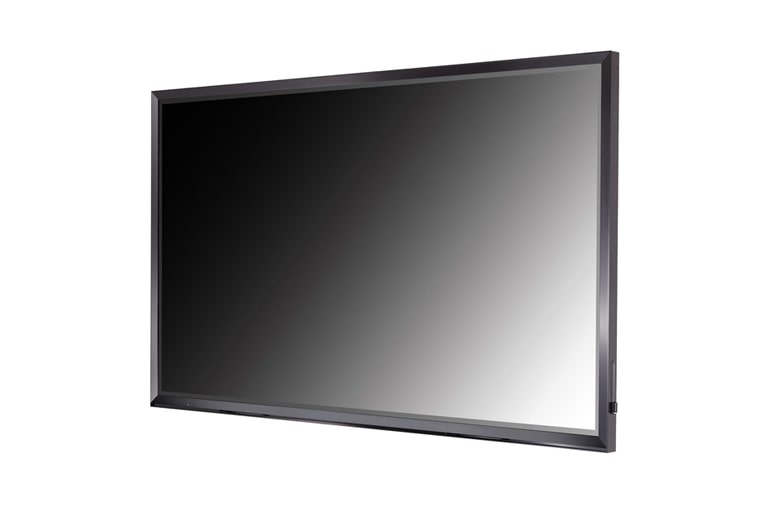

LG Interactive Digital Board, 86TR3D, thumbnail 6

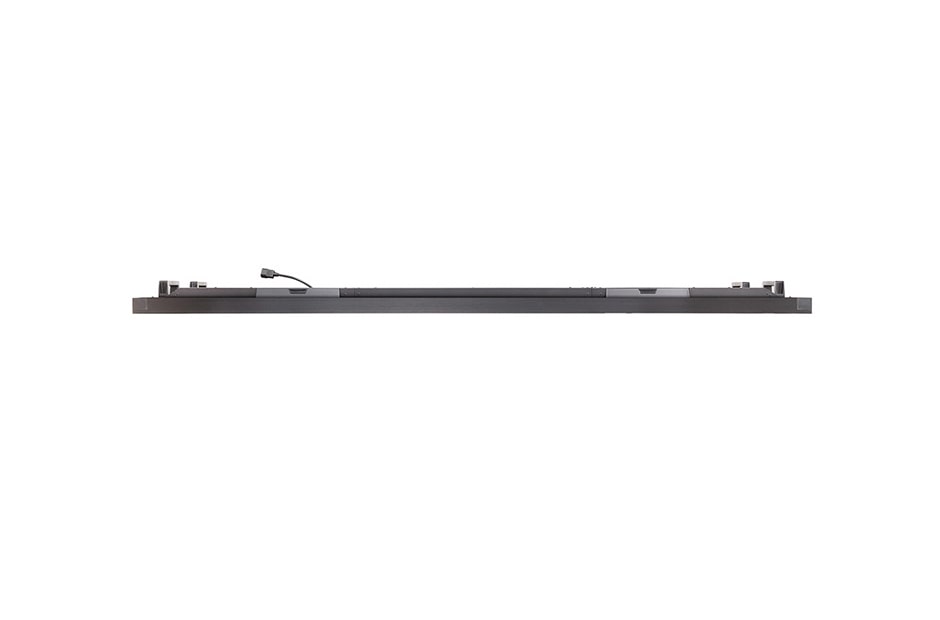

LG Interactive Digital Board, 86TR3D, thumbnail 7

Discontinued

86TR3D component-copyModelName

Interactive Digital Board

Key Features

Brightness(Typ.): 410 cd/m²
Touch Type: InGlass™
Touch Point: Max. 20 points
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 410 cd/m²
Touch Type: InGlass™
Touch Point: Max. 20 points
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Interactive Digital Board

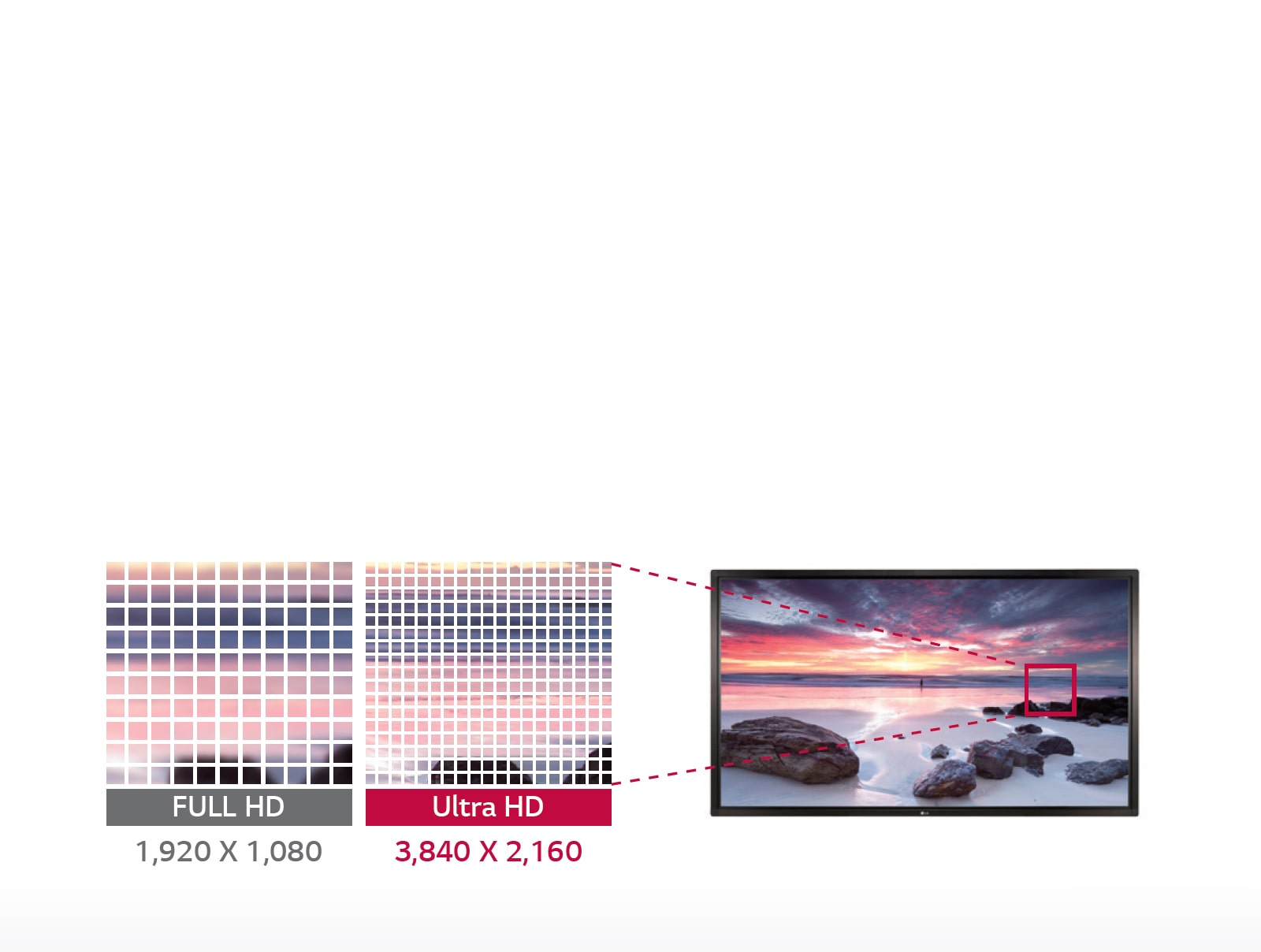

Large 86 Screen with Ultra HD Resolution1

Excellent visibility with Ultra HD

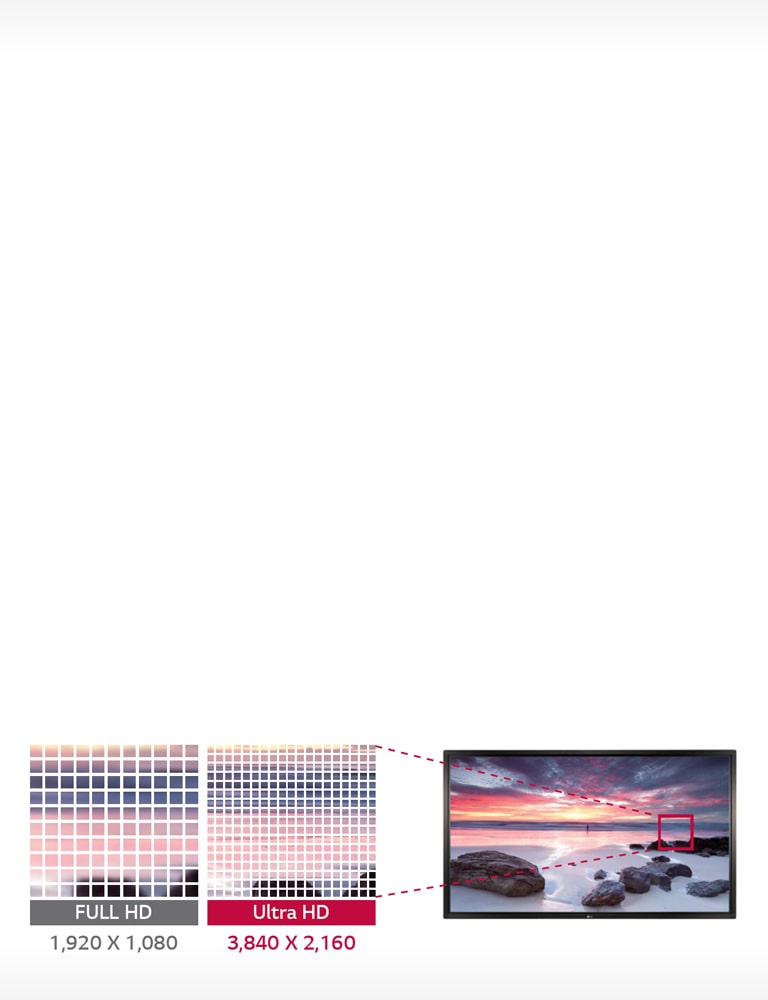

Large 86 Screen with Ultra HD Resolution

With a large 86" screen, it can accommodate a wider view range for more viewers. With a large screen space, the display does not compromise the details of documents, images, and video - it delivers them with vivid, sharp resolution, thus providing an immersive and efficient working environment.

Excellent visibility with Ultra HD

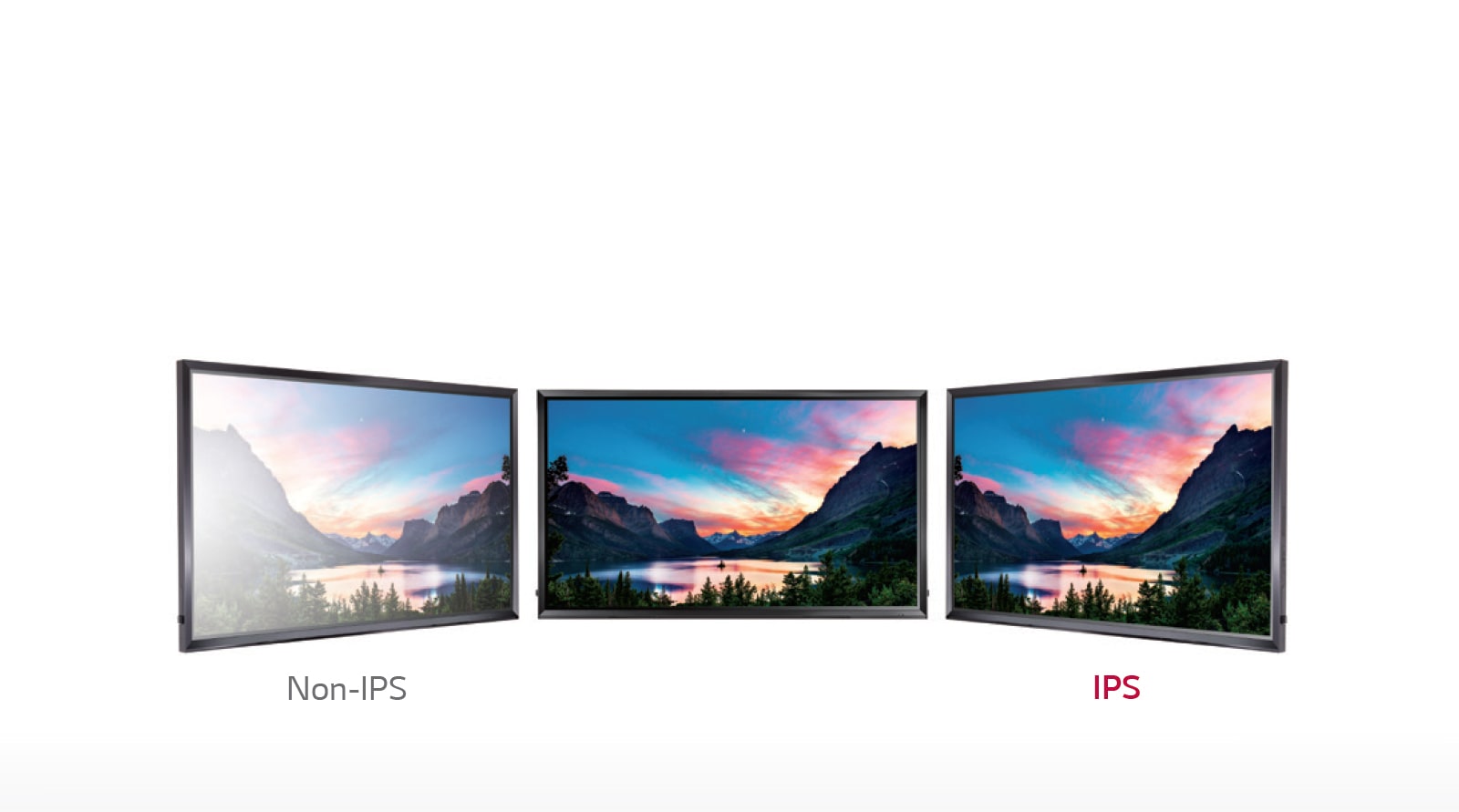

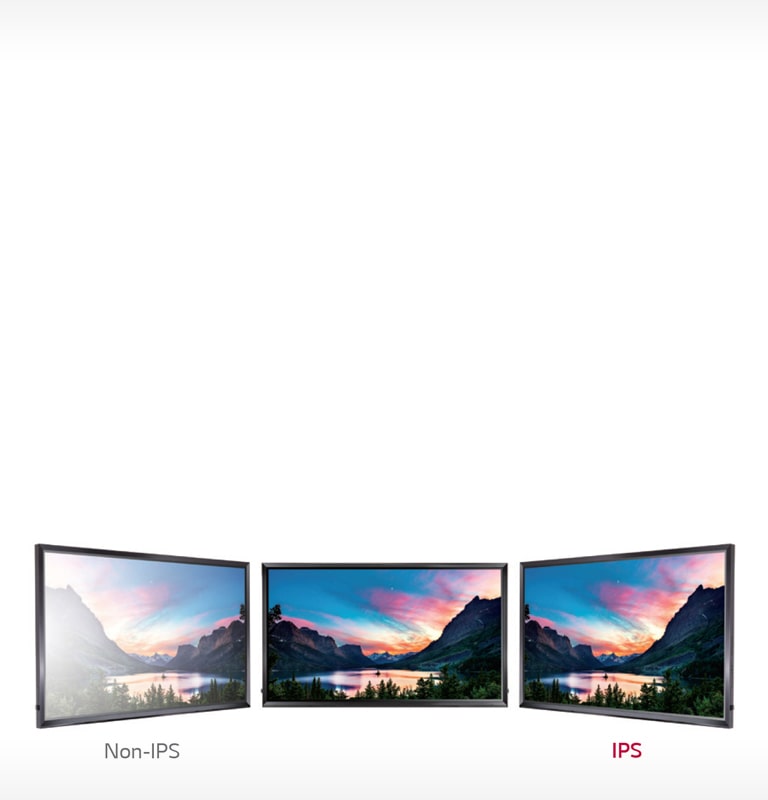

Wide Viewing Angle with IPS Panel

IPS Panel generates consistent and accurate colors regardless of viewing angle. As viewers can see contents on the display from any angle, it aids effective communication between presenter and audience and increases message delivery effect.

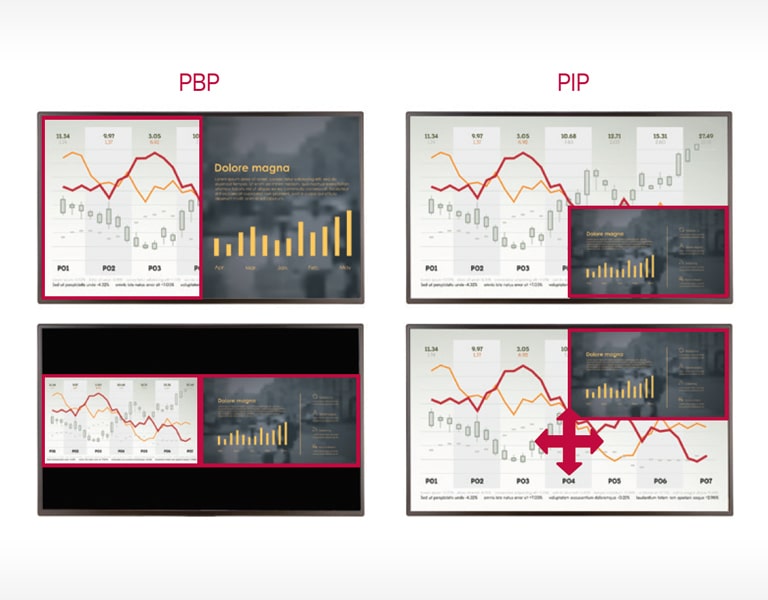

PBP (Picture by Picture) / PIP (Picture in Picture)1

Multiple Screen

PBP (Picture by Picture) / PIP (Picture in Picture)

PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub screen modes. This gives great flexibility to users to allocate space for each content source.

Outstanding Touch Performance

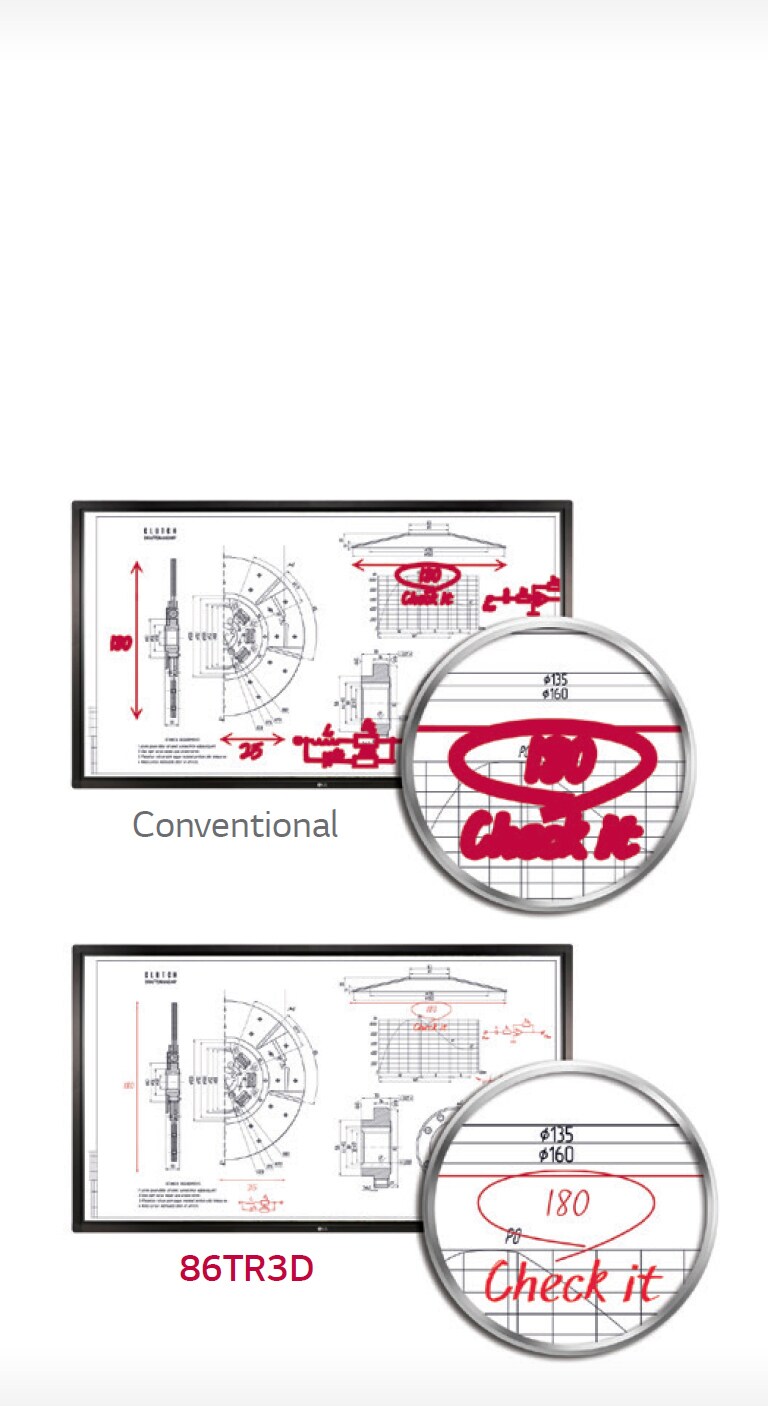

Small Object Touch

Compared to legacy signage, it allows more detailed and gentle touch (minimum radius: 3mm). In addition, users can now write in small-sized letters, check small icons, enabling sophisticated writing that fits document style requirements.

Outstanding Touch Performance

Intuitive Touch

InGlass™ touch performance is similar to that of mobile devices, providing users with a familiar feeling when they touch the screen, enabling them to easily use the touch screen without confusion.

Outstanding Touch Performance

20 Point Multi-Touch

It provides a more realistic sense of touch since it can recognize up to 20 simultaneous touches at once with no need for a separate pen.

Enhanced User Convenience

Auto Signal Switching

With its auto signal switching function, the display can detect input/touch signals and automatically change the source if the new input has a higher priority than the previous source. Users can save time by setting up the signals before a meeting or presentation.

Enhanced User Convenience

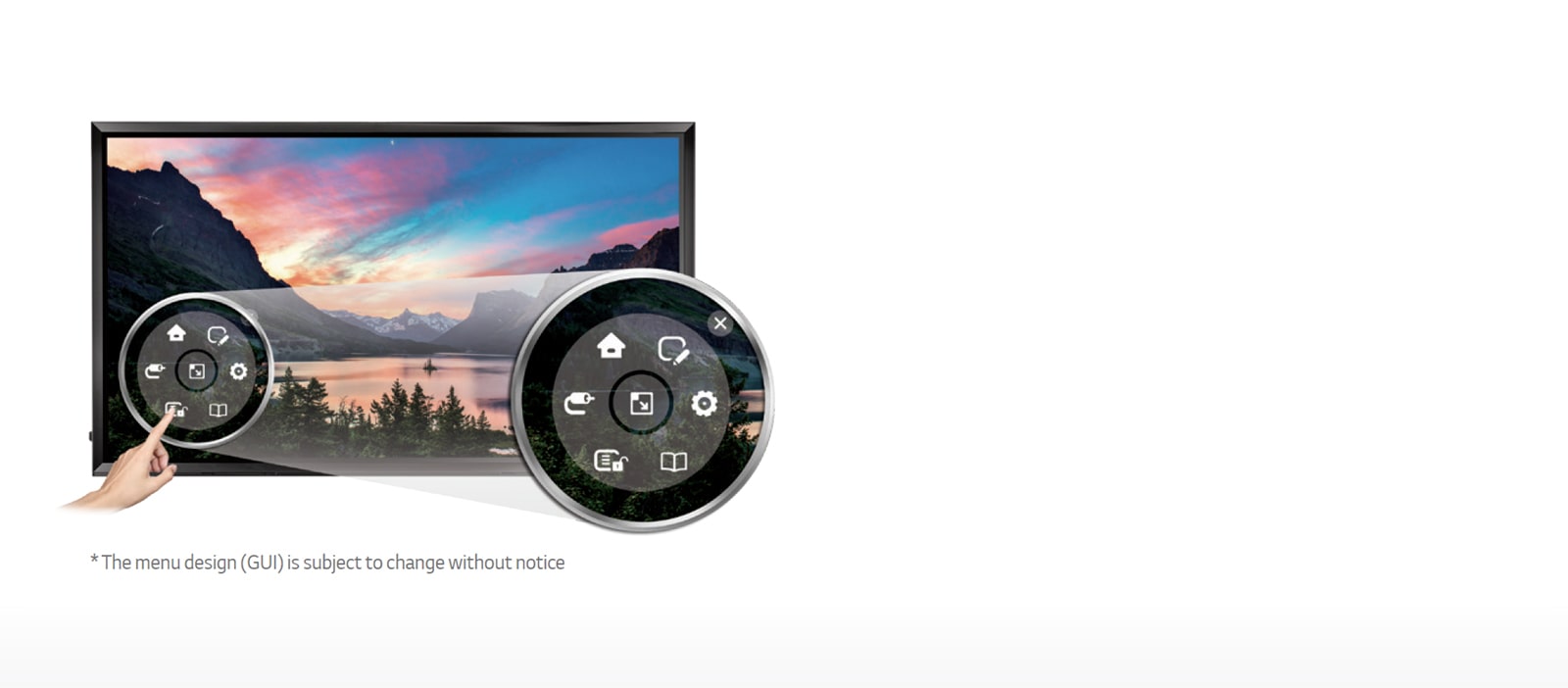

Easy Touch OSD on Display

User can transition into desired mode and setting by a simple touch on OSD. Users can create shortcuts for inputting their preferences.

Enhanced User Convenience

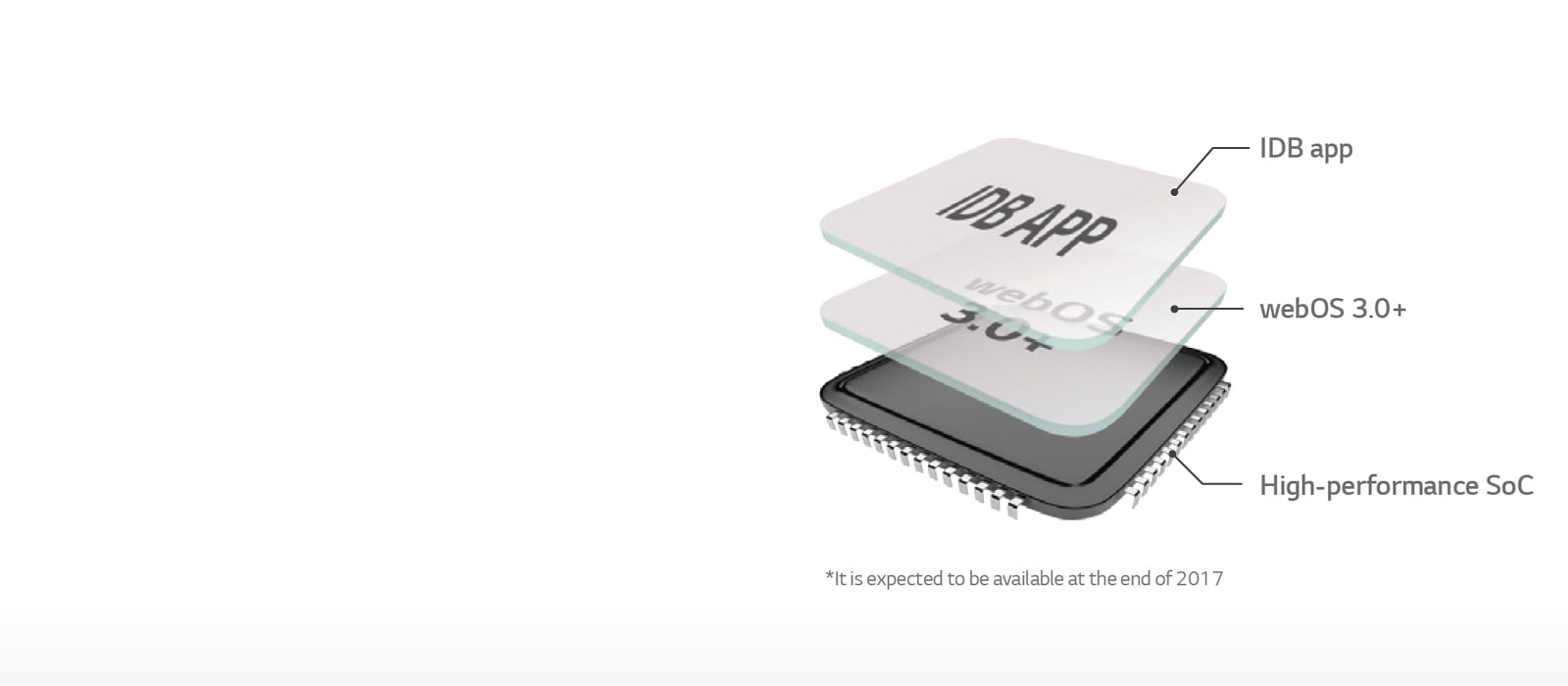

Embedded IDB App

webOS-based IDB App* enables users to write on the screen without an additional writing solution and media player (PC). It is a complete way to enhance collaboration efficiency during a meeting, by combining whole processes which includes file sharing, writing, and saving on LG IDB.

Enhanced User Convenience

User-Friendly Configuration

The interfaces are arranged with total focus on user convenience. The side hot key located on the left-hand side allows quick and easy operation of various functions. With the side connectors, the display detects connected devices first (Auto Signal Switching), enhancing usability and connectivity. Two touch pens are placed on either side of the display for easy use and storage. Two 10-W speakers are built in to the front of the screen at each side for a more immersive audio experience without separate speakers.

Enhanced User Convenience

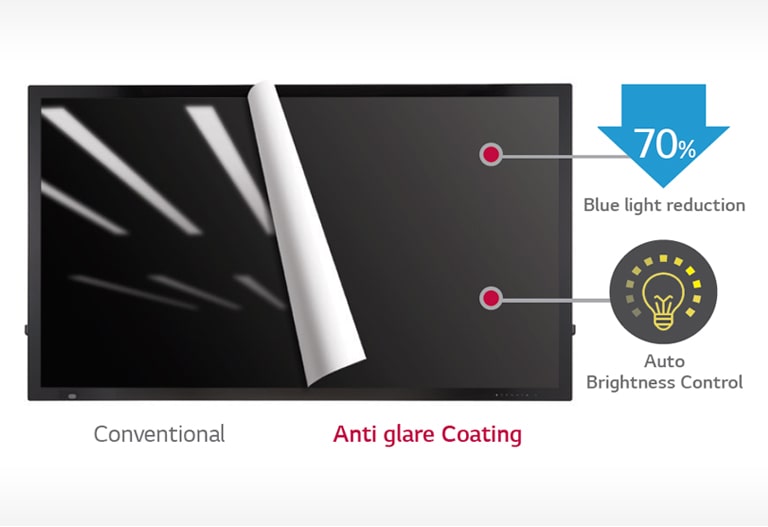

Eye Care Support

Reader mode decreases blue light, a cause of eye strain, by 70％, improving the comfort of those who are viewing the screen for a long time. Also the anti-glare coating on the screen reduces reflection for better visibility. And brightness is automatically adjusted according to ambient light of the surrounding to reduce eye strain.

Panel

Screen Size

86"

Brightness(Module, Typ., cd/m²)

410

Connectivity

Input

HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0

Output

Touch USB 2.0 (2)

Physical Specification

Bezel Width

50.7 mm (T/L/R), 62.2 mm (B)

Monitor Dimension (W x H x D)

2,026.9 x 1,180.3 x 75.6 mm
Weight (Head)

92.7 kg

Carton Dimensions (W x H x D)

2,190 × 1,470 × 371 mm
Packed Weight

121.2 kg

VESA™ Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Software Compatibility

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign Link

Accessory

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea)

Optional

OPS Kit (KT-OPSA)

Touch

Touch type

InGlass™

Available object size for touch

more than Ø 3 mm
Accuracy

2 mm

Interface

USB 2.0
Protection Glass Thickness

4T (Anti-Glare)

Multi touch point

Max 20 Point

Dimension
- 86tr3d_dimension.dwg
- 86tr3d_dimension.pdf
