86UT640S (ASIA) component-copyModelName
86'' 350 nits UHD TV Signage

Key Features

component-OBScountrySelectDesc

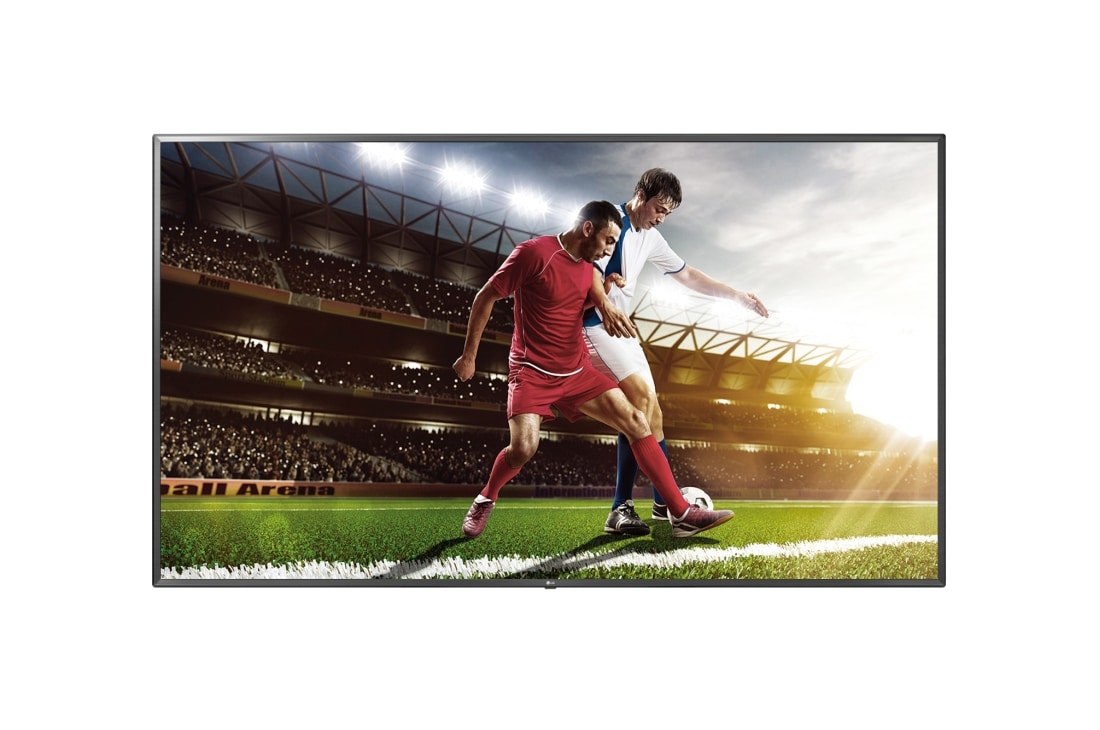

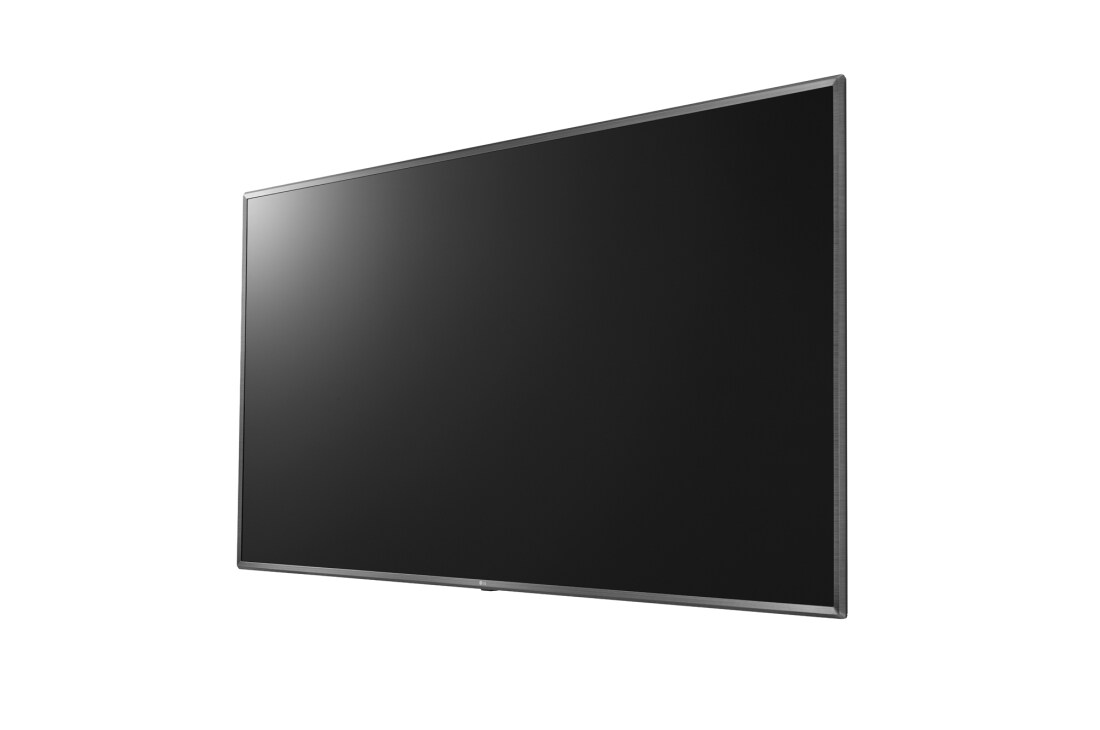

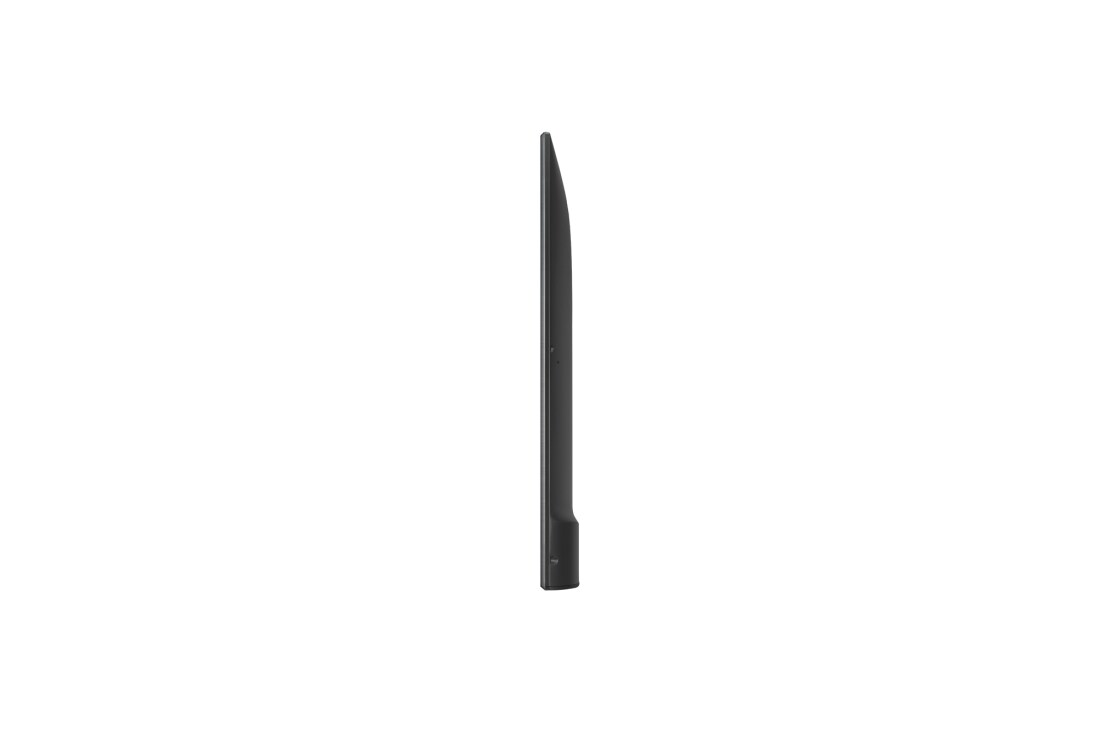

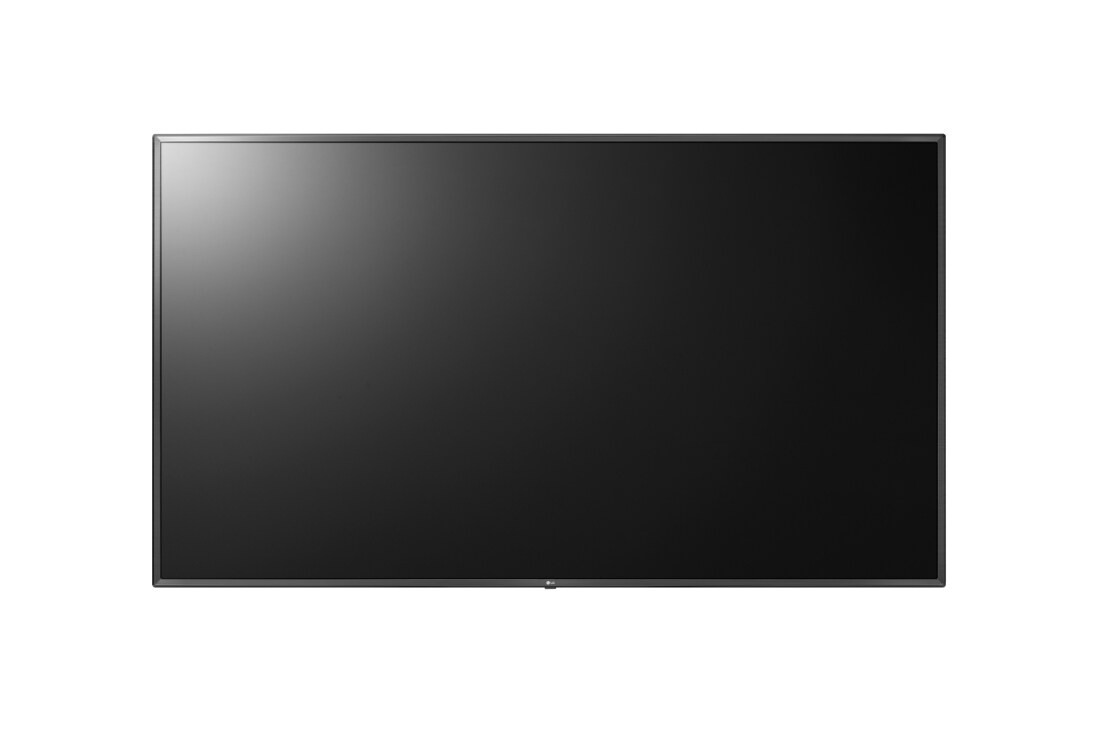

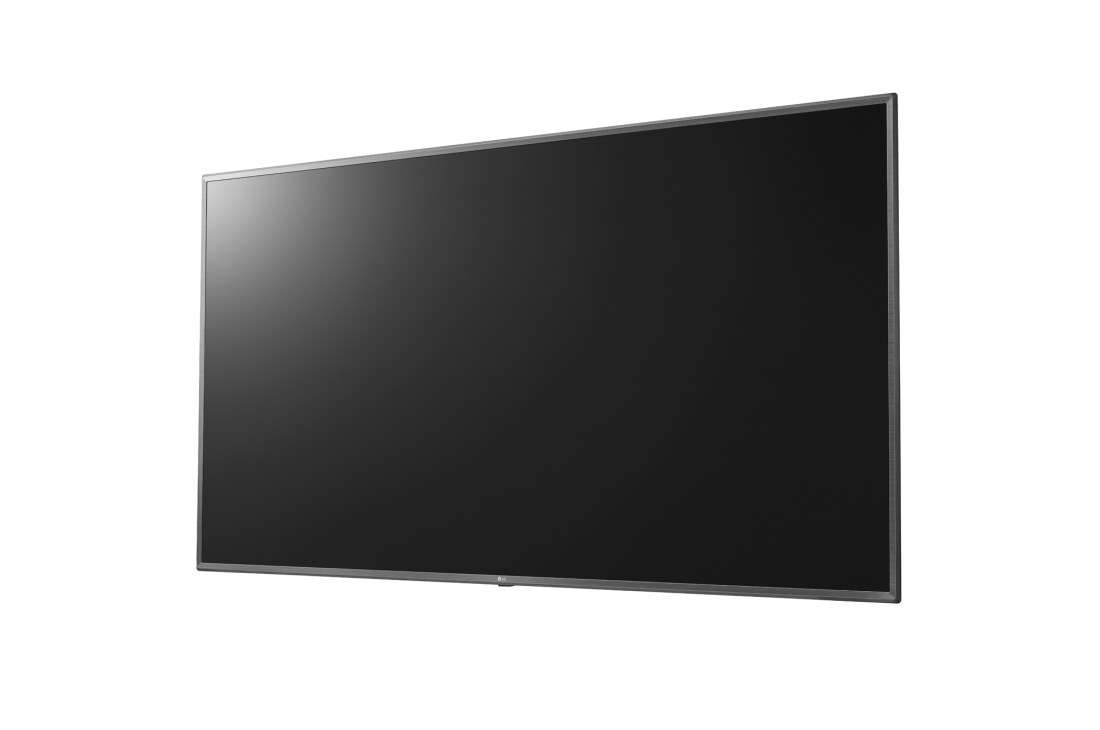

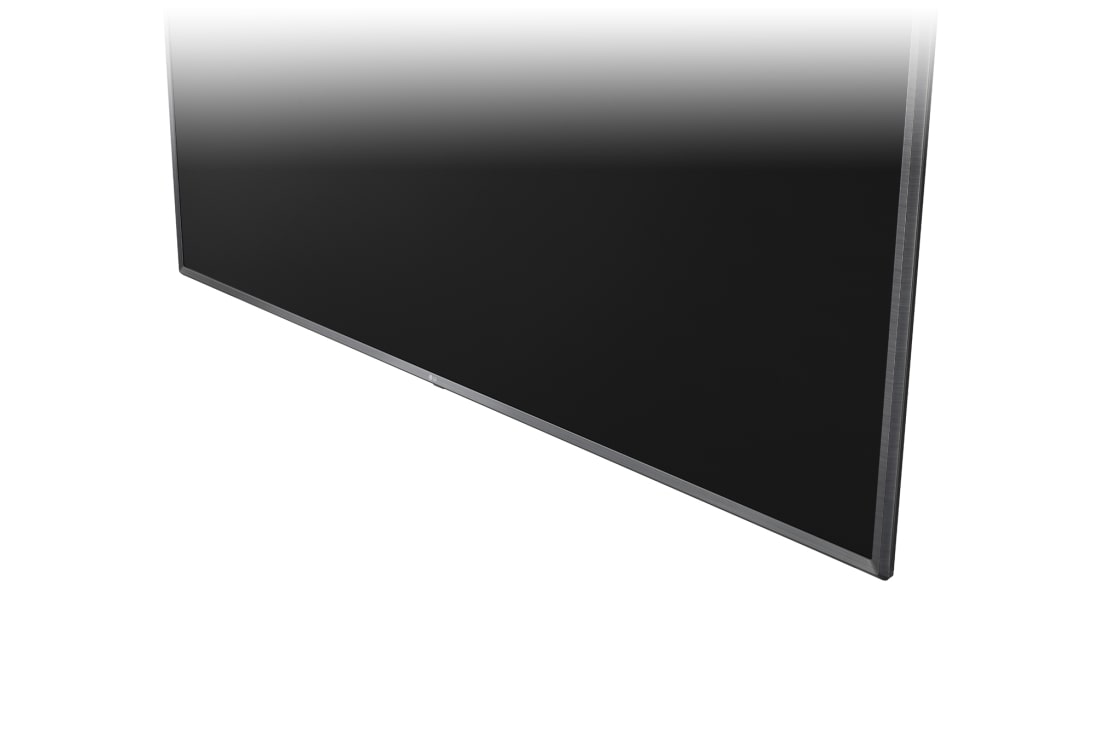

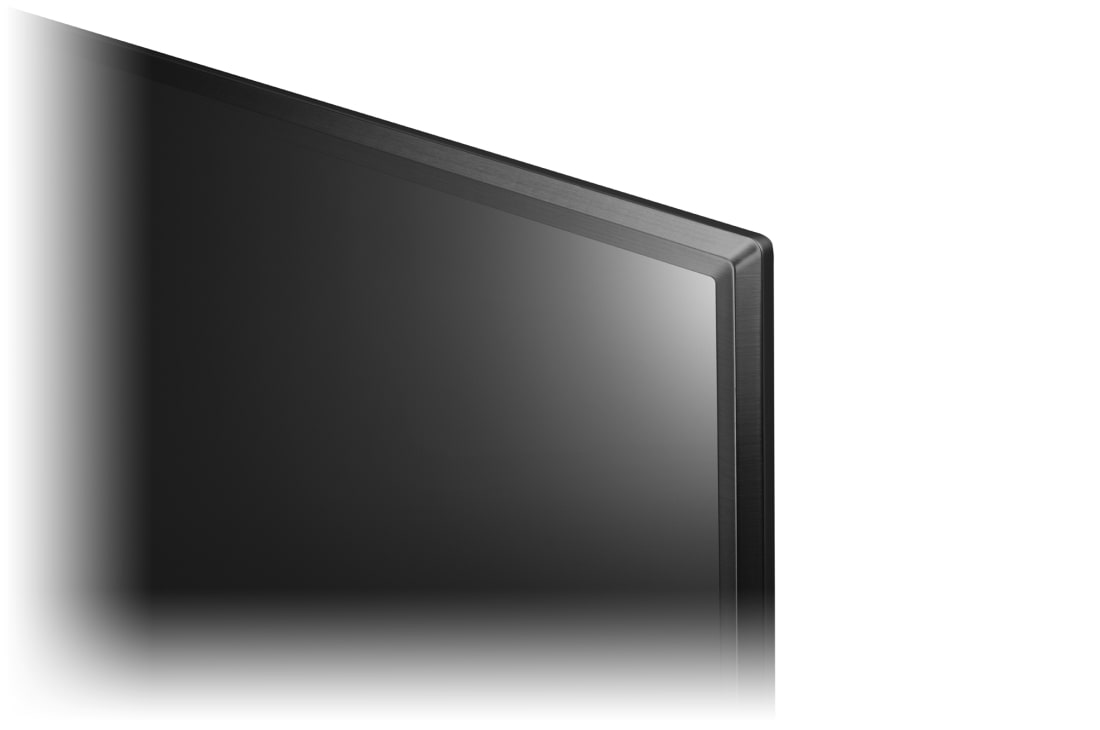

86" 350 nits UHD TV Signage
Display
  • Inch
    86
    Resolution
    3840 X 2160 (UHD)
  • Brightness (cd/m²)
    350
Broadcasting System
  • TV Reception
    DVB-T2/C
Video
  • HDR (10 Pro / HLG)
    • / •
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • DOLBY ATMOS
    -
    One Touch Sound Tuning
    -
  • LG Sound Sync
    Bluetooth required
Features
  • Hospitality
    Hotel Mode / PDM / Installer Menu, Lock mode (Limited), Welcome Screen (Splash Image), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 2W with 8Ω), RJP (remote jack pack) Compatibility (LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)), Moving Picture Playback (SD/HD/Plus HD), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
Jack Interface
  • Set Side
    HDMI In 2(2.0), USB (2.0), CI Slot
    Set Rear
    HDMI In (HDCP) 2.0, CI Slot, RF In, Digital Audio Out (Optical), RS-232C(D-Sub 9pin) (Control & Service), RJ45 (Usage Purpose) (Ethernet), External Speaker Out(3.5mm phone jack) 2 (Spk-out 1, 4W (Stereo, R: 2.0W, L: 2.0W, 8Ω) Vol. Control 1), Debug (Phone Jack Type) (Ext. SPK Volume Control Share)
Dimension(Unit: mm/kg)
  • Vesa
    600 x 400
    W x H x D / Weight (with stand)
    1,943 x 1,188 x 345 / 45.0
  • W x H x D / Weight (without stand)
    1,943 x 1,118 x 93.3 / 44.2
    W x H x D / Weight (Shipping)
    2,116 x 1,261 x 285 / 59.0
Power(Unit : Watts)
  • Voltage, Hz
    100 ~ 240 V, 50/60 Hz
    Power Consumption(Typ.)
    301W
  • Stand-by
    0.5W
General
  • Region
    ASIA
  • Dimension
    • 86UT640S.dwg
    • 86UT640S.pdf
  • Datasheet
    • UT640S(ASIA)_Datasheet(web)_LG Commercial TV_2008.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
