86UU340C (NA) component-copyModelName
86'' 350 nits UHD UHD Commercial TV

Key Features

component-OBScountrySelectDesc

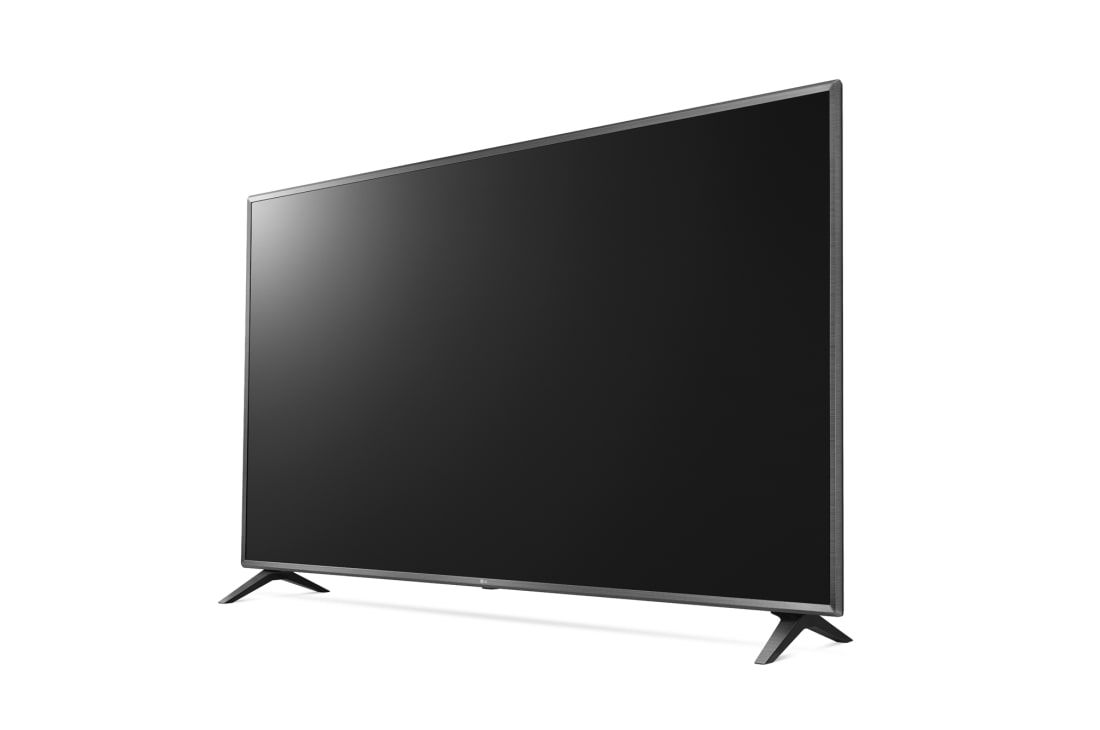

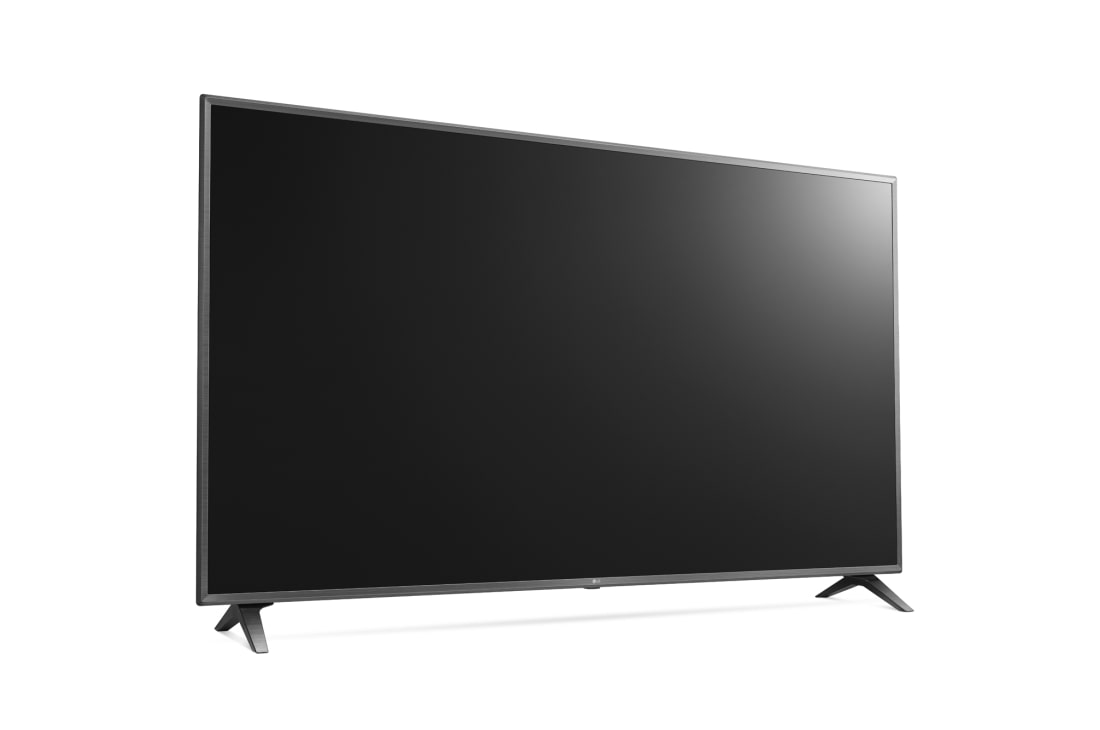

86" 350 nits UHD UHD Commercial TV
Panel
  • Inch
    86"
    Backlight Type
    Direct
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    350
Broadcasting System
  • Analog
    • (NTSC)
    Digital
    • (ATSC)
Video
  • XD Engine
    Aspect Ratio
    • 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
  • HDR 10 / HDR Dolby Vision
    HDR 10
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
Feature
  • Hospitality
    Hotel Mode, Lock Mode, Welcome Video, Welcome screen, Insert Image, External Speaker Out, RJP Interface, RJP Compatibility, USB Auto Playback, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
Jack Interface
  • Set Side
    HDMI In 2.0 (2), USB 3.0

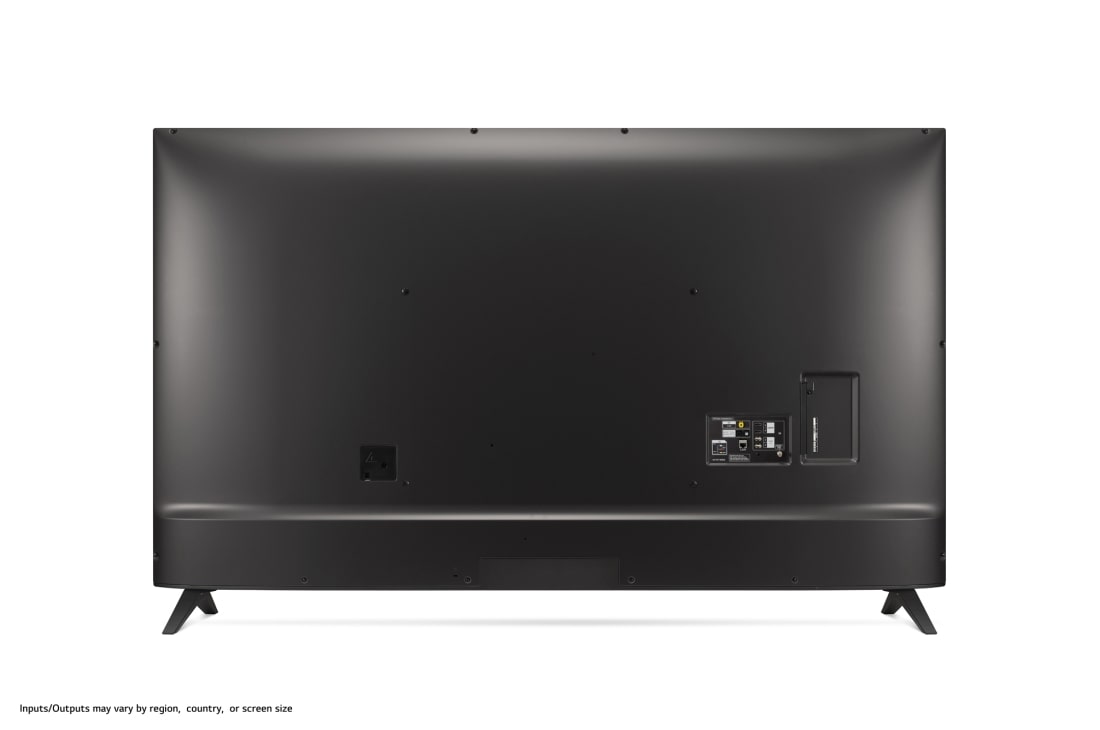

    Set Rear
    RF In, AV In, Component in (Y,Pb,Pr-Video), Digital Audio Out, HDMI/HDCP Input, RS-232C (Control&Service), RJ45, External Speaker Out, Debug
Dimension
  • Vesa
    600 x 400
    WxHxD / weight (with stand)
    1,943 x 1,188 x 345 / 45kg
  • WxHxD / weight (without stand)
    1,943 x 1,188 x 77.9 (SPK: 93.3) / 44.2kg
    WxHxD / weight (Packing)
    2,116 x 1,261 x 285 / 59kg
Power
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    -
  • Typical
    301.0
    Energy saving (Min/Med/Max)
    -
  • Stand-by
    0.5↓
General
  • Region
    North America
  • Dimension
    • [Dimension] 86UU340C (NA).dwg
    • [Dimension] 86UU340C (NA).pdf
  • Datasheet
    • UU340C_NA_Low.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
