86UU640C (ASIA) component-copyModelName

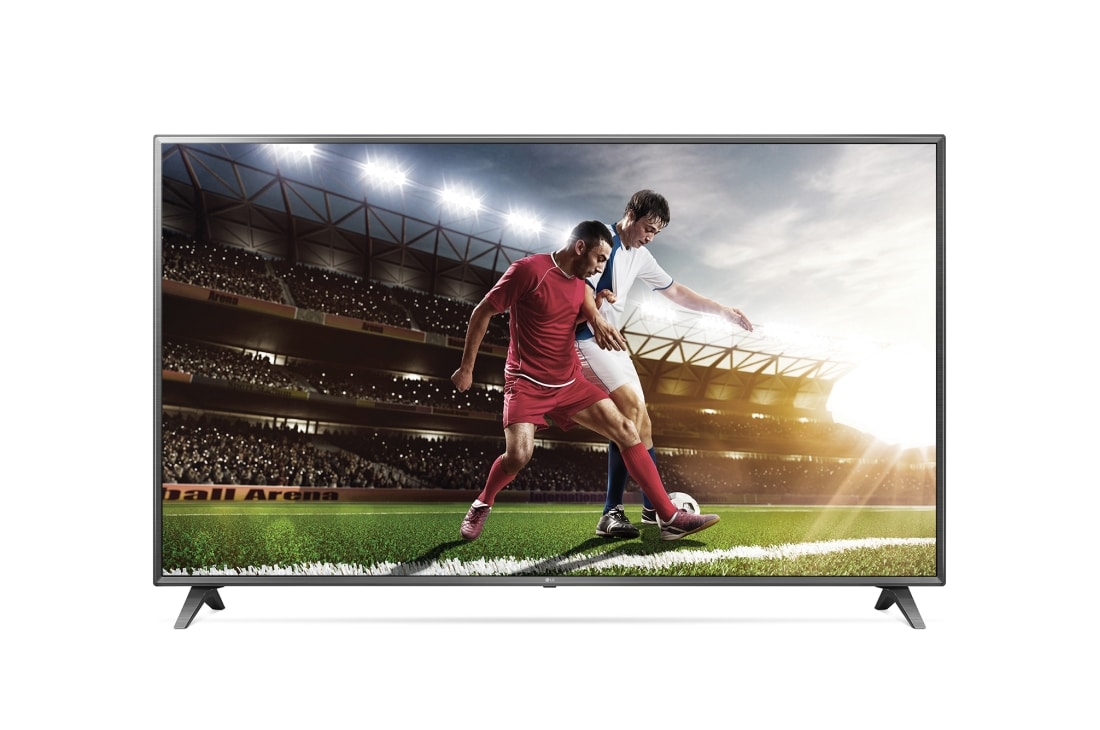

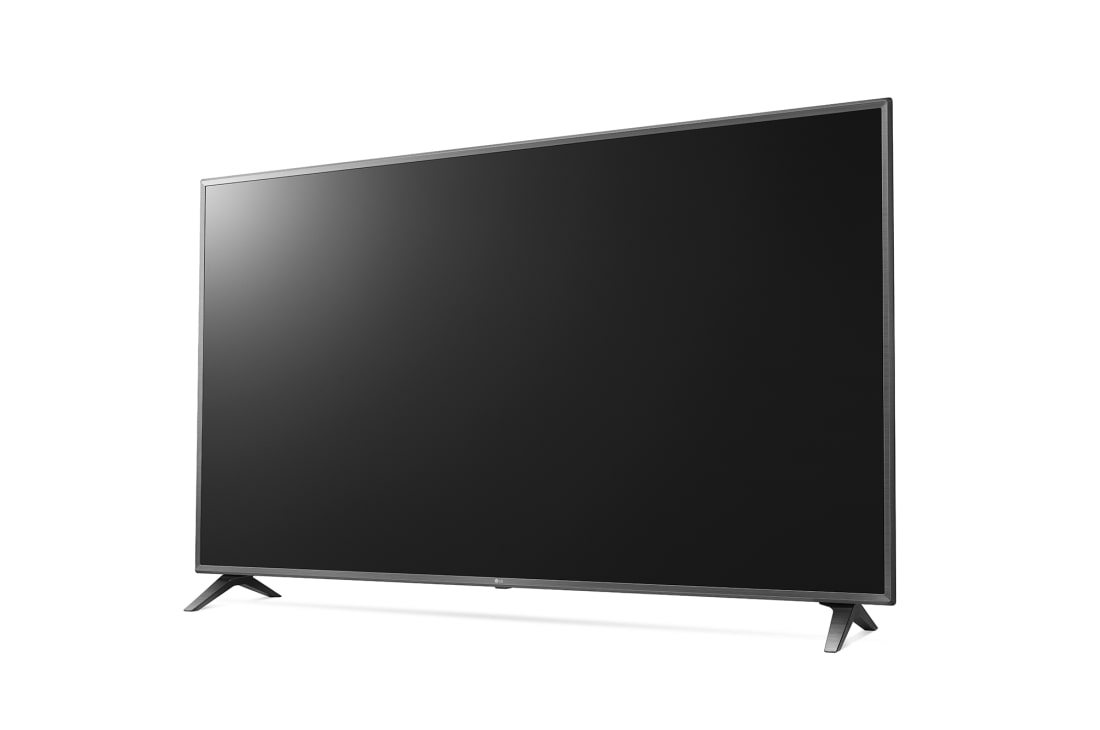

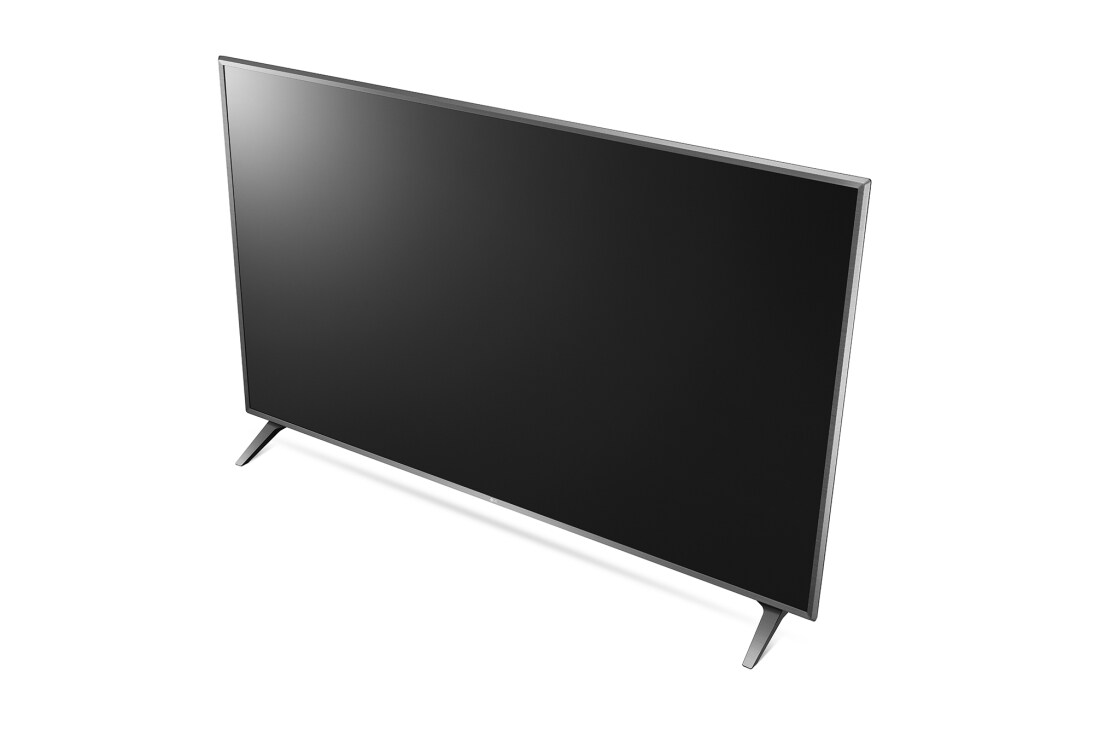

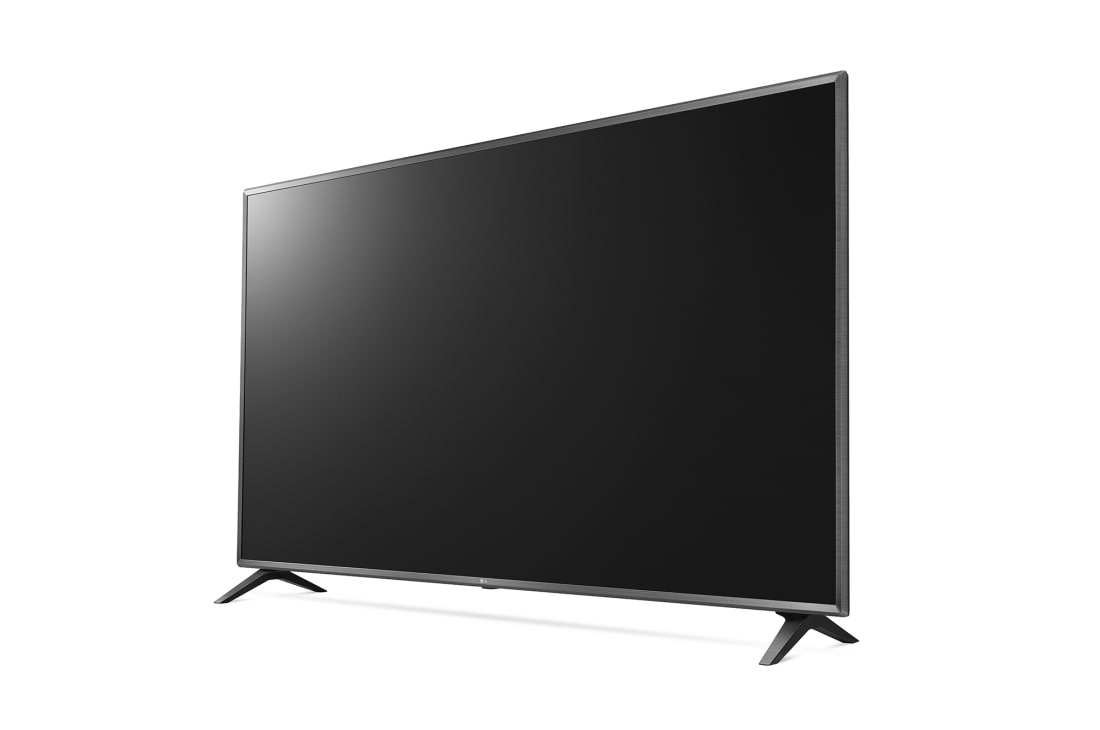

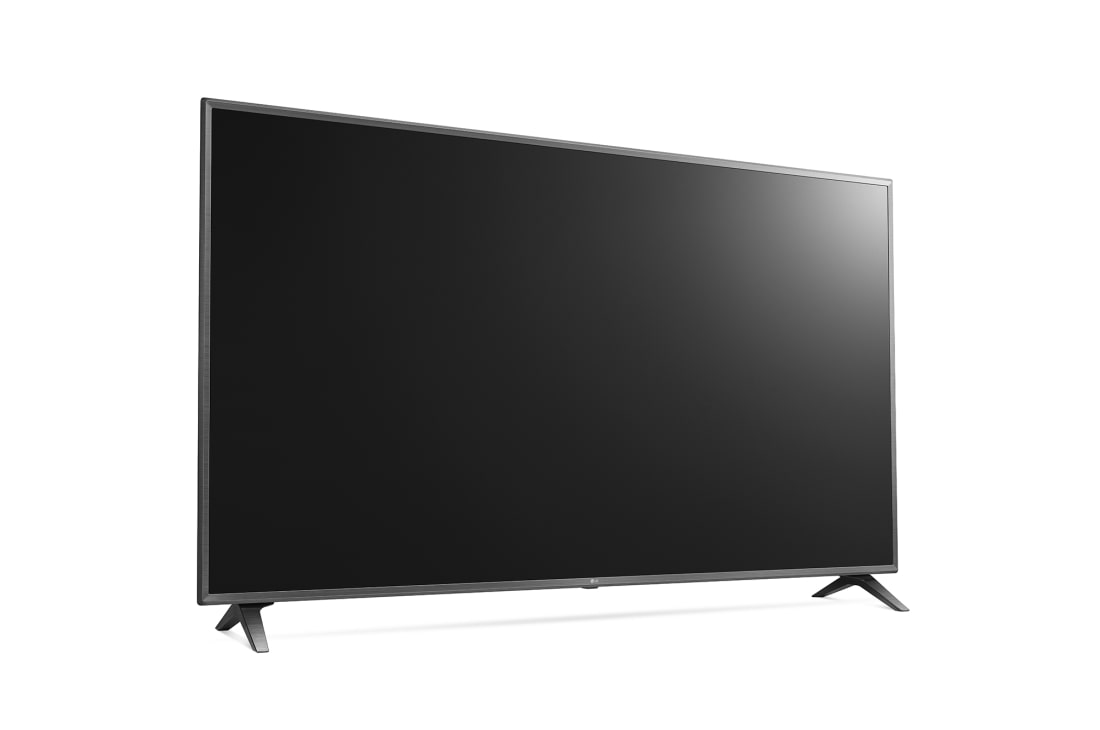

86'' 350 nits UHD UHD Commercial TV

Key Features

Choose your Size

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

86" 350 nits UHD UHD Commercial TV
Inquiry to Buy
Close
Panel
  • Screen Size
    86"
    Backlight Type
    Trident
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    350
  • Viewing Angle Degree
    178 x 178
Broadcasting System
  • Analog
    • (PAL/SECAM)
    Digital
    • (varied by countries)
Video
  • XD Engine
    •
    Aspect Ratio
    • 5 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -
Audio
  • Audio Output
    10 W + 10 W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    • 6 modes(India only) (Standard, Bollywood, Clear Voice III, Sports, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)
Feature
  • Smart
    webOS 4.0, Commercial Smart Home (Launcher Bar), Web Browser, Pre-loaded App (YouTube Only), Soft AP, Wi-Fi (ac), Screen Share (Miracast), DIAL, Bluetooth Audio Playback, LG Sound Sync/bluetooth, Mobile Connection Overlay, Music Player
    Hospitality

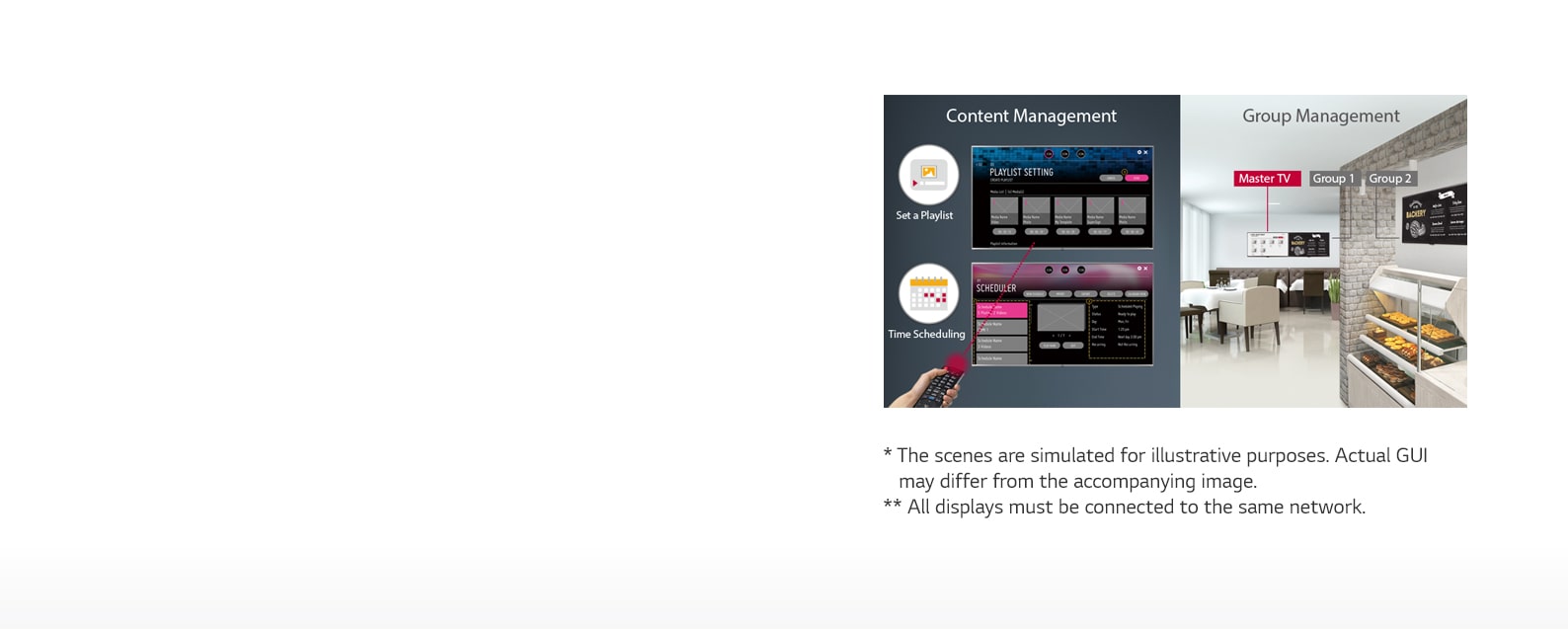

    Hotel Mode / PDM / Installer Menu, Lock Mode (Limited), Welcome Screen, Insert Image, One Channel Map, RJP Compatibility, Crestron ConnectedⓇ (Network Based Control), RJP Interface, DPM, Time Scheduler / First Use, RTC, BEACON, Healthcare Headphone Mode, Embedded Content Manager / Group Manager
Function
  • Function
    USB Cloning, WOL (Magic Packet Only), SNMP, Diagnostics, SI Compatible, HDMI-CEC (1.4), HTNG-CEC (1.4), IR Out, Multi IR Code, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
Jack Interface
  • Set Side
    HDMI In 2.0 (2), USB 2.0, CI Slot
    Set Rear
    RF In, Digital Audio Out (Optical), HDMI/HDCP Input 2.0, RS-232C (Control & Service), Headphone Out, RJ (Ethernet), Debug (phone jack type)
Dimension(Unit: mm)
  • VESA Compatible
    600 x 400
    W x H x D / Weight (with stand)
    1,943 x 1,188 x 345 / 45 kg
  • W x H(H') x D / Weight (without stand)
    *H': Set
    1,943 x 1,113 (1,118) x 77.9 (SPK 93.3) / 44.2 kg
    W x H x D / Weight (Packing)
    2,116 x 1,261 x 285 / 59 kg
Power(Unit : Watts)
  • Voltage, Hz
    100 ~ 240 V, 50/60 Hz
    Max
    320.8
  • Typical
    306.4
    Energy saving (Min/Med/Max)
    199 / 130 / 54
  • Stand-by
    0.5 ↓
General
  • Region
    ASIA
  • Dimension
    • [Dimension] 86UU640C (ASIA).dwg
    • [Dimension] 86UU640C (ASIA).pdf
  • Datasheet
    • UU640C_ASIA_Preview_181019.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
