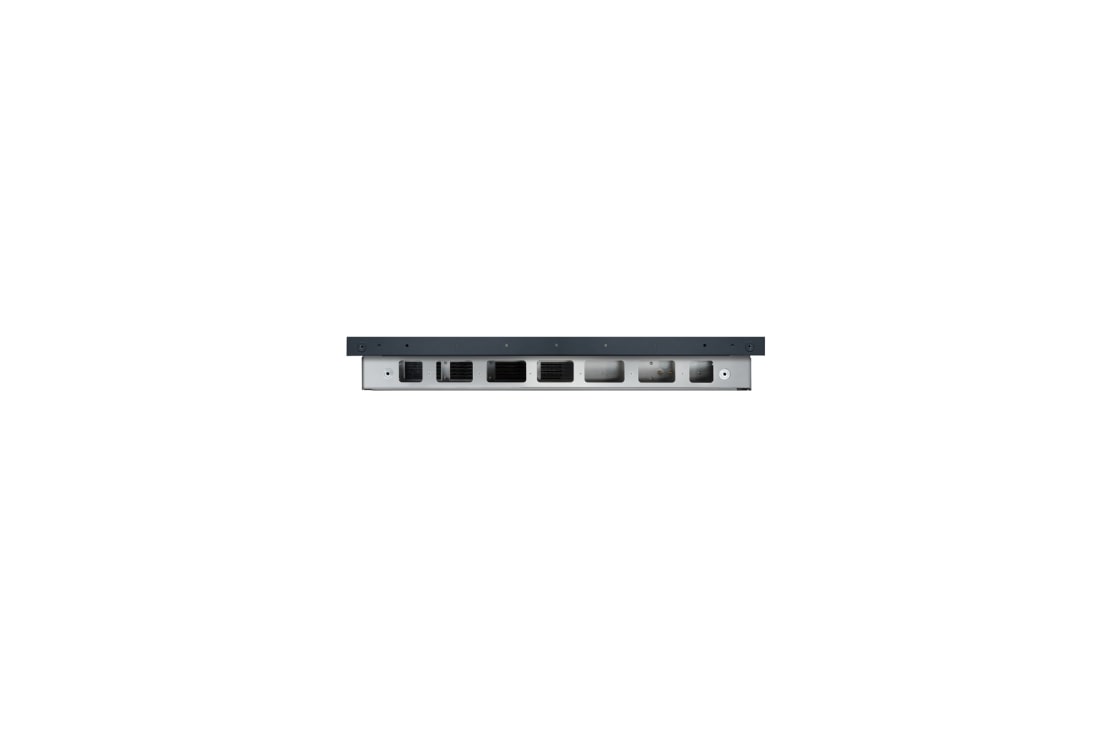

86XE3FS-B component-copyModelName
Outdoor Display

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86XE3FS-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86XE3FS-B)
    $
    $
    LG Members Price
Total
Outdoor Display
Contact Us

Outstanding Visibility
with High Reliability

Boasting a high brightness of 3,000 nits, LG’s outdoor display, 86XE3FS, captures the attention of passersby even under direct sunlight. Carefully designed to withstand a variety of extreme changes in the environment, the display will stably deliver eye-catching content for as long as you need it to.

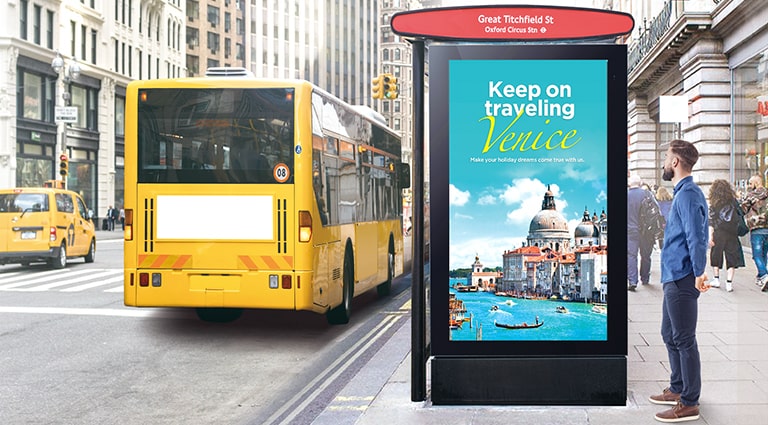

A large display is installed at the bus stop, and a man is looking at a vividly pictured quality advertisement on it. A large display is installed at the bus stop, and a man is looking at a vividly pictured quality advertisement on it.
* All images are for illustrative purposes only.

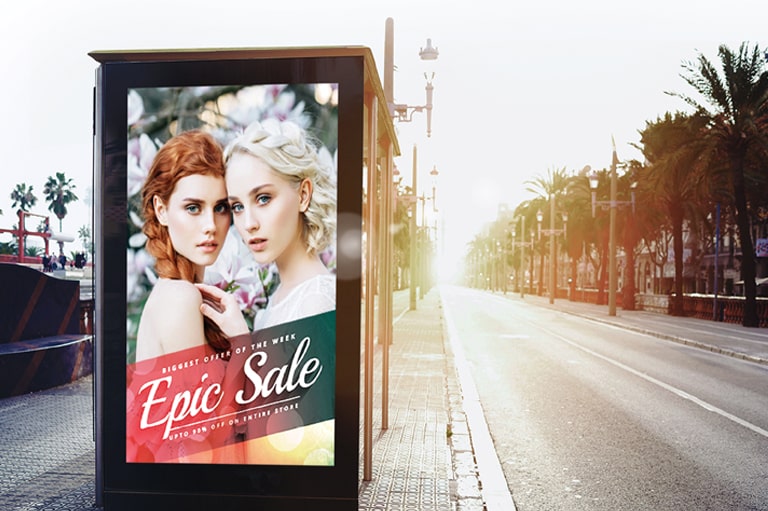

The 86XE3FS installed on the side of the road can display the content clearly, even in a bright outdoor environment. The 86XE3FS installed on the side of the road can display the content clearly, even in a bright outdoor environment.
OUTSTANDING VISIBILITY

High Brightness

With outstanding high brightness at 3,000 nits (Typ.), the 86XE3FS outdoor display delivers contents clearly while captivating passersby, making it the ultimate display for outdoor visibility.

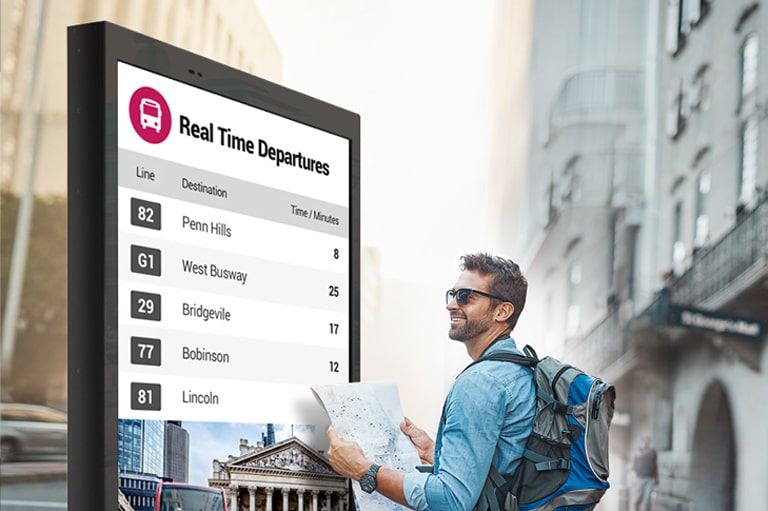

A man wearing sunglasses is checking the contents on the display. A man wearing sunglasses is checking the contents on the display.
OUTSTANDING VISIBILITY

Visible with Polarized Sunglasses

QWP(Quarter Wave Plate) enables clear visibility even when the viewer is wearing polarized sunglasses.

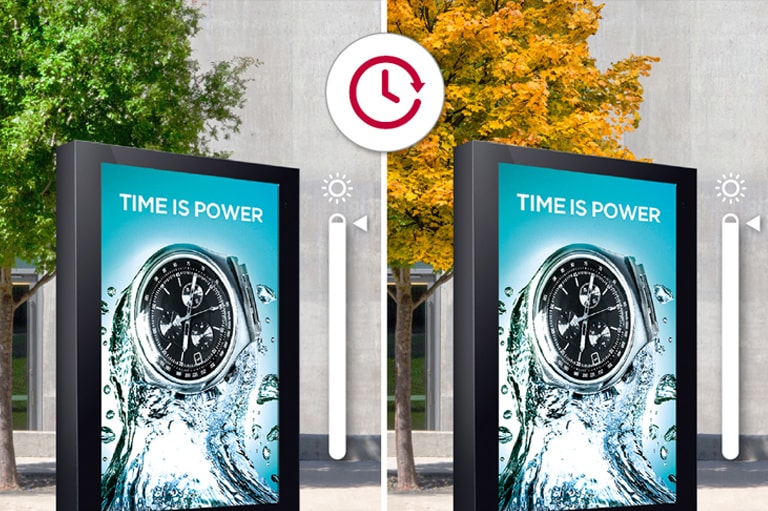

The 86XE3FS does not change the panel’s brightness over time. The 86XE3FS does not change the panel’s brightness over time.
OUTSTANDING VISIBILITY

Smart Brightness Compensation

The built-in BLU* sensor constantly measures the brightness of the display and automatically compensates for reduced brightness during operation.

* Back Light Unit
The screen can adjust its brightness automatically according to the ambient light. The screen can adjust its brightness automatically according to the ambient light.
OUTSTANDING VISIBILITY

Auto Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
The display is working well in an environment of -30~50°C. The display is working well in an environment of -30~50°C.
RELIABILITY FOR OUTDOOR USAGE

Wide Range of Operating Temperature

The display offers superb reliability under a wide range of operating temperatures, which also goes through LG’s solar-loading test which causes a lot of thermal energy. So the 86XE3FS requires fewer constraints for outdoor installations which are usually exposed to strong direct sunlight and various environmental changes.

* 86XE3FS is tested under humidity of 30% (55°C) and 99% (40°C).
The display is protected against dust, direct sunlight, rain, and snow. The display is protected against dust, direct sunlight, rain, and snow.
RELIABILITY FOR OUTDOOR USAGE

Secured Protection with IP56 Design

The display is sealed with IP56* design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.

* IP Code or Ingress Protection Code classifies the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water.
** IP56 means the product is protected from limited dust ingress and resists high-pressuer, heavy sparys of water.
*** 86XE3FS is certified as IP56 by CTK in May 2019.
The display is protected from external electrical hazards. The display is protected from external electrical hazards.
RELIABILITY FOR OUTDOOR USAGE

Electrical Safety

Circuit breaker is inside ensuring strong protection from overcurrent short circuits, and unwanted voltages. This type of integration establishes preventative solutions for signage’s from having future damages.

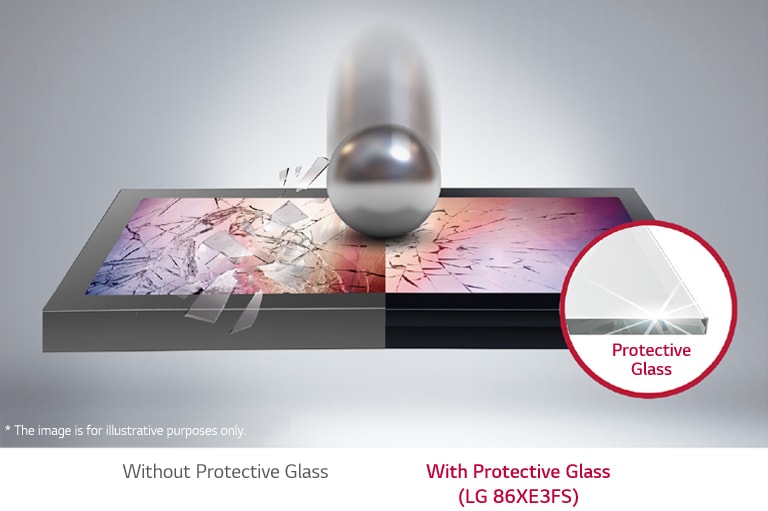

When a strong impact hits the front glass from the outside, the display without protective glass breaks, but the 86XE3FS minimizes the damage with protective glass. When a strong impact hits the front glass from the outside, the display without protective glass breaks, but the 86XE3FS minimizes the damage with protective glass.
RELIABILITY FOR OUTDOOR USAGE

Protective Glass

The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts*.

* When 1,040g of iron is dropped from a height of 60cm, the front protective glass should not be broken or cracked while normal glass can be broken or cracked by the same level of impacts.

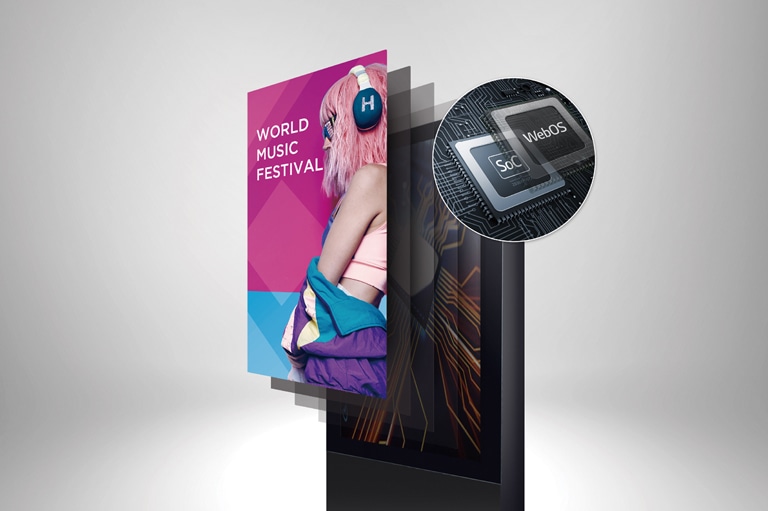

A number of tasks that can be done simultaneously are easily arranged through the webOS platform. A number of tasks that can be done simultaneously are easily arranged through the webOS platform.
SMART PERFORMANCE

webOS Smart Platform

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.
User can monitor and control their displays through mobile phone and laptop. User can monitor and control their displays through mobile phone and laptop.
SMART PERFORMANCE

Web Monitoring

The LG Control Manager*, the embedded web monitoring program, allows a variety of parameters to be diagnosed in real time such as temperature, pixel, door, ambient light, and gyro sensors. It can be easily controlled at all times.

* Enabled by wired LAN connection
Close
Panel
  • Screen Size
    86"
    Native Resolution
    3,840 x 2,160 (UHD)
  • Brightness (Typ., cd/m²)
    3000
    Brightness (Min., cd/m²)
    2800
  • Viewing Angle (H x V)
    178 x 178
    Life Time (Typ.)
    50,000 Hrs
  • Operation Hours
    24 Hrs
    Orientation
    Portrait
Connectivity
  • Input
    HDMI, DP, DVI-D, Audio, USB
    Output
    External Speaker
  • External Control
    RS232C In/out, RJ45(LAN) In, RJ45(LAN) Out(4), External IR In
Mechanical Specification
  • Bezel Width
    101 mm (T/B), 135 mm (L/R)
    Monitor Dimensions (W × H × D)
    1,338 x 2,100 x 187 mm
  • Weight (Head)
    276 kg
    Packed Weight
    310 kg
Environment Conditions
  • Operation Temperature
    -30°C to 50°C
    Operation Humidity
    5% to 100%
Power
  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    1450W (Full White)
    680W (IEC 62087)
    Max
    1850W
  • BTU (British Thermal Unit)
    0 BTU/Hr(Typ.), 0 BTU/Hr(Max)
    DPM
    1W ↓
  • Power off
    0.5W ↓
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / No
Media Player Compatibility
  • OPS type compatible
    No
Software Compatibility
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
Accessory
  • Basic
    Remote Controller, HDMI Cable, USB Cable, Manual(IG&EIG), Regulation Book, Phone to RS232C Gender, LAN Extension Cable, Cord Grip Rubbers
  • Dimension
    • 86xe3fs_2d.dwg
    • 86xe3fs_2d.pdf
  • Datasheet
    • 86XE3FS_Datasheet(low)_LG Digital Signage_230901.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
