UHD Standard Signage
Contact Us

New High Haze UHD
Standard Signage

A screen showing the meeting’s contents is installed on the meeting room’s wall. A screen showing the meeting’s contents is installed on the meeting room’s wall.
* All images in this web page are for illustrative purposes only.

Appropriate Display Brightness

With a recommend brightness of 500 cd/m² for indoor display, the UH5J-H series clearly delivers content and attracts public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls, etc.
UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light. UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light.
* Actual images available may differ from the example images shown.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

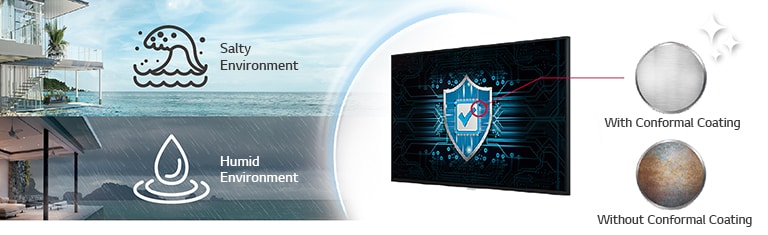

Conformal Coating

In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment. The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
* Actual images (signage display) available may differ from the example images shown.
UH5J-H is IP5x certified, so it is protected from dust and has less risk of performance degradation. UH5J-H is IP5x certified, so it is protected from dust and has less risk of performance degradation.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
The AV control system helps users control the UH5J-H. The AV control system helps users control the UH5J-H.

Compatible with AV Control System

The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control
Close
Panel
  • Screen Size
    86
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16 : 9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    120Hz
  • Brightness
    500nit (Typ.)
    Contrast Ratio
    1,100:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle(H x V)
    178 X 178
    Color Depth
    10bib, 1.07Billion colors
  • Response Time
    8ms (G to G)
    Surface Treatment(Haze)
    28%
  • Life time
    50,000Hrs (Typ.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
Connectivity
  • Input
    HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)
    Output
    HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
Mechanical Specification
  • Bezel Color
    Black
    Bezel Width
    Even bezel : 14.3mm
  • Weight(Head)
    49.0Kg
    Packed Weight
    72.5Kg (With Pallet)
  • Monitor Dimension(W x H x D)
    1926.2 x 1097.2 x 60.6mm
    (without Handle and LG Logo)
    Carton Dimensions(W x H x D) (Box outer size)
    2073 x 1250 x 285mm
  • Handle
    Yes
    VESATM Standard Mount Interface
    600 x 400
Key Feature
  • Key features
    Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN,Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
Environment Conditions
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    215W (TBD)
    Max.
    280W (TBD)
  • BTU (British Thermal Unit)
    733.69 BTU/Hr(Typ.), 955.5 BTU/Hr(Max) (TBD)
    Smart Enegy Saving(~70%)
    150.5W (TBD)
  • DPM
    0.5W
    Power off
    0.5W
Sound
  • Speaker
    Yes
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (NewErP) / No (TBD)
OPS Compatibility
  • OPS Type Compatible
    Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Mobile CMS
    Yes
    Signage 365 Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
    Optional
    OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)
