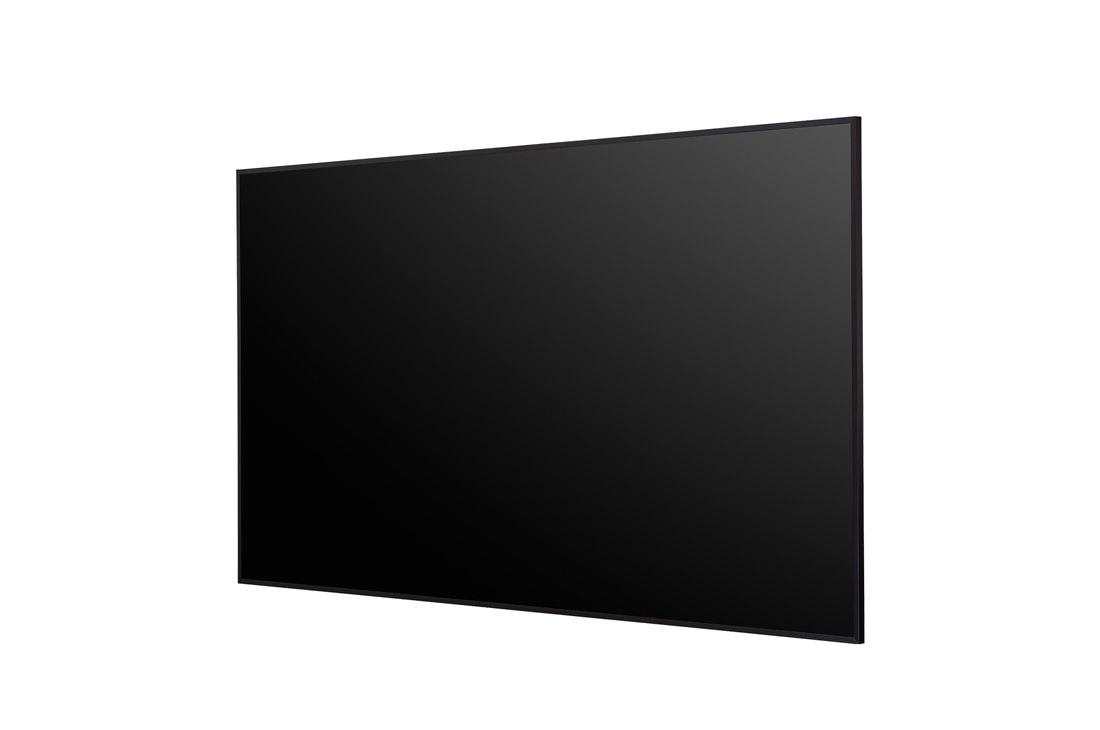

86UP5Q-EQ component-copyModelName
UHD Signage

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86UP5Q-EQ)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86UP5Q-EQ)
    $
    $
    LG Members Price
Total
UHD Signage
Contact Us

Sleek 4K UHD Signage Featuring Enhanced Security with LG Shield

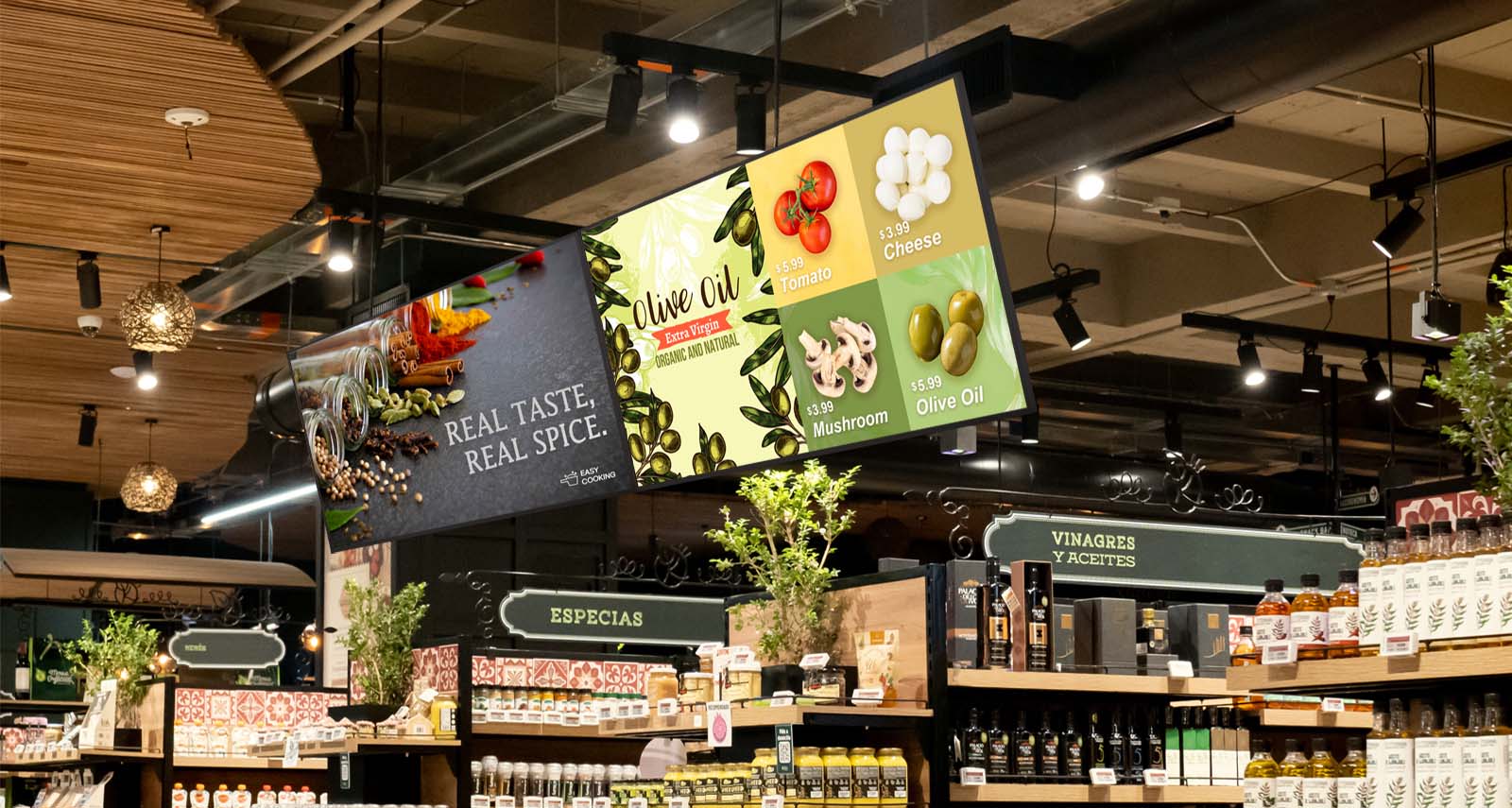

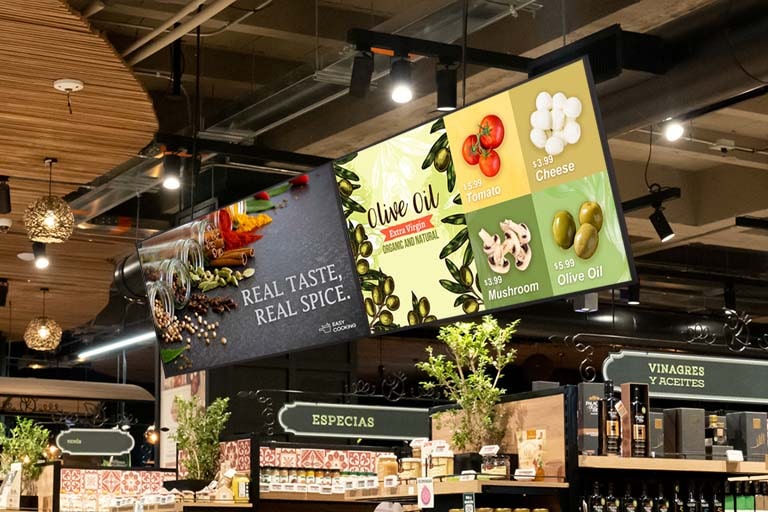

Two UP5Q-E displays are installed side by side in the mart. The left screen displays advertisements in full screen, while the right one shows ads in a split-screen layout. Two UP5Q-E displays are installed side by side in the mart. The left screen displays advertisements in full screen, while the right one shows ads in a split-screen layout.
* All images are for illustrative purposes only.
The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD. The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
The UP5Q-E with LG Shield offers security features that protect its system and network. The UP5Q-E with LG Shield offers security features that protect its system and network.

Comprehensive Security

webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.

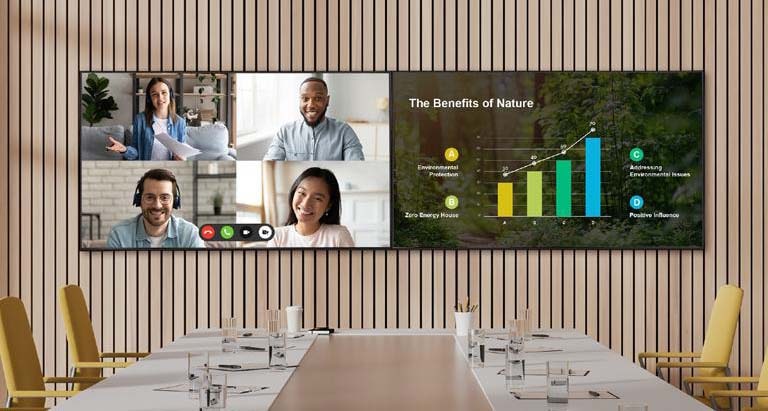

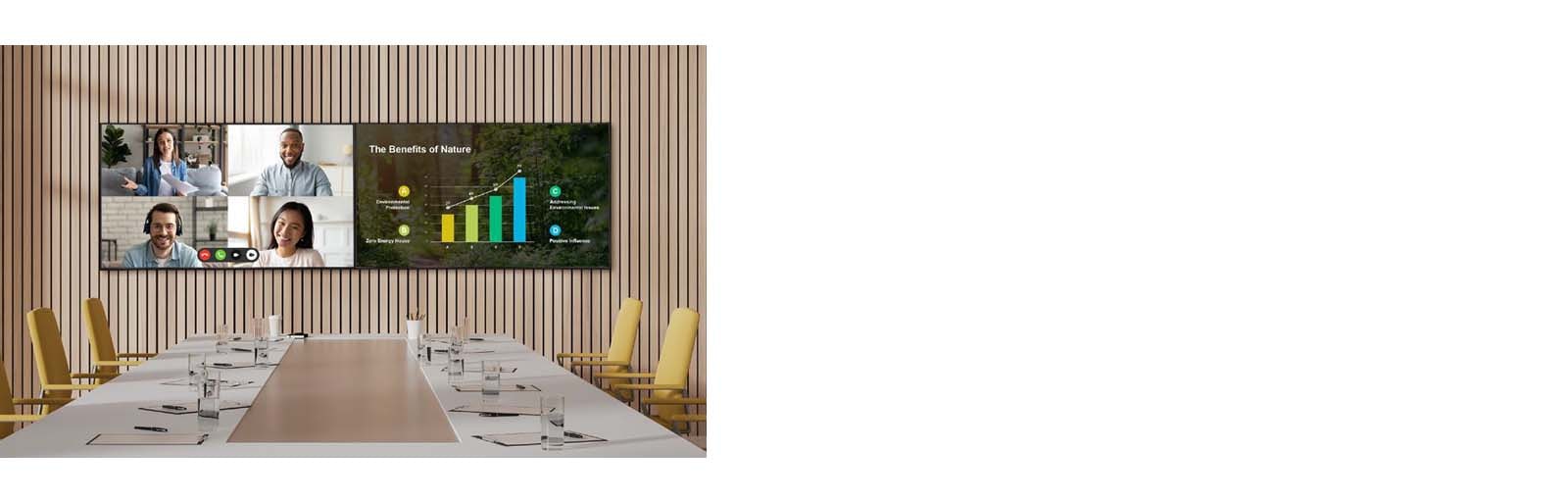

Two UP5Q-E displays are installed side by side in the meeting room. One display features a four-way multi-screen setup showing video conference participants, while the other presents meeting materials in full screen. Two UP5Q-E displays are installed side by side in the meeting room. One display features a four-way multi-screen setup showing video conference participants, while the other presents meeting materials in full screen.

Multi-Screen Play with 4K OSD

The new webOS platform supports detailed text-based content playback with 4K OSD, ensuring that 4K app content is displayed smoothly. Thanks to its powerful CPU and GPU performance, it can deliver seamless content playback, even when handling graphics and data-intensive tasks. Additionally, the multi-screen feature offers 4-screen streaming capabilities, enhancing the overall user experience.

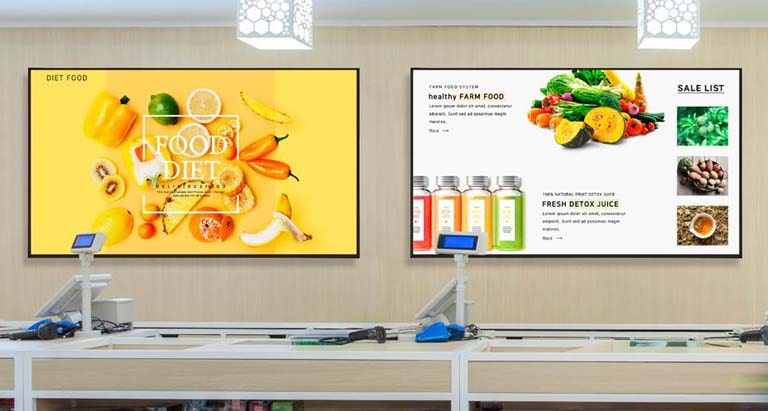

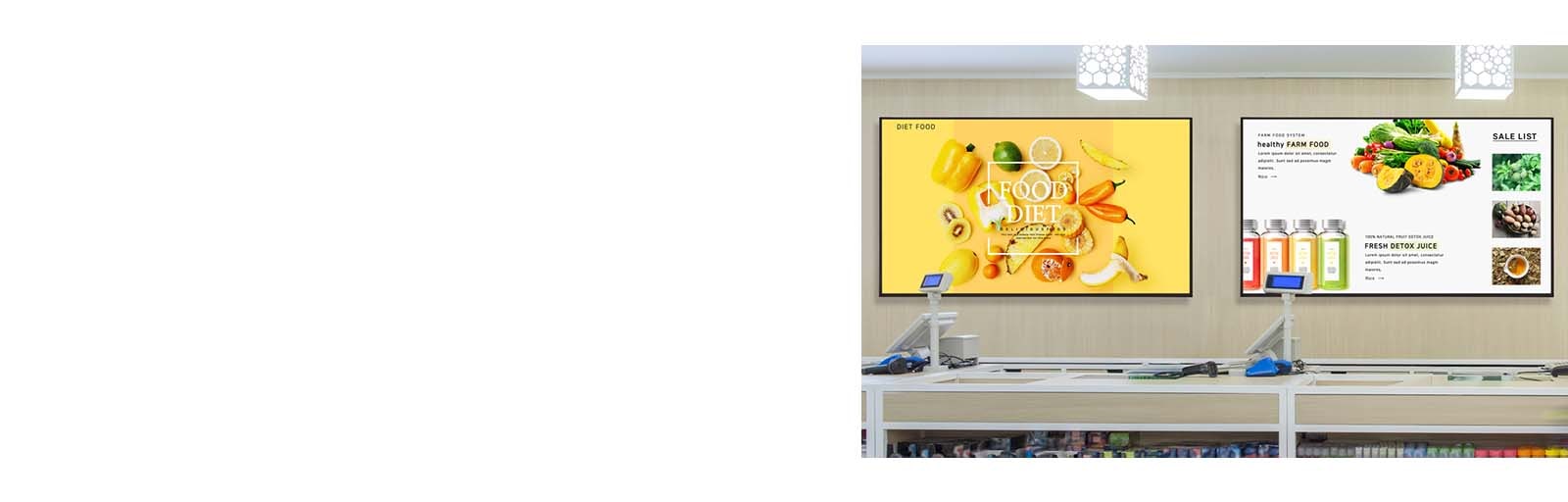

Inside the convenience store, two UP5Q-E displays are mounted on the wall, each vividly and seamlessly showcasing advertisements. Inside the convenience store, two UP5Q-E displays are mounted on the wall, each vividly and seamlessly showcasing advertisements.

Smooth Content Play

Experience seamless 4K playback with UP5Q-E, ensuring smooth content transitions. With 32GB storage, it offers efficient file transfer through USB 3.0, reducing potential delays in content playback and updates.

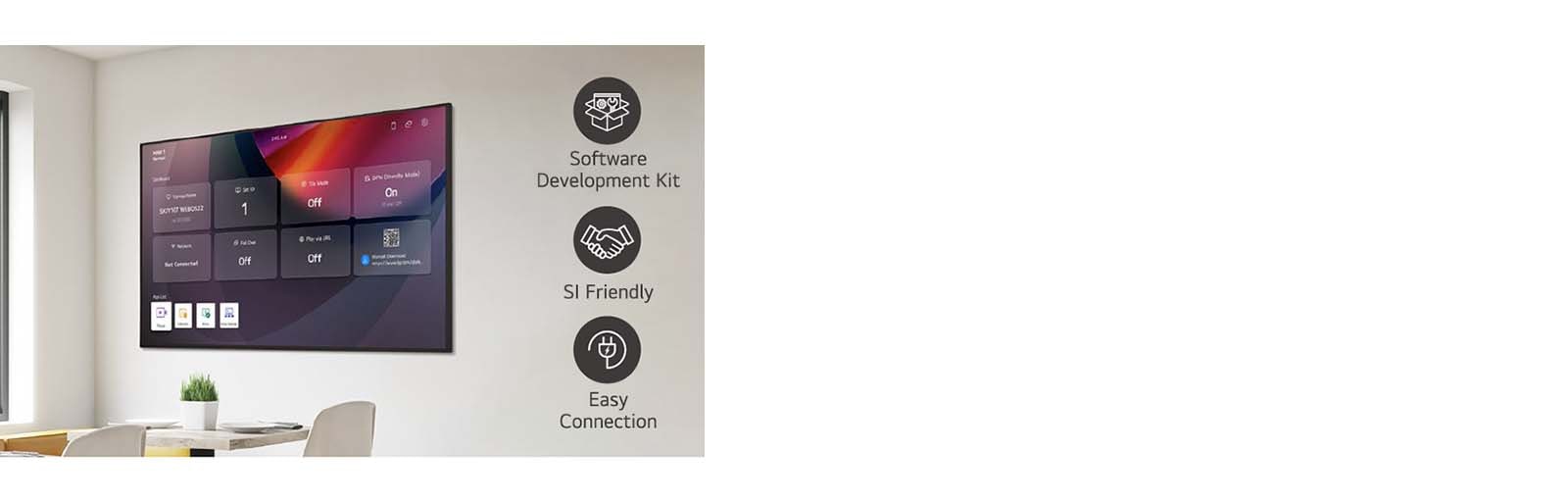

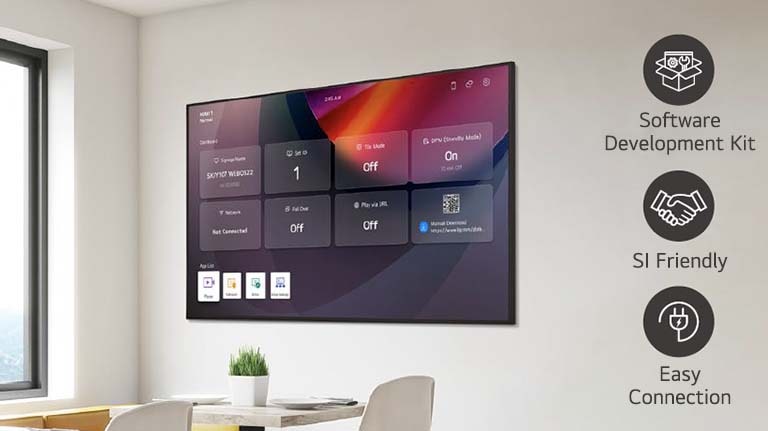

A number of tasks can be done at the same time with the intuitive UI. A number of tasks can be done at the same time with the intuitive UI.

Convenient webOS Platform

The UP5Q-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
The UP5Q-E is designed to be flame-resistant. The UP5Q-E is designed to be flame-resistant.

Sturdy Design with Fire Flame Resistance

The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.
The UP5Q-E has conformal coating to protect the display even in salty or humid environments. The UP5Q-E has conformal coating to protect the display even in salty or humid environments.

Durability that Provides Reliability

Optimized for business environments, the UP5Q-E is protected against salt, dust, iron powder, and humidity due to conformal coating applied specifically to selected areas of the power board. Additionally, its customercentric features such as IP5x, 30-degree tilting, and Shock Monitoring provide both reliability and satisfaction.

* Shock Monitoring refers to the feature where sensors detect impacts on the device and alert the user.
** CTK has reported that its based model has achieved an IP5X rating, which, under the Ingress Protection (IP) rating system, specifically indicates the level of protection against dust.
Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software. Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that fits you.

* Sold separately

Eye-Catching Large Screen

A large screen effectively captures people's attention as UP5Q-E offers 75/86-inch sizes.

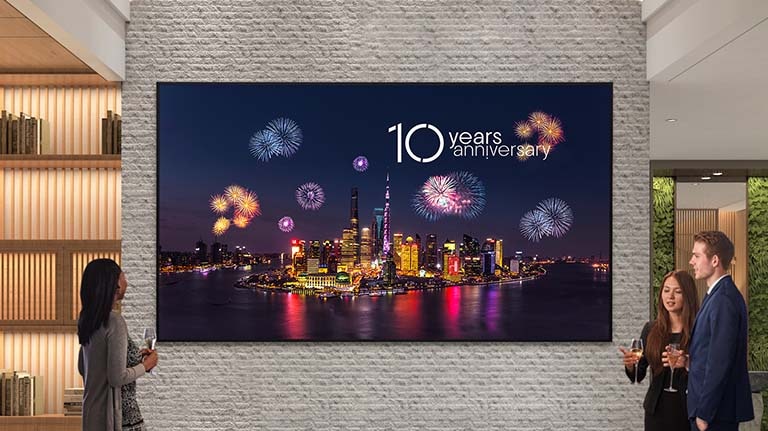

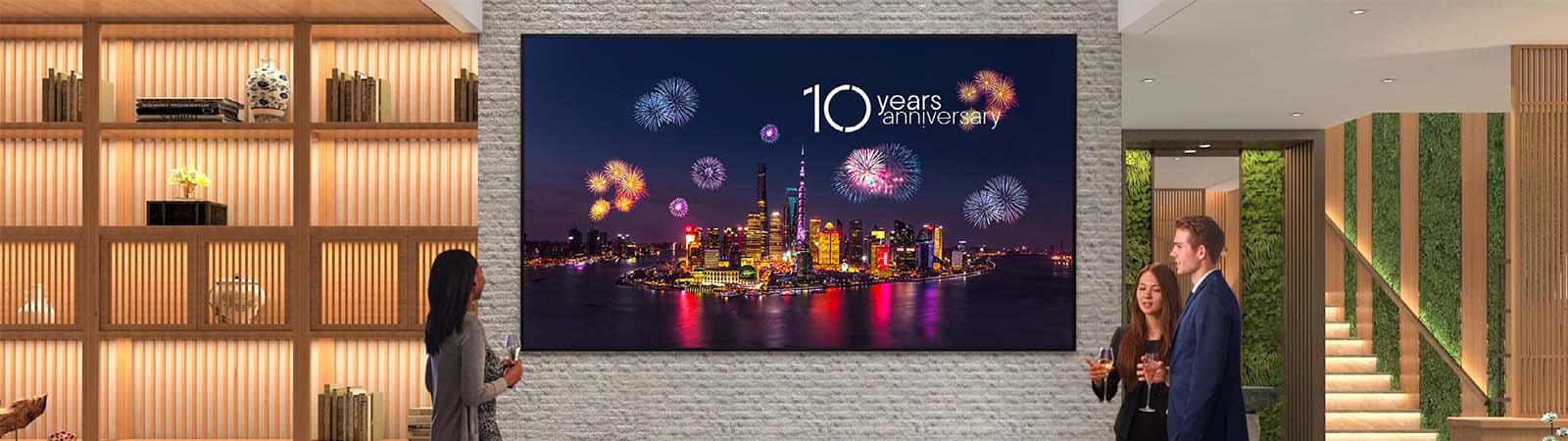

The company lounge features a sizable UP5Q-E installed on the wall. The large screen vividly displays images, easily capturing people’s attention. The company lounge features a sizable UP5Q-E installed on the wall. The large screen vividly displays images, easily capturing people’s attention.
Close
Connectivity
(Jack Interface)
  • HDMI IN
    Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
    DP IN
    Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
  • RS232C IN
    Yes (1), 4pin Phone-jack
    RJ45(LAN) IN
    Yes (1)
  • IR IN
    Yes (1)
    USB IN
    USB3.0 Type A(1), USB2.0 TypeA(1)
  • Audio Out
    Yes (1)
    RS232C Out
    Yes (1), 4pin Phone-jack
Mechanical
  • Bezel Color
    Black
    Bezel Width
    13.4 mm (Even)
  • Weight (Head)
    53.0 kg
    Packed Weight
    66.7 kg
  • Monitor Dimensions (W x H x D)
    1928.8 x 1099.8 x 29.7 mm (without IR, Handle)
    Carton Dimensions (W x H x D)
    2100 x 1250 x 253 mm
  • Handle
    Yes
    VESATM Standard Mount Interface
    600 x 400
HW Feature
  • Internal Memory (eMMC)
    32GB
    Wi-Fi/BT (Built-in)
    Yes
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    Yes
  • Acceleration(Gyro) Sensor
    Yes
    Local Key Operation
    Yes
SW Feature
  • OS Ver. (webOS)
    webOS8.0
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    PIP
    Yes
  • PBP
    Yes(4)
    Screen Share
    Yes
  • Video Tag
    Yes(6)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes (Max. 15x15)
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Cisco Certification
    TBD
    Crestron Connected
    Yes
  • Smart Energy Saving
    Yes
    PM mode
    Yes
  • Wake on LAN
    Yes
    Network Ready
    Yes
  • Beacon
    Yes
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    205W (TBD)
    Max.
    297W (TBD)
  • BTU (British Thermal Unit)
    699 BTU/Hr(Typ.), 1013 BTU/Hr(Max) (TBD)
    Smart Enegy Saving (70%)
    144W (TBD)
  • DPM
    0.5W
    Power off
    0.5W
Sound
  • Speaker (Built-in)
    Yes (10W X 2)
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "B" / CE / KC
  • ErP / Energy Star
    N/A / Yes
    ePEAT(US only)
    Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Cloud
    Yes
  • Mobile CMS
    Yes
    Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(6EA), Cable Holder(7Pin/1EA)
    Optional
    Wall Mount (LSW640A/B)
Special Feature
  • IP Rating
    IP5X
    Conformal Coating (Power Board)
    Yes (Partial space coating)
  • Datasheet
    • UP5Q-E_Datasheet(low)_LG UHD Signage_250327.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
