86XF3SK component-copyModelName
High-brightness Open-frame Display

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86XF3SK)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86XF3SK)
    $
    $
    LG Members Price
Total
High-brightness Open-frame Display
Contact Us

Large Display Optimized for Outdoor Advertisement

A large-sized display is installed at a bus stop, and a woman is looking at a vivid-quality advertisement on the screen. A large-sized display is installed at a bus stop, and a woman is looking at a vivid-quality advertisement on the screen.
* All images in this page are for illustrative purposes only.

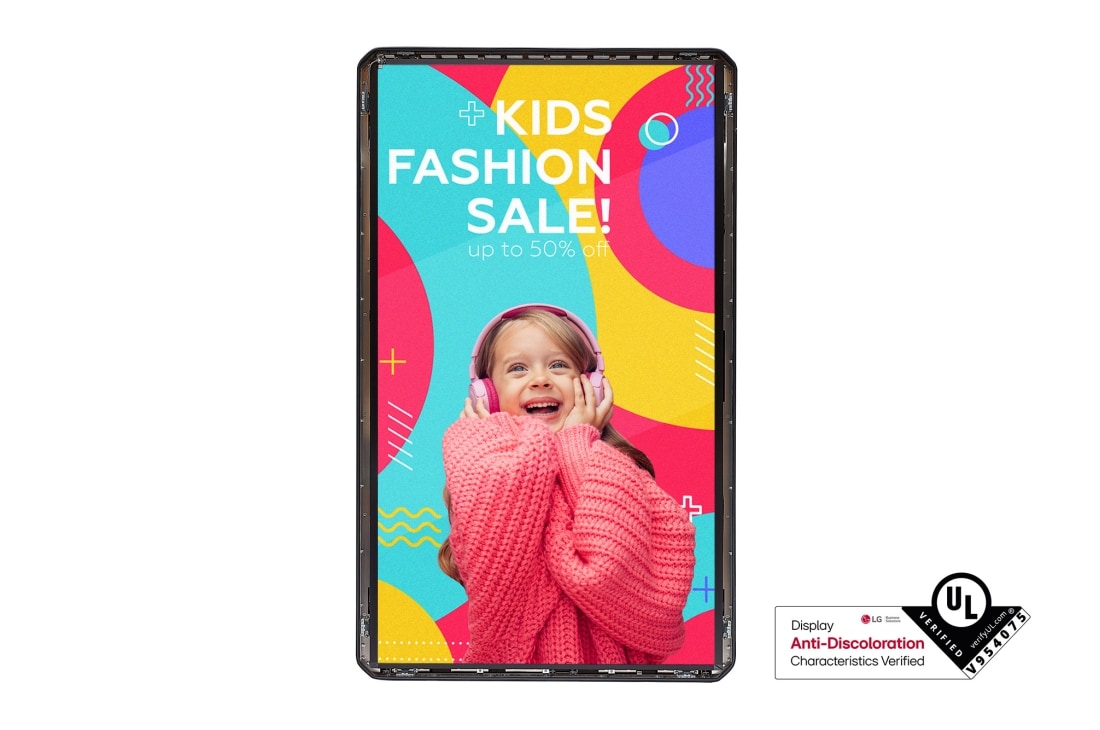

World’s First UL Verification for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.
The left side of the screen has yellowing, degrading its quality, but with XF3SK, which acquired the UL Verification for Display Anti-Discoloration Features, the screen is clear, safeguarding display quality. The left side of the screen has yellowing, degrading its quality, but with XF3SK, which acquired the UL Verification for Display Anti-Discoloration Features, the screen is clear, safeguarding display quality.
* For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.
* World's first UL Verification in the manufacturing industry.

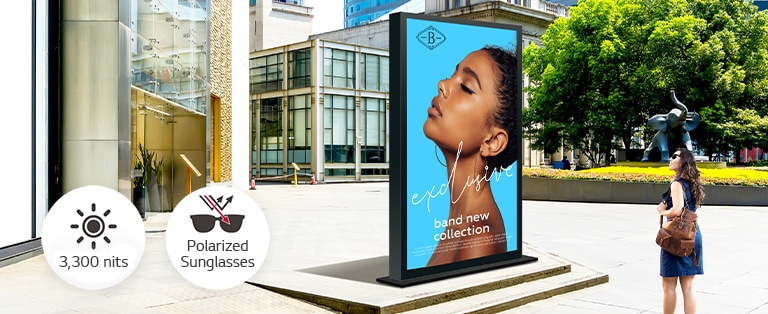

High Visibility Under Strong Sunlight

With outstanding high brightness of 3,300 nits (Typ.), the 86XF3SK outdoor display delivers contents clearly while captivating passersby, making it the optimized display for outdoor visibility. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.
A large-sized display is installed at a bus stop, and a woman is looking at a vivid-quality advertisement on the screen. A large-sized display is installed at a bus stop, and a woman is looking at a vivid-quality advertisement on the screen.

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.
A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen. A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.

Open-frame Type Display

86XF3SK is an open-frame type high brightness displays to give customers flexibility in exterior of casing such as colors or design.
Various frame-shaped displays are installed outdoors. Various frame-shaped displays are installed outdoors.

Wide Range of Operating Temperature

The display offers superb reliability under a wide range of operating temperatures, which also goes through LG’s solar test* which causes a lot of thermal energy. So the 86XF3SK requires fewer constraints for outdoor installations** which are usually exposed to strong sunlight and various environmental changes.
A woman in a car is looking at a DOOH (Digital Out Of Home media) ad on the side of the road. Via a solar test conducted inside LG, this product can operate at wide range of temperature of 0 to 40 degrees. A woman in a car is looking at a DOOH (Digital Out Of Home media) ad on the side of the road. Via a solar test conducted inside LG, this product can operate at wide range of temperature of 0 to 40 degrees.
* 86XF3SK is LG-internally tested based on international environment test standard IEC 600680205, MIL-STD-810G and TTA (Telecommunication Technology Association).
** 86XF3SK needs to be installed inside a casing according to LG's official installation guide to be used safely and appropriately. The installation guide is provided by LG.

Smart Brightness Compensation

The built-in BLU* sensor frequently measures the brightness of the display and automatically compensates for reduced brightness during operation.
The 86XF3SK minimizes the change of the panel’s brightness over time. The 86XF3SK minimizes the change of the panel’s brightness over time.
* Back Light Unit

Conformal Coating

Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity.
The 86XF3SK has Conformal Coating on its power board to protect the display, even in a salty or humid environment. The 86XF3SK has Conformal Coating on its power board to protect the display, even in a salty or humid environment.
* Conformal Coating : Thin protective films/breathing membranes that filter water vapor.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
The 86XF3SK screen can adjust its brightness automatically according to the ambient light. The 86XF3SK screen can adjust its brightness automatically according to the ambient light.

Electrical Safety

Circuit breaker inside 86XF3SK minimizes the possibility of product damage by cutting off current when abnormal current is detected.
The display is protected from external electrical hazards. The display is protected from external electrical hazards.

High-Performance with
LG webOS 6.0

LG webOS 6.0, upgraded in SoC* and web engine, is available on 86XF3SK for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**
A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.
* SoC : System On Chip
** GUI : Graphical User Interface

Web Monitoring
(Control Manager)

This is a web-based monitoring solution, which provides easy control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network to monitor and control the displays remotely in real-time.
User can monitor and control their displays through mobile phone and laptop. User can monitor and control their displays through mobile phone and laptop.
Close
Panel
  • Screen Size
    86"
    Panel Technology
    IPS, RGB
  • Back Light Type
    Direct
    Aspect Ratio
    16:9
  • Native Resolution
    3840x2160 (UHD)
    Refresh Rate
    120Hz
  • Brightness
    3,300nit
    Contrast Ratio
    1,100:1 (Typ)
  • Dynamic CR
    500,000:1
    Color gamut
    NTSC 68%
  • Viewing Angle(H x V)
    178 X 178
    Color Depth
    10bit, 1.07Billion colors
  • Response Time
    8ms (G to G)
    Surface Treatment(Haze)
    3%
  • Life time
    50,000Hrs(Typ)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / No
    QWP(Quarter Wave Plate)
    Yes
Connectivity(Jack Interface)
  • Input
    HDMI (HDCP 2.2), DP In (HDCP 1.3), RS-232C In, RJ45 (LAN) In, IR In, USB 2.0 Type A
    Output
    RS232C OUT (1, 4pin phone jack), RJ45(LAN)
Mechanical Specification
  • Bezel Color
    Black
    Bezel Width
    L/R: 66.4mm, T: 51.95, B: 51.95mm
  • Weight(Head)
    140Kg
    Packed Weight
    156.7kg
  • Monitor Dimension(W x H x D)
    1,225 x 2,034.3 x 179.48mm
    Carton Dimensions(W x H x D) (Box outer size)
    1503 x 2296 x 468 mm
  • Handle
    Yes
Key Feature(Hardware)
  • Internal Memory
    8GB
    Temperature Sensor
    Yes
  • Auto Brightness sensor
    Yes
    Pixel sensor
    Yes
  • Current Sensor
    Yes
    BLU Sensor
    Yes
  • Humidity Sensor
    Yes
    Acceleration(Gyro) Sensor
    Yes
  • FAN
    Yes
Key Feature(Software)
  • webOS ver.
    webOS 6.0
    Embedded CMS
    Local Contents Scheduling, Group Manager
  • USB Plug & Play
    Yes
    Fail over
    Yes
  • Background Image
    Booting Logo Image, No Signal Image
    Sync Mode
    RS-232C Sync, Local Network Sync, Backlight Sync
  • Video Tag
    Yes (4)
    Play via URL
    Yes (TBD)
  • Rotation
    Screen Rotation, External Input Rotation
    Gapless Playback
    Yes
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Power
    Smart Energy Saving, PM mode, Wake on LAN, Network Ready
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
    Brightness Compensation
    Yes
Environment Conditions
  • Operation Temperature
    0℃ to 50℃ (w/o Direct Sunlight, Direct Sunlight in Cooling System),
    0℃ to 40℃ (Direct Sunlight)
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    1450W (Full White)
    383W (IEC 62087)
    Max.
    1800W
  • BTU (British Thermal Unit)
    TBD
    DPM
    0.5W ↓
  • Power off
    0.5W ↓
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC / VCCI
  • ErP / Energy Star
    Yes / No
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • Signage 365 Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Turkish, Polski
Accessory
  • Basic
    Remote Controller(Including Battery 2ea), HDMI Cable(1ea), USB Cable(2ea), Manual (IG&EIG), Regulation Book, Phone to RS232C Gender(1ea), LAN extension cable(2ea), SMA Cable(2ea), IR Cable(1ea), JCD 5P PWR Cable(3ea), JCD 8P PWR Cable(1ea)
    Cord Grip rubber(5ea), Screw (6ea), JCD Corner Bracket (4ea)
Special Feature
  • Power protection
    Yes (Circuit Breaker)
    Direct Sunlight
    Yes
  • Datasheet
    • 86XF3SK_Datasheet(low)_LG High-brightness Open-frame Display_240806.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
