88BH7D component-copyModelName

Ultra Stretch Signage

LG Ultra Stretch Signage, 88BH7D, thumbnail 1

LG Ultra Stretch Signage, 88BH7D, thumbnail 2

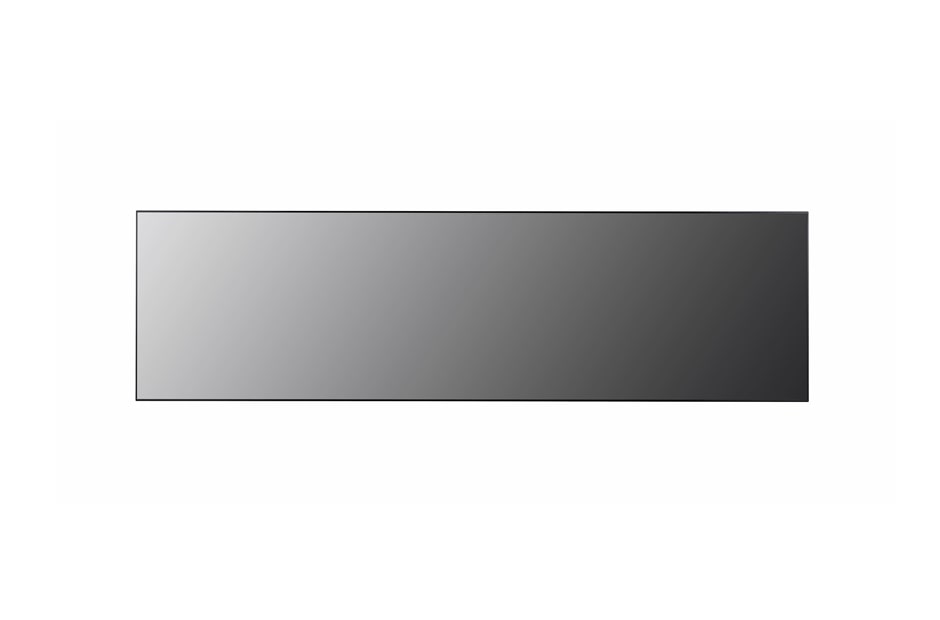

LG Ultra Stretch Signage, 88BH7D, thumbnail 3

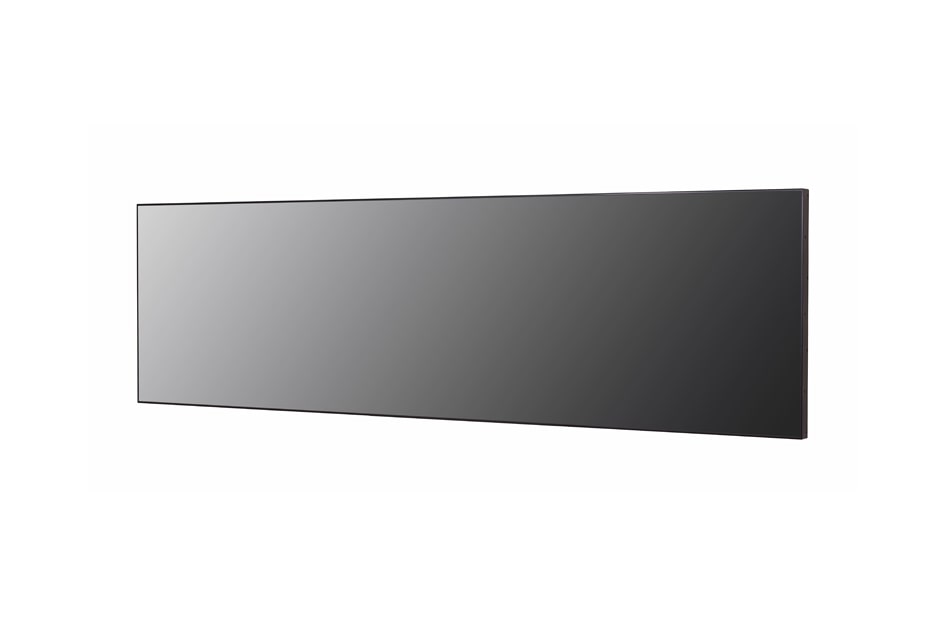

LG Ultra Stretch Signage, 88BH7D, thumbnail 4

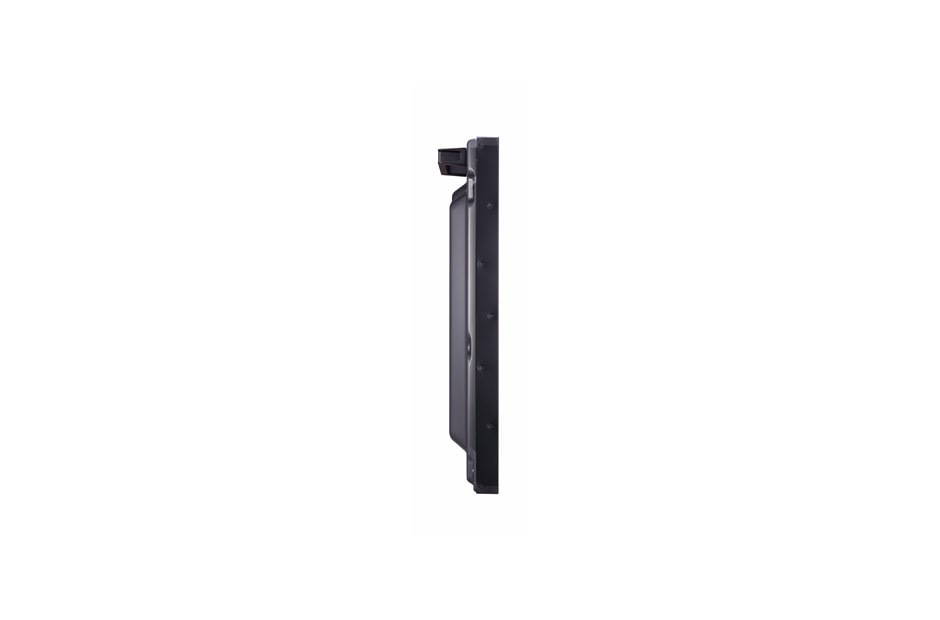

LG Ultra Stretch Signage, 88BH7D, thumbnail 5

LG Ultra Stretch Signage, 88BH7D, thumbnail 6

LG Ultra Stretch Signage, 88BH7D, thumbnail 7

Discontinued

88BH7D component-copyModelName

Ultra Stretch Signage

Key Features

Brightness(Typ.): 700 cd/m²
Aspect Ratio: 32:9
Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
Depth: 84.8mm
Interface: HDMI (3), DP, RJ45, IR, USB (2), SD Card, RS232C

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 700 cd/m²
Aspect Ratio: 32:9
Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
Depth: 84.8mm
Interface: HDMI (3), DP, RJ45, IR, USB (2), SD Card, RS232C

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Ultra Stretch Signage

New Design Configuration

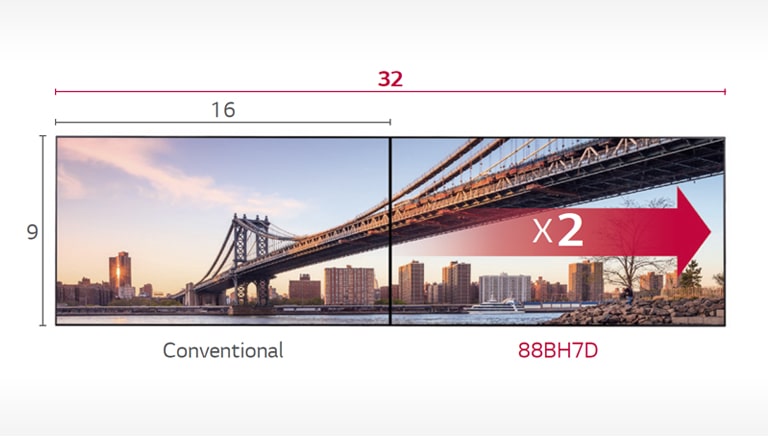

32:9 Extended Wide Format

It is a totally new wide screen format with 32:9 bar type, the most promising display for advertisement and information delivery.

New Design Configuration

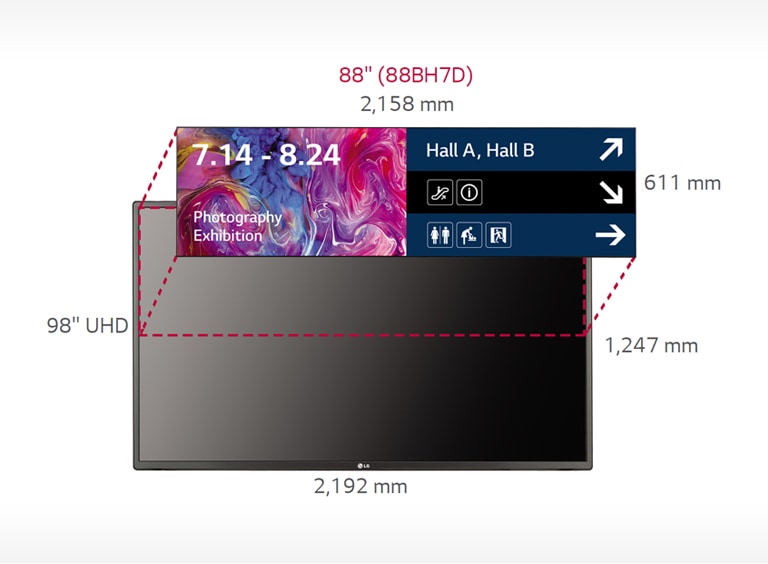

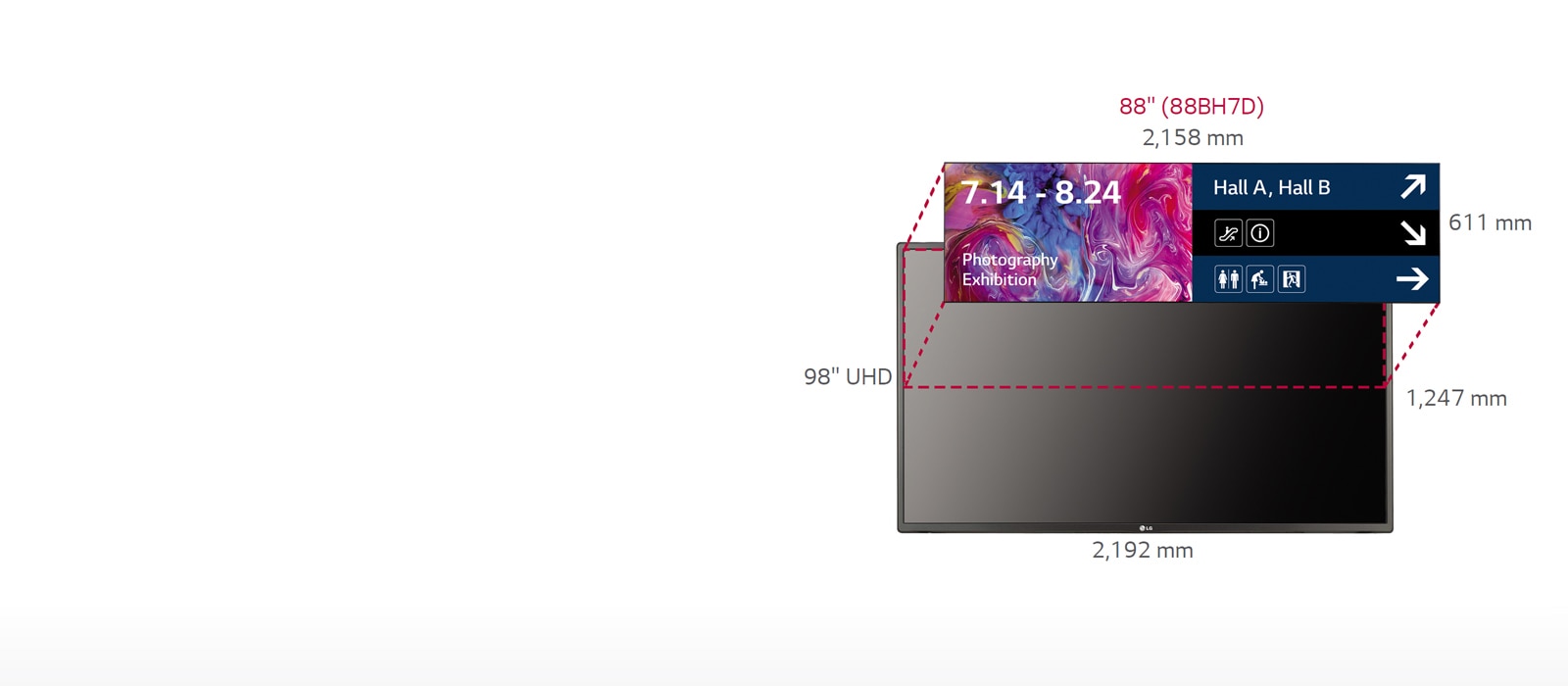

Ultra HD Resolution (3,840 x 1,080)

Ultra HD resolution delivers an immersive viewing experiences with vivid colors and clear images.

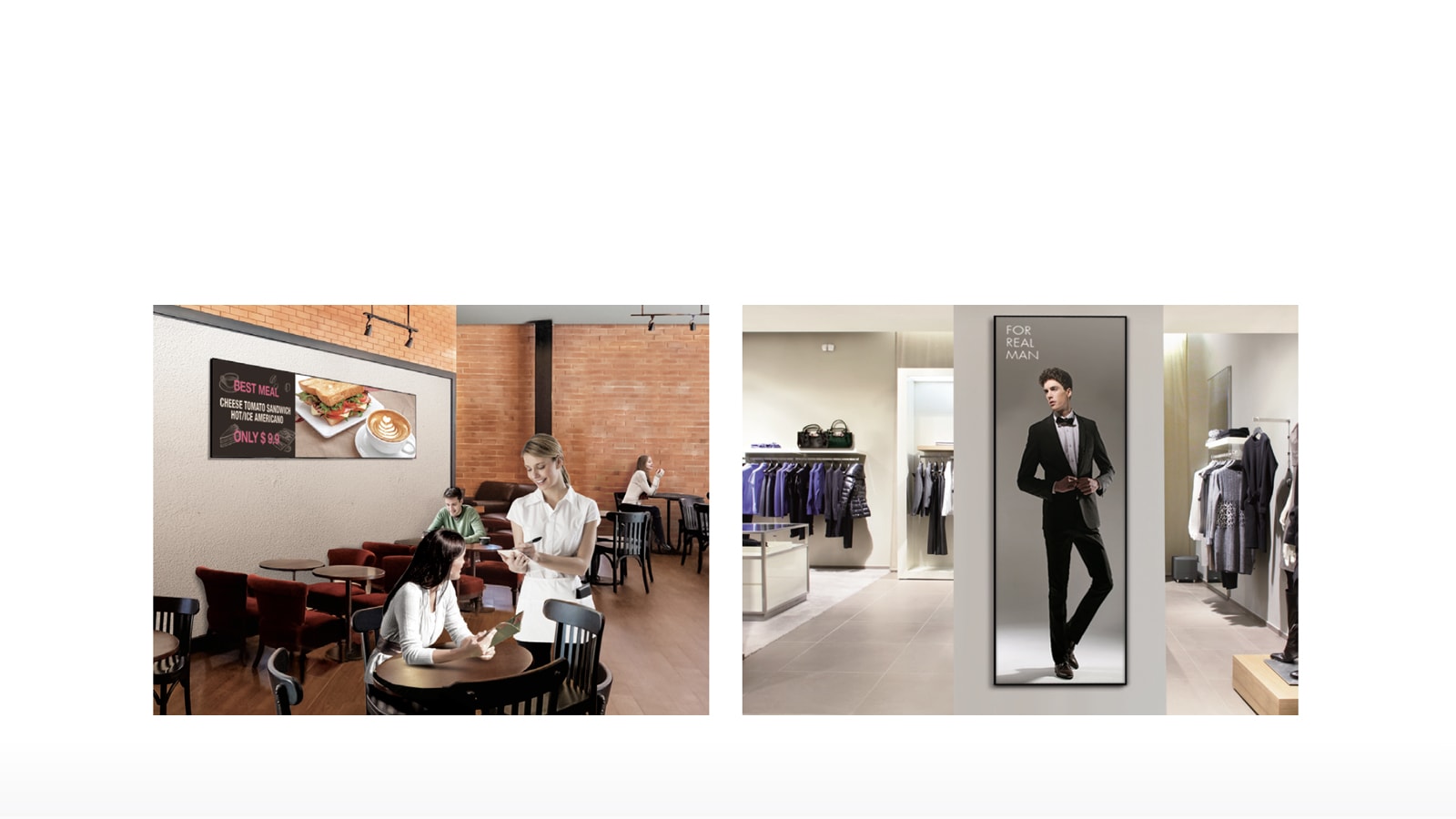

Optimized Content Delivery

88BH7D is ready to organize multi content with video and text according to user's desired ratio. Also, it is optimal to show a vertical or horizontal object without truncation, providing real-like viewing experiences to the audience. It is the best way to attract people's attention and maximize advertisement effect.

PBP with Four Divisions in Landscape or Portrait1

Multiple Screens

PBP with Four Divisions in Landscape or Portrait

The Picture-by-Picture (PBP) feature allows you to compose multi content in one single display with upto four parts. It is very useful and convenient to deliver many different advertisements or pieces of information at the same time without calibration.

Content Management

32:9 Content Editing

With the LG SuperSign Media Editor, you can easily edit images or video clips of original content to fit 32:9 ratio.

Content Management

Multiple Content Creation

Users can edit content that consists of one video and several still images (up to 20) as they want.

Convenient Connectivity

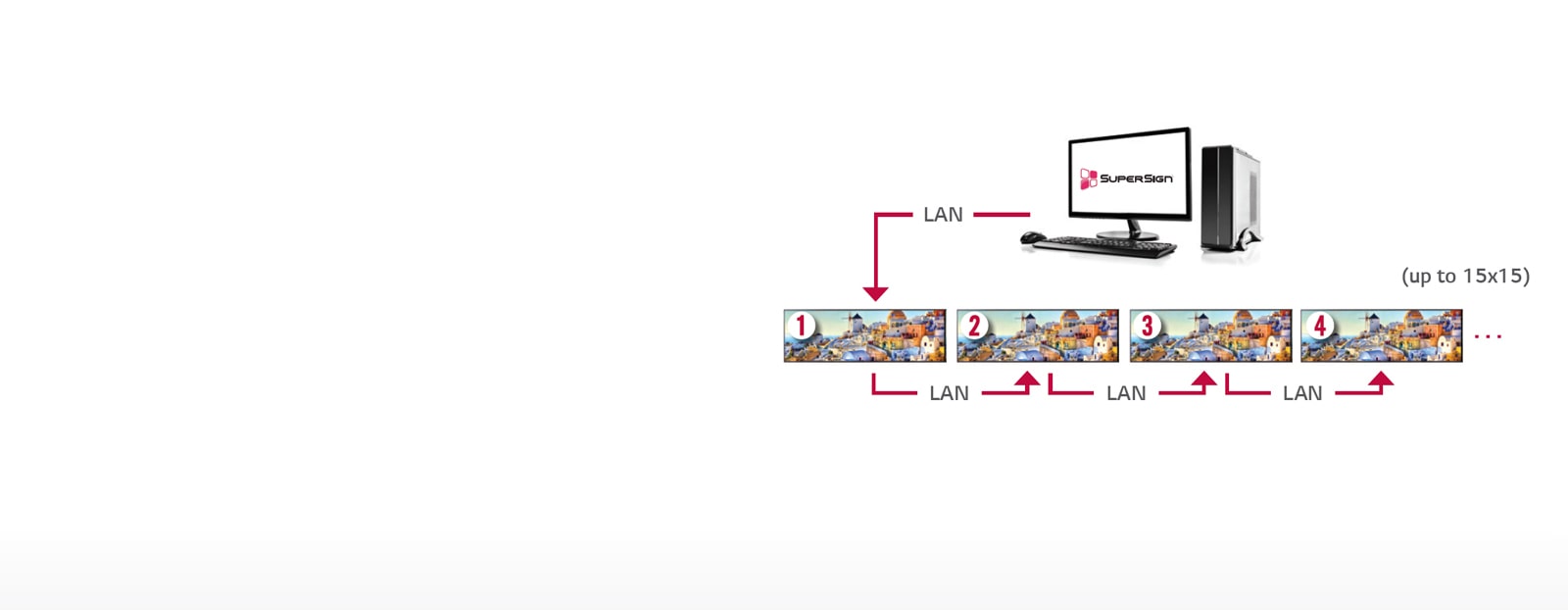

Easy Management with LAN Daisy Chain

The LAN daisy chain allows you to control and monitor devices, distribute content, and even update firmware.

Convenient Connectivity

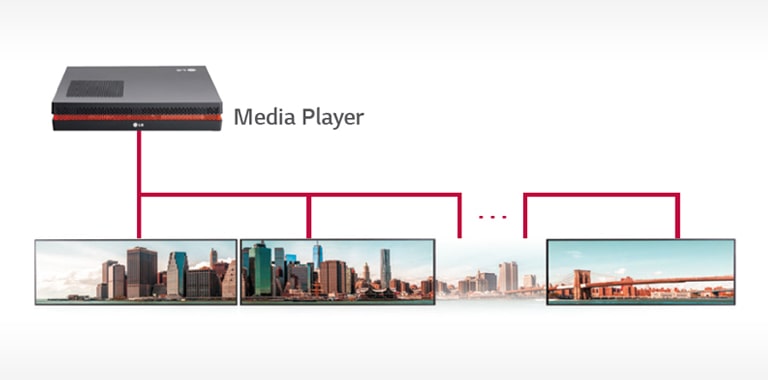

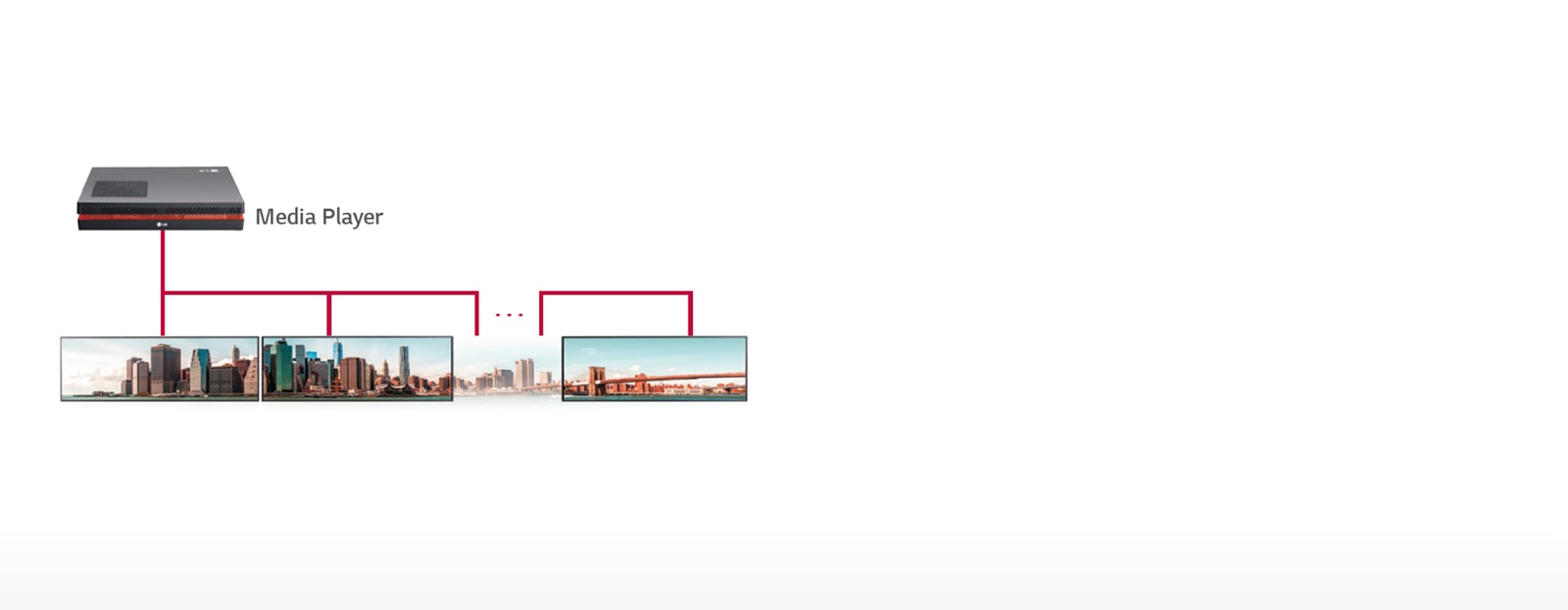

Tiling Scene with DP Daisy Chain

This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain configuration.

Panel

Screen Size

88"

Resolution

3,840 x 1,080 (UHD)
Brightness (Typ., cd/m²)

700

Connectivity

Input

HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card

Output

DP, Analog Audio
External Control

RS232C In/Out, RJ45 In/Out, IR+B Receiver, Pixel Sensor

Physical Specification

Bezel Width

4.4 mm (L/R), 5.9 mm (U/D)

Monitor Dimension (W x H x D)

2,158.3 x 611.2 x 84.8 mm (without handle)
Weight (Head)

38 kg

Carton Dimensions (W x H x D)

2,274 x 717 x 212 mm
Packed Weight

53.2 kg (Pallet included)

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only) / No

Software Compatibility

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign C

Accessory

Basic

Remote Controller (including battery 2ea), Power Cord, DP (2.6M), RS-232C Cable (3M), Owner's Manual (Website upload)

Optional

AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor)
** Stand is not available

Dimension
- 88BH7D.dwg
- 88BH7D.pdf
Datasheet
- 88BH7D Leaflet(preview)_11709.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
