Key Features

Brightness(Typ.) : 700 cd/m²
Aspect Ratio: 32:9
Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
Depth: 84.8mm
Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR

Choose your Size

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 700 cd/m²
Aspect Ratio: 32:9
Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
Depth: 84.8mm
Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Ultra Stretch Signage

Ultra Stretch Signage,
32:9 Space-Fitting Wide Screen

The 88BH7G is a suitable display for delivering new forms of advertising and multiplexed information in a 32:9 widescreen format that brings you a new experience, captivating customers' attention.

Ultra Stretch Signage,<br>32:9 Space-Fitting Wide Screen1

Ultra Stretch Signage,<br>32:9 Space-Fitting Wide Screen2

* All images in this web page are for illustrative purposes only.

A woman is looking at the artist's photos and exhibition information displayed on one wide screen.

32:9 Extended Wide Format

It is a unique wide screen with 32:9 bar type which is twice as long as the previous 16:9 display, allowing more content and information to be shown on one screen.

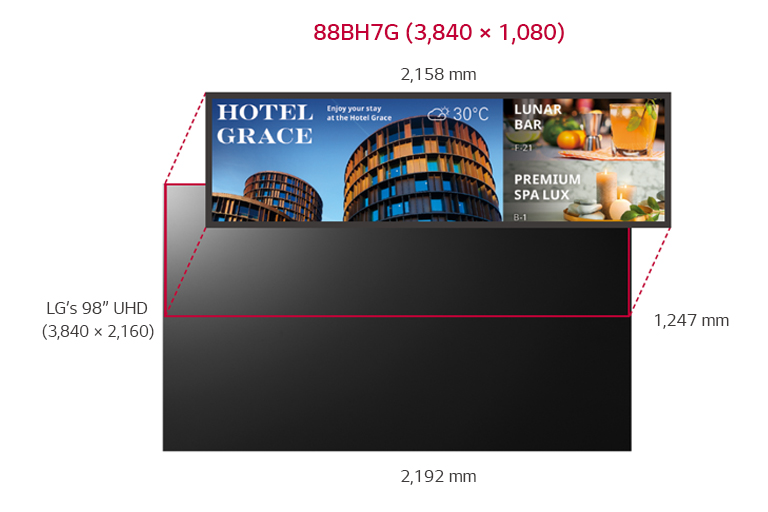

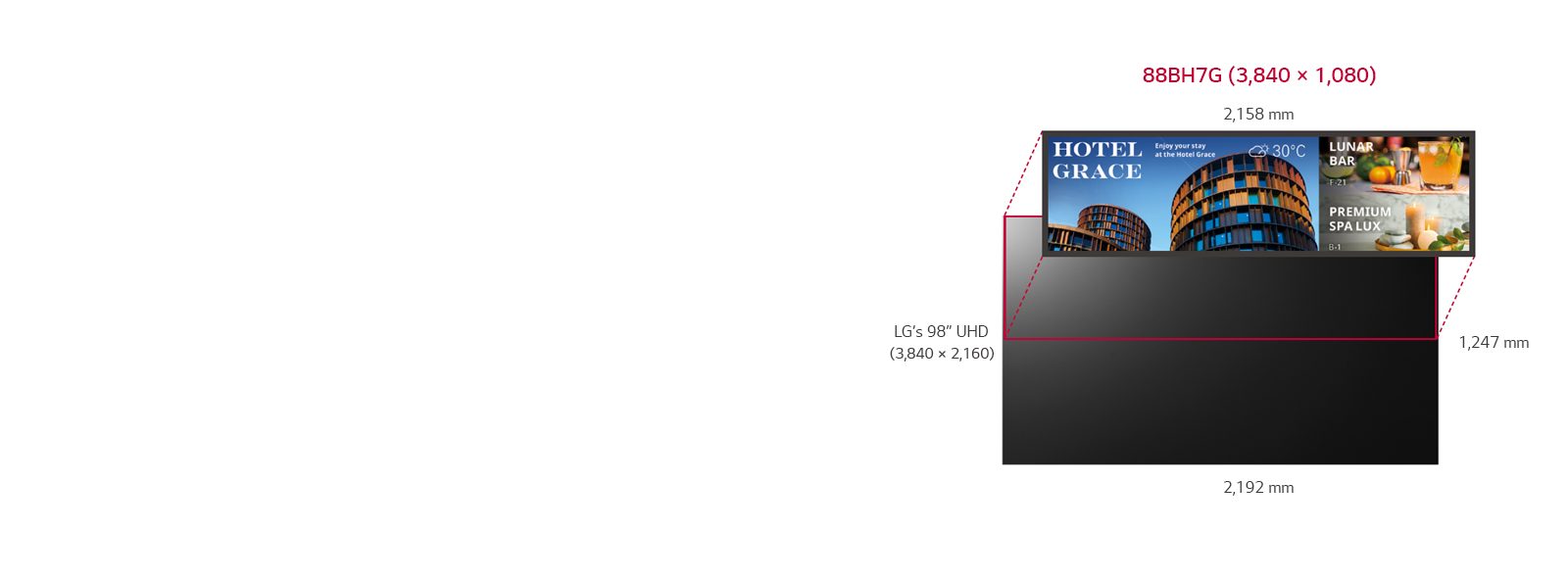

The size and resolution of the 88BH7G are about half the size of LG's 98" UHD displays.

High Picture Quality (3,840 × 1,080)

LG Ultra Stretch display, which is about half the size of a 98-inch UHD display, delivers vivid and clear colors.

Bar type screens are attached to the wall in horizontal and vertical form to show the contents.

Flexibility for Content Management

Thanks to its bar type format, it is optimized to show a vertical or horizontal object providing a memorable viewing experiences to the viewer.

A bar type display is installed in a corporate lobby, showing four different contents simultaneously.

Multi Screen Mode with 4PBP

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful to deliver various advertisements or pieces of information at the same time without bezels among them.

The screen menu can be adjusted horizontally or vertically, and its GUI size changes accordingly.

User-friendly Menu

The Ultra Stretch display offers a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, menu can also be adjusted accordingly.

Several vertically long screens are tiled to show a single content to increase immersion.

Tiled Scene with Immersive View

The 88BH7G can show a tiled scene by up to 15×15 configuration. It will be a good way to build a large screen or provide visual impacts to customers differently.

Multiple displays are being managed at once through LAN daisy chain.

LAN Daisy Chain Management

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware for multiple displays at once.

An LG employee is remotely monitoring the 88BH7G installed in a different place.

Real-Time Monitoring with ConnectedCare

Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

Panel

Screen Size

88"

Panel Technology

IPS
Native Resolution

3,840 × 1,080

Brightness (Typ., nit)

700
Contrast Ratio

1,100:1

Dynamic CR

500,000:1
Color gamut

NTSC 72%

Viewing Angle (H x V)

178 x 178
Color Depth

1.07 Billion Colors (10 bit)

Response Time

8 ms (G to G)
Surface Treatment (Haze)

3%

Lifetime

50,000 Hrs (Typ.)
Operation Hours (Hours / Day)

24 / 7

Portrait / Landscape

Yes / Yes

Connectivity

Input

HDMI (3, HDCP 2.2 / 1.4), DP (HDCP 2.2 / 1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2)

Output

DP, Audio
External Control

RS232C In / Out, RJ45 (LAN) In / Out, IR In

Mechanical Specification

Bezel Color

Black

Bezel Width

4.4 mm (R/L), 5.9 mm (T/B)
Weight (Head)

33.9 kg

Monitor Dimensions (W × H × D)

2,158.3 x 611.2 x 84.8 mm
Handle

Yes

VESA™ Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature Range

0 °C to 40 °C

Operation Humidity Range

10 % to 80 %

Power

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

450 W / 530 W

BTU (British Thermal Unit)

1,535 BTU/Hr (Typ.), 1,808 BTU/Hr (Max.)

Standard(Certification)

Safety

CB, NRTL

EMC

FCC Class "A" / CE / KC
ErP

Yes

Media Player Compatibility

OPS type compatible

Yes (Piggyback)

OPS Power Built In

No

Software Compatibility

SuperSign CMS

Yes

SuperSign Control / Control+

Yes
SuperSign WB

Yes

SuperSign Media Editor

Yes
LG ConnectedCare

Yes * The availability can differ by region.

Accessory

Basic

Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR / Light Sensor Receiver, Manual

Optional

OPS Kit (KT-OPSF)

Dimension
- 88bh7g_2d.dwg
- 88bh7g_2d.pdf
Datasheet
- 88BH7G_Datasheet(web)_LG Ultra Stretch Signage_0127.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
