98UH5E-B component-copyModelName

98'' 500 nits 120 Hz UHD Signage

LG 98'' 500 nits 120 Hz UHD Signage, 98UH5E-B, thumbnail 1

LG 98'' 500 nits 120 Hz UHD Signage, 98UH5E-B, thumbnail 2

LG 98'' 500 nits 120 Hz UHD Signage, 98UH5E-B, thumbnail 3

LG 98'' 500 nits 120 Hz UHD Signage, 98UH5E-B, thumbnail 4

LG 98'' 500 nits 120 Hz UHD Signage, 98UH5E-B, thumbnail 5

LG 98'' 500 nits 120 Hz UHD Signage, 98UH5E-B, thumbnail 6

LG 98'' 500 nits 120 Hz UHD Signage, 98UH5E-B, thumbnail 7

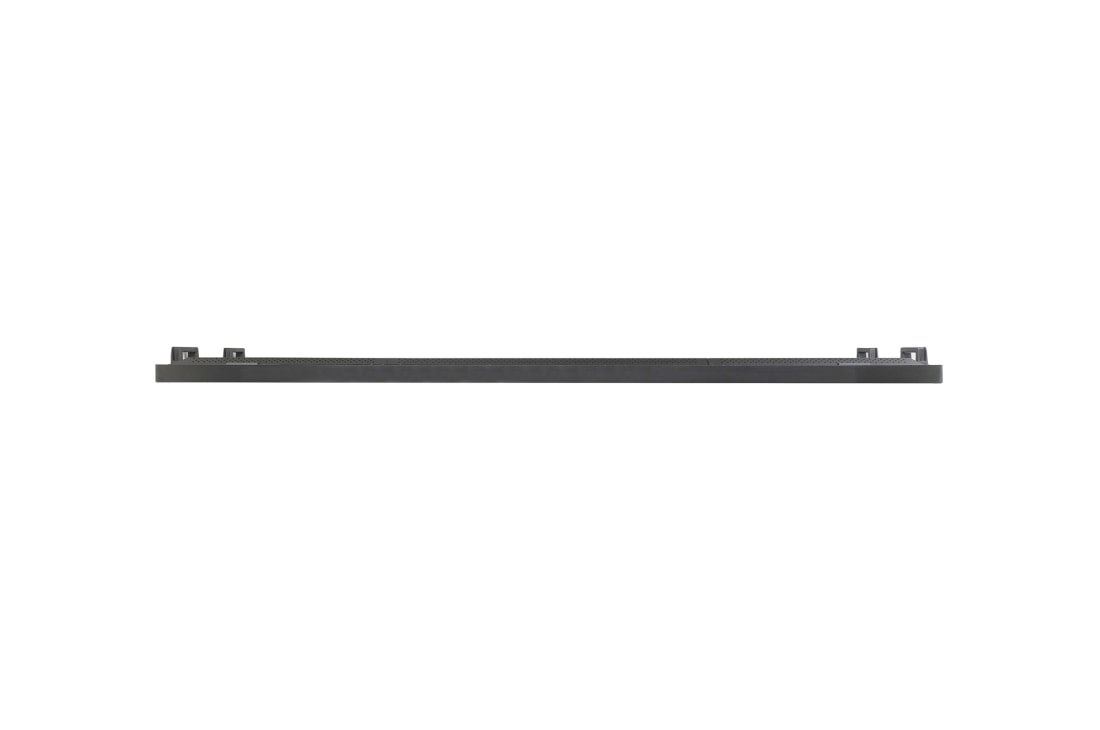

LG 98'' 500 nits 120 Hz UHD Signage, 98UH5E-B, thumbnail 8

Discontinued

98UH5E-B component-copyModelName

98'' 500 nits 120 Hz UHD Signage

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 14.9 mm (Even, Off-Bezel)
Depth : 69.4 mm (without Handle)
Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker Out

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 14.9 mm (Even, Off-Bezel)
Depth : 69.4 mm (without Handle)
Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker Out

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

98" 500 nits 120 Hz UHD Signage

Vibrant Colors and Powerful Performance Bring Content

With superb picture quality and cutting-edge intelligence, the UH5E series enlivens colors without the aid of peripherals. Its quality and brightness are enough to capture the attention of passersby. Moreover, its convenient advanced usability allows users to effortlessly control and manage the display.

Superior Picture Quality

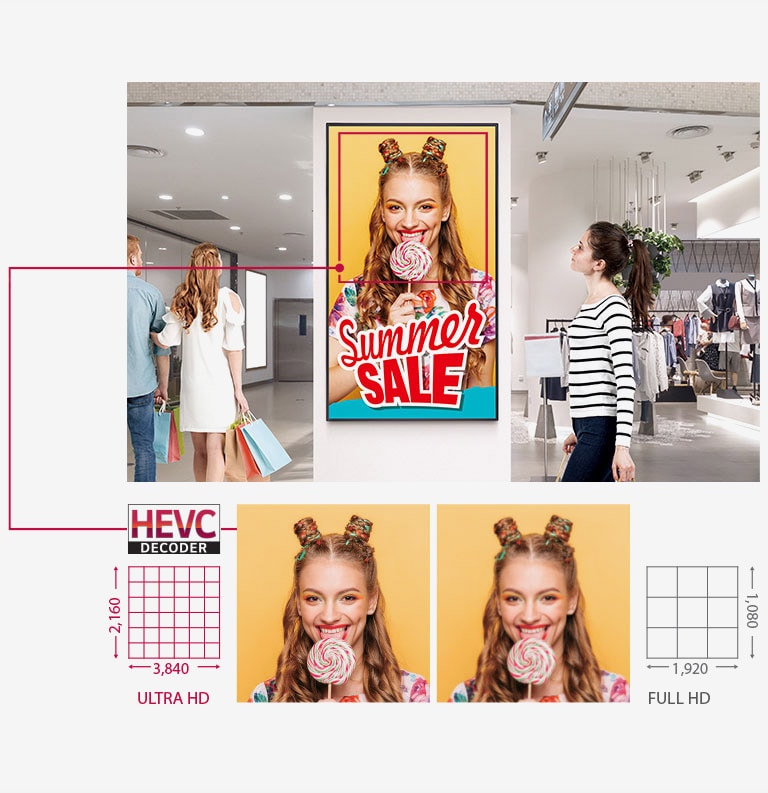

True Color, Immersive View

The UH5E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.
Vivid Color Details with Ultra HD

The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UH5E ensures stable UHD video playback with HEVC^{(High Efficiency Video Coding)}.

Powerful webOS Smart Signage Platform

Easy Content Management

The embedded CMS^{(Content Management System)} allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier

Powerful webOS Smart Signage Platform

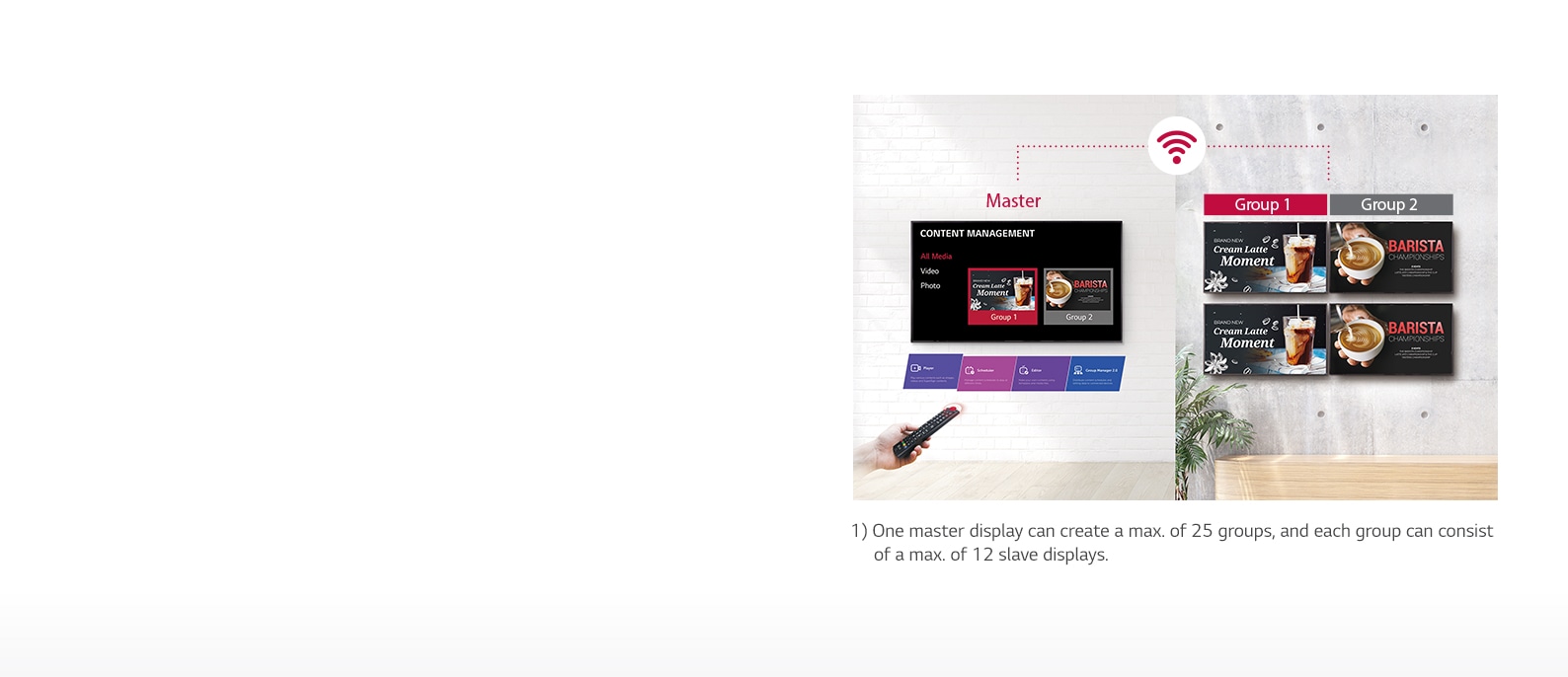

Simple Group Management

The embedded Group Manager makes a master display work as a server and manage other displays¹⁾ connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.

Powerful webOS Smart Signage Platform

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Powerful webOS Smart Signage Platform

Multi Screen Mode

PBP^{(Picture-By-Picture)} features multi screen in a single display with upto 4 input sources while PIP^{(Picture-In-Picture)} supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.

Easy Maintenance

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and
rapidly respond to emergency situations anywhere.

Easy Maintenance

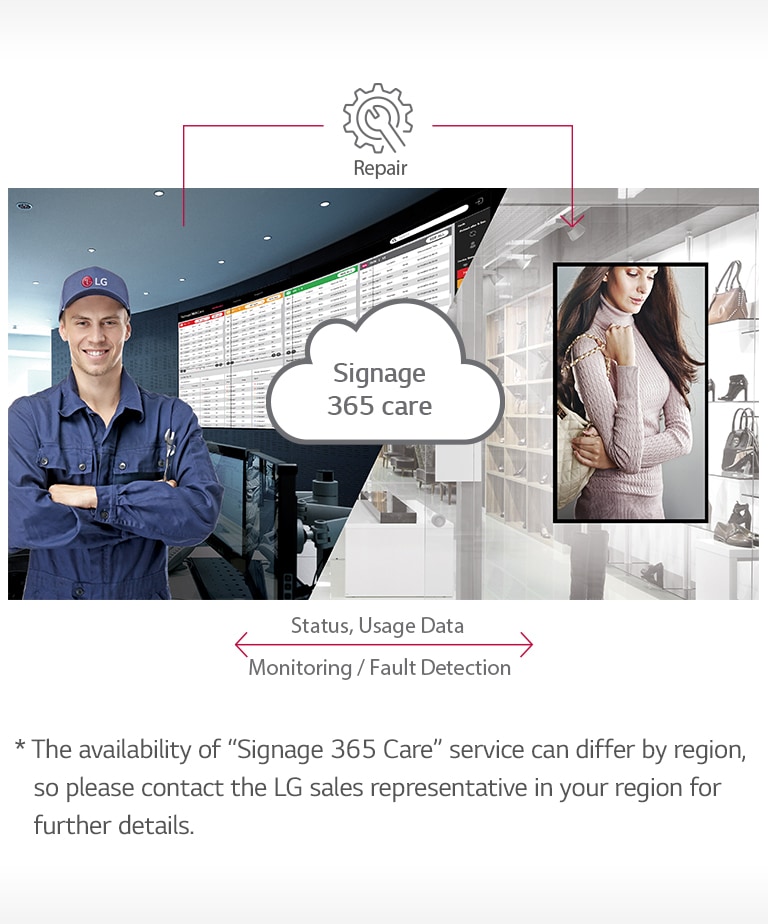

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

Wireless Solution

Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and BLE^{(Bluetooth Low Energy)}, shop managers can provide coupons and information in real-time.

Wireless Solution

Wireless Access Point

The UH5E series operates as a virtual router which can be an wireless access point for mobile devices.

High Compatibility

Compatibility with AV Control System

The UH5E series has been certified Crestron Connected^Ⓡ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control¹⁾, boosting business management efficiency.

Compatibility with Video Conference System1

High Compatibility

Compatibility with Video Conference System

For the optimum visual meeting, the UH5E has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control¹⁾ for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.

Space-efficient Design

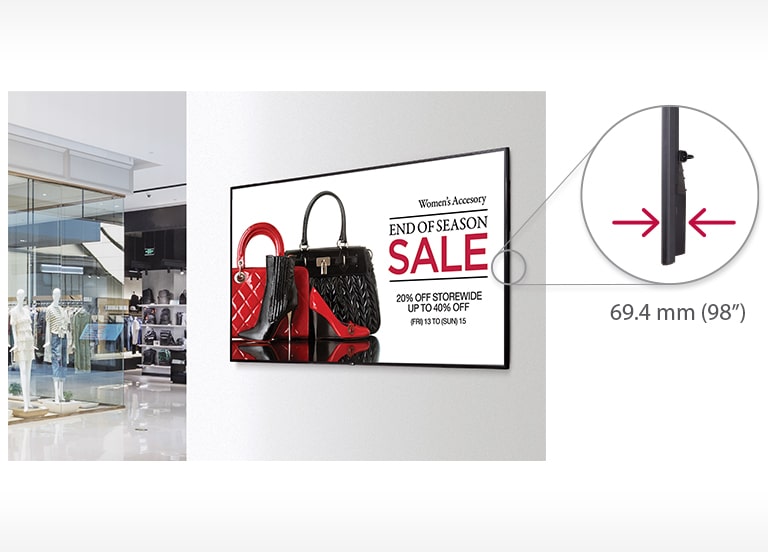

Slim and Tidy in Appearance

Although UH5E series is a large-sized display, the product still has a slim depth, a feature that allows easy installation by using less space. An immersive view is attained while maintaining a sleek look.

Space-efficient Design

Detachable Logo & Built-in Speaker

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers¹⁾, giving advertisements greater impact.

Panel

Screen Size

98"

Resolution

3,840 x 2,160 (UHD)
Brightness(Typ.,cd/m²)

500

Viewing Angle (H x V)

178 x 178
Life Time (Typ.)

50,000 Hrs

Operation Hours

24 Hrs
Orientation

Portrait & Landscape

Connectivity

Input

HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

Output

DP, Audio (Off/Fixed/Variable), External Speaker
External Control

RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In

Mechanical Specification

Bezel Width

14.9 mm (Even) * Off-Bezel

Monitor Dimensions (W × H × D)

2,191.8 x 1,246.8 x 69.4 mm (without Handle)
Weight (Head)

88 kg

Carton Dimensions (W × H × D)

2,342 x 1,386 x 402 mm
Packed Weight

123 kg

VESA™ Standard Mount Interface

800 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

420 W / 560 W

Smart Energy Saving

294 W

Certification

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS type compatible

No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control/Control+

Accessory

Basic

Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT

Optional

Speaker (SP-2200)

General

Region

Global

Dimension
- [Dimension]98UH5E.dwg
- [Dimension]98UH5E.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
