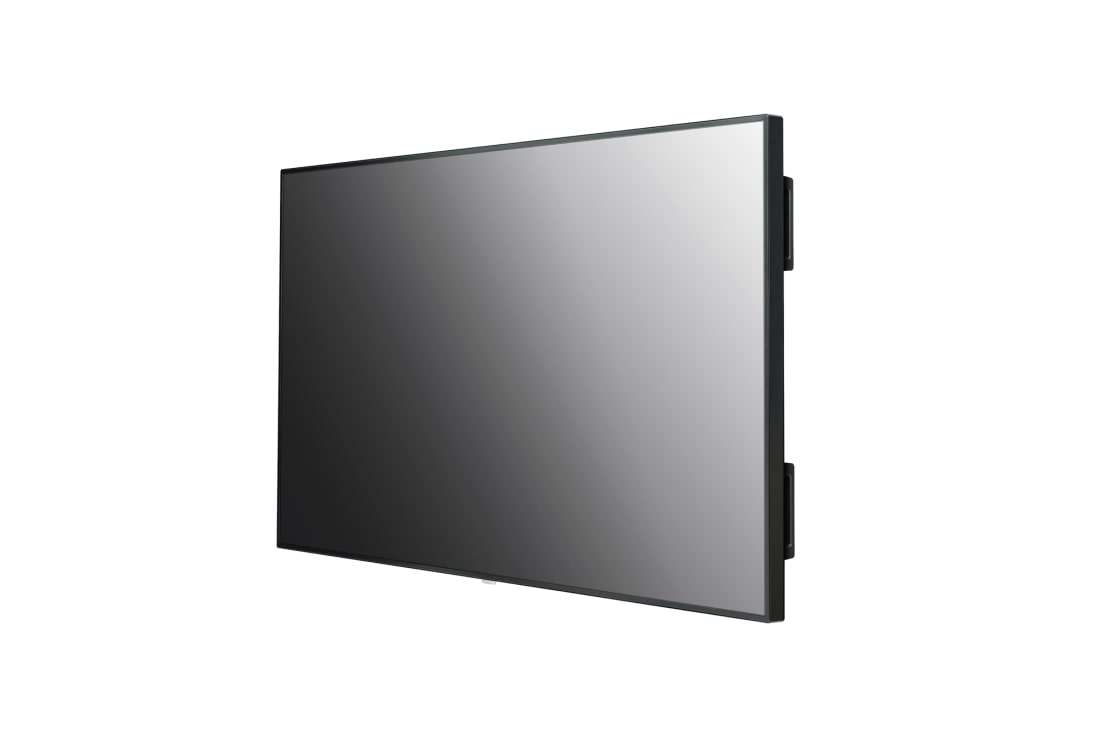

LG 98'' 350 nits UHD Signage, 98UM3F-B, thumbnail 3

LG 98'' 350 nits UHD Signage, 98UM3F-B, thumbnail 4

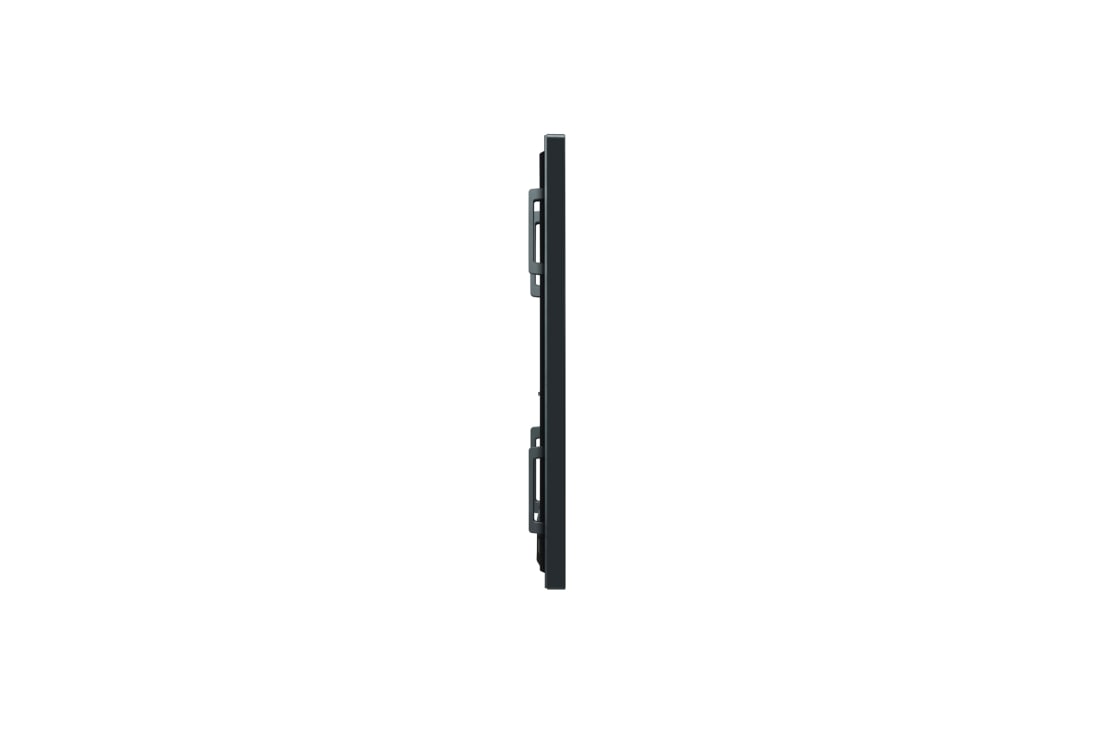

LG 98'' 350 nits UHD Signage, 98UM3F-B, thumbnail 5

LG 98'' 350 nits UHD Signage, 98UM3F-B, thumbnail 6

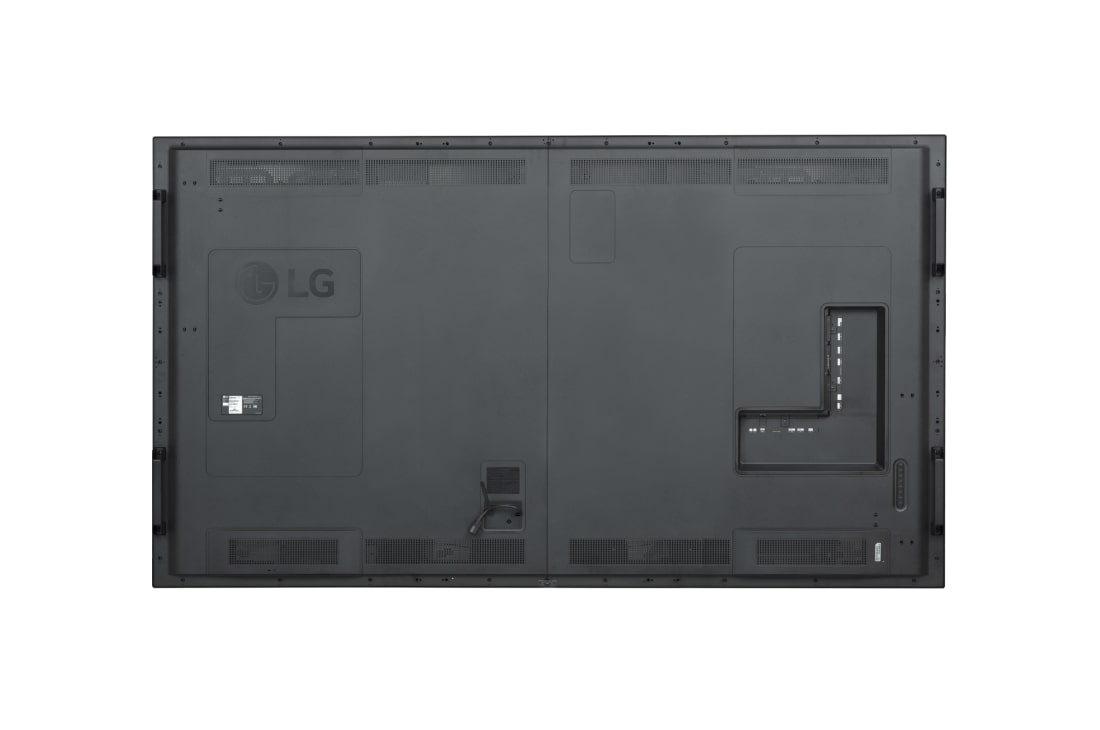

LG 98'' 350 nits UHD Signage, 98UM3F-B, thumbnail 7

LG 98'' 350 nits UHD Signage, 98UM3F-B, thumbnail 8

Discontinued

98UM3F-B component-copyModelName

98'' 350 nits UHD Signage

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 14.9 mm (Even, Off-Bezel)
Depth : 83.8 mm (without Handle)
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker and Detachable Logo

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 14.9 mm (Even, Off-Bezel)
Depth : 83.8 mm (without Handle)
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker and Detachable Logo

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

98'' 350 nits UHD Signage

LG UHD Signage Offers Optimum Vision for Meetings

With superb picture quality and slim design, the UM3F/E series provides optimal vision for various indoor environments. Its quality and performance capture the attention of conference goers.

98UM3F-B-02-ULTRA HD Resolution-Standard Premium-Digital Signage-ID_1573017971020

SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.

98UM3F-B-03-High Efficiency Video Coding-Standard Premium-Digital Signage-ID_1573018076177

SUPERB PICTURE QUALITY

High Efficiency Video Coding

The UM3F/E series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.

SLEEK AND PRACTICAL DESIGN

Slim Depth and Detachable Logo

Although the UM3F/E series is a large-sized display, the product still has a slim depth which allows easy installation by using less space. Also, the detachable logos give users flexibility to arrange the display.

SLEEK AND PRACTICAL DESIGN

Built-in Speakers

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

98UM3F-B-06-High-Performance with webOS-Standard Premium-Digital Signage-ID_1573018247847

webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

98UM3F-B-07-Various Sensor Applications-Standard Premium-Digital Signage-ID_1573018300430

webOS SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

98UM3F-B-08-Compatibility with AV Control System-Standard Premium-Digital Signage-ID_1573018358721

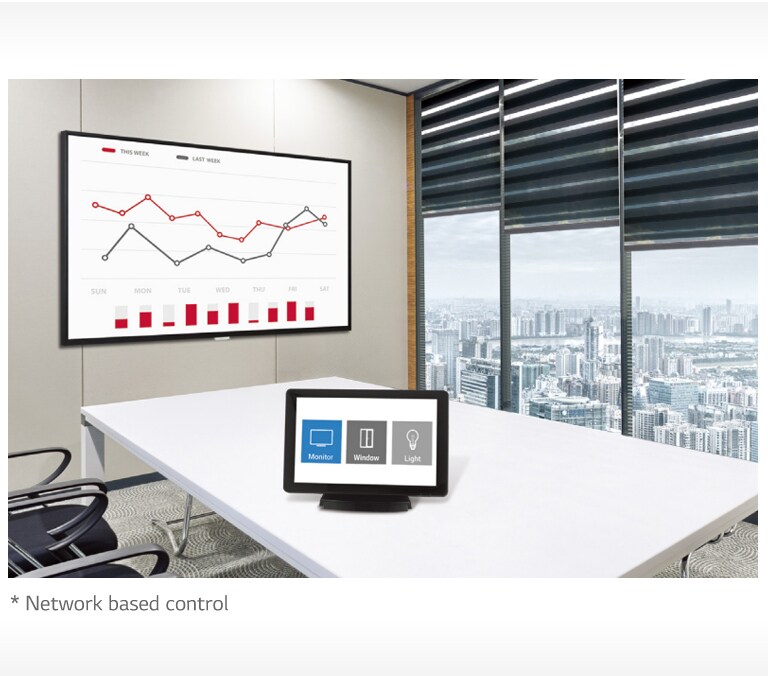

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UM3F/E series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

98UM3F-B-09-Compatibility with Video Conference System-Standard Premium-Digital Signage-ID_1573018422488

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UM3F/E series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

98UM3F-B-10-Multi Screen with PBP PIP-Standard Premium-Digital Signage-ID_1573018506590

USER CONVENIENCE

Multi Screen with PBP/PIP

PBP ^{(Picture-By-Picture)} features multi screen in a single display with up to 4 input sources while PIP ^{(Picture-In-Picture)} supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

98UM3F-B-11-Real-Time Monitoring Control-Standard Premium-Digital Signage-ID_1573018574973

USER CONVENIENCE

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UM3F/E series displays in different locations in real-time. It is available on internetconnected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

USER CONVENIENCE

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and BLE^{(Bluetooth Low Energy)}, shop managers can provide coupons and information in real-time.
Wireless Access Point

The UM3F/E series operates as a virtual router which can be a wireless access point for mobile devices.

Panel

Screen Size

98"

Panel Technology

IPS
Aspect Ratio

16 : 9

Native Resolution

3,840 x 2,160 (UHD)
Refresh Rate

120 Hz

Brightness(Typ.,cd/m²)

350
Contrast Ratio

1,300:1

Viewing Angle (H x V)

178 x 178
Response Time

8ms (G to G)

Surface Treatment (Haze)

Haze 1%
Life Time (Typ.)

50,000 Hrs

Operation Hours

24Hrs
Orientation

Portrait & Landscape

Connectivity

Input

HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

Output

DP, Audio (Off/Fixed/Variable)
External Control

RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In

Mechanical Specification

Bezel Color

Black

Bezel Width

14.9 mm (Even) * Off-Bezel
Monitor Dimensions (W × H × D)

2,191.8 x 1,246.8 x 83.8 mm (without Handle and Logo)

Weight (Head)

81.1 kg
Carton Dimensions (W × H × D)

2,354 x 1,386 x 420 mm

Packed Weight

119 kg
Handle

Yes

VESA™ Standard Mount Interface

800 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ. / Max.

315 W / 415 W

Smart Energy Saving

220.5 W

Sound

Speaker

Built-in (10W×2)

Certification

Safety

CB / NRTL

EMC

FCC Class “A” / CE / KC
ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS type compatible

No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control/Control+

Accessory

Basic

Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, Eye-bolt

Optional

No

General

Region

Global

Dimension
- 98UH5F_98UM3F_2D_Drawing.dwg
- 98UH5F_98UM3F_2D_Drawing.pdf
Datasheet
- 98UM3F_86-75UM3E_Datasheet(low)_LG UHD Signage_200313.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
